WARRANTY

  • 30 days return policy
  • 24 month product warranty
  • Free consultation
  • 30 days return policy
  • 24 month product warranty
  • Free consultation

Distance between centers
850 mm
Taper of tailstock sleeve
MT 3
Travel of tailstock sleeve
120 mm
Weight approx.
1255 kg
Motor power
3,0 / 4,5 kW
Center height
200 mm
Swing over bed
400 mm
Swing over cross slide
245 mm
Spindle bore
52 mm
Spindle nose fixture
DIN 55029, D1-5
Speed Range
(16) 45 – 1800 rpm
Longitudinal feed
(20) 0,025 - 2 mm/rev.
Cross feed
(20) 0,012 - 1 mm/rev.
Metric thread
(26) 0,2 - 14 mm
Inch thread
(42) 1 - 80 threads/1“

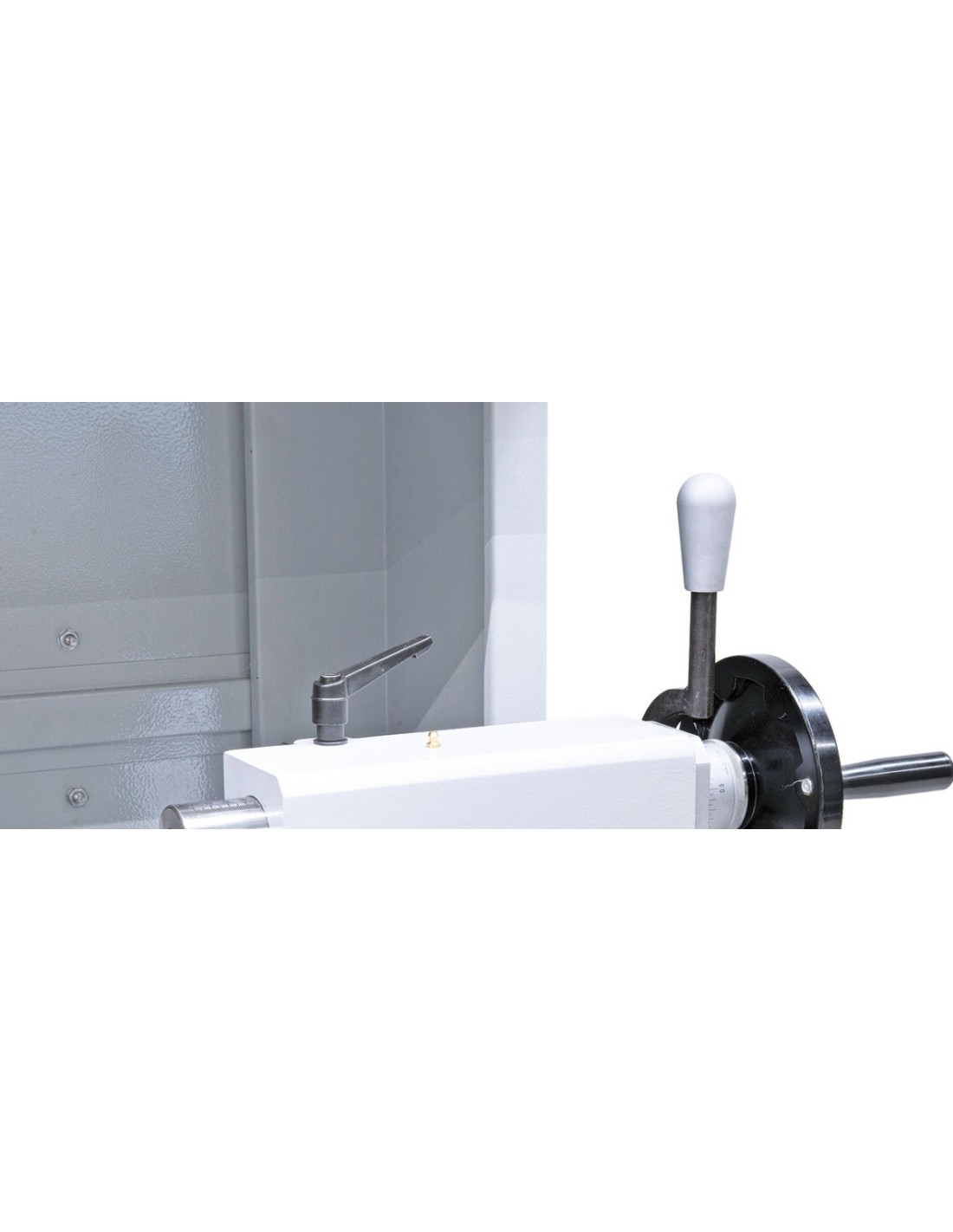

Diameter of tailstock sleeve
50 mm
Machine dimension (W x D x H)
1900 x 1000 x 1610 mm
Bed width
260 mm

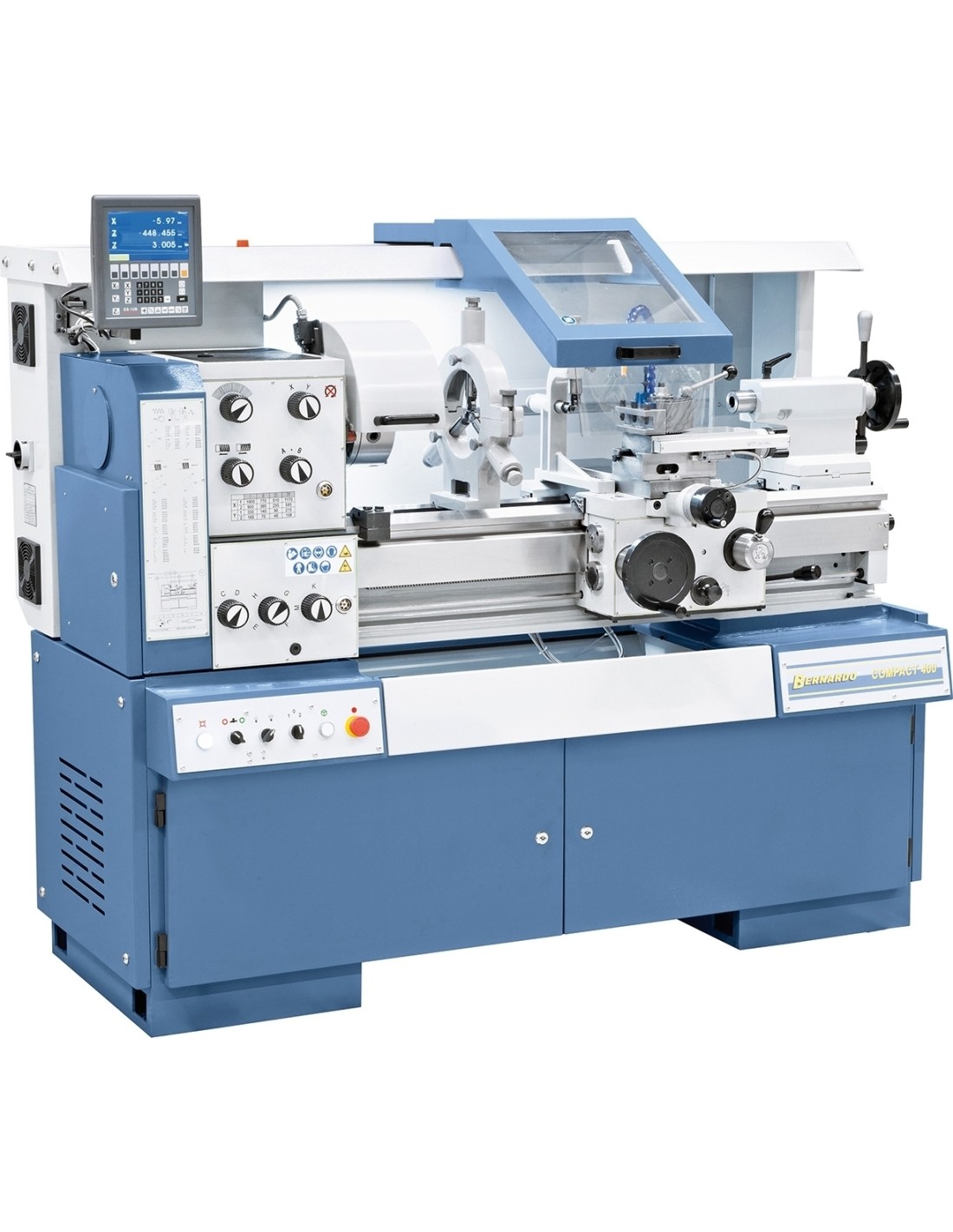

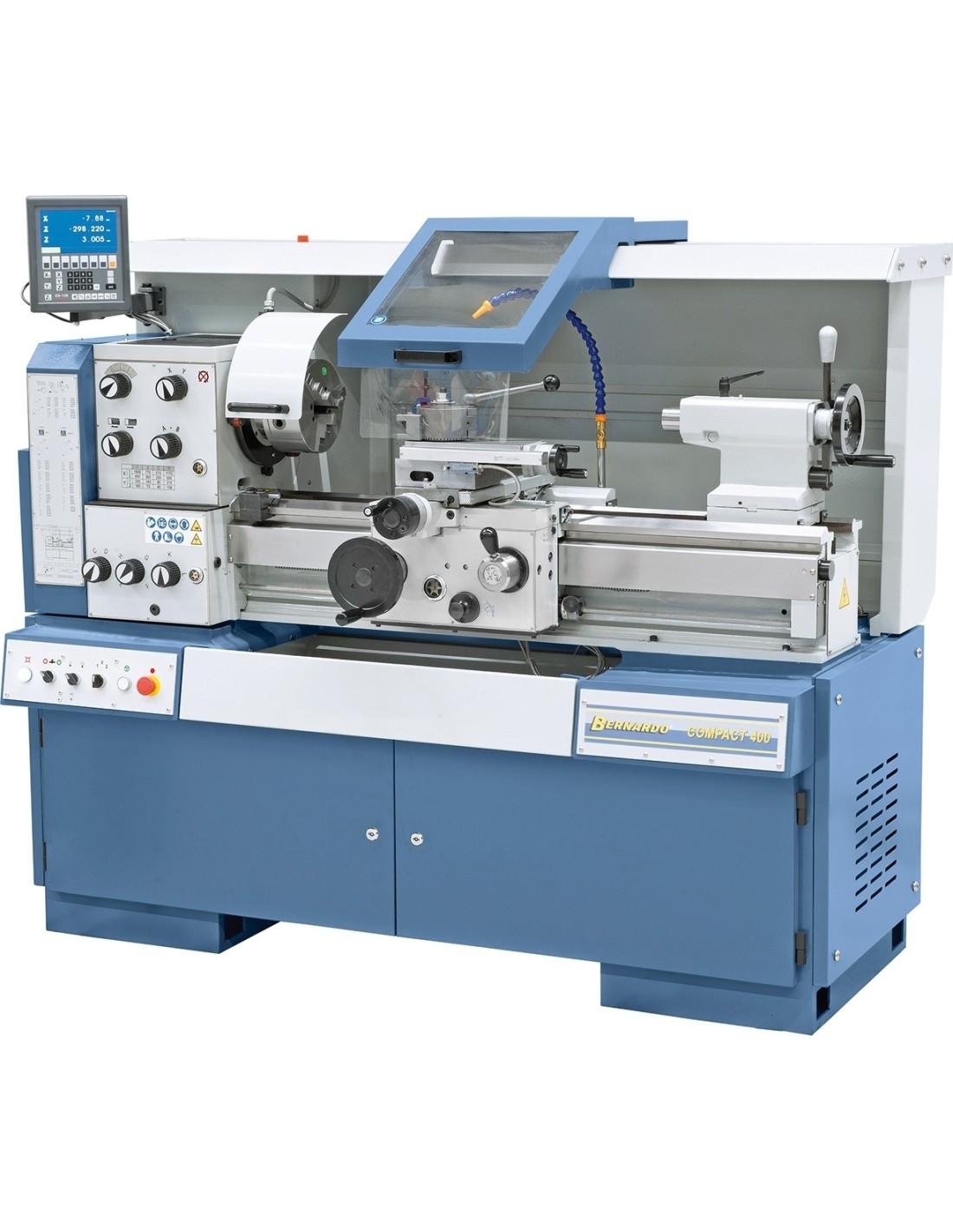

Universalios tekinimo staklės Bernardo Compact 400

1055595
€18,784.00
Tax included

Stock Quantity:
In S01 store
not available
In S02 store
not available
In Supplier store
(5+ pcs)
Delivery terms:
NEMOKAMAI atsiimkite thursday, december 5 d., parduotuvėje, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 1255 kg.

Description

Properties

  • Rigid prism-shaped bed features additional reinforcements to keep vibrations to a minimum
  • Various possible applications in general machine construction, production, single part manufacturing etc.

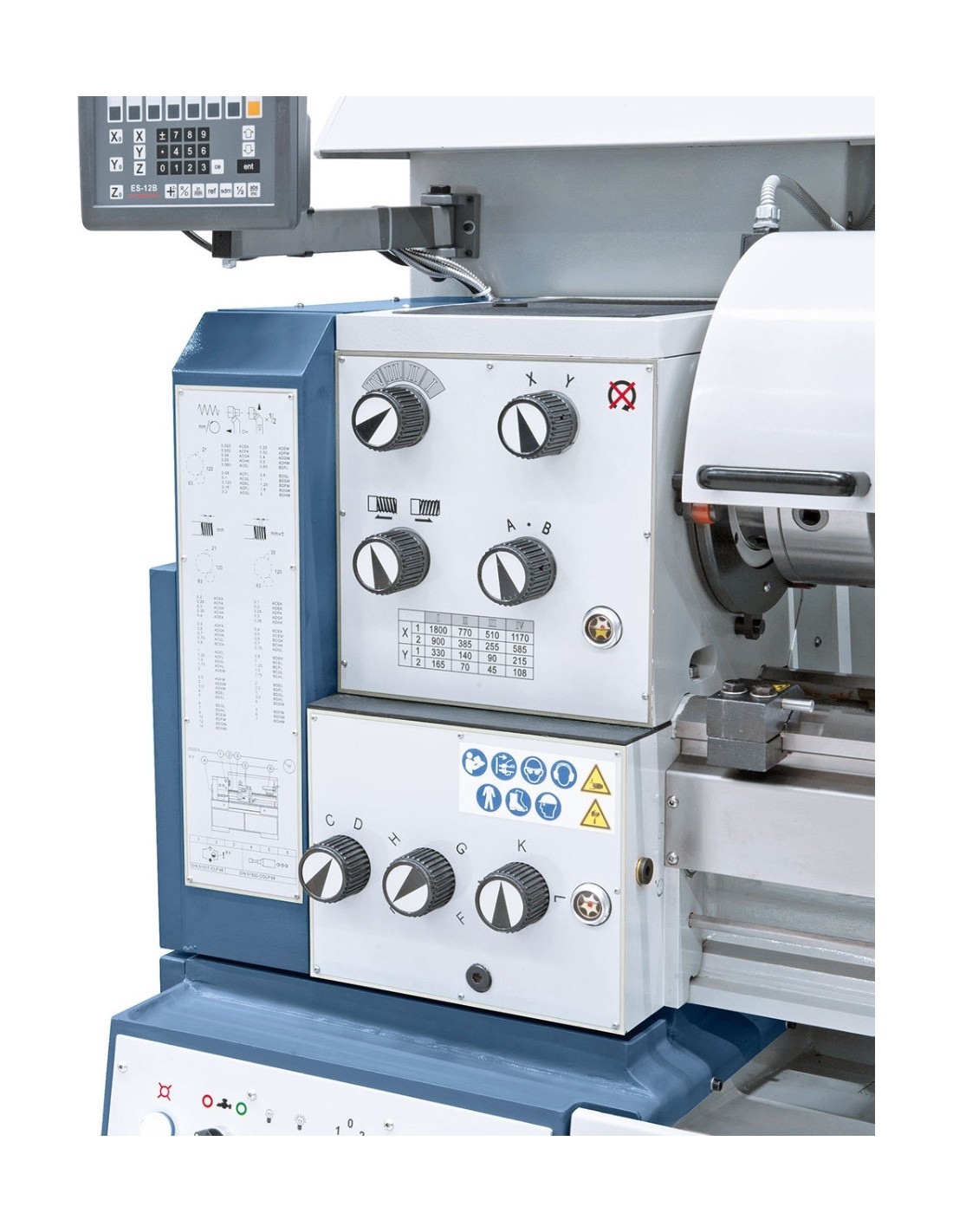

  • Easy, smooth and precisely adjustable speed and feed settings
  • Modern bearing of main spindle with angular ball bearing in precision construction
  • Hardened and ground gears and shafts, even in feed gear unit
  • Central and easy coupling of feeds and threads with leadscrew and feed rod
  • The machine bed is made of one piece, it is buckling resistant and vibration-free which enables precise turning
  • Chip tray extracts to front, keeping space requirements to a minimum
  • 52 mm spindle bore to machine large shaft diameters comes standard

Standard accessories

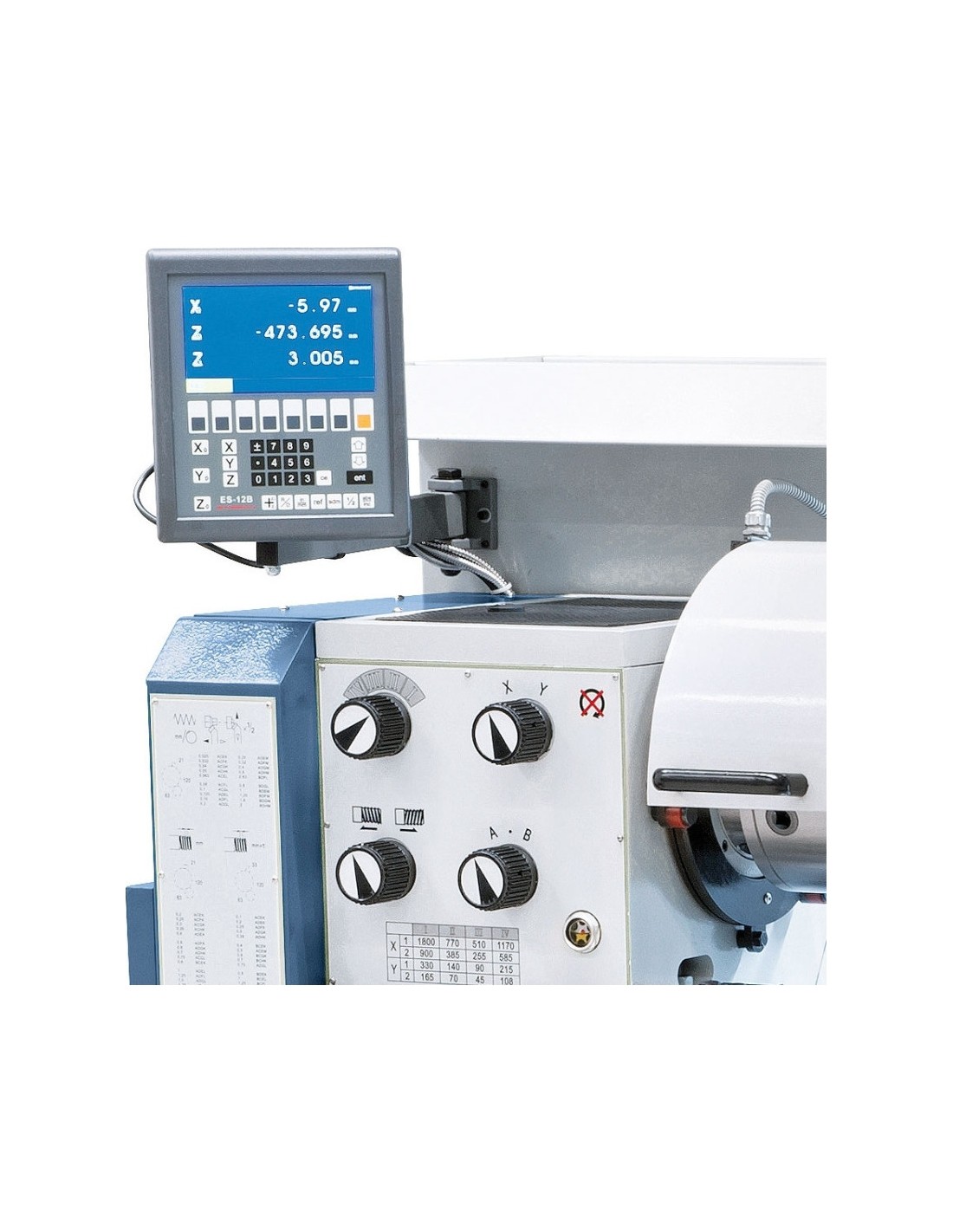

  • 3-axis digital readout ES-12 V with LCD display

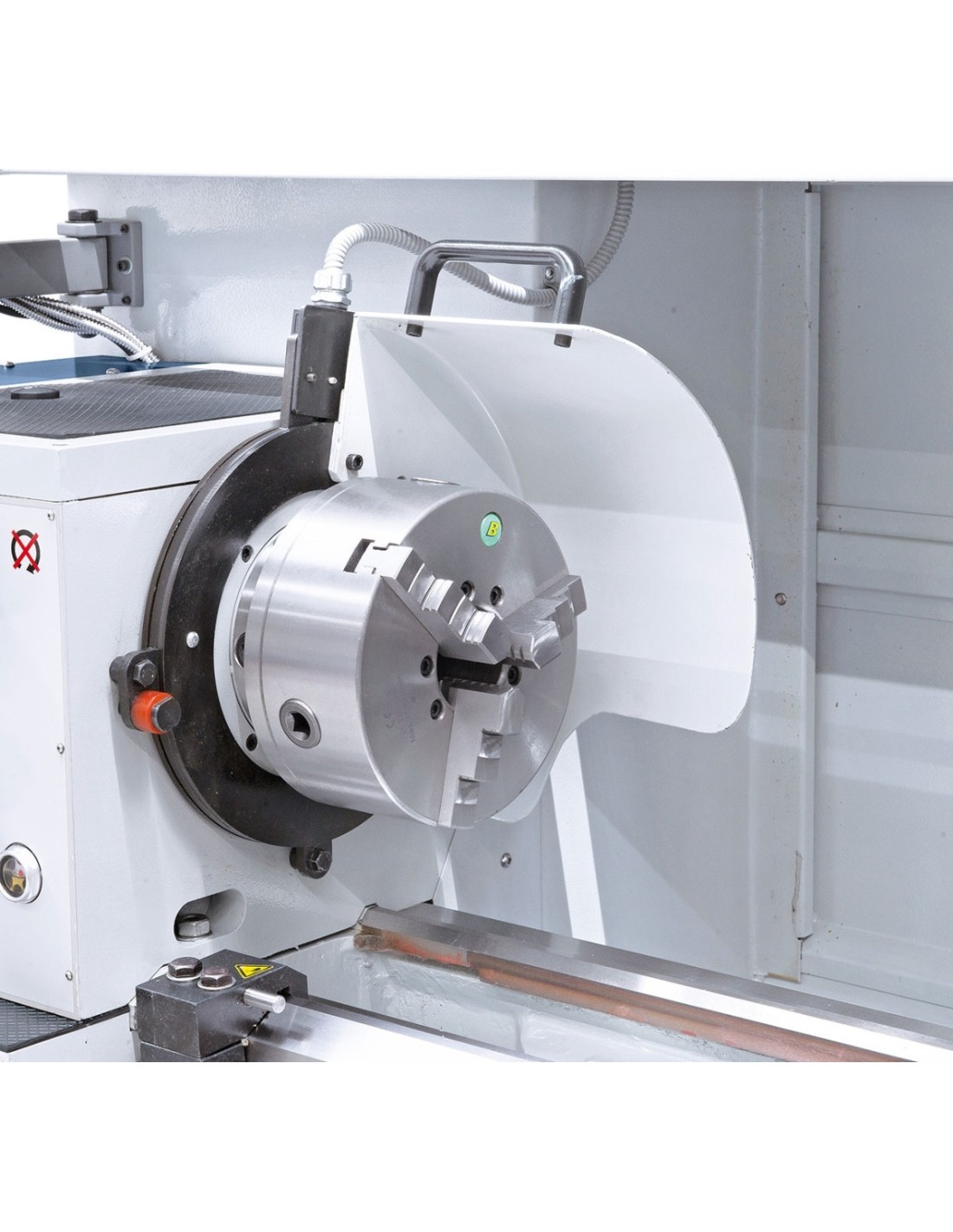

  • 3-jaw chuck PS3-200 mm / D5
  • Face plate 320 mm

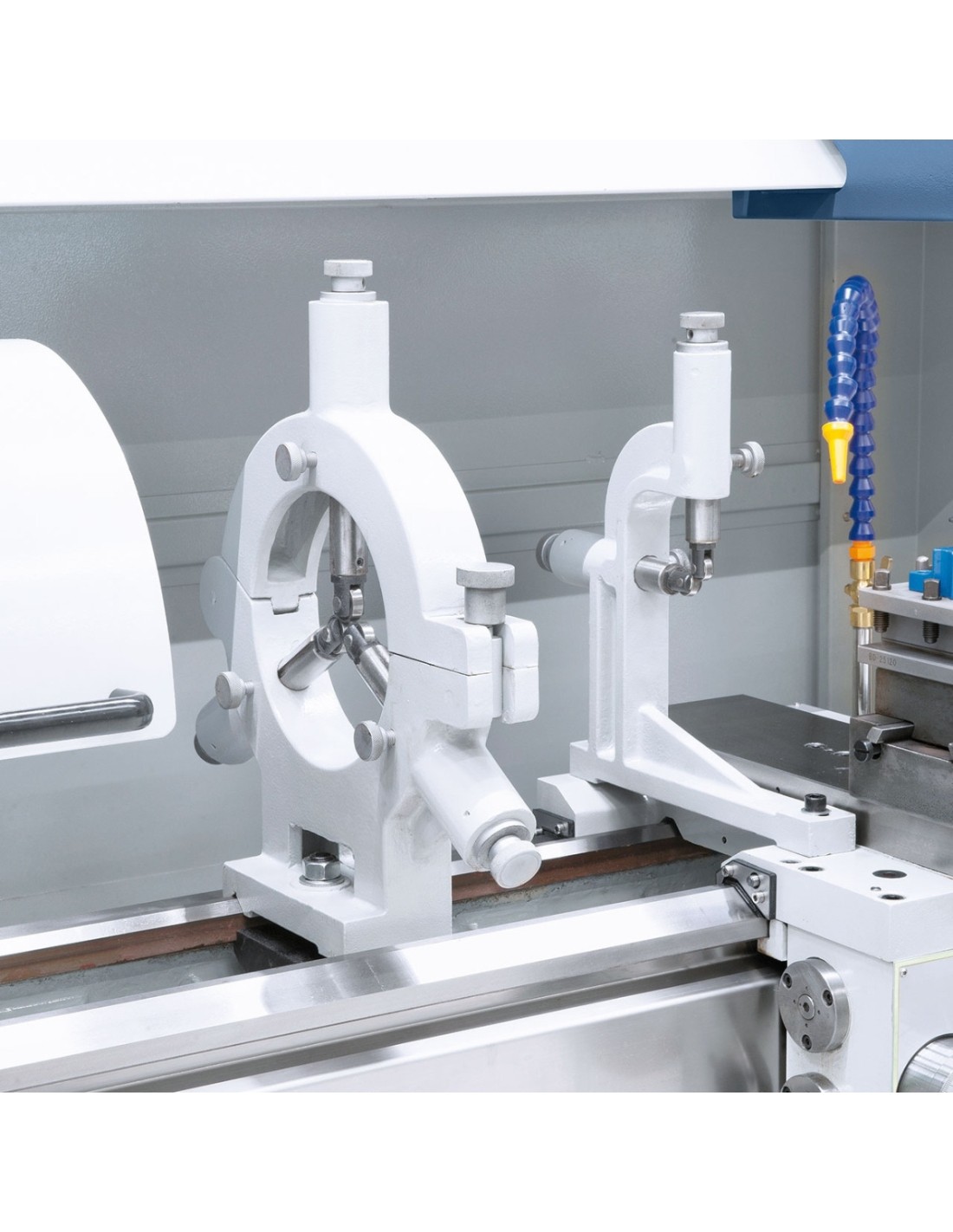

  • Steady rest - Passage up to max. 130 mm
  • Follow rest - Passage up to max. 100 mm
  • Coolant device

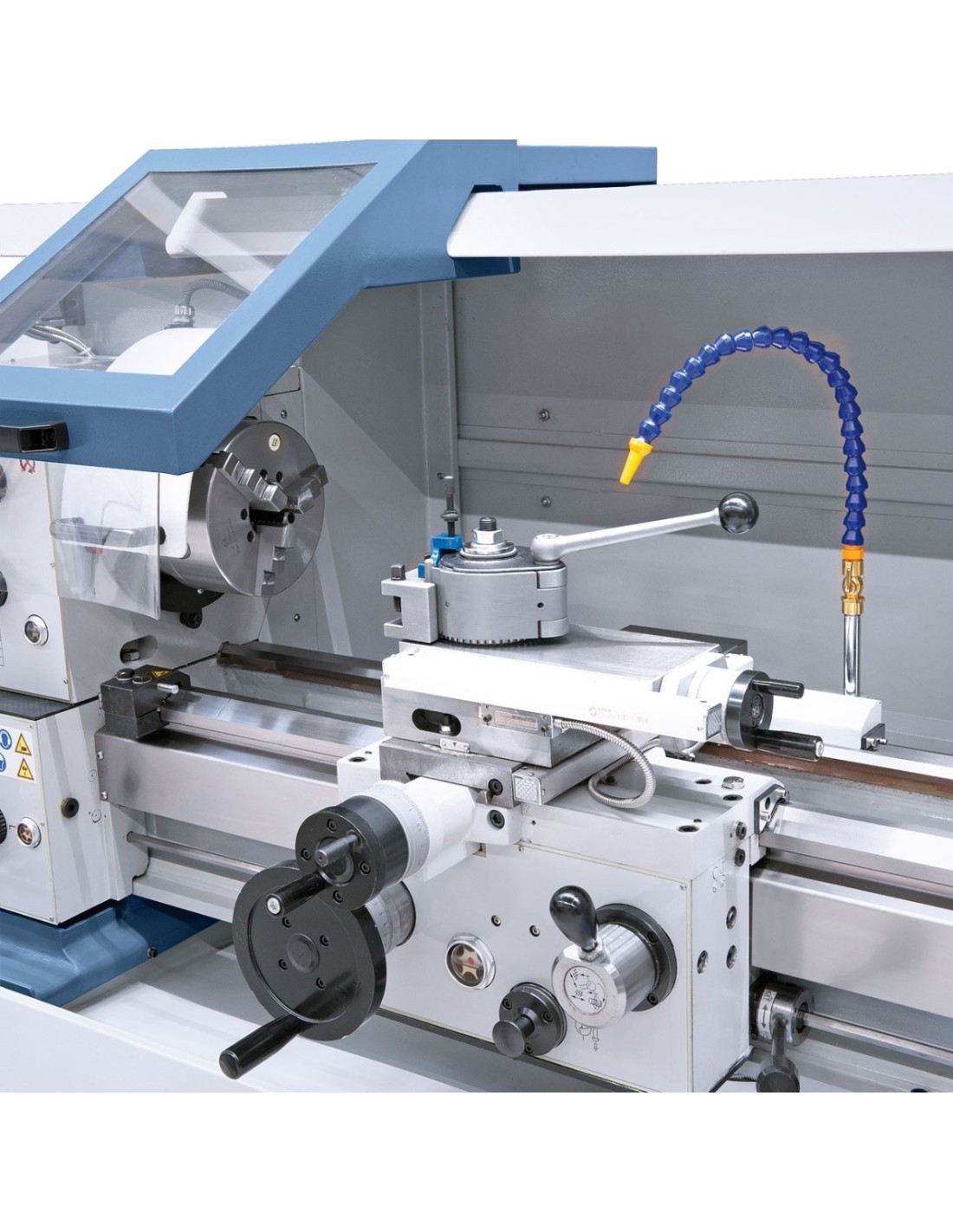

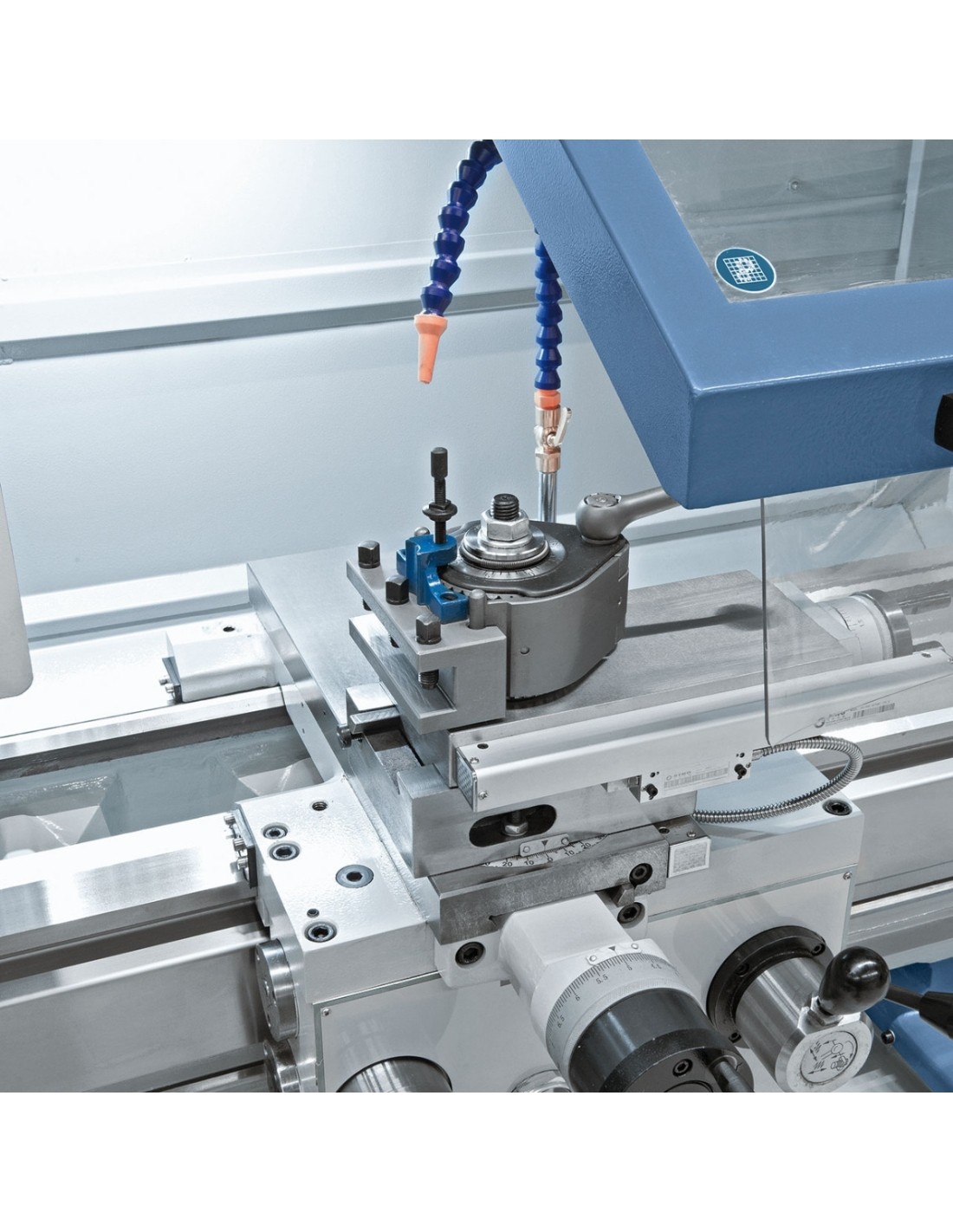

  • 40 pos. tool post and holder set with 4 inserts
  • Protective device at tool holder

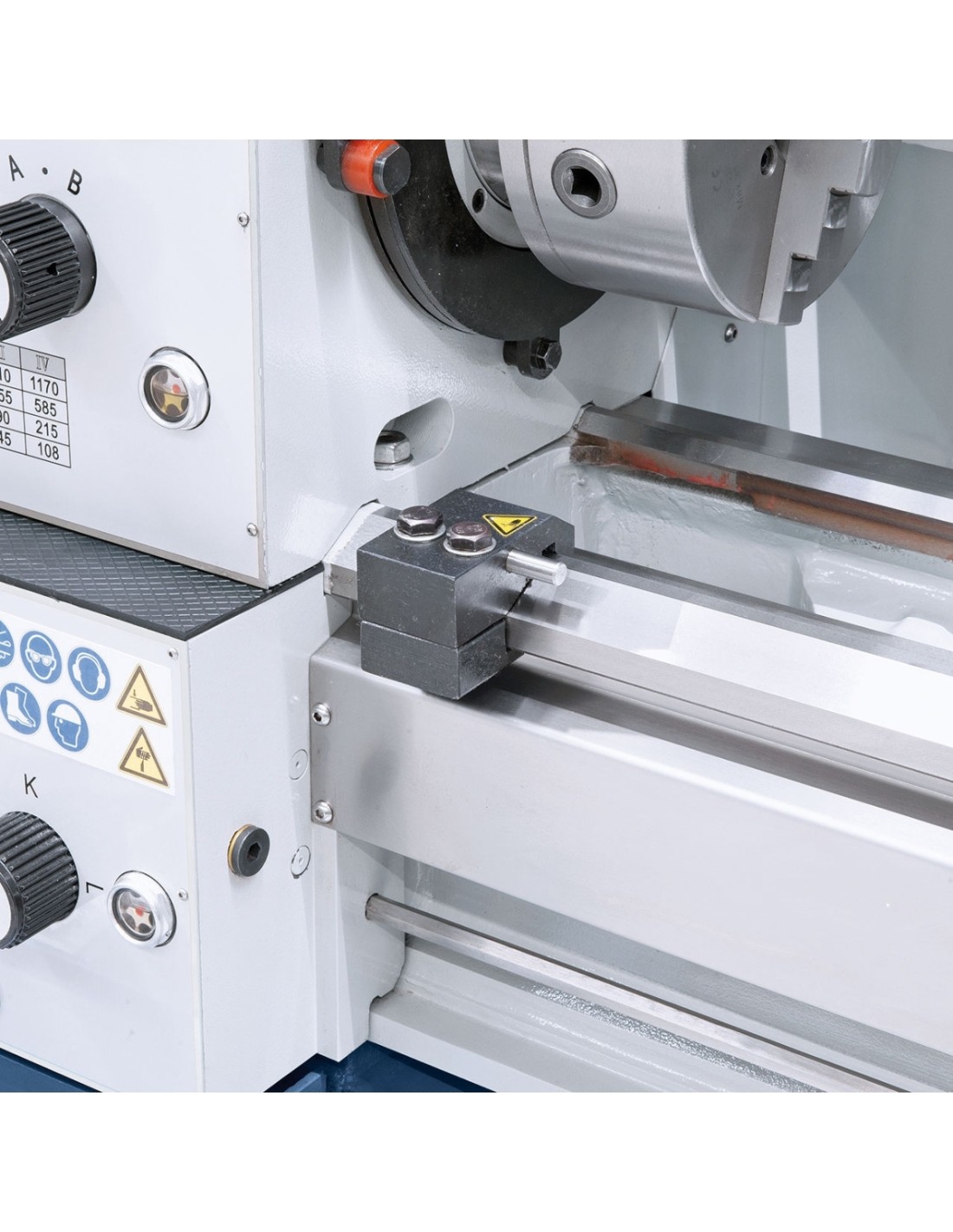

  • Micrometer longitudinal fence
  • Safety clutch
  • Motor with magnetic brake according to CE
  • Inital filling with Shell Tellus 46

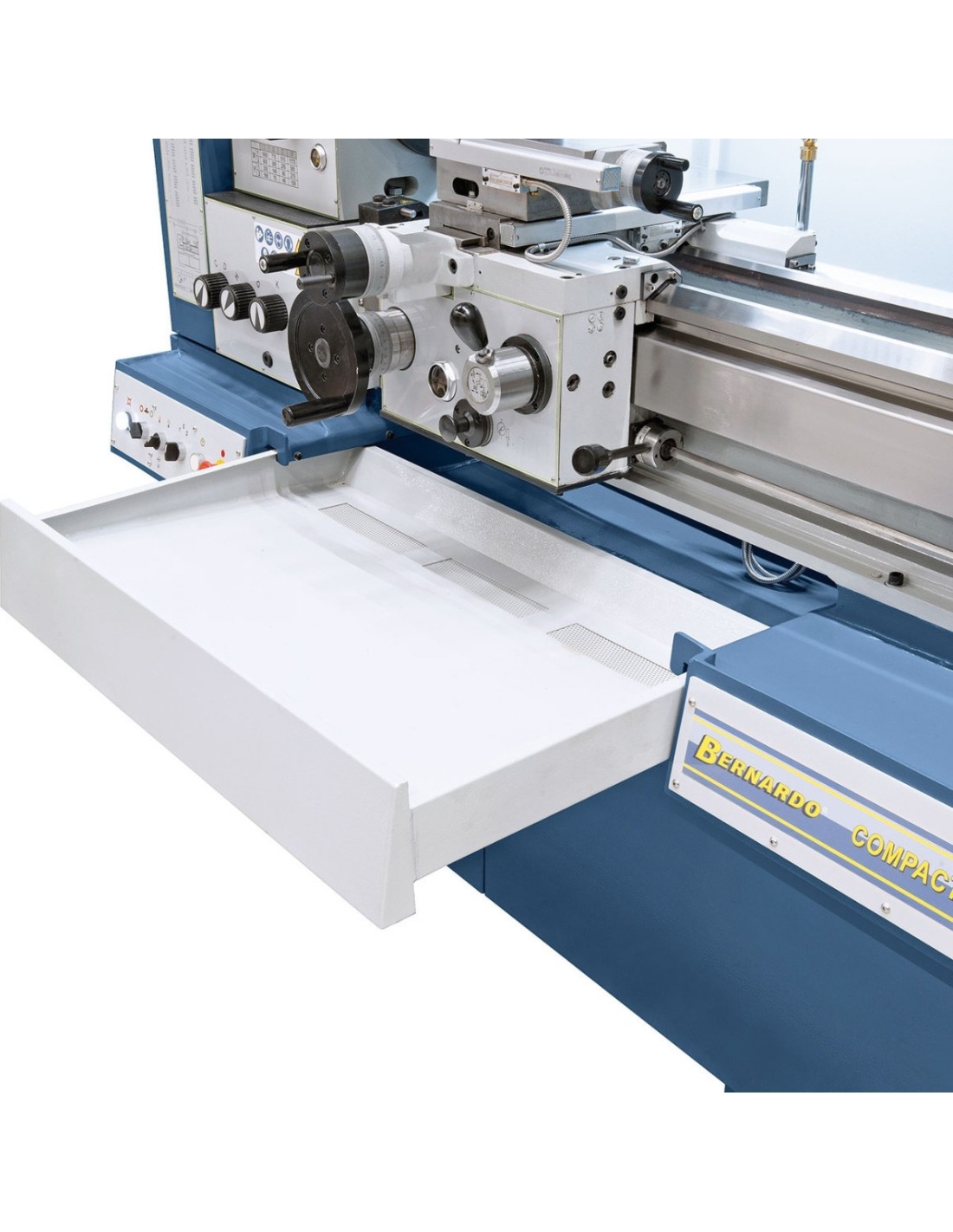

  • Extractable chip tray
  • LED machine light

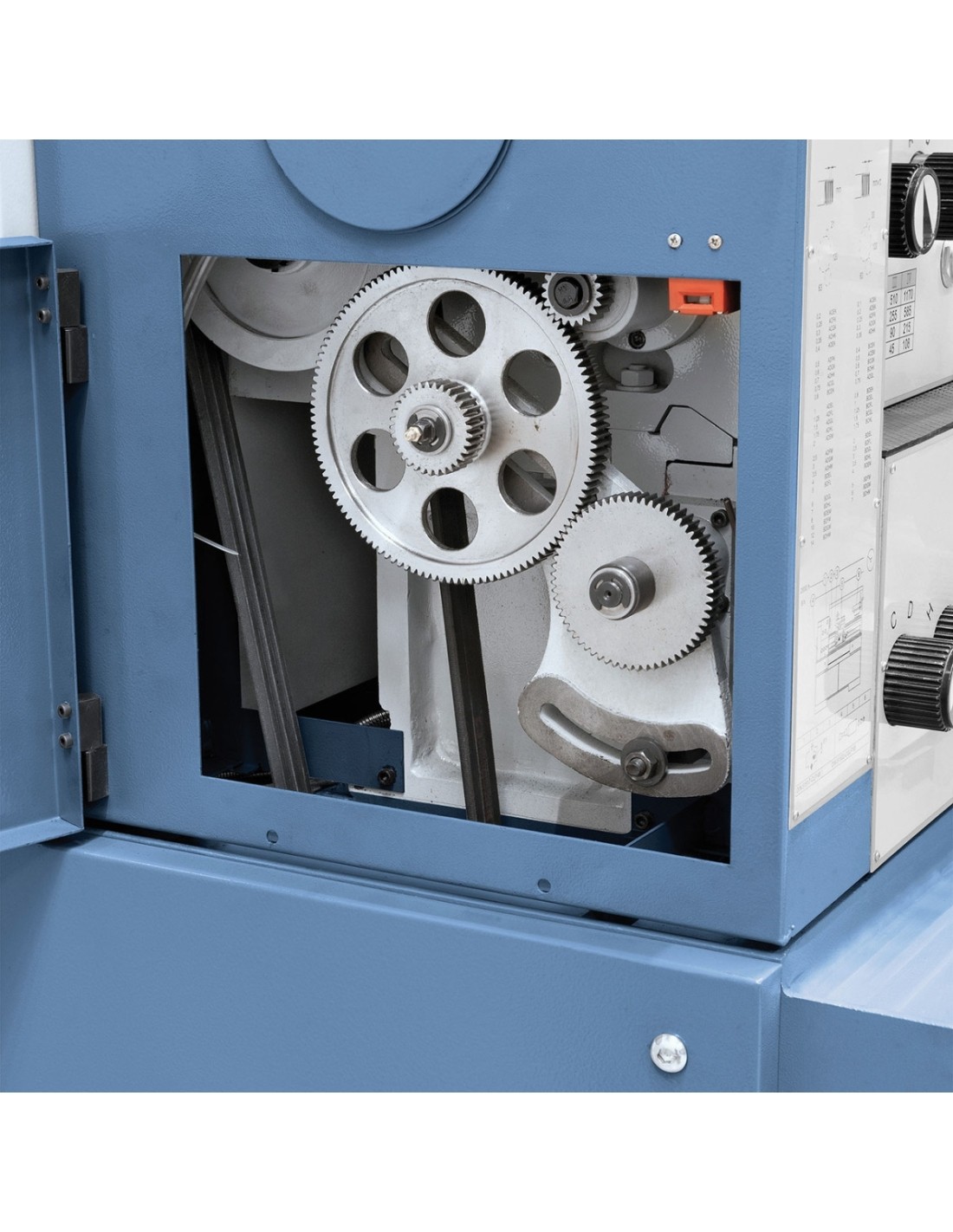

  • Change gears
  • Morse taper drill sleeve
  • 2 dead centers
  • Splash guard
  • Tools
