Distance between centers
1000 mm
Taper of tailstock sleeve
MT 4
Travel of tailstock sleeve
110 mm
Weight approx.
540 kg
Center height
180 mm
Swing over bed
360 mm
Swing over gap*
480 mm
Swing over cross slide
220 mm
Spindle bore
51 mm
Spindle nose fixture
DIN 55029, D1-5
Speed Range
(8) 70 - 2000 rpm
Longitudinal feed
(32) 0,052 - 1,392 mm/rev.
Cross feed
(32) 0,014 - 0,380 mm/rev.
Metric thread
(26) 0,4 - 7,0 mm
Inch thread
(34) 4 - 56 threads/1“
Diameter of tailstock sleeve
42 mm
Machine dimension (W x D x H)
1920 x 750 x 1600 mm
Motor power output S1 100%
1,5 kW / 400 V
Motor power input S6 40%
2,2 kW / 400 V
Bed width
185 mm

Universalios tekinimo staklės Bernardo Master 180

1055593
Price €10,580.00 VAT incl.

Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Supplier store
(10 pcs)
Delivery terms:
FREE pick up wednesday, july 15 d., in the store, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 540 kg.
We will deliver the product to you via: 5-11 w.d. Venipak (€40.99)
Weight: 540 kg.

Description

Properties

  • 51 mm spindle bore to machine large shaft diameters comes standard
  • Perfect machine for technical schools, repair shops and training workshops
  • Ideal for processing of steel, non-ferrous materials and plastics
  • Removable bridge allows machining of workpieces with a big diameter

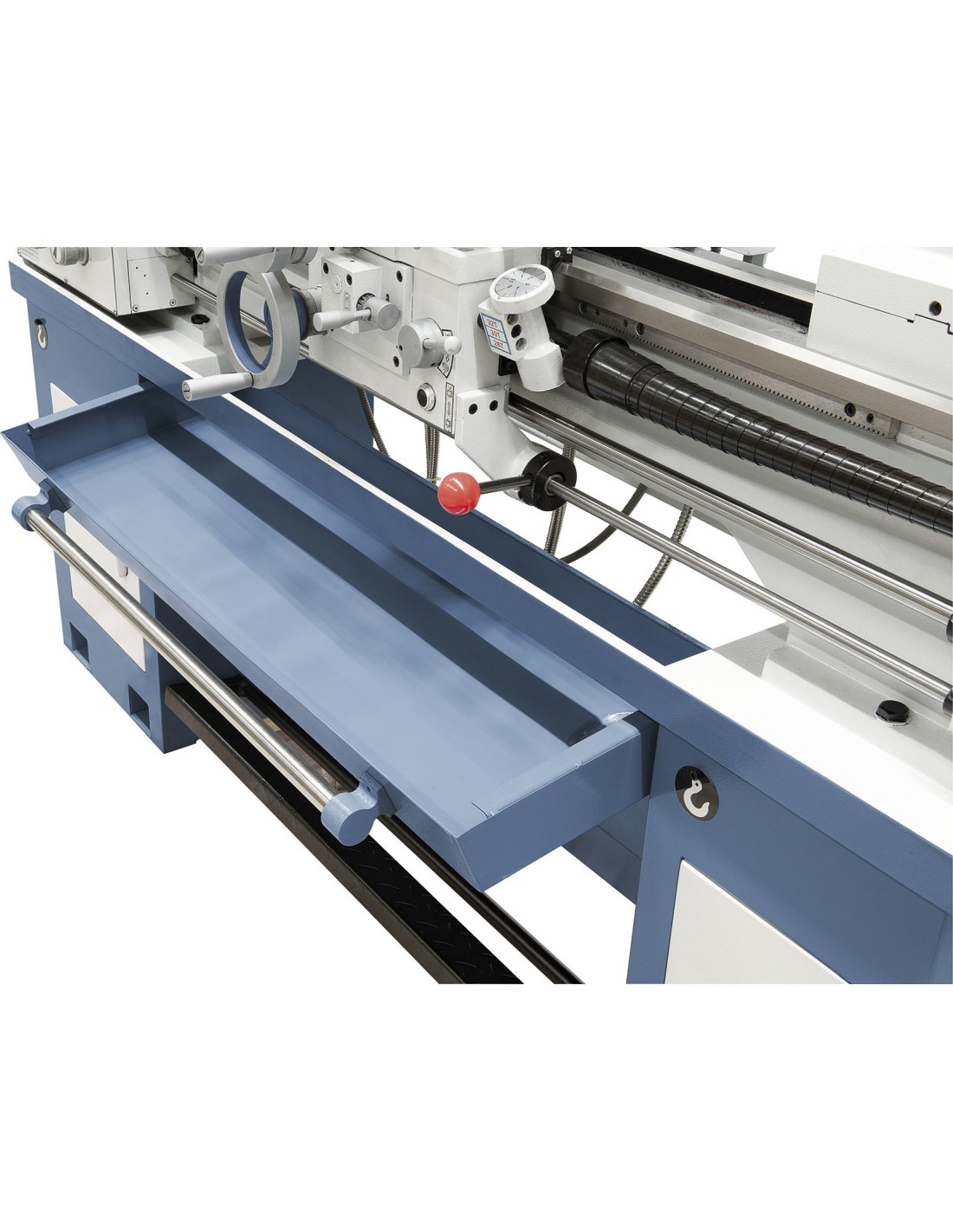

  • Chip tray extracts to front, keeping space requirements to a minimum

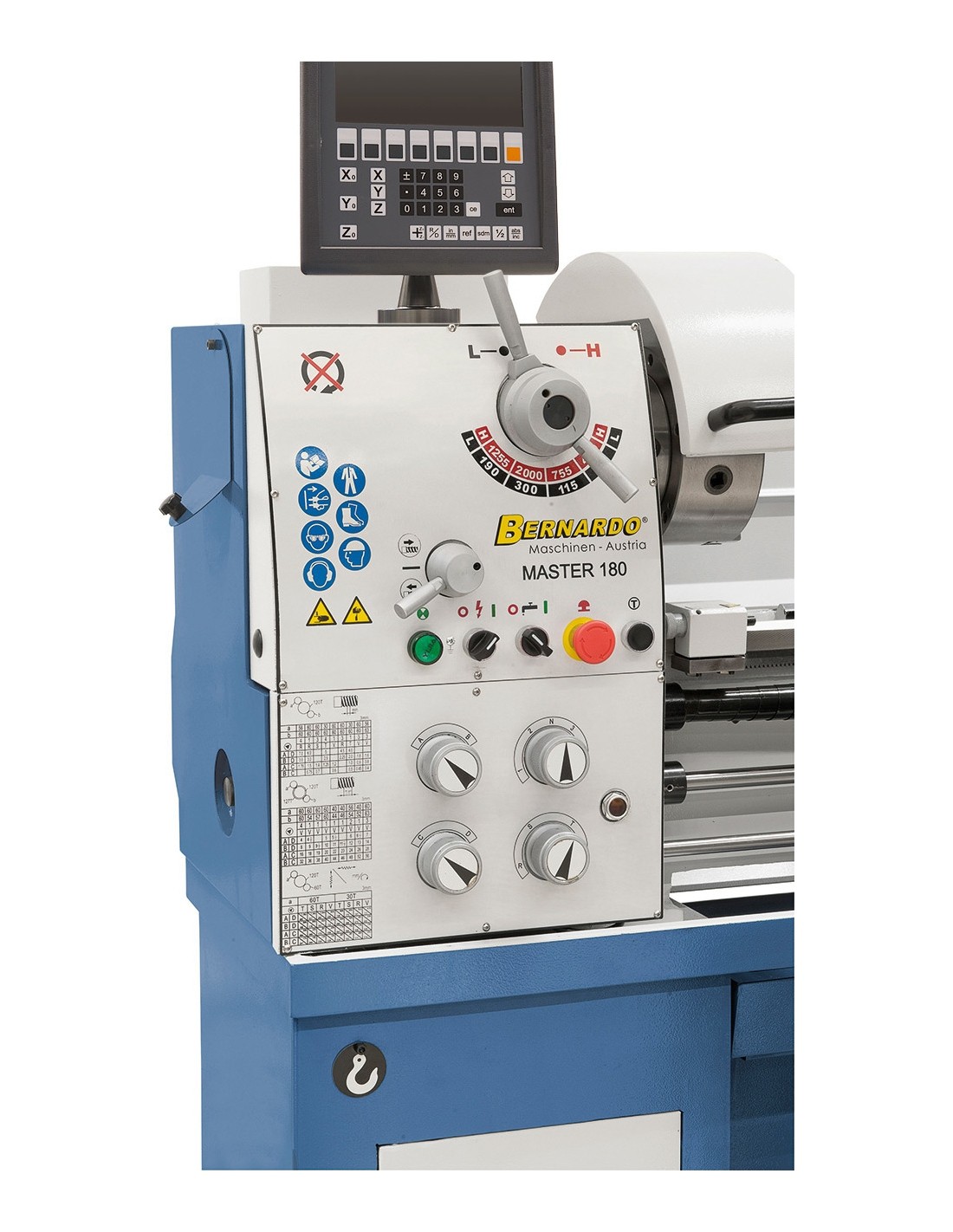

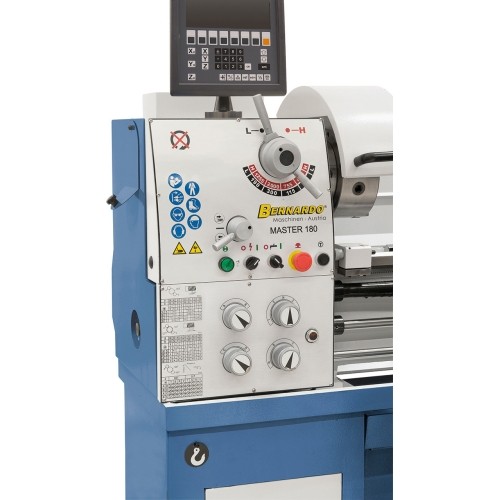

  • Clear arranged speed and feed control settings, smooth operation and accurate control
  • Electro-magnetic foot brake reduces downtime
  • State-of-the-art spindle bedding with high-quality, angular ball bearings
  • Grey cast-iron machine bed, inductive hardened and polished
  • One-hand clamping for tailstock, adjustable for taper turning
  • High spindle concentricity (≤ 0,009 mm)
  • Hardened and polished spindle runs in oil bath
  • Tailstock, spindle stock and all guides are adjustable

Standard accessories

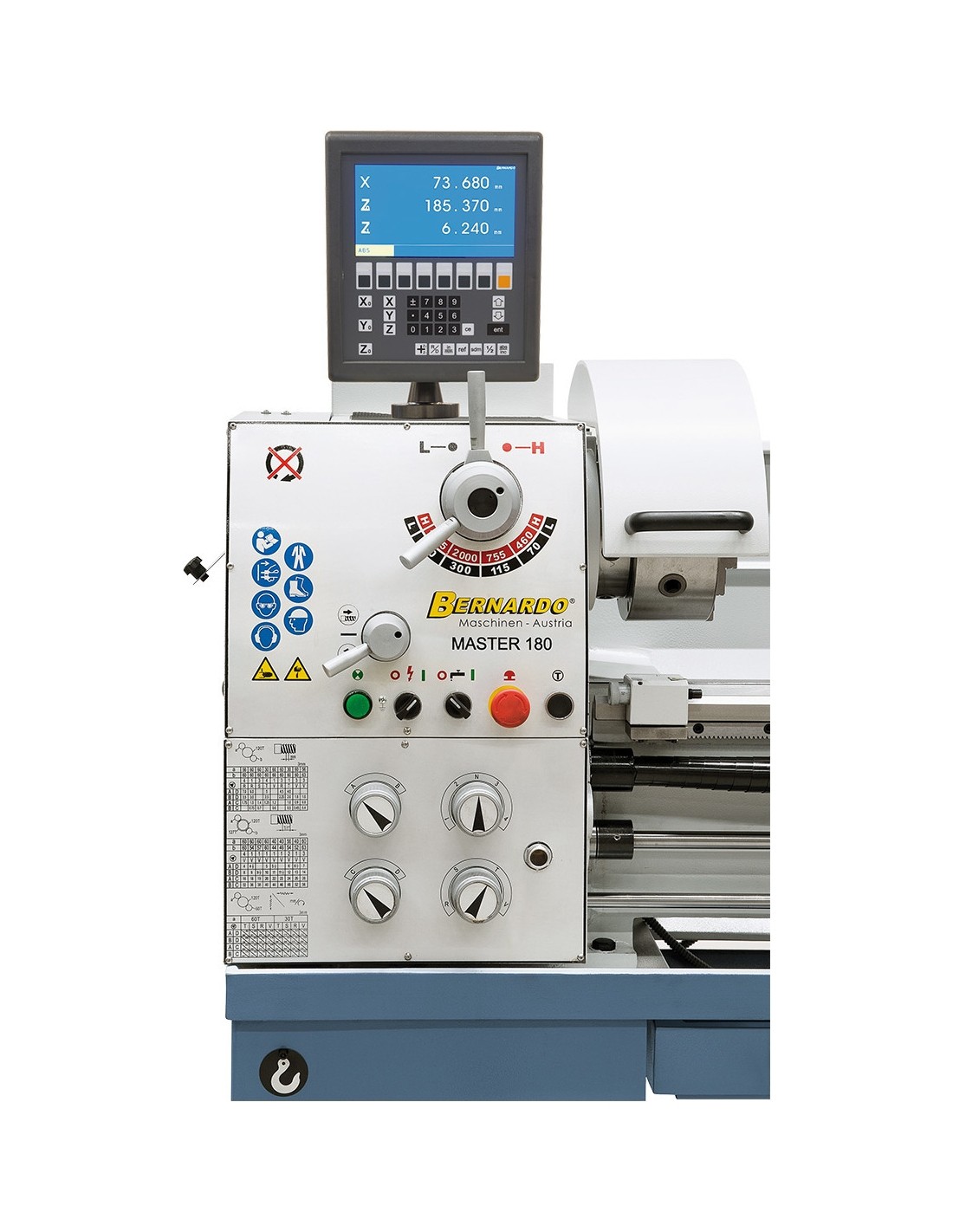

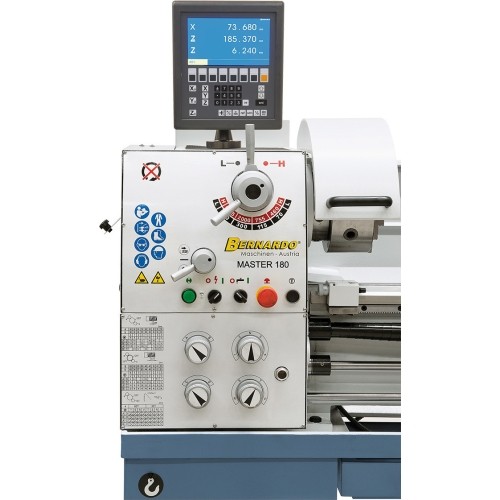

  • 3-axis digital readout ES-12 V with LCD-display

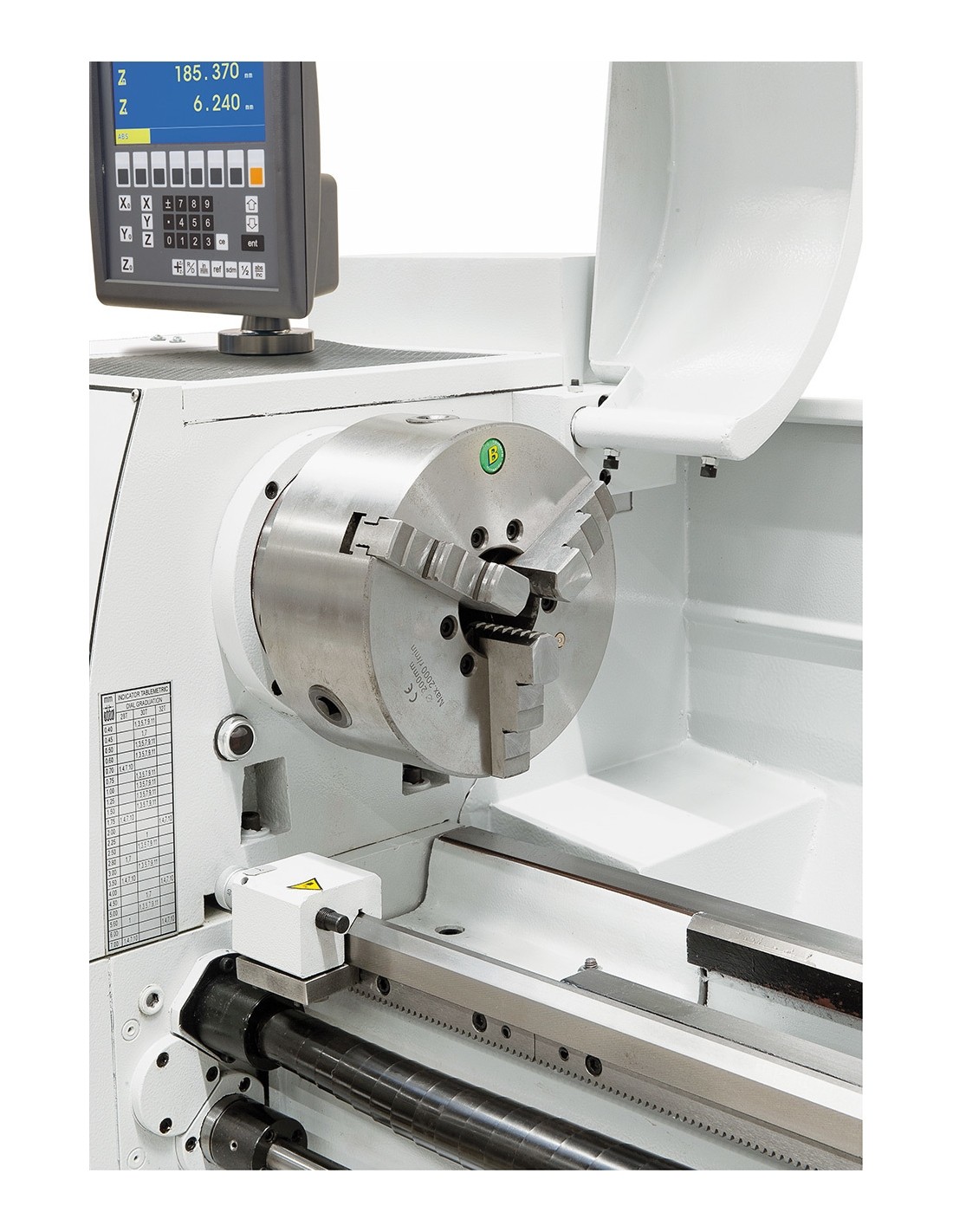

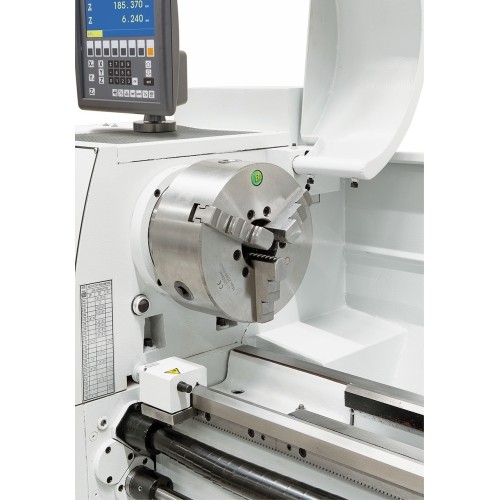

  • 3-jaw chuck DK11-200 mm / D5
  • Independent chuck K72-200 mm / D5

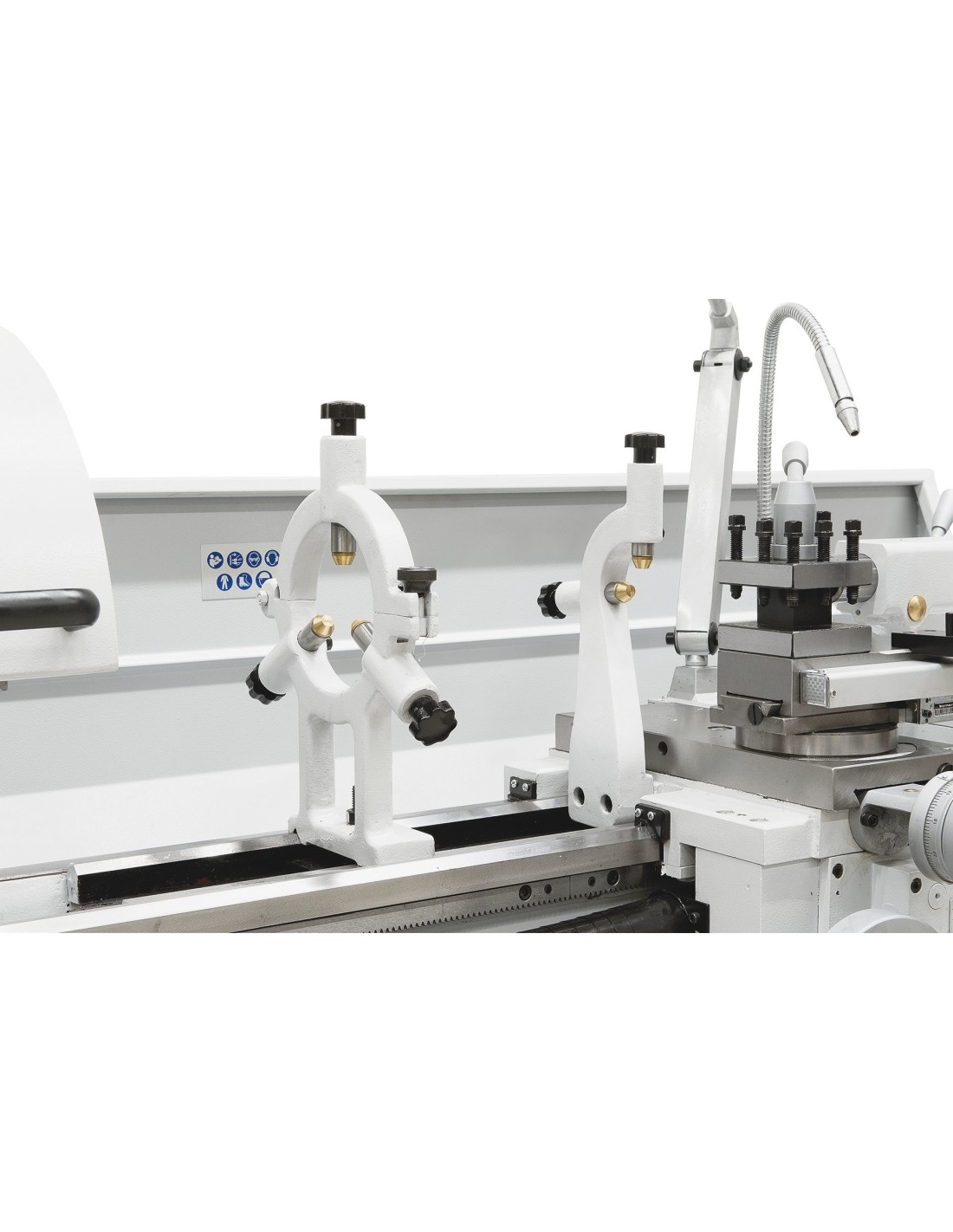

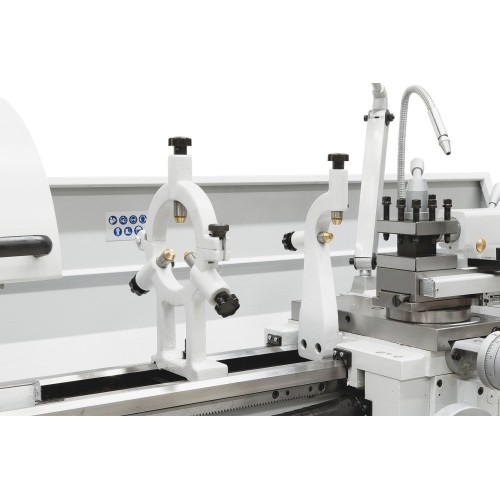

  • Steady rest - Passage up to 70 mm
  • Follow rest - Passage up to max. 50 mm
  • Coolant device
  • Initial filling with Shell Tellus 46

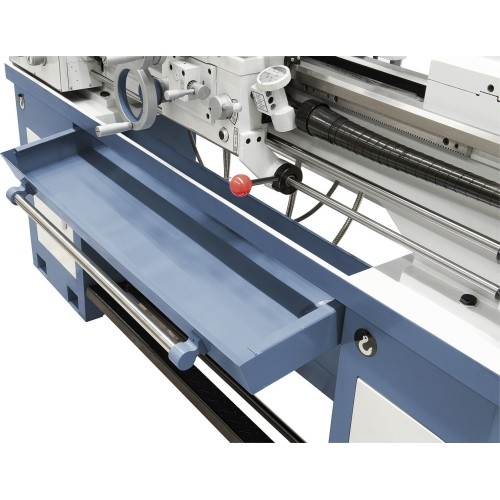

  • Extractable chip tray
  • Face plate 320 mm
  • 4-way tool post holder
  • Protective cover at 4-way tool post holder
  • Safety clutch
  • Micrometer longitudinal fence
  • Thread dial
  • LED machine light
  • Morse taper drill sleeve

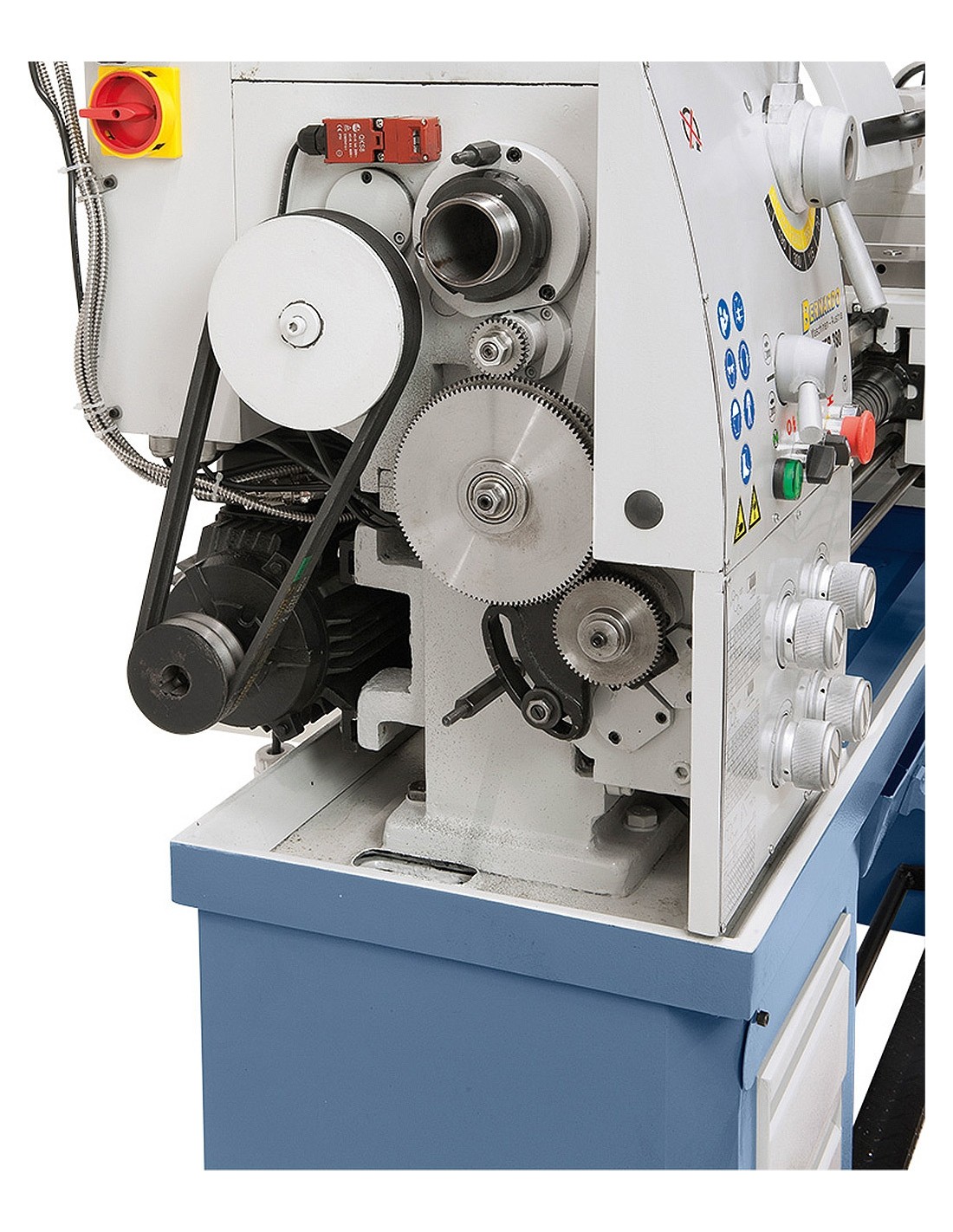

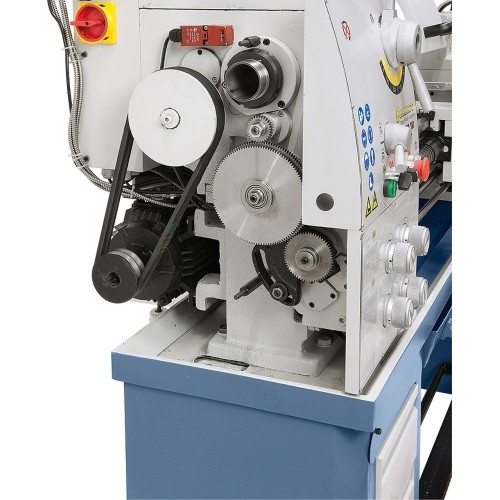

  • Change gears
  • 2 dead centers
  • Foot pedal with brake function according to CE

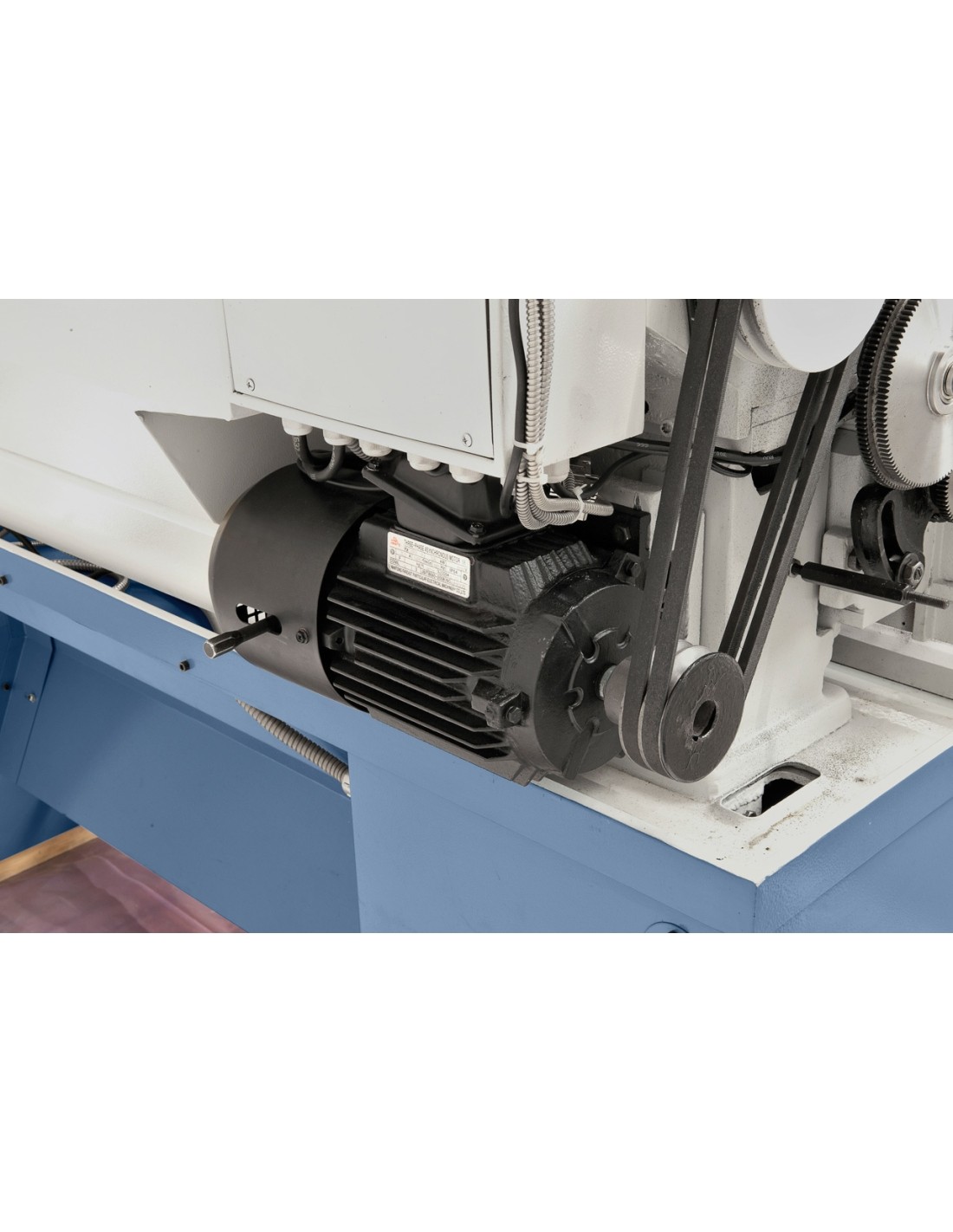

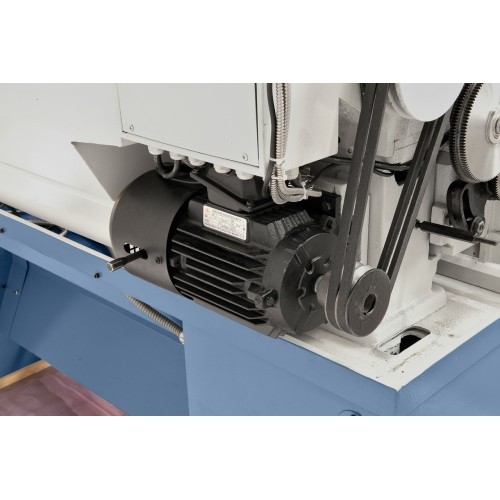

  • Motor with magnetic brake according to CE
  • Stand
  • Tools
