Distance between centers
3000 mm
Taper of tailstock sleeve
MT 5
Travel of tailstock sleeve
150 mm
Weight approx.
3990 kg
Motor power
9,0 kW (12,0 HP)
Center height
330 mm
Swing over bed
660 mm
Swing over gap*
870 mm
Swing over cross slide
420 mm
Bed with
400 mm
Spindle bore
105 mm
Spindle nose fixture
DIN 55029, D1-8
Speed Range
(16) 36 - 1600 rpm
Longitudinal feed
(65) 0,063 - 2,52 mm/rev.
Cross feed
(65) 0,027 - 1,07 mm/rev.
Metric thread
(22) 1 - 14 mm
Inch thread
(26) 2 - 28 threads/1“
Diameter of tailstock sleeve
75 mm
Machine dimension (W x D x H)
4500 x 1280 x 1650 mm

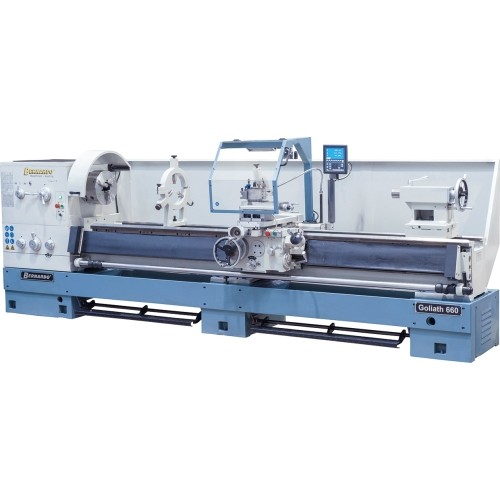

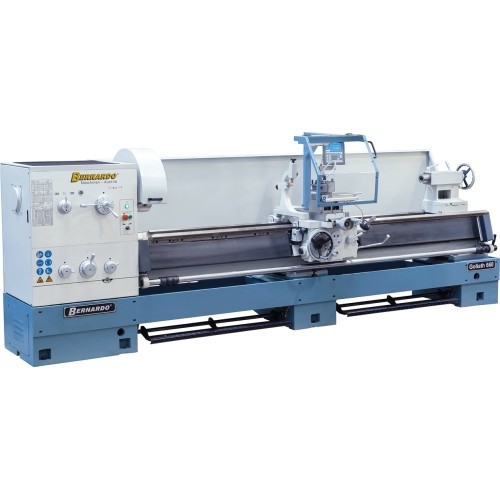

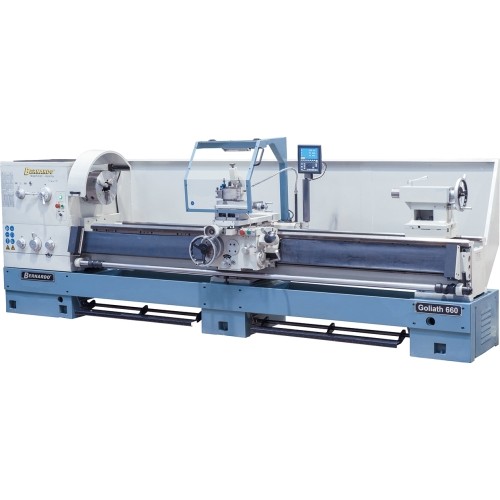

Goliath 660 x 3000

1322593
€41,580.00
Tax included

Stock Quantity:
In S01 store
not available
In S02 store
not available
In Supplier store
(5+ pcs)
Delivery terms:
NEMOKAMAI atsiimkite thursday, december 5 d., parduotuvėje, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 3990 kg.

Description

Properties

  • Various possible applications in general machine construction, production, single part manufacturing etc.
  • Machine bed, cast in one piece, eliminates torsion and vibrations, resulting in best possible accuracy
  • State-of-the-art main spindle bearing with high-quality angular ball bearings

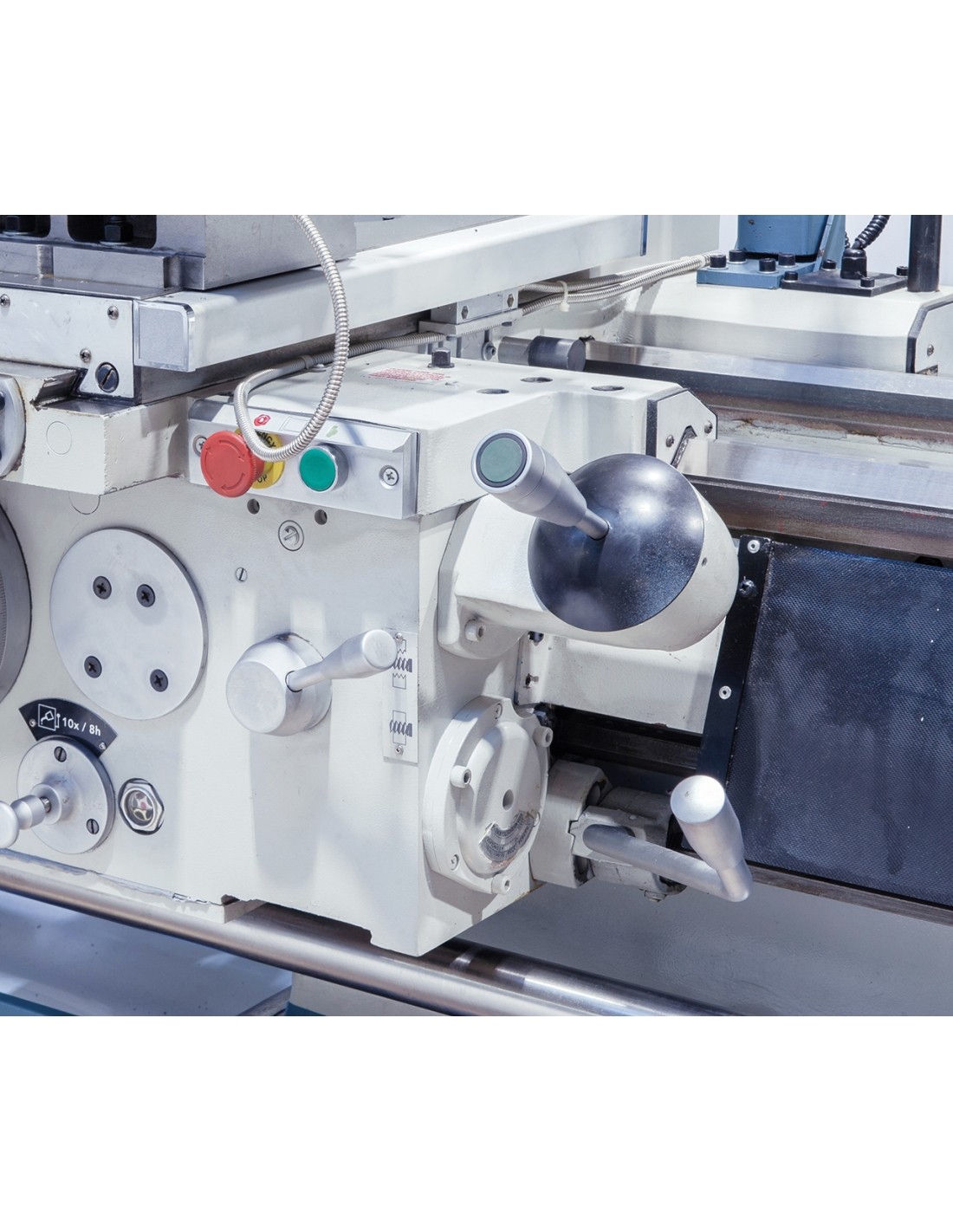

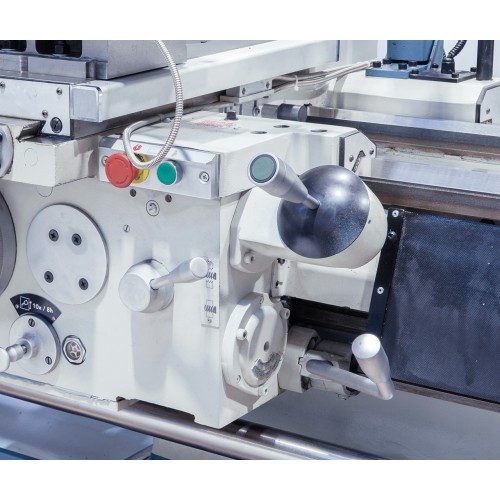

  • Centrally positioned, practical feed controls and thread cutting controls (with leadscrew and feed rod)
  • Complete with longitudinal and cross rapid feed to reduce downtime
  • Large gear wheels, hardened and polished
  • Removable bridge allows machining of oversize workpieces

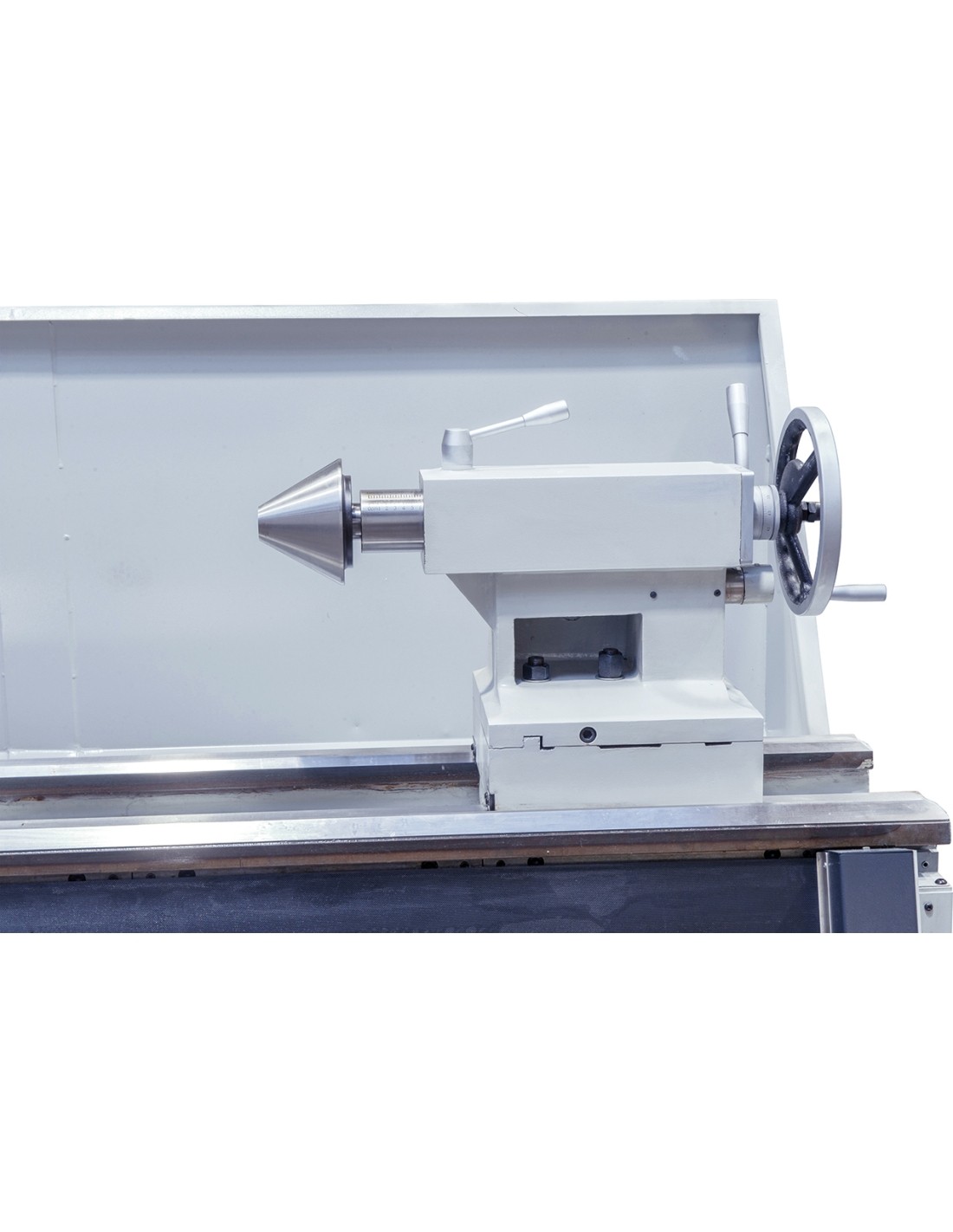

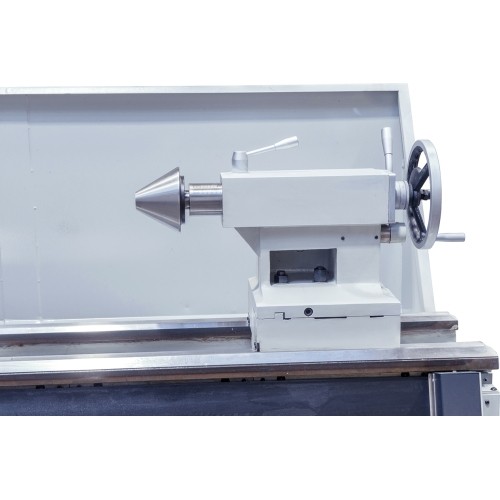

  • Tailstock can be repositioned for taper turning, handwheel feature adjustable scale (0.02 mm)
  • Electro-mechanical foot brake keeps downtime to a minimum
  • High performance even at face turning

Standard accessories

  • Safety clutch
  • Rapid feed longitudinal and cross
  • LED machine light

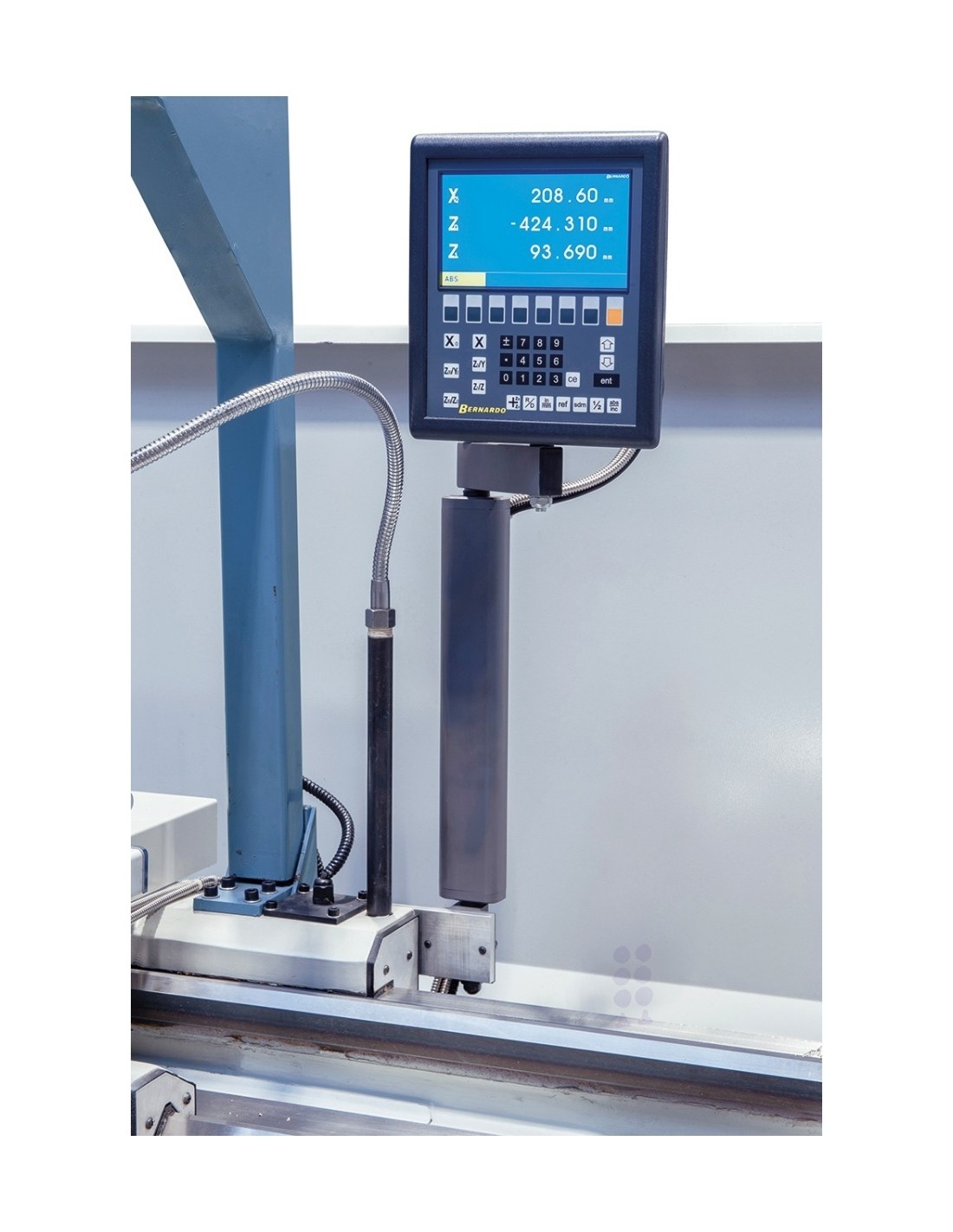

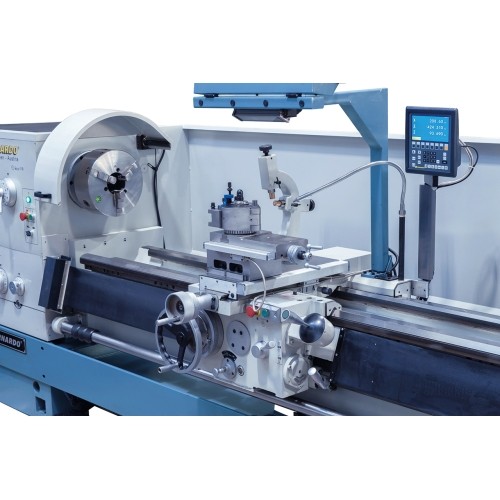

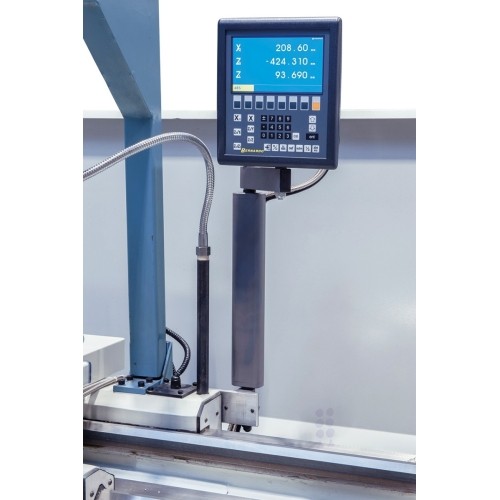

  • 3-axis digital readout ES-12 V with LCD-display

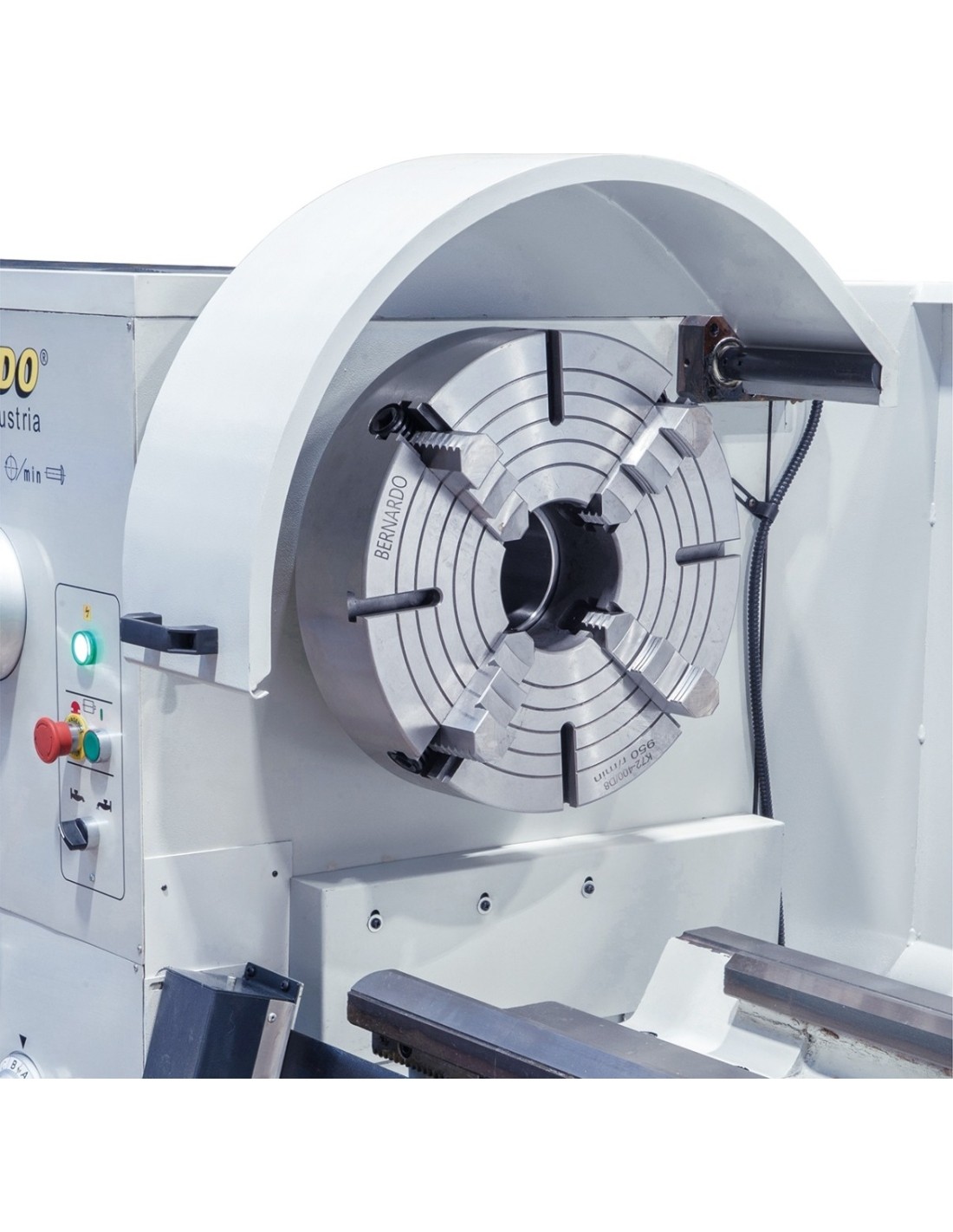

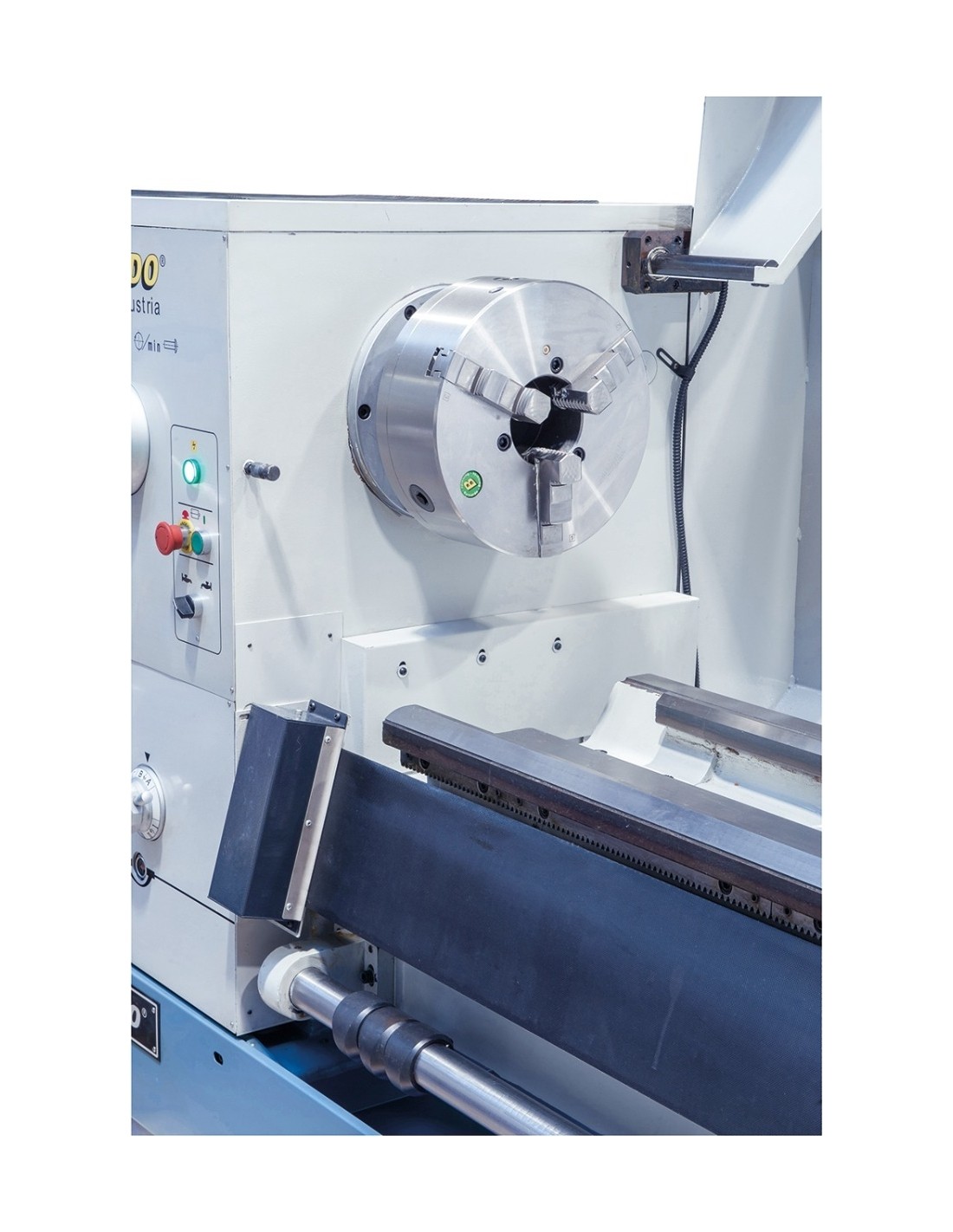

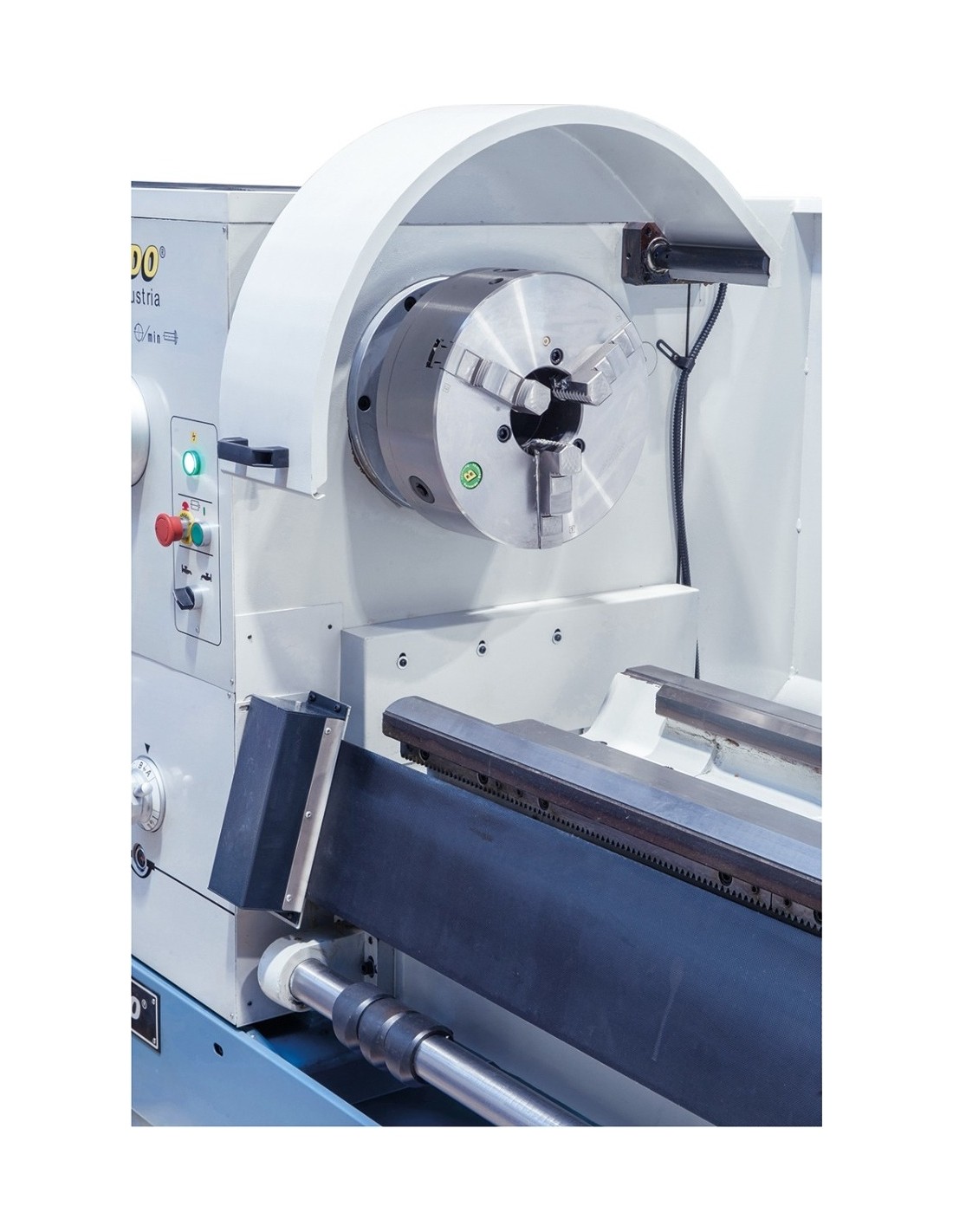

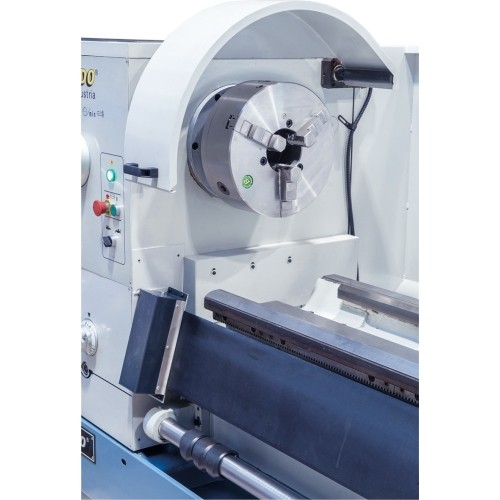

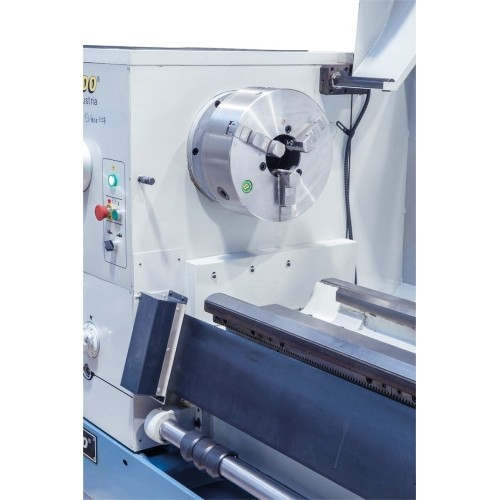

  • 3-jaw chuck PS3-315 mm / D8

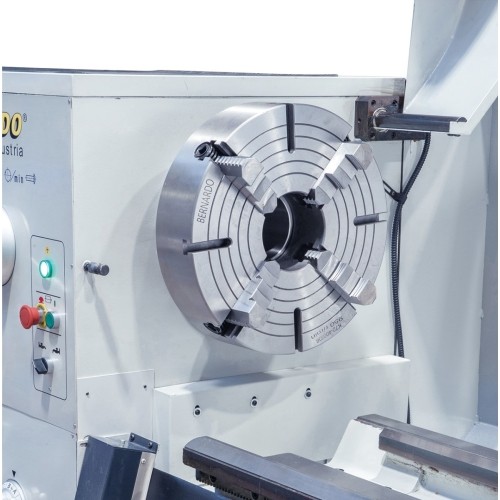

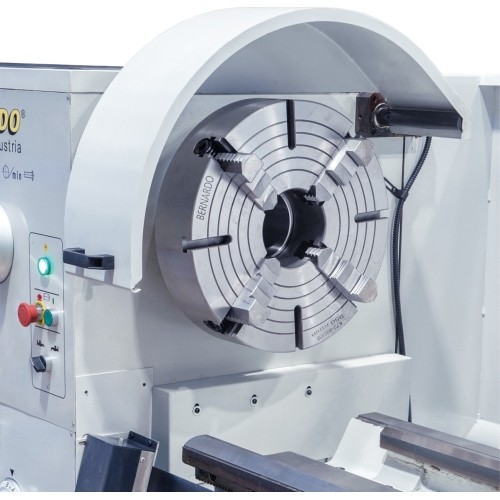

  • Face plate 630 mm

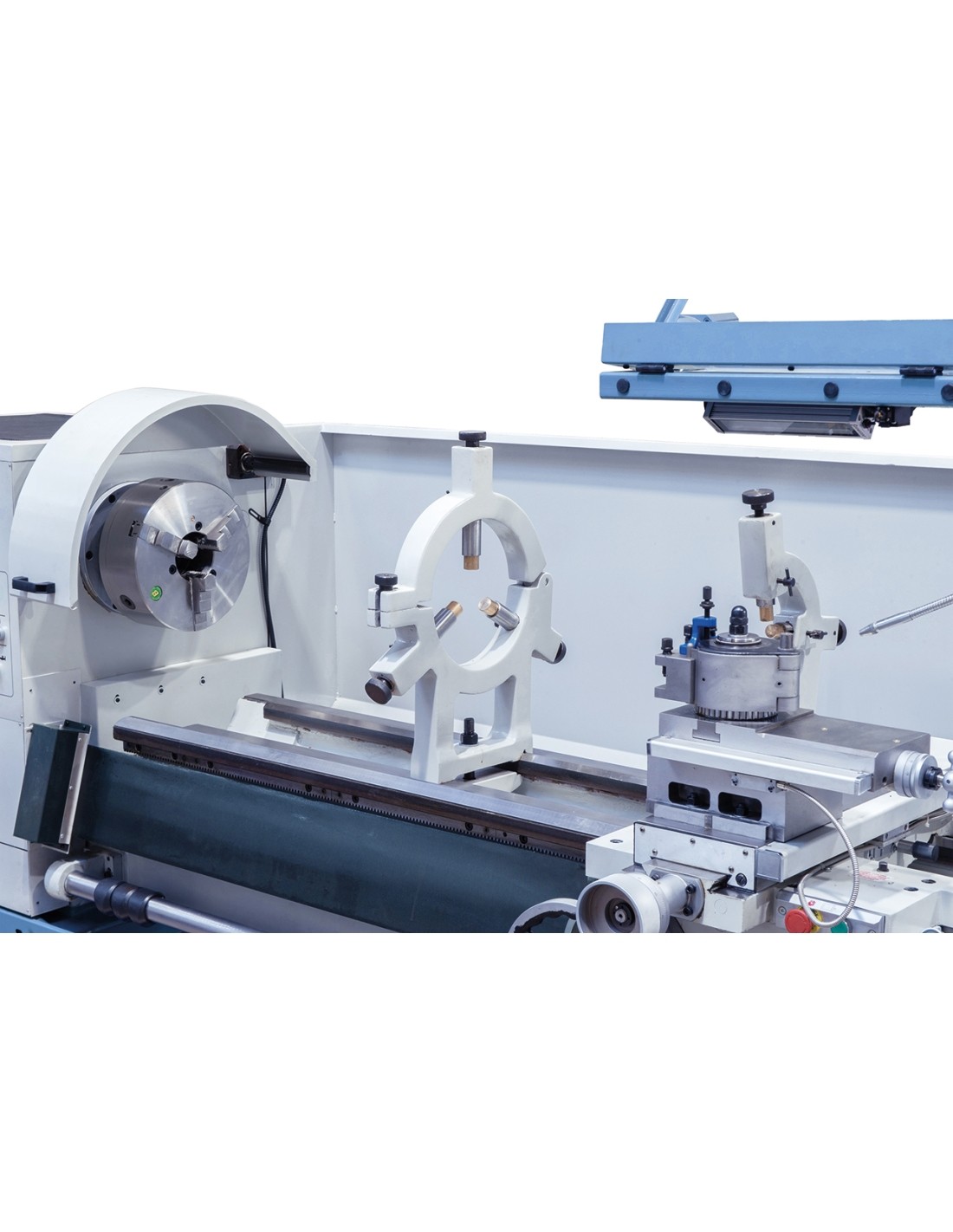

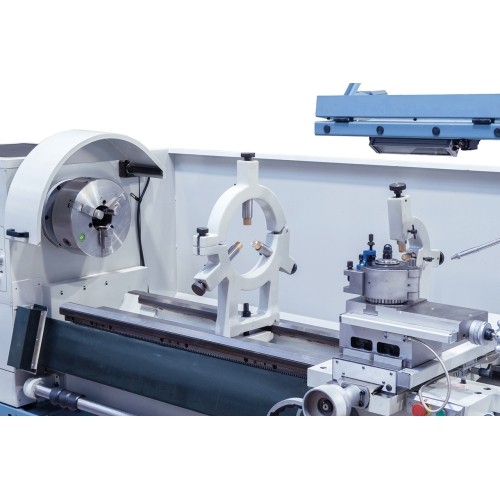

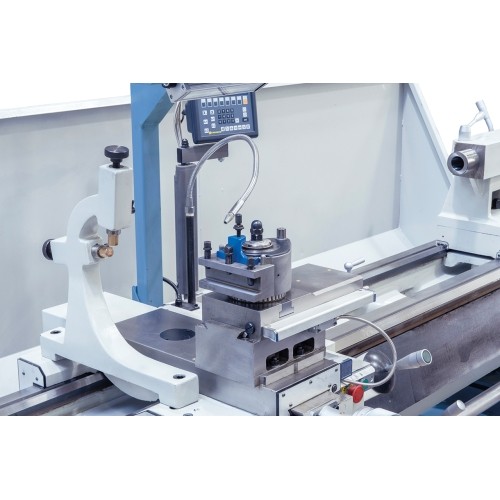

  • Steady rest - Passage up to max. 250 mm
  • Follow rest - Passage up to max. 110 mm
  • 1 dead center / 1 live center
  • Motor with magnetic brake according to CE
  • Foot pedal with brake function acc. to CE
  • Initial filling with Shell Tellus 46
  • Coolant device

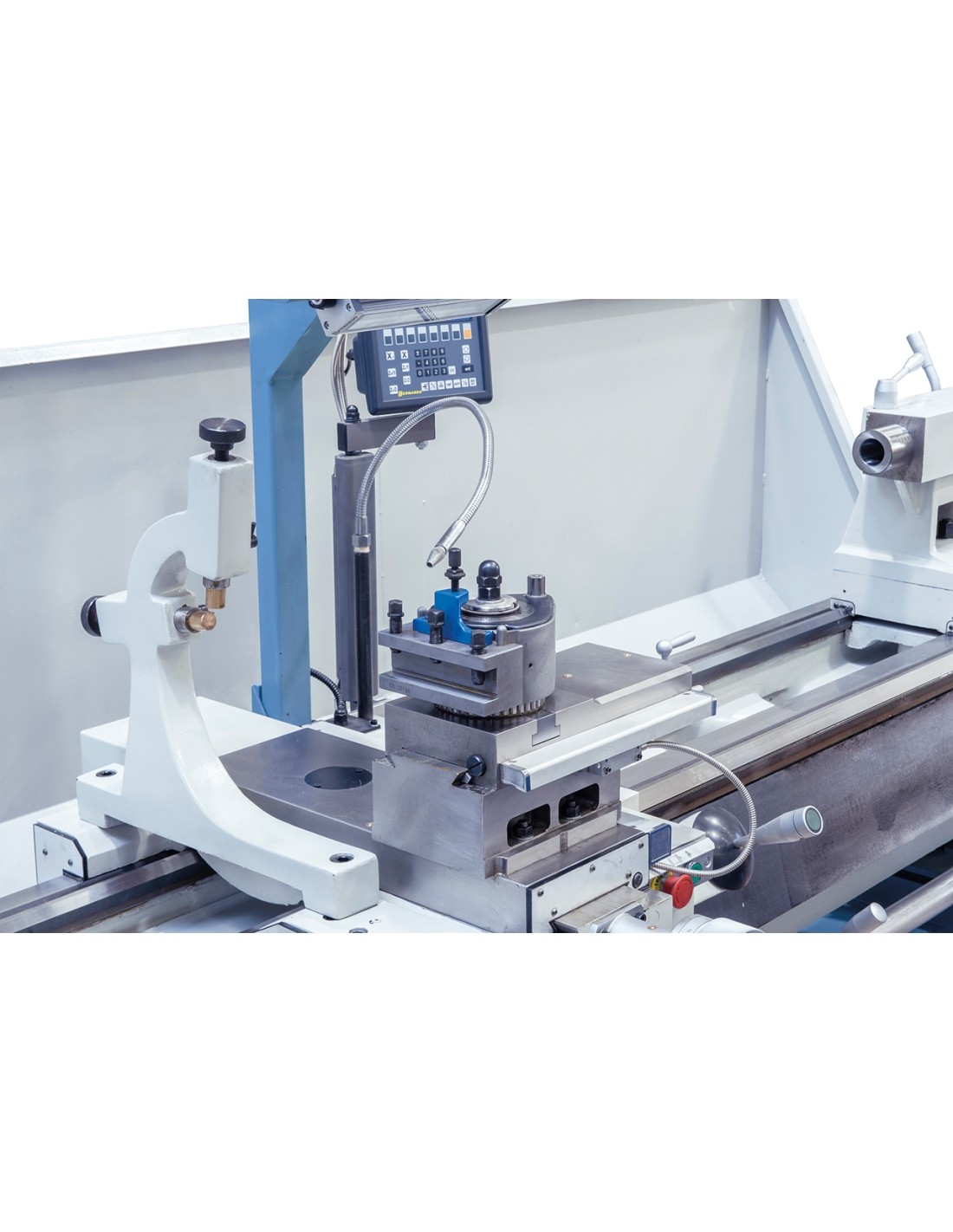

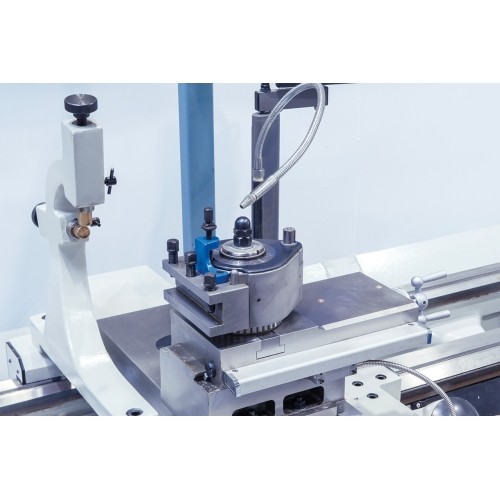

  • 40 pos. tool post and holder set with 4 inserts

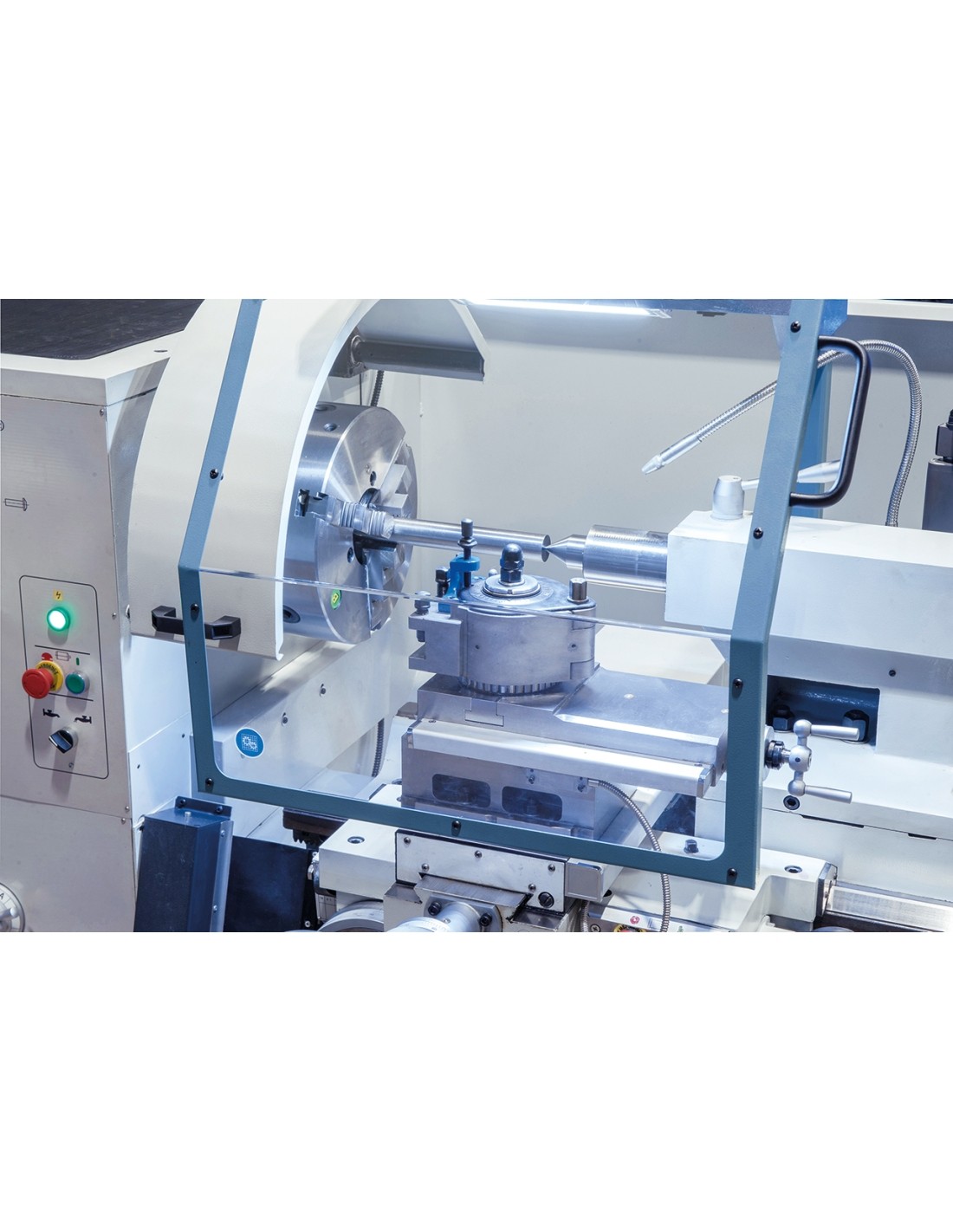

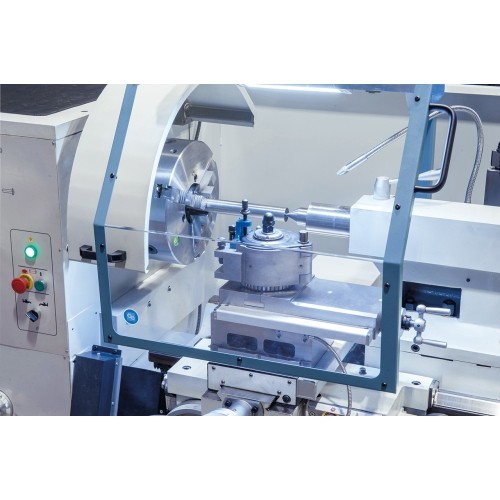

  • Protective device at tool post holder
  • Morse taper drill sleeve
  • Splash guard
  • Tools
