Distance between centers
1000 mm
Taper of tailstock sleeve
MT 3
Travel of tailstock sleeve
125 mm
Weight approx.
754 kg
Motor power
4,0 kW (5,5 HP)
Center height
205 mm
Swing over bed
410 mm
Swing over gap*
530 mm
Swing over cross slide
260 mm
Spindle bore
52 mm
Spindle nose fixture
DIN 55029, D1-5
Longitudinal feed
(48) 0,043 – 0,653 mm/rev.
Cross feed
(48) 0,014 – 0,206 mm/rev.
Metric thread
(36) 0,4 – 7,0 mm
Inch thread
(28) 4 – 56 threads/1“
Diameter of tailstock sleeve
45 mm
Machine dimension (W x D x H)
1820 x 920 x 1500 mm
Bed width
205 mm
Speed range, 2 steps
30 – 550 / 550 – 3000 rpm

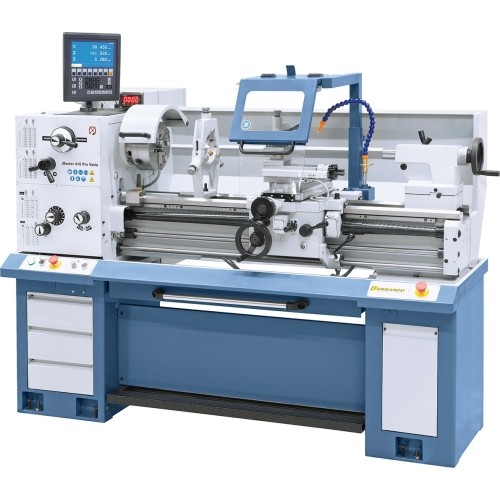

Master 410 Pro Vario

1353391
Price €19,318.00 VAT incl.

Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Supplier store
(10 pcs)
Delivery terms:
FREE pick up wednesday, july 15 d., in the store, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 754 kg.
We will deliver the product to you via: 5-11 w.d. Venipak (€40.99)
Weight: 754 kg.

Description

Properties

  • Serially with Delta-frequency inverter for high torque in low speed range and nearly constant speed at heavy workloads
  • Stepless speed adjustment, set speed can be read on digital display
  • Perfect machine for technical schools, repair shops and training workshops
  • Removeable bridge allows machining of workpieces with a big diameter
  • Chip tray extracts to front, keeping space requirements to a minimum
  • Grey cast-iron machine bed, inductive hardened and polished
  • High spindle concentricity (≤ 0,009 mm)
  • Rigid prism-shaped bed features additional reinforcements to keep vibrations to a minimum
  • Modern bearing of main spindle with angular ball bearing in precision construction
  • 52 mm spindle bore to machine large shaft diameters comes standard

Standard accessories

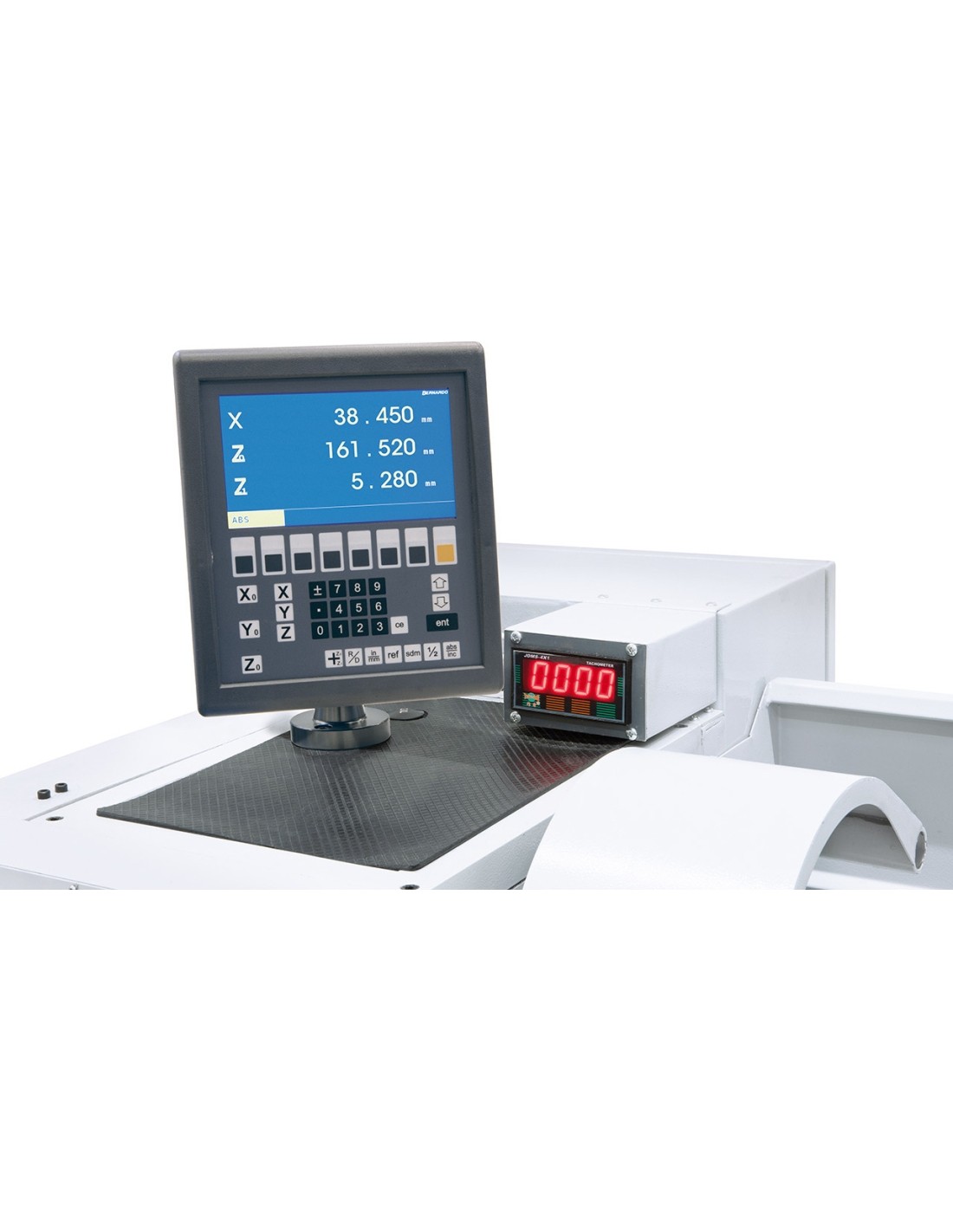

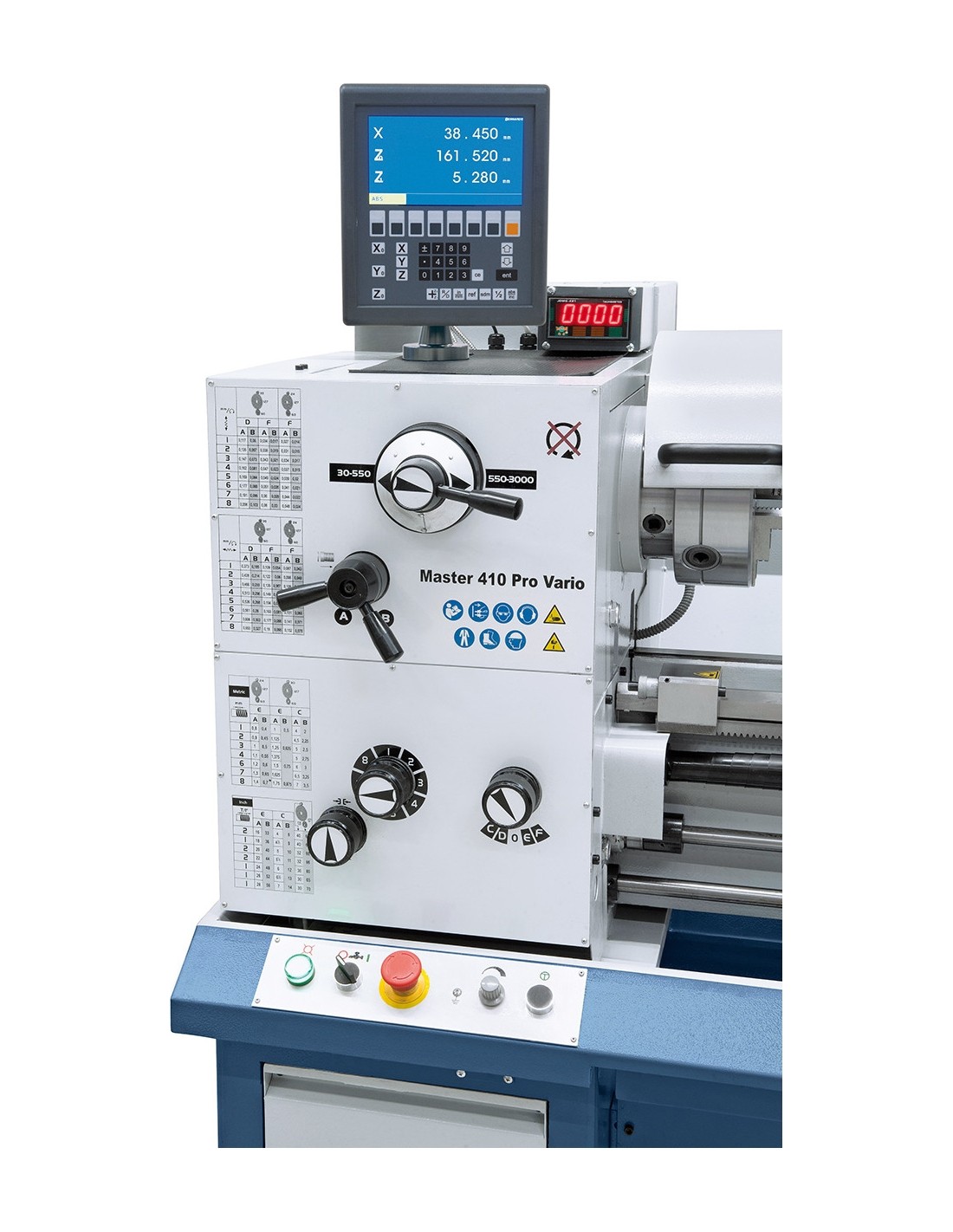

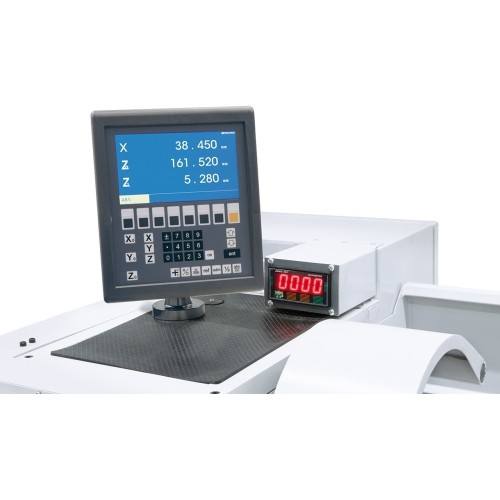

  • 3-axis digital readout ES-12 V with LCD-display

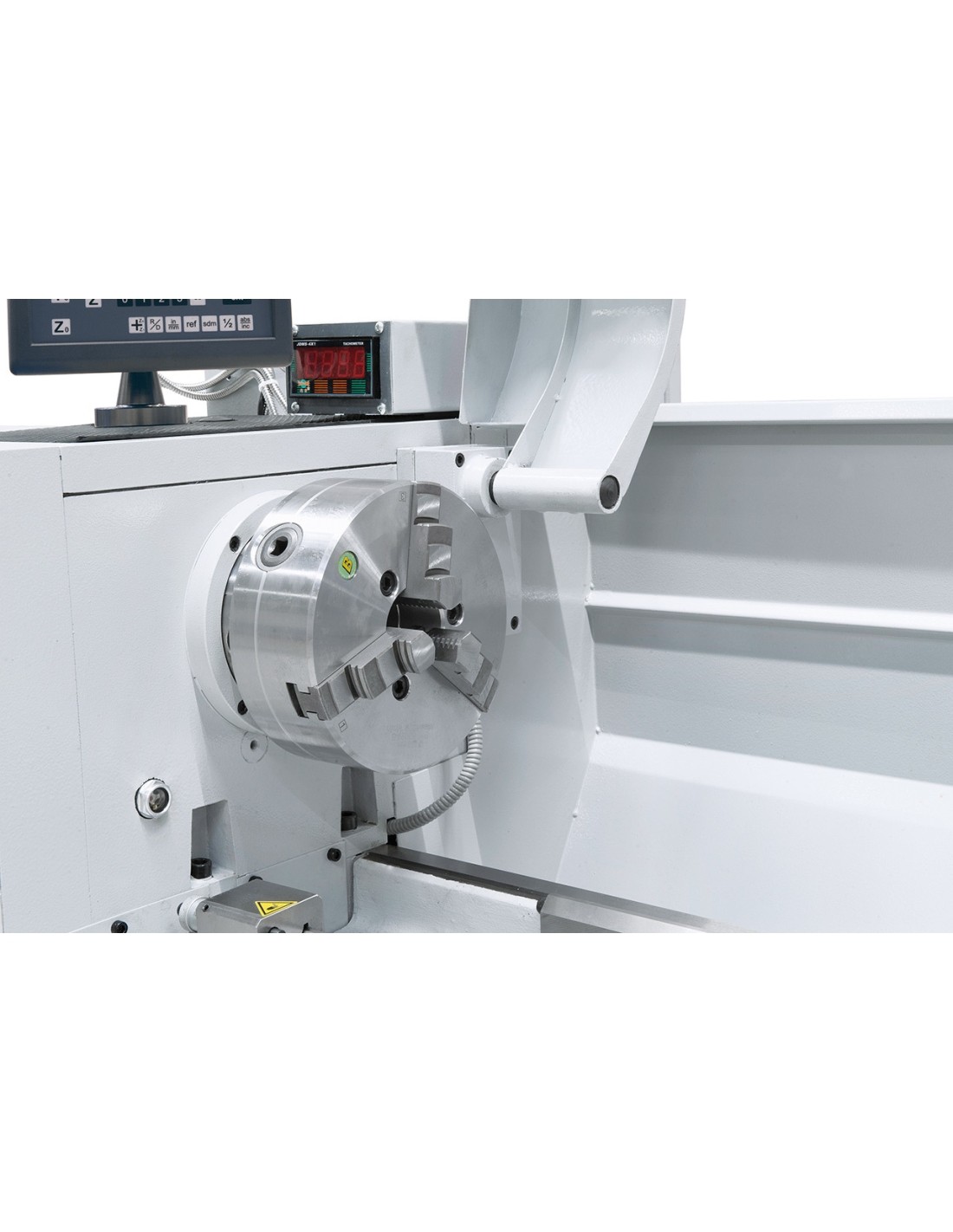

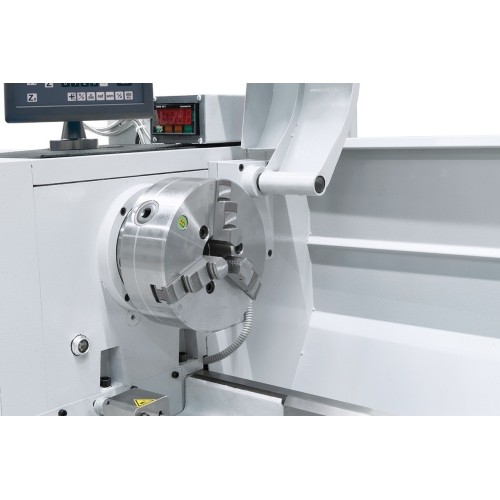

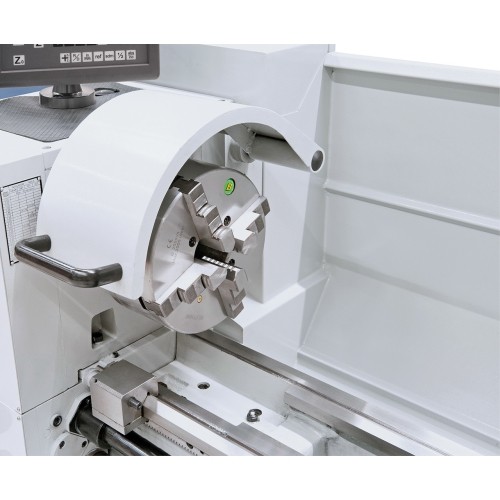

  • 3-jaw chuck PO3-200 mm / D5

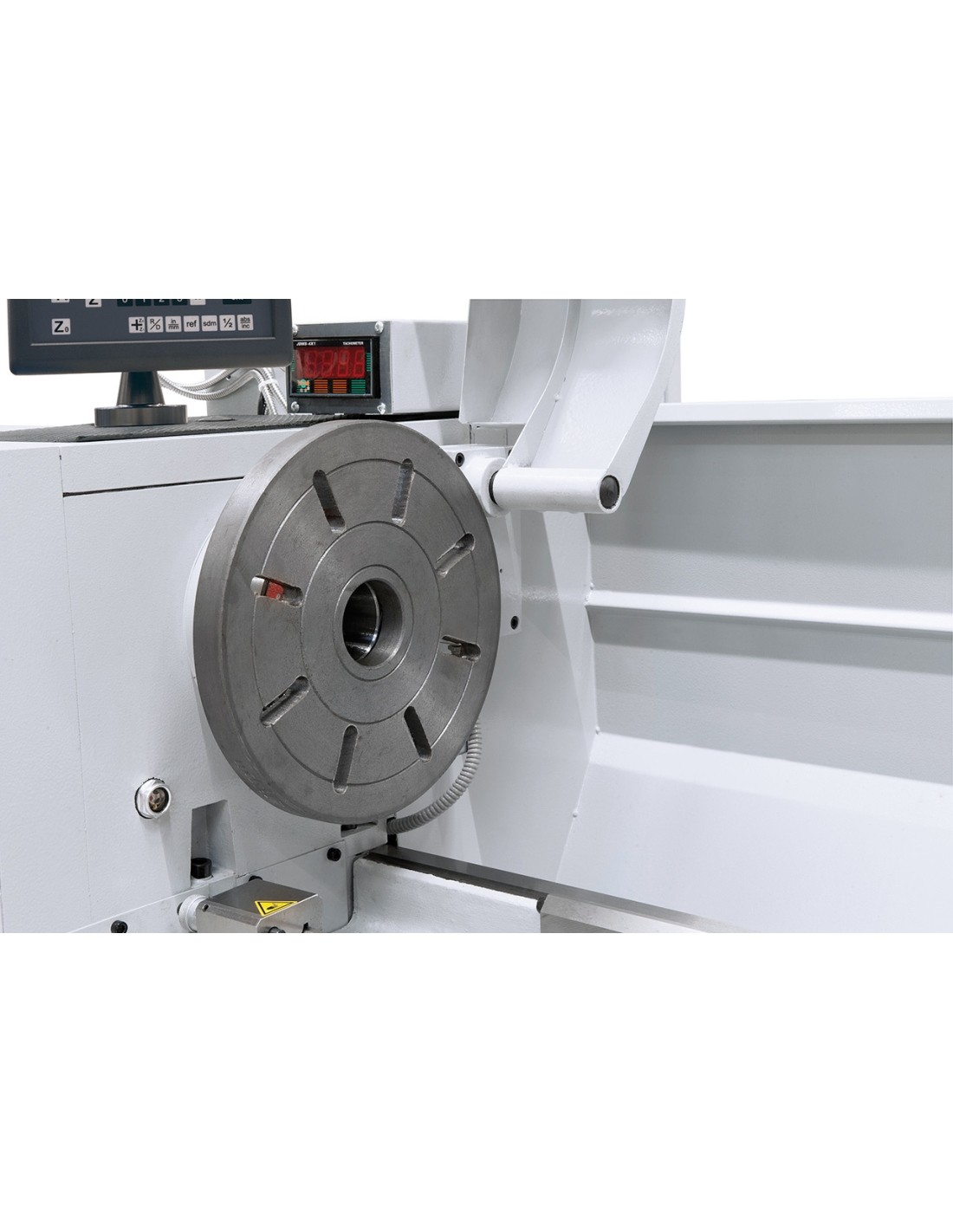

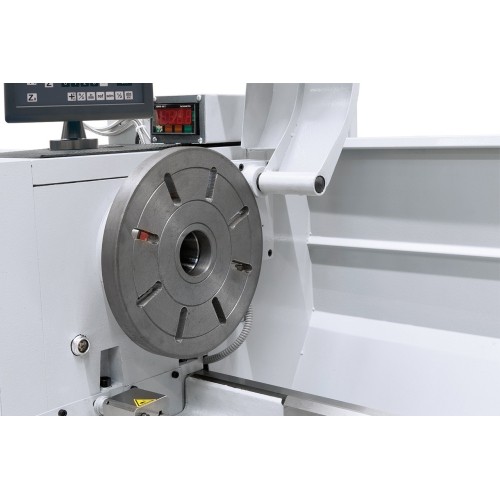

  • Face plate 280 mm

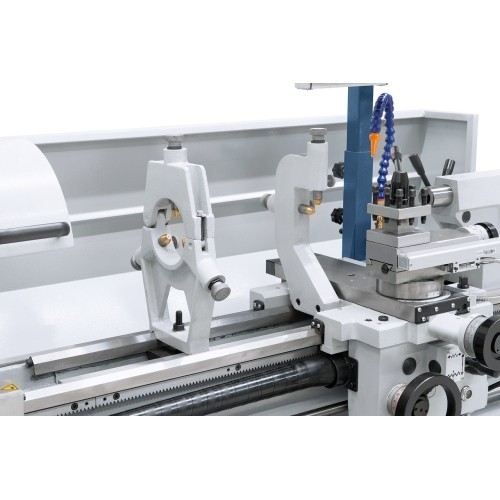

  • Steady rest - Passage up to 70 mm
  • Follow rest - Passage up to max. 60 mm

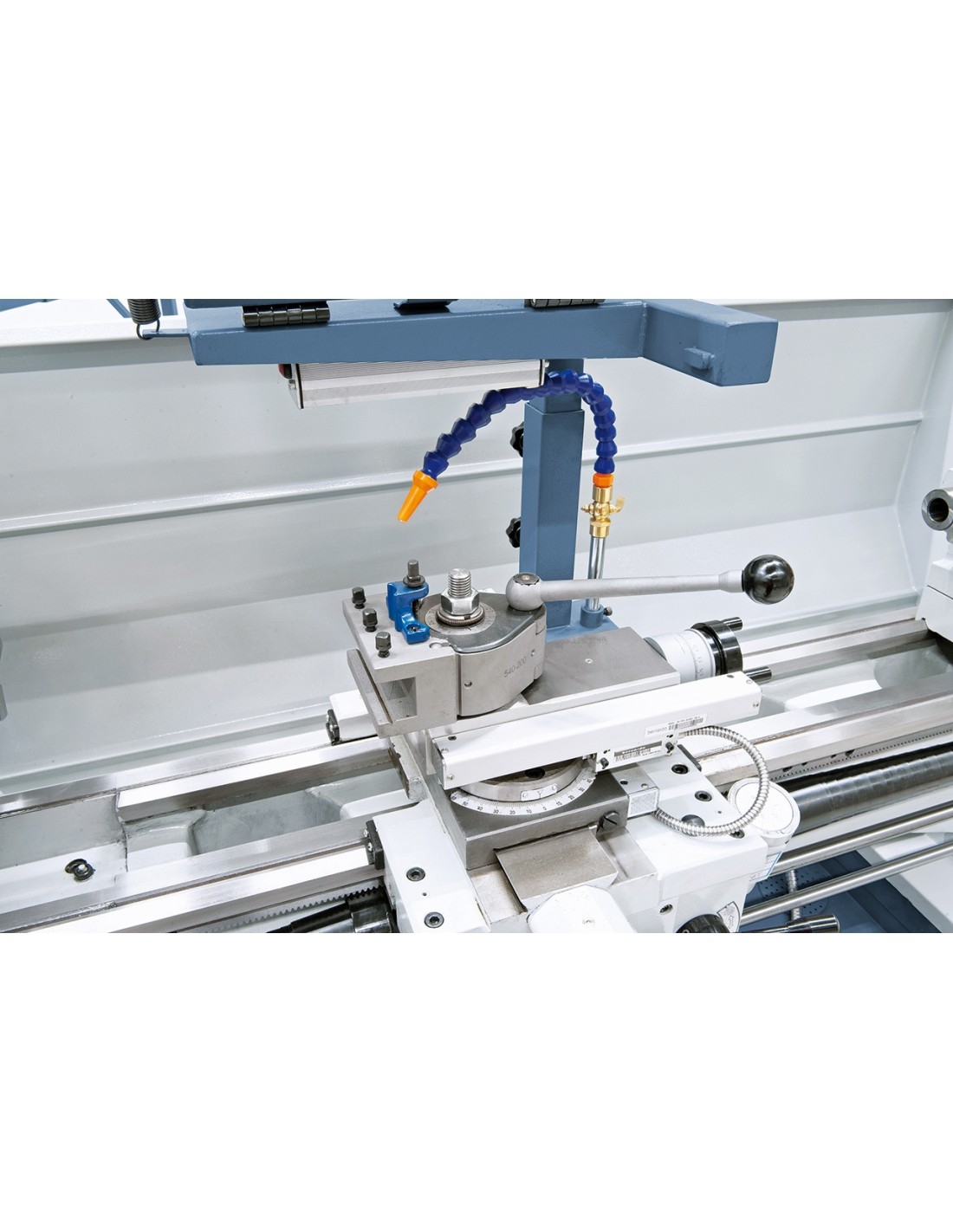

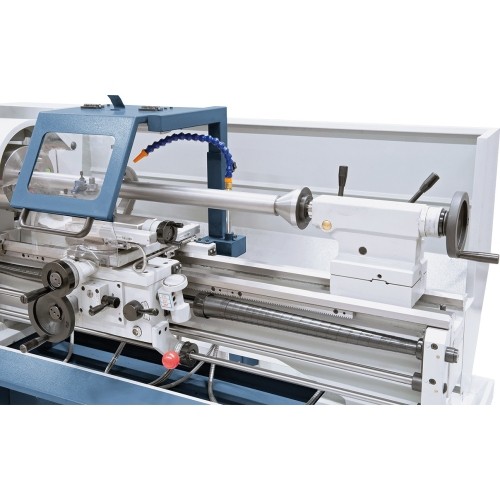

  • Coolant device

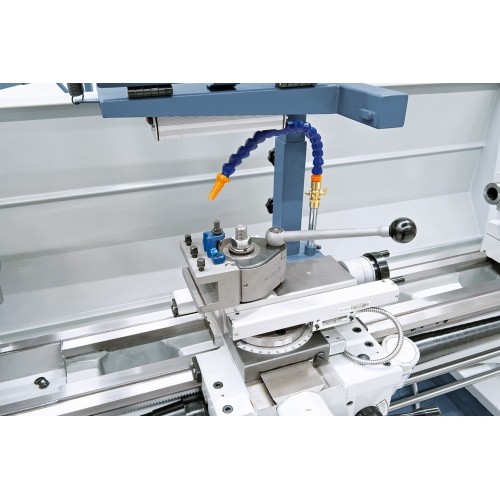

  • 4-way tool post holder
  • Protective cover at 4-way tool post holder
  • Micrometer longitudinal fence
  • Safety clutch
  • Thread dial
  • Initial filling with Shell Tellus 46
  • Frequency inverter
  • Digital readout of speeds

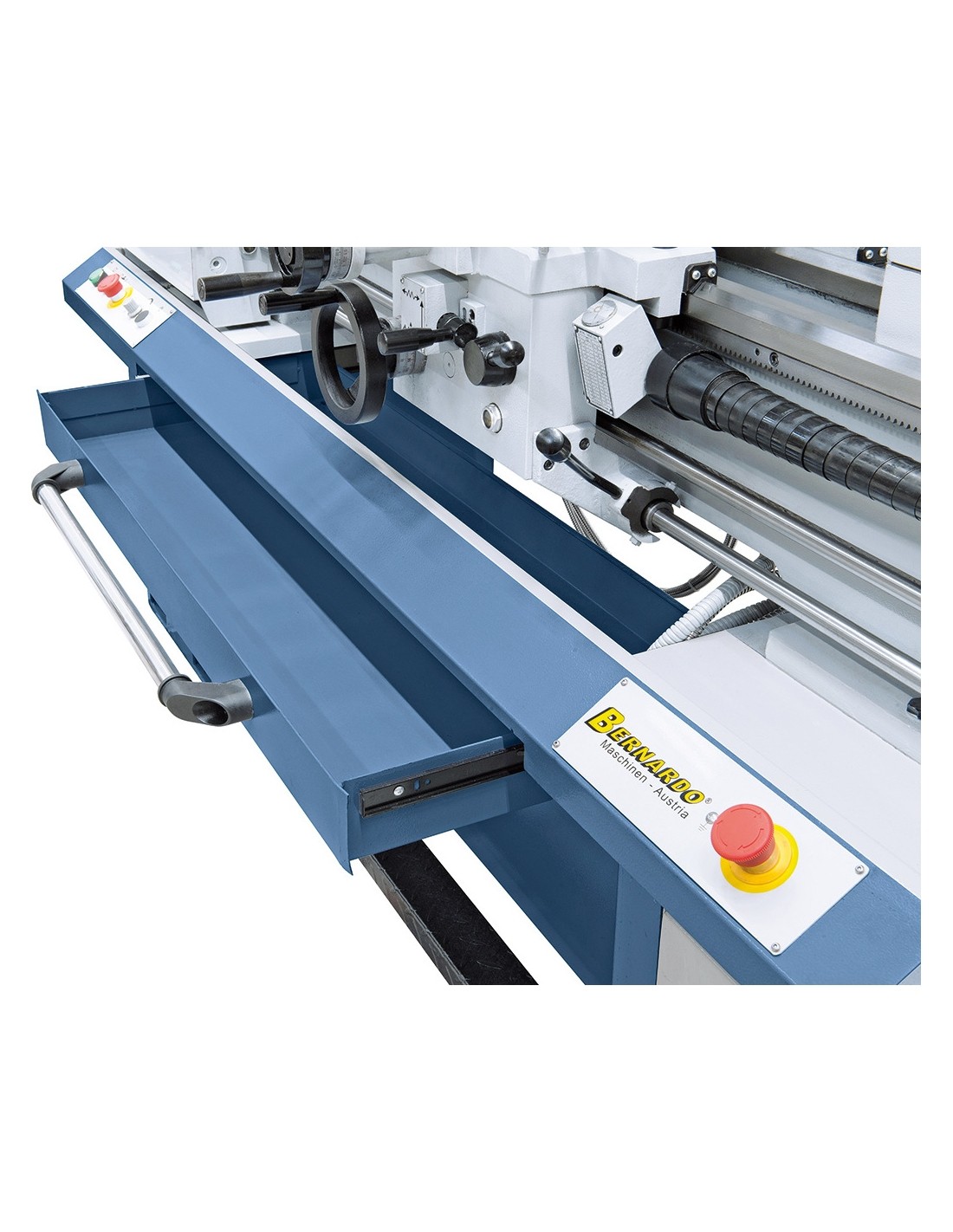

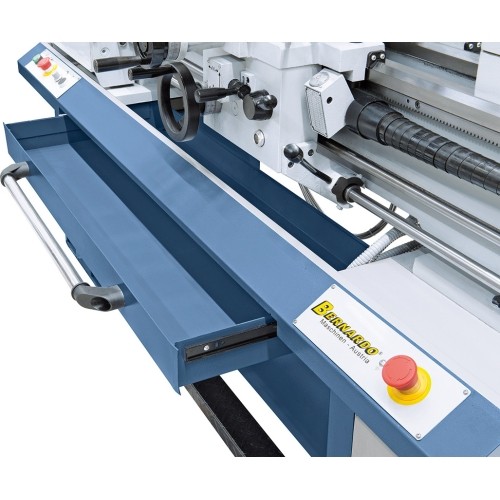

  • Extractable chip tray
  • LED machine light

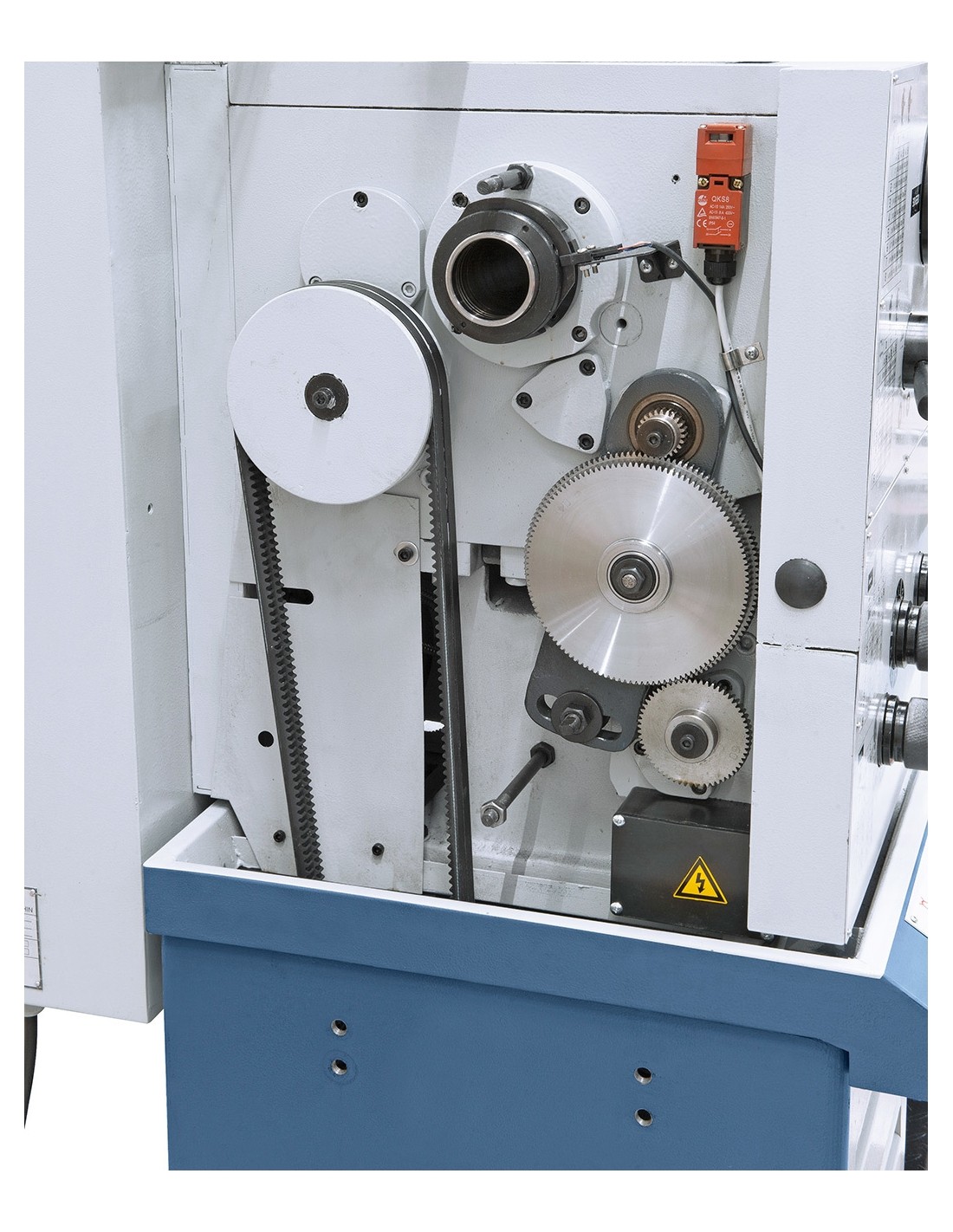

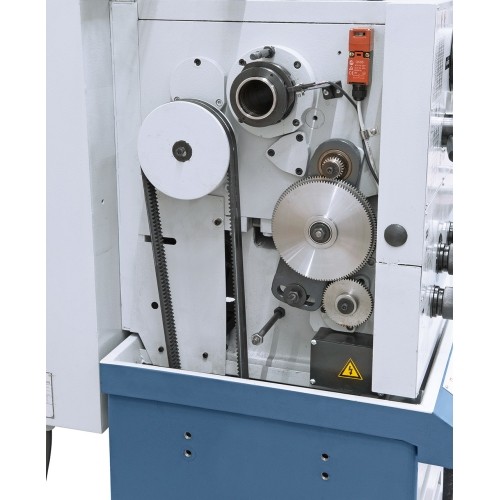

  • Change gears
  • Morse taper drill sleeve
  • 2 dead centers
  • Foot pedal with brake function according to CE
  • Splash guard
  • Stand
  • Tools
