WARRANTY

  • 30 days return policy
  • 24 month product warranty
  • Free consultation
  • 30 days return policy
  • 24 month product warranty
  • Free consultation

Distance between centers
1000 mm
Taper of tailstock sleeve
MT 4
Travel of tailstock sleeve
100 mm
Weight approx.
810 kg
Motor power
2,0 kW / 2,4 kW
Center height
200 mm
Swing over bed
400 mm
Swing over gap*
560 mm
Swing over cross slide
240 mm
Spindle bore
52 mm
Spindle nose fixture
DIN 55029, D1-5
Speed Range
(12) 45 - 2000 rpm
Longitudinal feed
(27) 0,06 - 2,78 mm/rev.
Cross feed
(22) 0,01 - 0,72 mm/rev.
Metric thread
(36) 0,8 - 14 mm
Inch thread
(30) 2 - 28 threads/1“
Diameter of tailstock sleeve
45 mm
Machine dimension (W x D x H)
1860 x 800 x 1600 mm
Bed width
210 mm

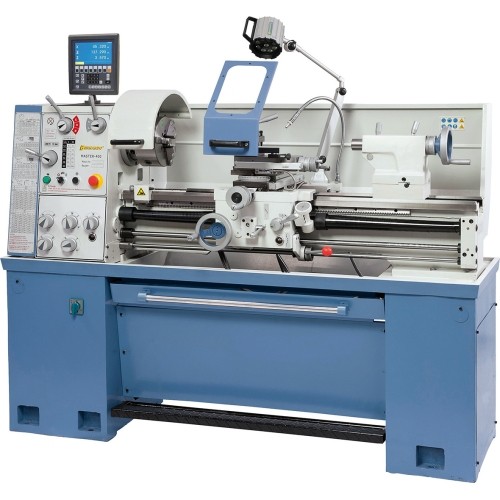

Master 400 incl. 3-axis digital readout

1348657
€10,996.00
Tax included

Stock Quantity:
In S01 store
not available
In S02 store
not available
In Supplier store
(5+ pcs)
Delivery terms:
NEMOKAMAI atsiimkite thursday, december 5 d., parduotuvėje, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 810 kg.

Description

Properties

  • Ideal for processing of steel, non-ferrous materials and plastics
  • Electro-magnetic foot brake reduces downtime
  • Hardened and polished gears also in feed drive
  • Practical, solid machine featuring a leadscrew and feed rod
  • Grey cast-iron machine bed, inductively hardened and precisely polished
  • State-of-the-art spindle bedding with high-quality, angular ball bearings
  • Machine base in heavy cast iron construction
  • Tailstock can be adjusted ± 5 mm for taper turning
  • Ideal for technical colleges, repair shops and training purposes

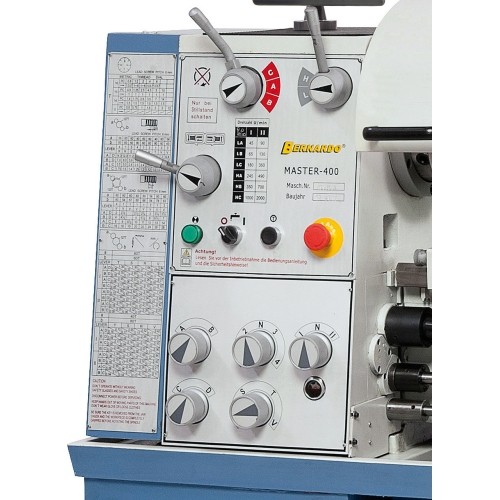

  • Easy, smooth and precisely adjustable speed and feed settings
  • Chip tray extract to front, keeping space requirements to a minimum
  • Removable bridge for processing of workpieces with a large diameter
  • Optimal price-benefit ratio, modern design
  • Serially equipped with safety clutch

Standard accessories

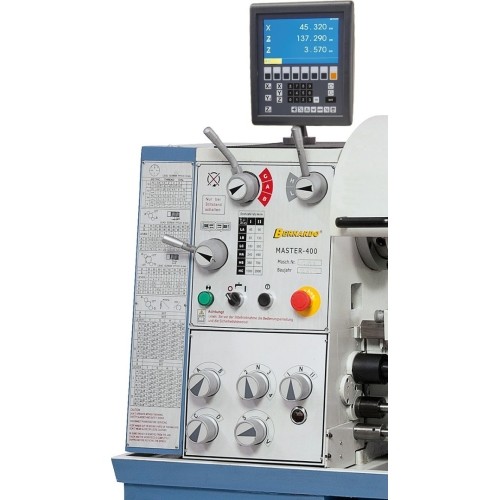

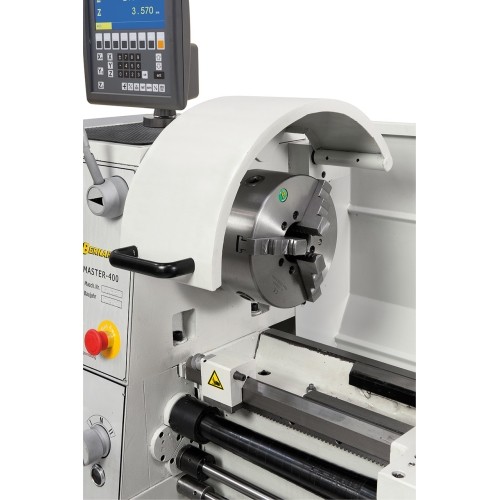

  • 3-axis digital readout ES-12 V with LCD-display
  • 3-jaw chuck DK11-200 mm / D5
  • Independent chuck 200 mm / D5, according DIN 55029

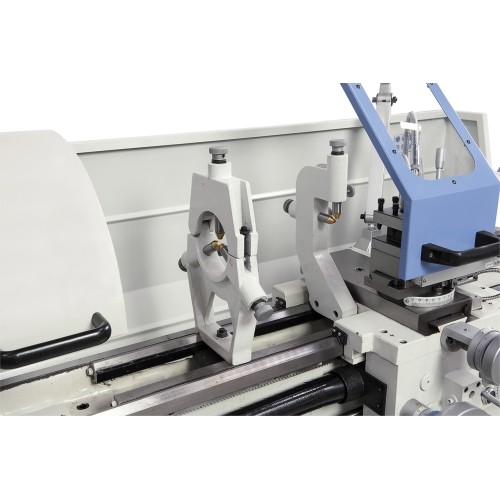

  • Steady rest - Passage up to max. 90 mm
  • Follow rest - Passage up to max. 70 mm
  • Coolant device
  • Initial filling with Shell Tellus 46
  • Extractable chip tray

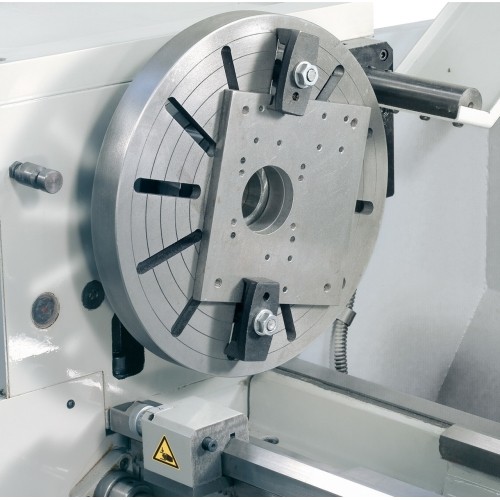

  • Face plate 320 mm

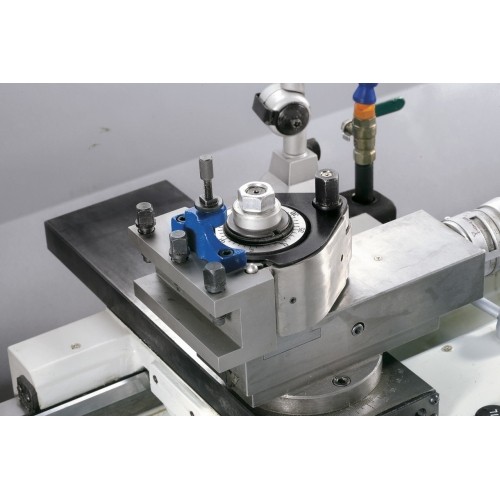

  • 4-way tool post holder

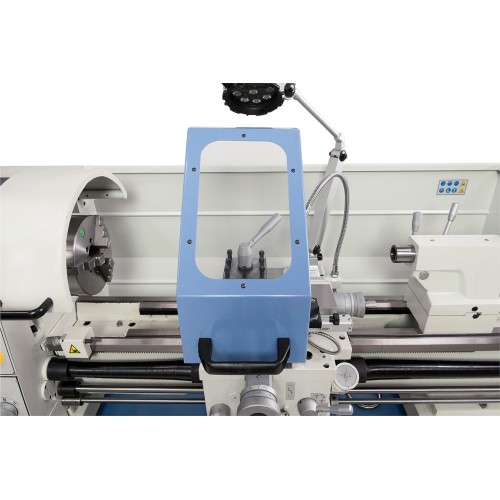

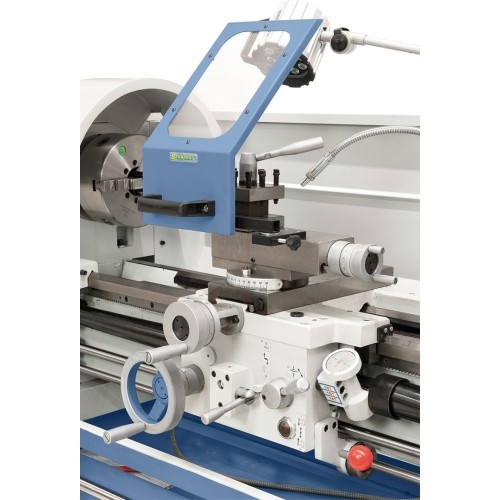

  • Protective device at 4-way tool post holder
  • Safety clutch
  • Micrometer longitudinal fence
  • Thread dial
  • LED machine light
  • Morse taper drill sleeve

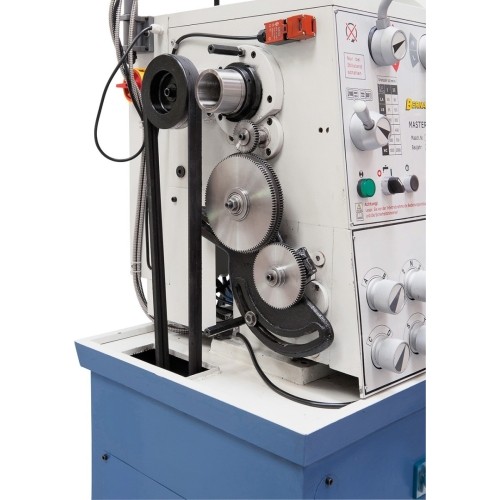

  • Change gears
  • 2 dead centers
  • Foot pedal with brake function according to CE
  • Motor with magnetic brakce according to CE
  • Tools
