Distance between centers
1000 mm
Taper of tailstock sleeve
MT 4
Travel of tailstock sleeve
100 mm
Weight approx.
575 kg
Center height
180 mm
Swing over bed
360 mm
Swing over cross slide
220 mm
Spindle bore
52 mm
Spindle nose fixture
DIN 55029, D1-5
Speed Range
(8) 70 - 2000 rpm
Longitudinal feed
(32) 0,052 - 1,392 mm/rev.
Cross feed
(32) 0,014 - 0,380 mm/rev.
Metric thread
(26) 0,4 - 7,0 mm
Inch thread
(34) 4 - 56 threads/1“
Diameter of tailstock sleeve
42 mm
Machine dimension (W x D x H)
1825 x 750 x 1600 mm
Motor power output S1 100%
1,5 kW / 400 V
Motor power input S6 40%
2,2 kW / 400 V
Bed width
185 mm

Universalios tekinimo staklės Bernardo Master 360 Pro

1055599
Price €13,277.00 VAT incl.

Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Supplier store
(10 pcs)
Delivery terms:
FREE pick up wednesday, july 15 d., in the store, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 575 kg.
We will deliver the product to you via: 5-11 w.d. Venipak (€40.99)
Weight: 575 kg.

Description

Properties

  • Solid prism-shaped machine bed features additional reinforcements to keep vibrations to a minimum
  • 52 mm spindle bore to machine large shaft diameters comes standard
  • Ideal for processing of steel, non-ferrous materials and plastics
  • Chip tray extracts to front, keeping space requirements to a minimum

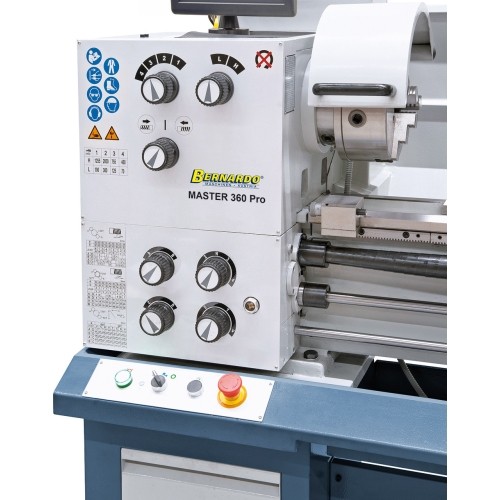

  • Clear arranged speed and feed control settings, smooth operation and accurate control
  • Electro-magnetic foot brake reduces downtime
  • State-of-the-art spindle bedding with high-quality, angular ball bearings
  • Grey cast-iron machine bed, inductive hardened and polished
  • High spindle concentricity (≤ 0,009 mm)
  • Hardened and polished spindle runs in oil bath

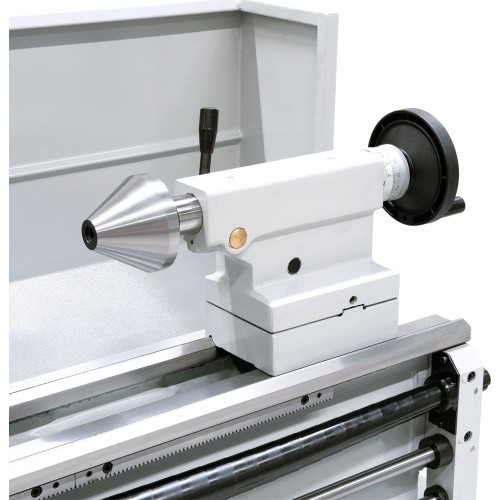

  • Tailstock, spindle stock and all guides are adjustable
  • Tailstock can be adjusted ± 5 mm for taper turning

Standard accessories

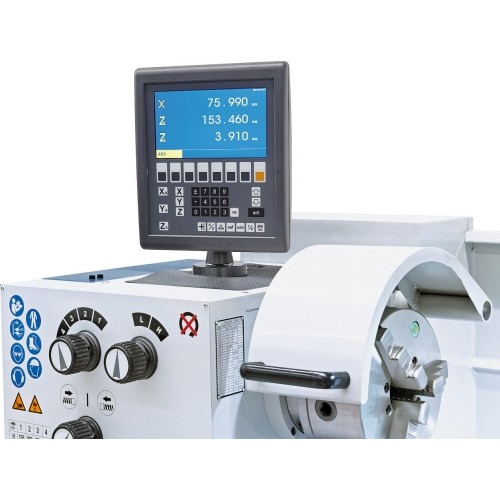

  • 3-axis digital readout ES-12 V with LCD-display

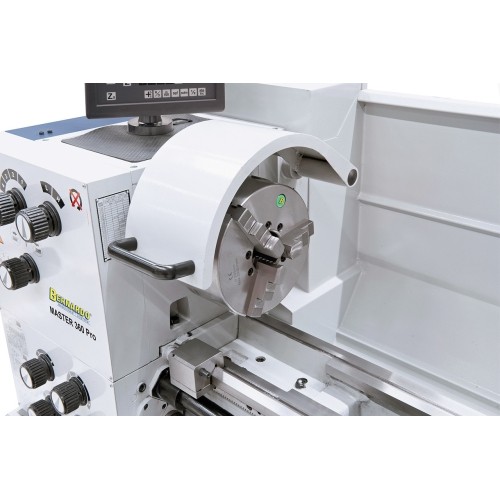

  • 3-jaw chuck DK11-200 mm / D5

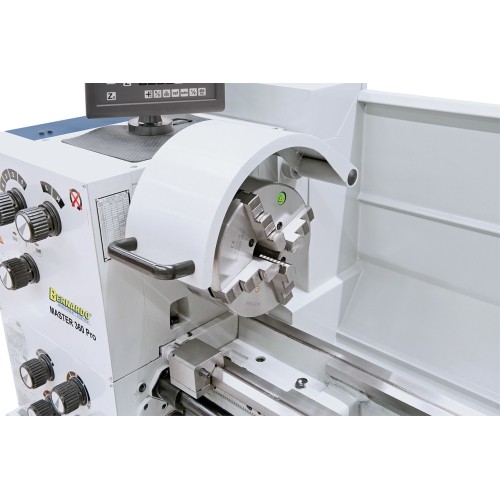

  • Independent chuck K72-200 mm / D5
  • Steady rest - Passage up to 70 mm
  • Follow rest - Passage up to max. 60 mm
  • Coolant device
  • Initial filling with Shell Tellus 46
  • Extractable chip tray

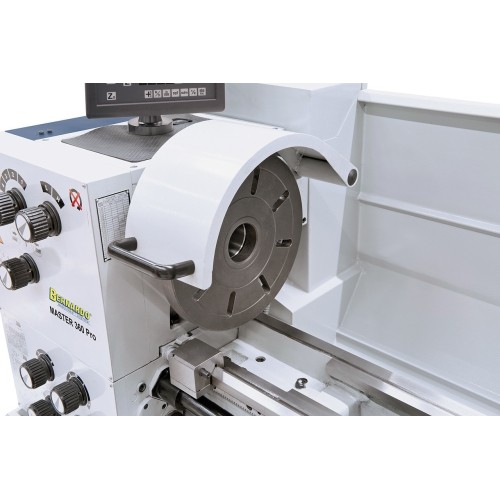

  • Face plate 280 mm

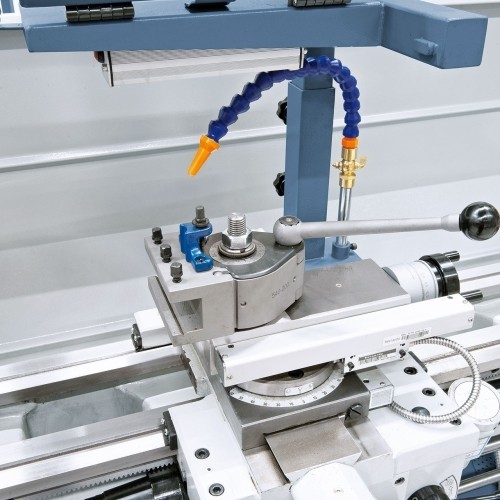

  • 4-way tool post holder

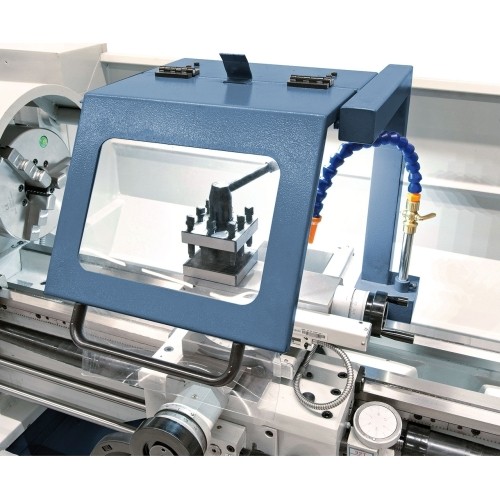

  • Protective cover at 4-way tool post holder
  • Safety clutch
  • Micrometer longitudinal fence
  • Thread dial
  • LED machine light
  • Morse taper drill sleeve

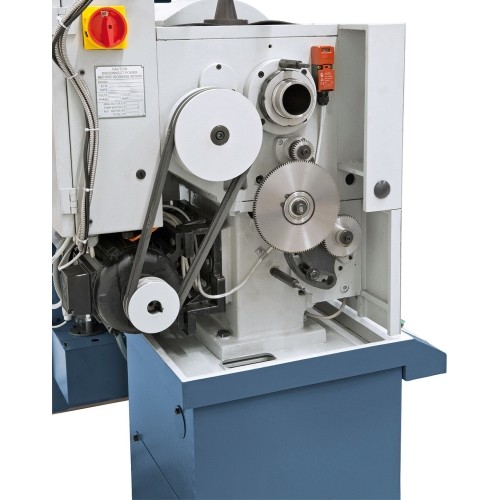

  • Change gears
  • 2 dead centers
  • Foot pedal with brake function according to CE
  • Motor with magnetic brake according to CE
  • Stand with drawers
  • Tools
