Distance between centers
1000 mm
Taper of tailstock sleeve
MT 4
Travel of tailstock sleeve
140 mm
Weight approx.
1220 kg
Motor power
3,0 / 4,5 kW
Center height
210 mm
Swing over bed
420 mm
Swing over gap*
580 mm
Swing over cross slide
255 mm
Spindle bore
52 mm
Spindle nose fixture
DIN 55029, D1 - 6
Speed Range
(16) 45 – 1800 rpm
Longitudinal feed
(17) 0,05 - 1,7 mm/rev.
Cross feed
(17) 0,025 - 0,85 mm/rev.
Metric thread
(42) 0,2 - 14 mm
Inch thread
(45) 2 - 72 threads/1“
Diameter of tailstock sleeve
50 mm
Machine dimension (W x D x H)
2070 x 900 x 1600 mm
Bed width
250 mm

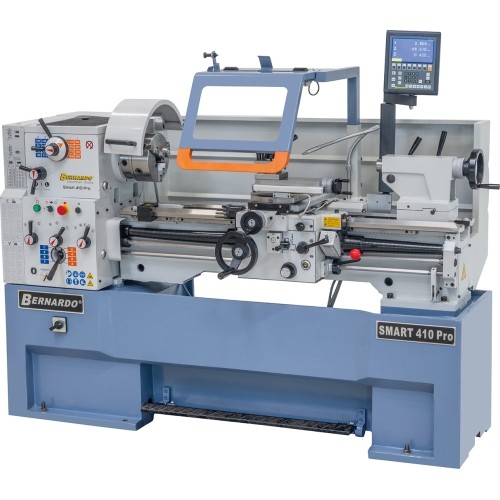

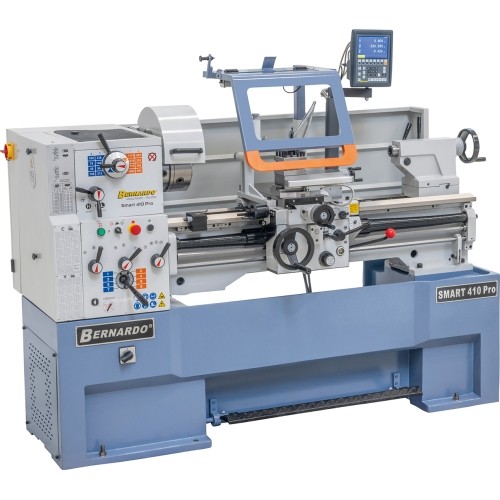

Smart 410 x 1000 Pro incl. 3-axis digital readout

1347560
Price €16,222.00 VAT incl.

Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Supplier store
(10 pcs)
Delivery terms:
FREE pick up wednesday, july 15 d., in the store, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 1220 kg.

Description

Properties

  • Inductive hardened, polished grey cast-iron machine bed
  • Electro-mechanical foot brake reduces downtime significantly
  • State-of-the-art main spindle bearing with high-quality angular ball bearings
  • Modern bearing of main spindle with angular ball bearing in precision construction

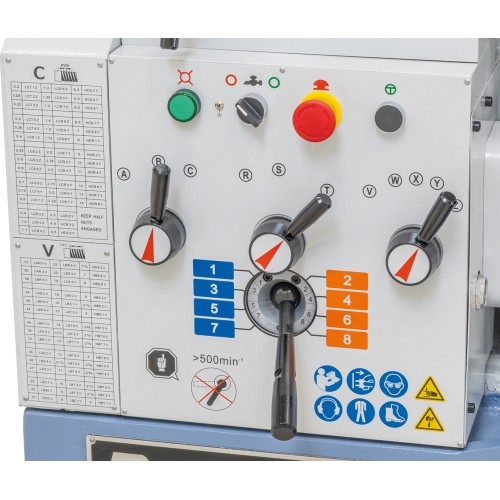

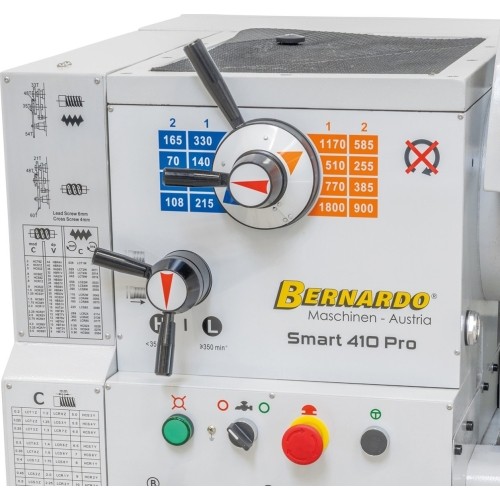

  • Easy, smooth and precisely adjustable speed and feed settings
  • Hardened, polished gears and shafts, also in feed gear unit
  • Centrally located, logical switches for feeds and threads with leadscrew and feed rod

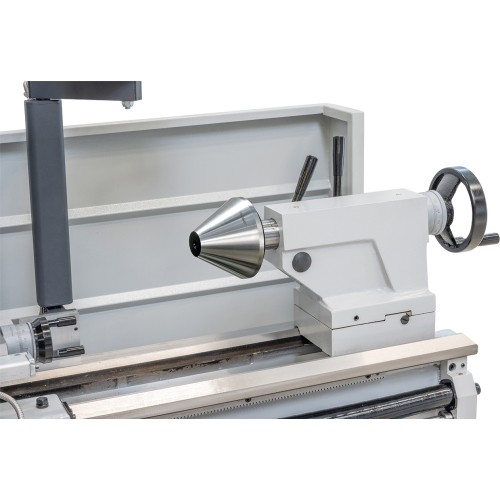

  • Adjustable tailstock for taper turning, handwheel feature adjustable scale (0,02 mm)
  • The removeable bridge allows machining of workpieces with a big diameter

Standard accessories

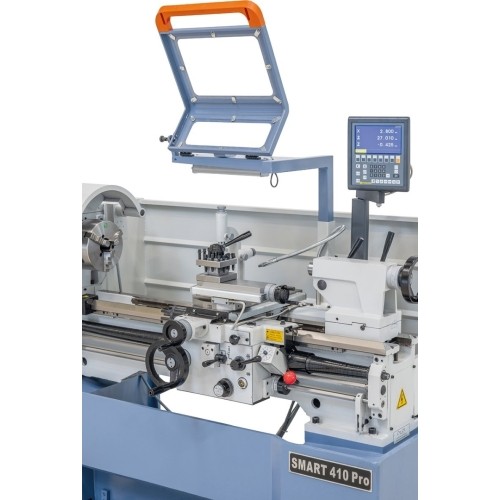

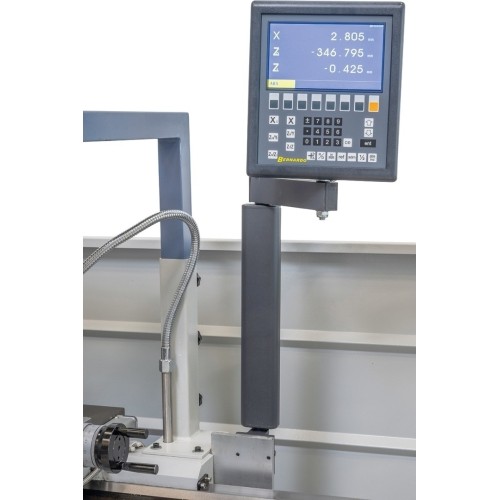

  • 3-axis digital readout ES-12 V with LCD display

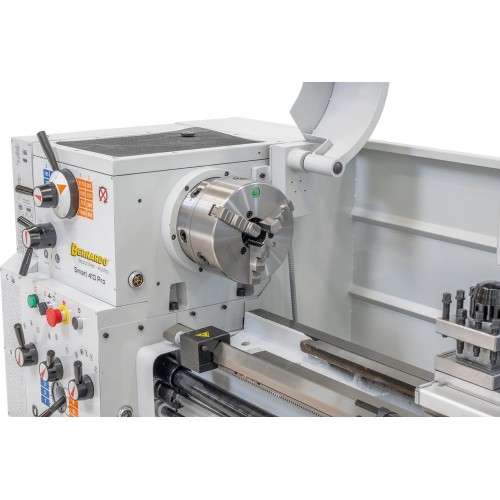

  • 3-jaw chuck DK11-200 mm / D6
  • Face plate 350 mm

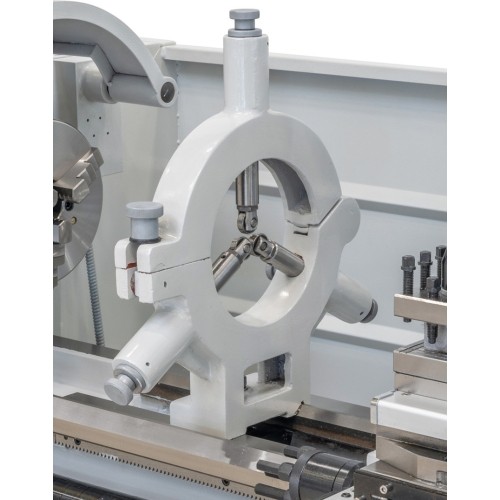

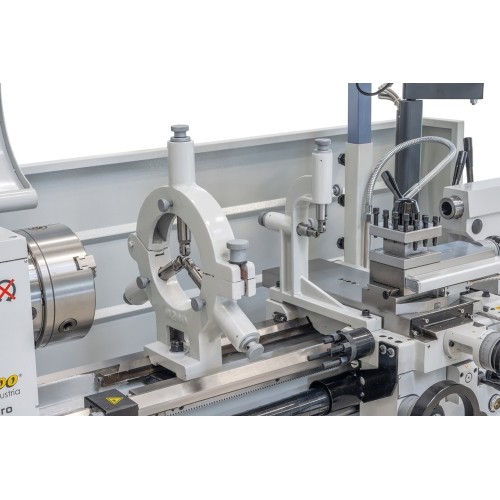

  • Steady rest - Passage up to max. 135 mm
  • Follow rest - Passage up to max. 65 mm
  • Coolant device

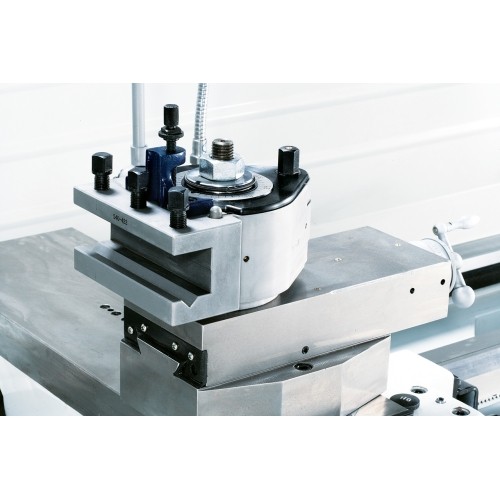

  • 4-way tool post holder

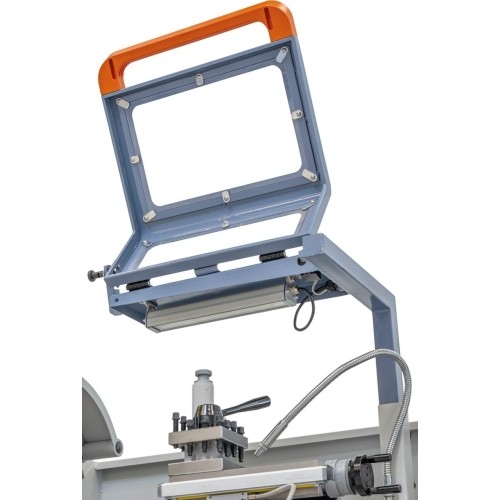

  • Protective device at 4-way tool post holder
  • Micrometer longitudinal fence
  • Safety clutch

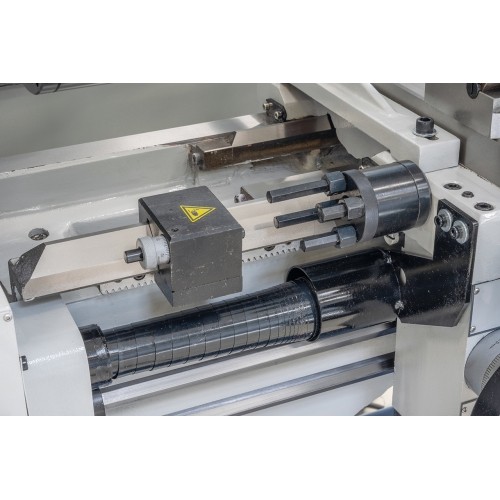

  • Turret stop with fine adjustment
  • Thread dial
  • Motor with magnetic brake according to CE
  • Foot pedal with brake function according to CE
  • Inital filling with Shell Tellus 46
  • LED machine light

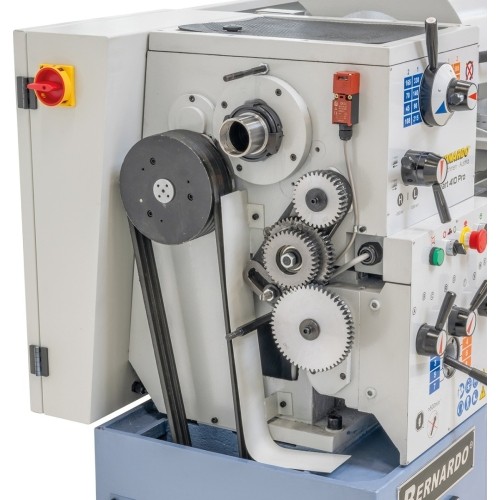

  • Change gears
  • Morse taper drill sleeve
  • 2 dead centers
  • Splash guard
  • Tools
