- Distance between centers
- 3000 mm
- Taper of tailstock sleeve
- MT 5
- Travel of tailstock sleeve
- 150 mm
- Machine dimension (L x W x H)
- 4500 x 1520 x 1650 mm
- Weight approx.
- 4050 kg
- Motor power
- 9,0 kW (12,0 HP)
- Center height
- 420 mm
- Swing over bed
- 840 mm
- Swing over gap*
- 1060 mm
- Swing over cross slide
- 280 mm
- Bed with
- 400 mm
- Spindle bore
- 105 mm
- Spindle nose fixture
- DIN 55029, D1-8
- Speed Range
- (16) 36 - 1600 rpm
- Longitudinal feed
- (65) 0,063 - 2,52 mm/rev.
- Cross feed
- (65) 0,027 - 1,07 mm/rev.
- Metric thread
- (18) 0,5 - 7 mm
- Inch thread
- (26) 2 - 28 threads/1“
- Diameter of tailstock sleeve
- 75 mm

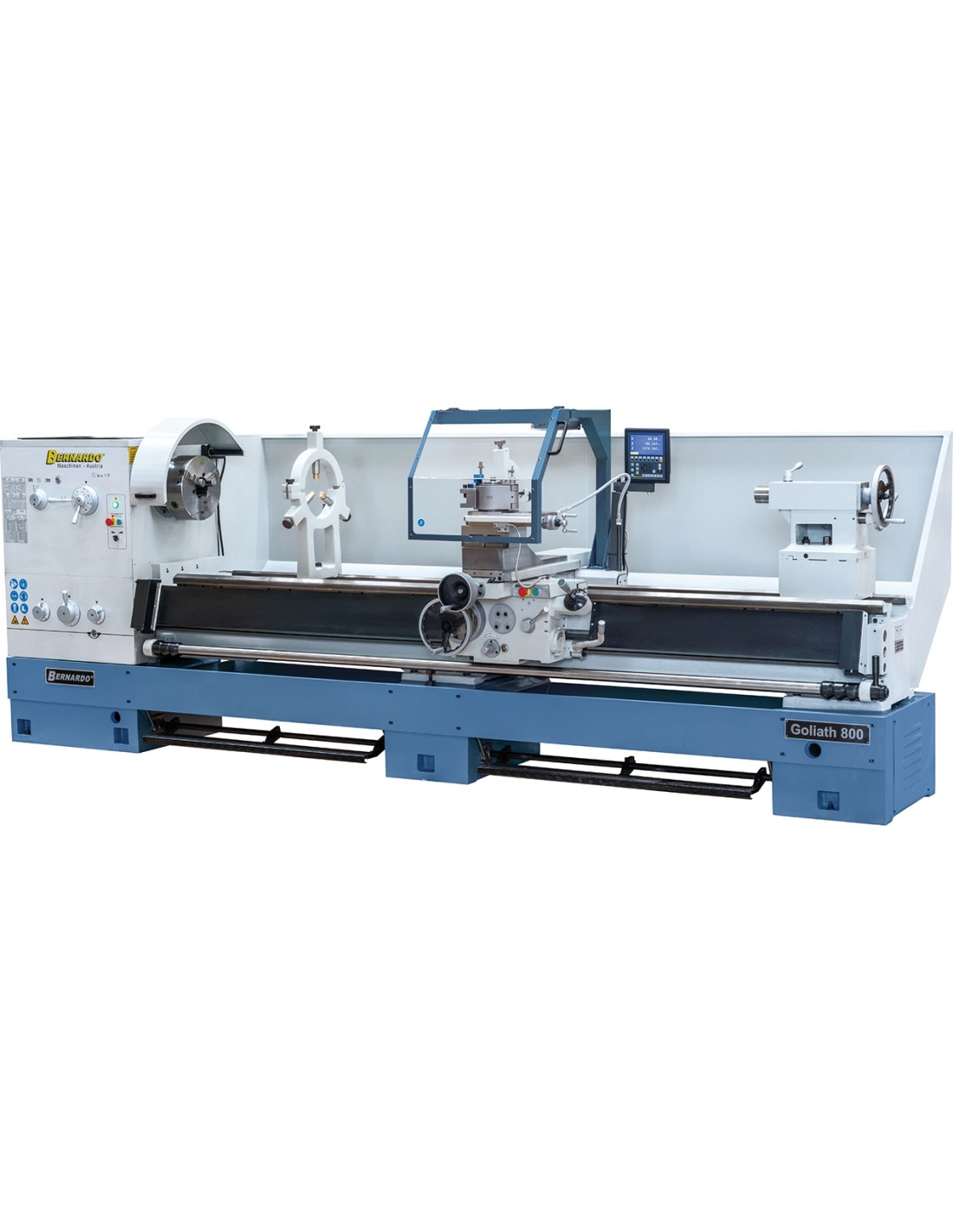

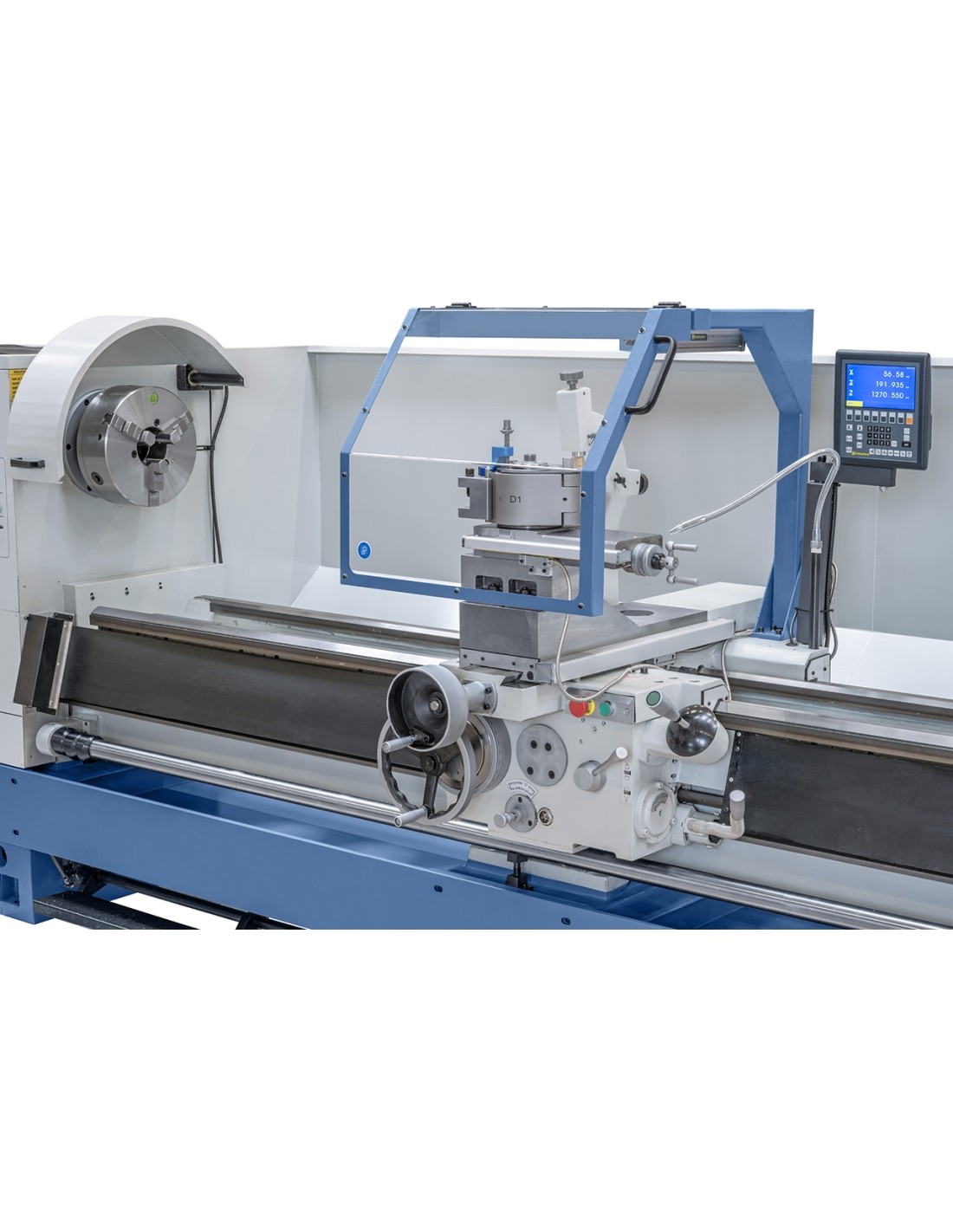

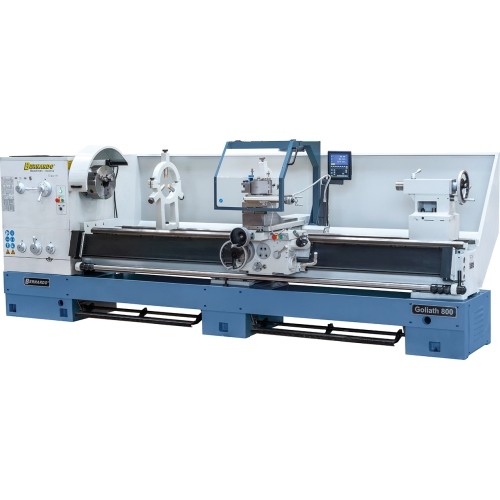

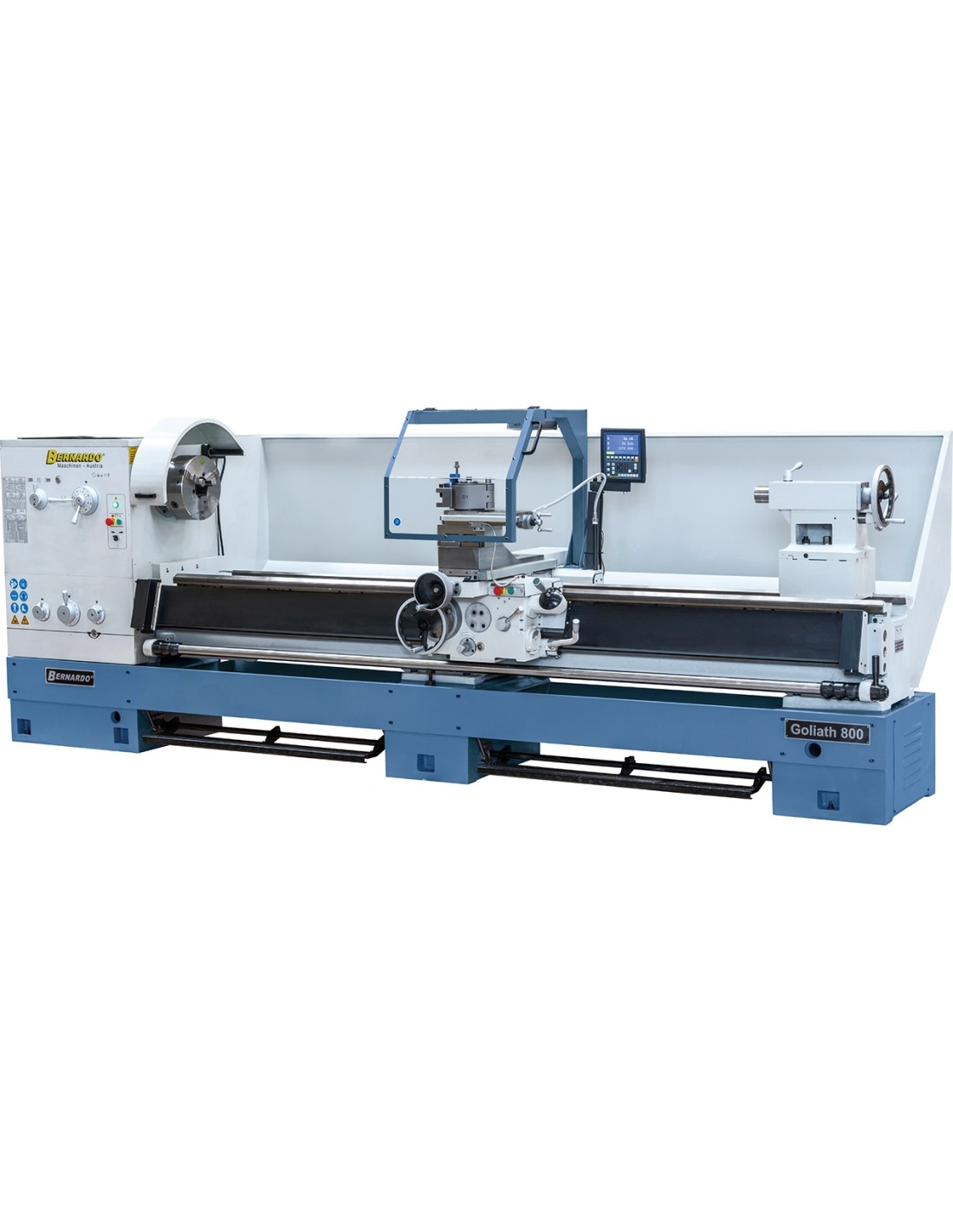

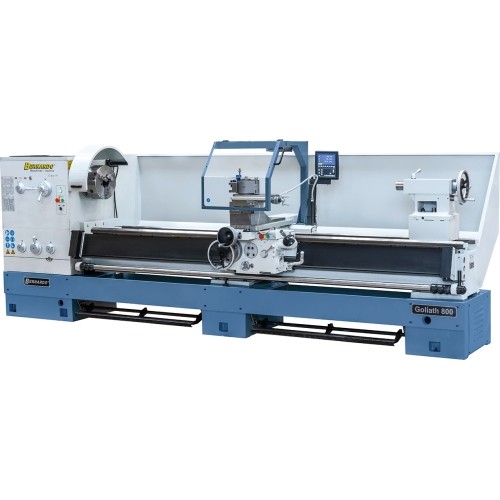

Goliath 800 x 3000
1366317
Price
€45,326.00
VAT incl.
Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Supplier store
(5+ pcs)
Delivery terms:
FREE pick up friday, may 15 d., in the store, Raudondvario pl. 141, Kaunas
(€0.00) Weight: 4050 kg.
Description
Properties
- Various possible applications in general machine construction, production, single part manufacturing etc.
- Machine bed, cast in one piece, eliminates torsion and vibrations, resulting in best possible accuracy
- State-of-the-art main spindle bearing with high-quality angular ball bearings

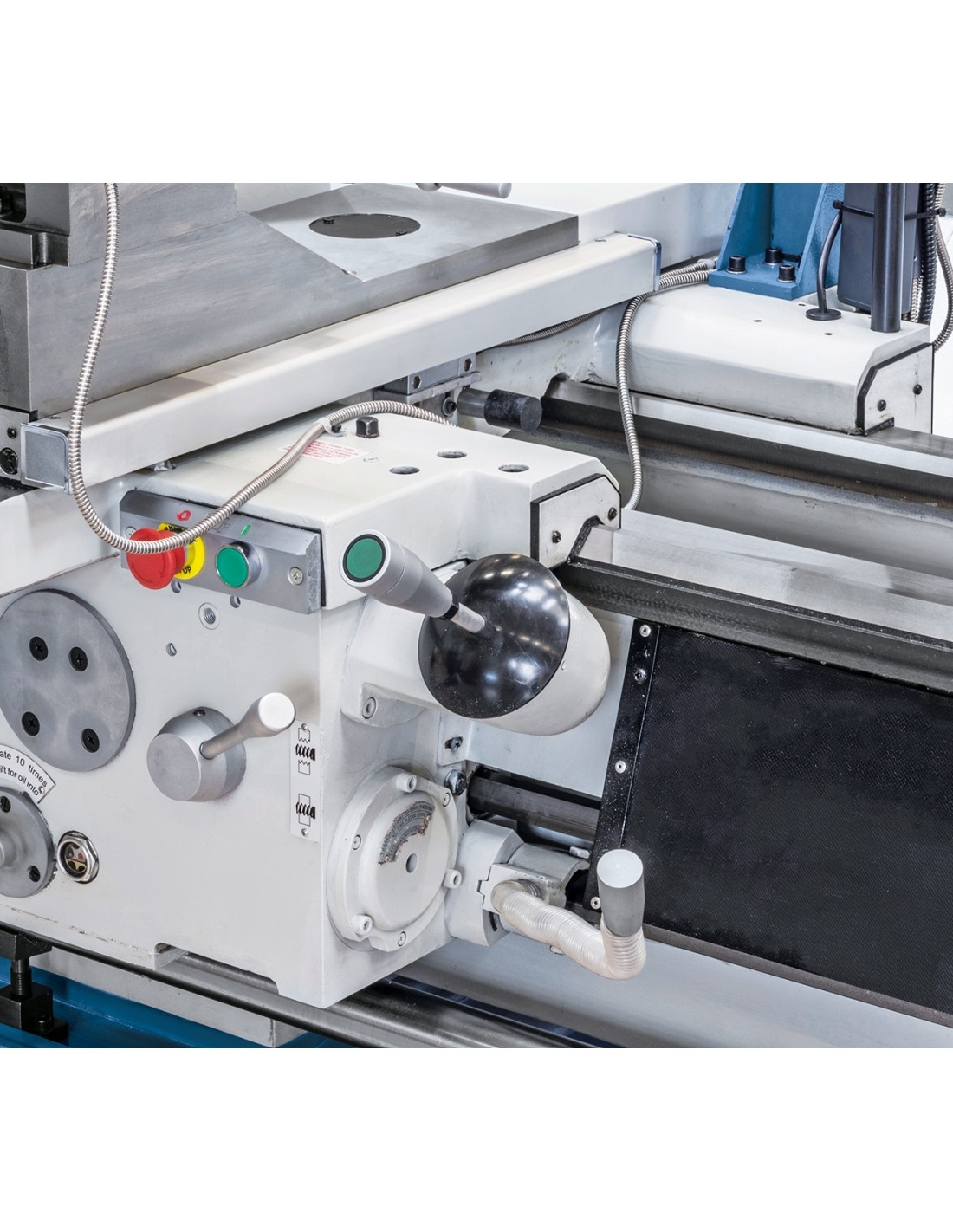

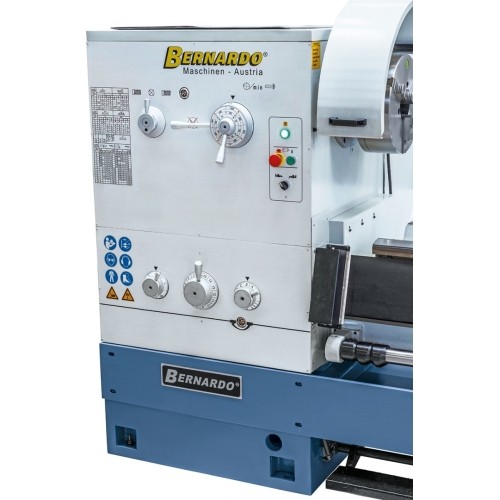

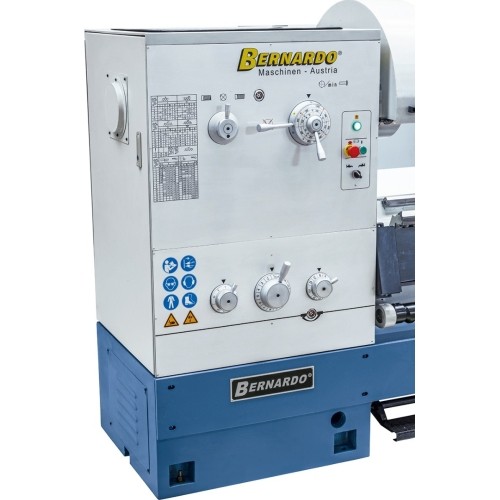

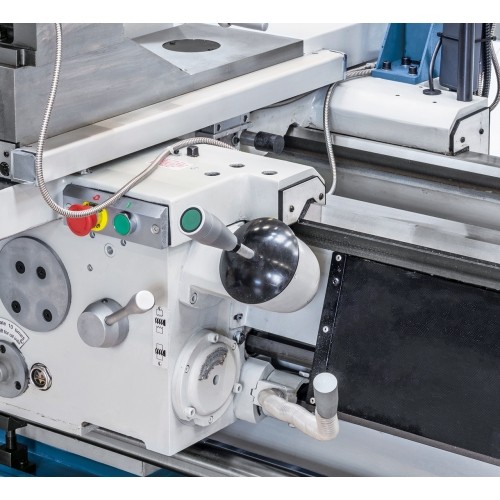

- Centrally positioned, practical feed controls and thread cutting controls (with leadscrew and feed rod)
- Complete with longitudinal and cross rapid feed to reduce downtime

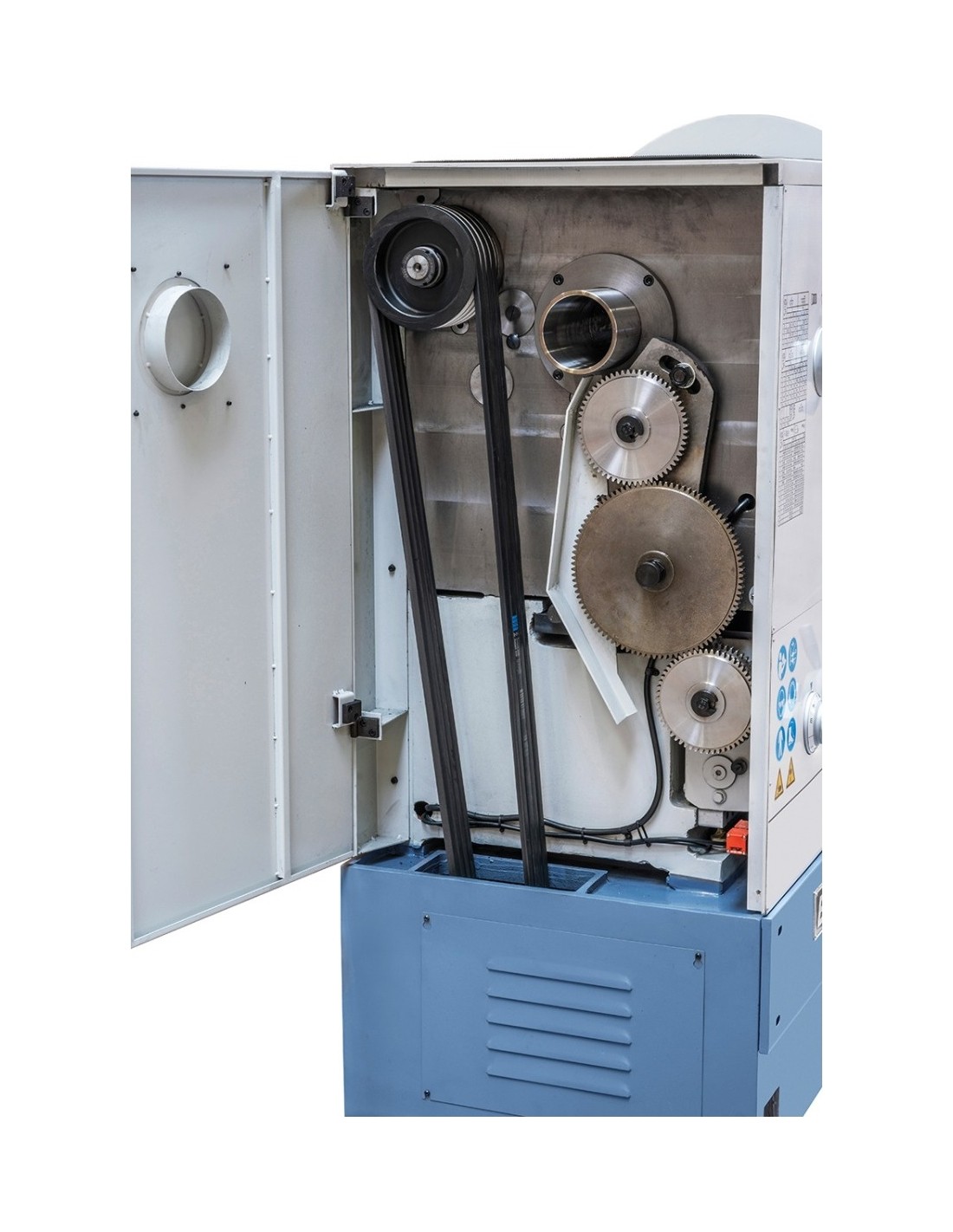

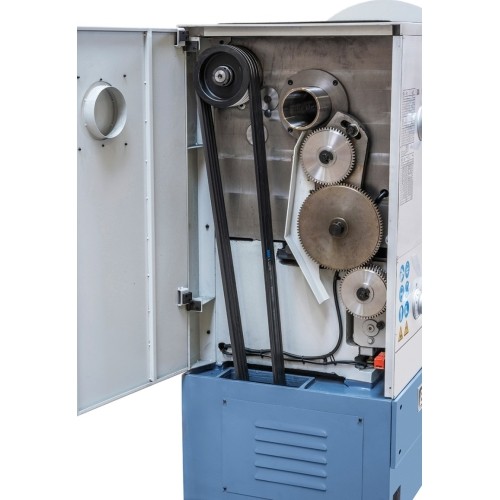

- Large gear wheels, hardened and polished
- Removable bridge allows machining of oversize workpieces

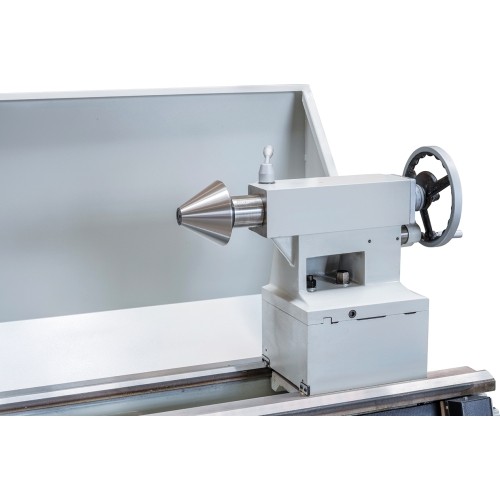

- Tailstock can be repositioned for taper turning, handwheel feature adjustable scale (0.02 mm)
- Electro-mechanical foot brake keeps downtime to a minimum
- High performance even at face turning
Standard accessories
- Safety clutch
- Rapid feed longitudinal and cross

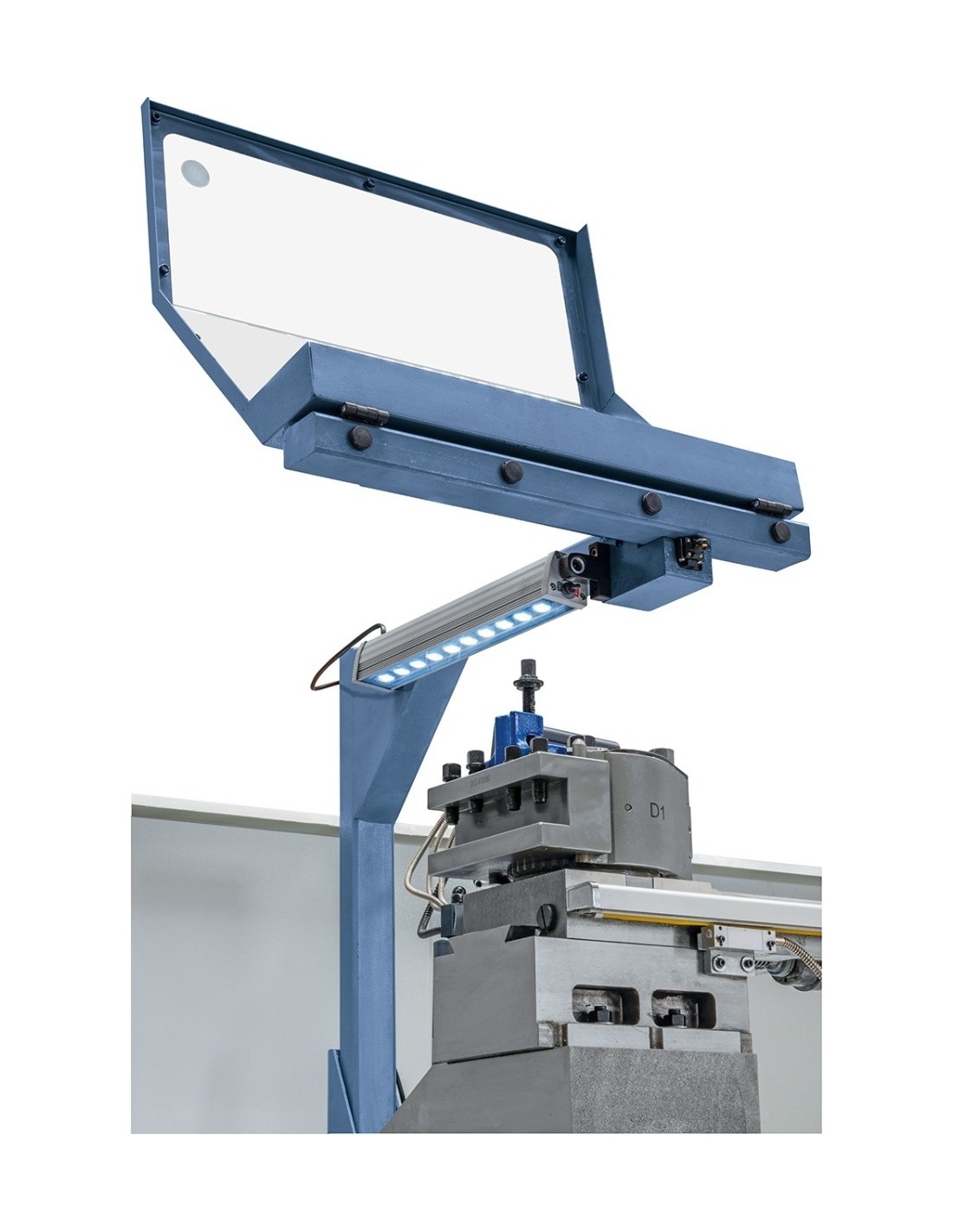

- LED machine light

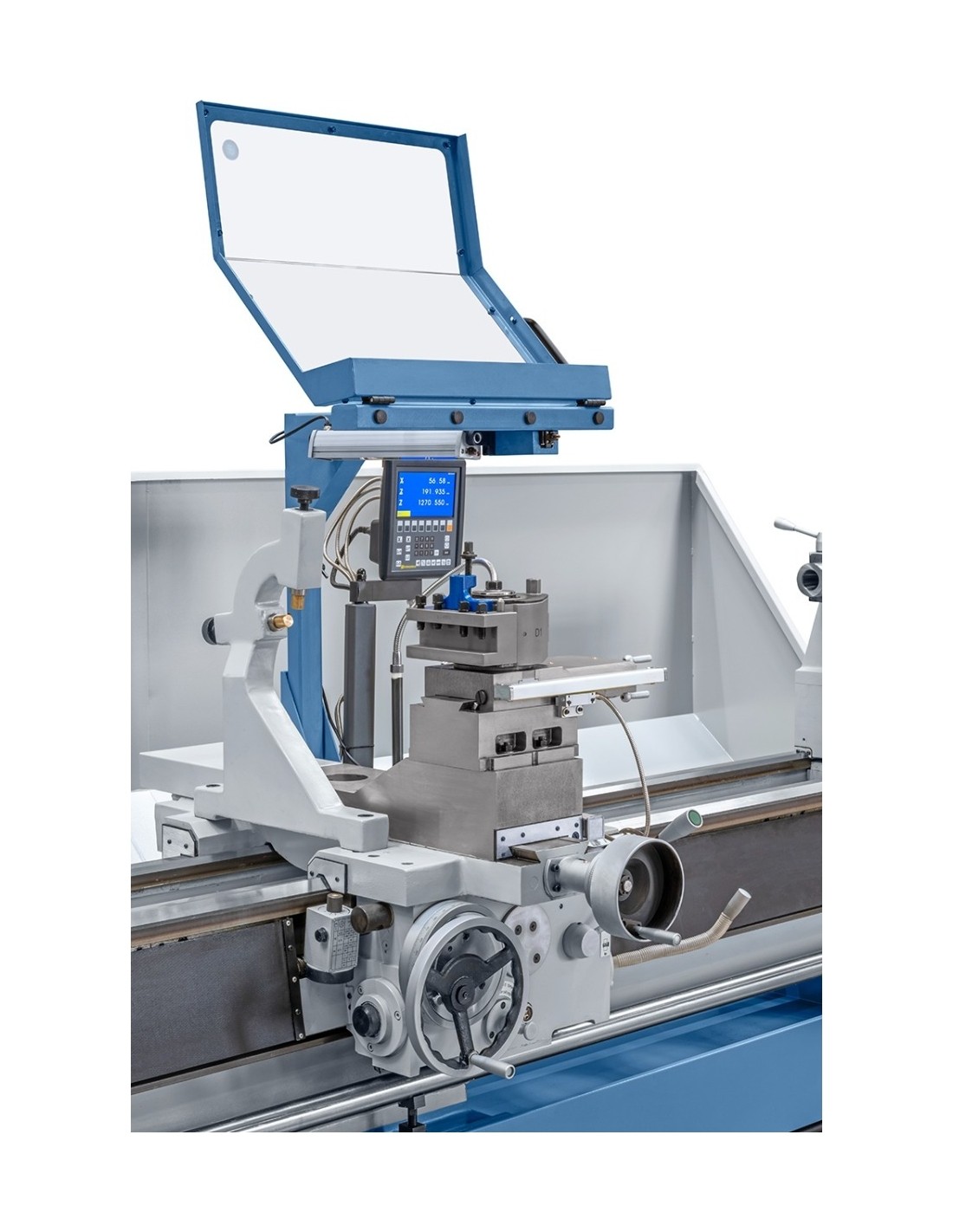

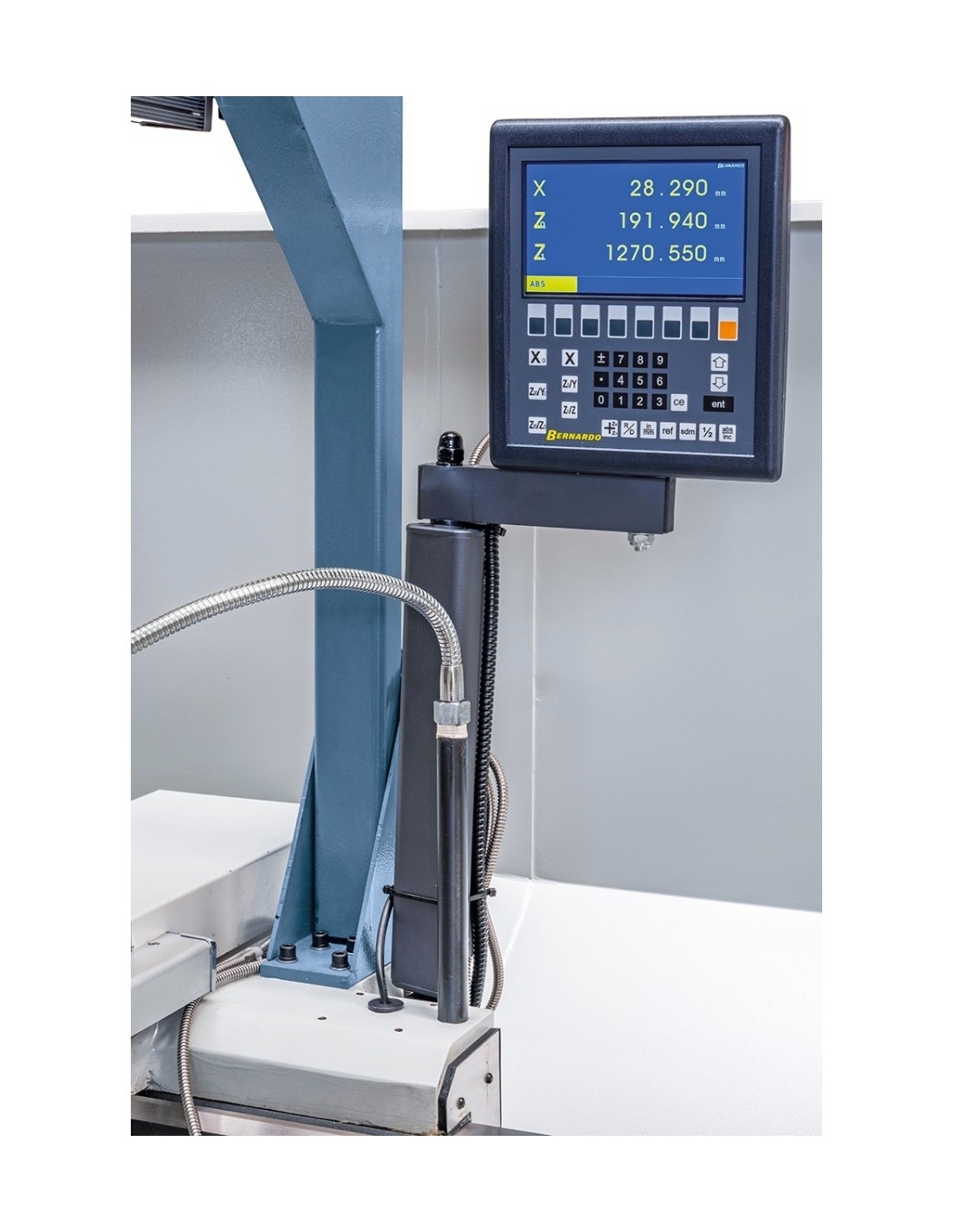

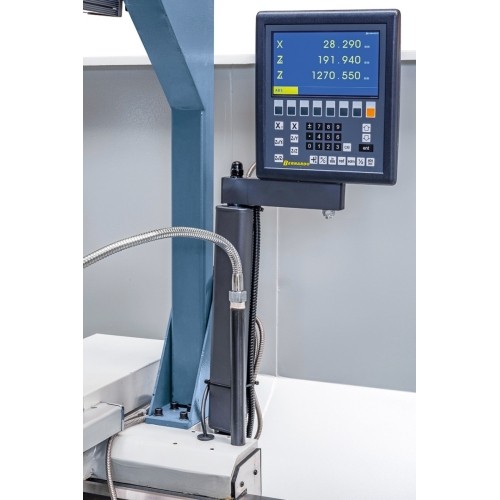

- 3-axis digital readout ES-12 V with LCD-display

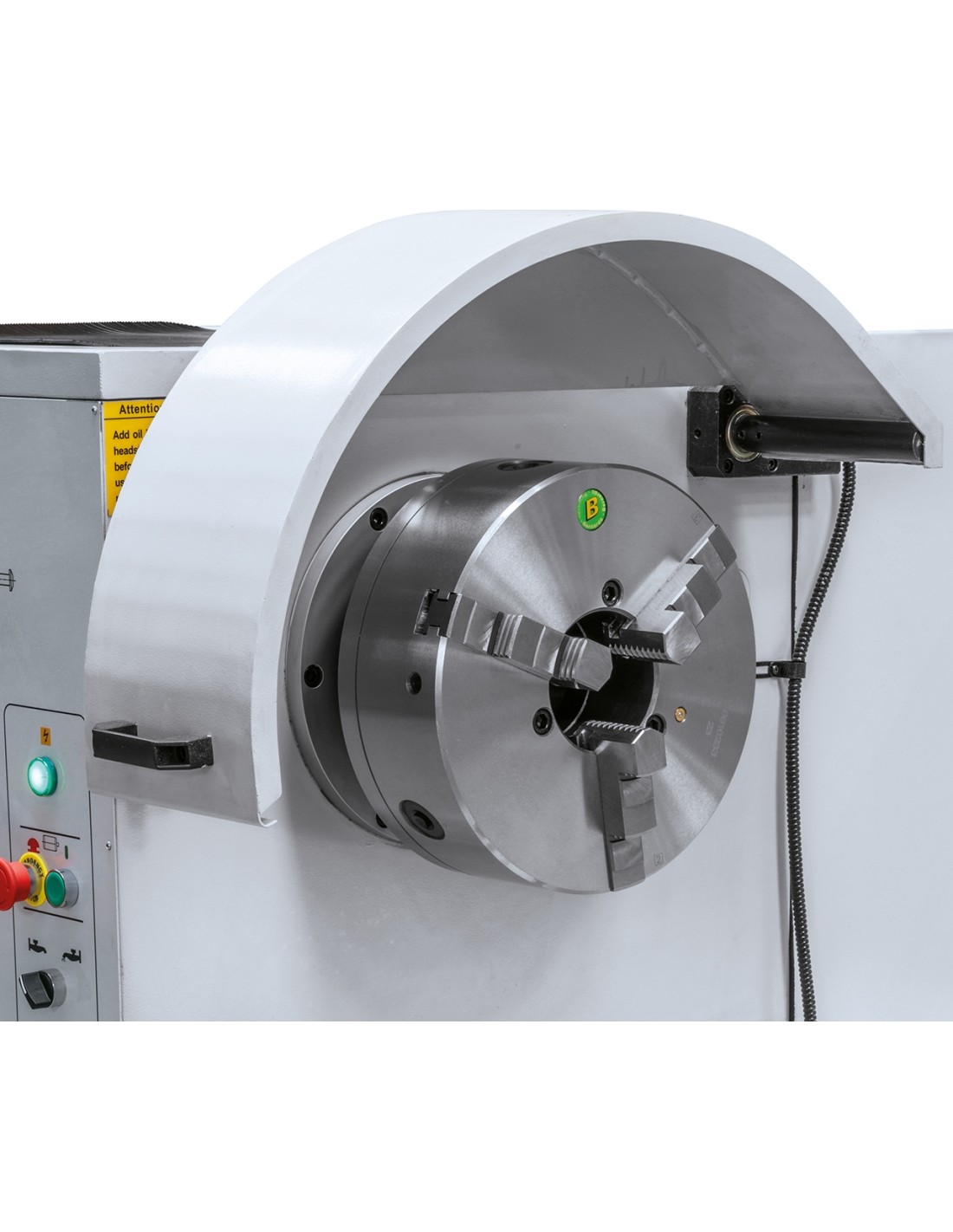

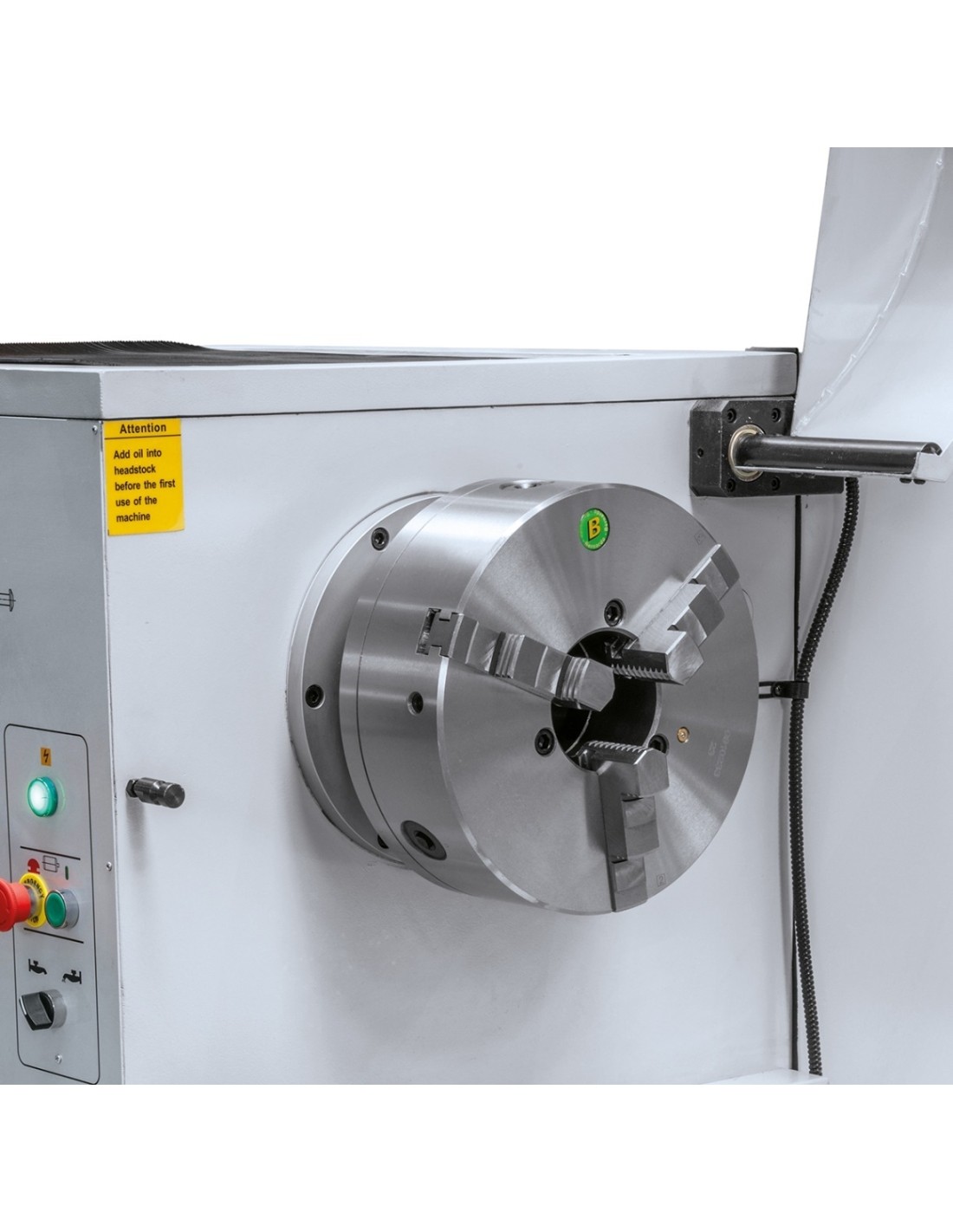

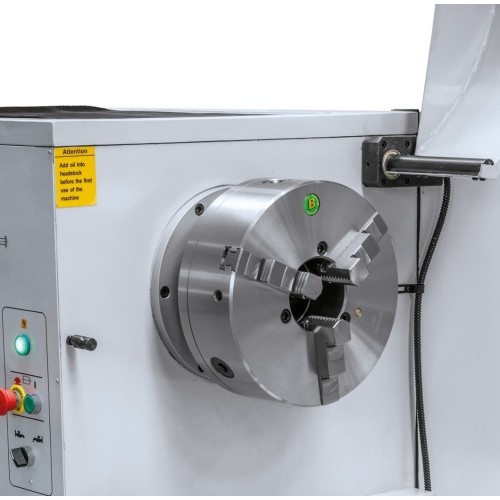

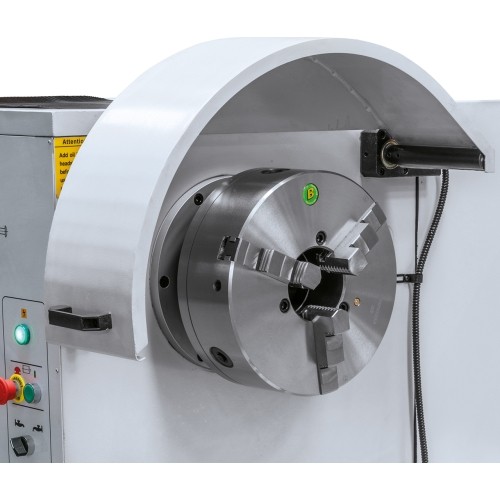

- 3-jaw chuck PS3-315 mm / D8

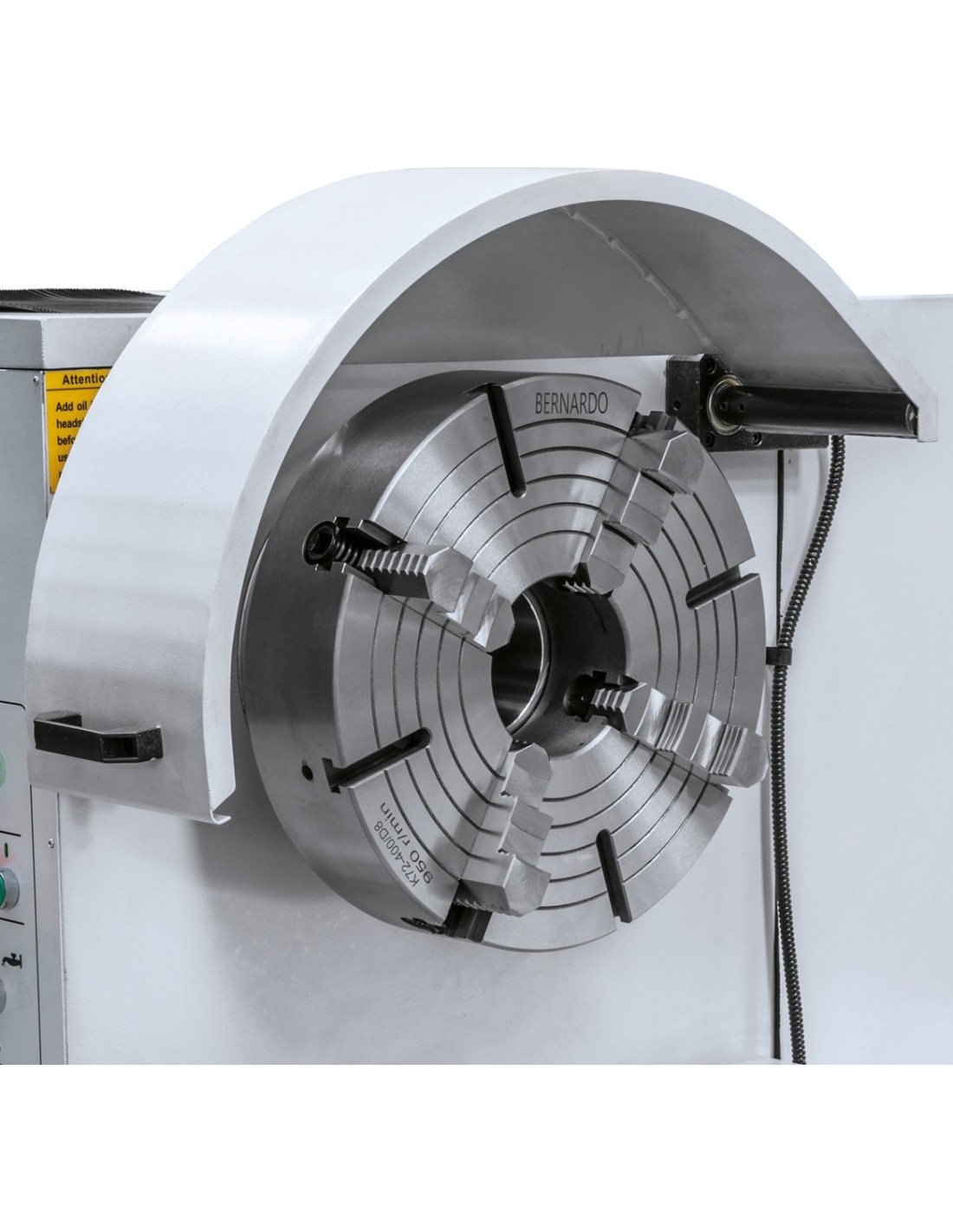

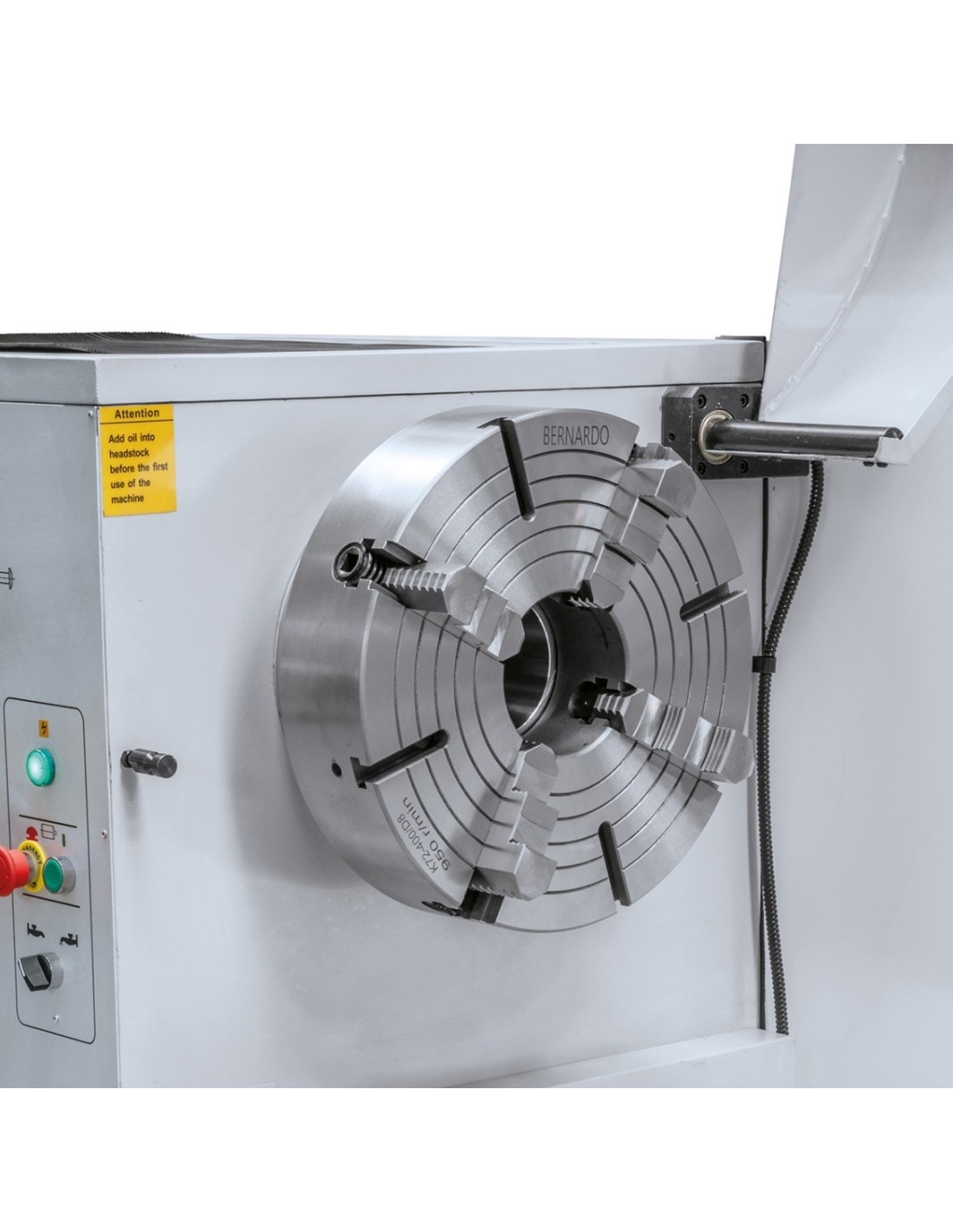

- Face plate 630 mm

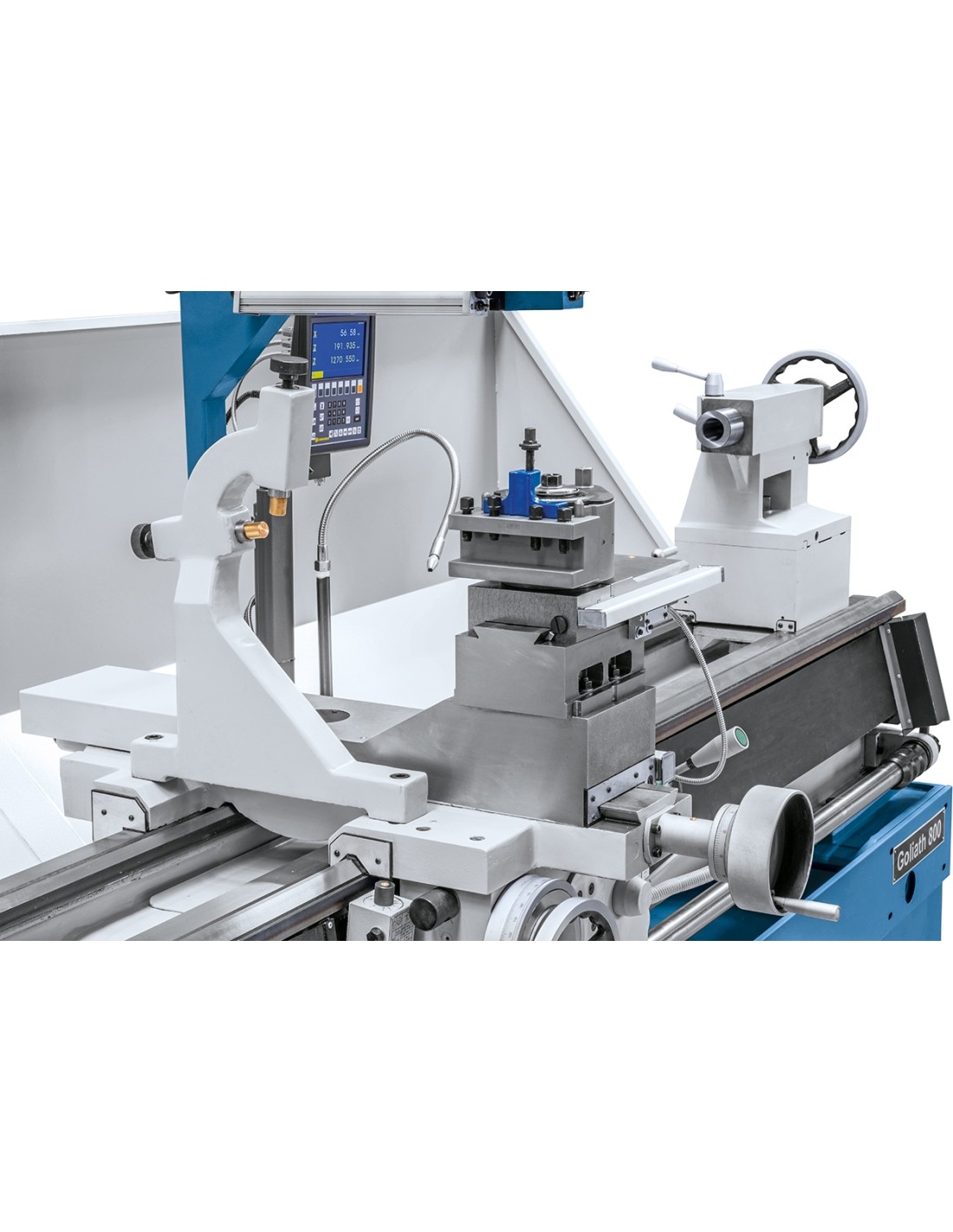

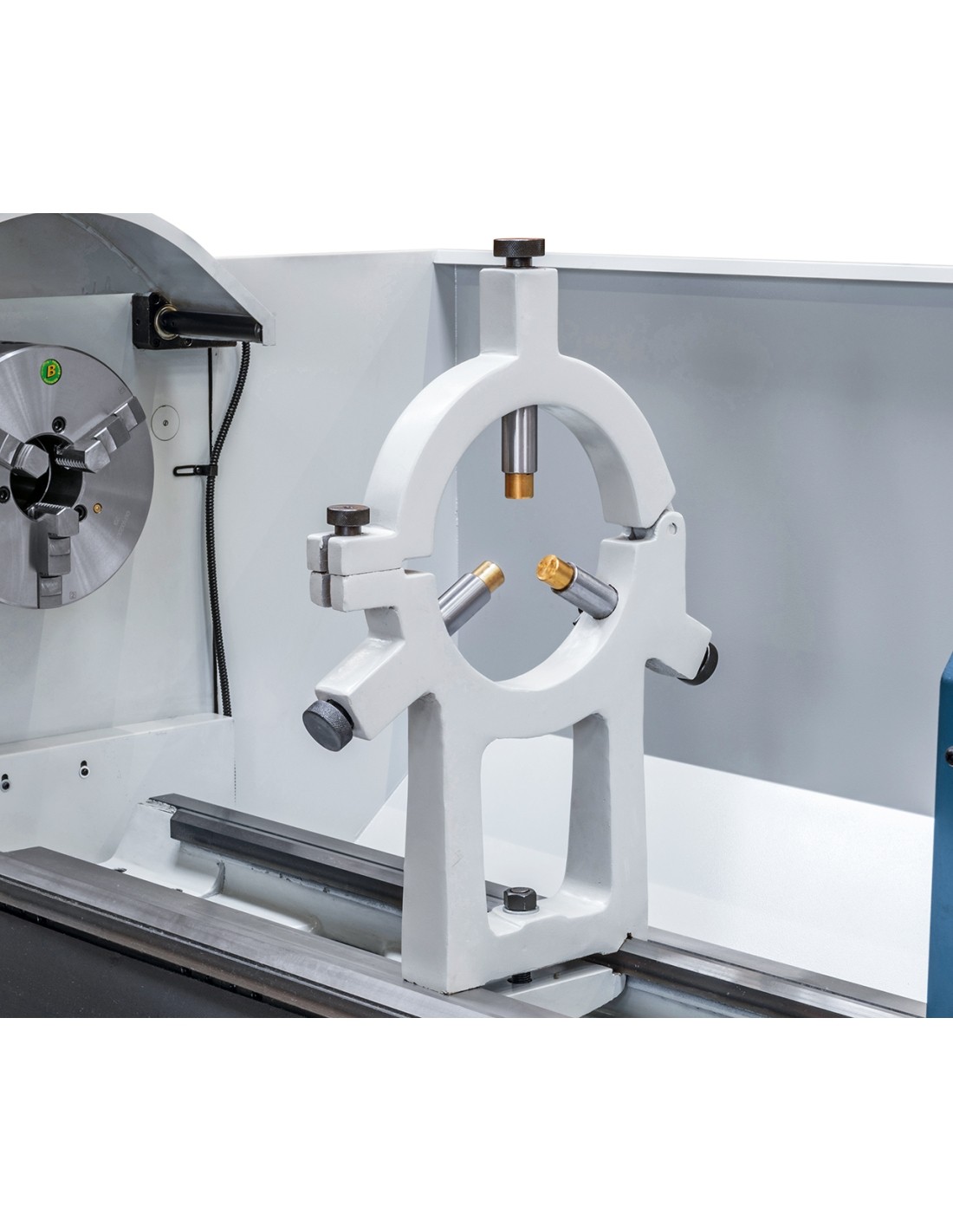

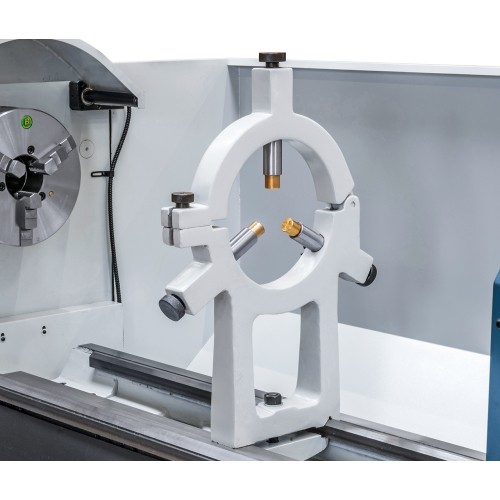

- Steady rest - Passage up to max. 260 mm
- Follow rest - Passage up to max. 110 mm
- 1 dead center / 1 live center
- Motor with magnetic brake according to CE
- Foot pedal with brake function acc. to CE
- Initial filling with Shell Tellus 46
- Coolant device

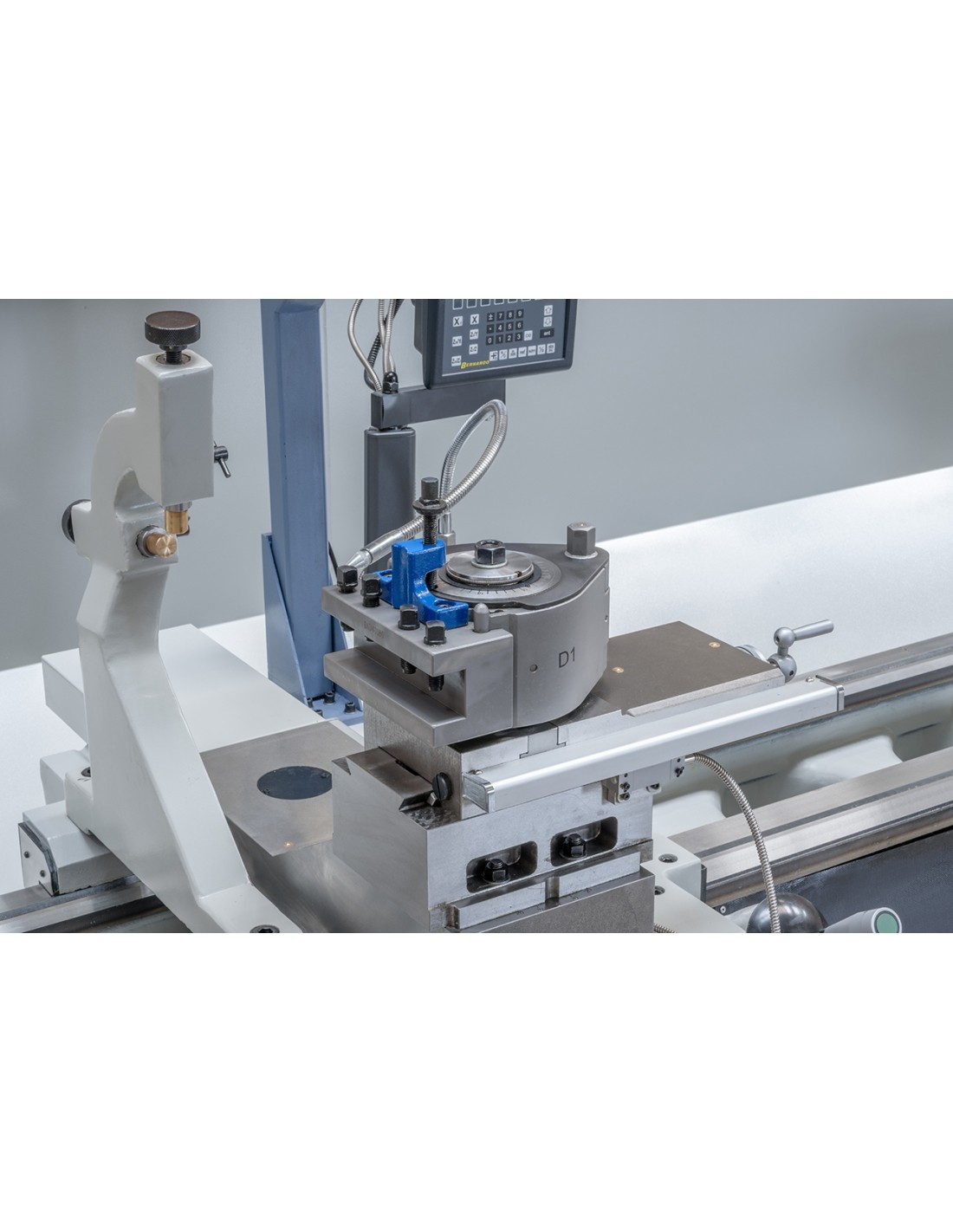

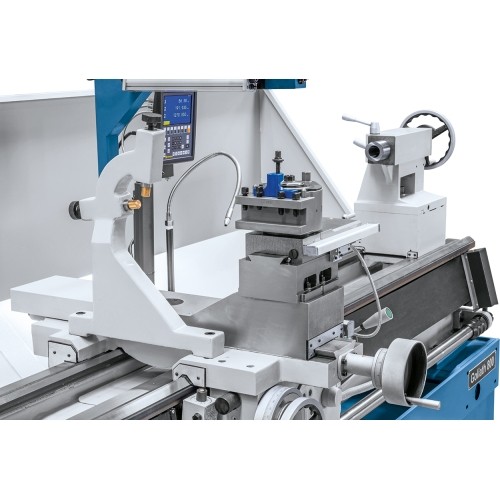

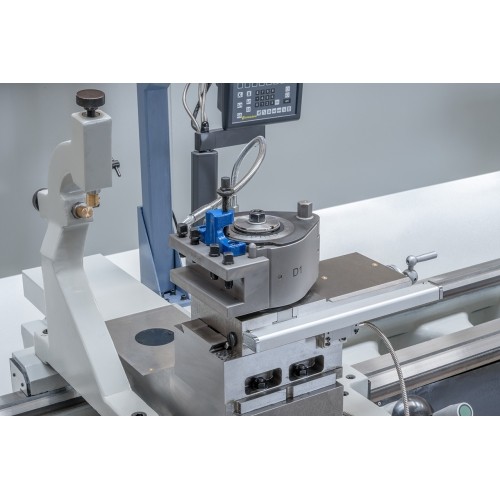

- 40 pos. tool post and holder set with 4 inserts

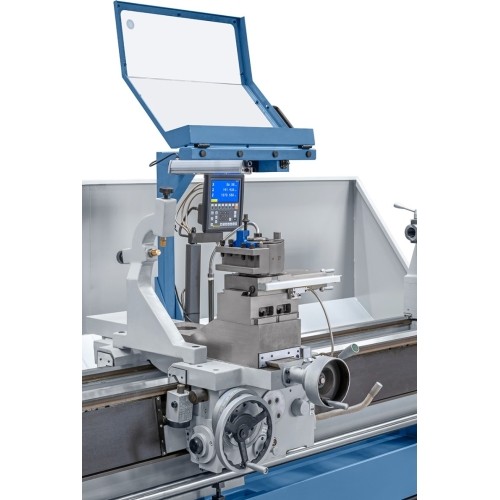

- Protective device at tool post holder
- Morse taper drill sleeve

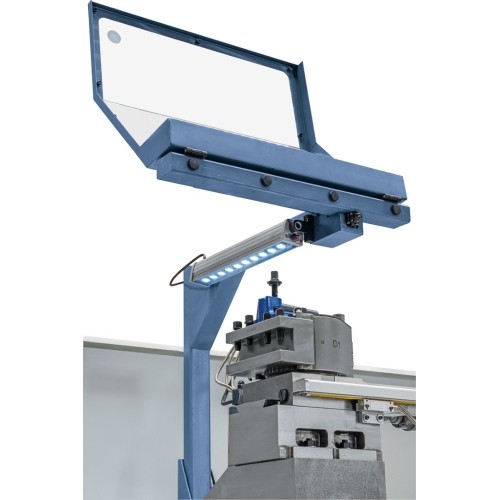

- Splash guard
- Tools
