Distance between centers
1500 mm
Taper of tailstock sleeve
MK 4
Travel of tailstock sleeve
140 mm
Weight approx.
1325 kg
Motor power
5,5 kW (7,5 HP)
Center height
210 mm
Swing over bed
420 mm
Swing over gap*
580 mm
Swing over cross slide
255 mm
Spindle bore
52 mm
Spindle nose fixture
DIN 55029, D1 - 6
Longitudinal feed
(17) 0,05 - 1,7 mm/rev.
Cross feed
(17) 0,025 - 0,85 mm/rev.
Metric thread
(42) 0,2 - 14 mm
Inch thread
(45) 2 - 72 threads/1“
Diameter of tailstock sleeve
50 mm
Machine dimension (W x D x H)
2590 x 1050 x 1600 mm
Speed range, stepless
30 - 550 / 550 - 3000 rpm
Bed width
250 mm

Smart 410 x 1500 Pro Vario

1363343
Price €26,183.00 VAT incl.

Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Supplier store
(10 pcs)
Delivery terms:
FREE pick up wednesday, july 15 d., in the store, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 1325 kg.

Description

Properties

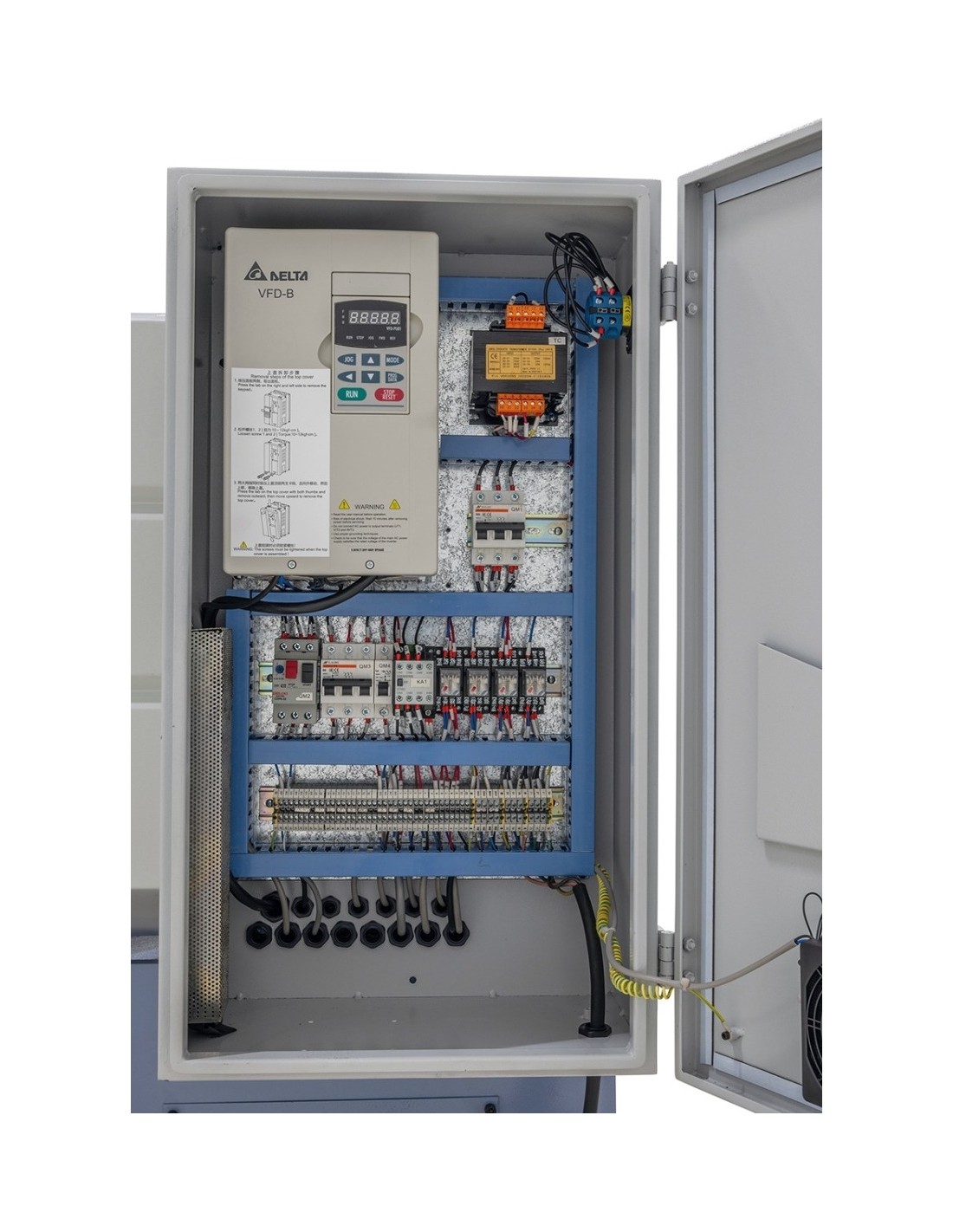

  • Serially with Delta-frequency inverter for high torque in low speed range and nearly constant speed at heavy workloads

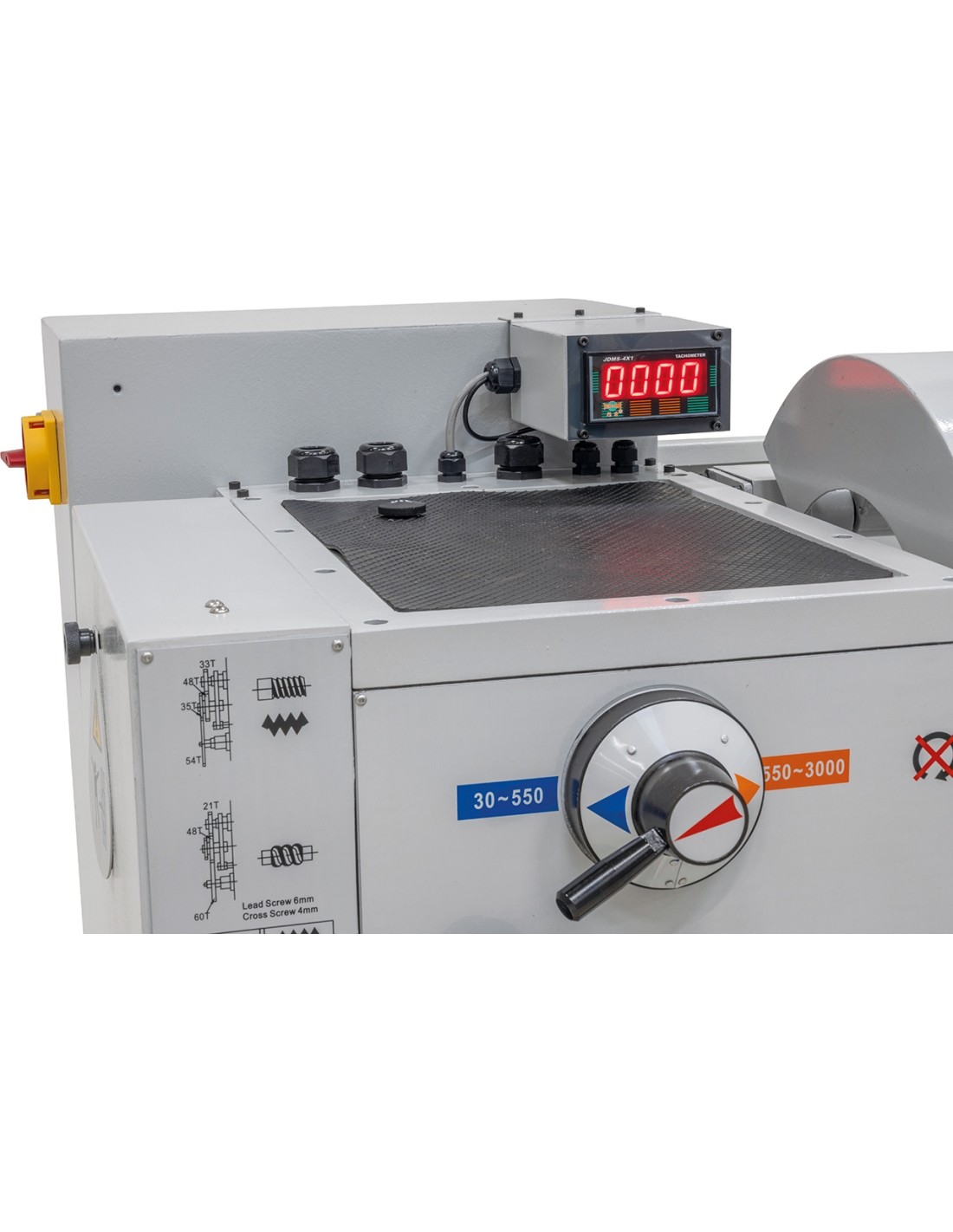

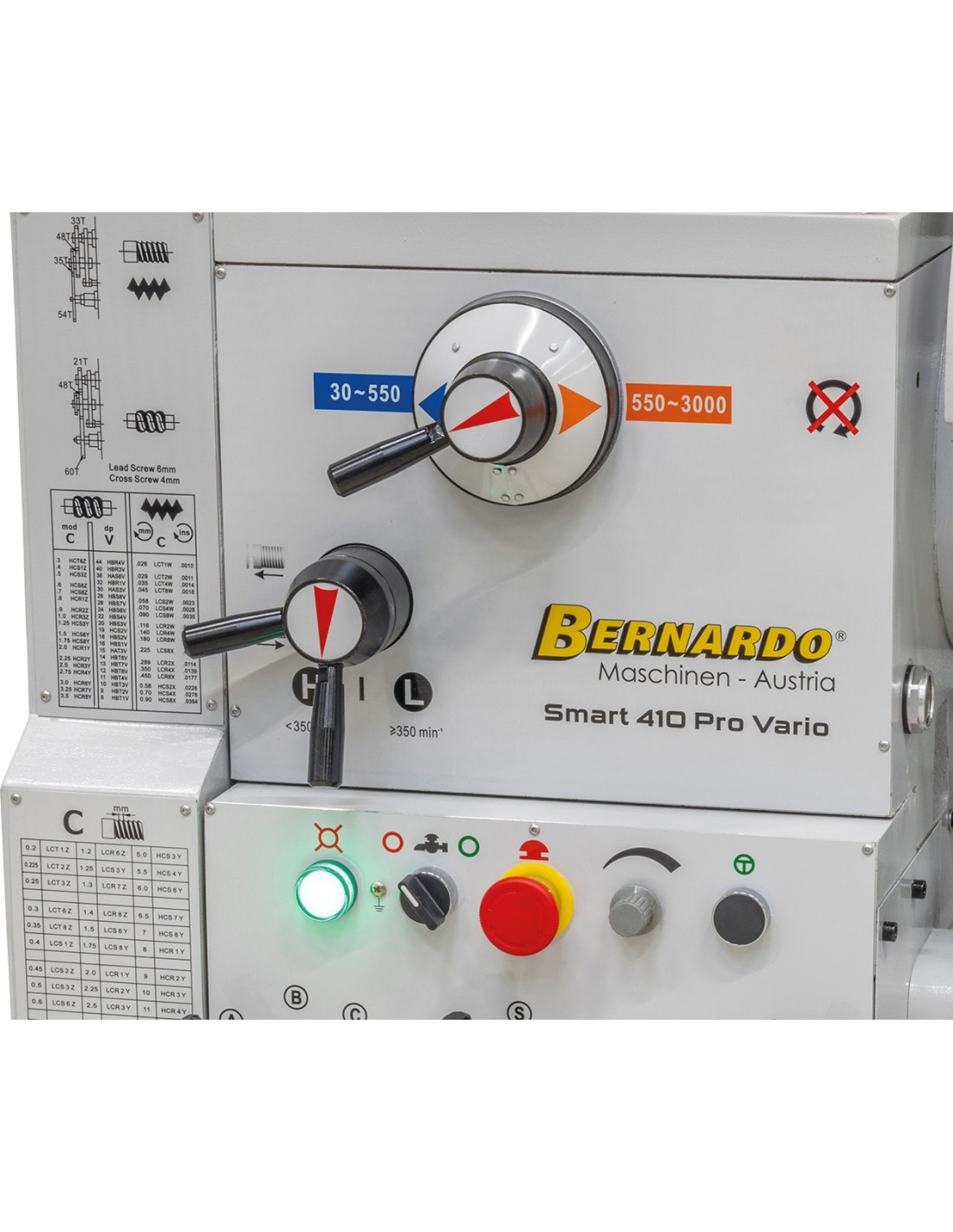

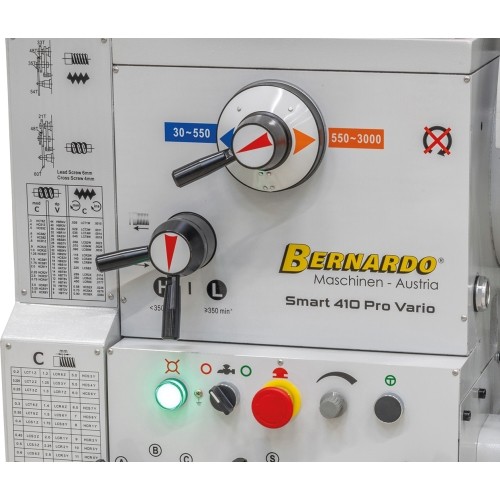

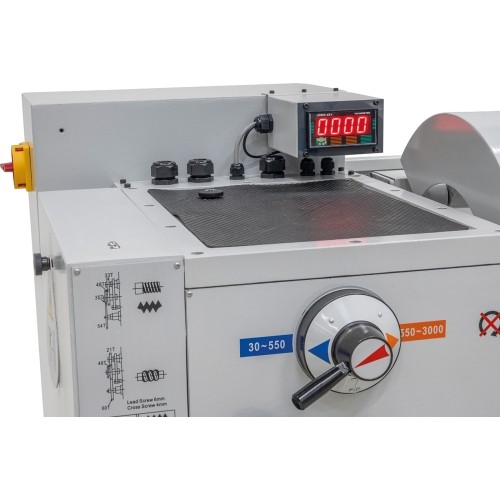

  • Stepless speed adjustment, set speed can be read on digital display
  • Grey cast iron machine bed, inductively hardened and precisely polished

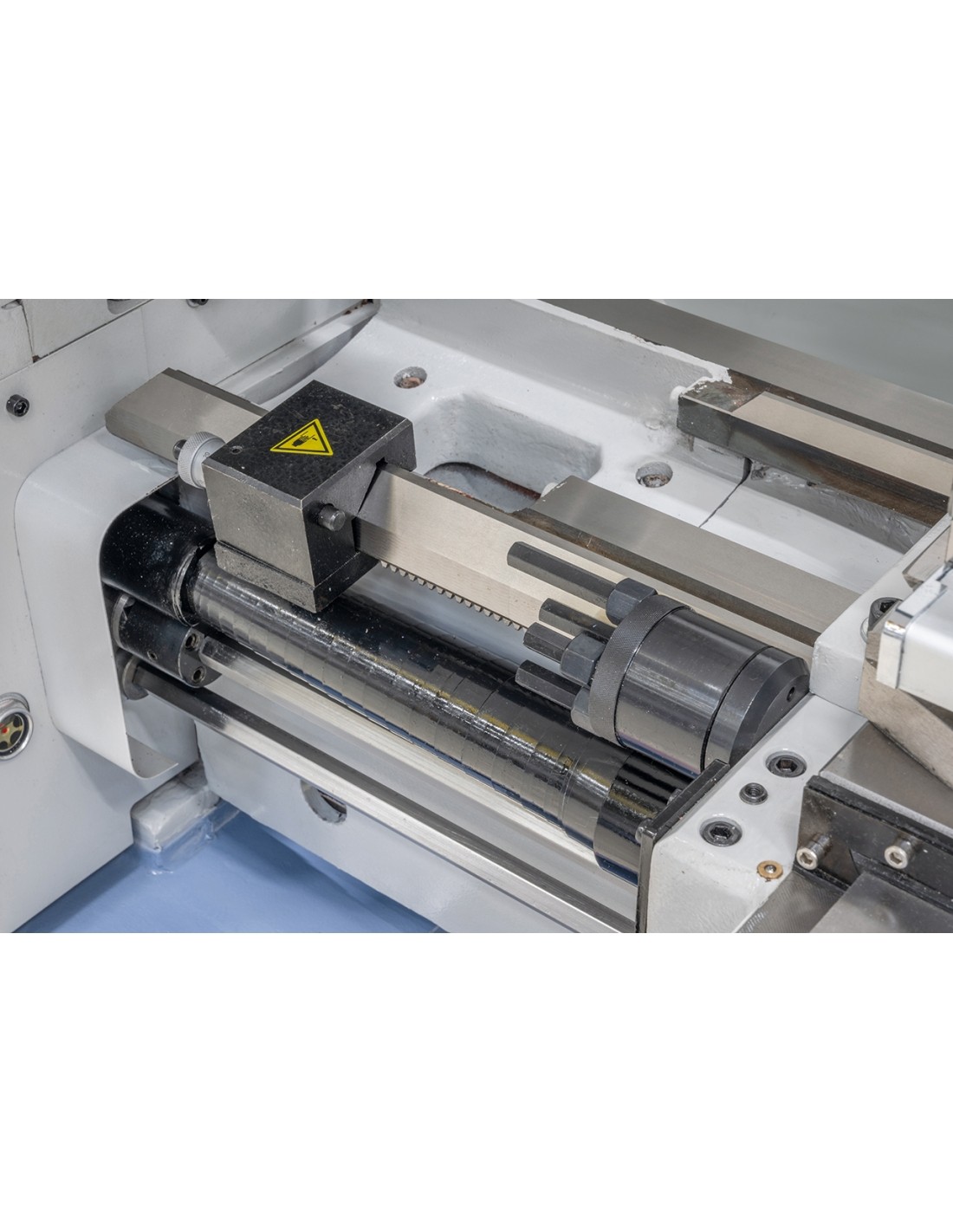

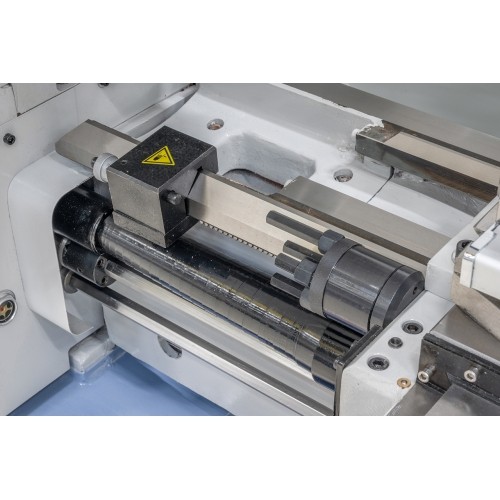

  • Centrally positioned, practical feed and thread cutting controls (with leadscrew and feed rod)
  • State-of-the-art main spindle bearing with high-quality angular ball bearings
  • Complete with frequency inverter and 3-axis digital readout
  • Hardened, polished gear wheels and shafts, even in feed unit

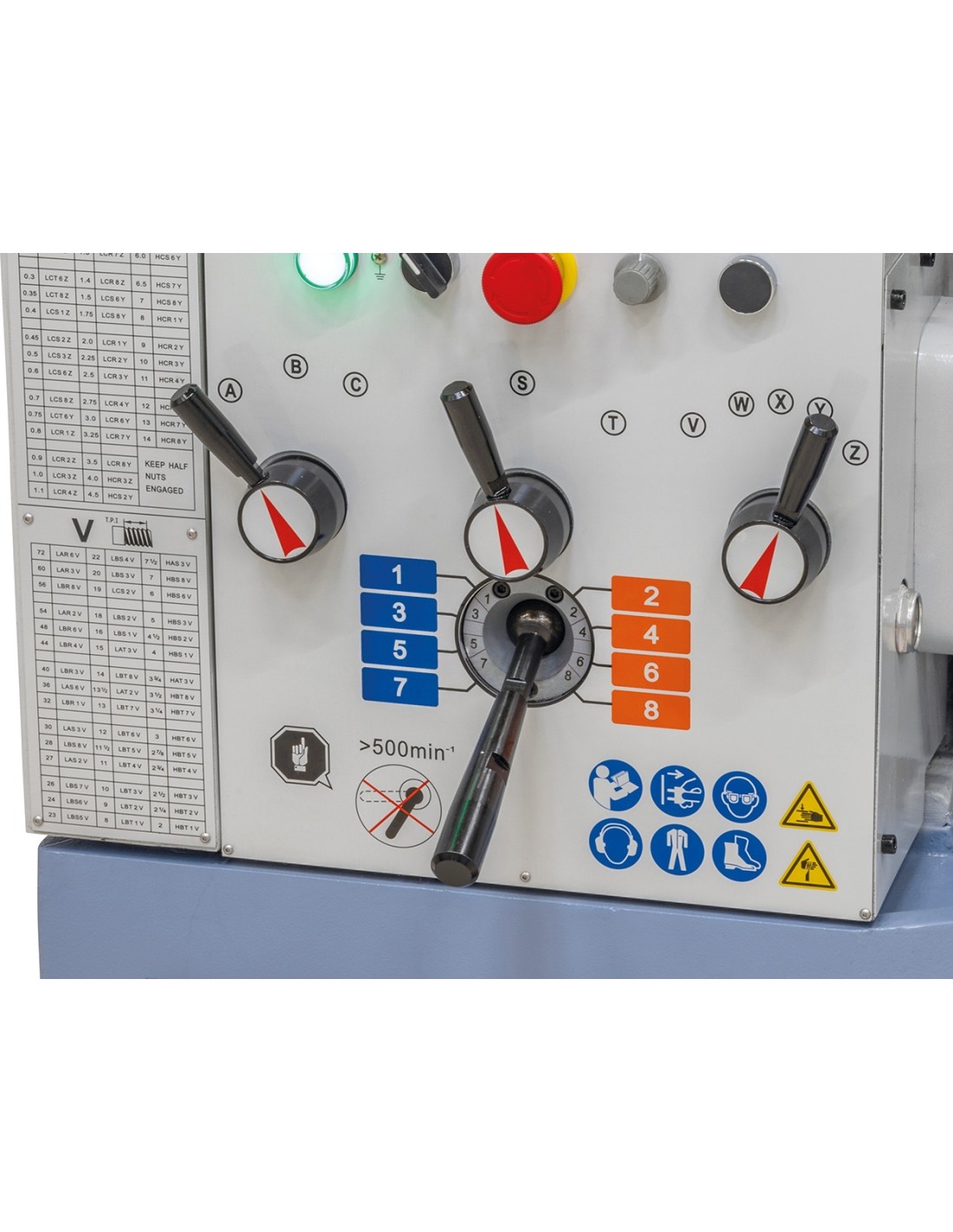

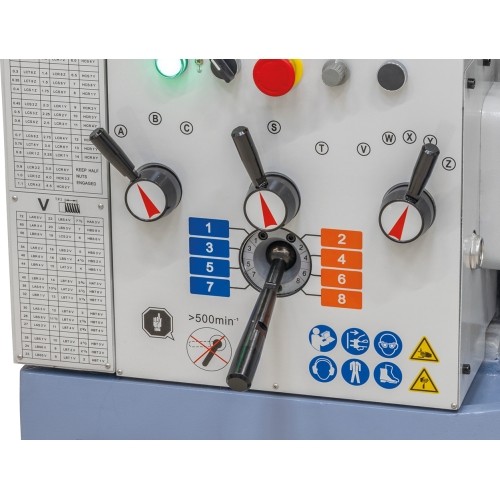

  • Clearly arranged, user-friendly, accurate speed and feed change
  • Tailstock can be repositioned for taper turning, handwheel feature adjustable scale (0.02 mm)

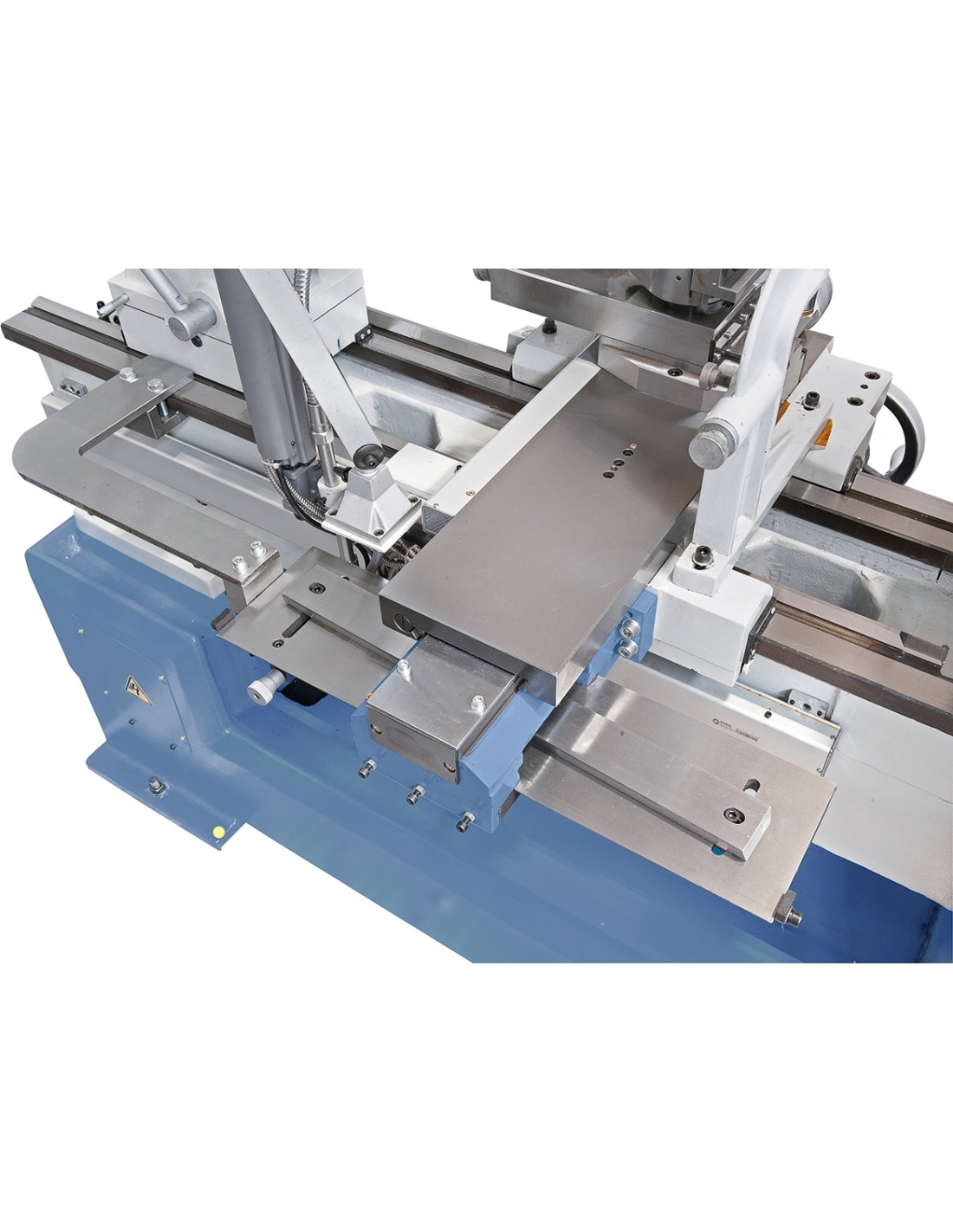

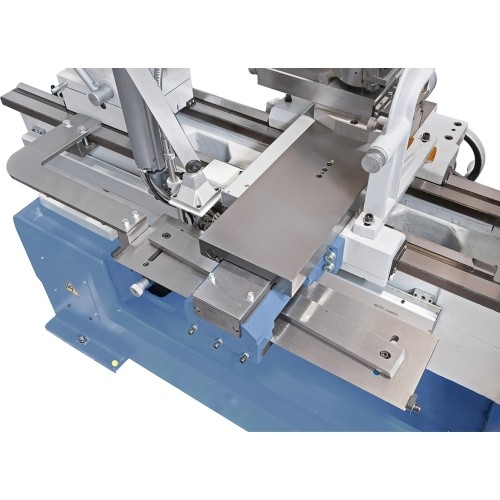

  • Removable bridge allows machining of oversize workpieces

Standard accessories

  • 3-axis digital readout ES-12 V with LCD-display

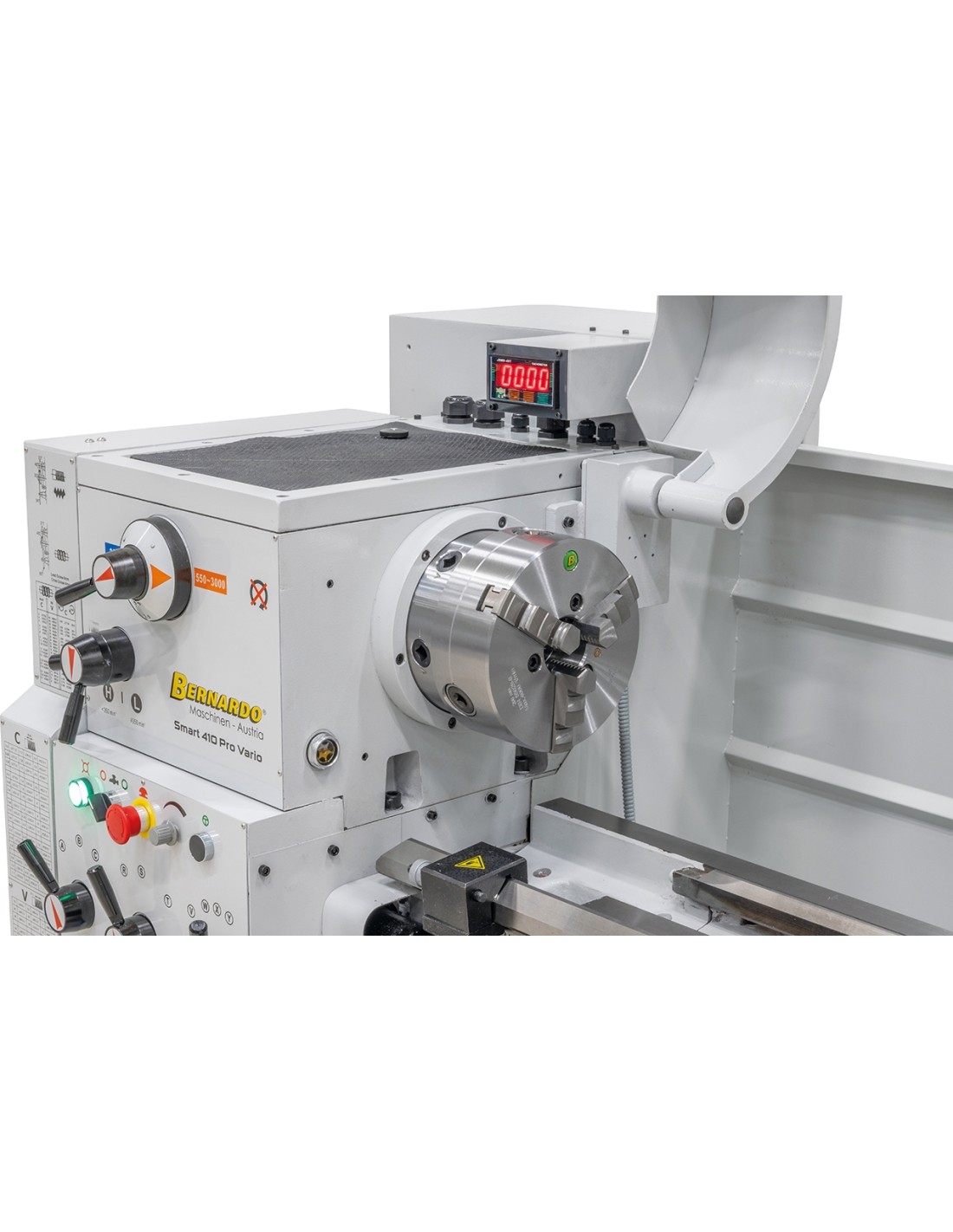

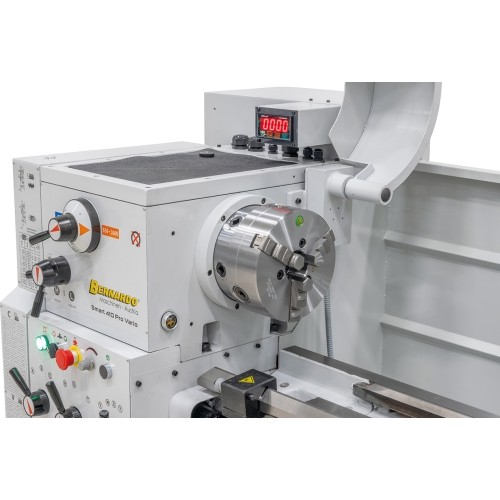

  • 3-jaw steel chuck PO3-200 mm / D6
  • Face plate 350 mm

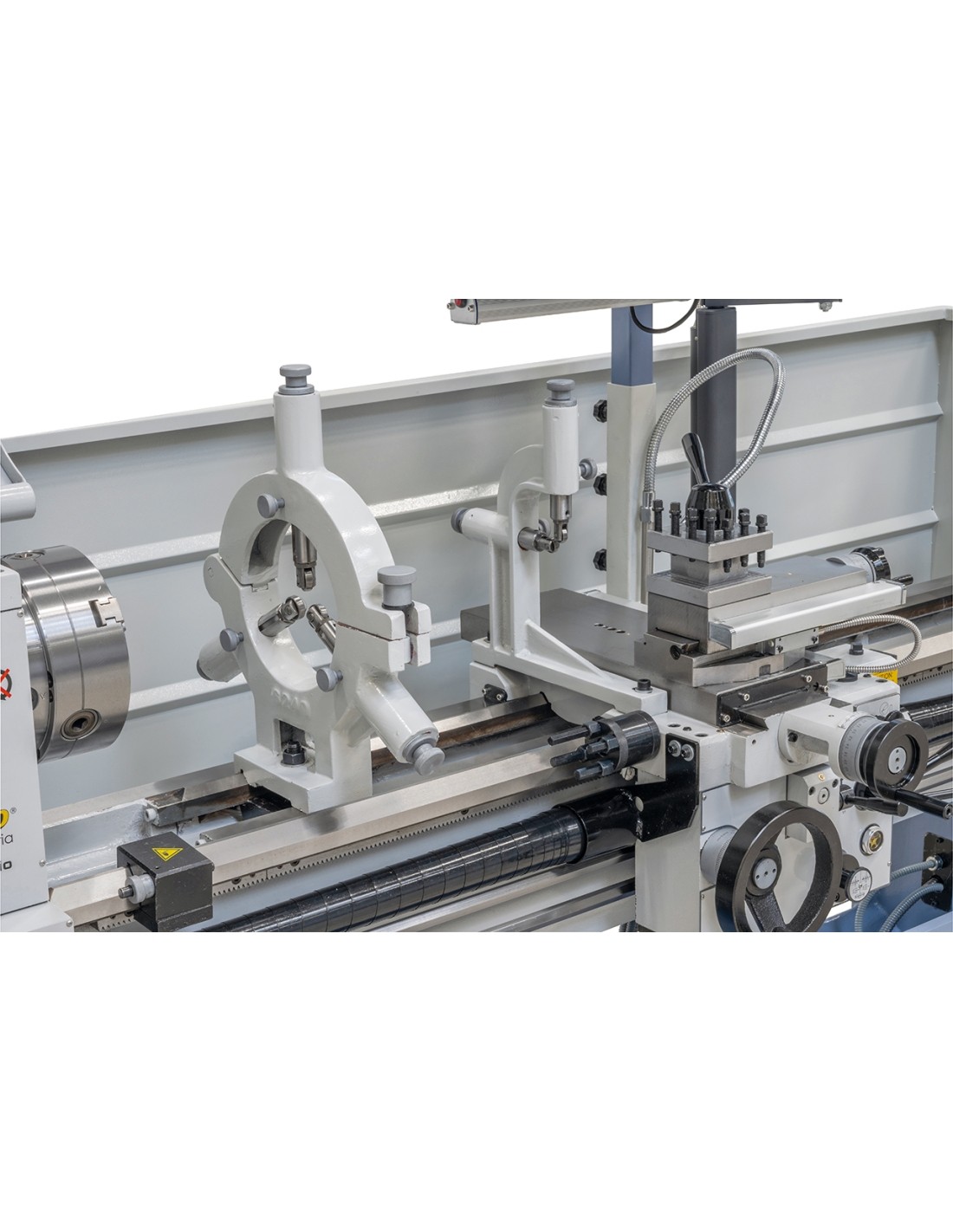

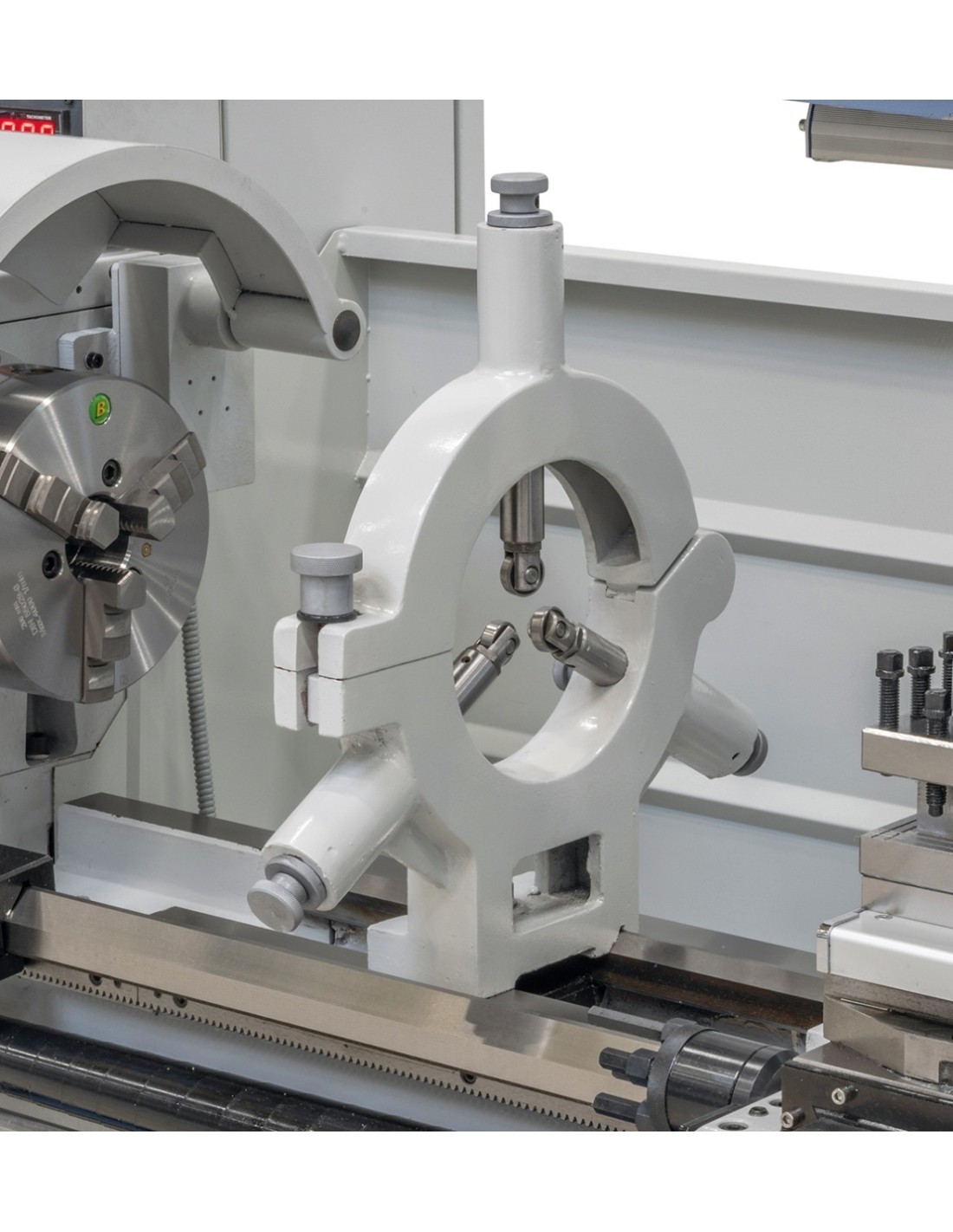

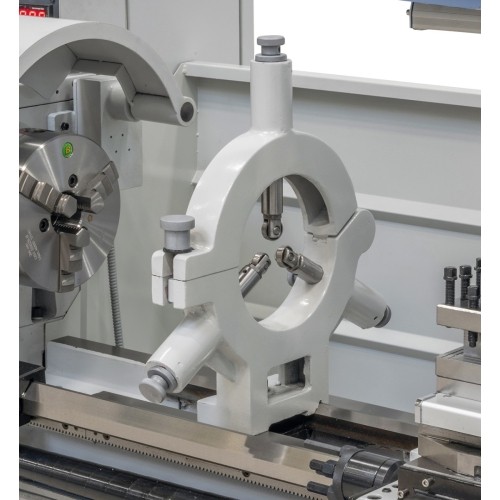

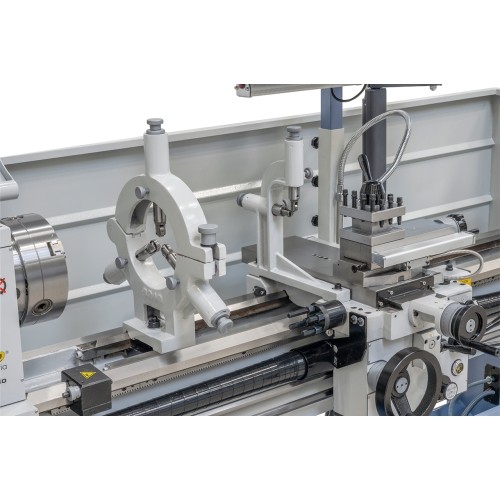

  • Steady rest - Passage up to max. 135 mm
  • Follow rest - Passage up to max. 65 mm
  • Foot pedal with brake function according to CE

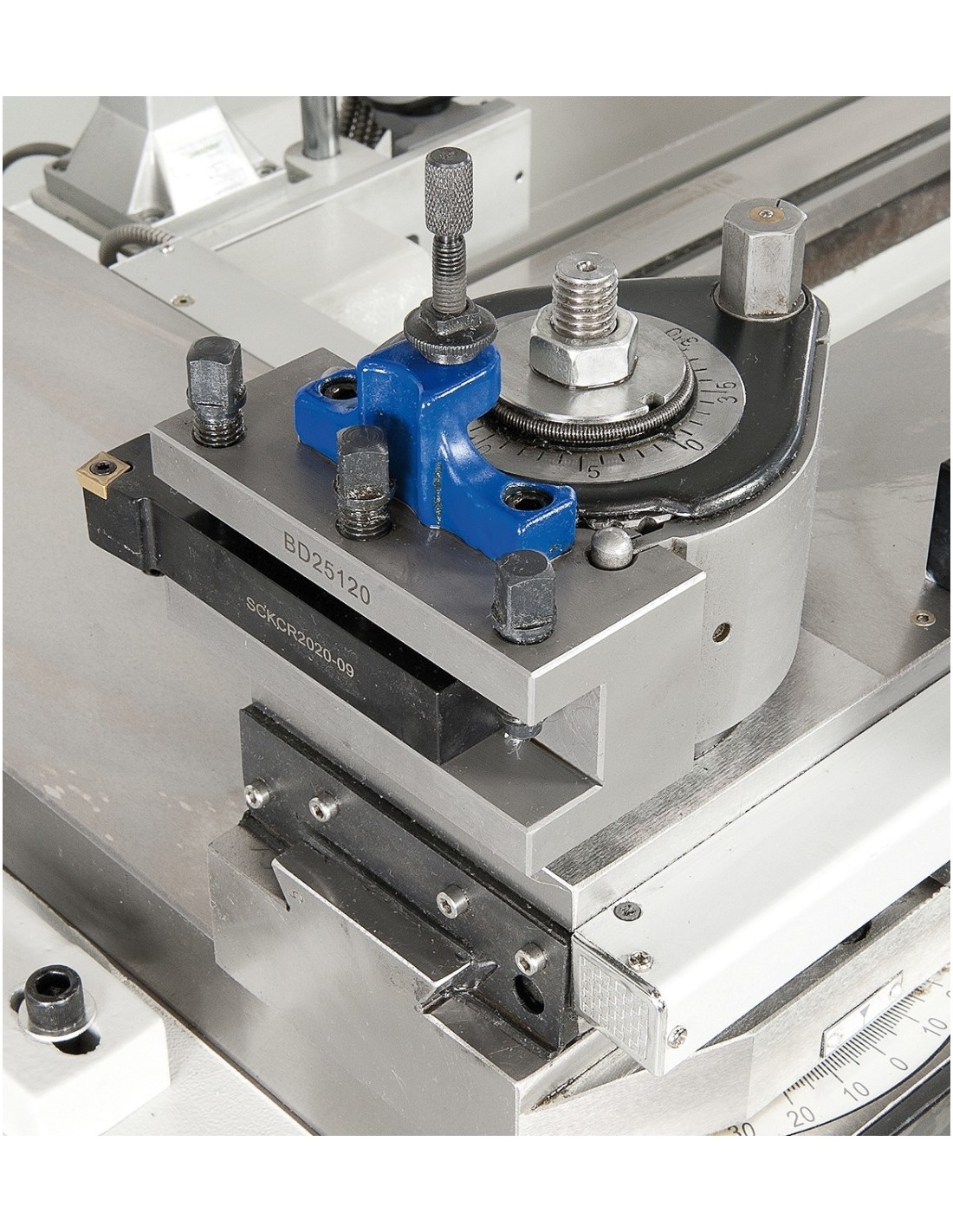

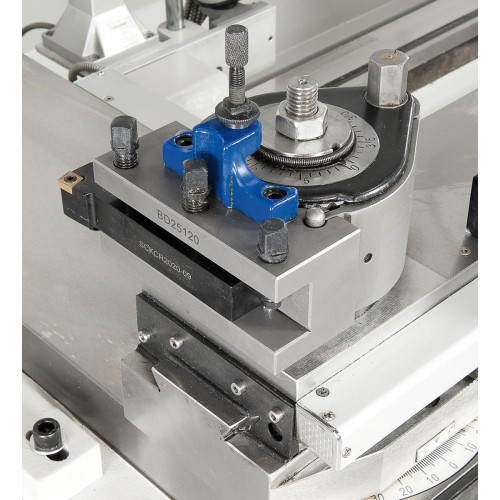

  • 4-way tool post holder
  • Protective device at 4-way tool post holder
  • Micrometer longitudinal fence
  • Turret fence with fine adjustment

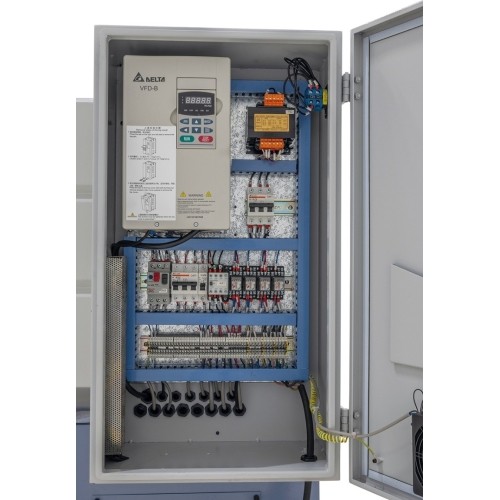

  • Frequency inverter
  • Initial filling with Shell Tellus 46
  • Coolant device
  • Safety clutch
  • Thread dial
  • LED machine light

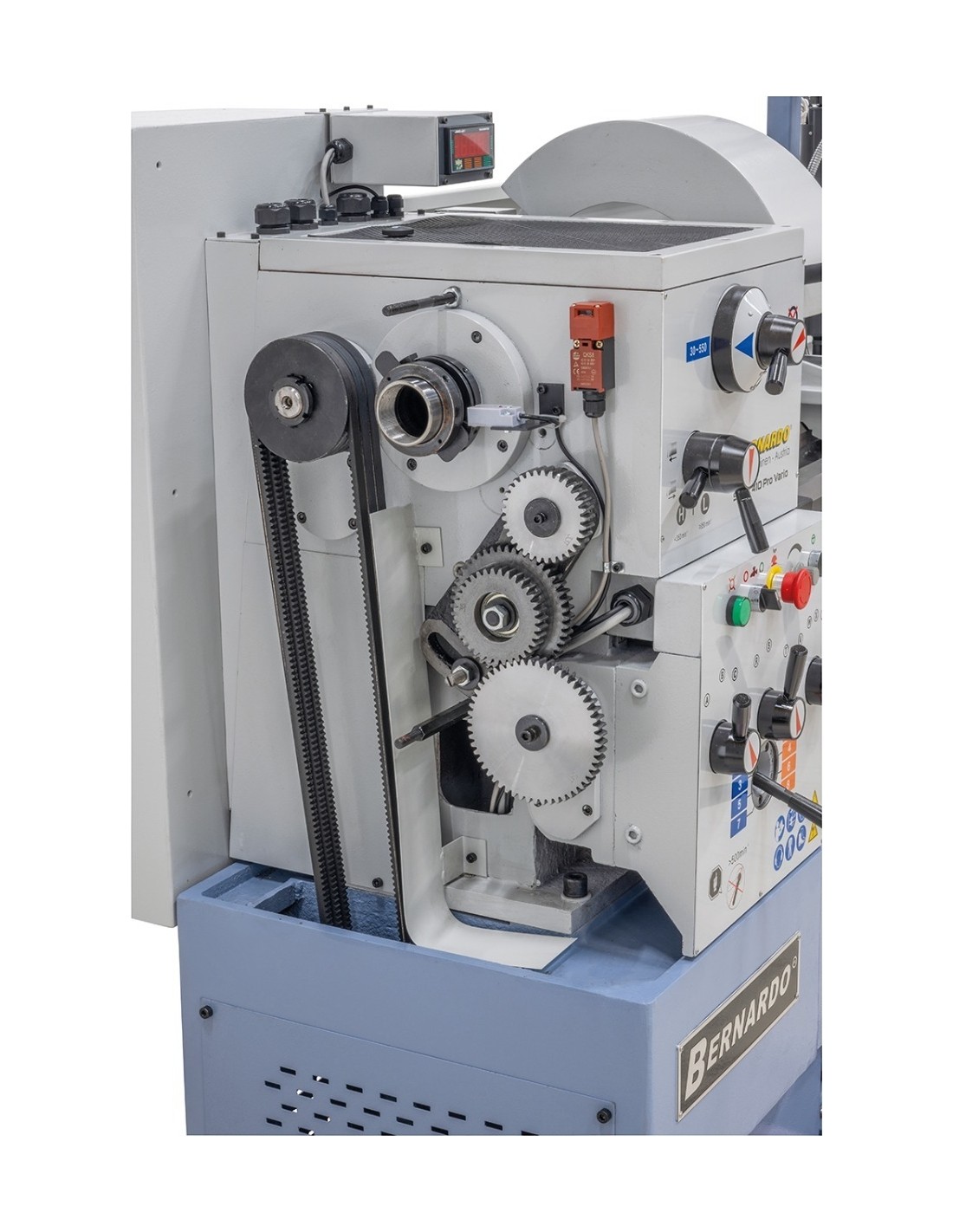

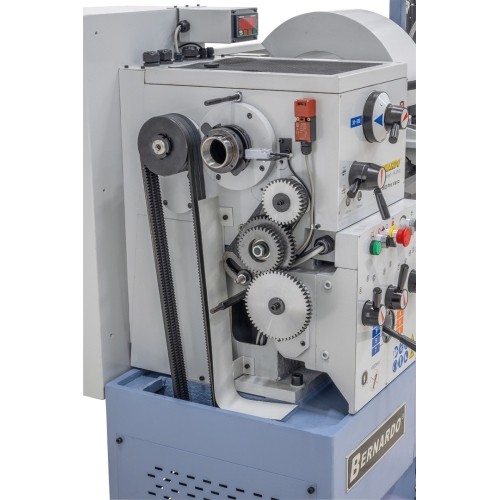

  • Change gears
  • Morse taper drill sleeve
  • 2 dead centers

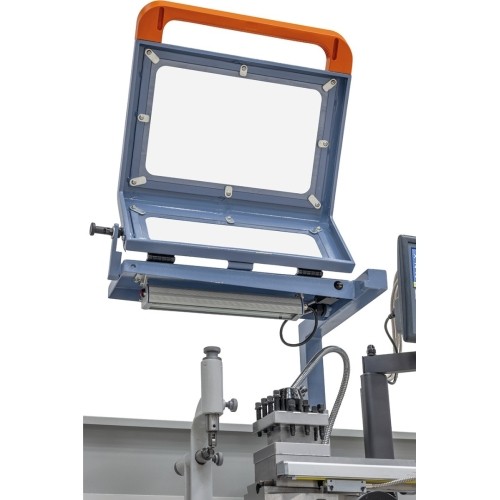

  • Splash guard
  • Tools
