Distance between centers
1000 mm
Taper of tailstock sleeve
MT 3
Travel of tailstock sleeve
125 mm
Weight approx.
760 kg
Motor power
1,5 / 2,4 kW
Center height
205 mm
Swing over bed
410 mm
Swing over gap*
530 mm
Swing over cross slide
260 mm
Spindle bore
52 mm
Spindle nose fixture
DIN 55029, D1-5
Speed Range
(16) 45 – 1800 rpm
Longitudinal feed
(48) 0,043 – 0,653 mm/rev.
Cross feed
(48) 0,014 – 0,206 mm/rev.
Metric thread
(36) 0,4 – 7,0 mm
Inch thread
(28) 4 – 56 threads/1“
Diameter of tailstock sleeve
45 mm
Machine dimension (W x D x H)
1820 x 920 x 1500 mm
Bed width
205 mm

Master 410 Pro

1092148
Price €17,325.00 VAT incl.

Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Supplier store
(10 pcs)
Delivery terms:
FREE pick up wednesday, july 15 d., in the store, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 760 kg.
We will deliver the product to you via: 5-11 w.d. Venipak (€40.99)
Weight: 760 kg.

Description

Properties

  • 52 mm spindle bore to machine large shaft diameters comes standard
  • Perfect machine for technical schools, repair shops and training workshops
  • Ideal for processing of steel, non-ferrous materials and plastics
  • Removeable bridge allows machining of workpieces with a big diameter
  • Chip tray extracts to front, keeping space requirements to a minimum

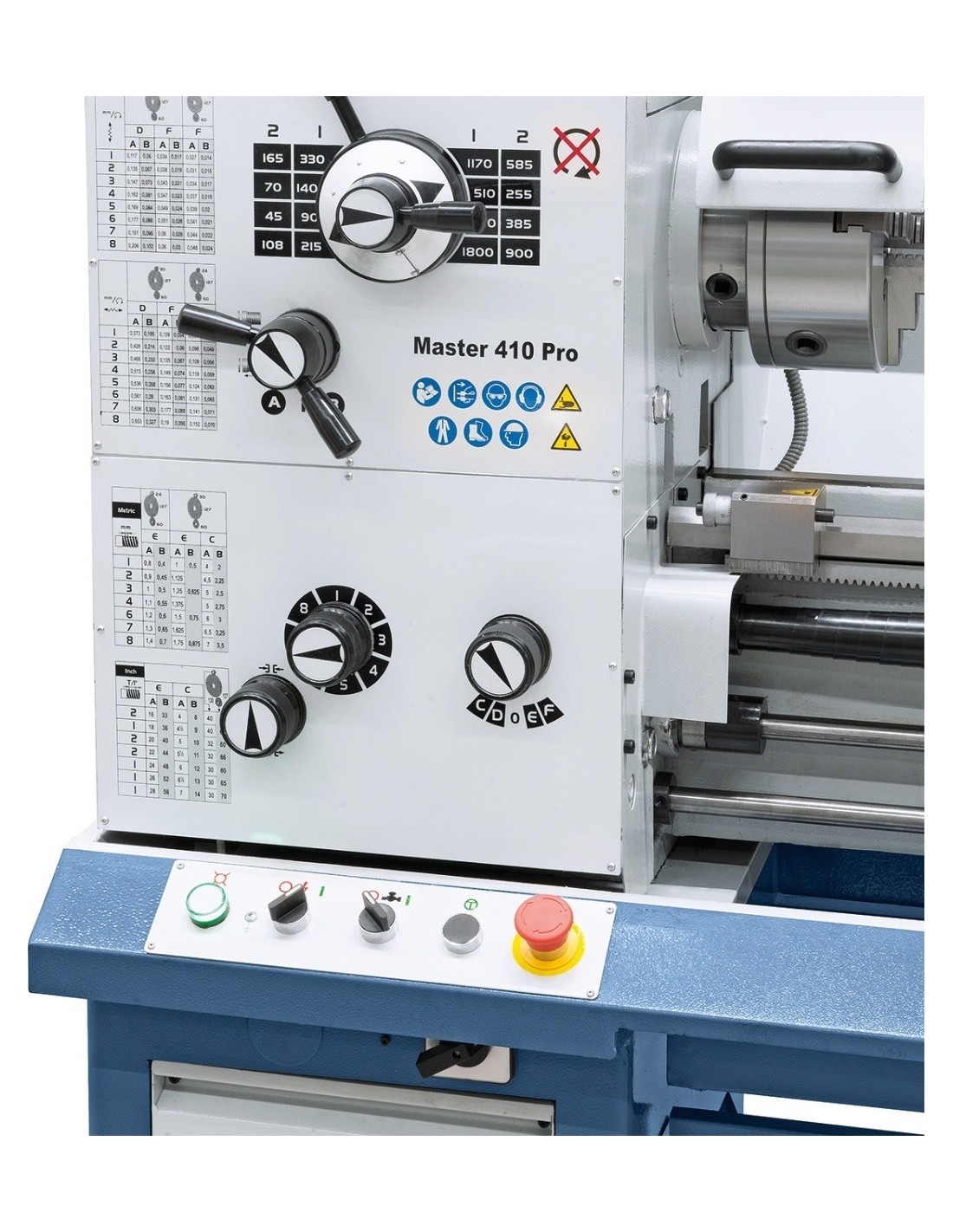

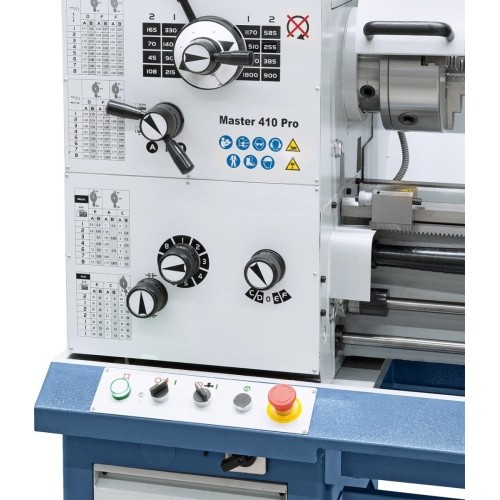

  • Clear arranged speed and feed control settings, smooth operation and accurate control
  • Electro-magnetic foot brake reduces downtime
  • State-of-the-art spindle bedding with high-quality, angular ball bearings
  • Grey cast-iron machine bed, inductive hardened and polished

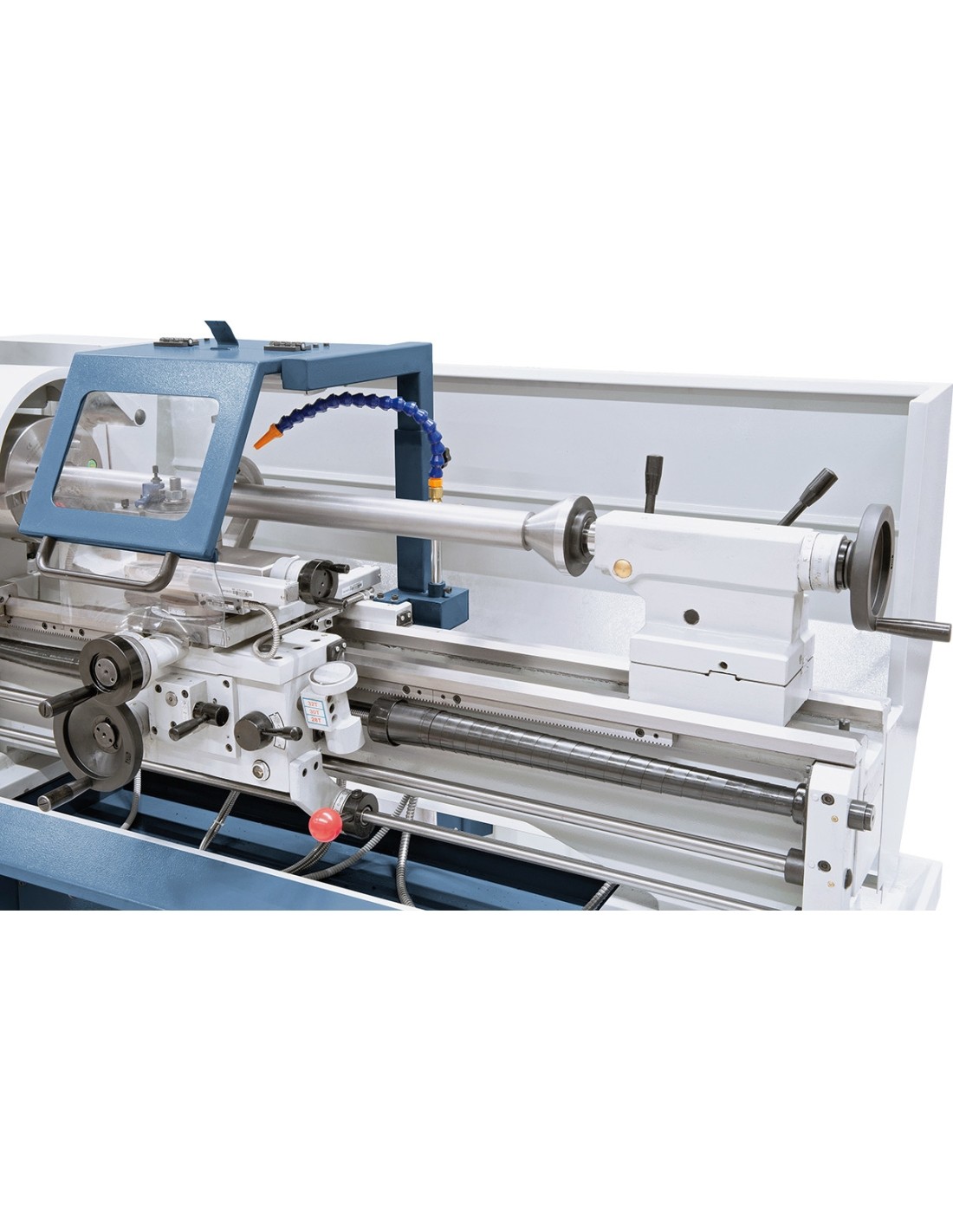

  • One-hand clamping for tailstock, adjustable for taper turning
  • High spindle concentricity (≤ 0,009 mm)
  • Hardened and polished spindle runs in oil bath
  • Tailstock, spindle stock and all guides are adjustable

Standard accessories

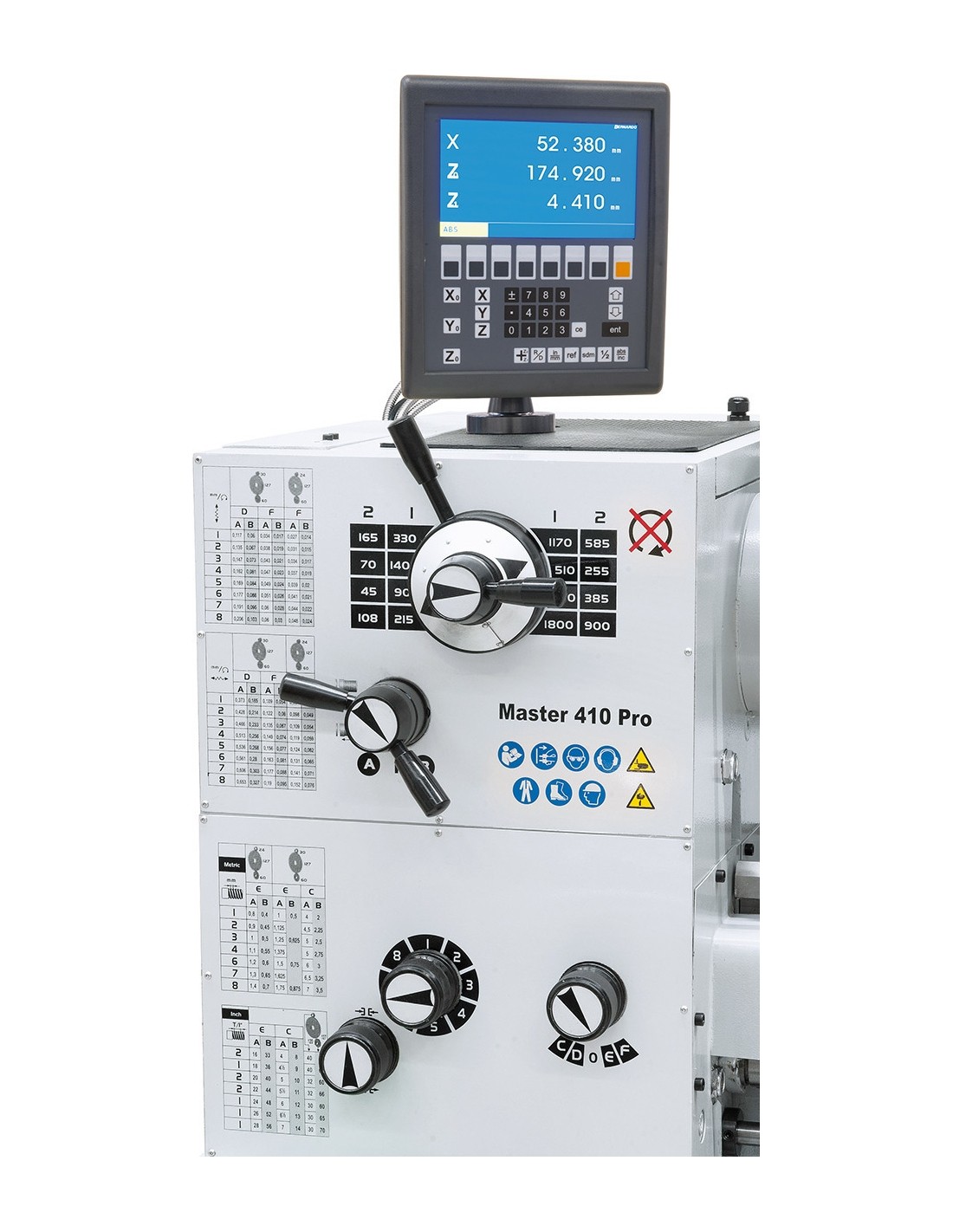

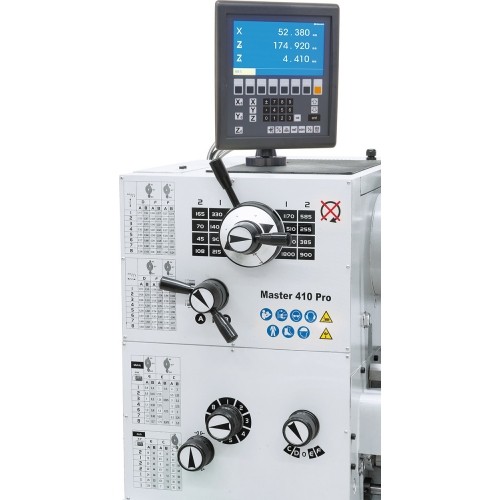

  • 3-axis digital readout ES-12 V with LCD-display

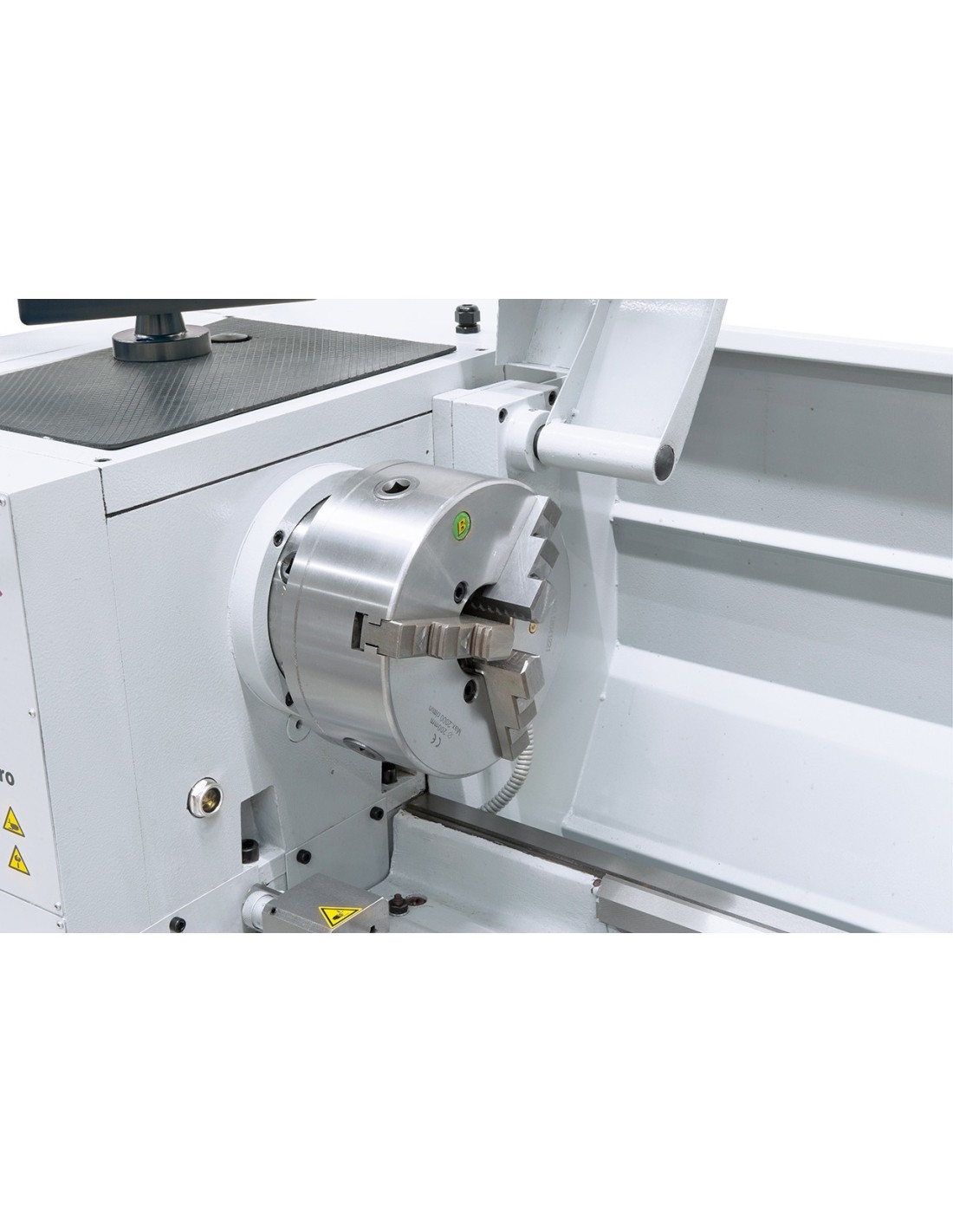

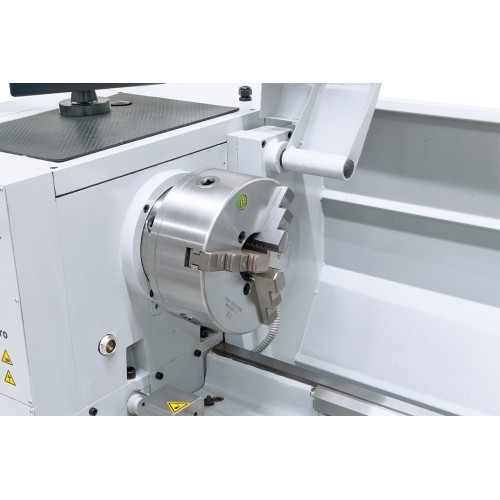

  • 3-jaw chuck DK11-200 mm / D5

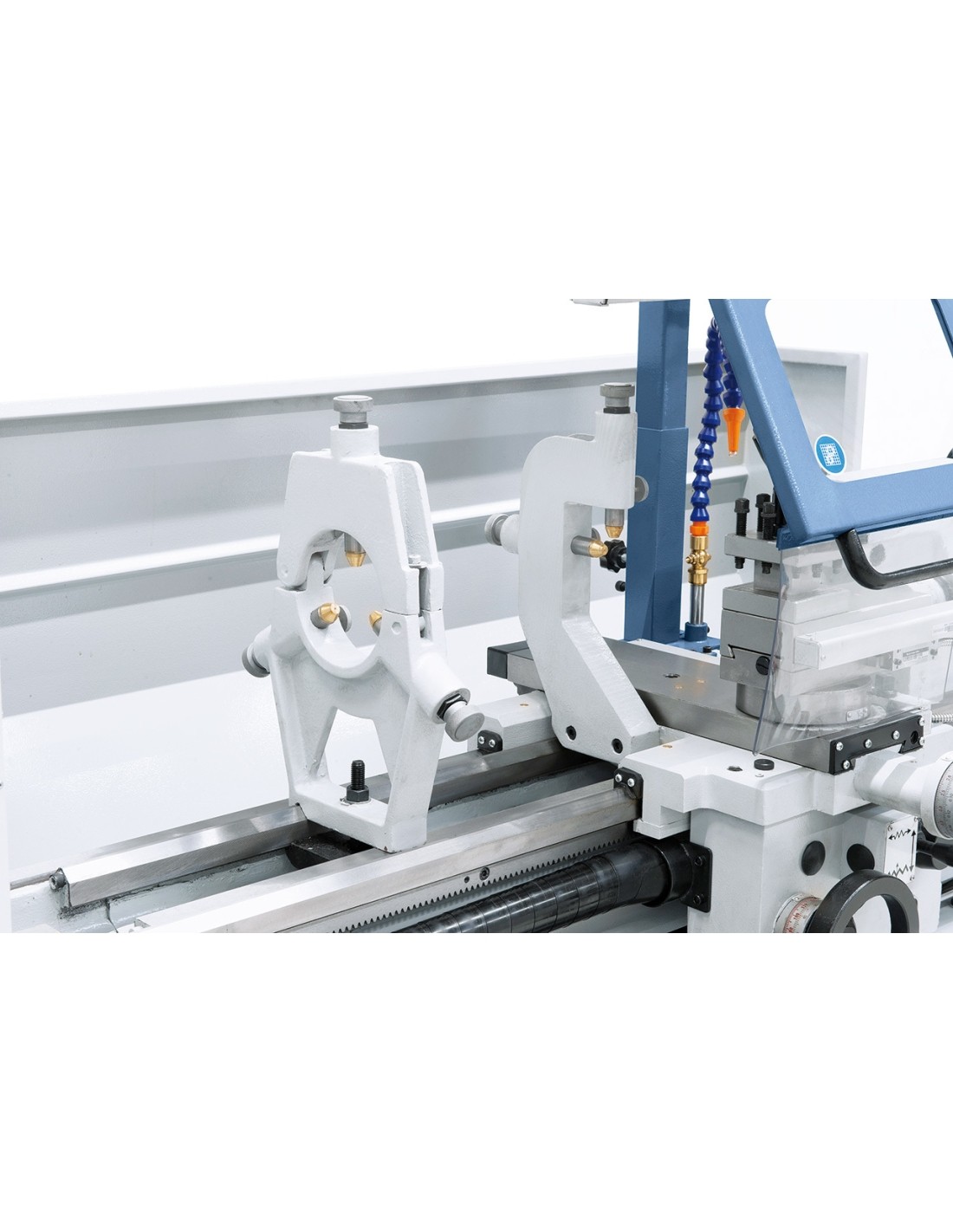

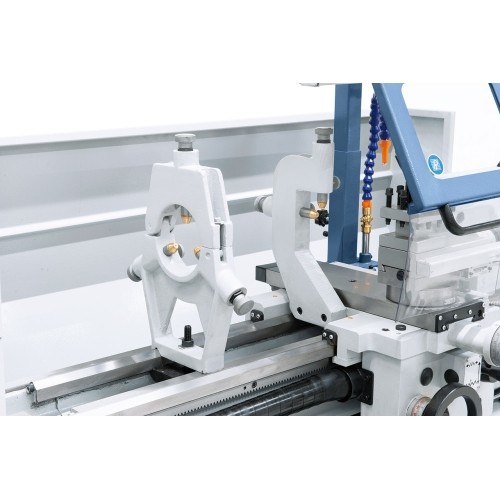

  • Steady rest - Passage up to 70 mm
  • Follow rest - Passage up to max. 60 mm

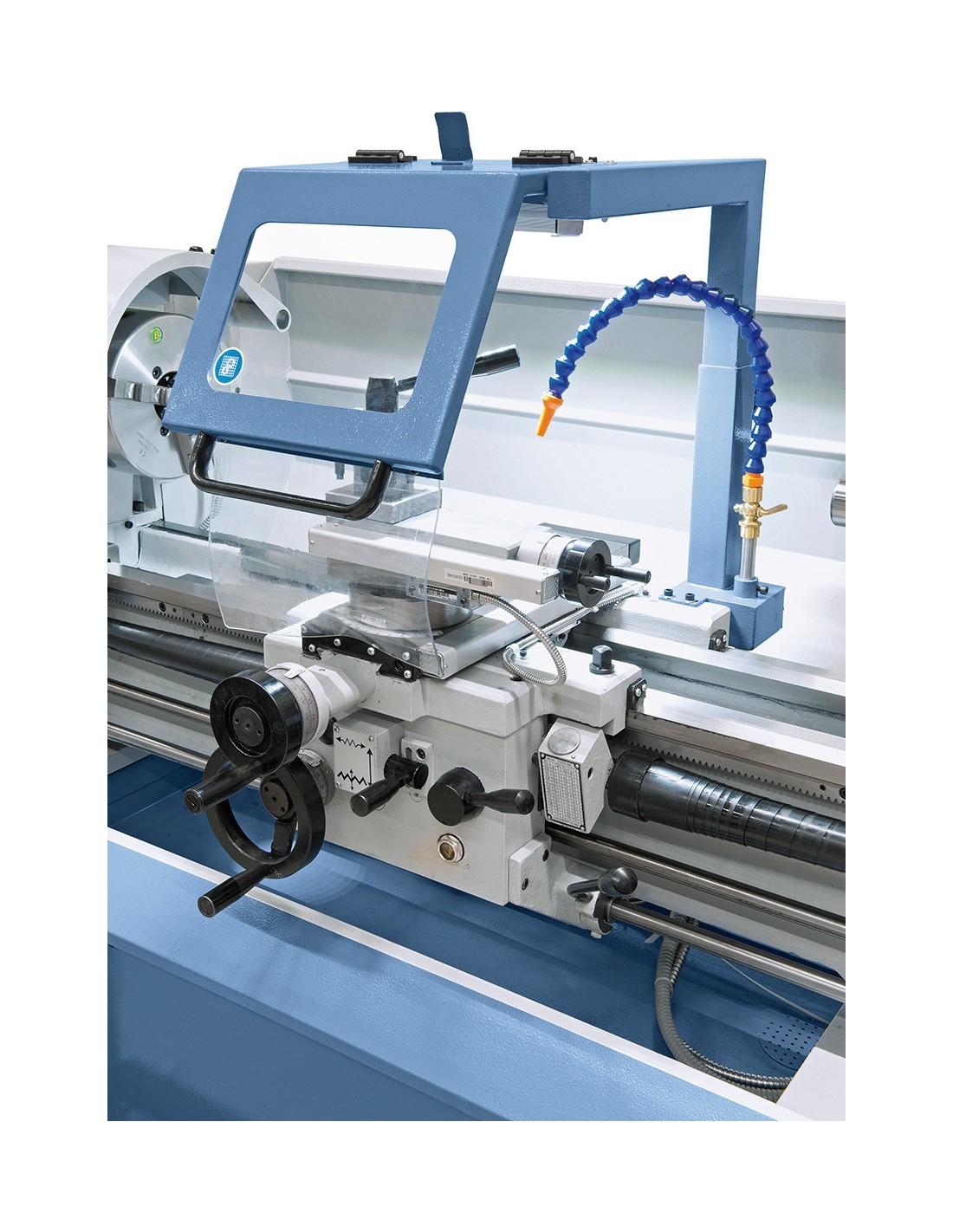

  • Coolant device
  • Initial filling with Shell Tellus 46
  • Extractable chip tray
  • Face plate 280 mm

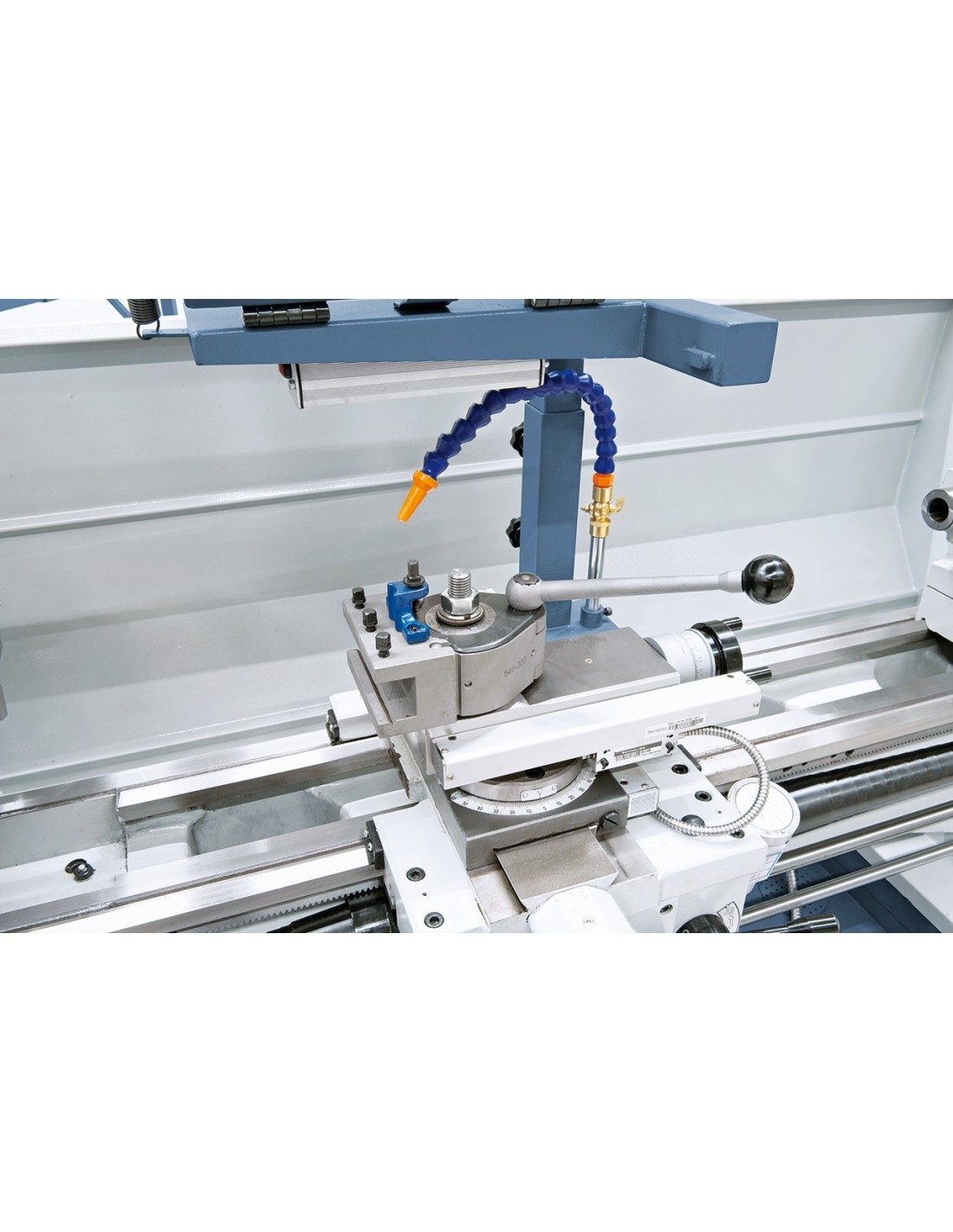

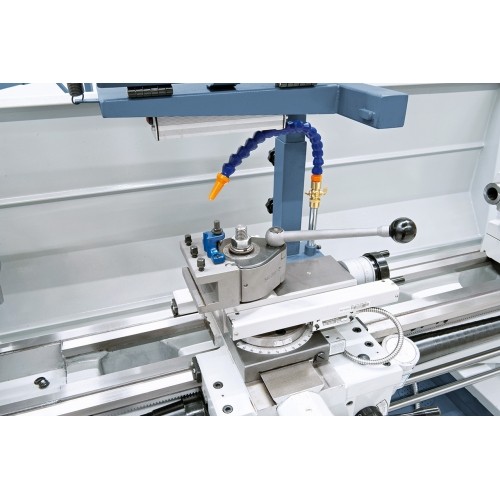

  • 4-way tool post holder

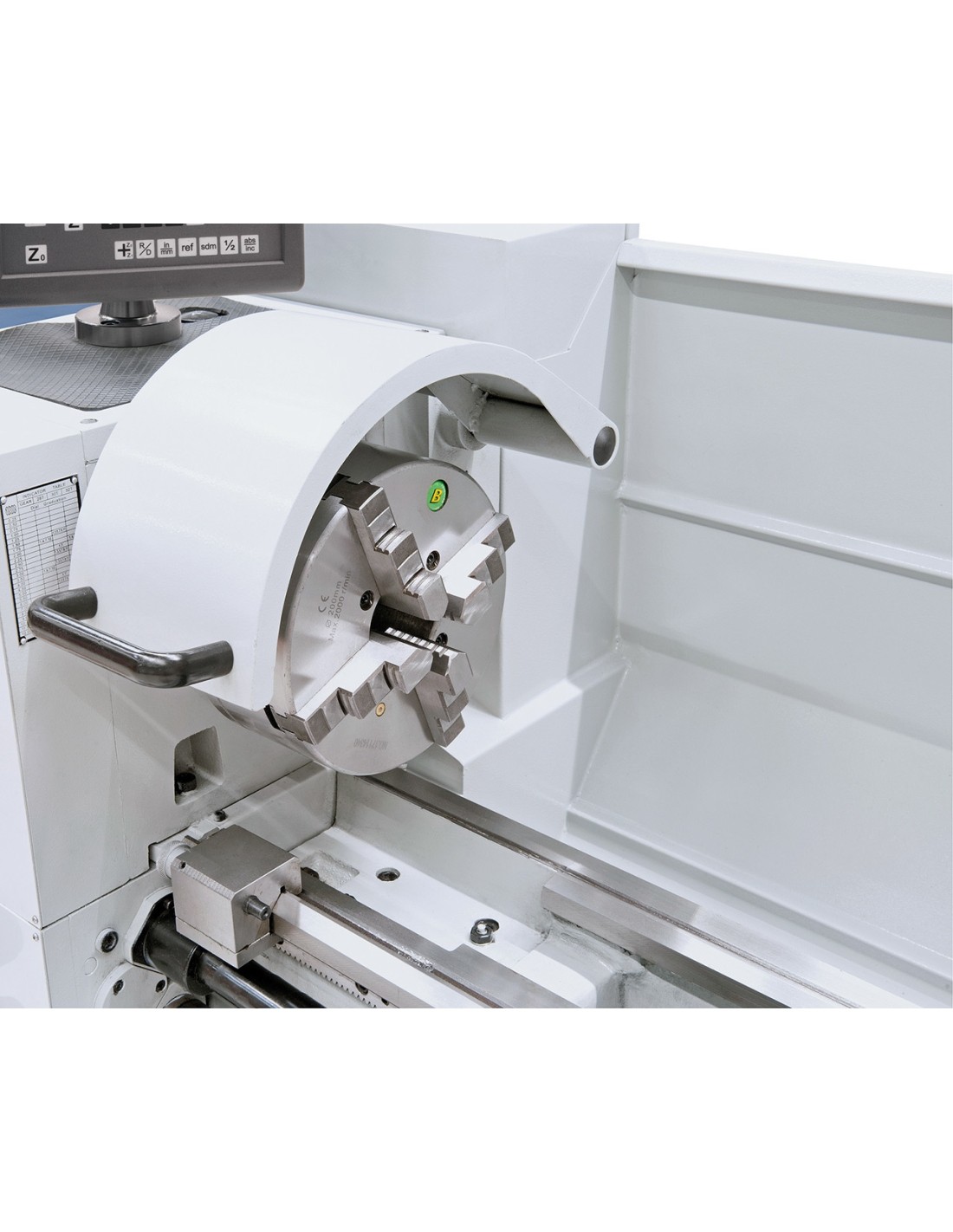

  • Protective cover at 4-way tool post holder
  • Safety clutch
  • Micrometer longitudinal fence
  • Thread dial
  • LED machine light
  • Morse taper drill sleeve

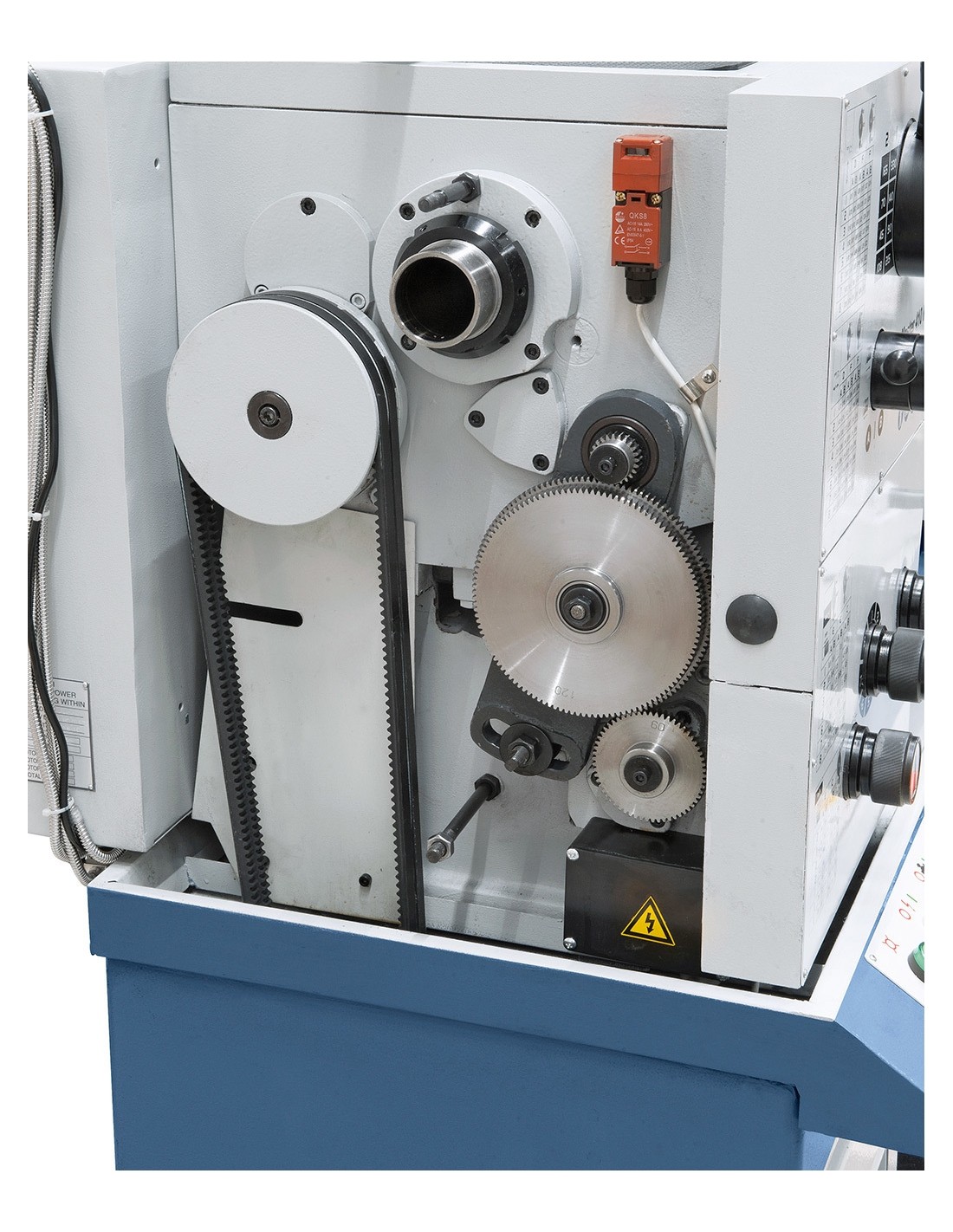

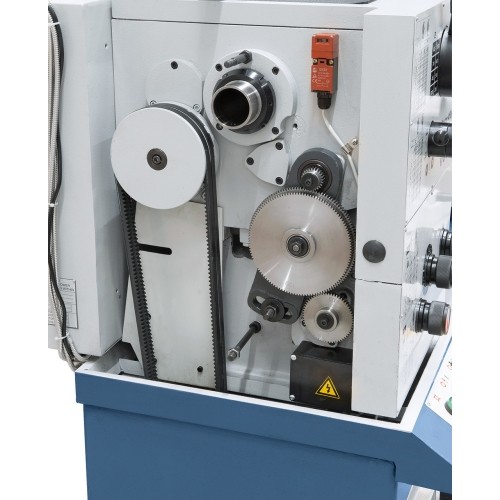

  • Change gears
  • 2 dead centers
  • Foot pedal with brake function according to CE
  • Motor with magnetic brake according to CE
  • Splash guard
  • Stand
  • Tools
