WARRANTY

  • 30 days return policy
  • 24 month product warranty
  • Free consultation
  • 30 days return policy
  • 24 month product warranty
  • Free consultation

Distance between centers
3000 mm
Taper of tailstock sleeve
MT 5
Travel of tailstock sleeve
235 mm
Weight approx.
3300 kg
Motor power
7,5 kW (10,0 HP)
Center height
330 mm
Swing over bed
660 mm
Swing over gap*
900 mm
Swing over cross slide
460 mm
Spindle bore
105 mm
Spindle nose fixture
DIN 55029, D1-8
Speed Range
(16) 25 - 1600 rpm
Longitudinal feed
(25) 0,044 - 1,48 mm/rev.
Cross feed
(25) 0,022 - 0,740 mm/rev.
Metric thread
(54) 0,45 - 120 mm
Inch thread
(54) 7/16 - 80 threads/1“
Diameter of tailstock sleeve
90 mm
Machine dimension (W x D x H)
4630 x 1200 x 1520 mm
Bed width
400 mm

Titan 660 x 3000

1334330
Price €54,040.00 Tax included

Stock Quantity:
In S01 store
not available
In S02 store
not available
In Supplier store
(5+ pcs)
Delivery terms:
NEMOKAMAI atsiimkite wednesday, february 5 d., parduotuvėje, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 3300 kg.

Description

Properties

  • Various possible applications in general machine construction, production, single part manufacturing etc.

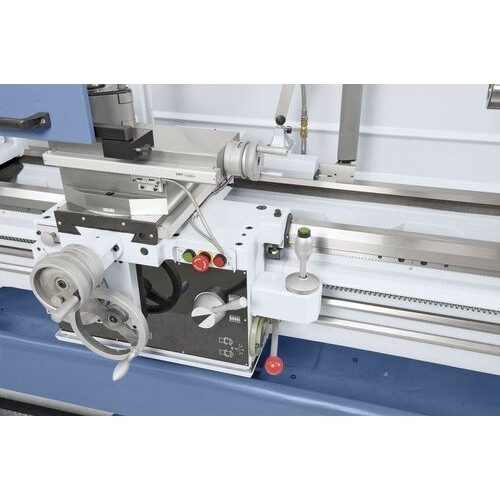

  • Centrally positioned, practical feed controls and thread cutting controls (with leadscrew and feed rod)
  • Grey cast-iron machine bed, inductive hardened and polished
  • State-of-the-art main spindle bearing with high-quality angular ball bearings
  • Hardened, polished gears and shafts, even in feed unit
  • Complete with longitudinal and cross rapid feed to reduce downtime
  • Large spindle bore (105 mm) allows processing of workpieces with a large diameter
  • Mechanic coupling allows soft start
  • Electro-mechanical foot brake keeps downtime to a minimum
  • High performance even at face turning
  • Machine bed guide ways are reinforced for higher rigidity and fewer vibrations

Standard accessories

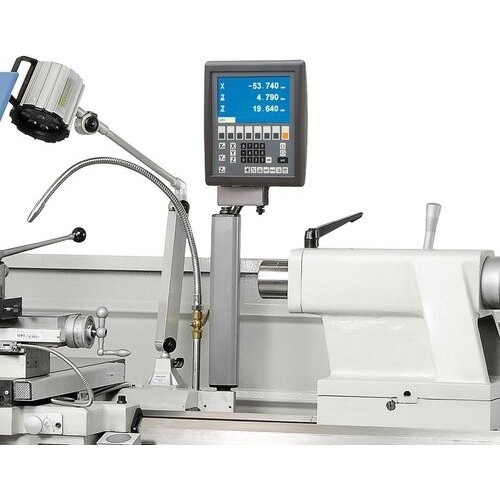

  • 3-axis digital readout ES-12 V with LCD-display
  • Safety clutch
  • Rapid feed longitudinal and cross
  • LED machine light
  • 3-jaw chuck PS3-315 mm / D8
  • Face plate 450 mm

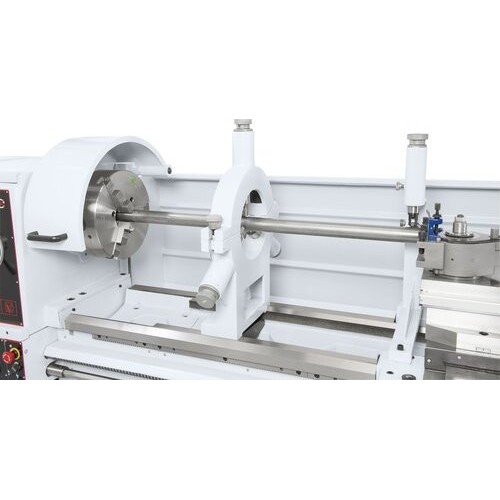

  • Steady rest - Passage up to max. 180 mm
  • Follow rest - Passage up to max. 120 mm
  • 2 dead centers
  • Motor with magnetic brake according to CE
  • Foot pedal with brake function acc. to CE
  • Initial filling with Shell Tellus 46
  • Coolant device
  • 40 pos. tool post and holder set with 4 inserts
  • Protective device at tool post holder
  • Change gears
  • Morse taper drill sleeve
  • Splash guard

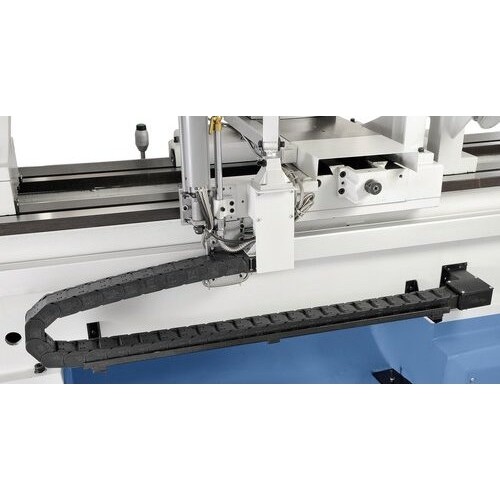

  • Cable guiding by energy chain
  • Tools
