Distance between centers
2000 mm
Taper of tailstock sleeve
MT 4
Travel of tailstock sleeve
130 mm
Weight approx.
1995 kg
Motor power
5,5 kW (7,5 HP)
Center height
230 mm
Swing over bed
460 mm
Swing over gap*
690 mm
Swing over cross slide
270 mm
Spindle bore
80 mm
Spindle nose fixture
DIN 55029, D1-8
Speed Range
(12) 25 - 1700 rpm
Longitudinal feed
(42) 0,055 - 3,065 mm/rev.
Cross feed
(42) 0,025 - 1,386 mm/rev.
Metric thread
(41) 0,1 - 14 mm
Inch thread
(60) 2 - 112 threads/1“

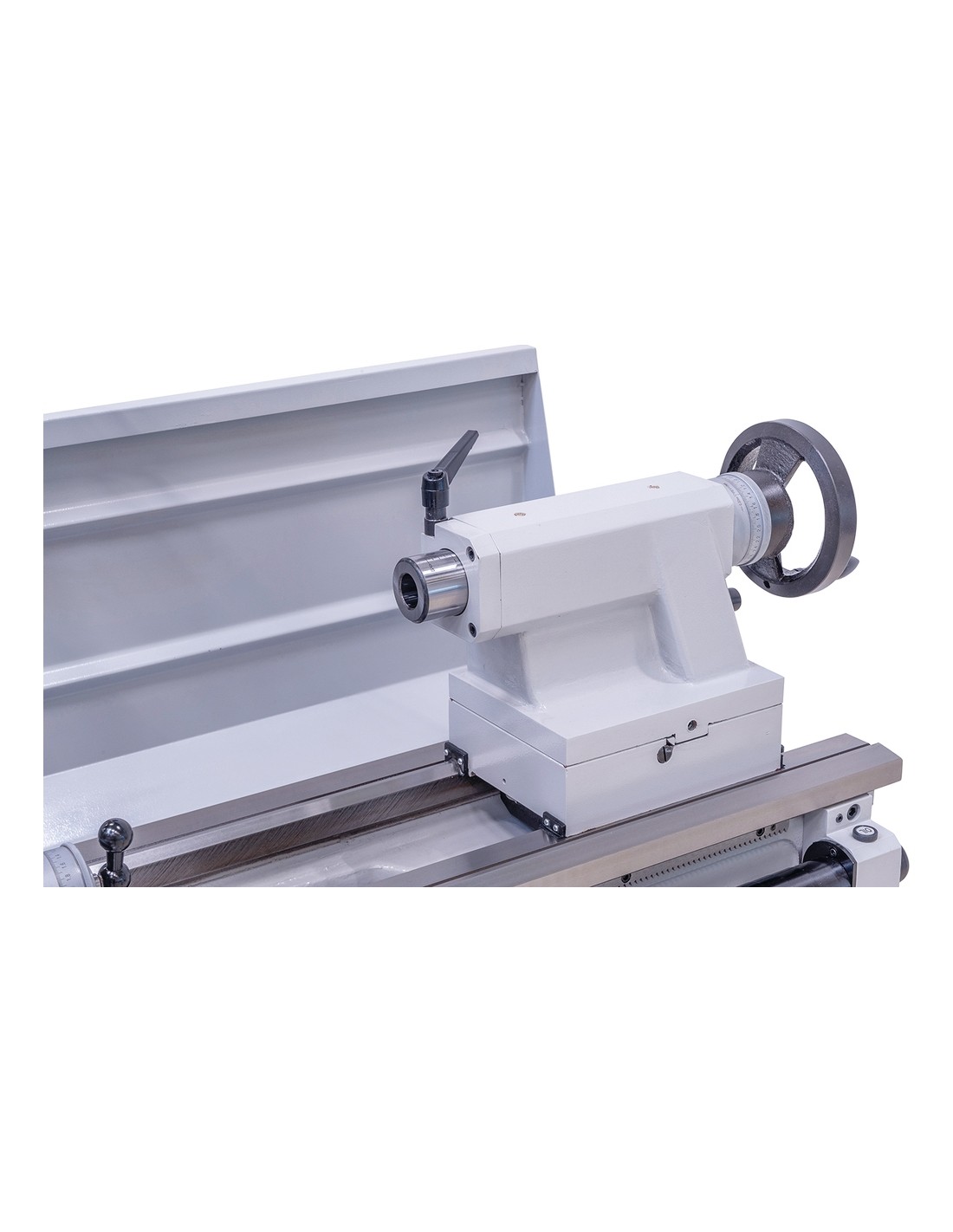

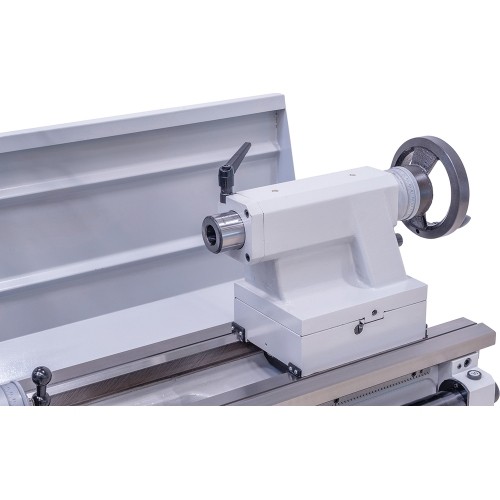

Diameter of tailstock sleeve
60 mm
Machine dimension (W x D x H)
3250 x 1080 x 1600 mm
Bed width
300 mm

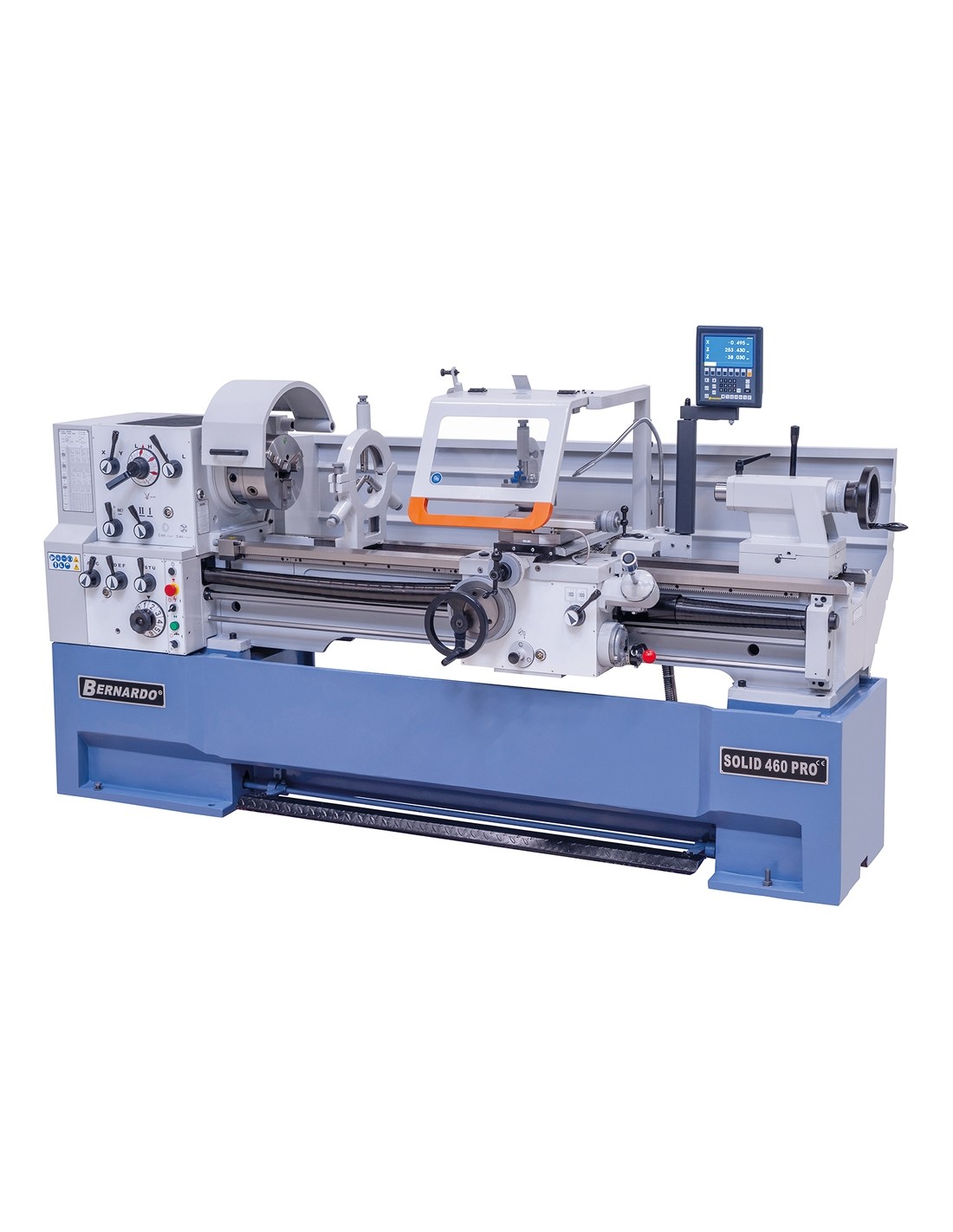

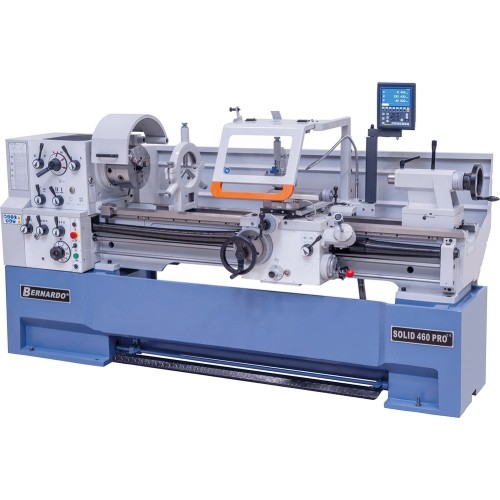

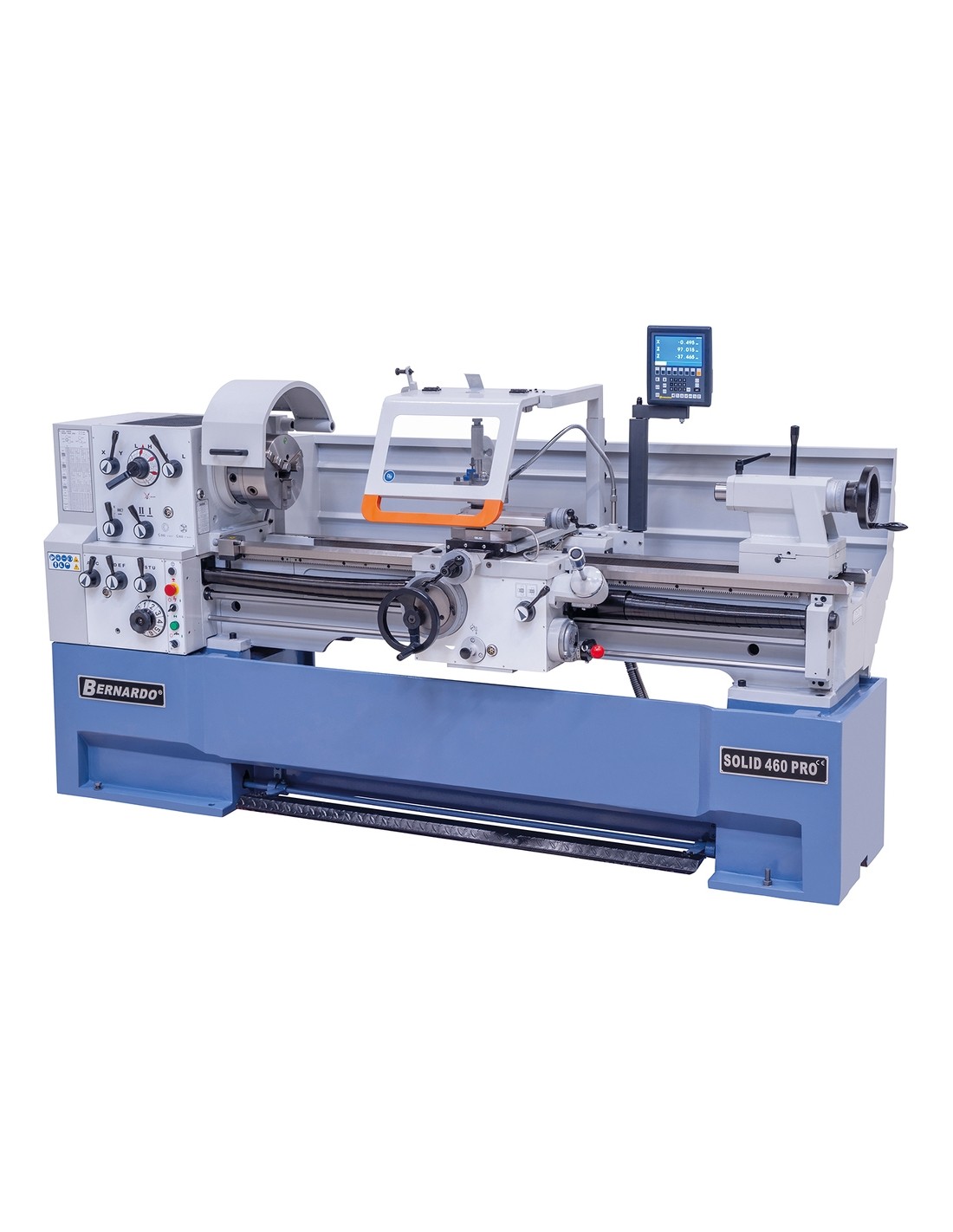

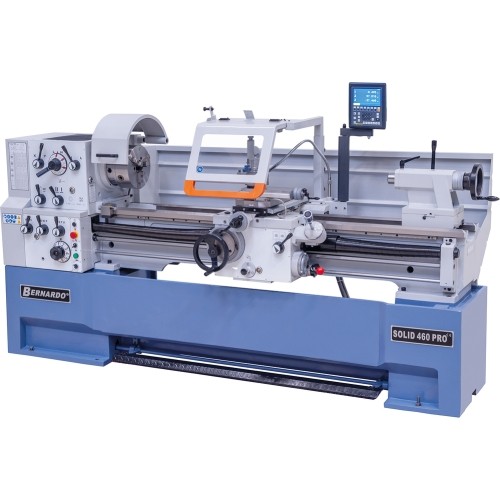

Solid 460 x 2000 Pro

1234508
Price €31,000.00 VAT incl.

Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Supplier store
(10 pcs)
Delivery terms:
FREE pick up wednesday, july 15 d., in the store, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 1995 kg.

Description

Properties

  • Modern bearing of main spindle with angular ball bearing in precision construction
  • Hardened and ground gears and shafts, even in feed gear unit
  • Central and easy coupling of feeds and threads with leadscrew and feed rod
  • The large gears are hardened and precision-ground

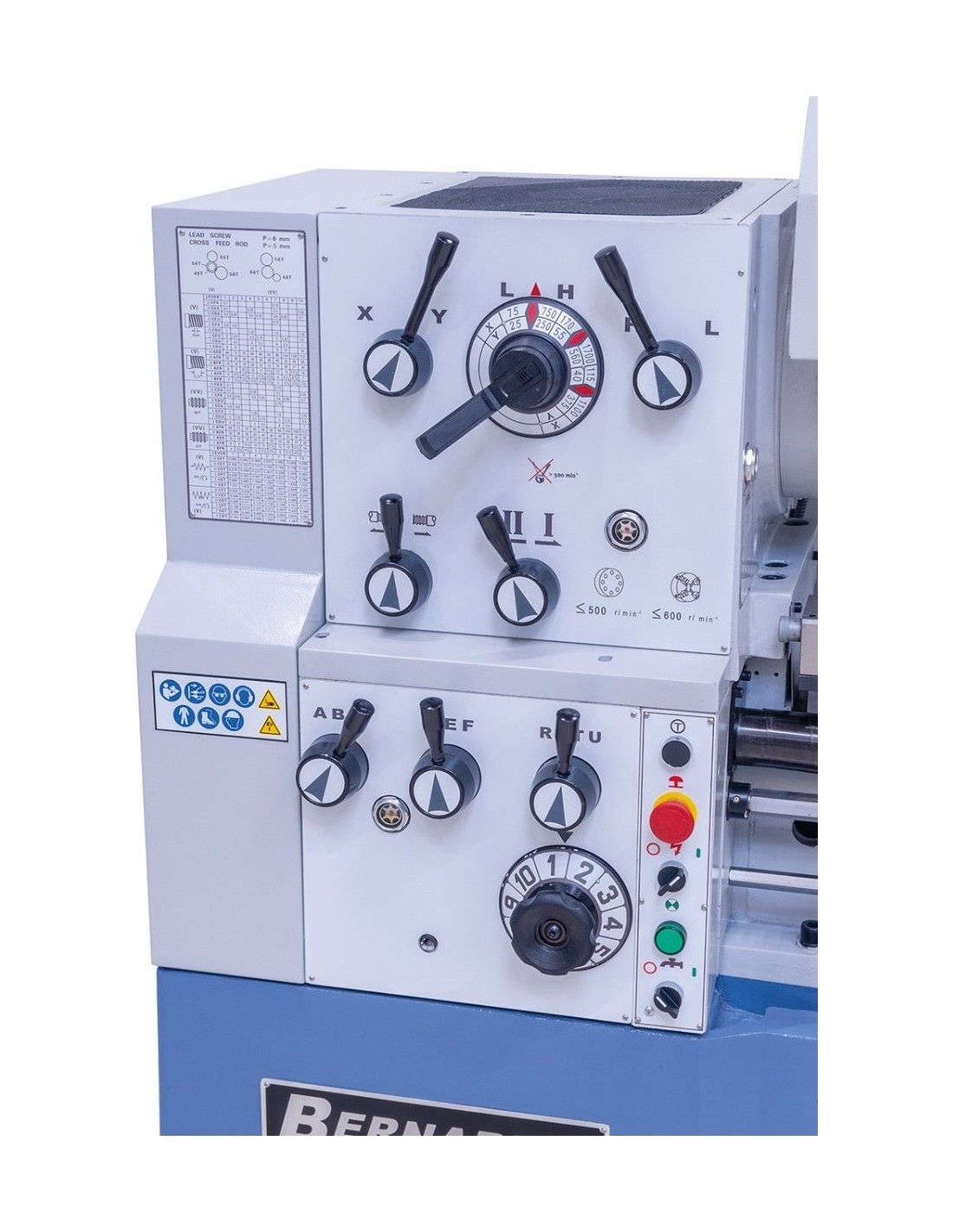

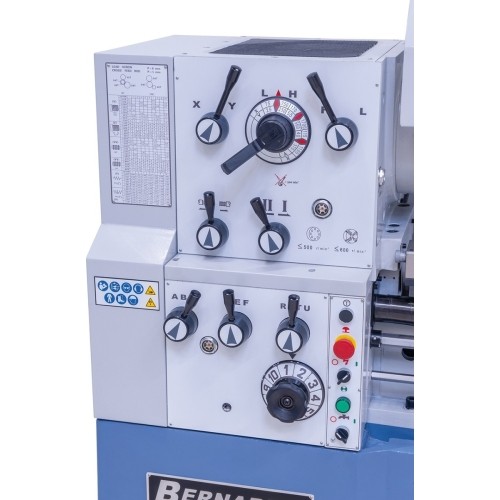

  • Easy, smooth and precisely adjustable speed and feed settings
  • Complete with longitudinal and cross rapid feed to reduce downtime
  • The machine bed is made of one piece, it is buckling resistant and vibration-free which enables precise turning

Standard accessories

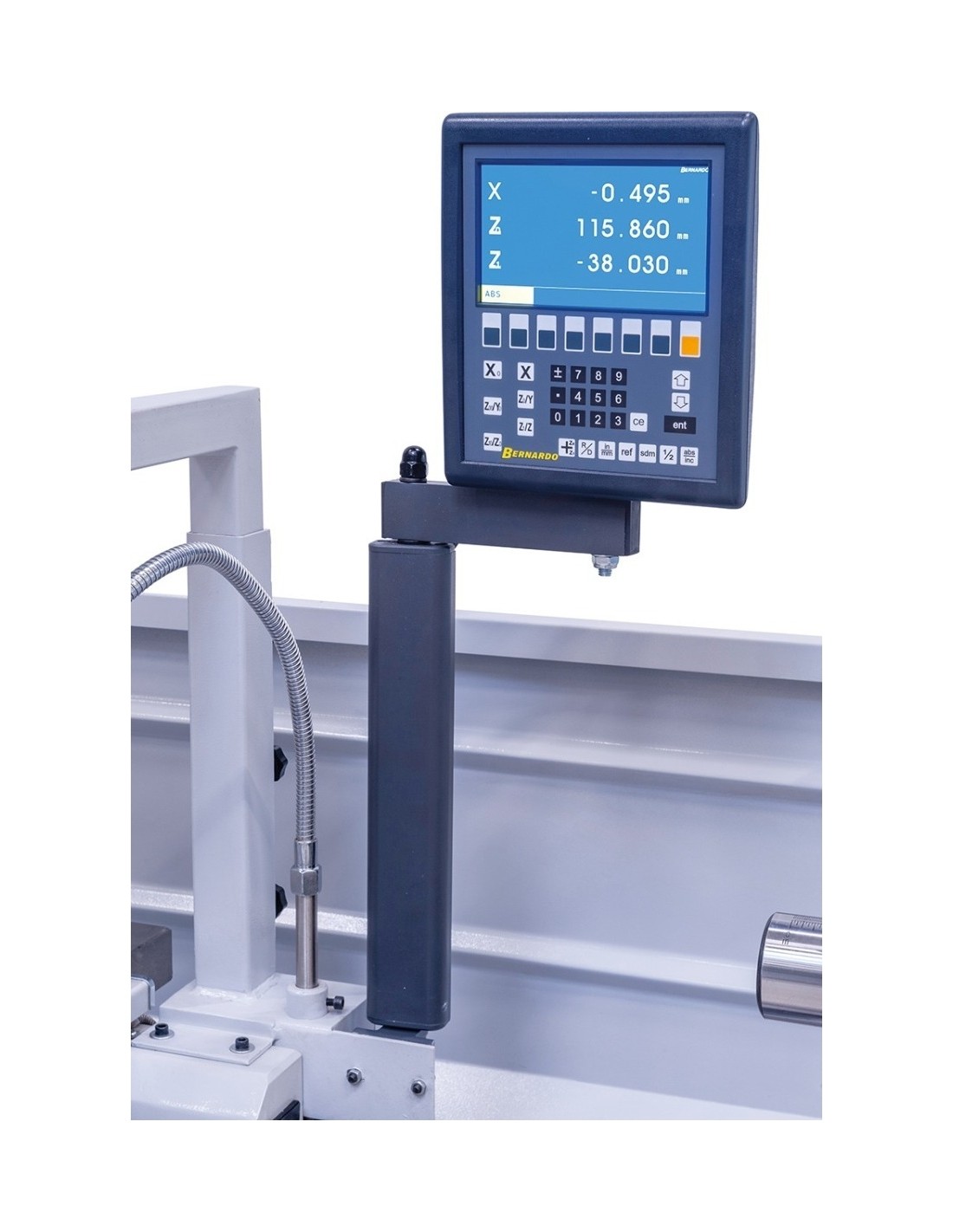

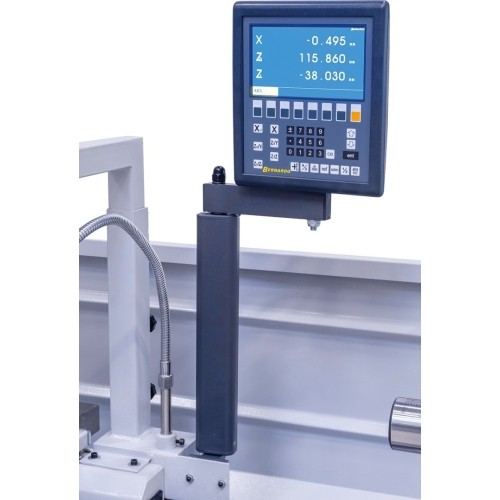

  • 3-axis digital readout ES-12 V with LCD display

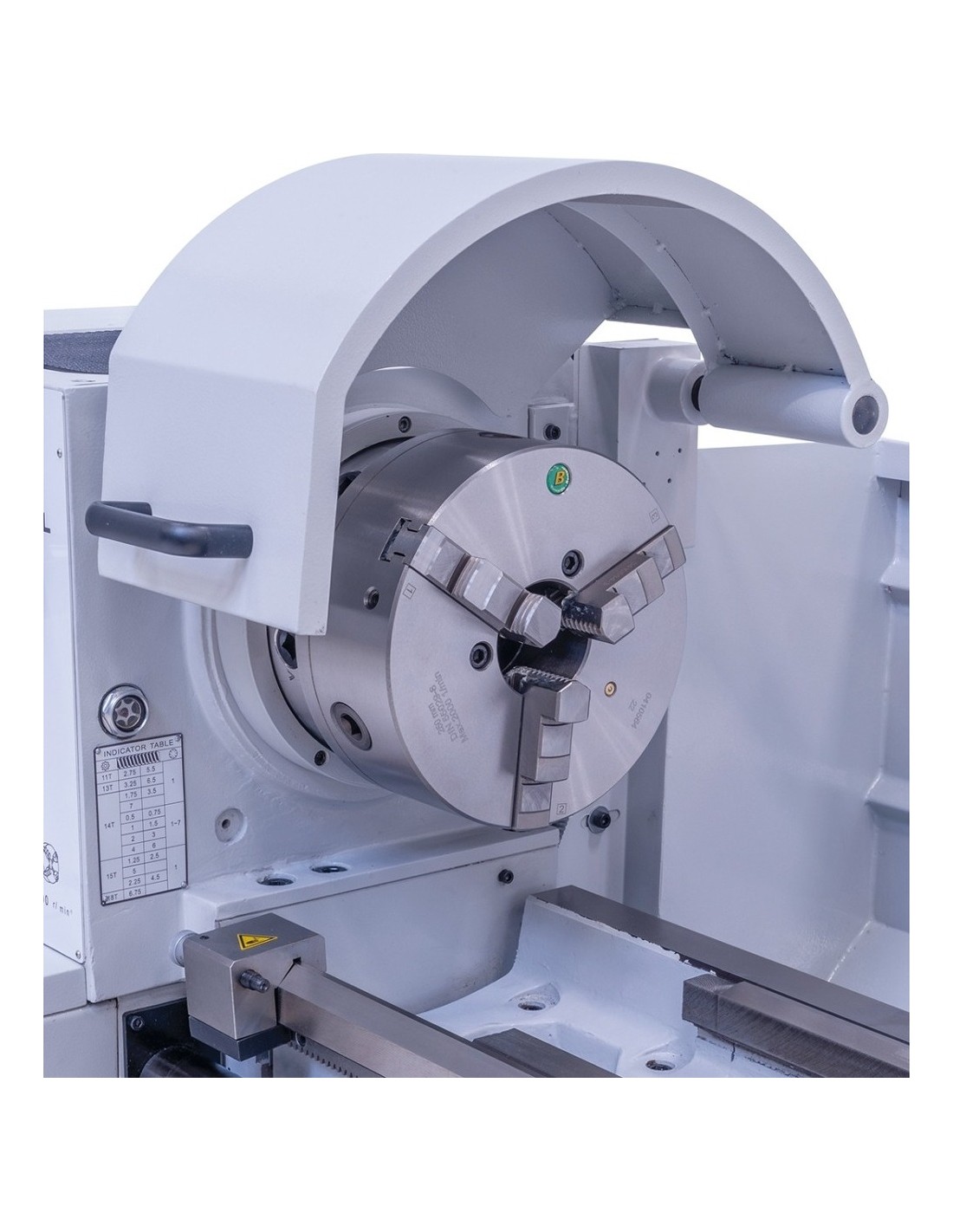

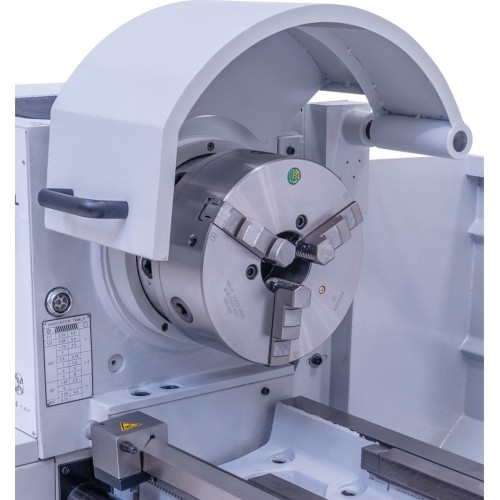

  • 3-jaw chuck PS3-250 mm / D8
  • Face plate 450 mm
  • Coolant device
  • Initial filling with Shell Tellus 46

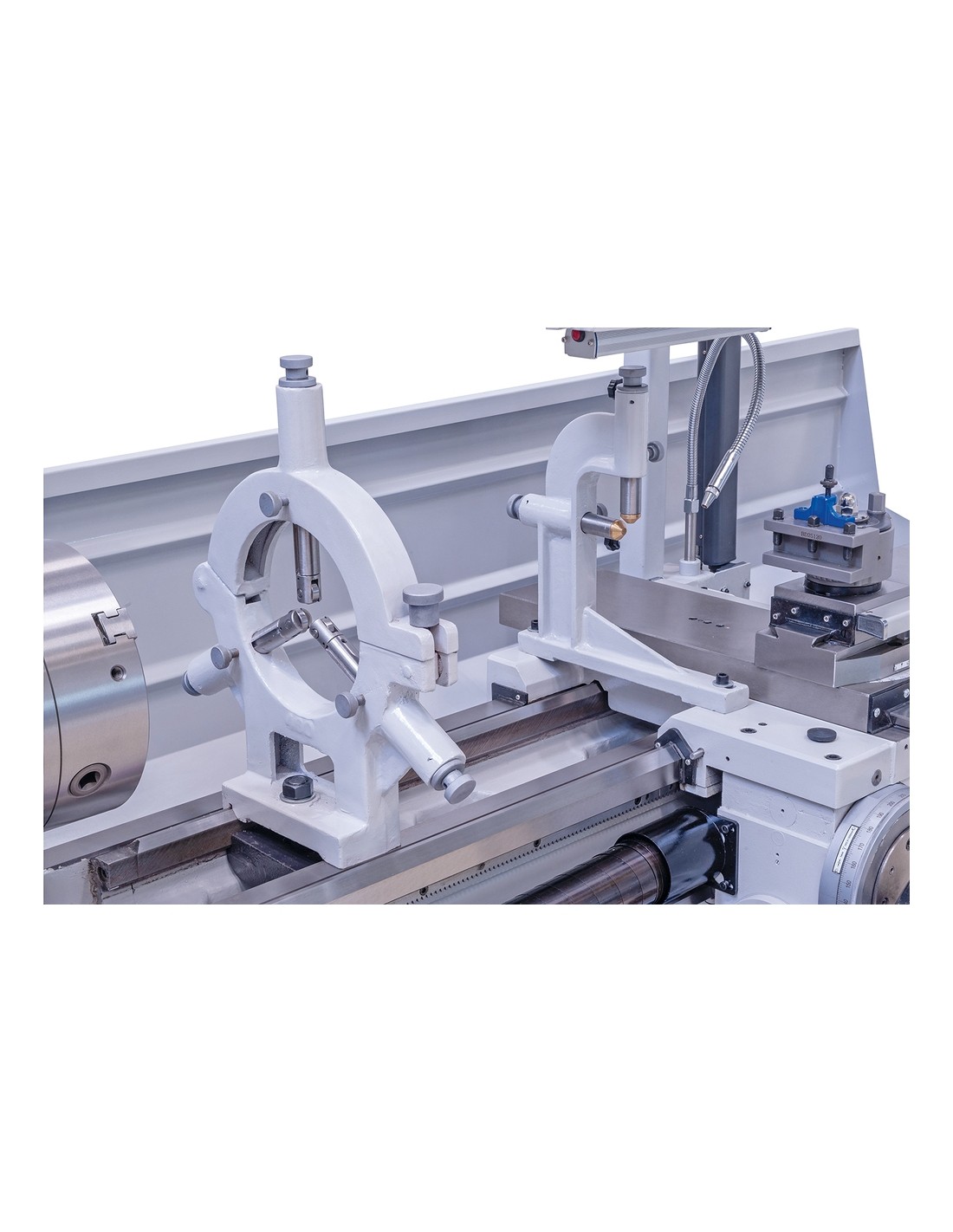

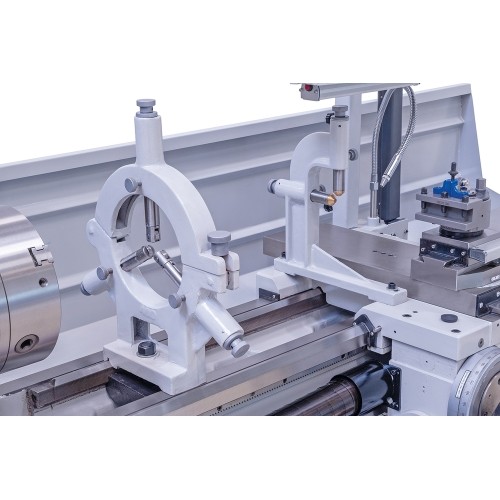

  • Steady rest - Passage up to max. 150 mm
  • Follow rest - Passage up to max. 110 mm

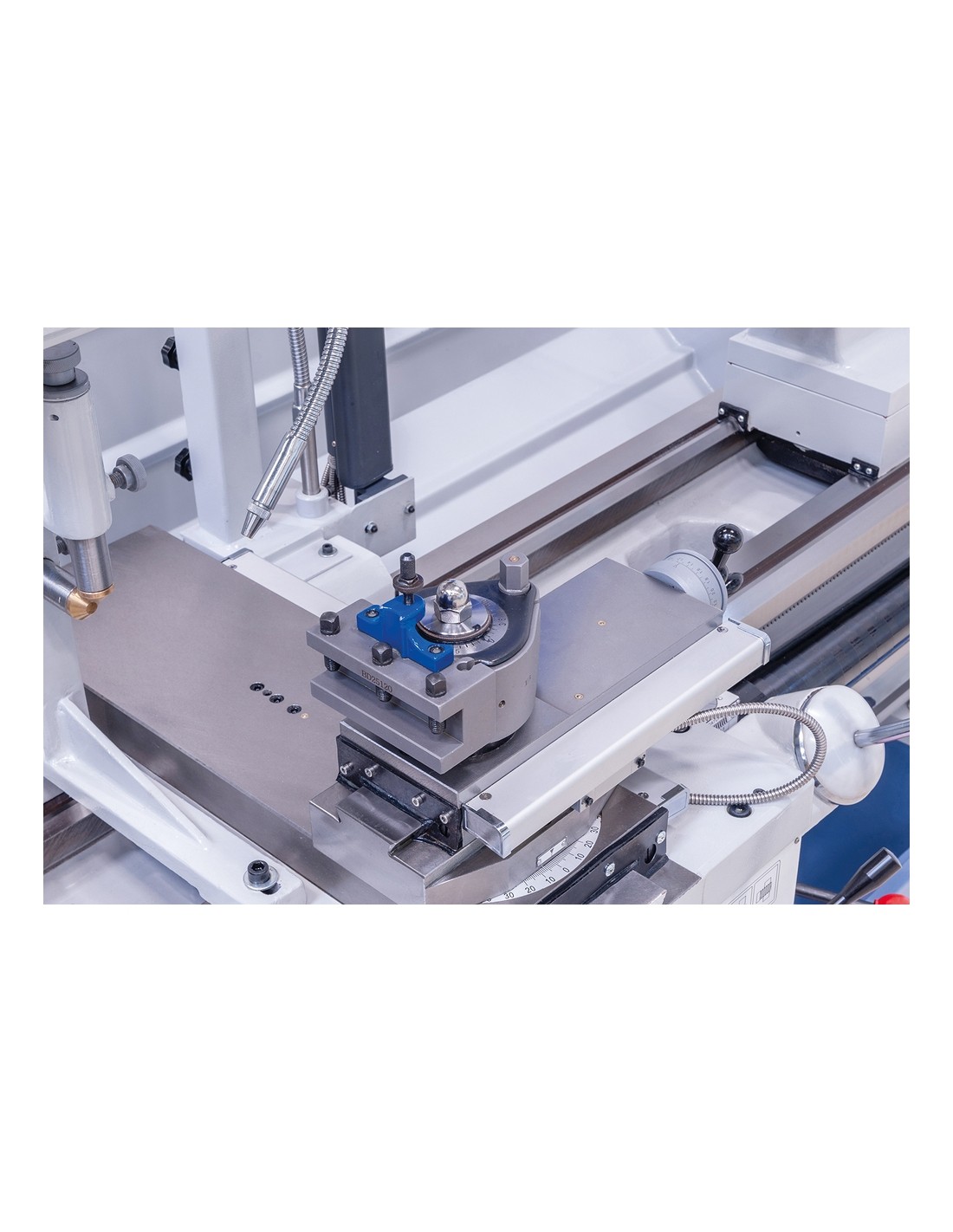

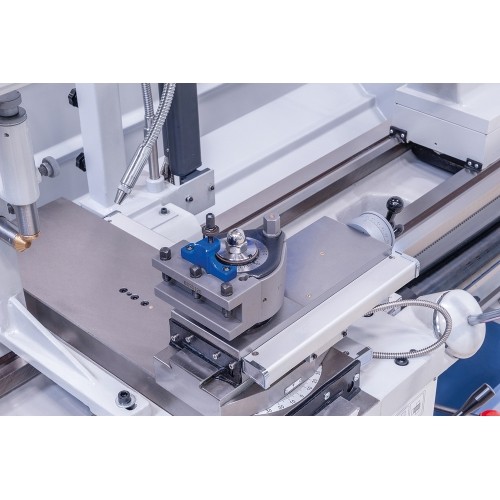

  • 40 pos. tool post and holder set with 4 inserts

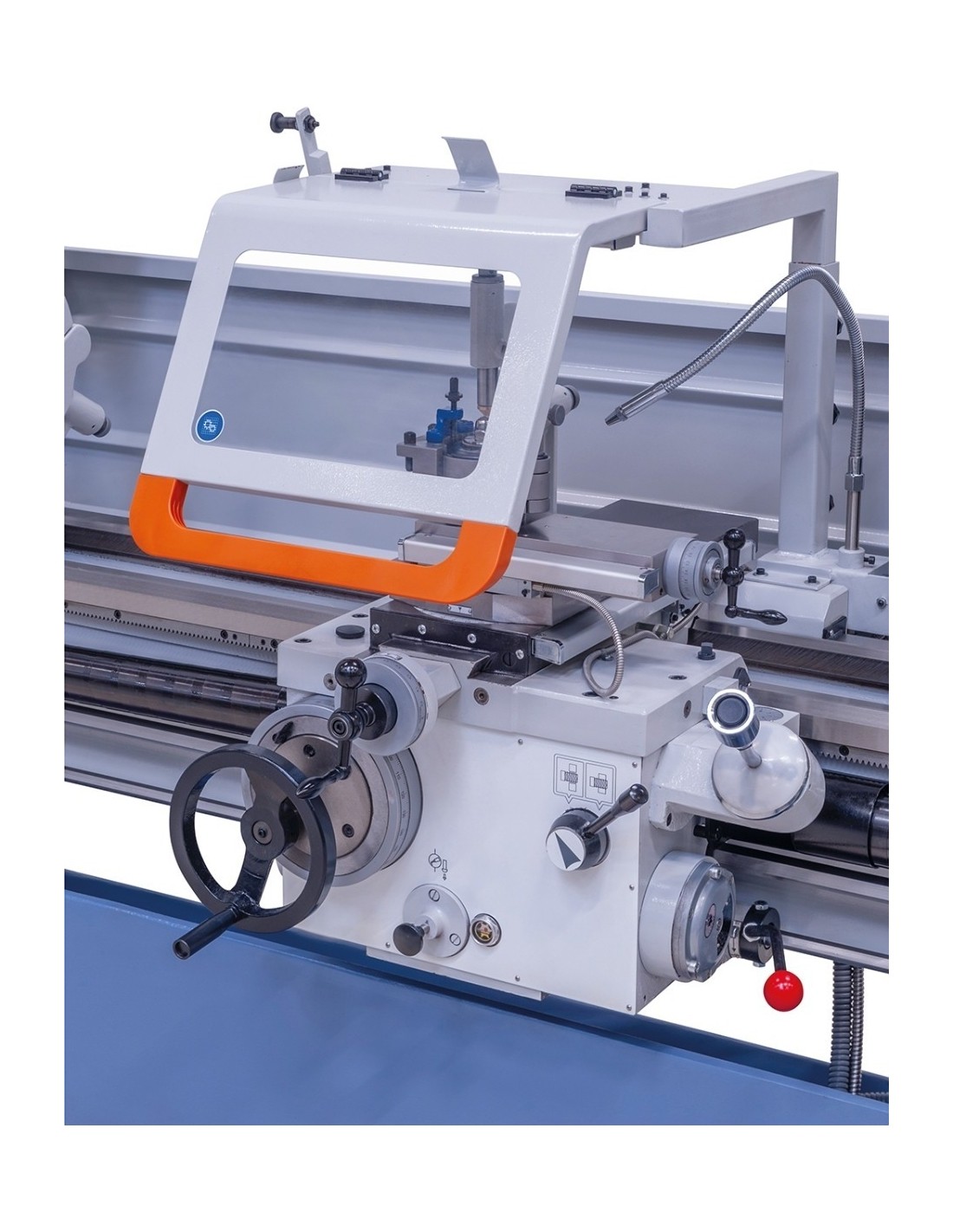

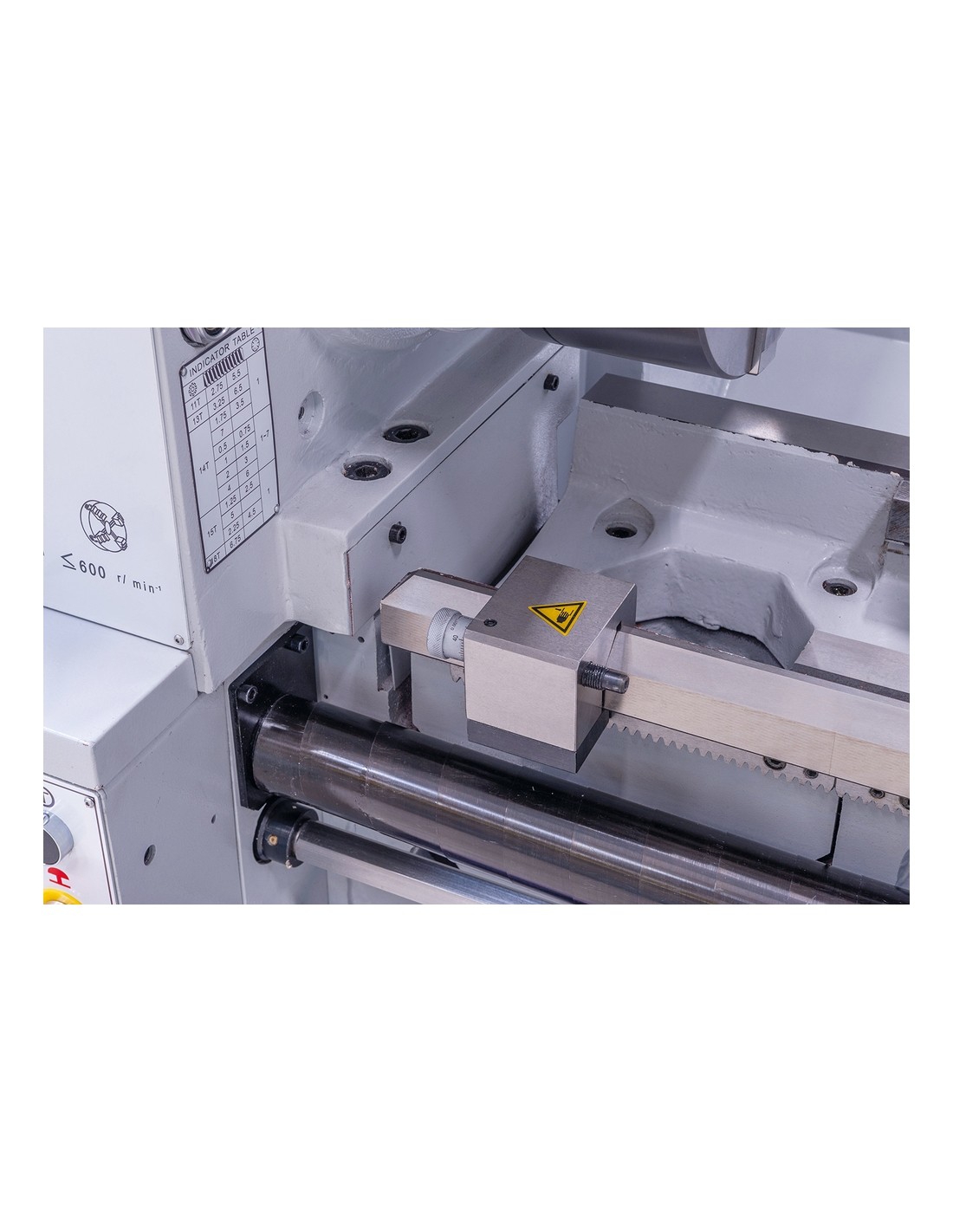

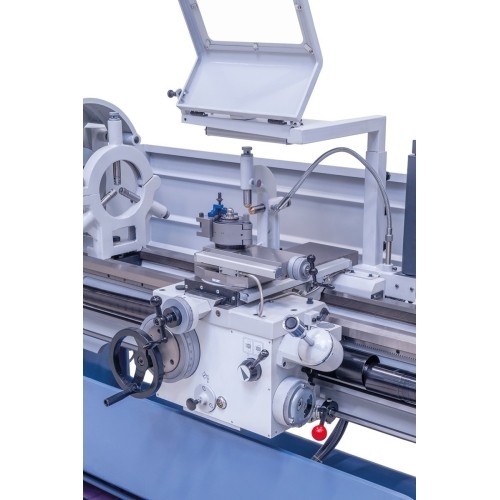

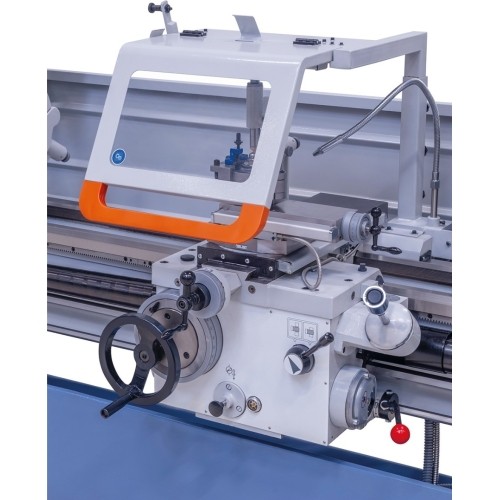

  • Protective device at tool holder
  • Motor with magnetic brake according to CE
  • Foot pedal with brake function according to CE
  • Safety clutch
  • Rapid feed longitudinal and cross

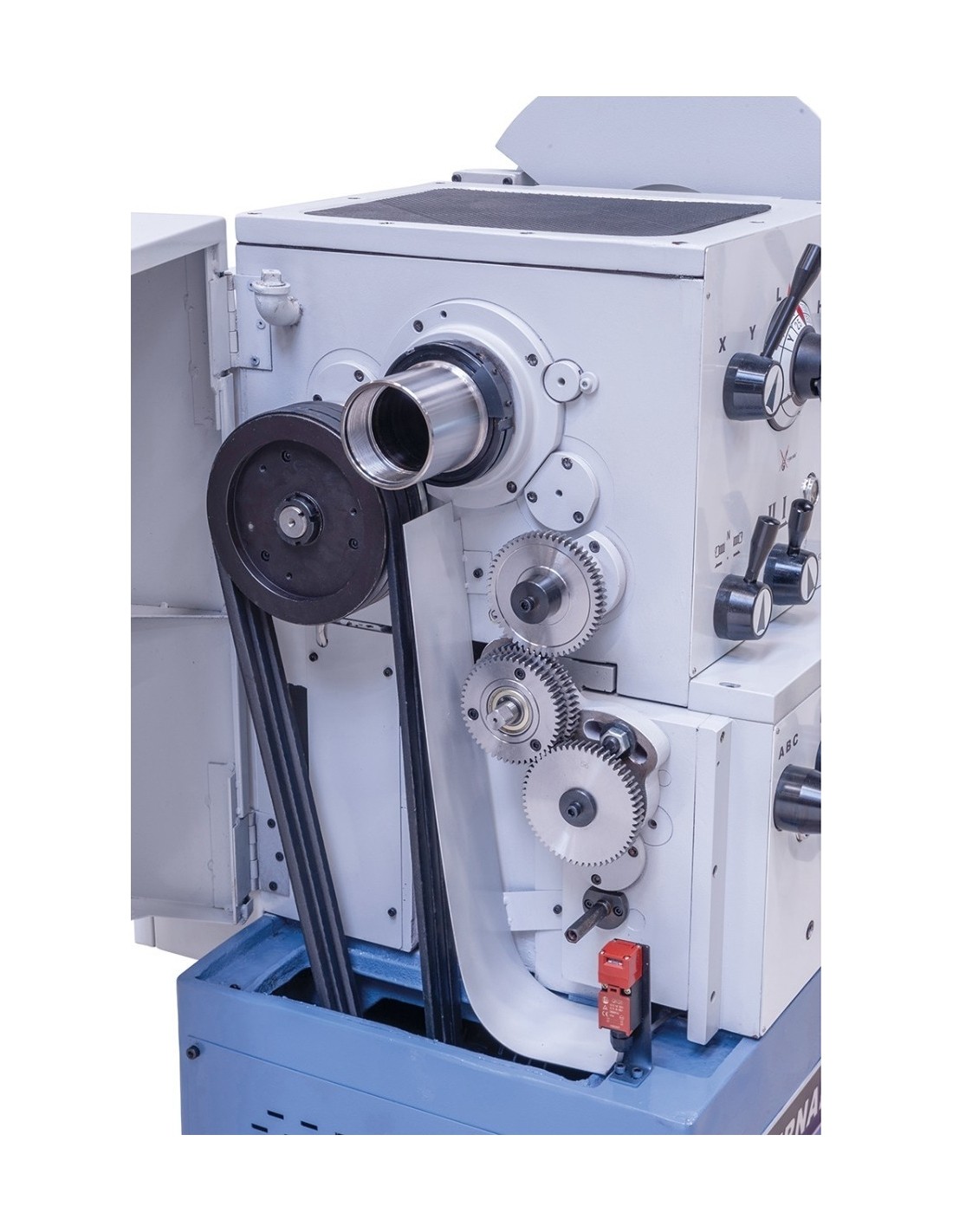

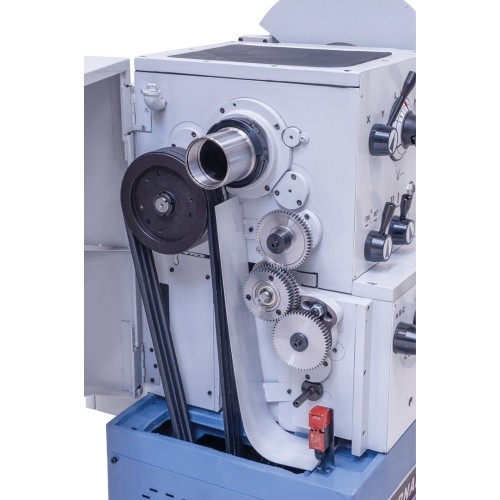

  • Change gears
  • 2 dead centers
  • Morse taper drill sleeve
  • Thread dial

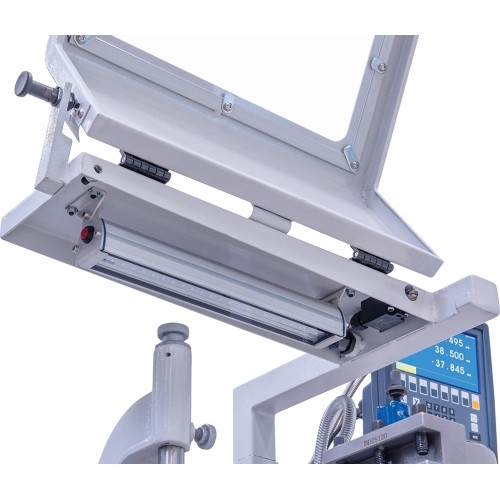

  • LED machine light
  • Splash guard
  • Tools
