WARRANTY

  • 30 days return policy
  • 24 month product warranty
  • Free consultation
  • 30 days return policy
  • 24 month product warranty
  • Free consultation

Distance between centers
1000 mm
Taper of tailstock sleeve
MT 4
Travel of tailstock sleeve
120 mm
Weight approx.
575 kg
Center height
190 mm
Swing over bed
380 mm
Swing over gap*
490 mm
Swing over cross slide
220 mm
Spindle bore
51 mm
Spindle nose fixture
DIN 55029, D1-5
Speed Range
(8) 70 - 2000 rpm
Longitudinal feed
(32) 0,052 - 1,392 mm/rev.
Cross feed
(32) 0,014 - 0,380 mm/rev.
Metric thread
(26) 0,4 - 7,0 mm
Inch thread
(34) 4 - 56 threads/1“
Diameter of tailstock sleeve
42 mm
Machine dimension (W x D x H)
1920 x 800 x 1660 mm
Motor power output S1 100%
1,5 kW / 400 V
Motor power input S6 40%
2,2 kW / 400 V
Bed width
185 mm

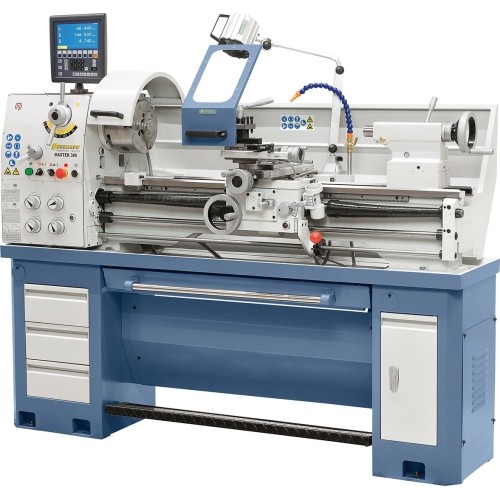

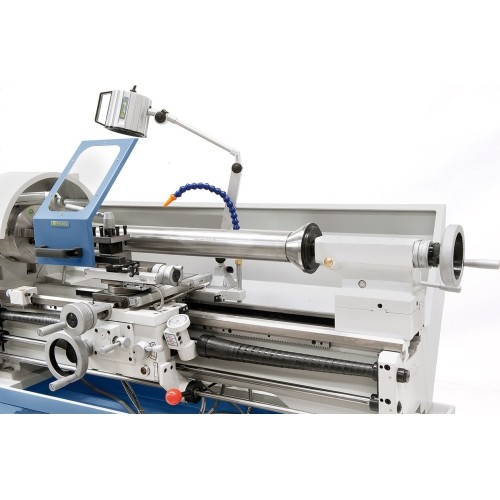

Master 380

1348656
€9,544.00
Tax included
Monthly payment from 234.82€

Stock Quantity:
In S01 store
not available
In S02 store
not available
In Supplier store
(5+ pcs)
Delivery terms:
NEMOKAMAI atsiimkite thursday, december 5 d., parduotuvėje, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 575 kg.
Prekę pristatysime Jums per: 5-10 d.d. Venipak (€40.99)
Weight: 575 kg.

Description

Properties

  • 51 mm spindle bore to machine large shaft diameters comes standard
  • Perfect machine for technical schools, repair shops and training workshops
  • Ideal for processing of steel, non-ferrous materials and plastics
  • Removeable bridge allows machining of workpieces with a big diameter

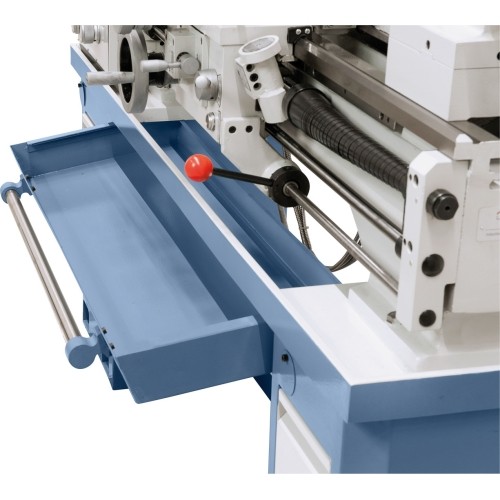

  • Chip tray extracts to front, keeping space requirements to a minimum

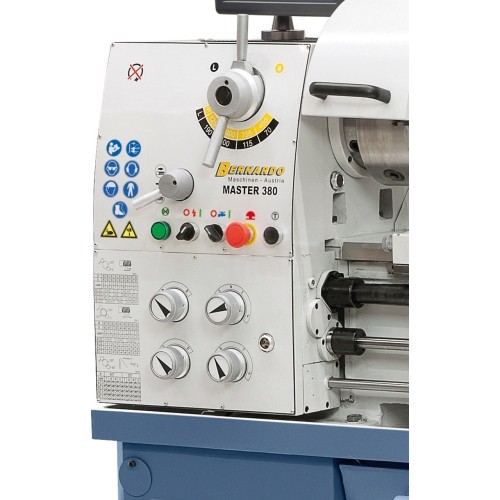

  • Clear arranged speed and feed control settings, smooth operation and accurate control
  • Electro-magnetic foot brake reduces downtime
  • State-of-the-art spindle bedding with high-quality, angular ball bearings
  • Grey cast-iron machine bed, inductive hardened and polished
  • One-hand clamping for tailstock, adjustable for taper turning
  • High spindle concentricity (≤ 0,009 mm)
  • Hardened and polished spindle runs in oil bath
  • Tailstock, spindle stock and all guides are adjustable

Standard accessories

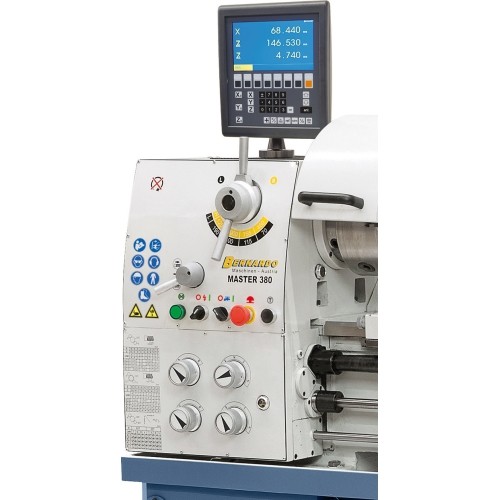

  • 3-axis digital readout with ES-12 V LCD-display

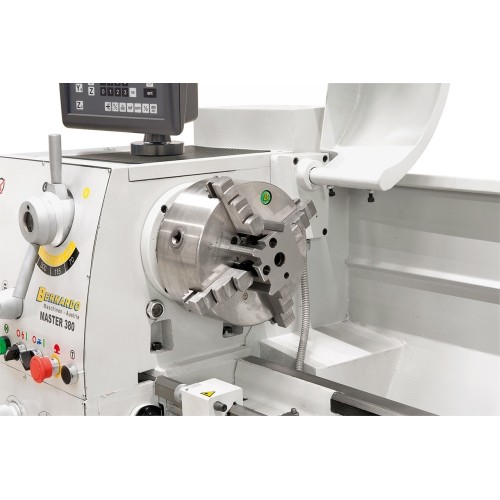

  • 3-jaw chuck DK11-200 mm / D5
  • Independent chuck 200 mm / D5, according DIN 55029

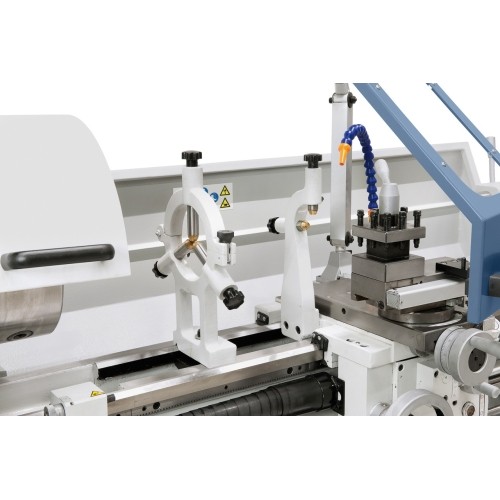

  • Steady rest - Passage up to max. 70 mm
  • Follow rest - Passage up to max. 50 mm
  • Coolant device
  • Initial filling with Shell Tellus 46
  • Extractable chip tray
  • Face plate 320 mm
  • 4-way tool post holder
  • Protective cover at 4-way tool post holder
  • Safety clutch
  • Micrometer longitudinal fence
  • Thread dialGewindeuhr
  • LED machine light
  • Morse taper drill sleeve

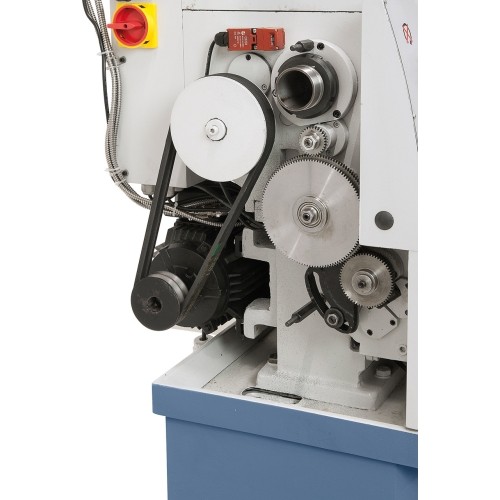

  • Change gears
  • 2 dead centers
  • Foot pedal with brake function according to CE

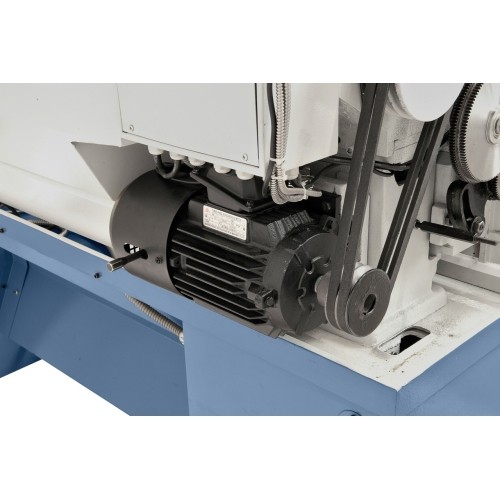

  • Motor with magnetic brake according to CE
  • Stand with drawers
  • Tools
