WARRANTY

  • 30 days return policy
  • 24 month product warranty
  • Free consultation
  • 30 days return policy
  • 24 month product warranty
  • Free consultation

Machine dimension (L x W x H)
1140 x 820 x 1100 mm
Weight approx.
94 kg
Motor power output S1 100%
1,8 kW (2,4 HP)
Motor power input S6 40%
2,5 kW (3,4 HP)
Voltage
400 V
Dust extraction outlet
100 mm / 75 mm
Table height
920 mm
Planing width
305 mm
Table length
500 mm
Shaft rotation speed
6700 rpm
Planer shaft diameter
62 mm
Planer fence
640 x 125 mm
Fence tiltable
90° to 45°
Max. cutting depth
2 mm
Working width
300 mm
Working thickness, min./max.
6 - 160 mm
Feed speed
8,5 mm
Cutter knives
2 pcs.

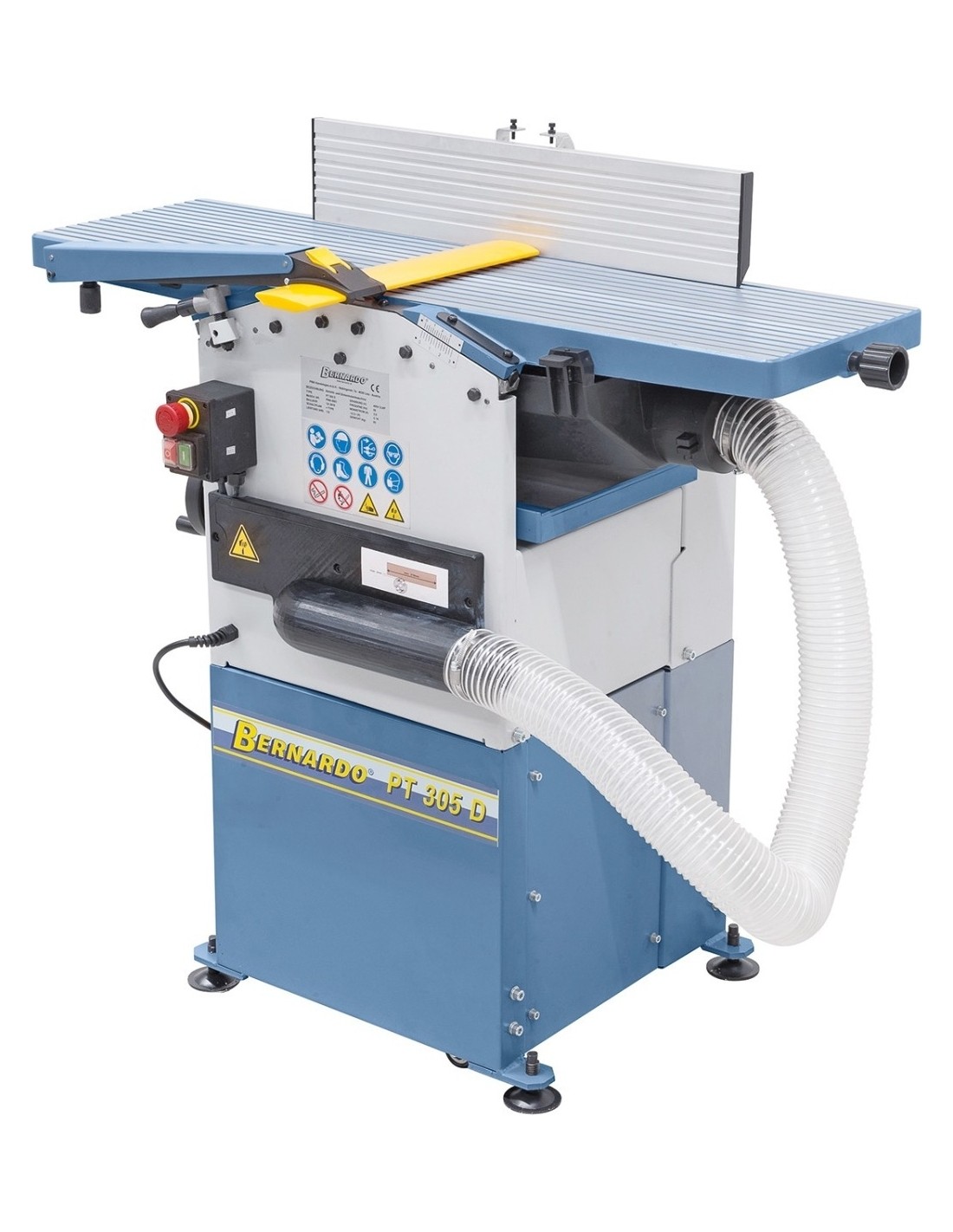

PT 305 D - 400 V

1091359
€1,610.00
Tax included
Monthly payment from 43.97€

Stock Quantity:
In S01 store
not available
In S02 store
not available
In Supplier store
(5+ pcs)
Delivery terms:
NEMOKAMAI atsiimkite monday, january 6 d., parduotuvėje, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 94 kg.
Prekę pristatysime Jums per: 5-11 d.d. Venipak (€40.99)
Weight: 94 kg.

Description

Properties

  • Both planing tables feature fine adjustment and are designed with slots to keep noise levels down

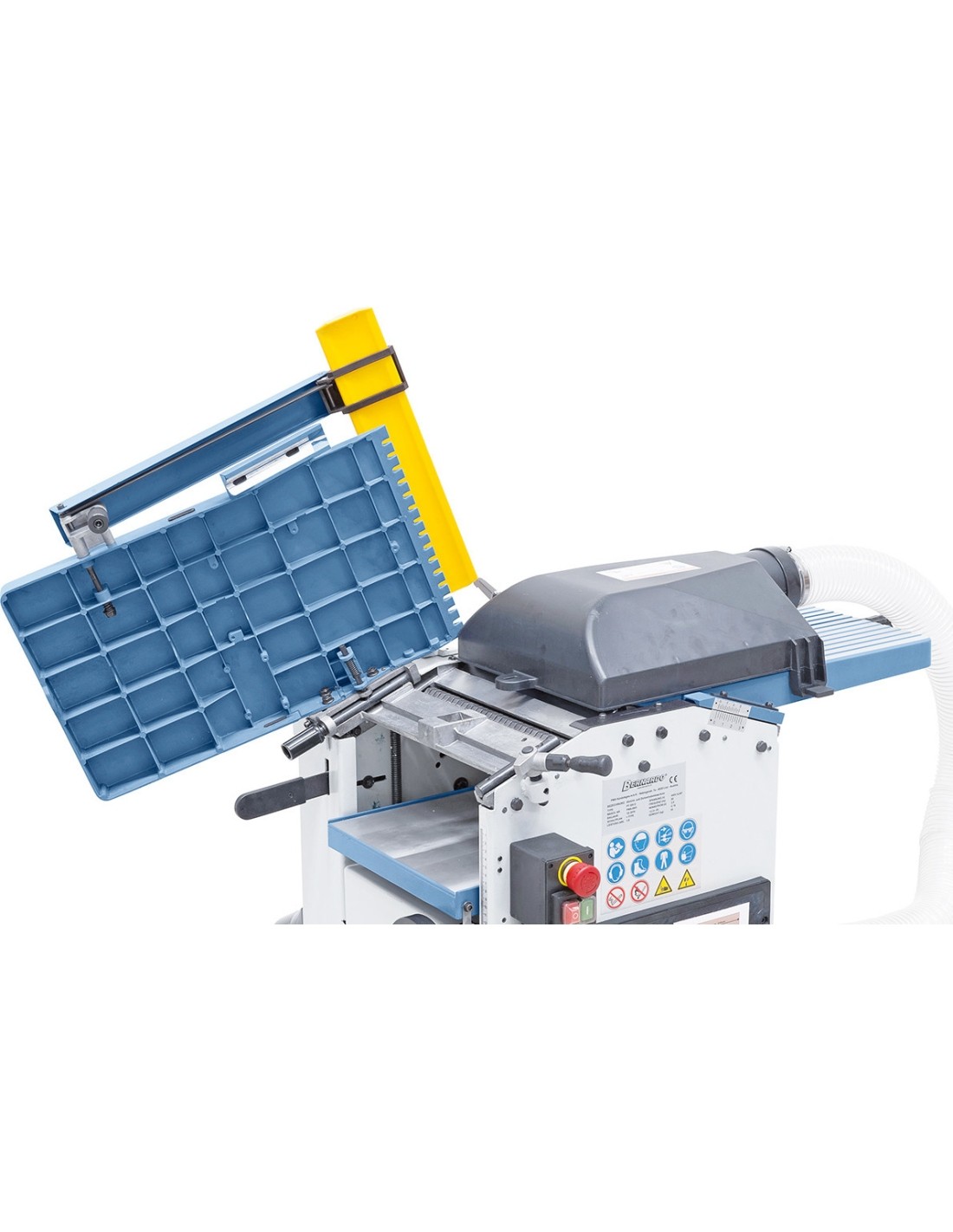

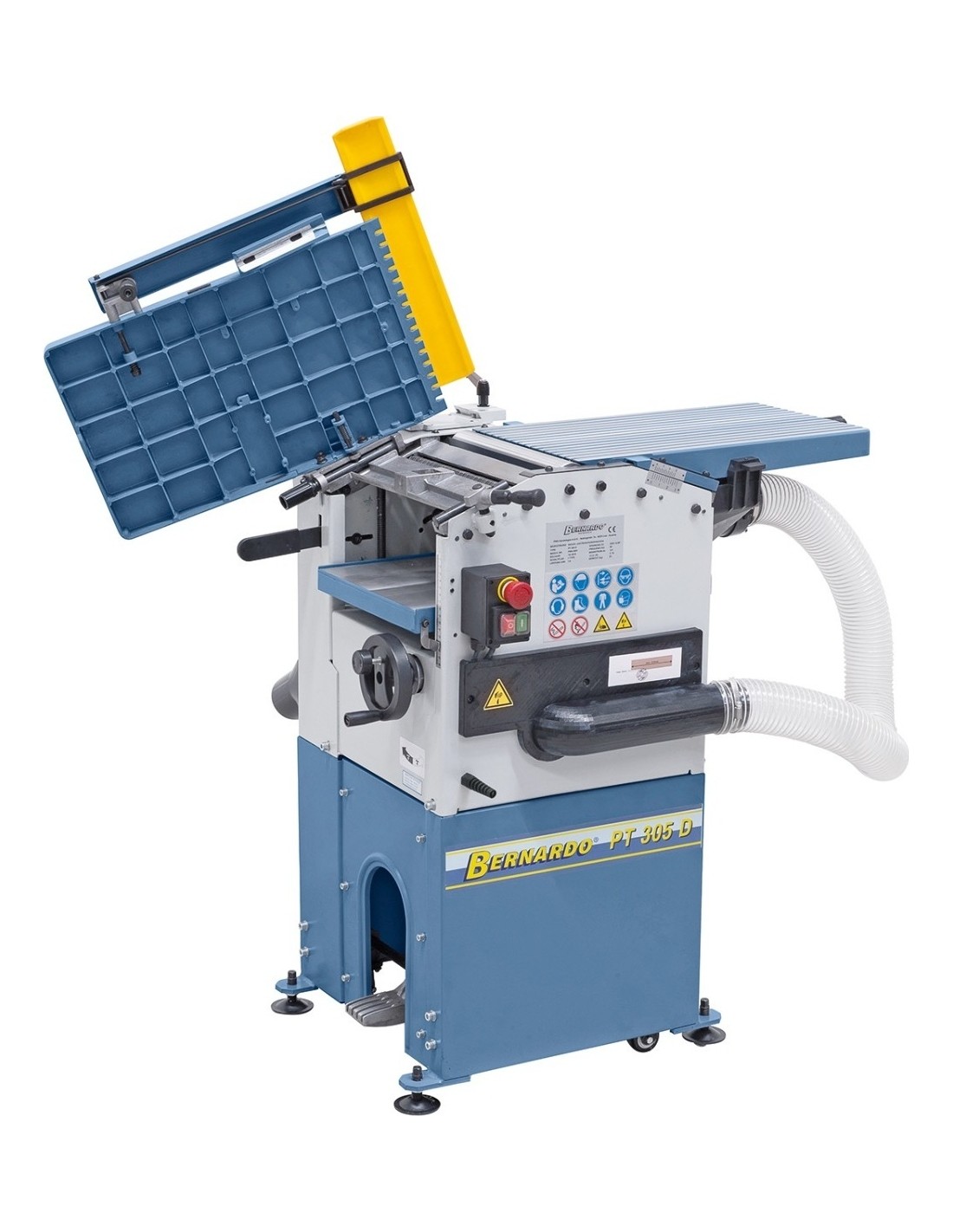

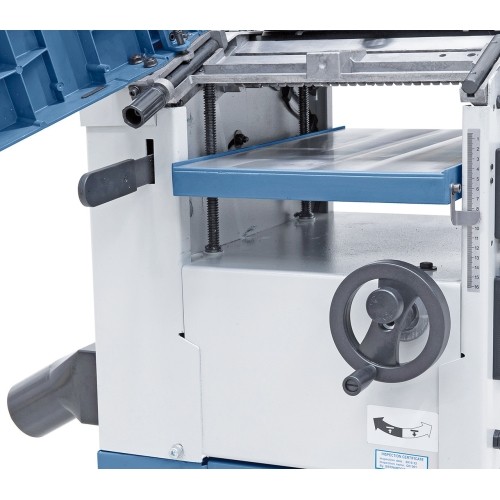

  • Thicknessing table is guided on four threads to ensure accurate planing of boards, planks, etc.
  • Integrated dust extractor guarantees optimal price-performance ratio
  • Quick and easy adjustment of chip removal

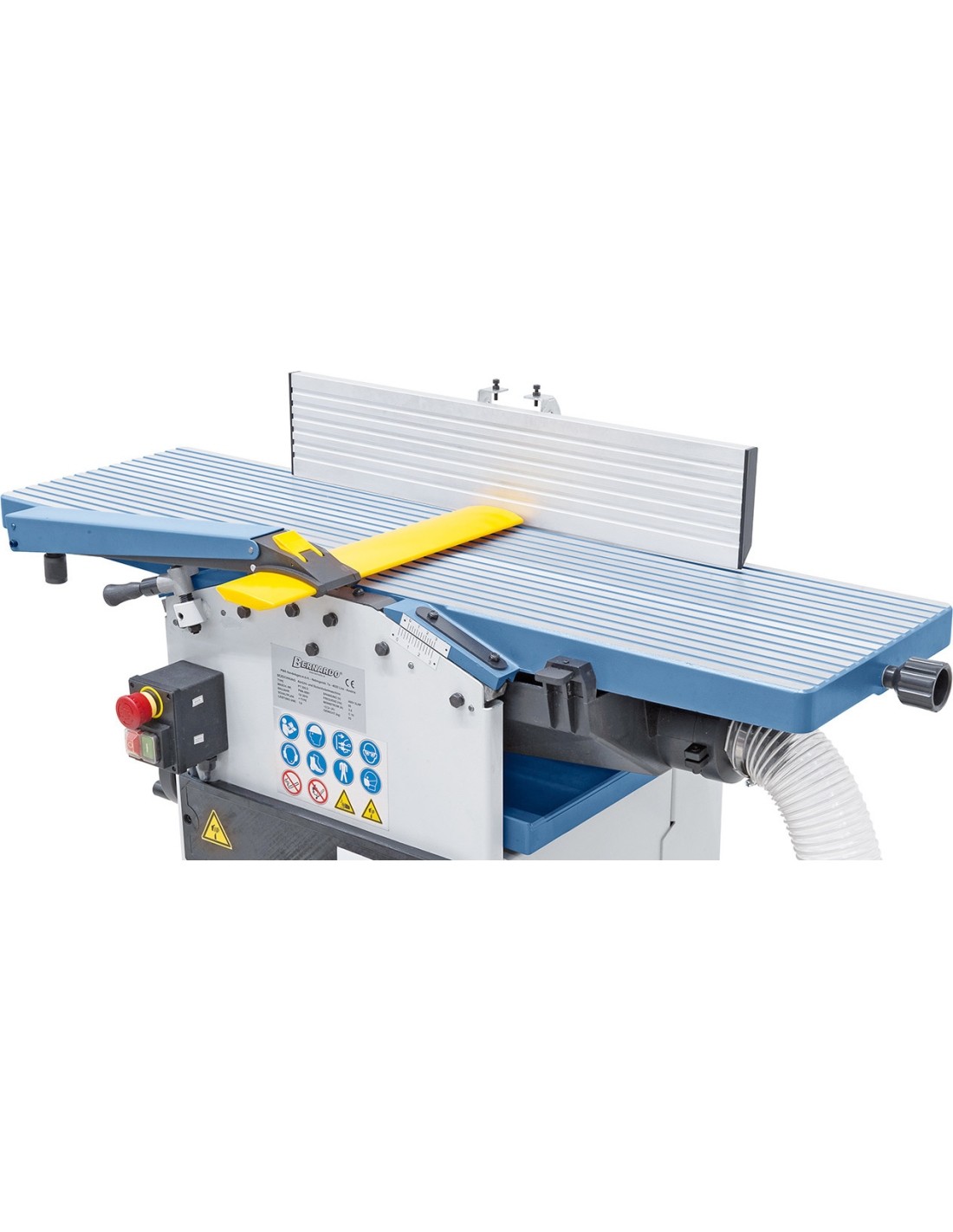

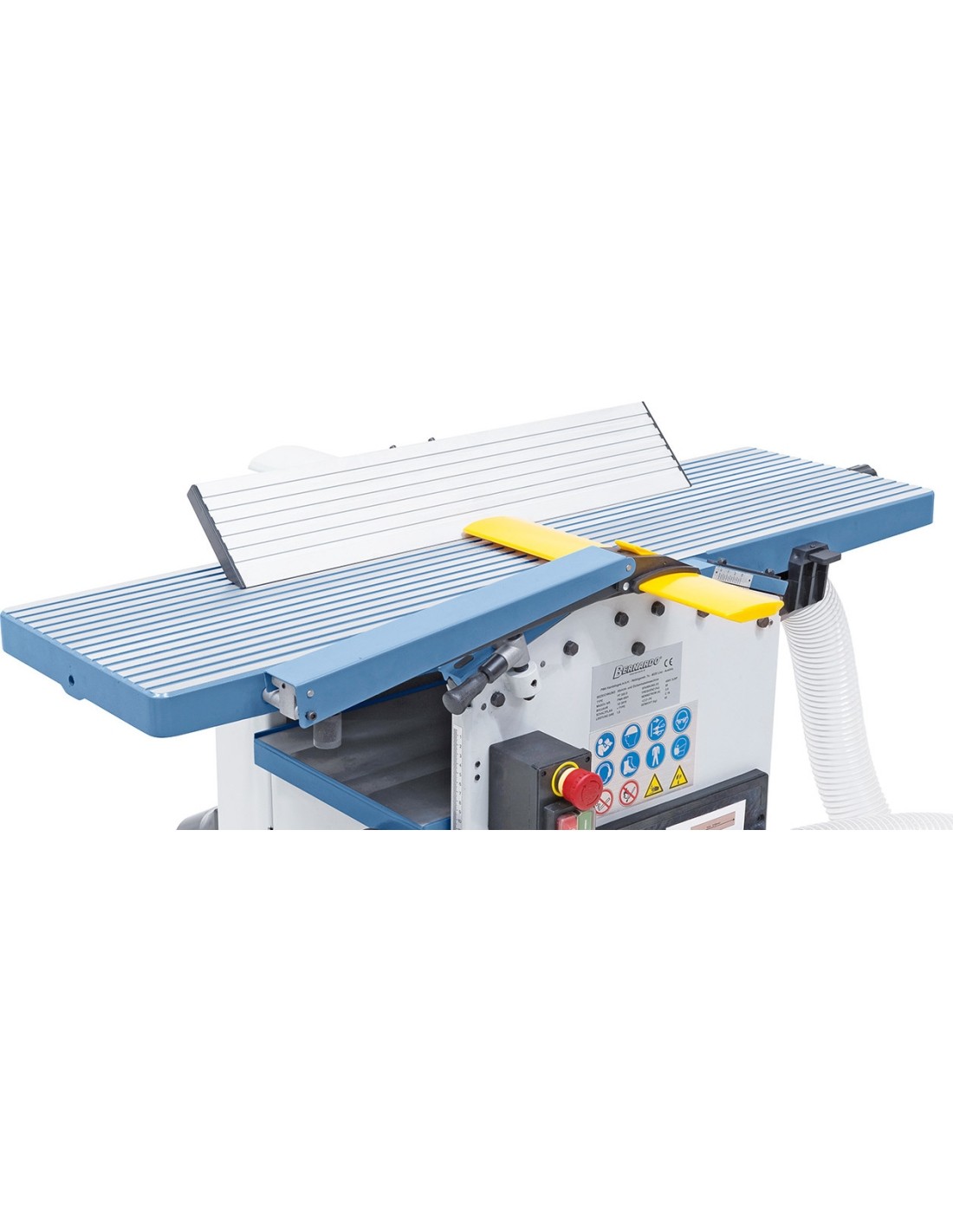

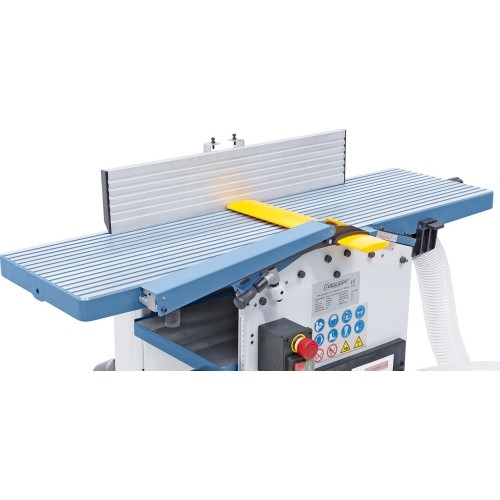

  • Precise planing tables made of aluminium for best results

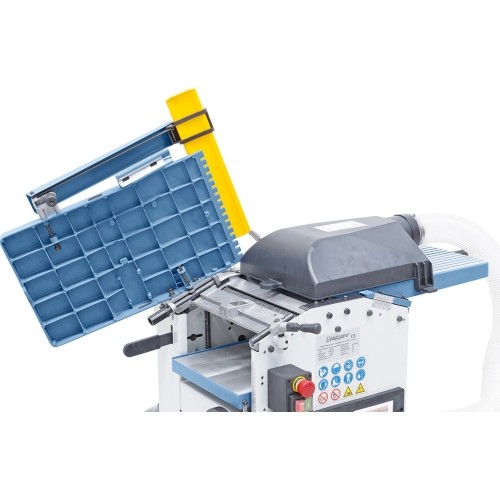

  • Dust hood (Ø 100 mm) can be used for both planing and thicknessing

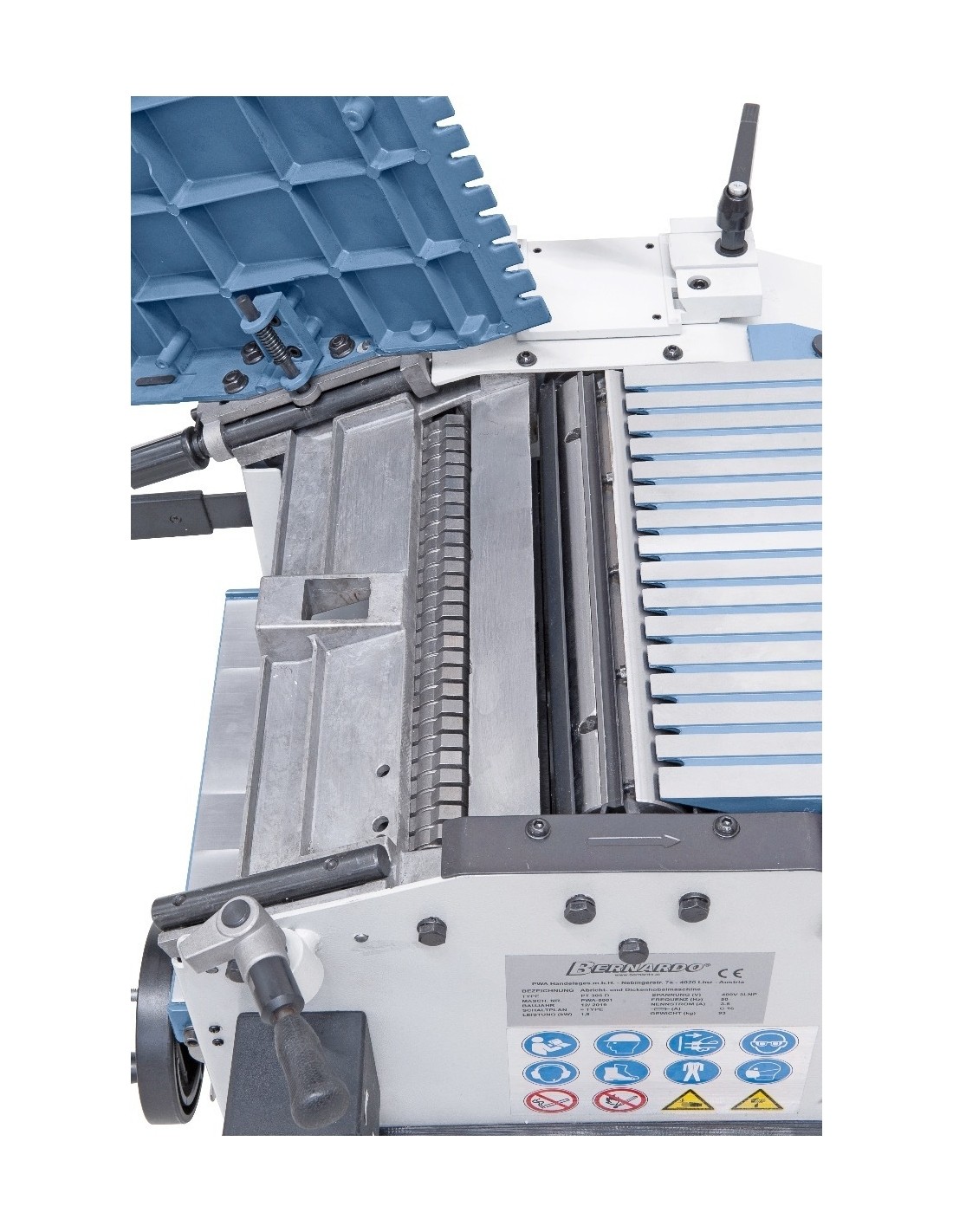

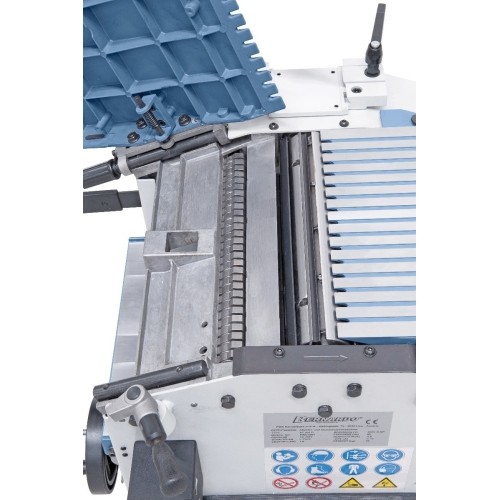

  • Cutterblock comes with HSS-knives
  • Corrugated infeed roller ensures safe and consistent workpiece infeed

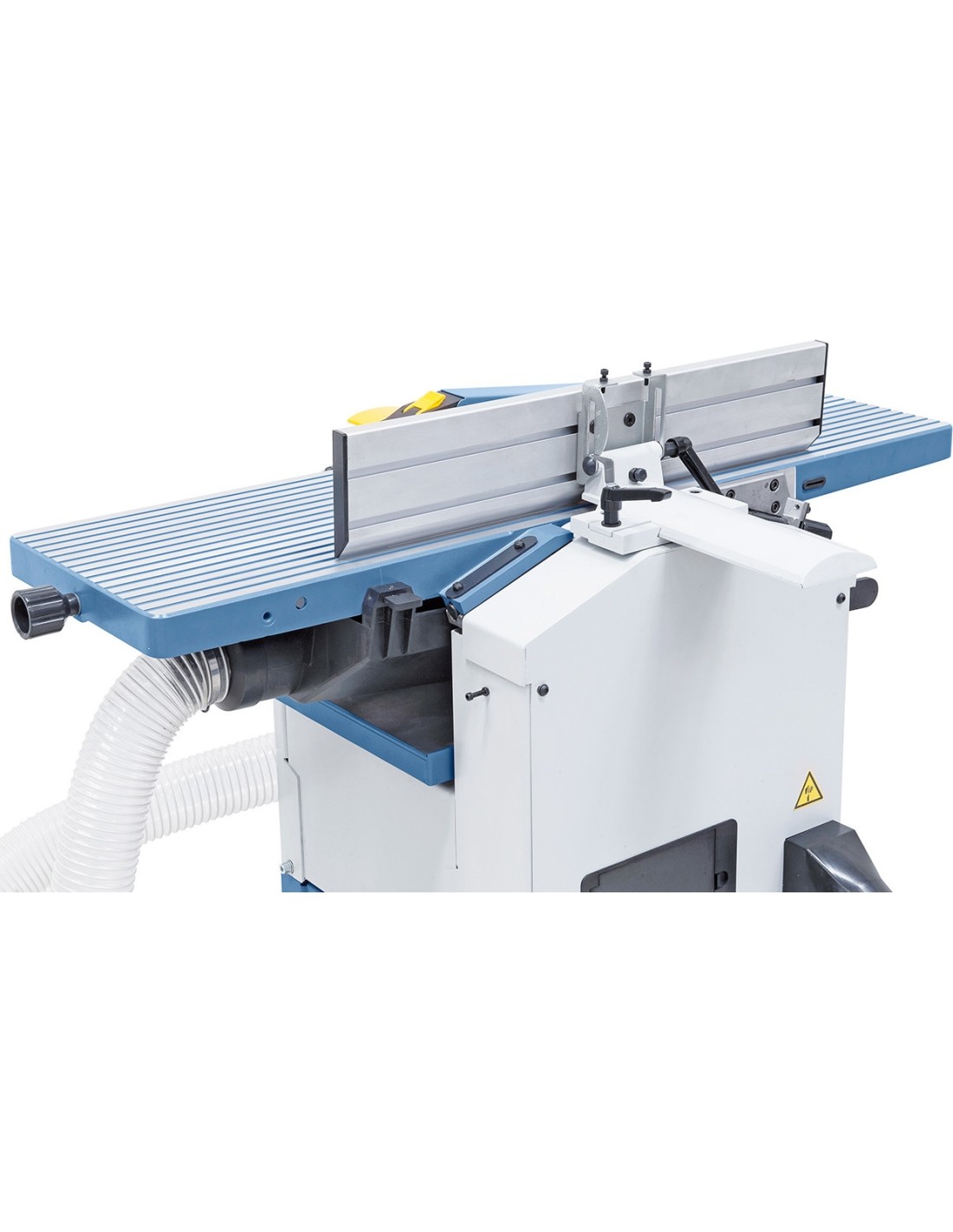

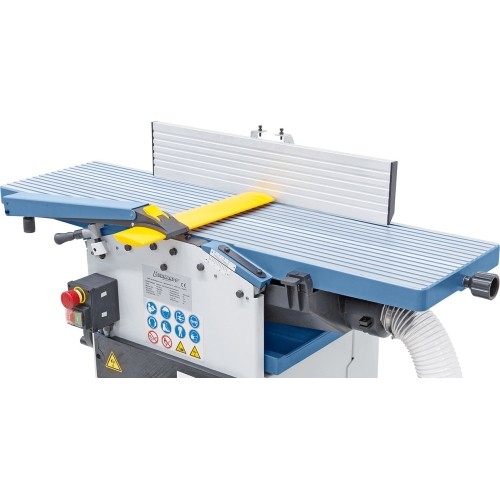

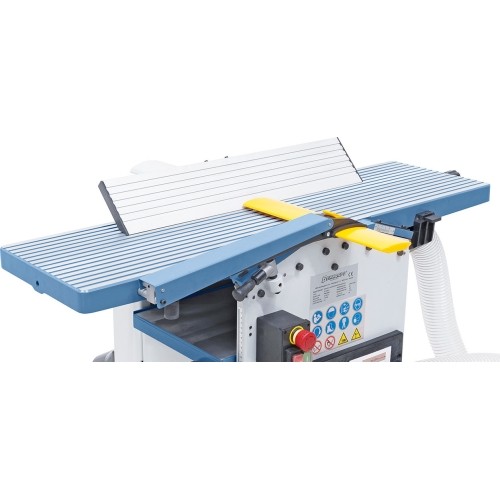

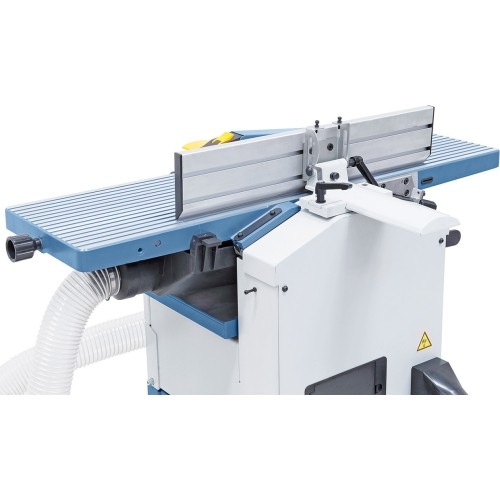

  • Solid planer fence with prism guide can be tilted from 90° to 45°
  • Serially equipped with knife gauge to allow accurate adjustment of knives
  • Infeed can be switched off when planing

Standard accessories

  • Cutter knives in HSS-quality
  • Knife gauge

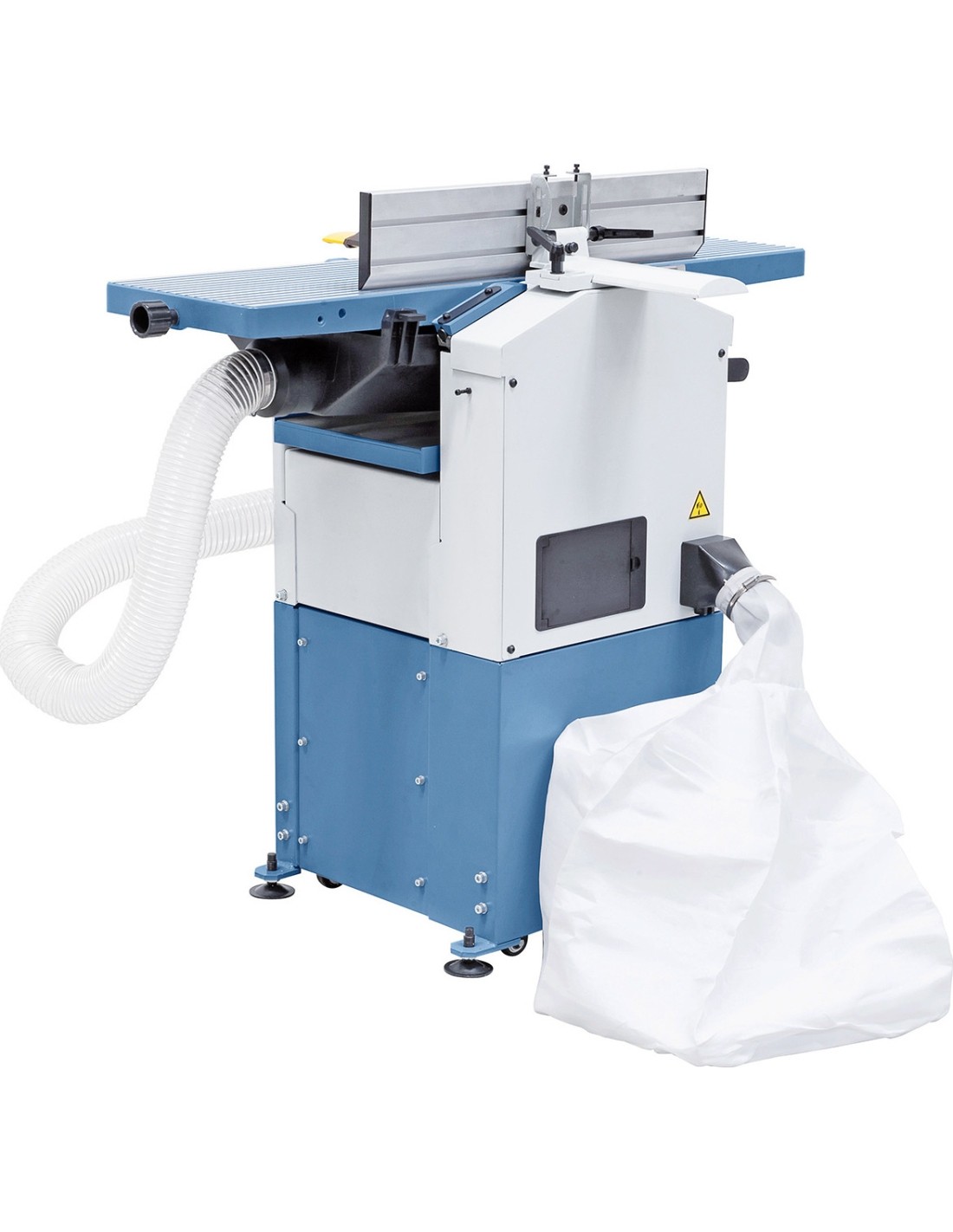

  • Integrated dust extractor

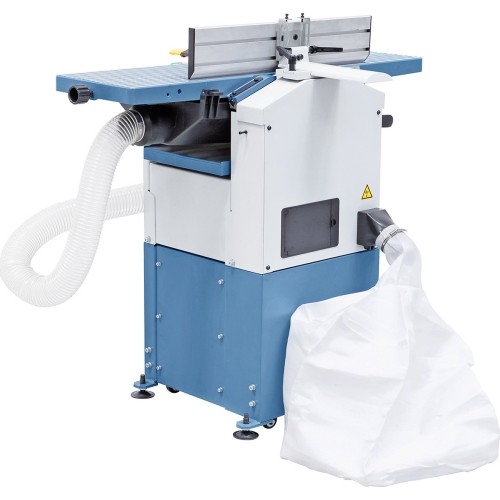

  • Waste bag
  • 2x Push handle

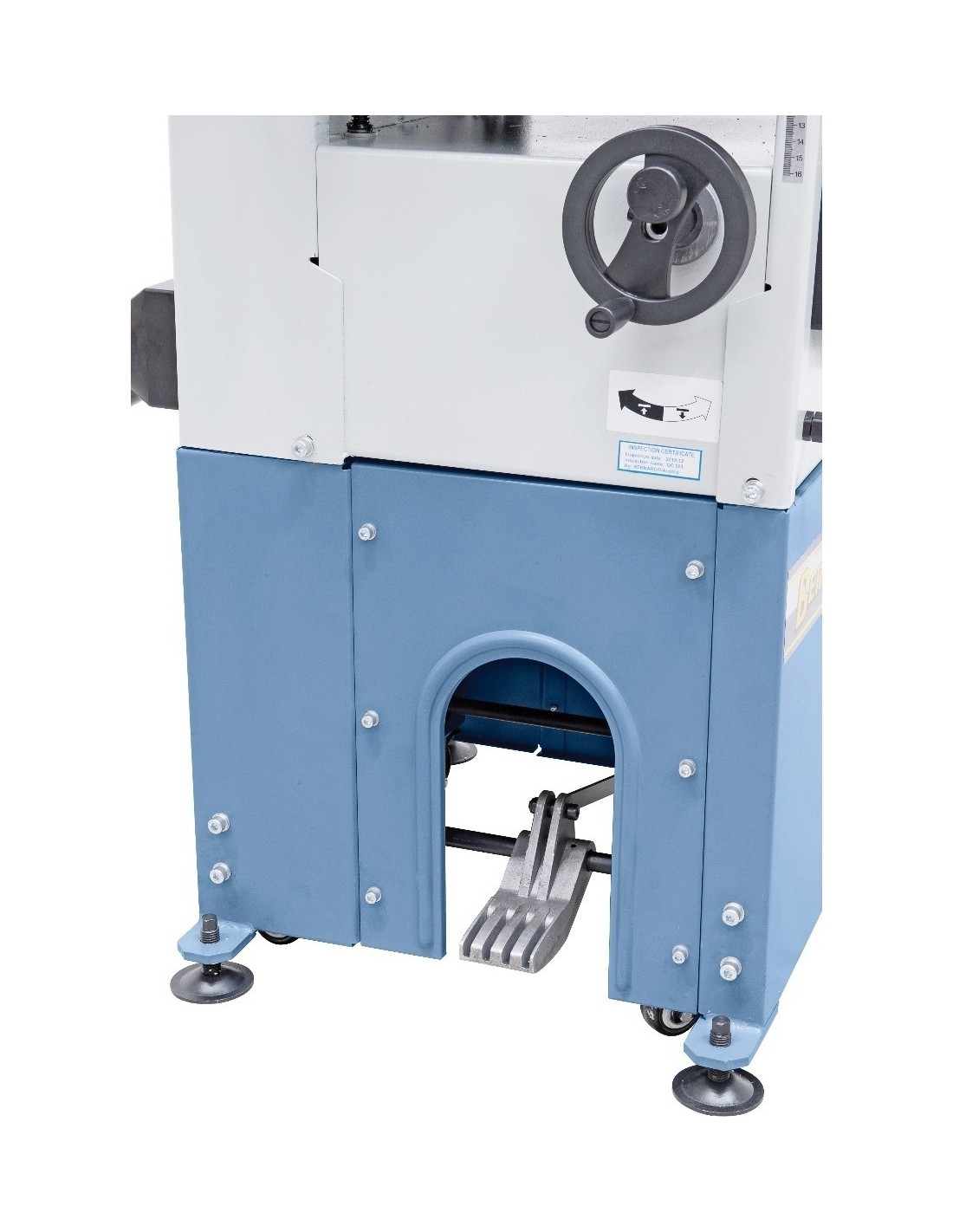

  • Carriage
