- Online only
- Machine dimension (L x W x H)
- 1100 x 750 x 1180 mm
- Weight approx.
- 160 kg
- Motor power output S1 100%
- 2,0 kW (2,7 HP)
- Motor power input S6 40%
- 2,8 kW (3,8 HP)
- Dust extraction outlet
- 100 mm
- Table height
- 990 mm
- Planing width
- 250 mm
- Table length
- 600 mm
1080 mm - Shaft rotation speed
- 3750 rpm
- TCT-blades
- 24 pcs.
- Planer shaft diameter
- 75 mm
- Planer fence
- 700 x 145 mm
- Fence tiltable
- 90° to 45°
- Max. cutting depth
- 1,8 mm
5 mm - Working width
- 250 mm
- Working thickness, min./max.
- 5 - 190 mm
- Feed speed
- 8 m/min
- Phase
- Trifazis (400V)

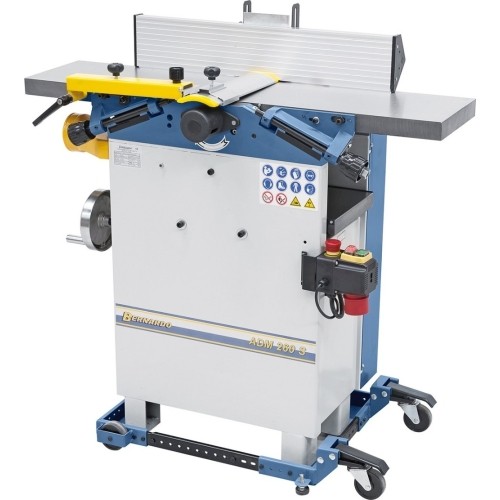

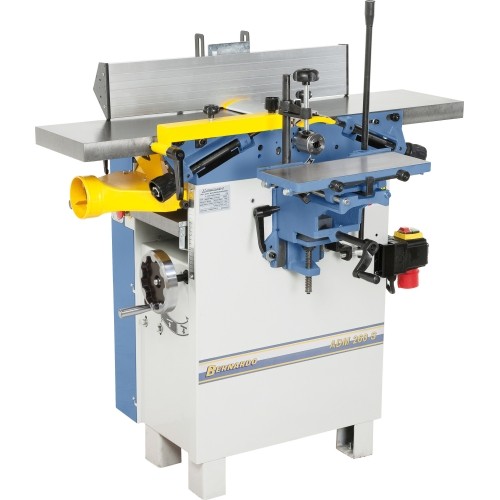

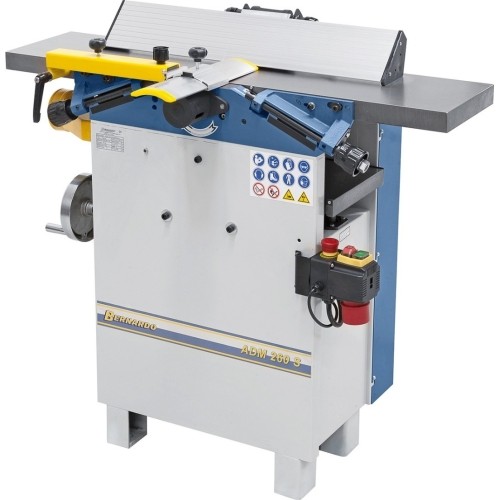

ADM 260 S / 400 V
1091338
Price
€2,485.00
VAT incl.
Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Supplier store
(5+ pcs)
Delivery terms:
FREE pick up thursday, may 14 d., in the store, Raudondvario pl. 141, Kaunas
(€0.00) Weight: 160 kg.
We will deliver the product to you via: 5-11 w.d. Venipak
(€40.99) Weight: 160 kg.
Description
Properties

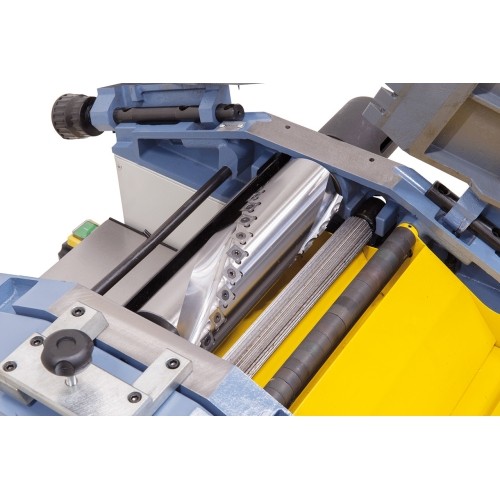

- Reduction of noise level (approx. 50%) due to the standard spiral cutter head and up to 20 times the cutting edge life (results from four-way carbide inserts)
- Advantage of the carbide inserts: If damaged, individual knives can be exchanged or turned
- The carbide blades ensure tear-free planing results and optimal surfaces with any type of wood

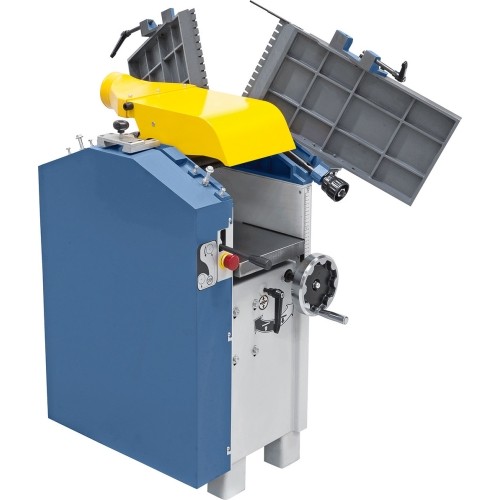

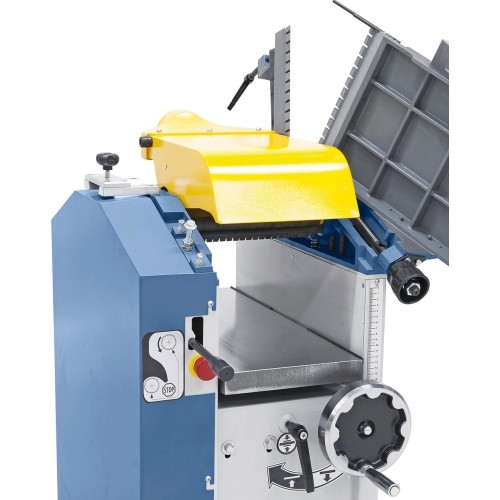

- Folding planer tables allow quick and easy conversion from planing to thicknessing
- Integrated, tiltable dust hood, extraction outlet 100 mm

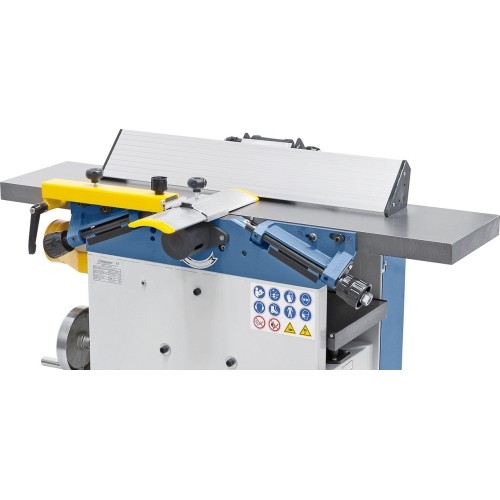

- Both planing tables feature fine adjustment and are designed with table lips to keep noise level down

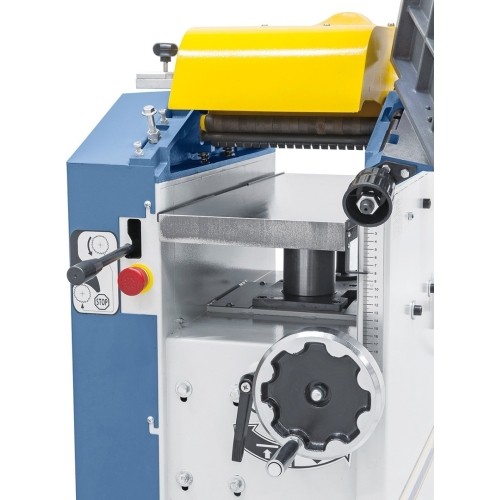

- Thicknessing table with central column and support allow precise planing

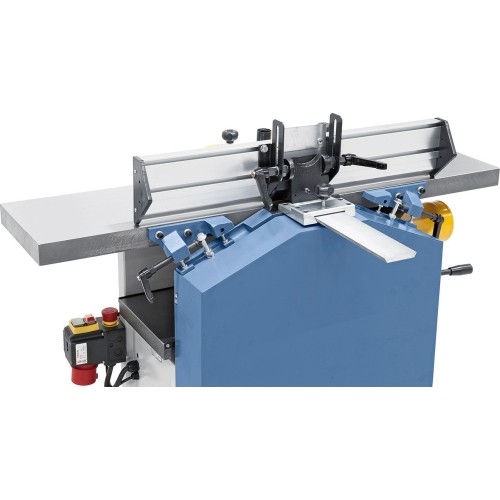

- The solid planer fence with prism guide can be tilted from 90° to 45°
- Torsion-free, cast iron planing tables guarantees best results
Standard accessories
- Spiral cutter head with 24 pcs. TCT-blades
- Replacement TCT-blades (5 pcs.)
- Switch-plug combination
- Push handle
