WARRANTY

  • 30 days return policy
  • 24 month product warranty
  • Free consultation
  • 30 days return policy
  • 24 month product warranty
  • Free consultation

Machine dimension (L x W x H)
1685 x 1045 x 1100 mm
Weight approx.
340 kg
Motor power output S1 100%
3,0 kW (4,0 HP)
Motor power input S6 40%
4,2 kW (5,7 HP)
Voltage
400 V
Dust extraction outlet
100 mm
Table height
920 mm
Planing width
410 mm
Table length
750 mm
Shaft rotation speed
4300 rpm
TCT-blades
72 pcs.
Planer shaft diameter
95 mm
Planer fence
1110 x 150 mm
Fence tiltable
90° to 45°
Max. cutting depth
5 mm
Working width
410 mm
Working thickness, min./max.
4 - 220 mm
Feed speed
6 m/min

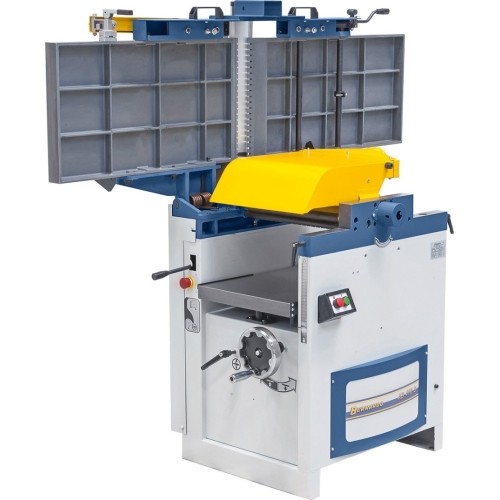

AD 410 S - 400 V

1334304
€5,293.00
Tax included
Monthly payment from 130.13€

Stock Quantity:
In S01 store
not available
In S02 store
not available
In Supplier store
(5+ pcs)
Delivery terms:
NEMOKAMAI atsiimkite thursday, december 5 d., parduotuvėje, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 340 kg.
Prekę pristatysime Jums per: 5-10 d.d. Venipak (€40.99)
Weight: 340 kg.

Description

Properties

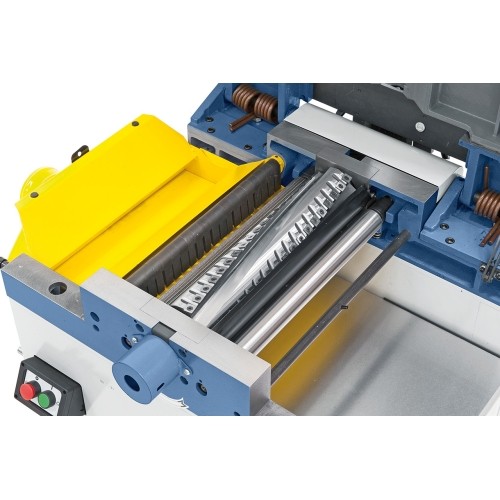

  • Reduction of noise level (approx. 50%) due to the standard spiral cutter head and up to 20 times the cutting edge life (results from four-way carbide inserts)
  • Advantage of the carbide inserts: If damaged, individual knives can be exchanged or turned

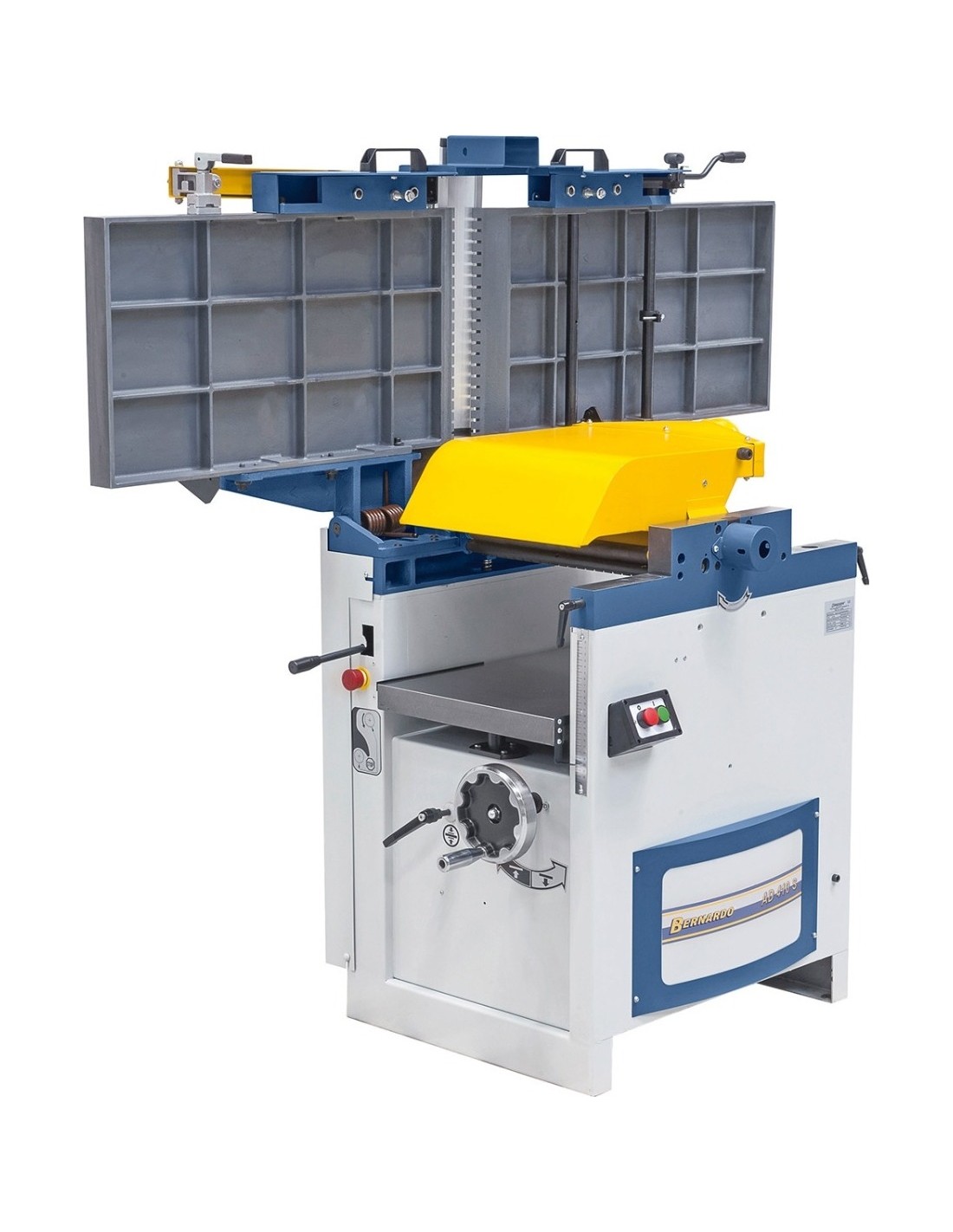

  • Planing tables tilt to the back of the machine to keep space requirements to a minimum
  • The carbide blades ensure tear-free planing results and optimal surfaces with any type of wood
  • Simultaneous tilting of planing tables to achieve maximum comfort
  • Thicknessing table feed can be switched off when planing

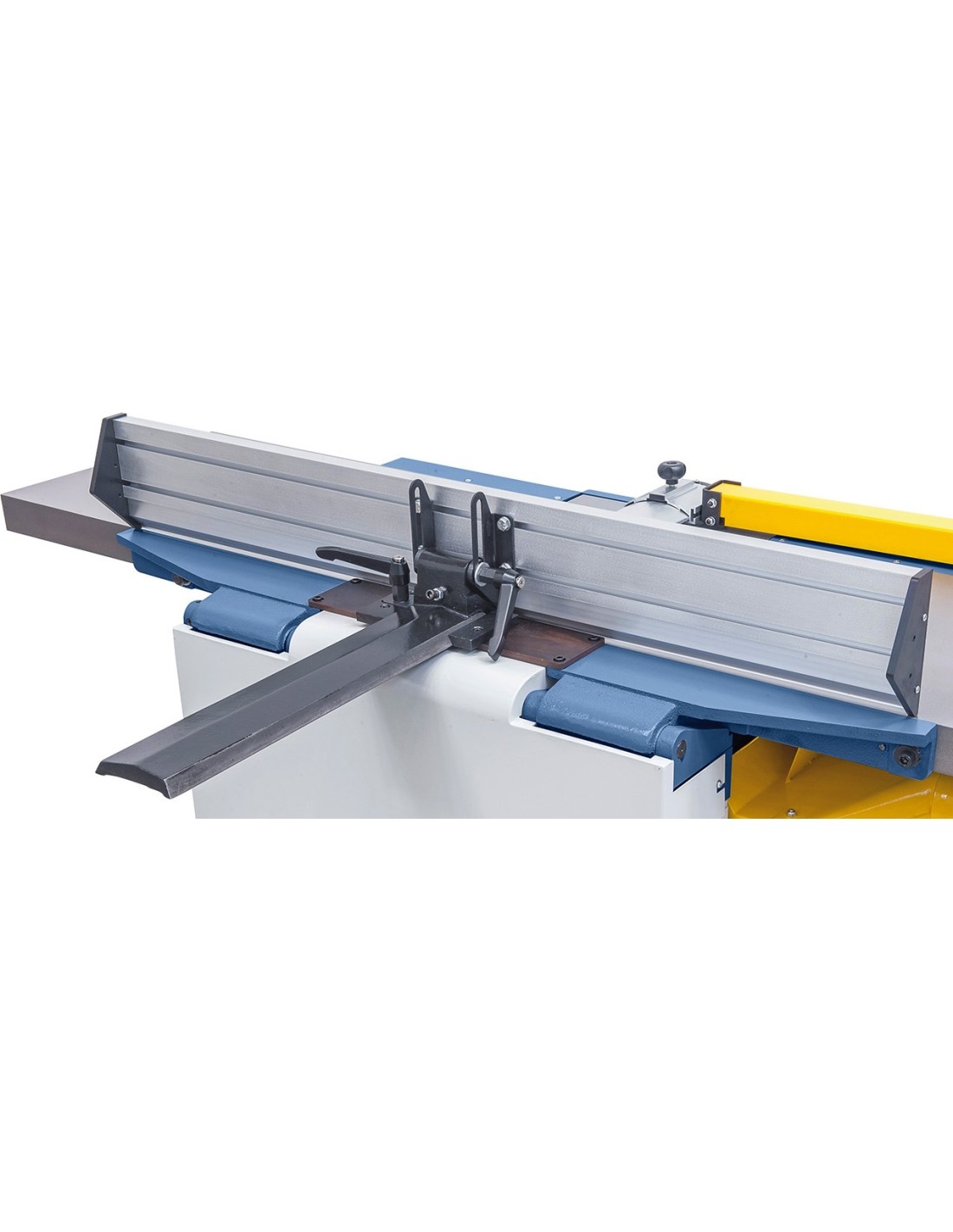

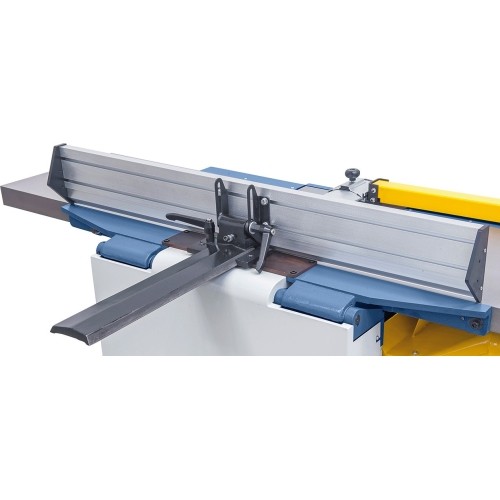

  • Hard-anodized aluminium planing fence, tiltable from 90° to 45°

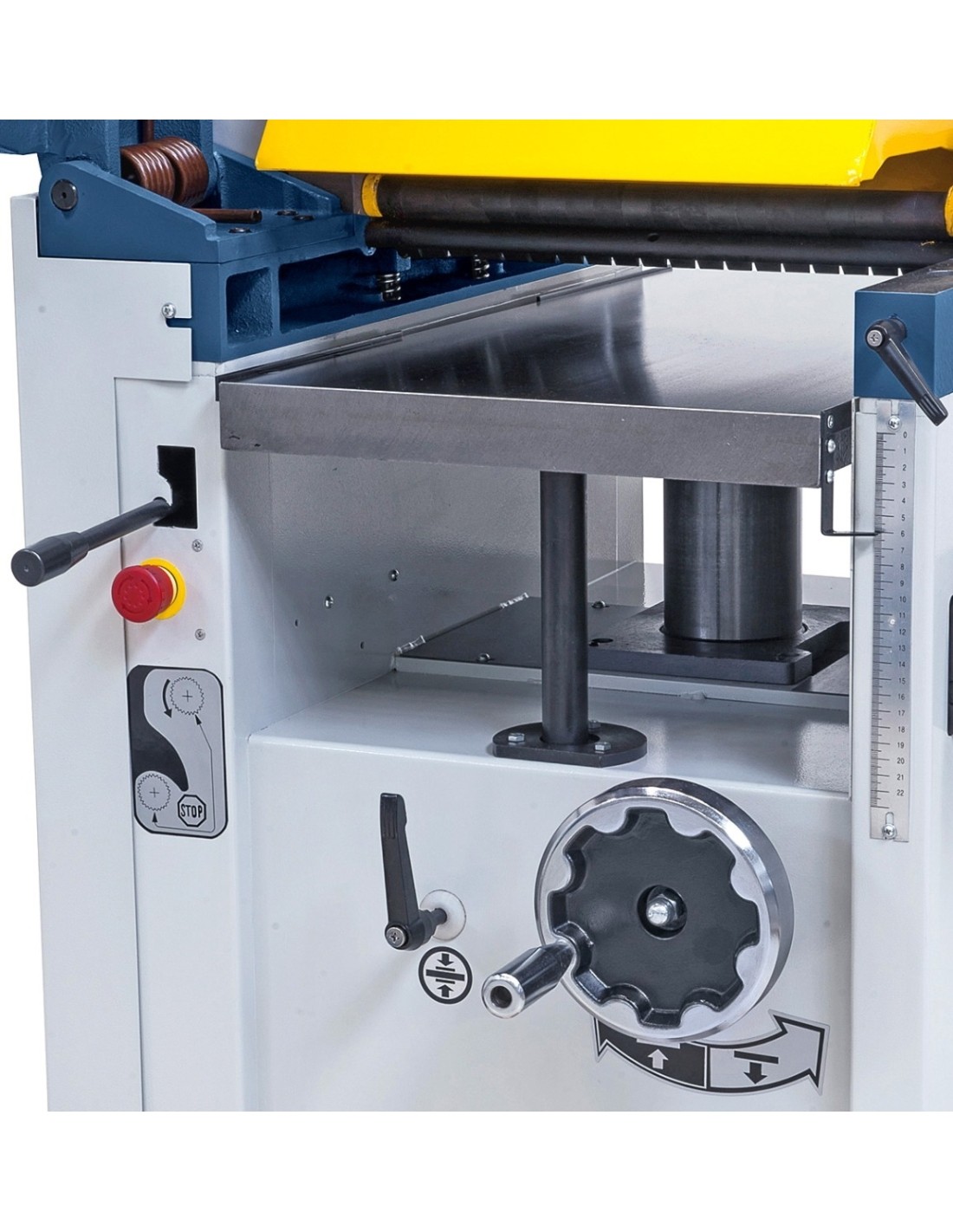

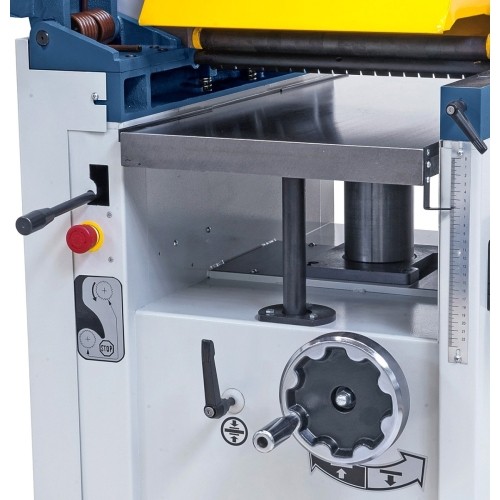

  • Thicknessing table with central column and support allow precise planing

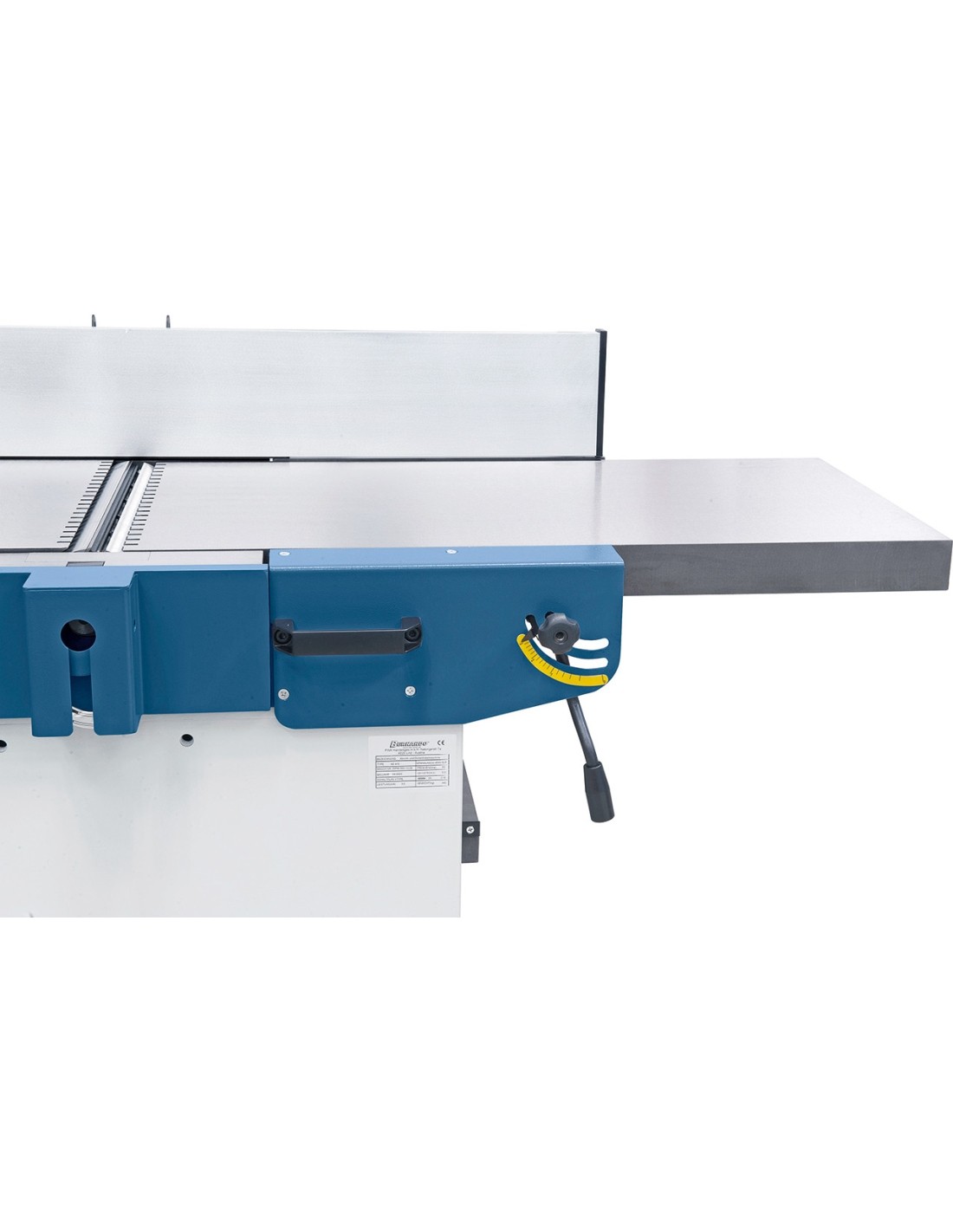

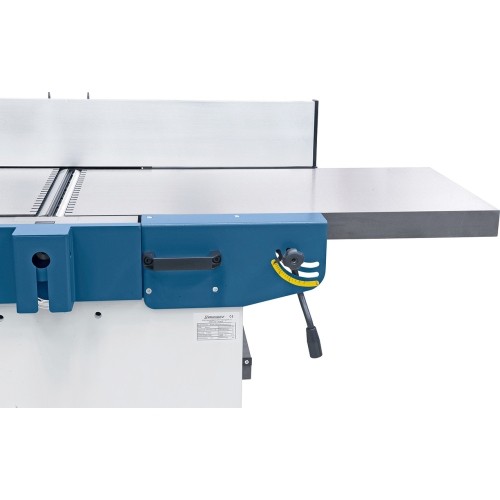

  • Torsion-free, cast iron planing tables guarantees best results

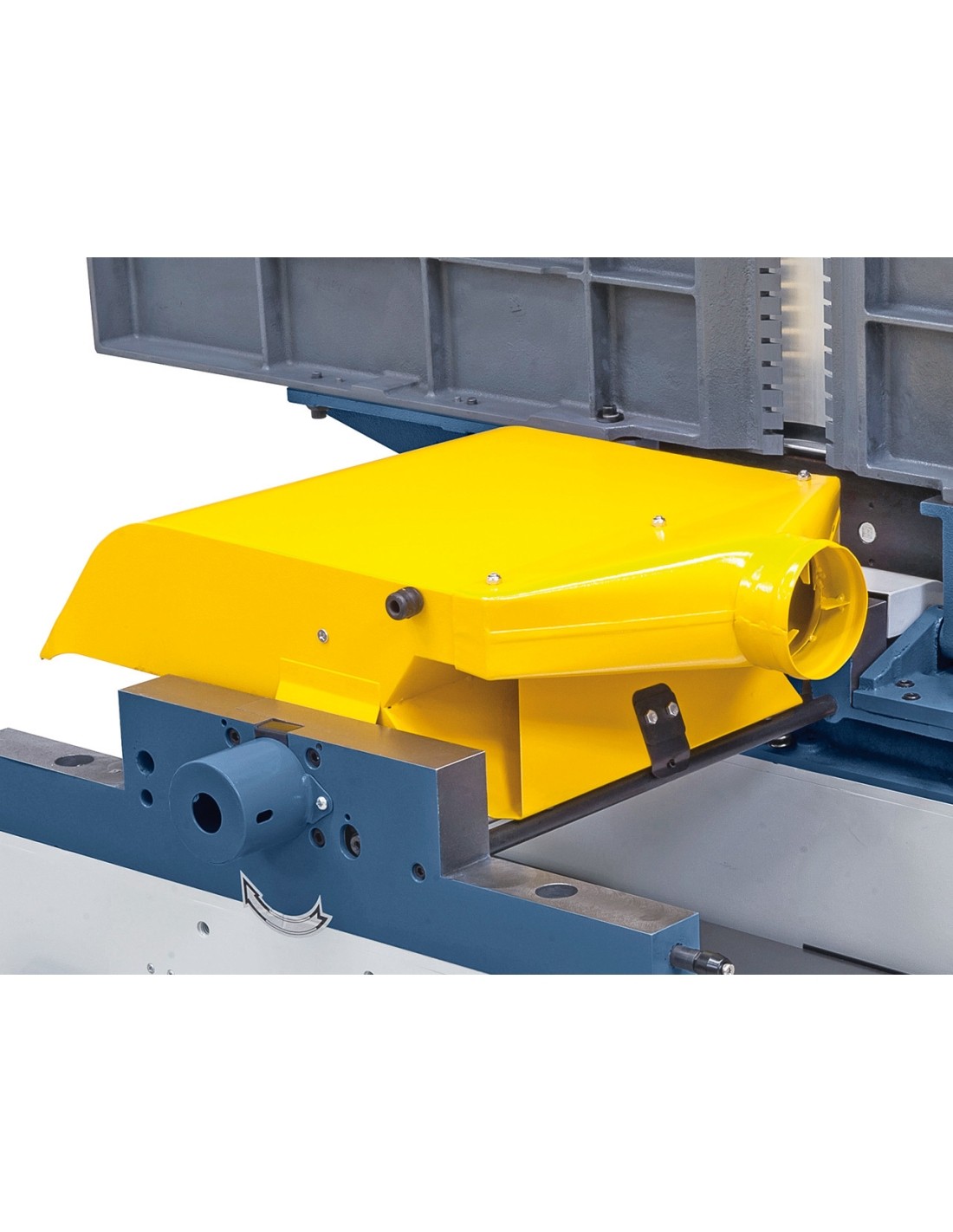

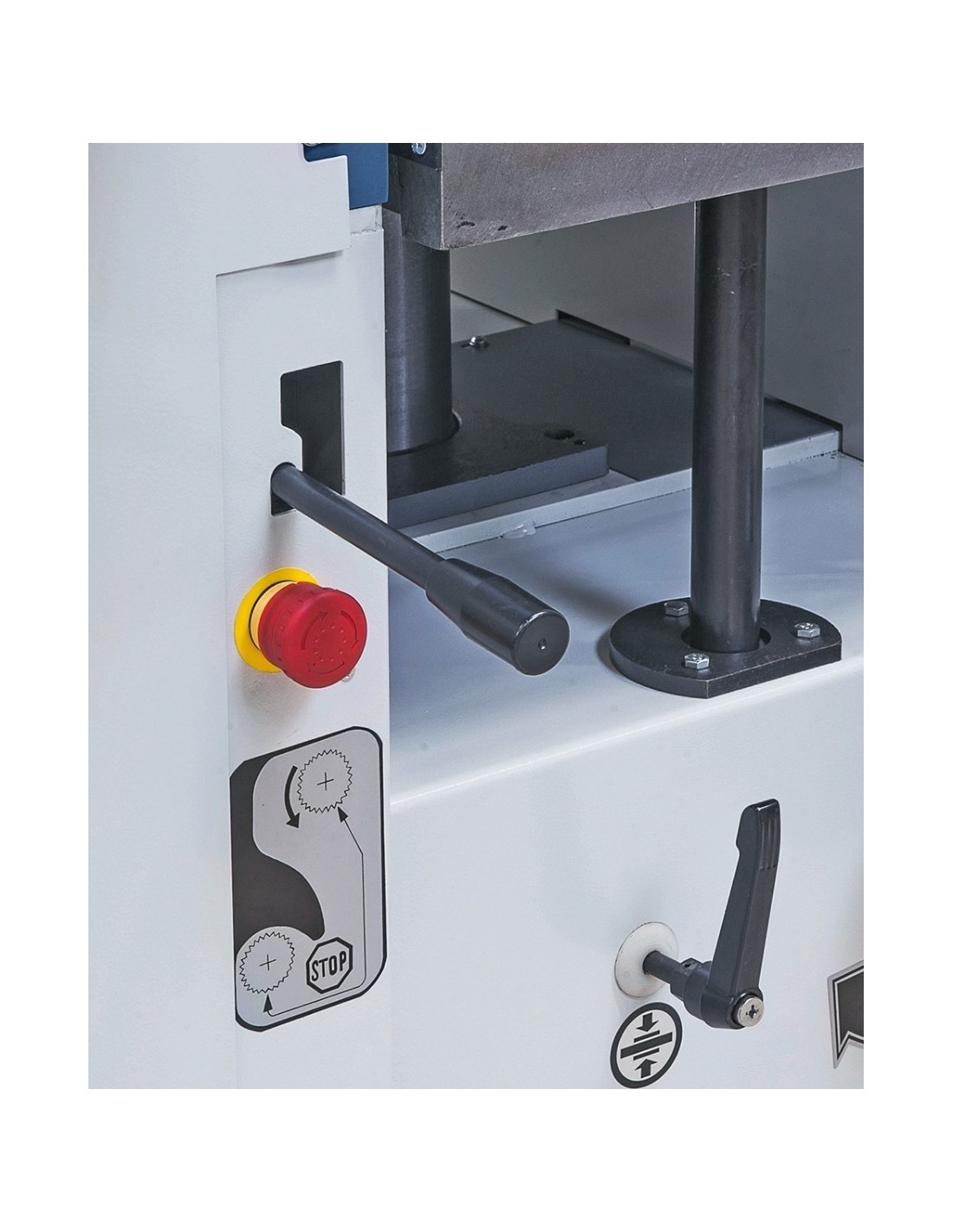

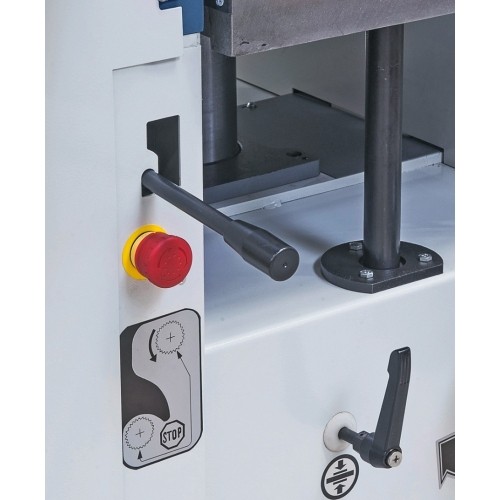

  • Numerous safety devices: On/Off switch with undervoltage release, cutterblock cover in accordance with CE, limit switch to avoid accidental machine start,...

Standard accessories

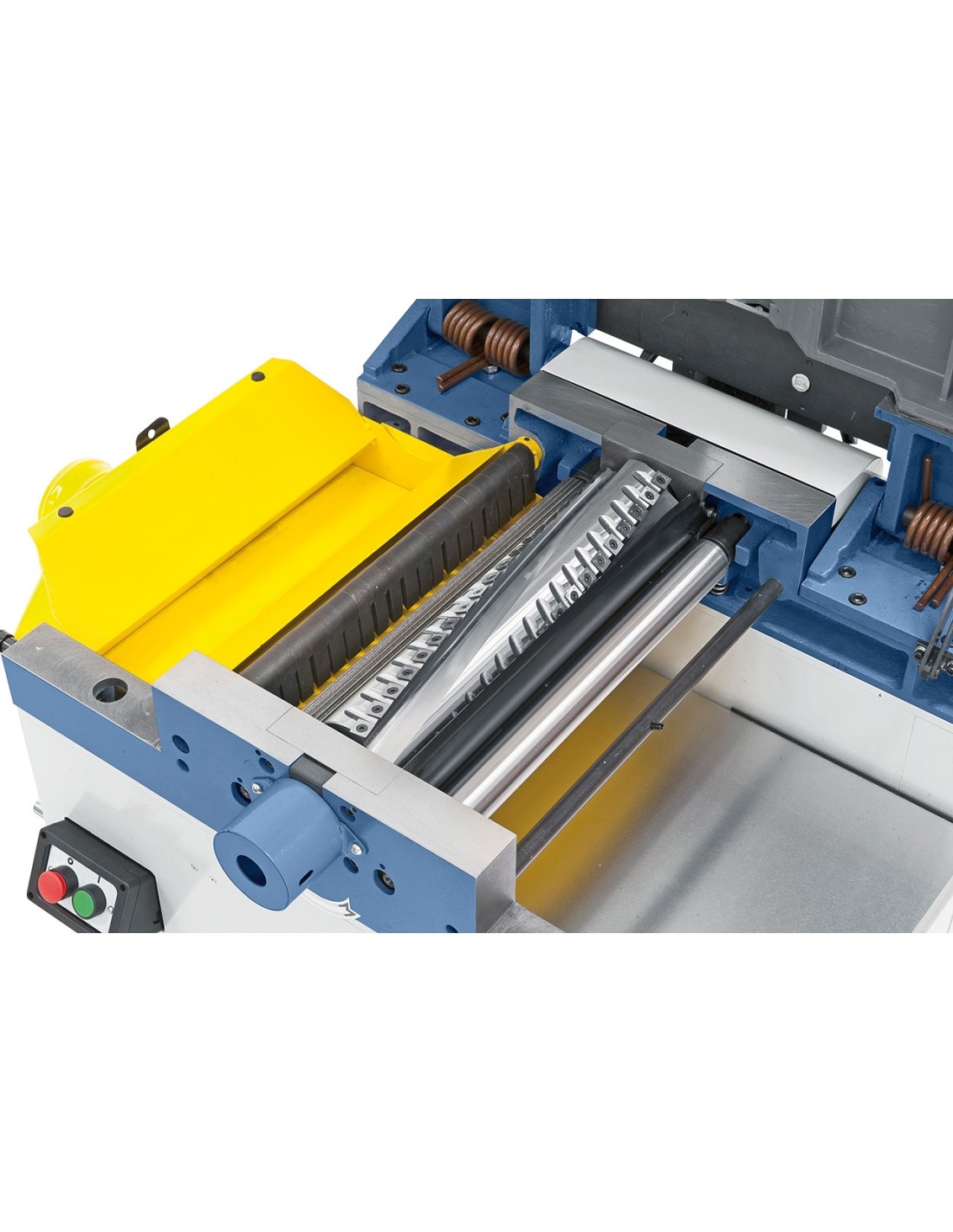

  • Spiral cutter head with 72 pcs. TCT-blades
  • Replacement TCT-blades (5 pcs.)
  • Push handle
