WARRANTY

  • 30 days return policy
  • 24 month product warranty
  • Free consultation
  • 30 days return policy
  • 24 month product warranty
  • Free consultation

Machine dimension (L x W x H)
1610 x 1050 1100 mm
Weight approx.
340 kg
Motor power output S1 100%
3,0 kW (4,0 HP)
Motor power input S6 40%
4,2 kW (5,7 HP)
Voltage
400 V
Dust extraction outlet
100 mm
Table height
920 mm
Planing width
410 mm
Table length
750 mm
Shaft rotation speed
4000 rpm
TCT-blades
72 pcs.
Planer shaft diameter
95 mm
Planer fence
1120 x 130 mm
Fence tiltable
90° to 45°
Max. cutting depth
2,5 mm
Working width
410 mm
Working thickness, min./max.
4 - 220 mm
Feed speed
8 m/min

PT 410 S / 400 V

1091256
Price €6,496.00 Tax included

Stock Quantity:
In S01 store
not available
In S02 store
not available
In Supplier store
(5+ pcs)
Delivery terms:
NEMOKAMAI atsiimkite monday, march 10 d., parduotuvėje, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 340 kg.
Prekę pristatysime Jums per: 6-12 d.d. Venipak (€40.99)
Weight: 340 kg.

Description

Properties

  • Reduction of noise level (approx. 50%) due to the standard spiral cutter head and up to 20 times the cutting edge life (results from four-way carbide inserts)
  • Advantage of the carbide inserts: If damaged, individual knives can be exchanged or turned

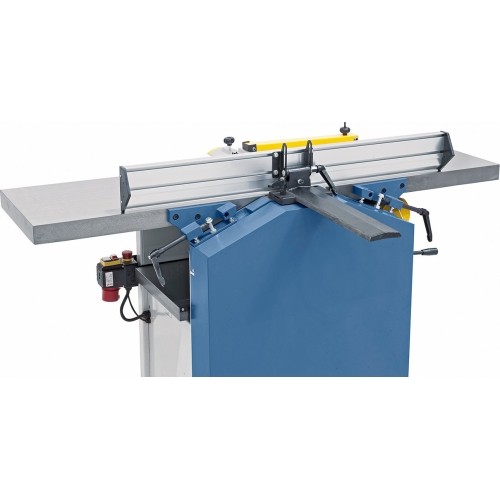

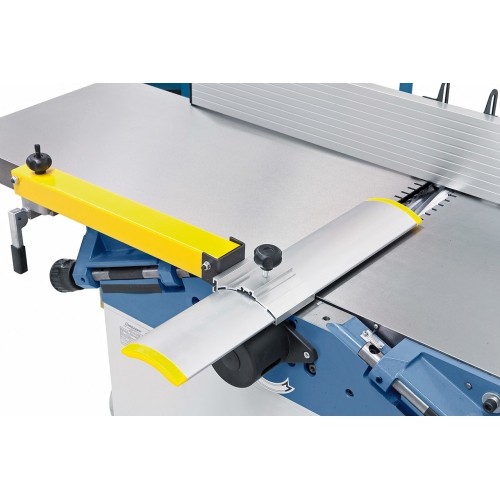

  • Solid planer fence with prism guide, tiltable from 90º to 45º
  • The carbide blades ensure tear-free planing results and optimal surfaces with any type of wood

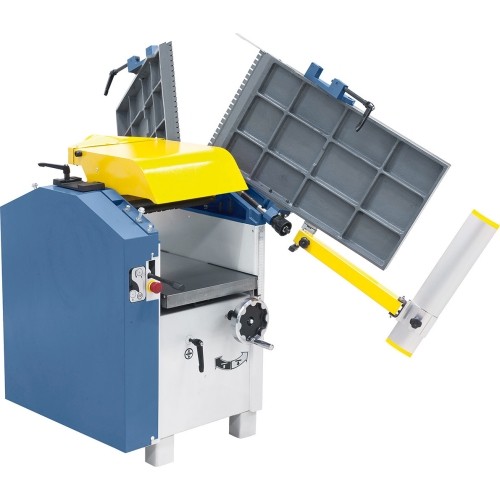

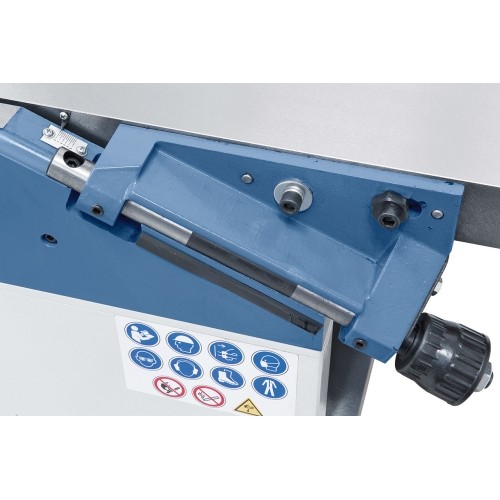

  • Tiltable planer tables for quick conversion to thicknessing
  • Both planer tables feature fine adjustment and table slots to reduce noise levels
  • Integrated tiltable dust hood – extraction outlet 100 mm
  • Torsion-free, grey cast-iron planer tables ensure best results

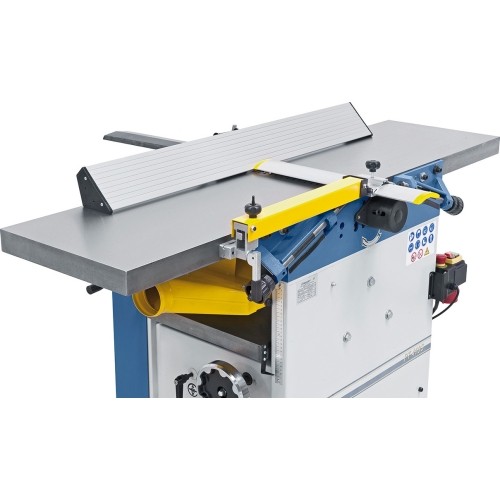

  • Cutterblock guard in accordance with CE-standards guarantees high level of safety

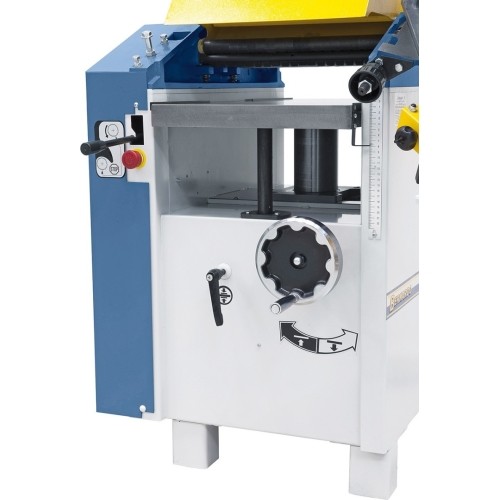

  • Thicknessing table runs on central column and is well supported for high accuracy

Standard accessories

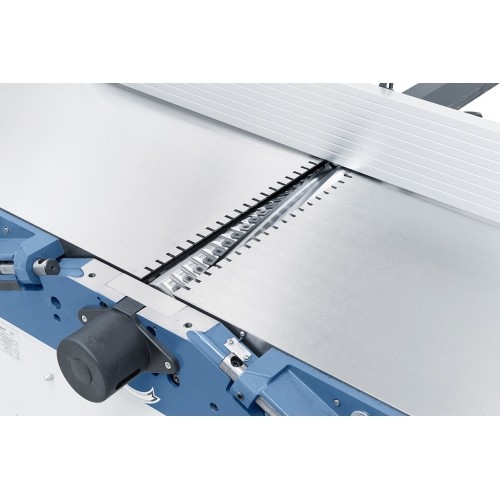

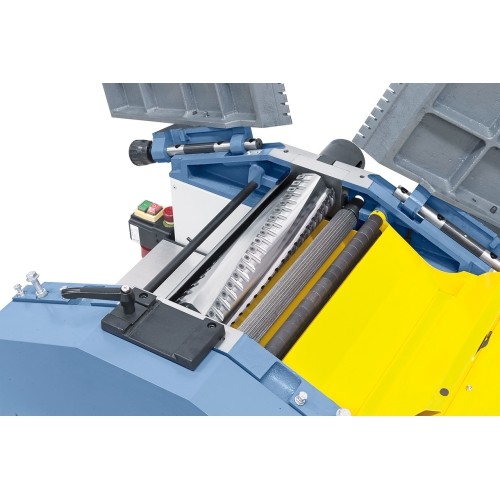

  • Spiral cutter head with 72 pcs. TCT-blades
  • Replacement TCT-blades (5 pcs.)

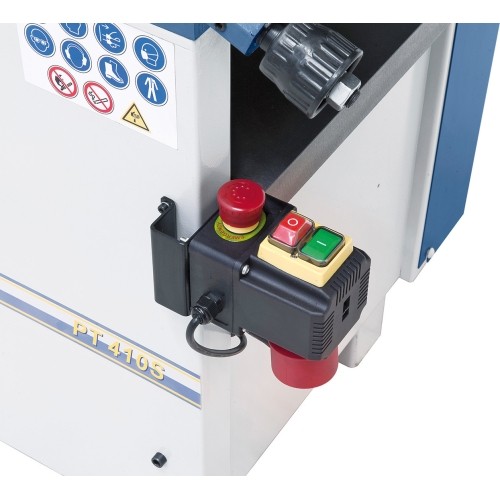

  • Switch-plug-combination
  • Push handle
