Machine dimension (L x W x H)
1100 x 750 x 1180 mm
Weight approx.
160 kg
Motor power output S1 100%
2,0 kW (2,7 HP)
Motor power input S6 40%
2,8 kW (3,8 HP)
Voltage
230 V
Dust extraction outlet
100 mm
Table height
990 mm
Planing width
250 mm
Table length
600 mm
Shaft rotation speed
3750 rpm
TCT-blades
24 pcs.
Planer shaft diameter
75 mm
Planer fence
700 x 145 mm
Fence tiltable
90° to 45°
Max. cutting depth
1,8 mm
Working width
250 mm
Working thickness, min./max.
5 - 190 mm
Feed speed
8 m/min

ADM 260 S / 230 V

1091321
€2,016.00
Tax included
Monthly payment from 55.14€

Stock Quantity:
In S01 store
not available
In S02 store
not available
In Supplier store
(5+ pcs)
Delivery terms:
NEMOKAMAI atsiimkite monday, january 6 d., parduotuvėje, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 160 kg.
Prekę pristatysime Jums per: 5-11 d.d. Venipak (€40.99)
Weight: 160 kg.

Description

Properties

  • Reduction of noise level (approx. 50%) due to the standard spiral cutter head and up to 20 times the cutting edge life (results from four-way carbide inserts)
  • Advantage of the carbide inserts: If damaged, individual knives can be exchanged or turned
  • The carbide blades ensure tear-free planing results and optimal surfaces with any type of wood

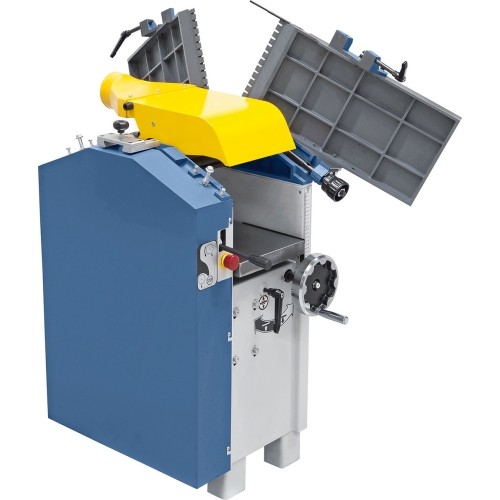

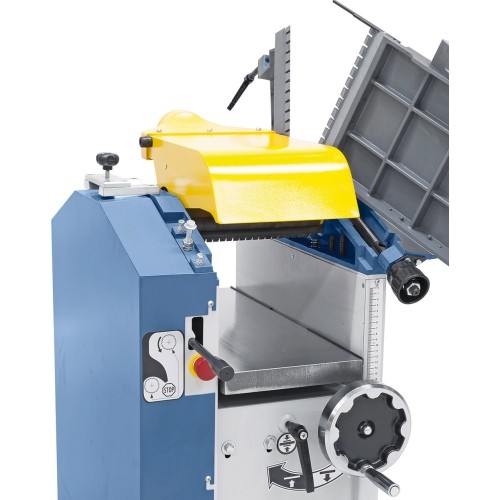

  • Folding planer tables allow quick and easy conversion from planing to thicknessing
  • Integrated, tiltable dust hood, extraction outlet 100 mm
  • Both planing tables feature fine adjustment and are designed with table lips to keep noise level down

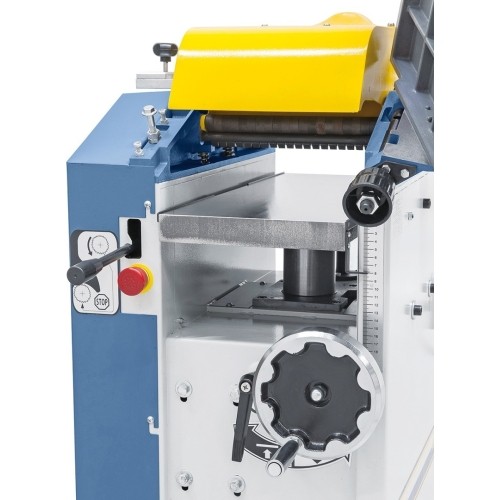

  • Thicknessing table with central column and support allow precise planing

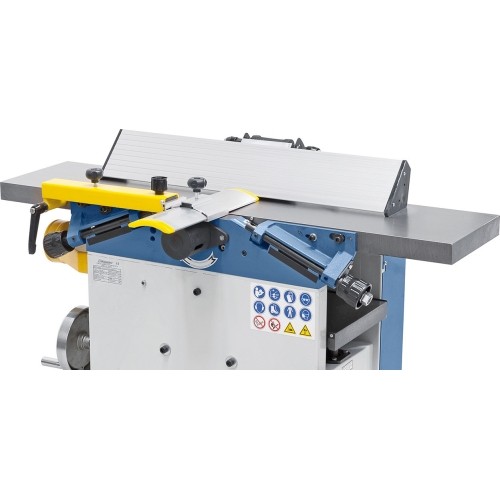

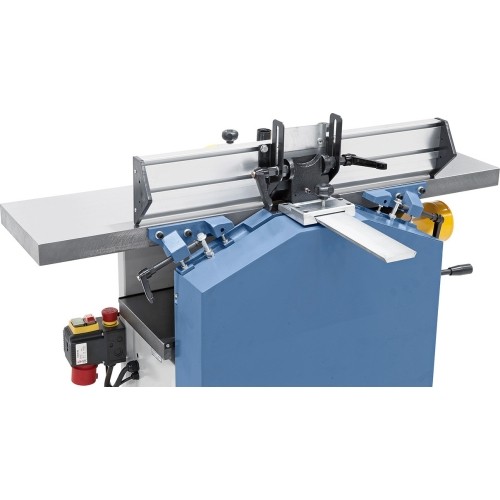

  • The solid planer fence with prism guide can be tilted from 90° to 45°
  • Torsion-free, cast iron planing tables guarantees best results

Standard accessories

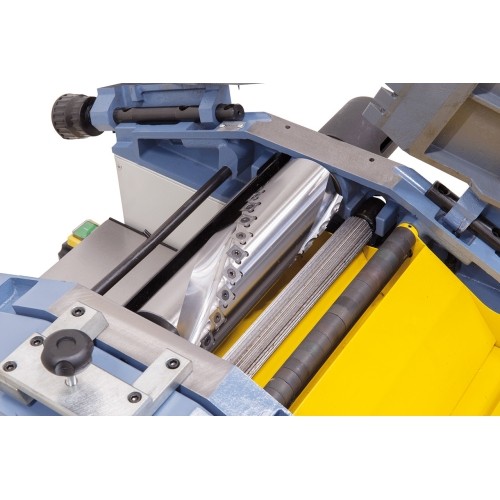

  • Spiral cutter head with 24 pcs. TCT-blades
  • Replacement TCT-blades (5 pcs.)
  • Switch-plug combination
  • Push handle
