- Machine dimension (L x W x H)
- 1050 x 650 x 1050 mm
- Weight approx.
- 75 kg
- Motor power output S1 100%
- 1,6 kW (2,1 HP)
- Motor power input S6 40%
- 2,2 kW (3,0 HP)
- Voltage
- 400 V
- Dust extraction outlet
- 80 mm
- Table height
- 885 mm
- Planing width
- 260 mm
- Table length
- 480 mm
- Shaft rotation speed
- 6700 rpm
- Planer shaft diameter
- 55 mm
- Planer fence
- 610 x 110 mm
- Fence tiltable
- 90° to 45°
- Max. cutting depth
- 2 mm
- Working width
- 250 mm
- Working thickness, min./max.
- 5 - 150 mm
- Feed speed
- 8 m/min
- Cutter knives
- 2 pcs.

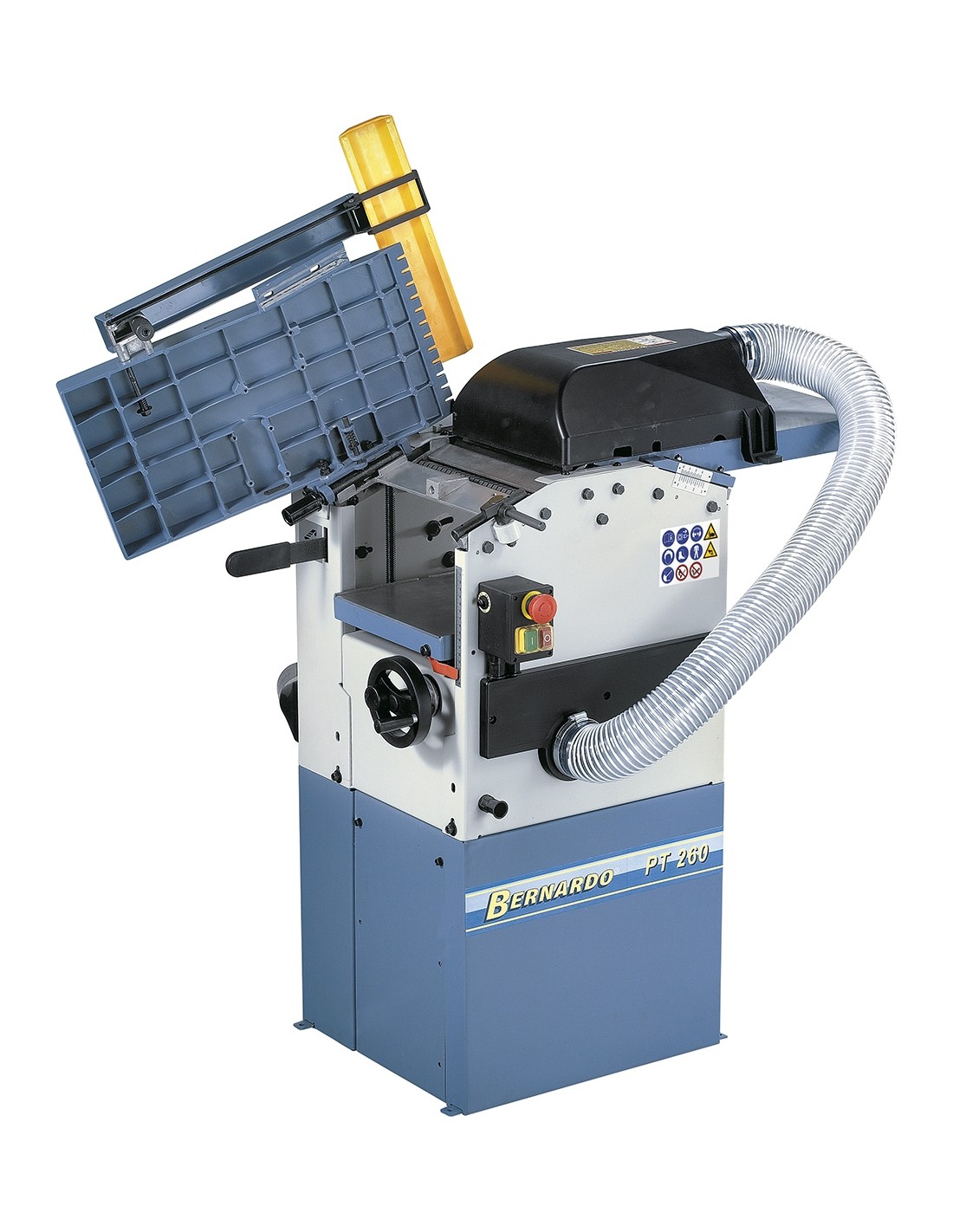

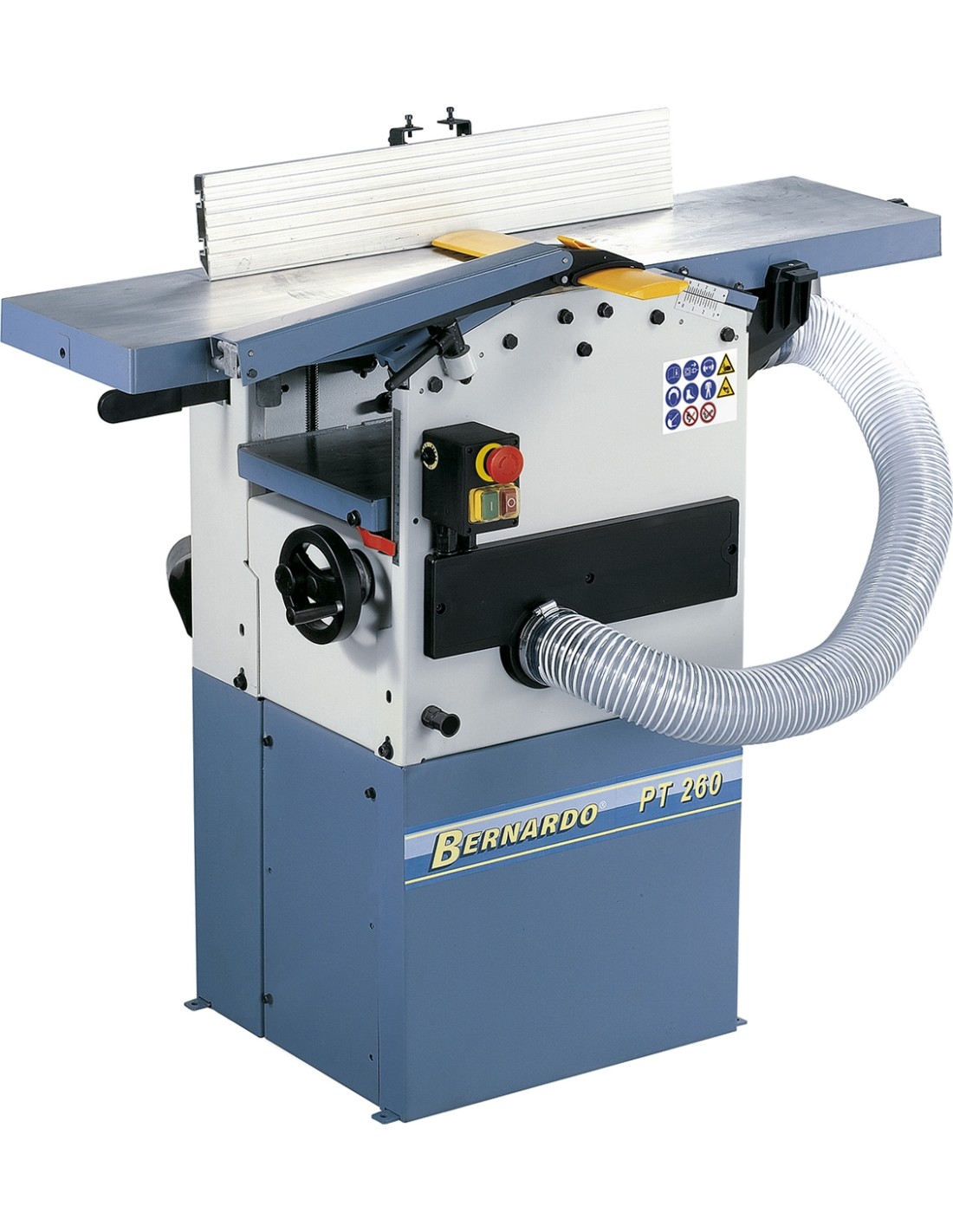

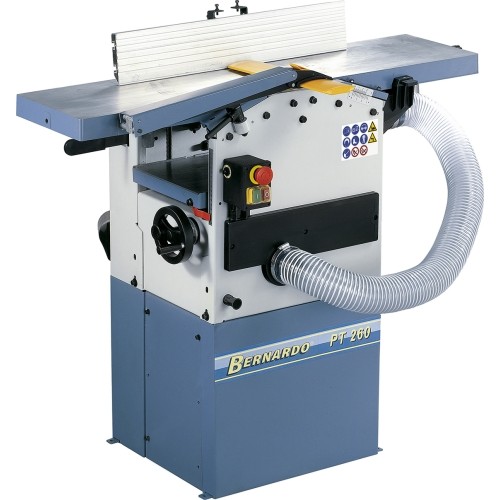

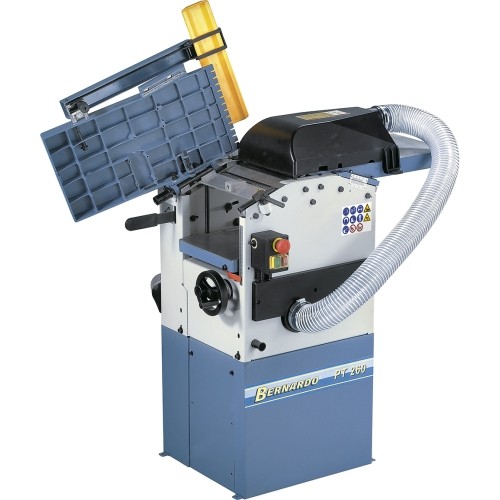

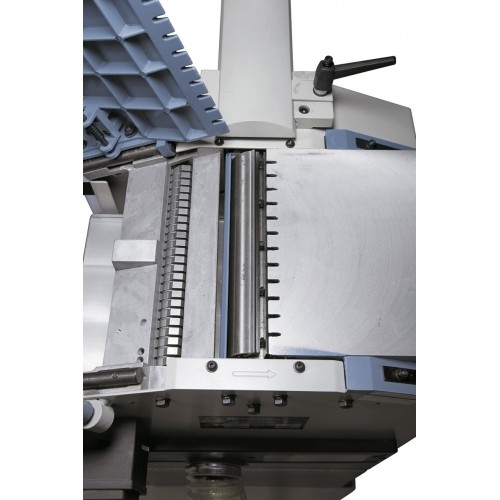

PT 260 - 400 V
Weight: 75 kg.
Weight: 75 kg.
Description
Properties

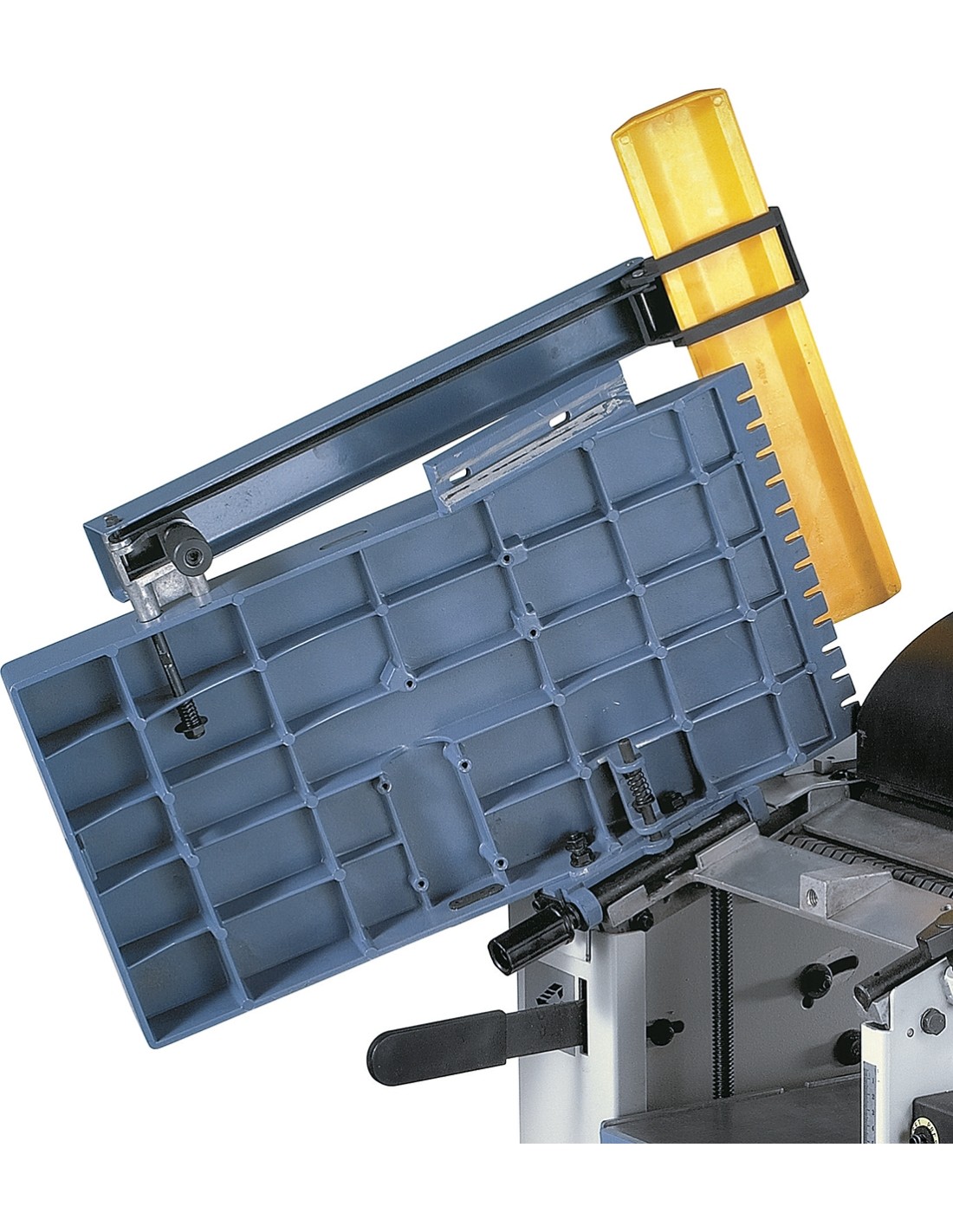

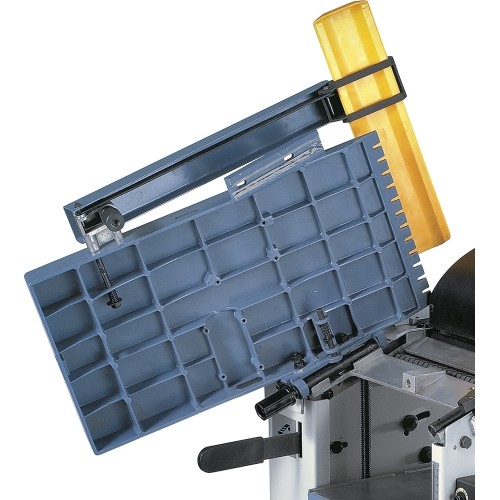

- Both planing tables feature fine adjustment and are designed with slots to keep noise levels down

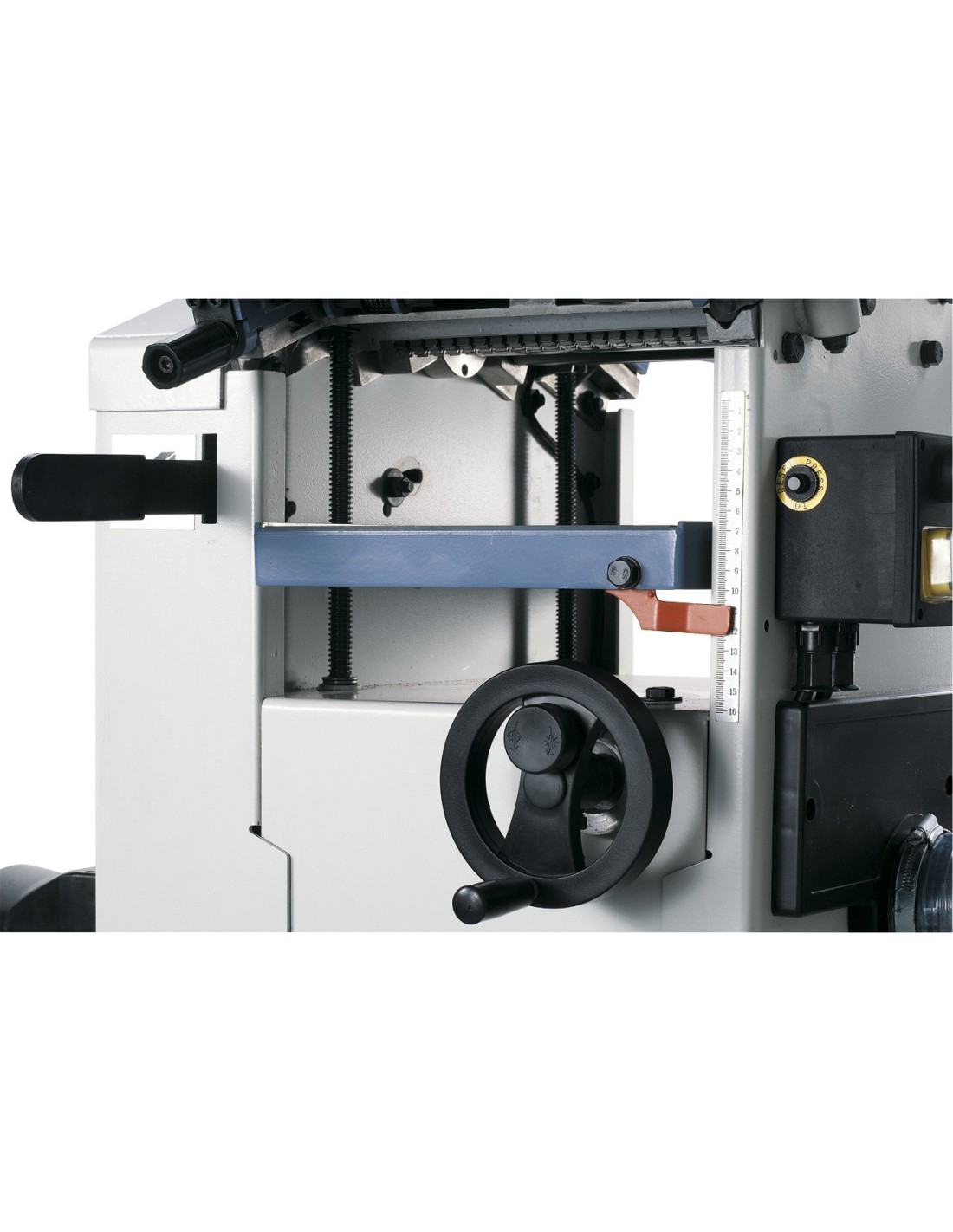

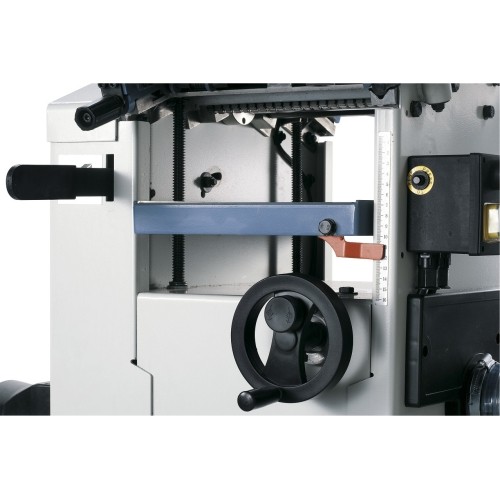

- Thicknessing table is guided on four threads to ensure accurate planing of boards, planks, etc.
- Integrated dust extractor guarantees optimal price-performance ratio
- Quick and easy adjustment of chip removal

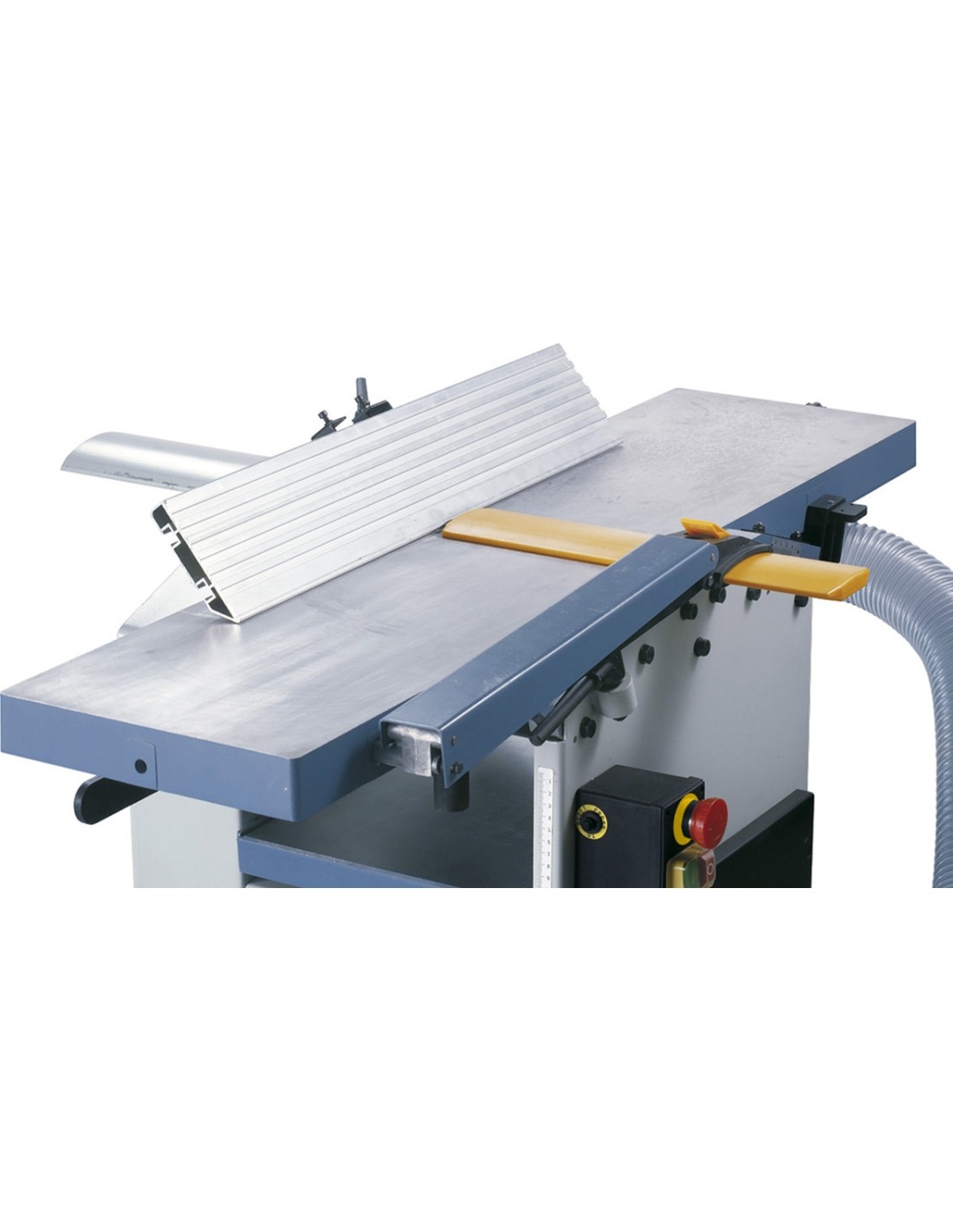

- Precise planing tables made of aluminium for best results

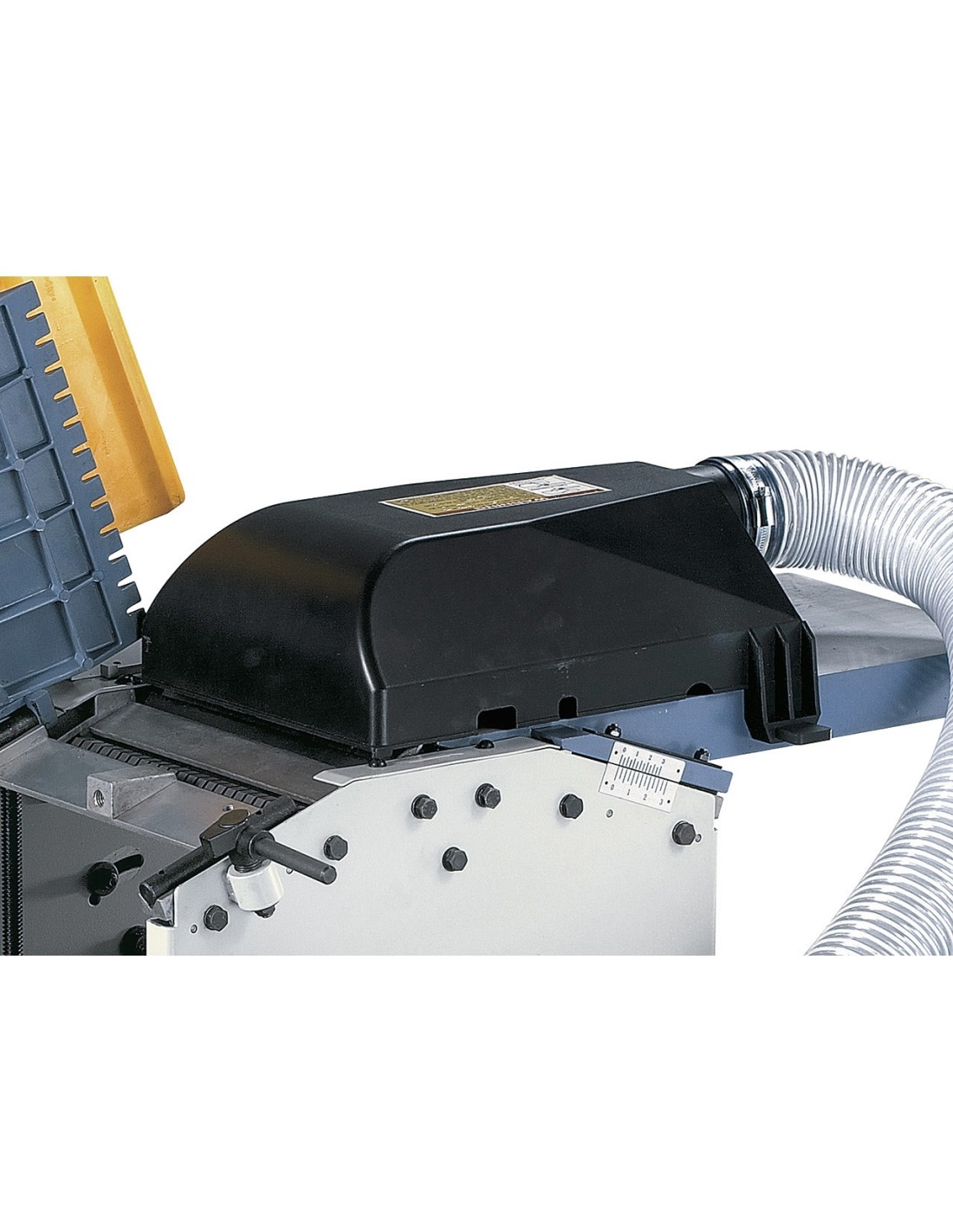

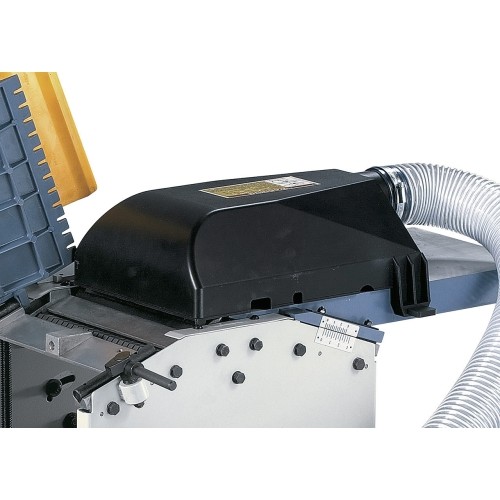

- Dust hood (Ø 80 mm) can be used for both planing and thicknessing

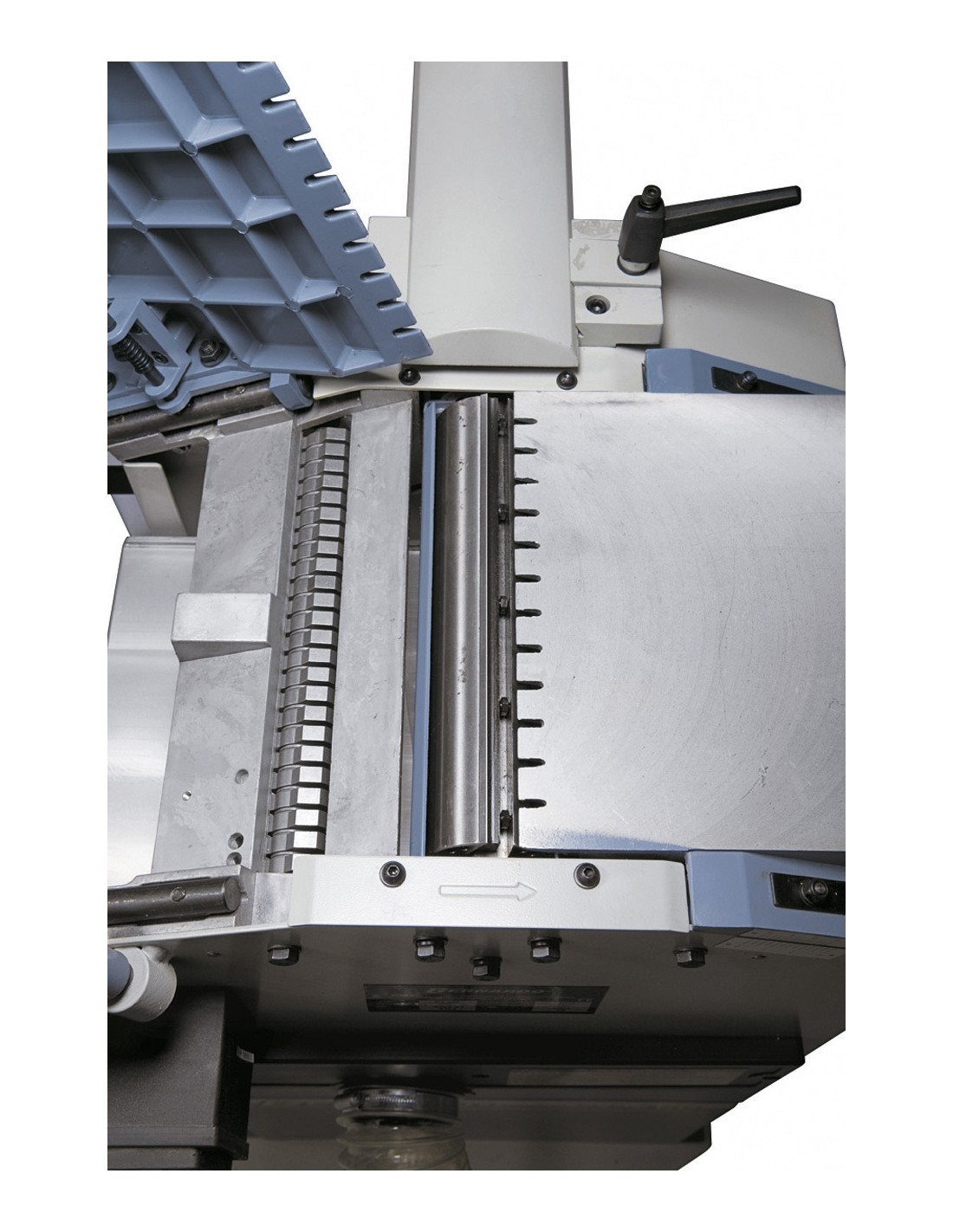

- Cutterblock comes with HSS-knives
- Corrugated infeed roller ensures safe and consistent workpiece infeed

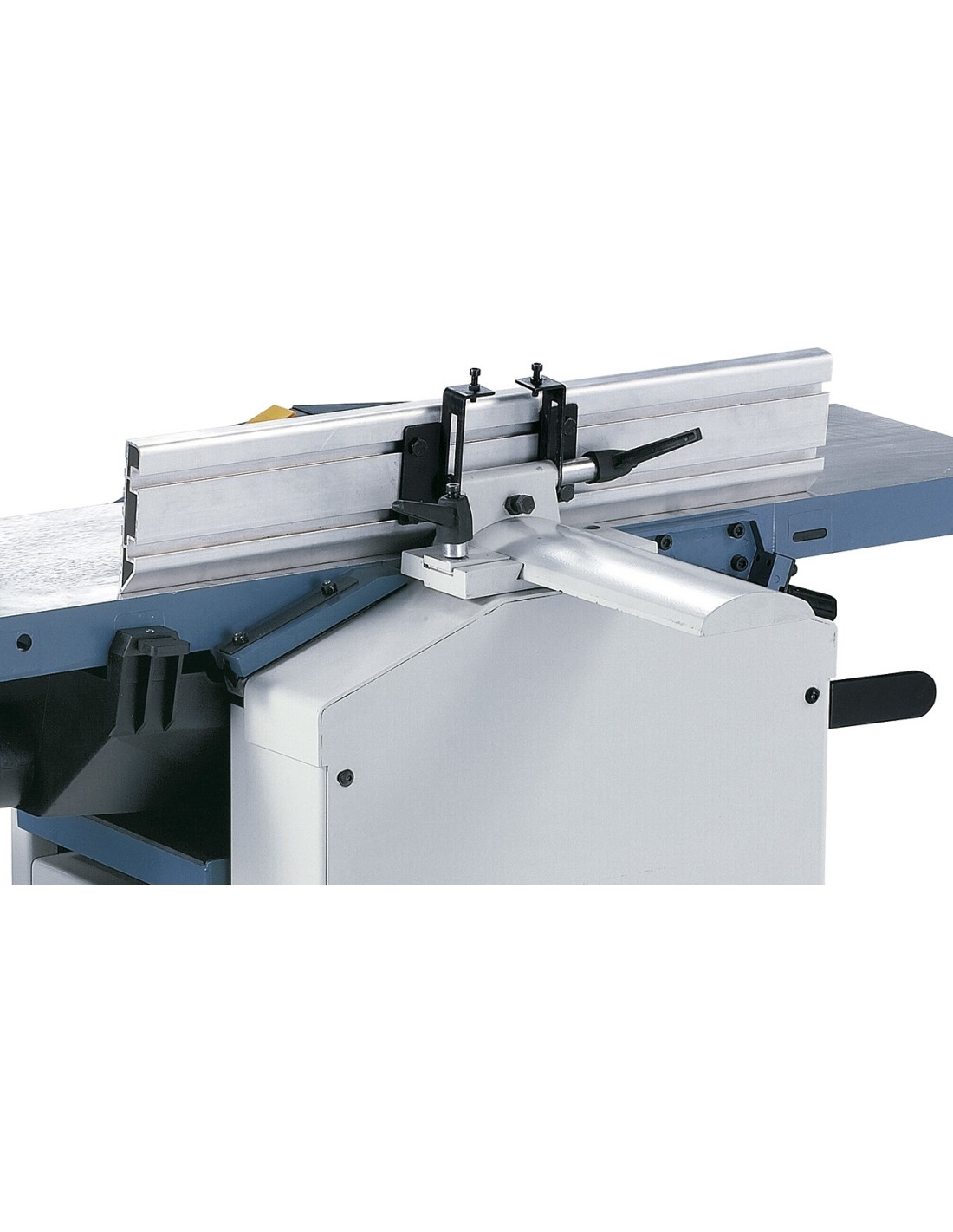

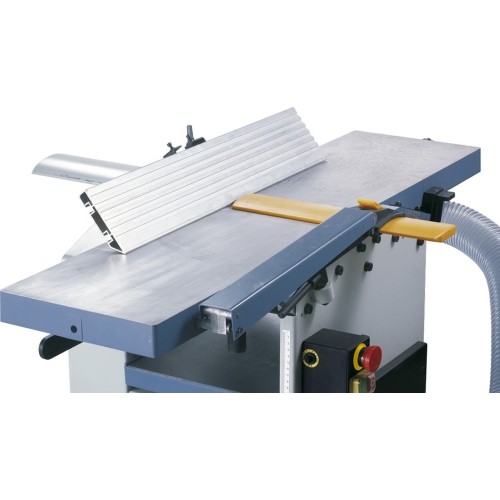

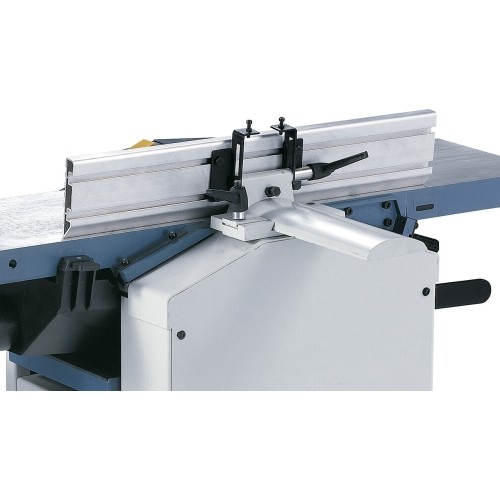

- Solid planer fence with prism guide can be tilted from 90° to 45°
- Serially equipped with knife gauge to allow accurate adjustment of knives
- Infeed can be switched off when planning
Standard accessories
- Cutter knives in HSS-quality
- Knife gauge
- Integrated dust extractor

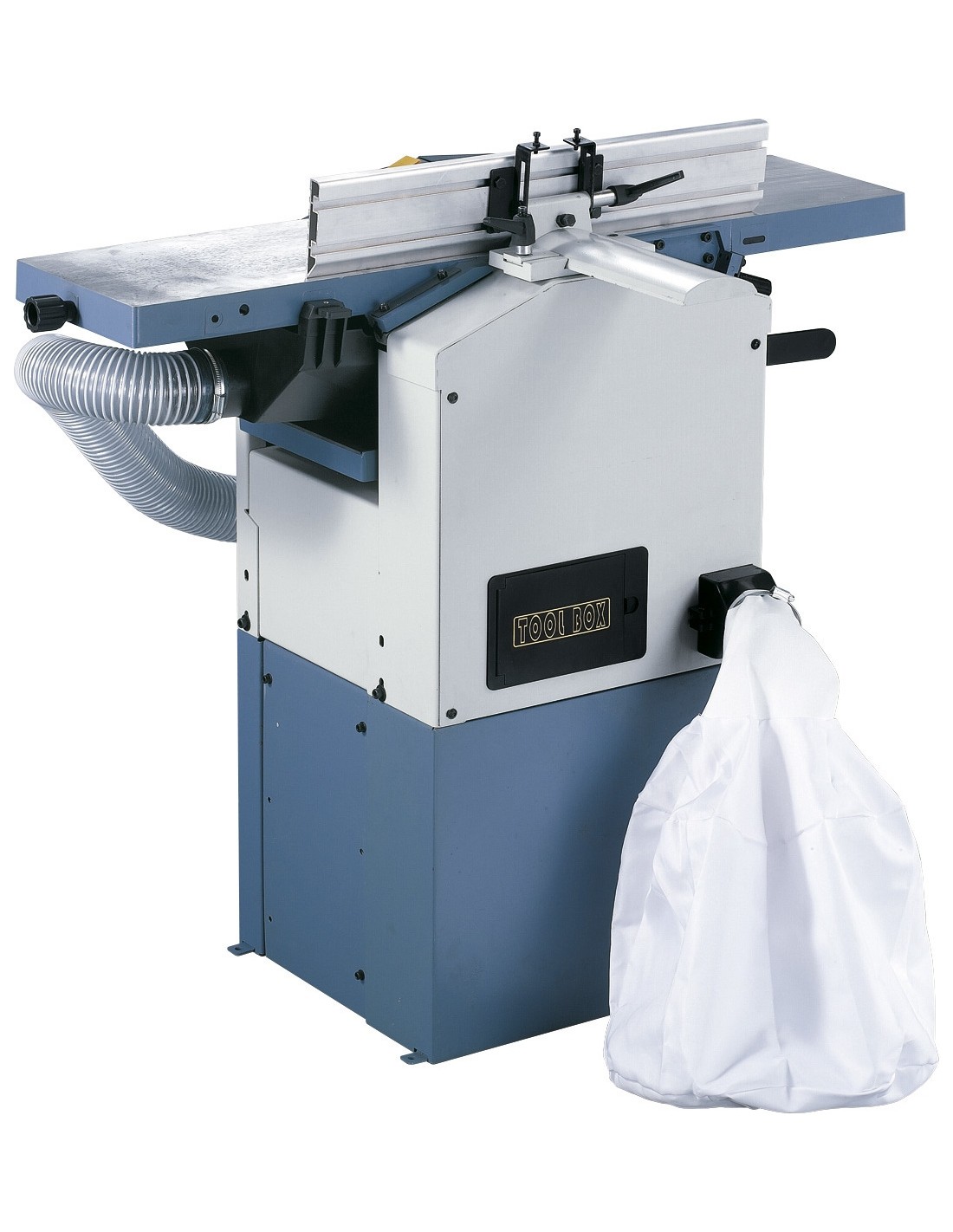

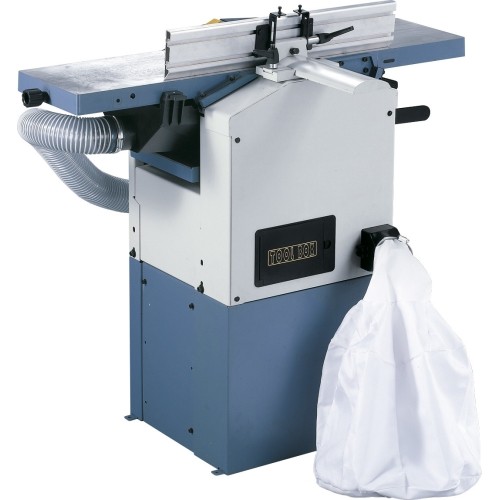

- Waste bag
- Push handle
