Machine dimension (L x W x H)
1685x 990 x 1010 mm
Weight approx.
261 kg
Motor power output S1 100%
3,0 kW (4,0 HP)
Motor power input S6 40%
4,2 kW (5,7 HP)
Voltage
400 V
Dust extraction outlet
100 mm
Table height
850 mm
Planing width
410 mm
Table length
995* mm
Shaft rotation speed
4300 rpm
Planer shaft diameter
70 mm
Planer fence
1115 x 150 mm
Fence tiltable
90° to 45°
Max. cutting depth
4,5 mm
Working width
410 mm
Working thickness, min./max.
5 – 240 mm
Feed speed
5,4 m/min
Cutter knives
3 pcs.

FS 410 P / 400 V

1261064
€4,045.00
Tax included
Monthly payment from 99.23€

Stock Quantity:
In S01 store
not available
In S02 store
not available
In Supplier store
(5+ pcs)
Delivery terms:
NEMOKAMAI atsiimkite monday, january 6 d., parduotuvėje, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 261 kg.
Prekę pristatysime Jums per: 5-11 d.d. Venipak (€40.99)
Weight: 261 kg.

Description

Properties

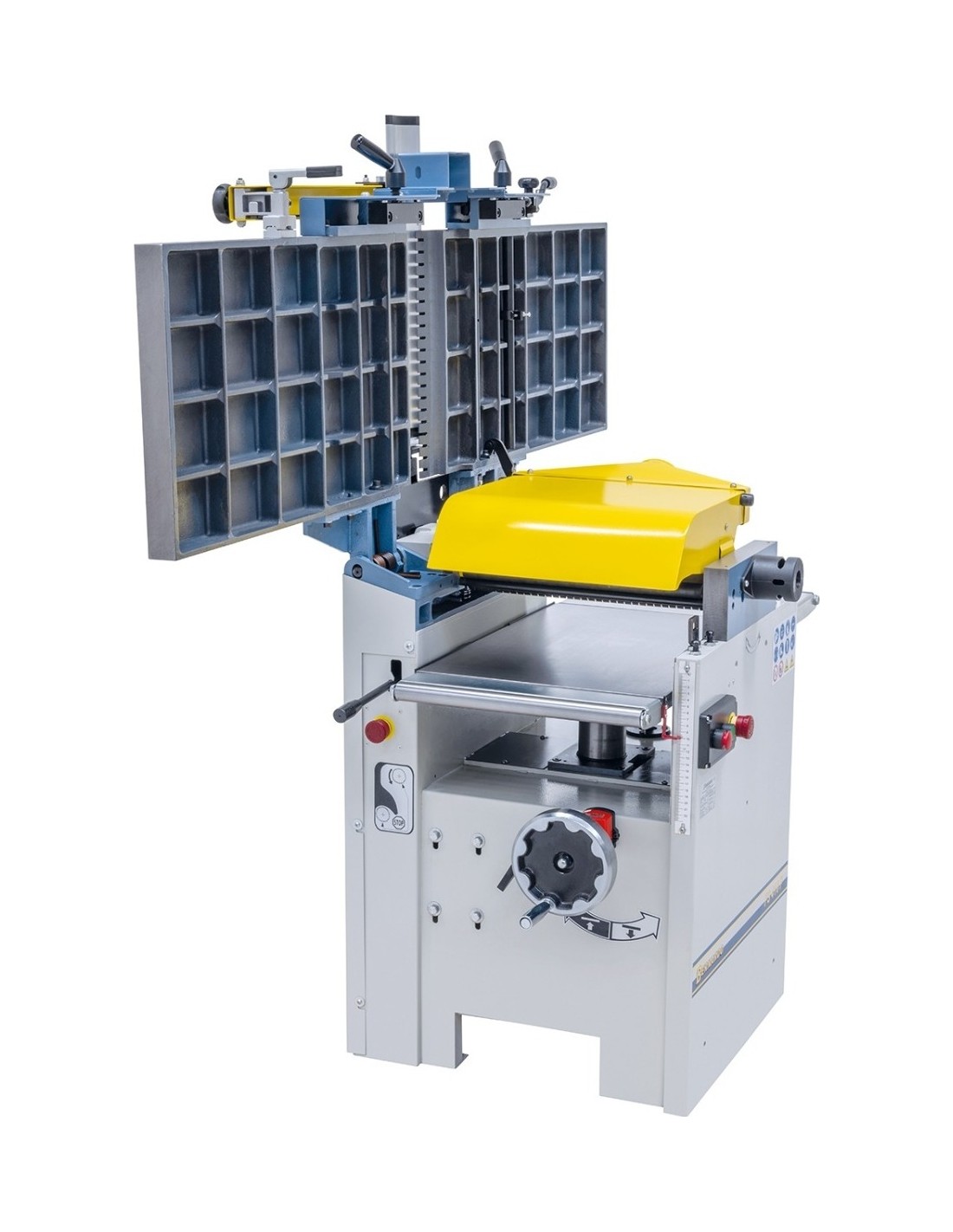

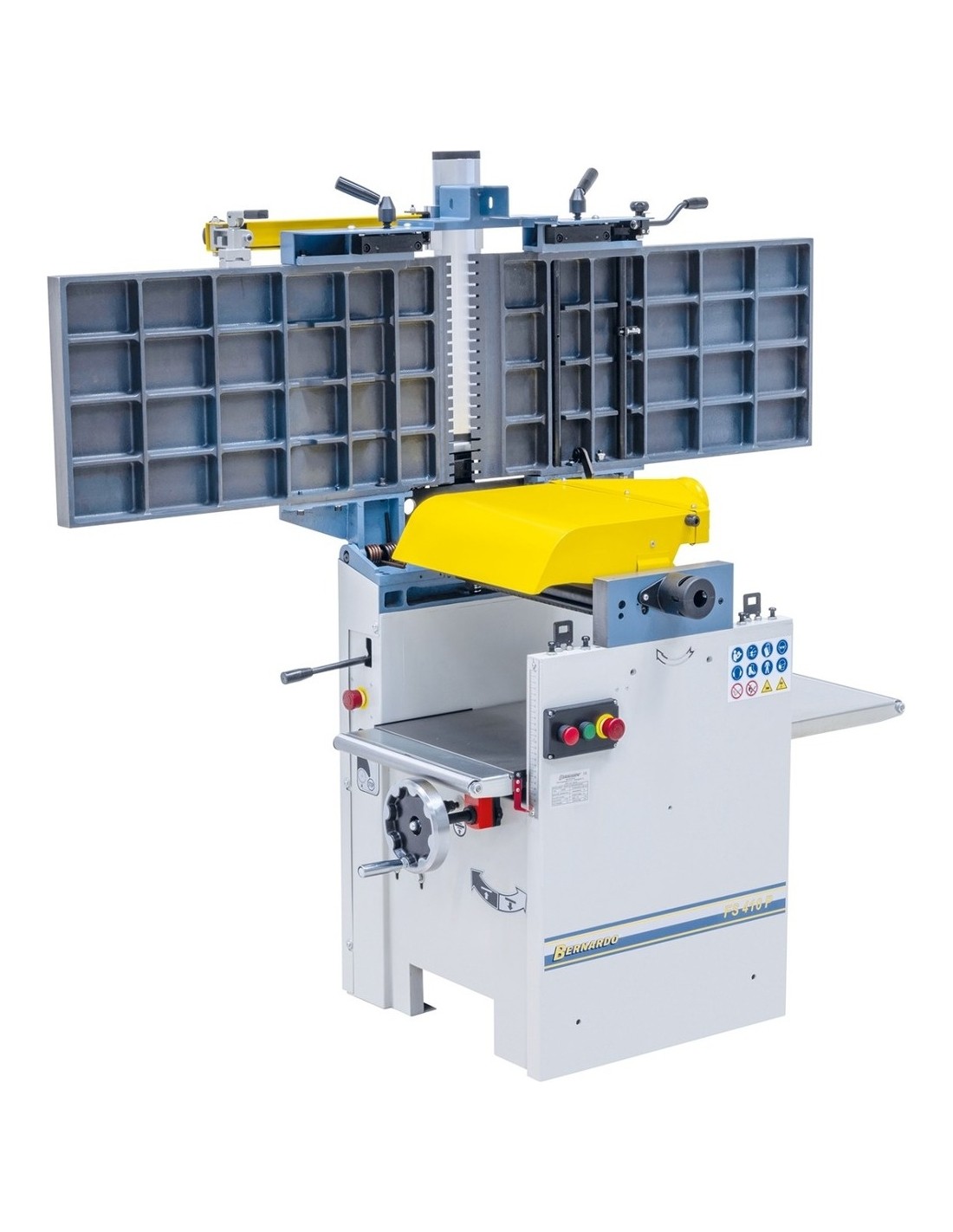

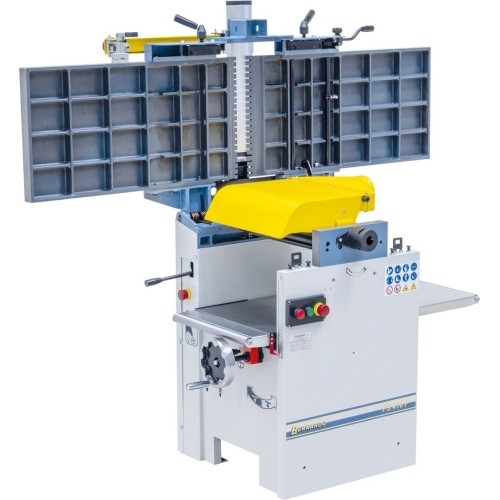

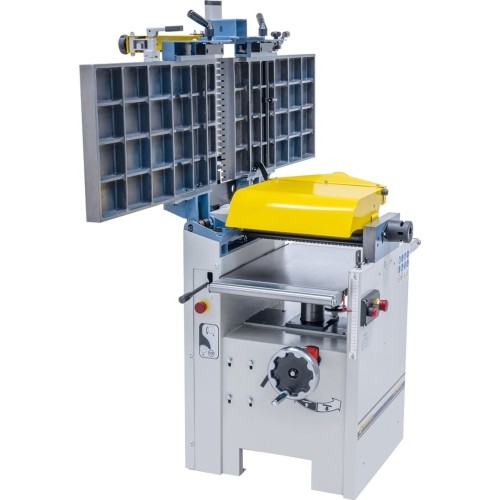

  • Planing tables fold to the backside of the machine to minimize space requirements
  • Integrated tiltable dust hood, extraction outlet 100 mm

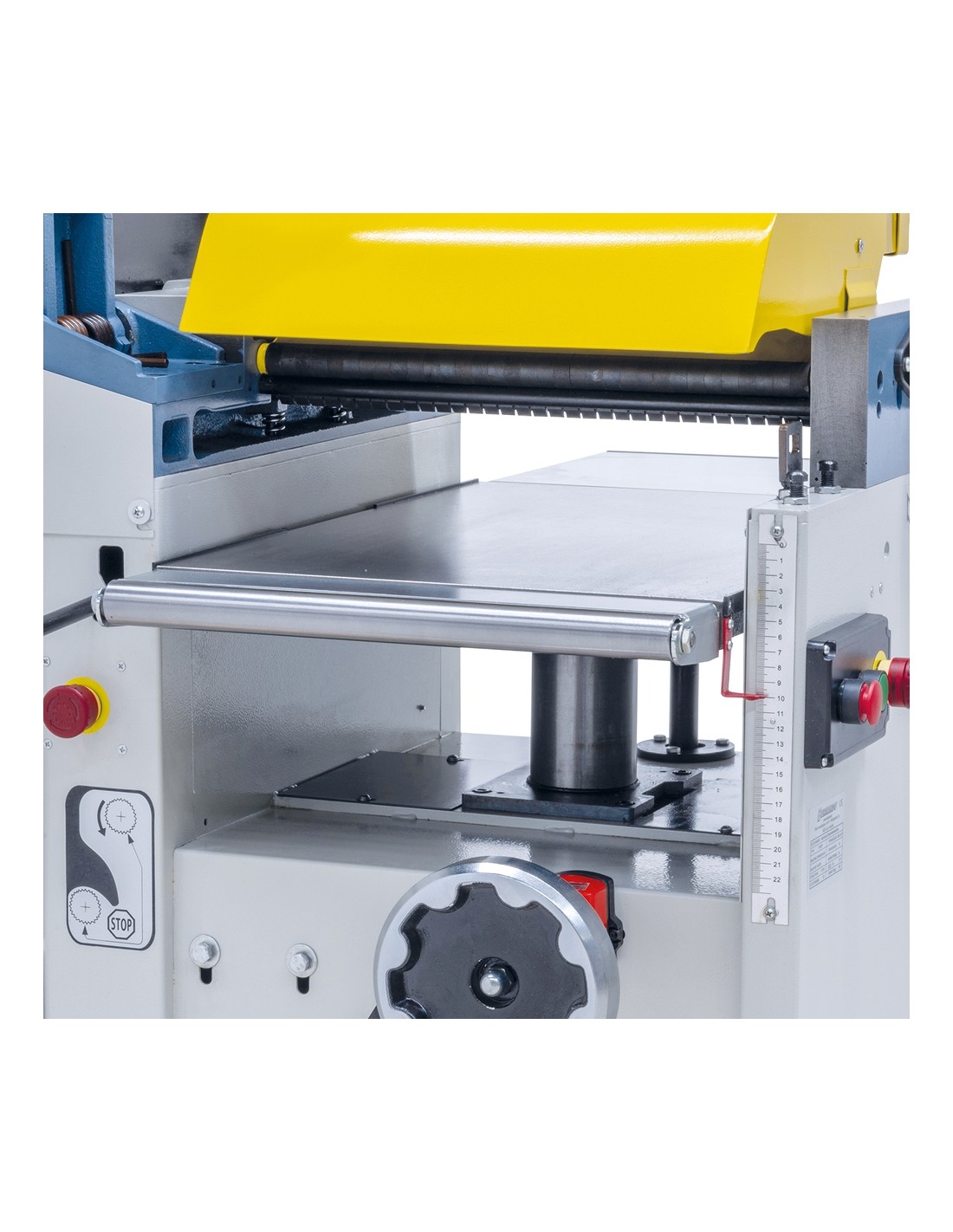

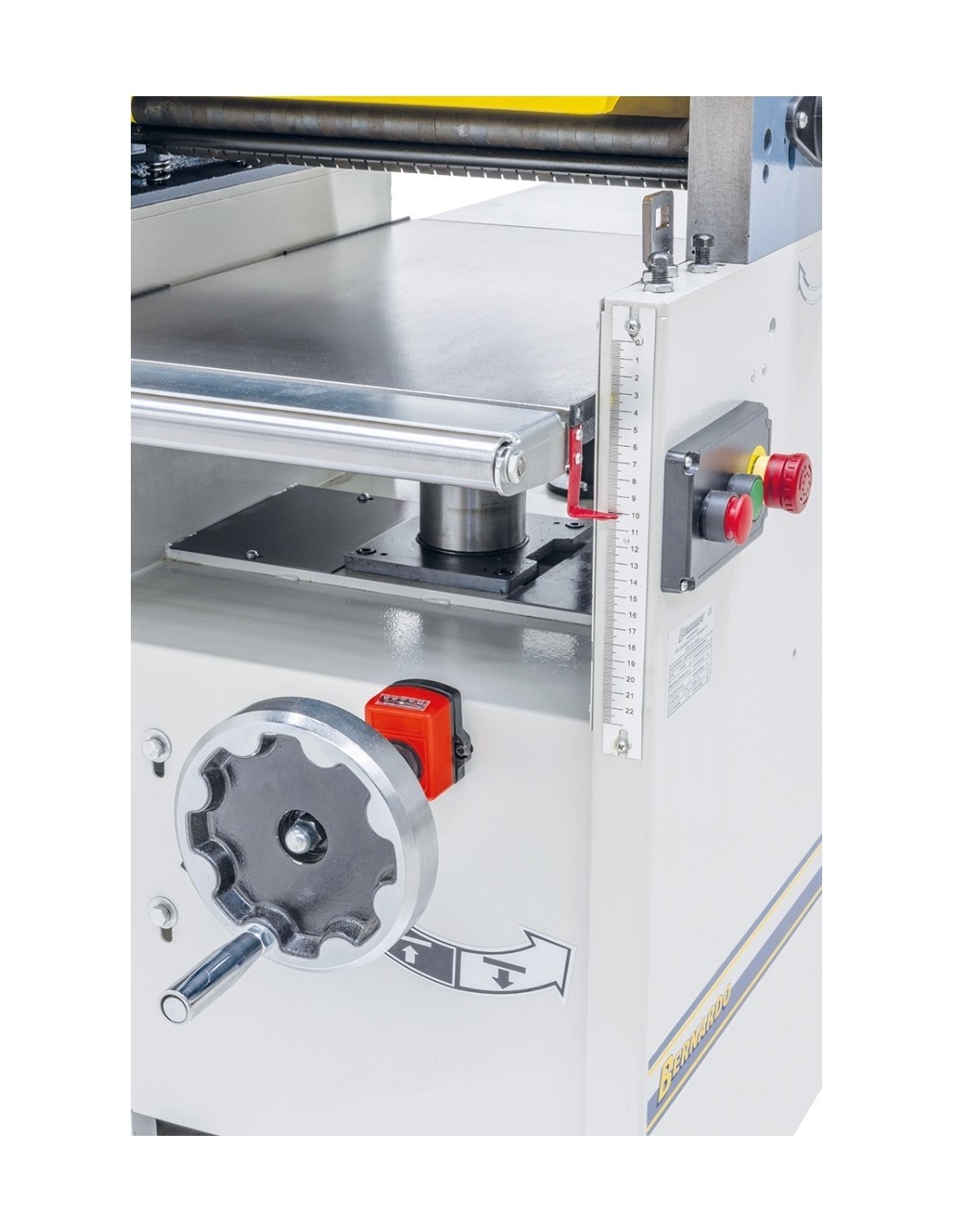

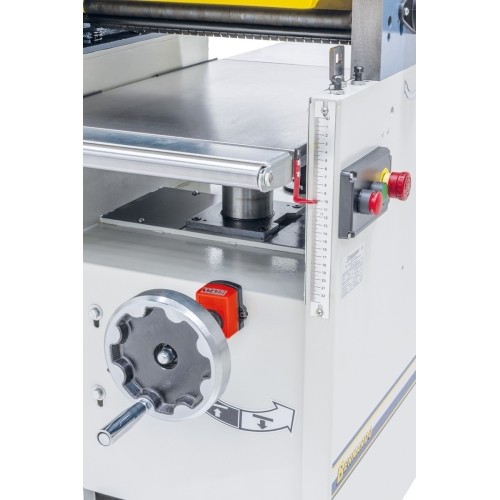

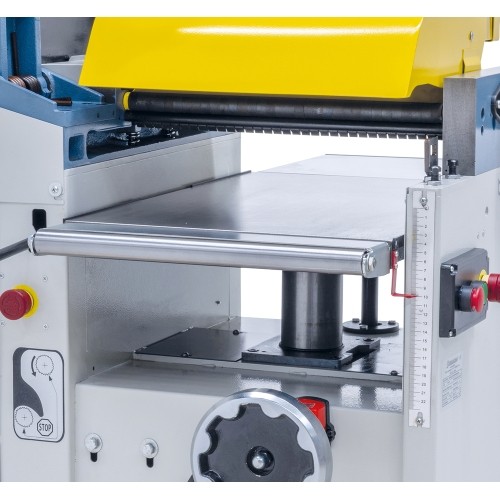

  • Digital display on handwheel features 1/10 mm scaling for precise adjustment of thicknessing table

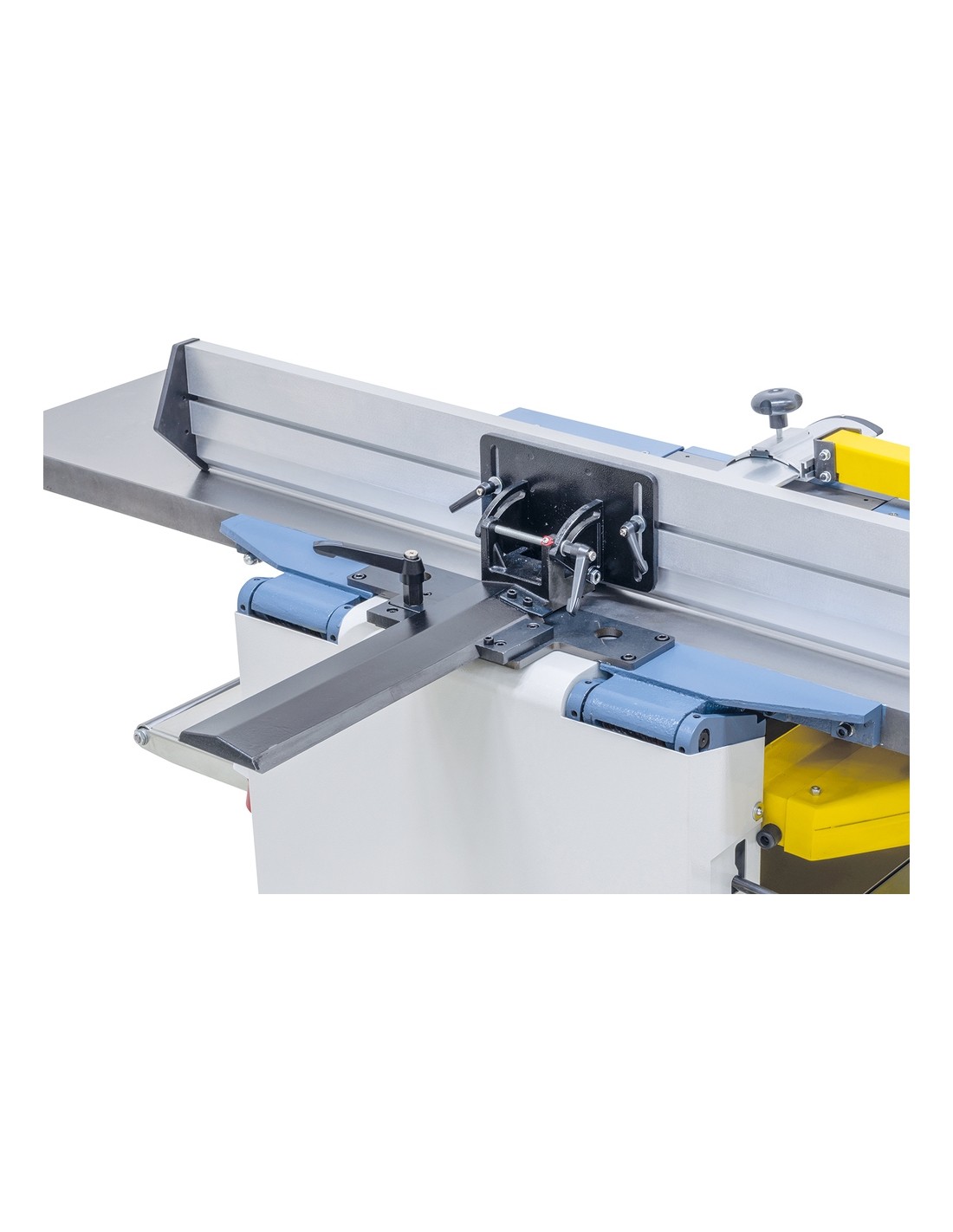

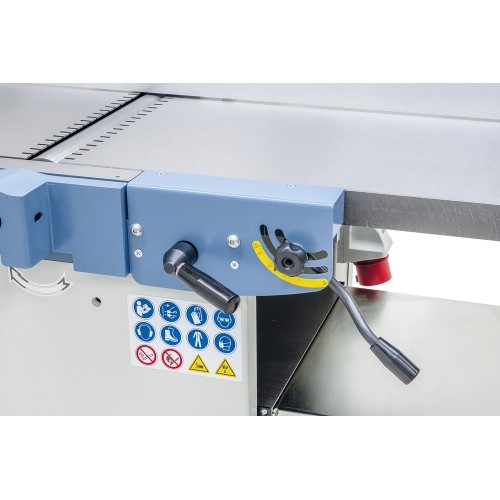

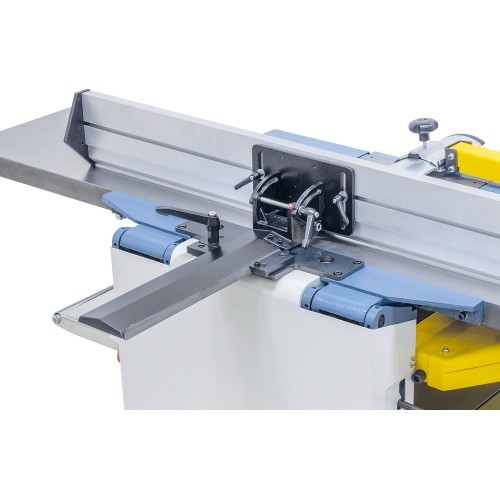

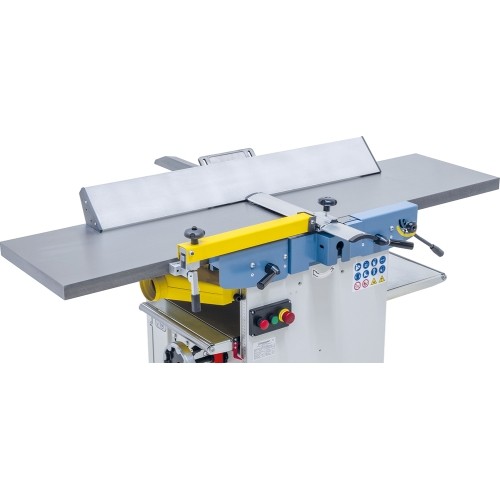

  • Anodized aluminium planing fence, tilts from 90º to 45º
  • Powerful motor for optimal planing results

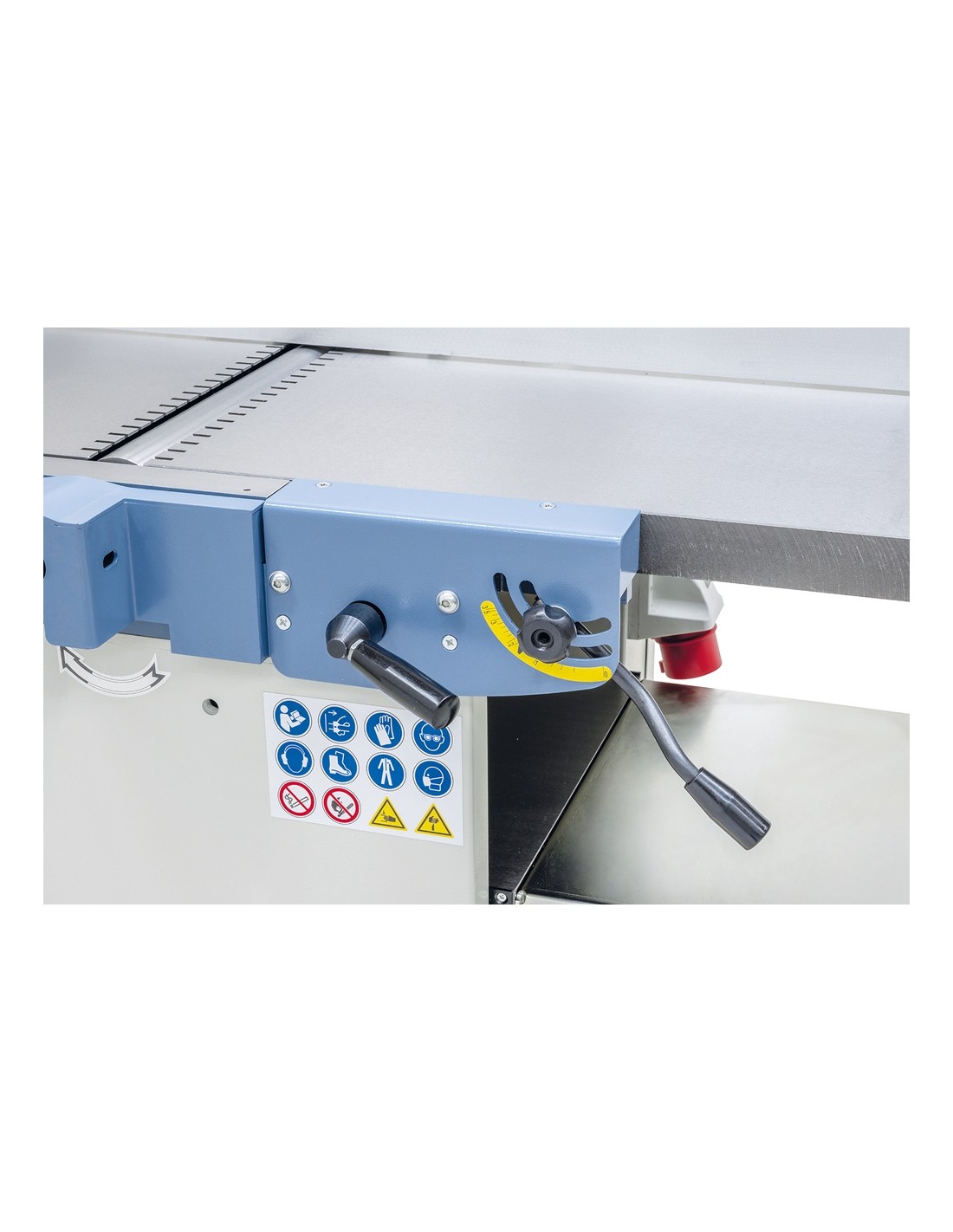

  • Quick and easy adjustment of chip removal
  • Simultaneous folding of planing tables allows fast conversion from planing to thicknessing
  • Ergonomically arranged control elements and switches

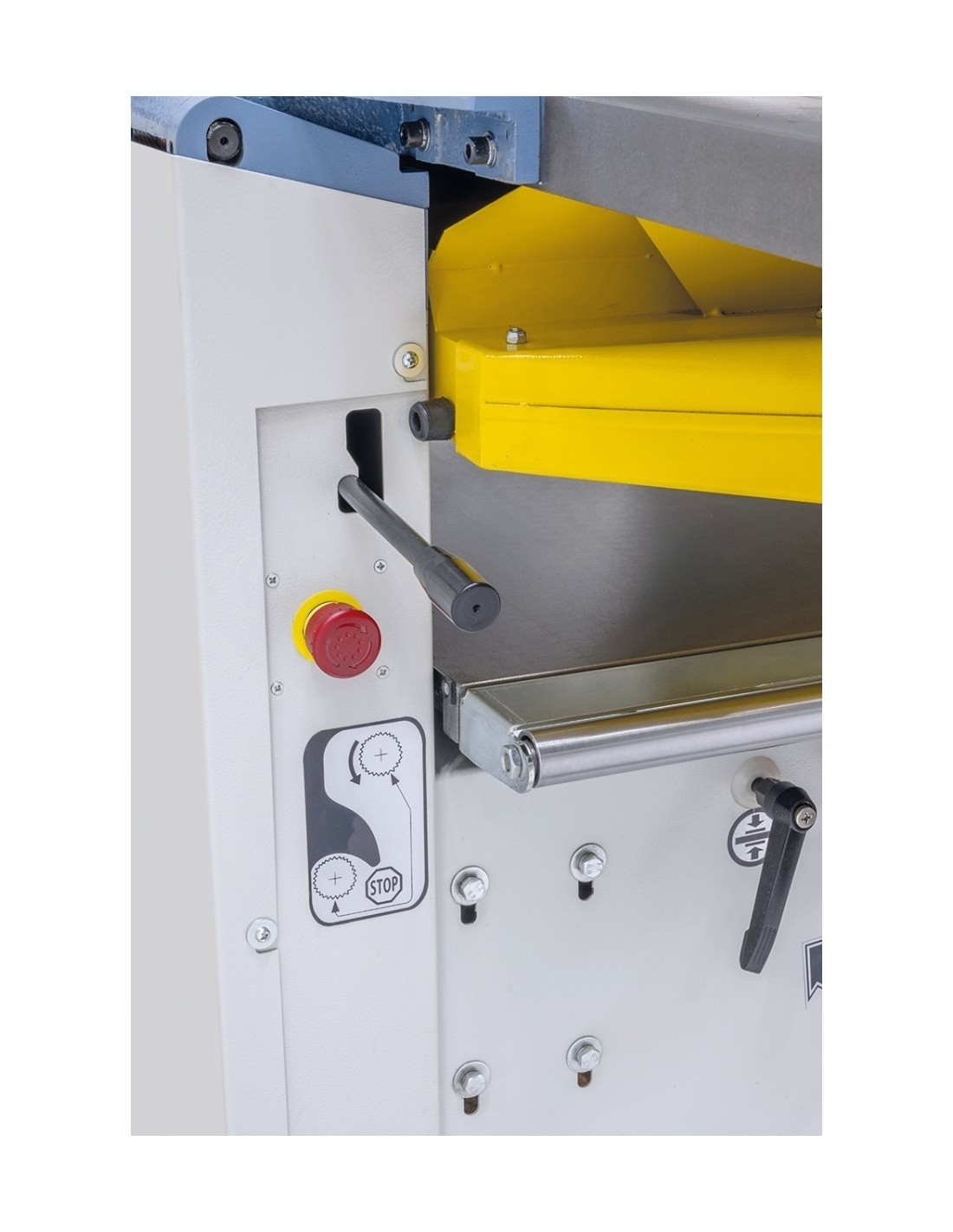

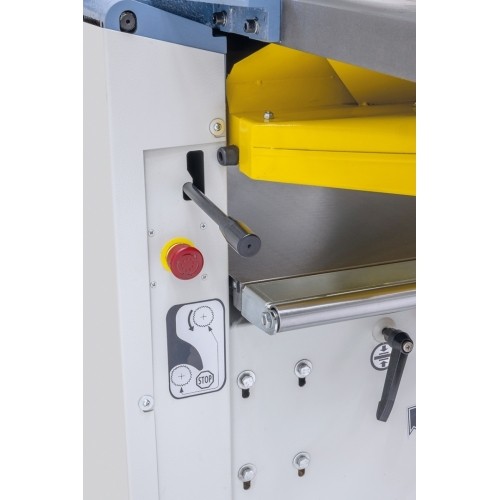

  • Several safety devices: On/Off switch with undervoltage release, cutterblock cover in accordance with CE, limit switch to avoid accidental machine start

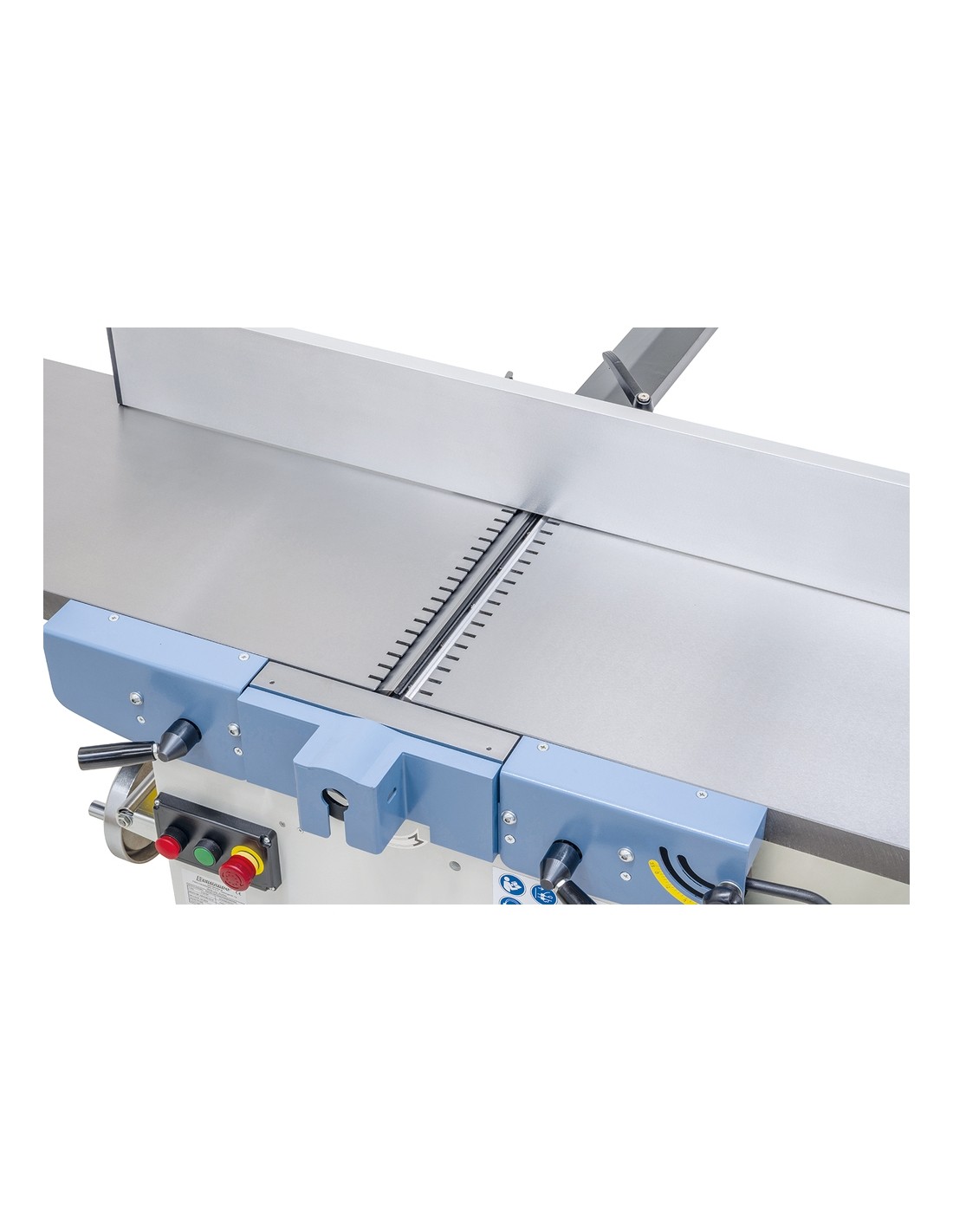

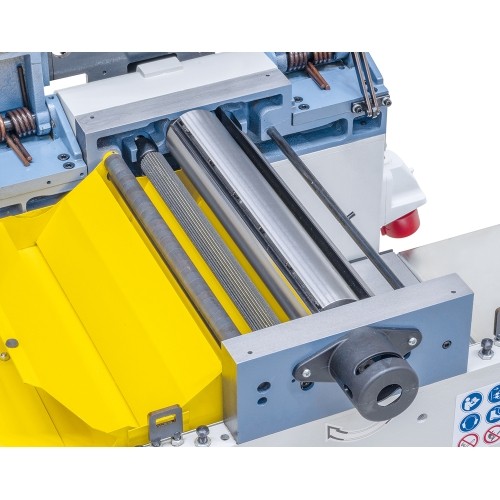

  • Precisely bedded 3-knife cutterblock with HSS-knives

Standard accessories

  • Cutter knives in HSS-quality
  • Knife gauge
  • Digital display for thicknessing table
  • Table extension with rolls
  • Push handle
