Max. workpiece weight
200 kg
Weight approx.
1330 kg
Table dimensions
300 x 700 mm
T-slot quantity / width
1 / 14 mm
Max. travel, longitudinal
640 mm
Max. travel, cross
320 mm
Max. distance spindle / table
520 mm
Grinding wheel
300 x 30 x 75 mm
Table speed, hydraulic
3 – 20 m/min
Adjustment per handwheel rotation
4 mm/rev.
Scale division on handwheel
0,01 mm
Adjustment per handhwheel rotation
2 mm/rev.
Motor power of sanding spindle
4,0 kW
Spindle speed
1440 rpm
Motor power of hydraulic pump
1,5 kW
Length
2000 mm
Depth
1650 mm
Height
1850 mm
Permanent magnet clamping plate
300 x 600 mm

FSM 3060

1092243
Price €28,819.00 VAT incl.

Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Supplier store
(10 pcs)
Delivery terms:
FREE pick up wednesday, july 15 d., in the store, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 1330 kg.

Description

Properties

  • Plastic-coated counter guide in x- and y-axis assure a low slip-stick-effect
  • V-flat longitudinal table guide, double-V cross table guide
  • Spindle features axial and radial, clearance-free, pre-tensioned bearings

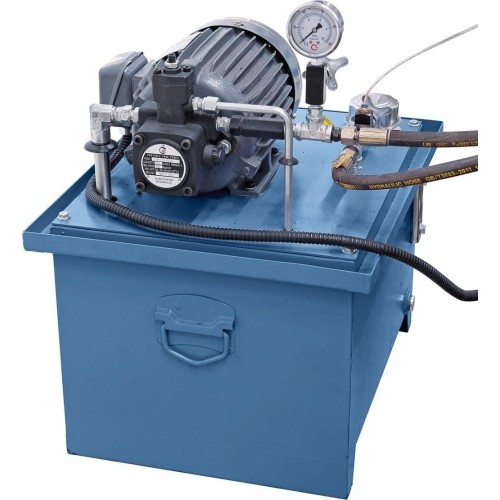

  • Seperate hydraulic unit with heat exchanger to omit vibrations and thermal load
  • Solidly constructed and well supported structure assures high stability
  • State of the art hydraulic system guarantees soft table traverse even at high work load
  • Completely equipped with 2-axis digital readout and permanently magnetic clamping plate
  • Central lubrication of all guide rails

Standard accessories

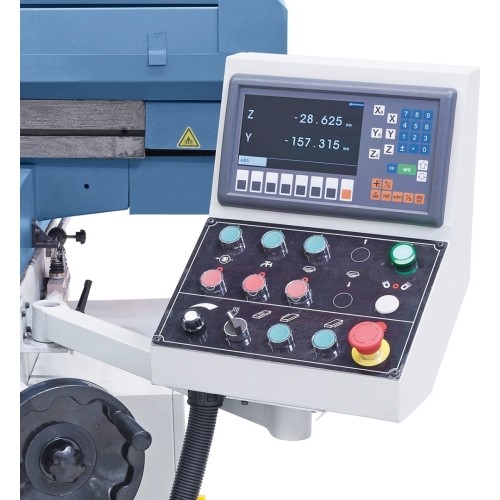

  • 2-axis digital readout ES-12 H with LCD-display

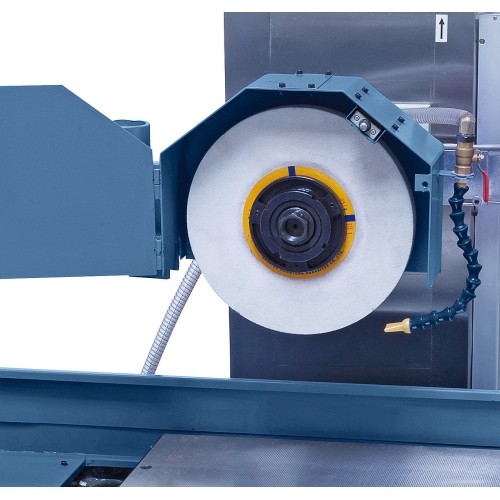

  • Grinding wheel
  • Flange
  • LED machine light
  • Permanent magnet clamping plate
  • Balancing stand
  • Balancing arbor
  • Protective covers
  • Demagnetization device

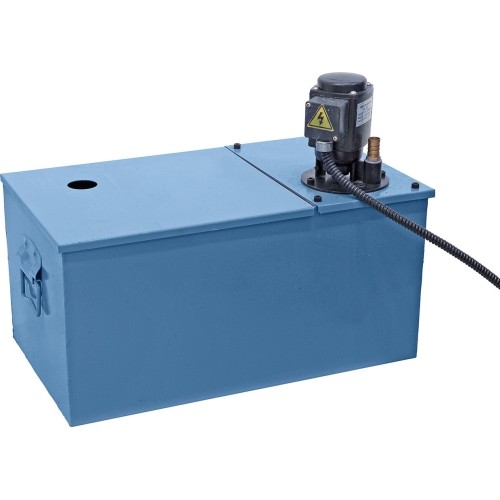

  • Coolant device
  • Dressing diamond
  • Machine feet
  • Central lubrication
  • Tools
