WARRANTY

Max. workpiece weight: 180 kg
Weight approx.: 1640 kg
Table dimensions: 200 x 500 mm
T-slot quantity / width: 1 / 14 mm
Electric magnet clamping plate: 200 x 460 mm
Max. travel, longitudinal: 560 mm
Max. travel, cross: 240 mm
Max. distance spindle / table: 450 mm

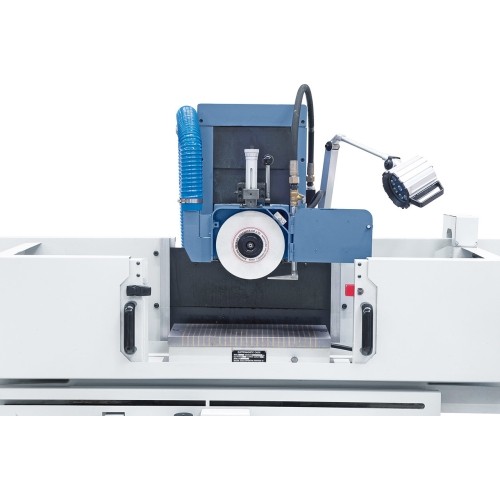

Grinding wheel: 200 x 20 x 31,75 mm
Table speed, hydraulic: 7 - 25 m/min
Automatic adjustment, cross: 0,5 - 8 mm/Stroke
Rapid feed, cross: 990 mm/min
Adjustment per handwheel rotation: 4 mm/rev.
Scale division on handwheel: 0,005 mm
Automatic adjustment, vertical: 0,005 / 0,01 / 0,02 / 0,03 / 0,04 / 0,05 mm
Rapid feed, vertical: 480 mm/min
Adjustment per handhwheel rotation: 2 mm/rev.
Motor power of sanding spindle: 2,2 kW
Spindle speed: 2850 rpm
Motor power of hydraulic pump: 0,75 kW
Motor power of vertical feed: 0,5 kW
Length: 2160 mm
Depth: 1650 mm
Height: 1840 mm

Brand

BSG 2040 PLC

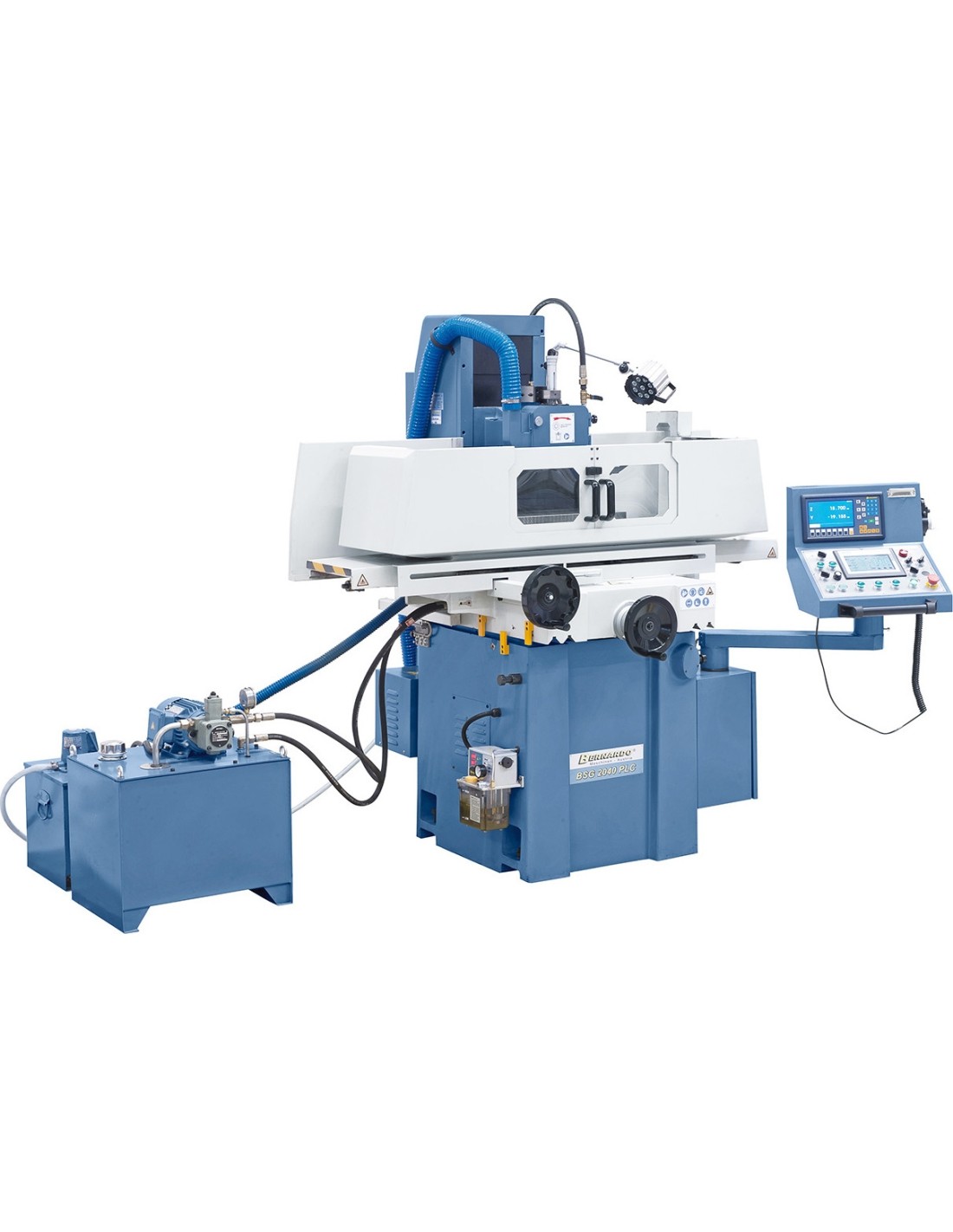

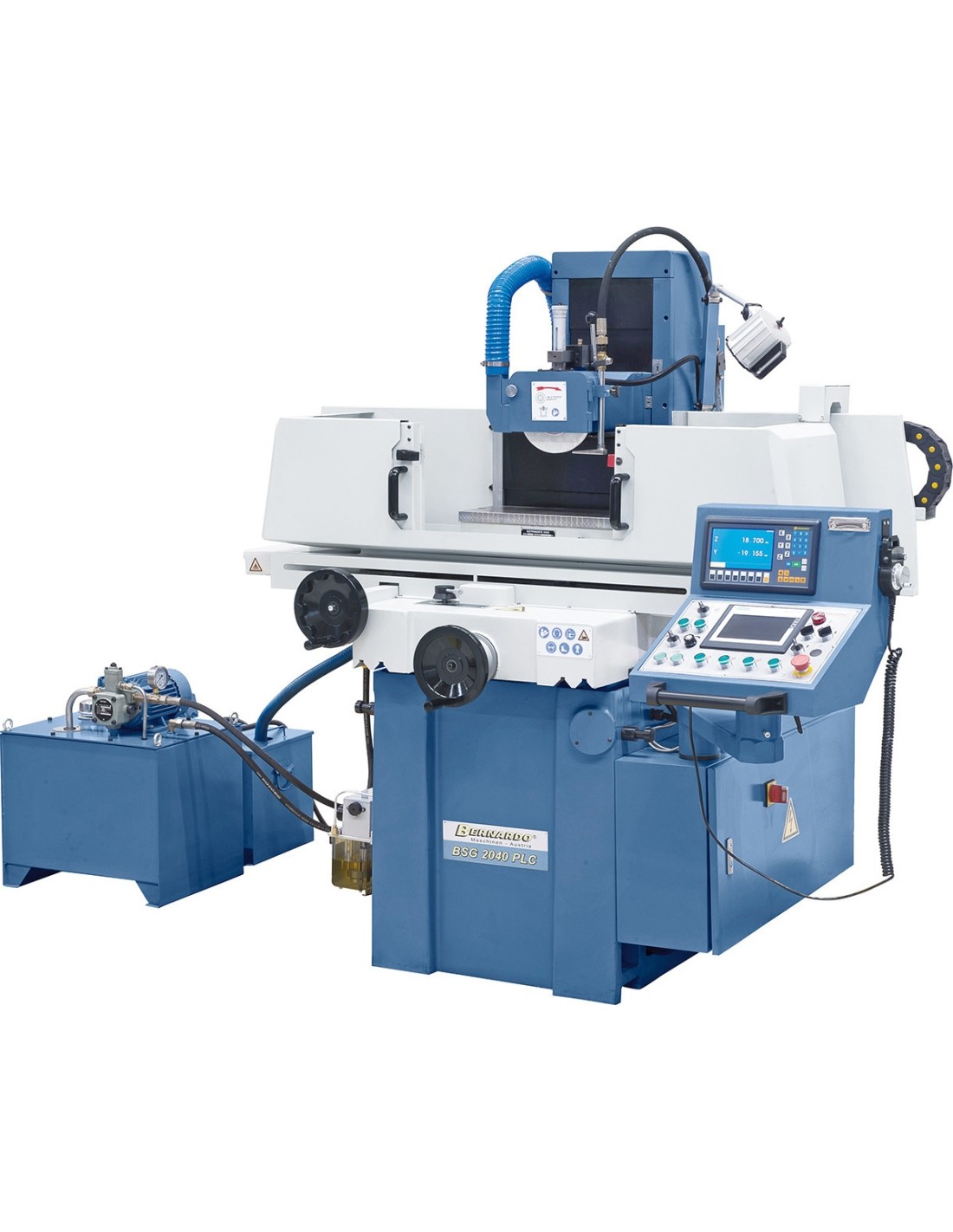

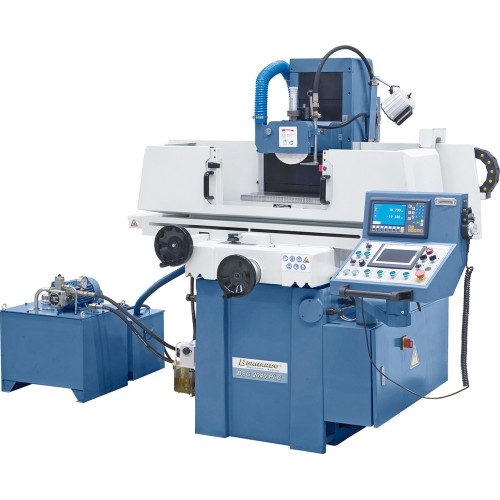

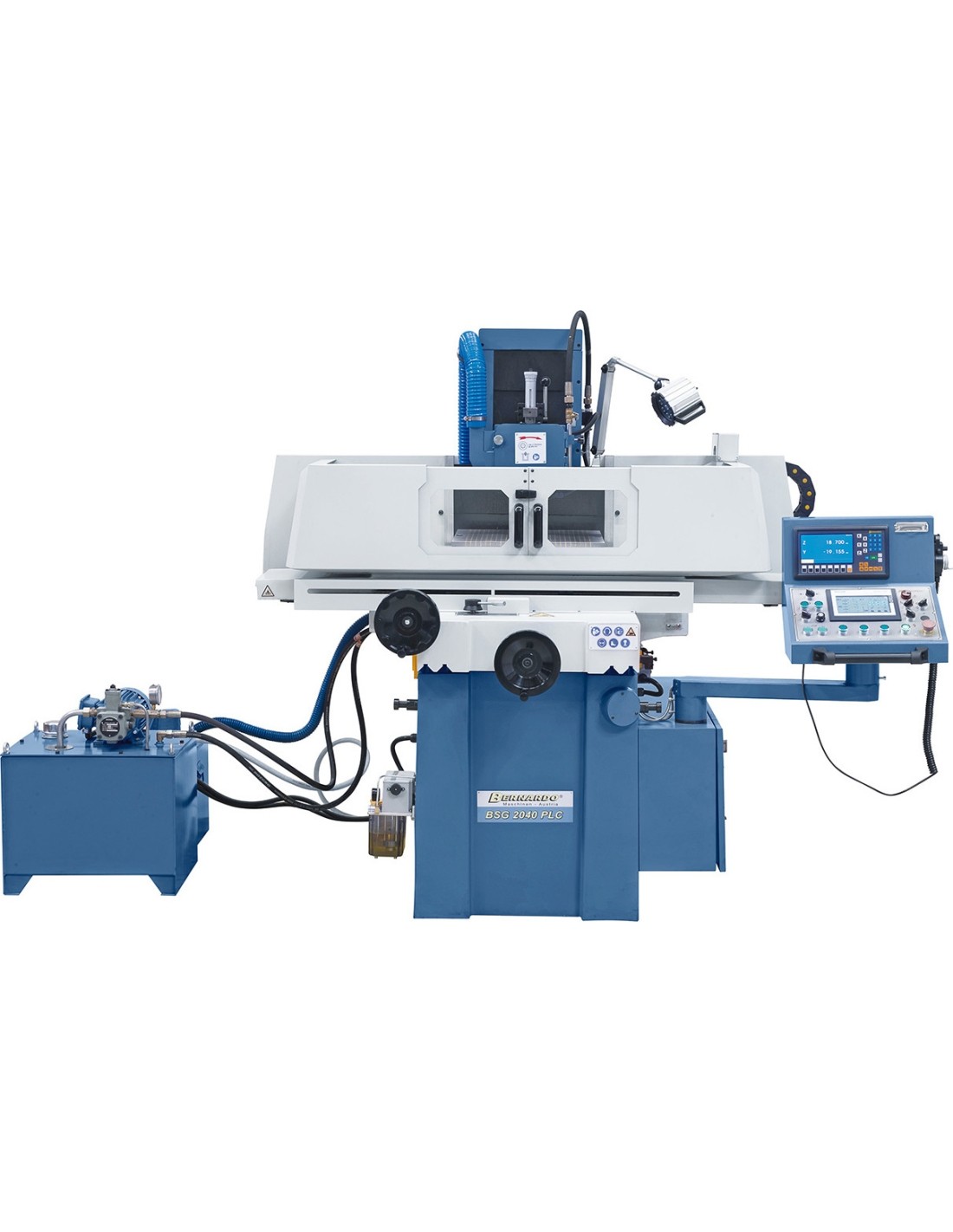

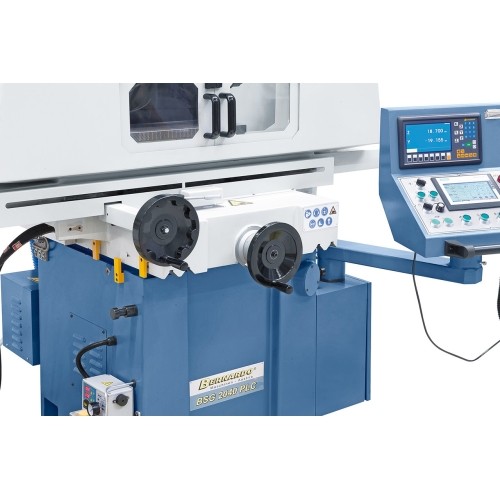

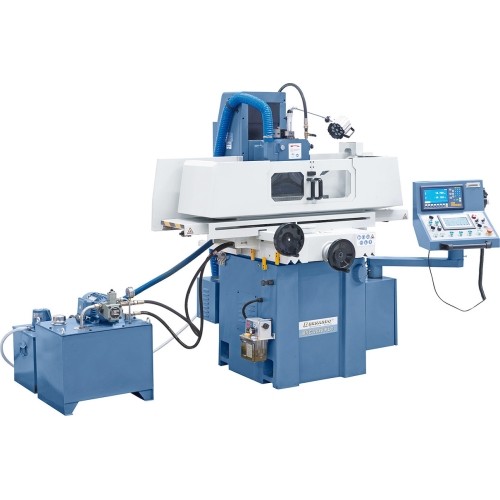

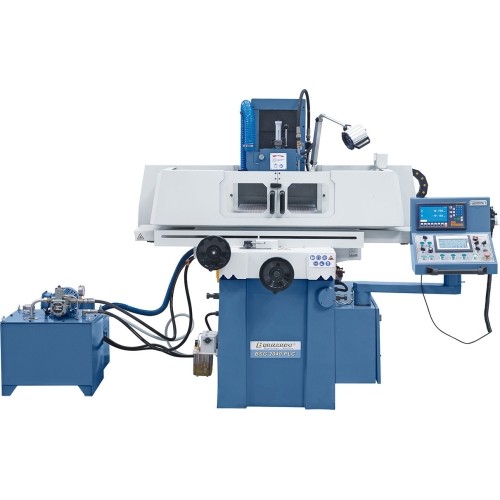

Name: BSG 2040 PLC
Brand: Bernardo
SKU: 1092251
Price: 33021 EUR
Availability: PreOrder

Reference 1092251

Price €33,021.00 Tax included

Stock Quantity:

In S01 store
not available

In S02 store
not available

In Supplier store
(5+ pcs)

Delivery terms:

NEMOKAMAI atsiimkite wednesday, february 5 d., parduotuvėje, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 1640 kg.

Description

Properties

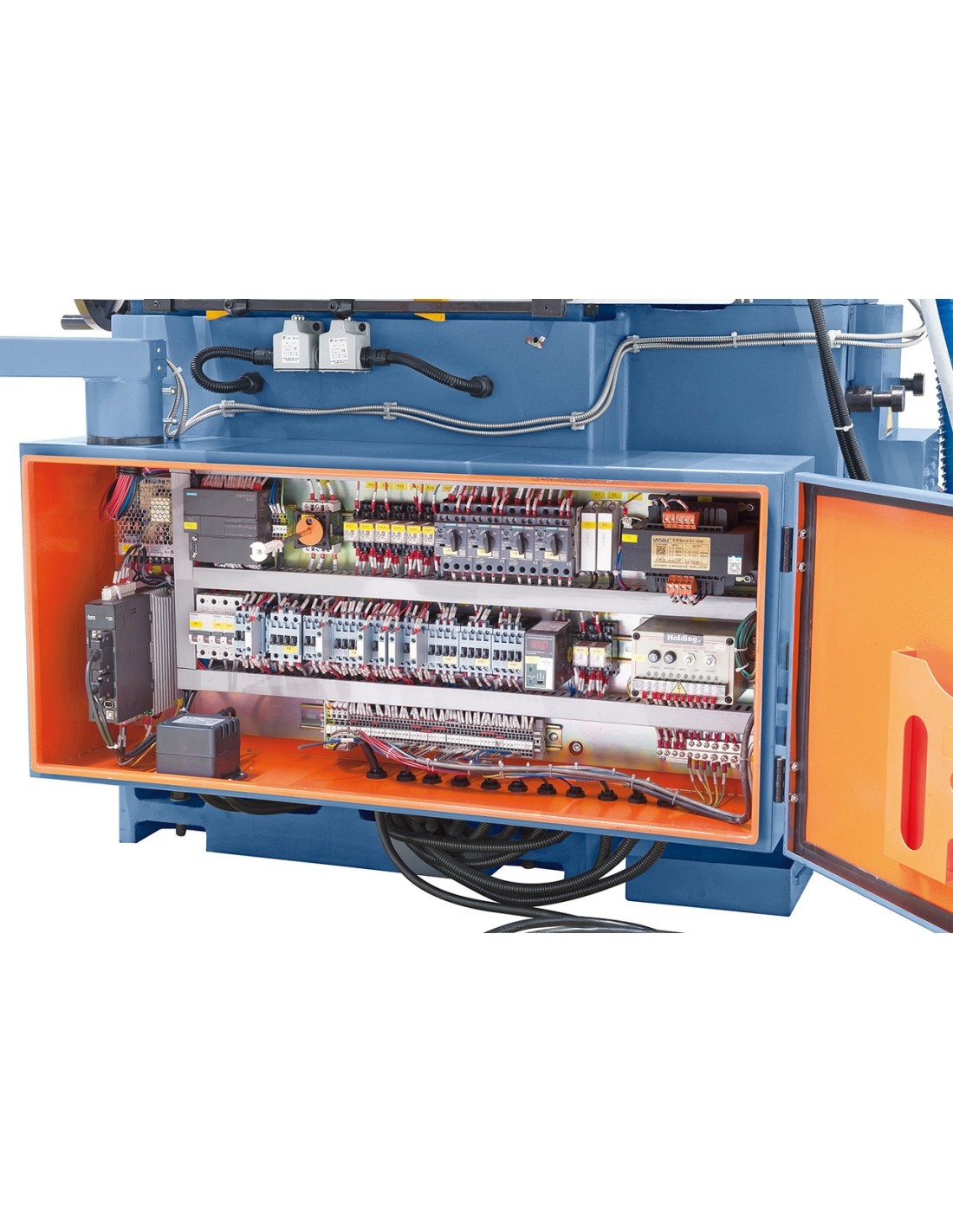

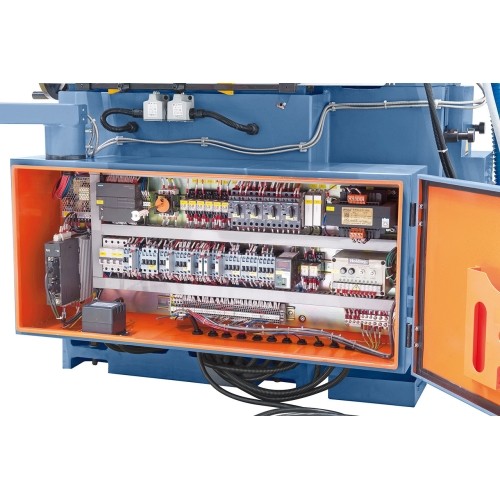

Including Siemens PLC-control for programming simple sanding cycles via touchscreen
State of the art hydraulic system guarantees soft table traverse even at high work load

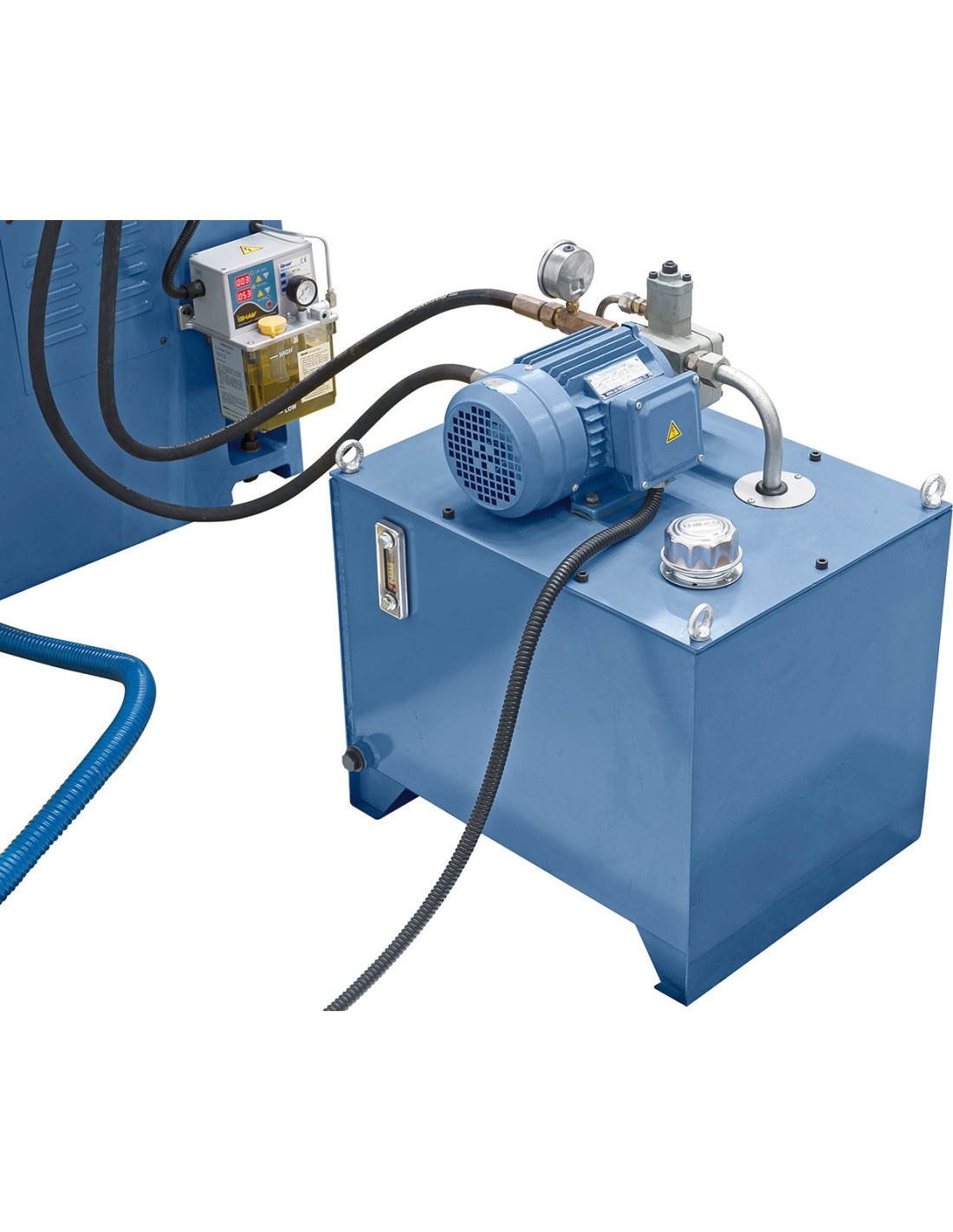

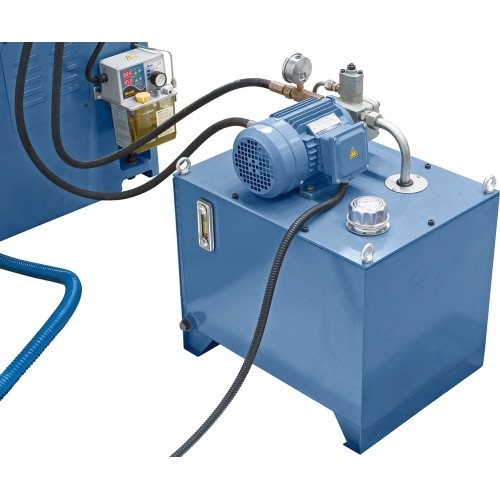

Seperate hydraulic unit with heat exchanger to omit vibrations and thermal load
Solidly constructed and well supported structure assures high stability

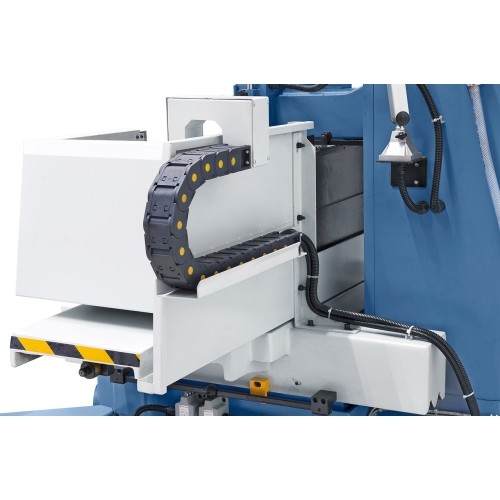

Plastic-coated counter guide in x- and y-axis assure a low slip-stick-effect
Infeed via rapid feed to height of workpiece, adjustable to finishing and sparking, automatic lift at program end

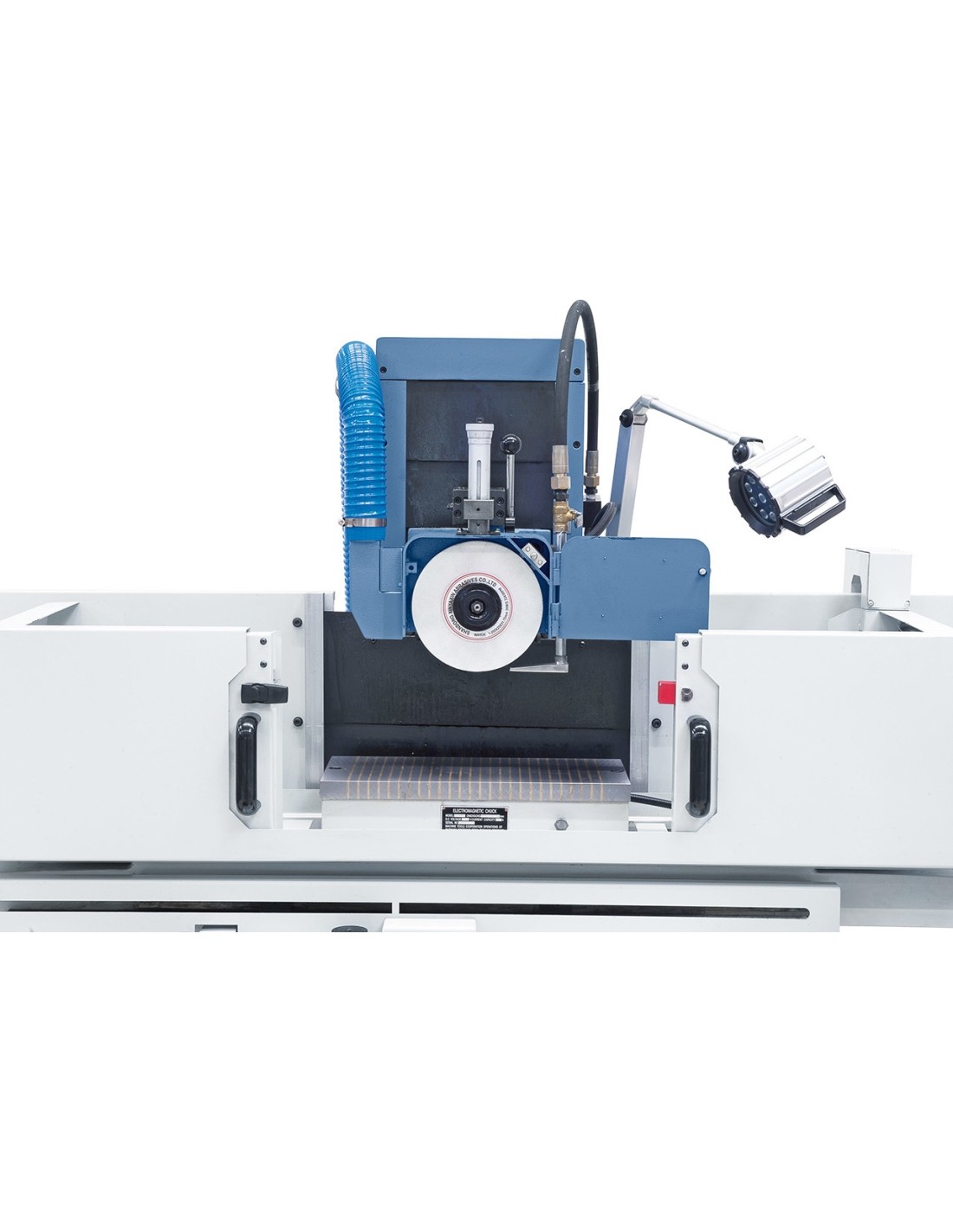

Spindle features axial and radial, clearance-free, pre-tensioned bearings
Digitally controlled, automatic vertical feed with servo motor
Adjustable longitudinal and cross table movement via end stops
V-flat longitudinal table guide, double-V cross table guide

Standard accessories

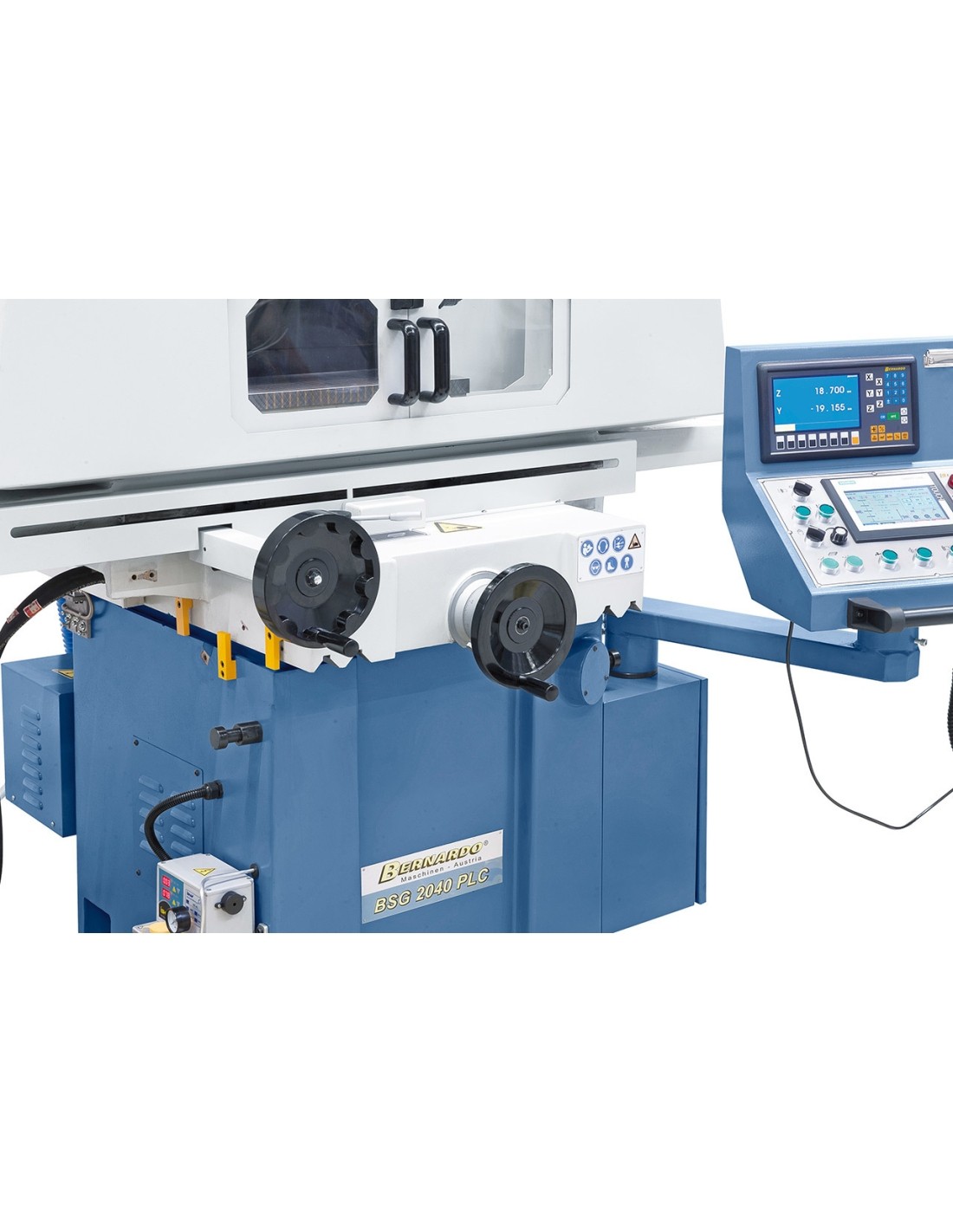

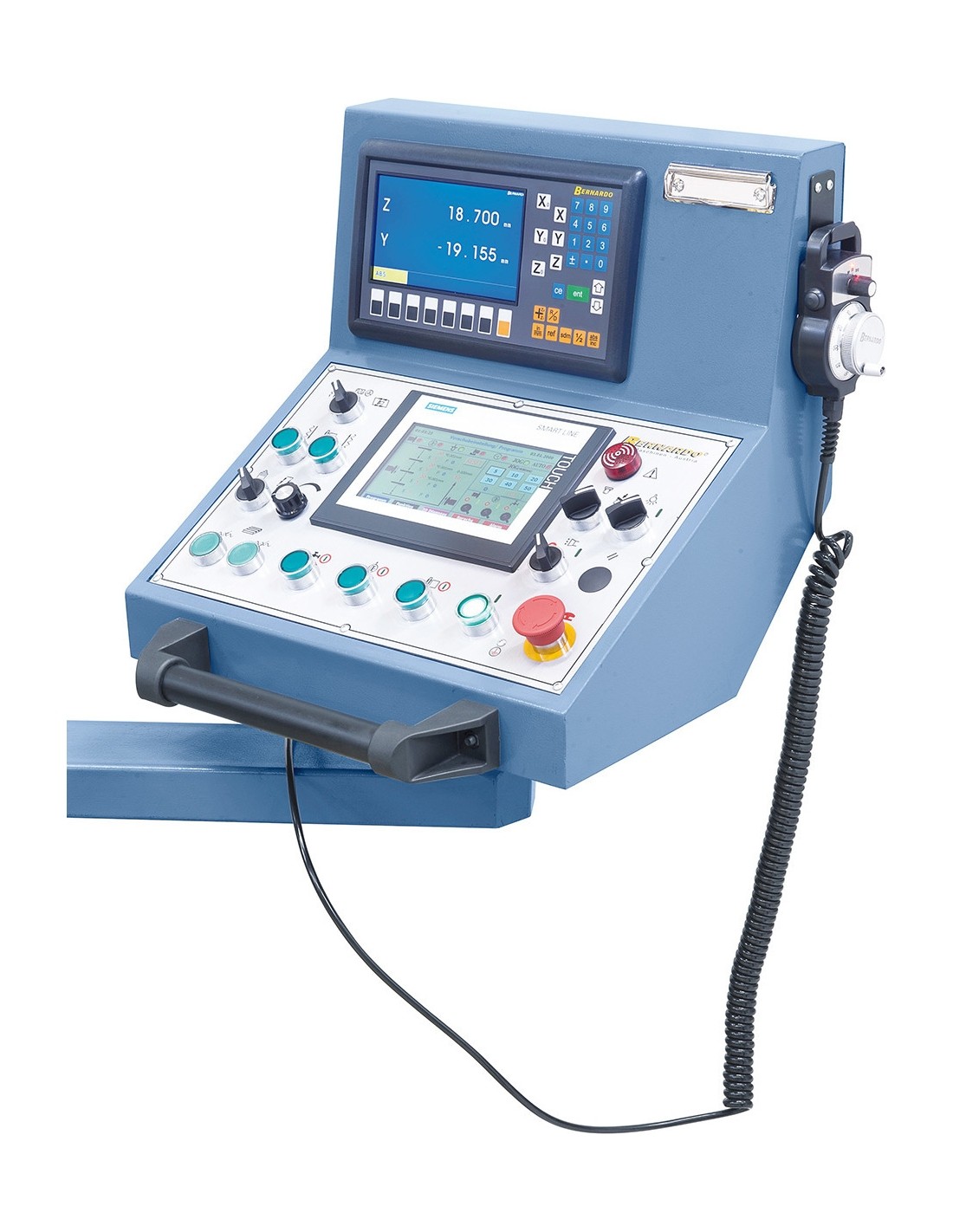

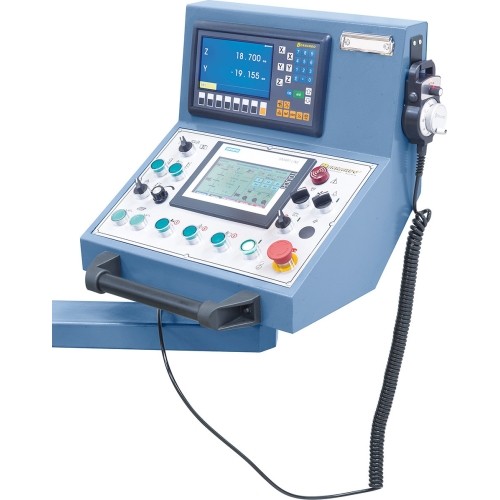

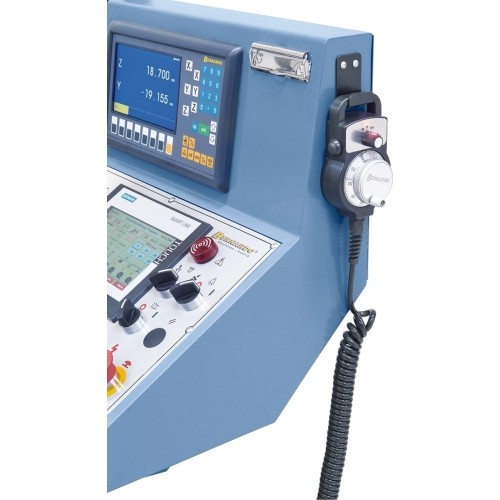

2-axis digital readout ES-12 H with LCD-display

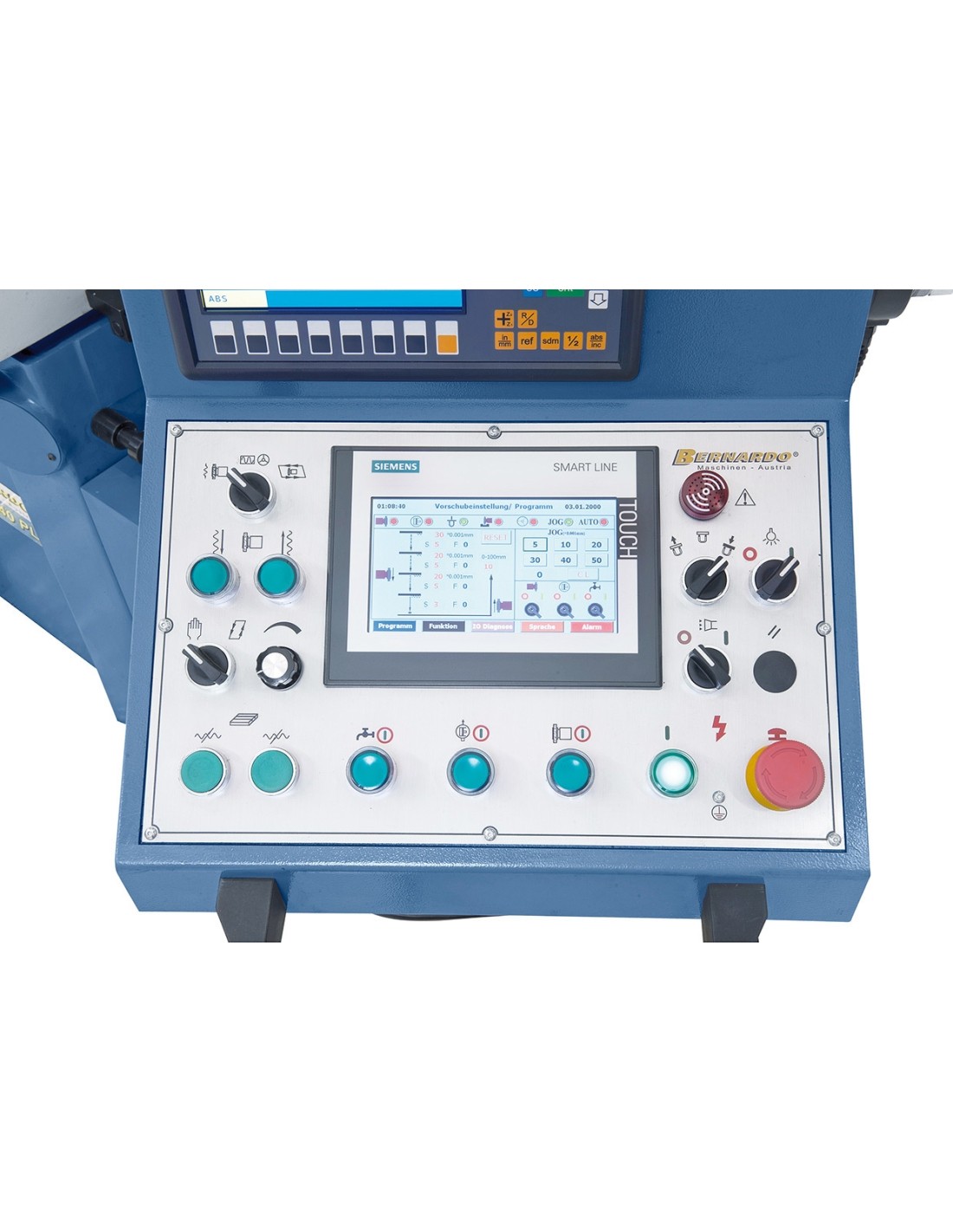

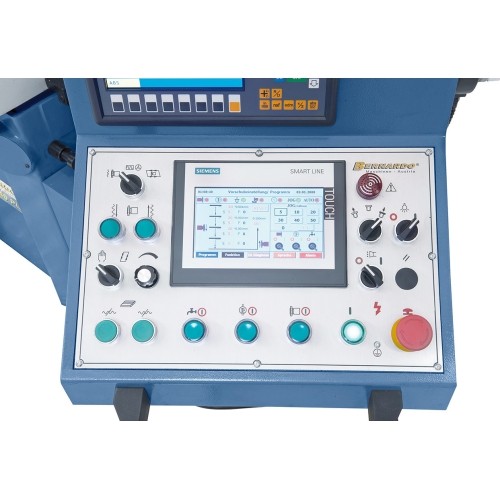

Siemens SMART-panel IE V3 with touch screen

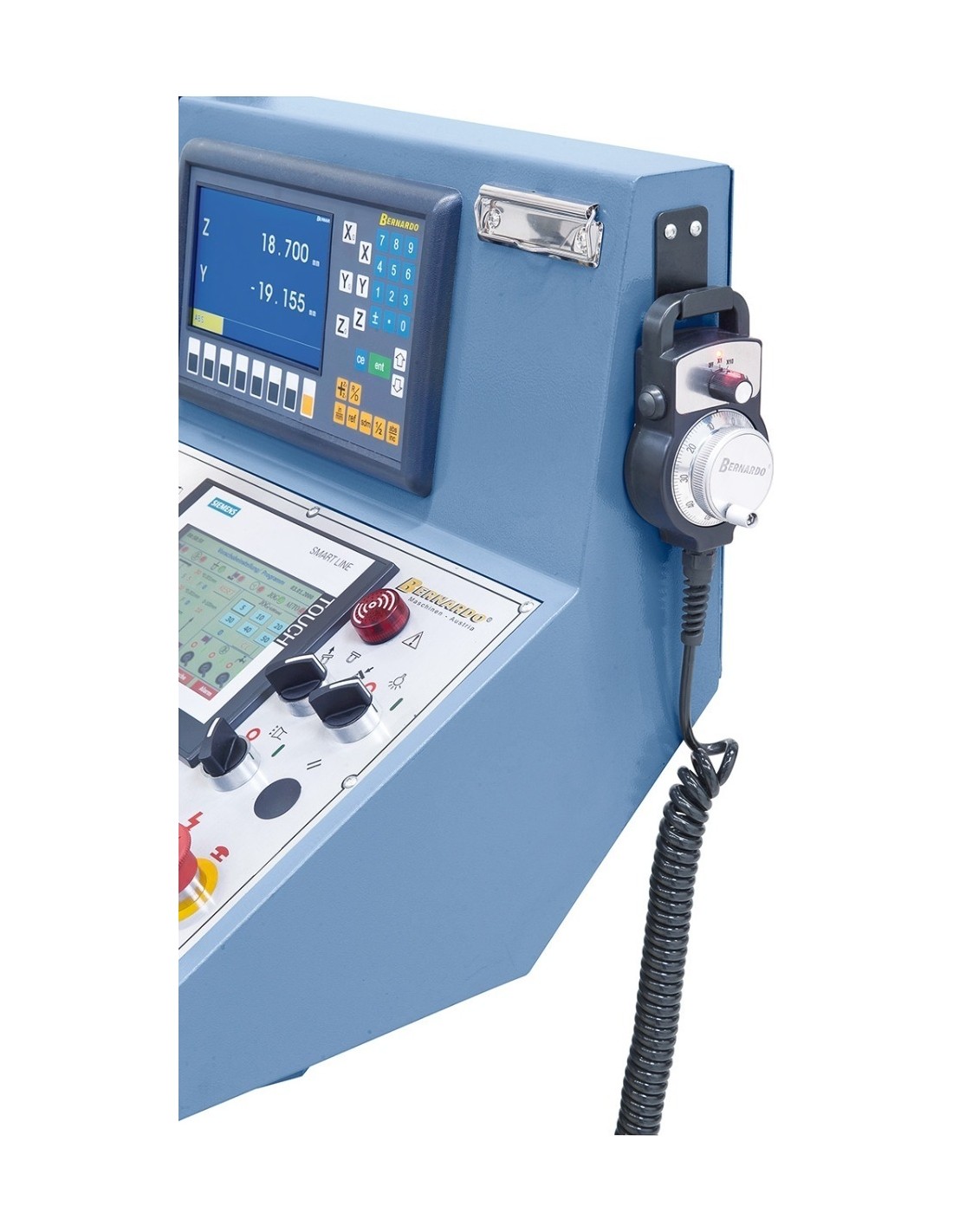

Electronic handwheel

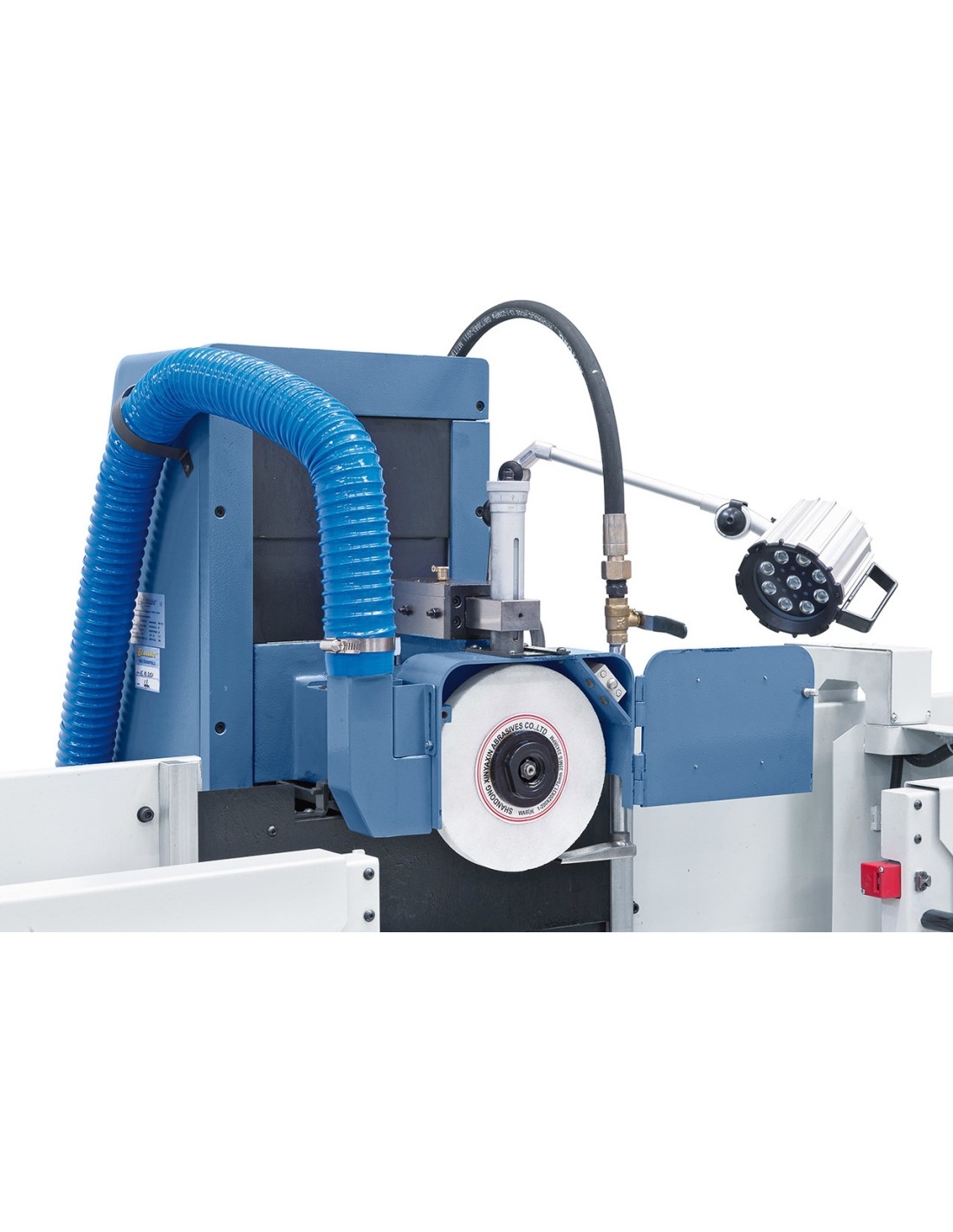

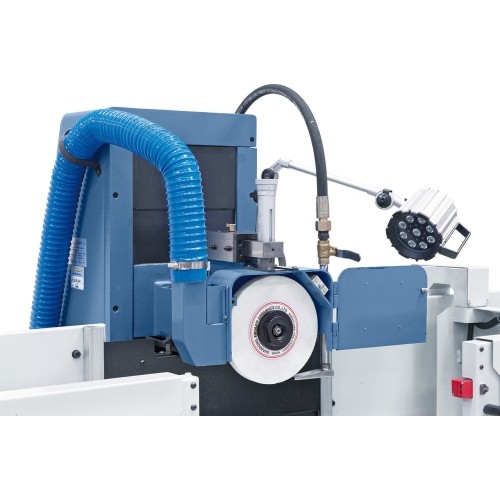

Grinding wheel
Flange
LED machine light
Magnetic clamping plate
Balancing stand
Balancing arbor

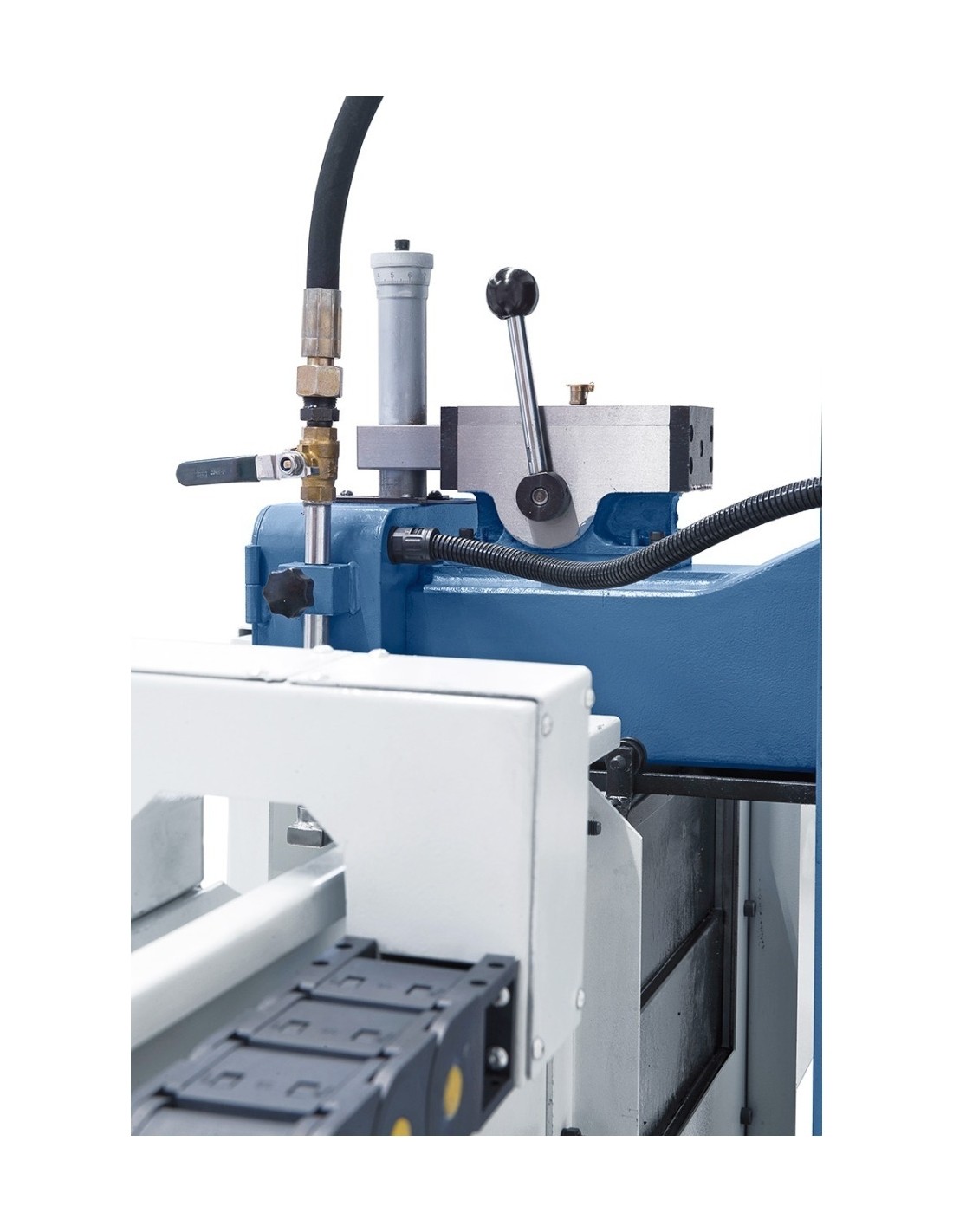

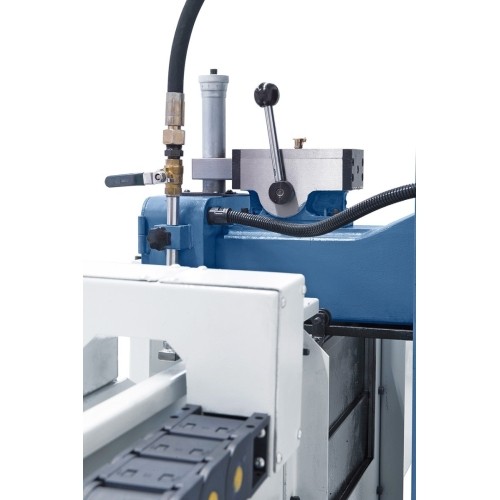

Parallel dresser
Protective covers
Demagnetization device
Coolant device
Dressing diamond
Machine feet

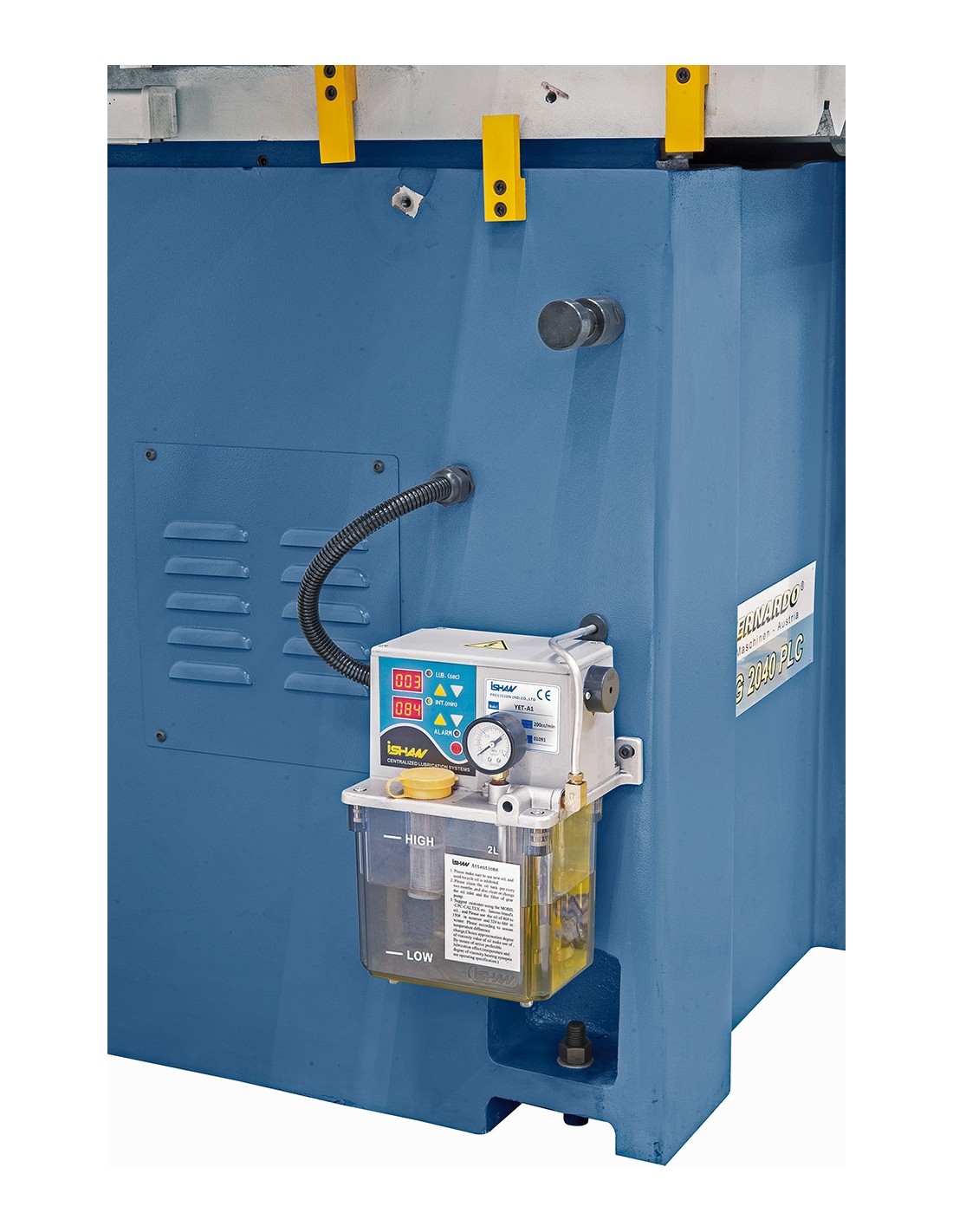

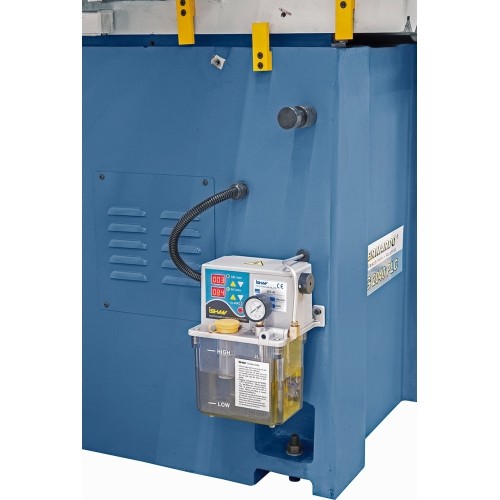

Central lubrication
Tools
