- Max. workpiece weight
- 200 kg
- Weight approx.
- 1400 kg
- Table dimensions
- 300 x 700 mm
- T-slot quantity / width
- 1 / 14 mm
- Electric magnet clamping plate
- 300 x 600 mm
- Max. travel, longitudinal
- 640 mm
- Max. travel, cross
- 320 mm
- Max. distance spindle / table
- 520 mm
- Grinding wheel
- 300 x 30 x 75 mm
- Table speed, hydraulic
- 2 - 18 m/min
- Automatic adjustment, cross
- 0,5 – 10 mm/Stroke
- Rapid feed, cross
- 990 mm/min
- Adjustment per handwheel rotation
- 4 mm/rev.
- Scale division on handwheel
- 0,01 mm
- Automatic adjustment, vertical
- 0,01 / 0,1 mm
- Rapid feed, vertical
- 360 mm/min
- Adjustment per handhwheel rotation
- 2 mm/rev.
- Motor power of sanding spindle
- 4,0 kW
- Spindle speed
- 1440 rpm
- Motor power of hydraulic pump
- 1,5 kW
- Motor power of vertical feed
- 0,75 kW
- Length
- 2000 mm
- Depth
- 1650 mm
- Height
- 1850 mm

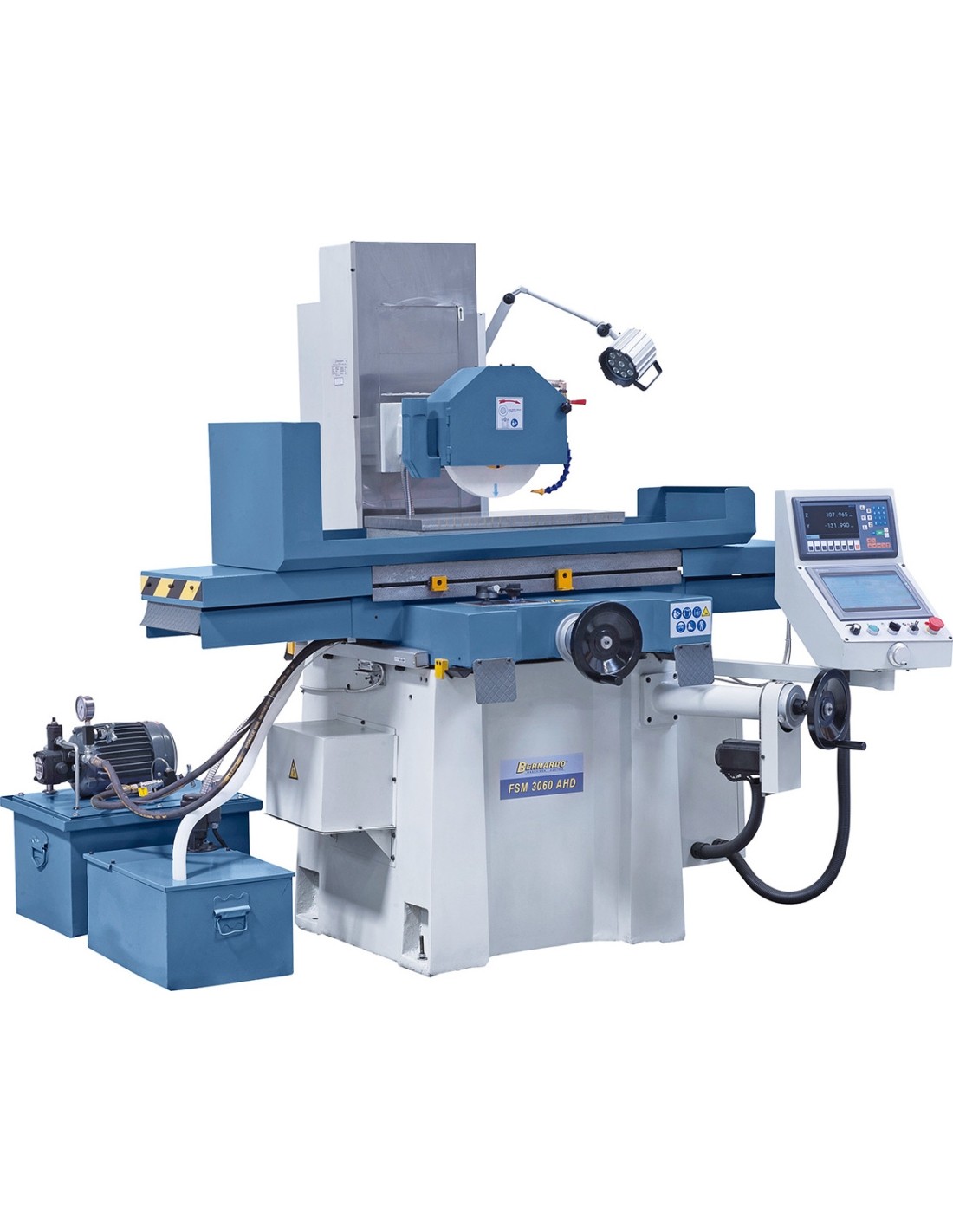

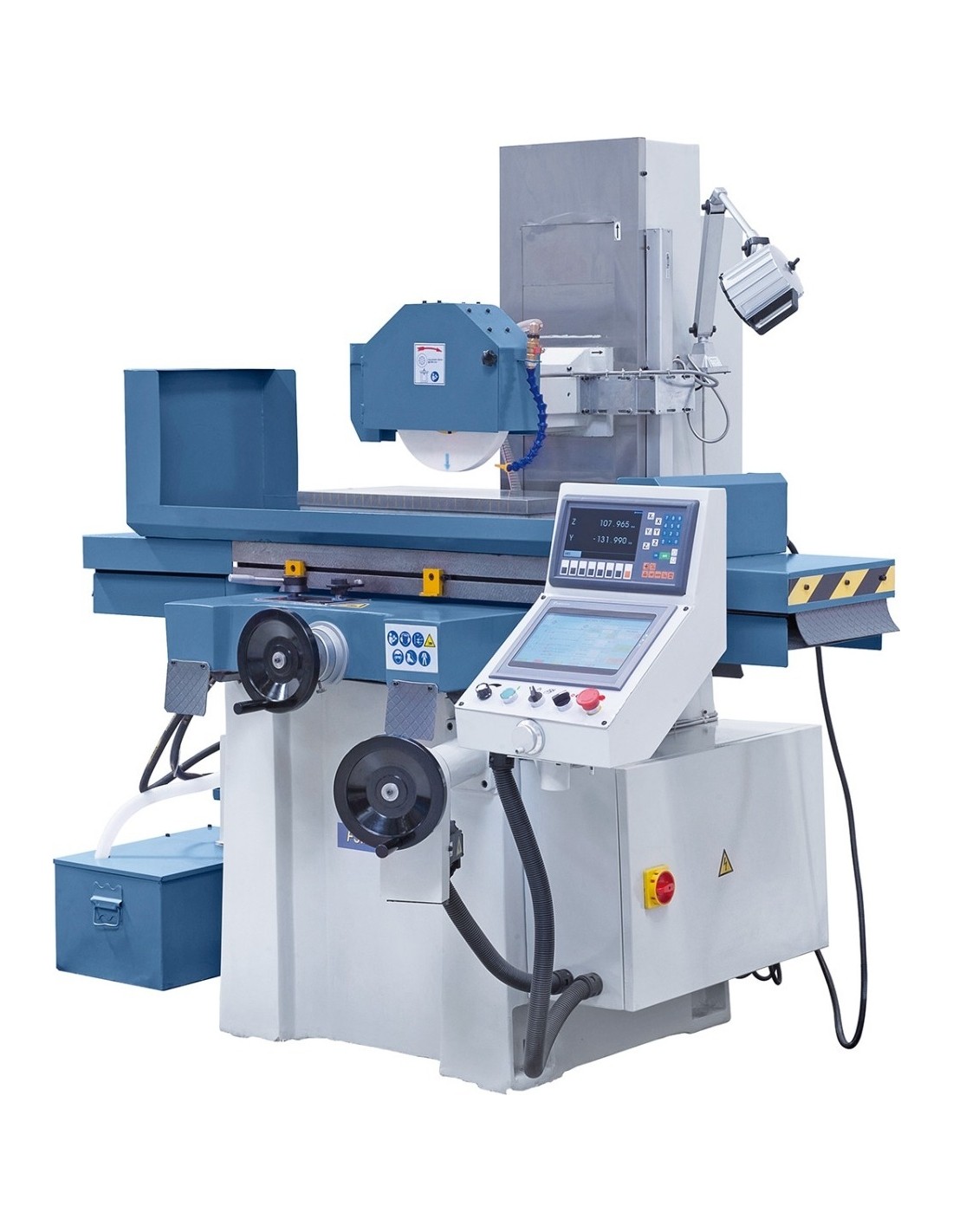

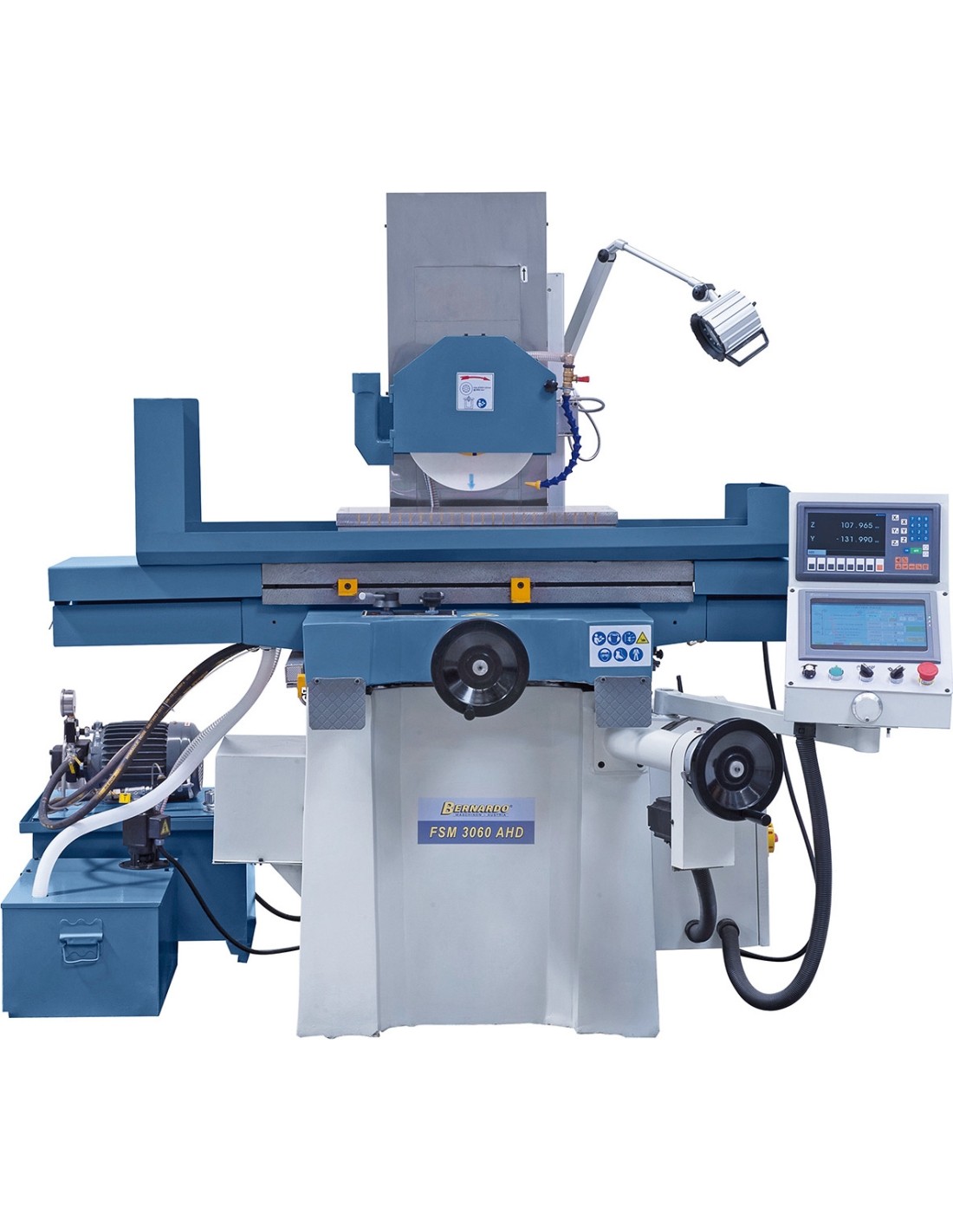

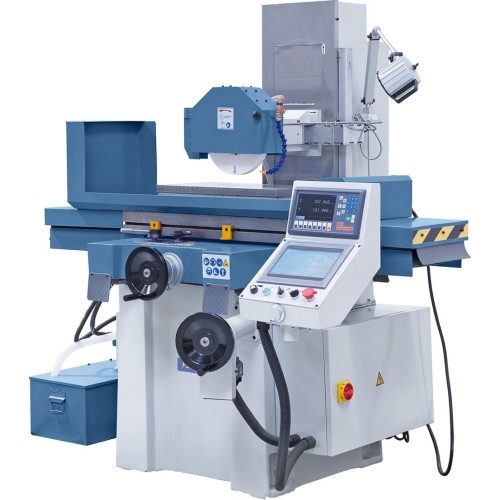

FSM 3060 AHD
1322652
€25,595.00
Tax included
Stock Quantity:
In S01 store
not available
In S02 store
not available
In Supplier store
(5+ pcs)
Delivery terms:
NEMOKAMAI atsiimkite thursday, december 5 d., parduotuvėje, Raudondvario pl. 141, Kaunas
(€0.00) Weight: 1400 kg.
Description
Properties
- Plastic-coated counter guide in x- and y-axis assure a low slip-stick-effect
- V-flat longitudinal table guide, double-V cross table guide
- Spindle features axial and radial, clearance-free, pre-tensioned bearings
- Solidly constructed and well supported structure assures high stability

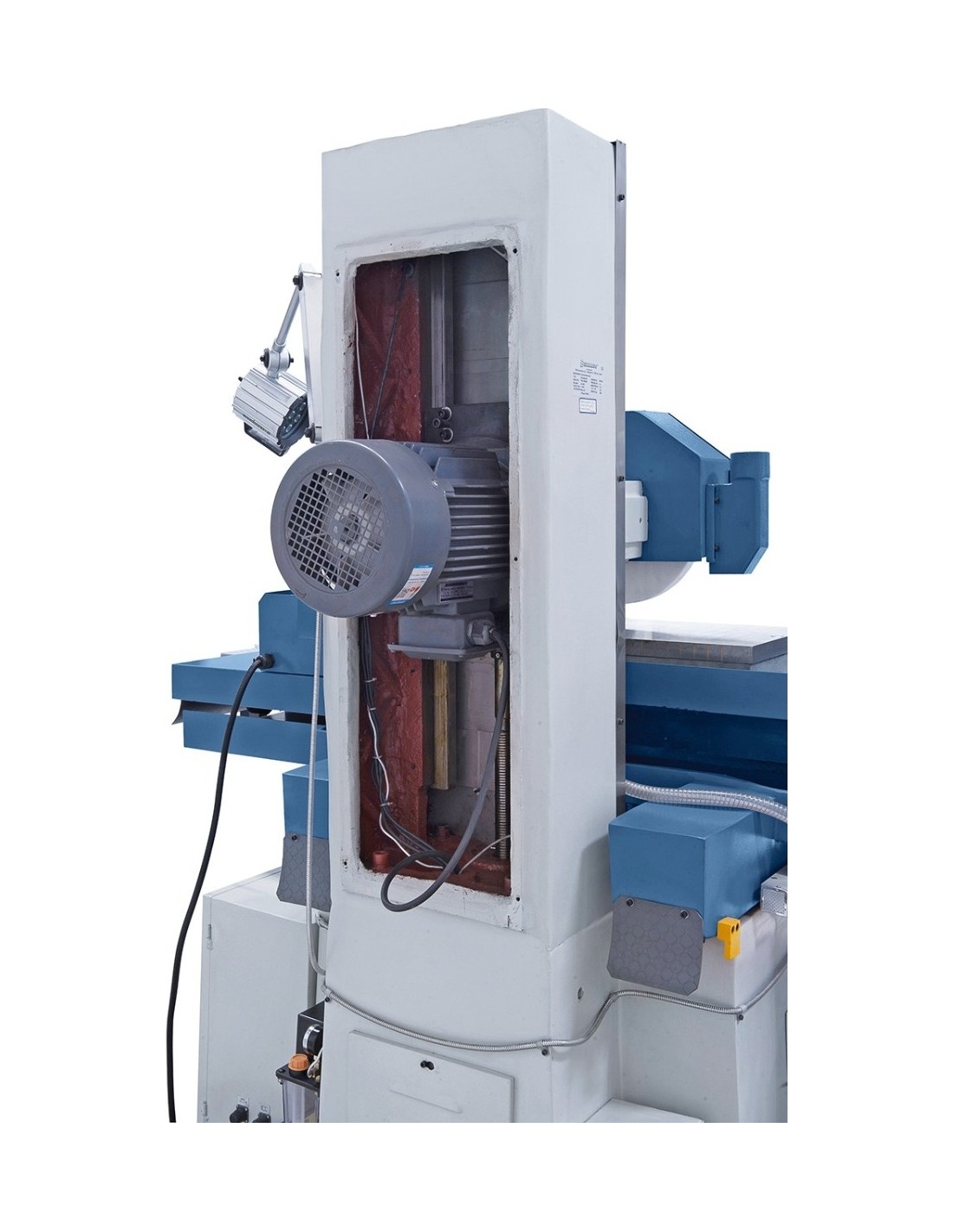

- Digitally controlled, automatic vertical feed with servo motor
- State of the art hydraulic system guarantees soft table traverse even at high work load
- Infeed via rapid feed to height of workpiece, adjustable to finishing and sparking, automatic lift at program end
- Adjustable longitudinal and cross table movement via end stops
Standard accessories

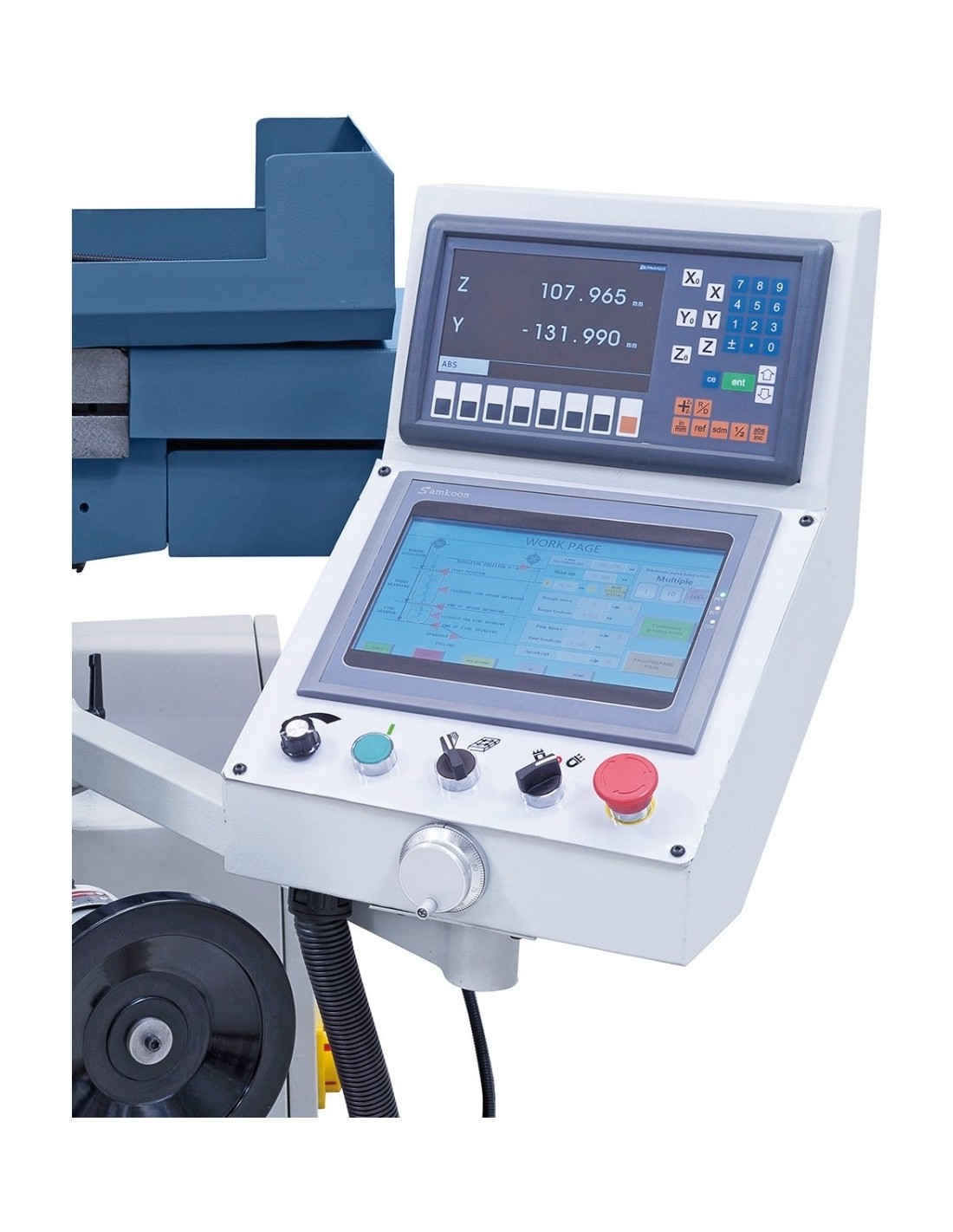

- 2-axis digital readout ES-12 H with LCD-display

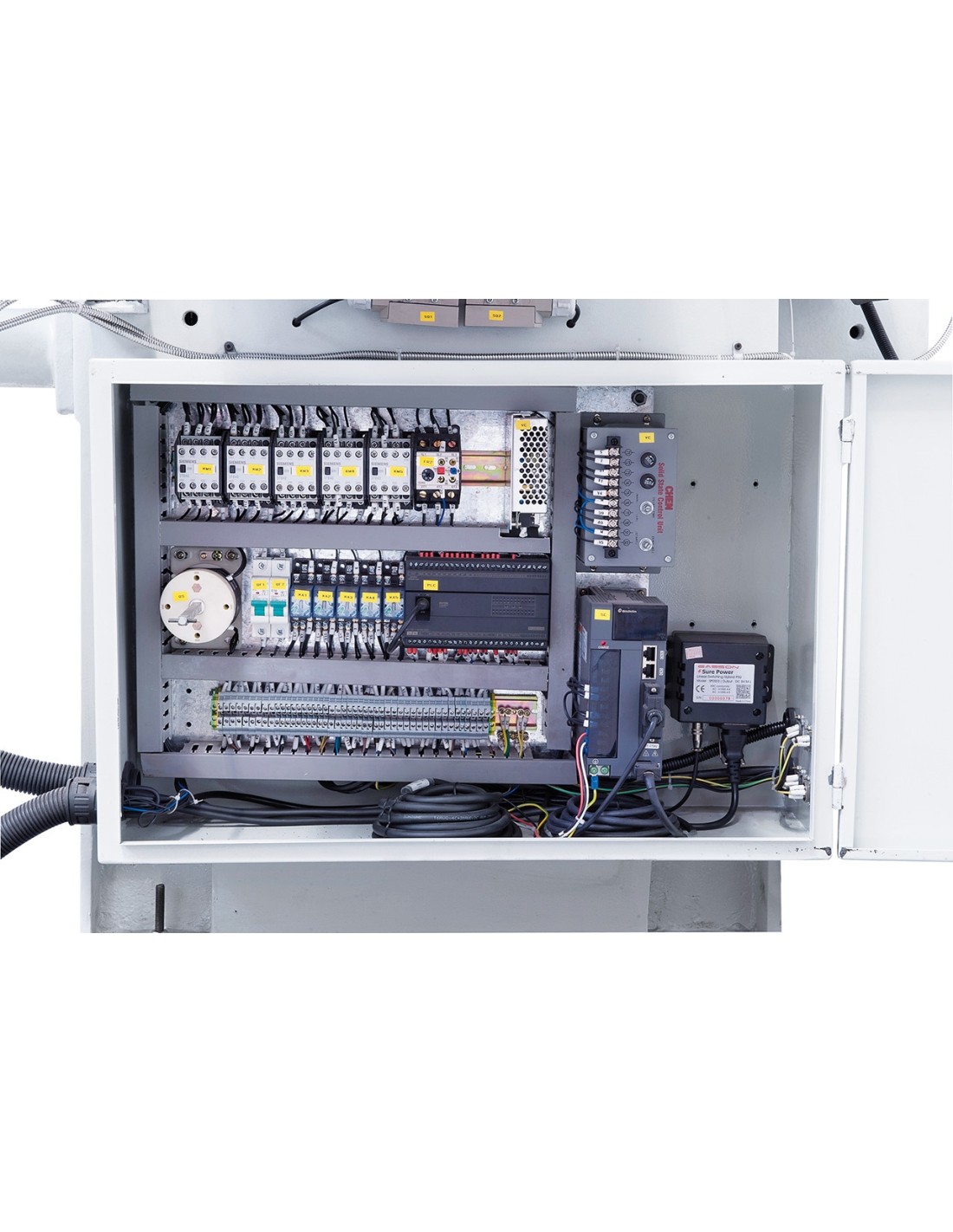

- Control with touch operation
- Electronic handwheel

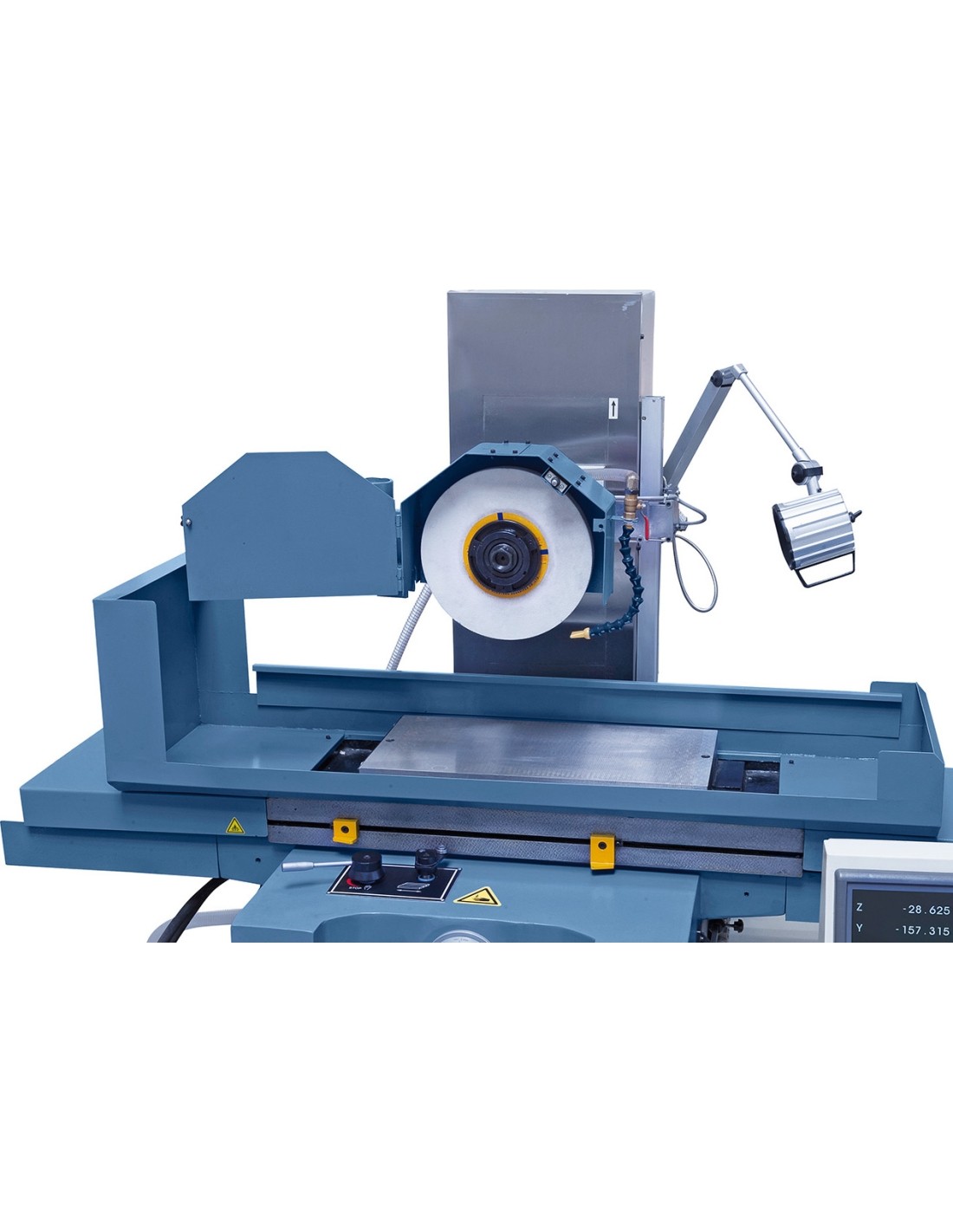

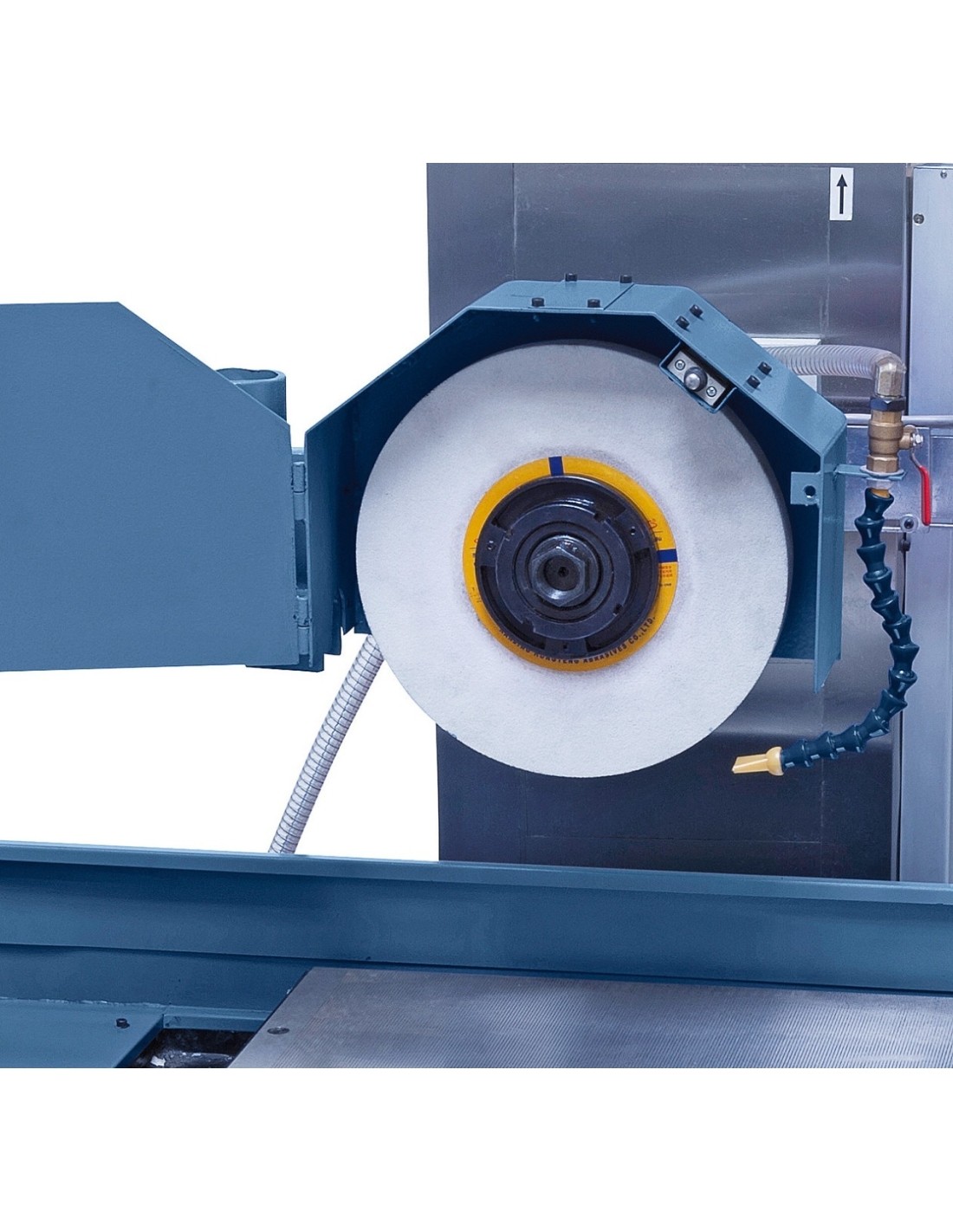

- Grinding wheel
- Flange
- LED machine light
- Electric magnet clamping plate
- Balancing stand
- Balancing arbor
- Protective covers
- Demagnetization device

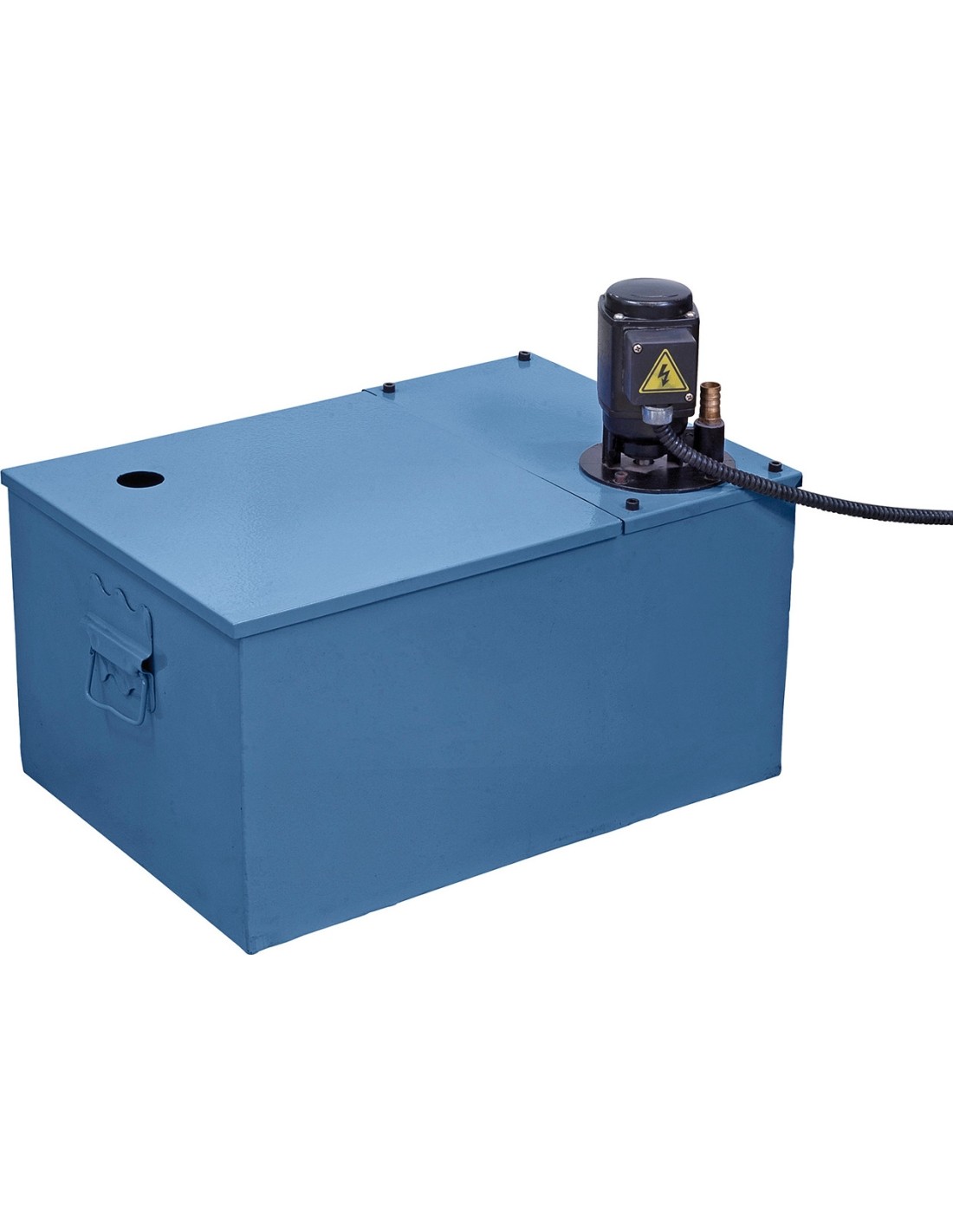

- Coolant device
- Dressing diamond
- Machine feet

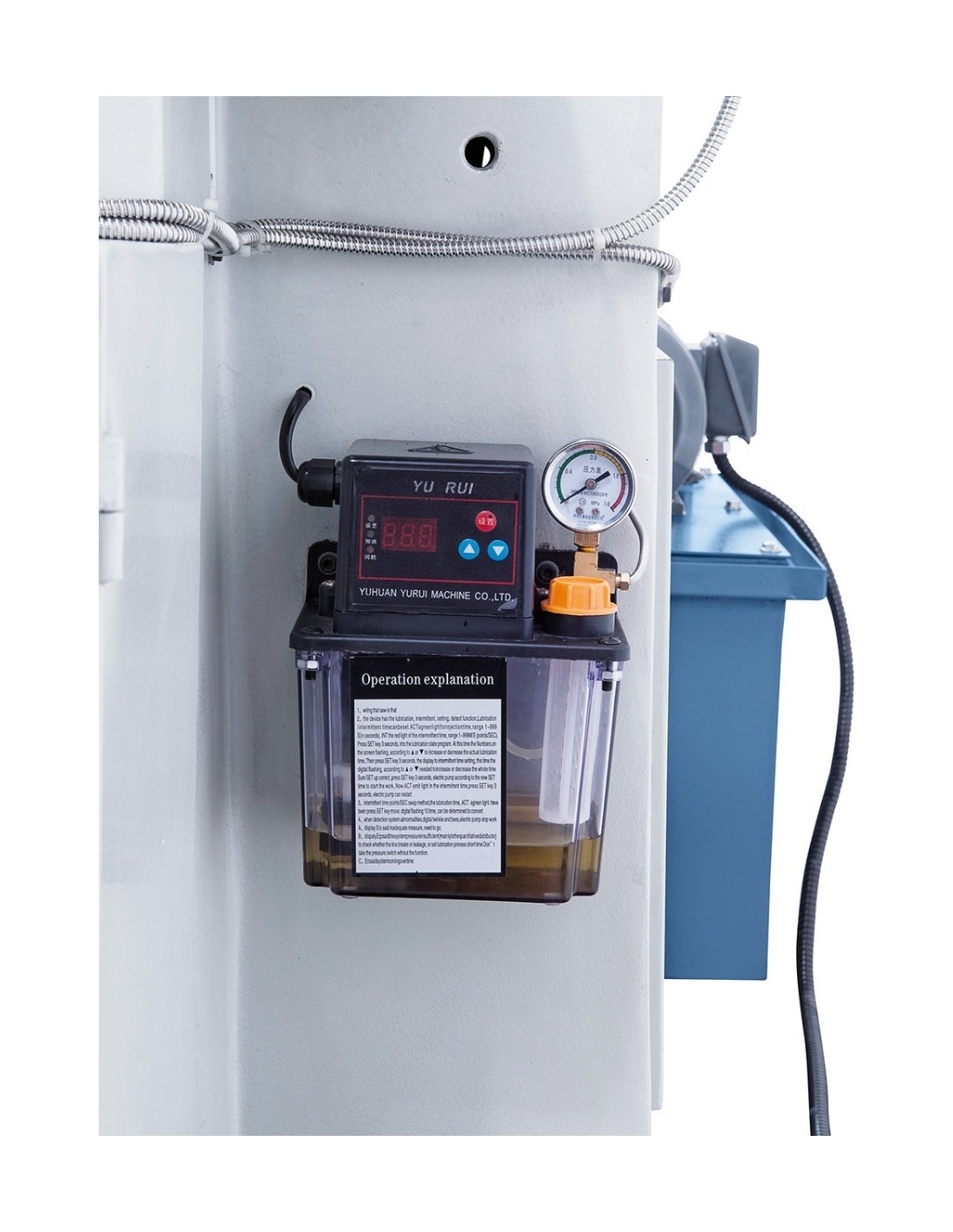

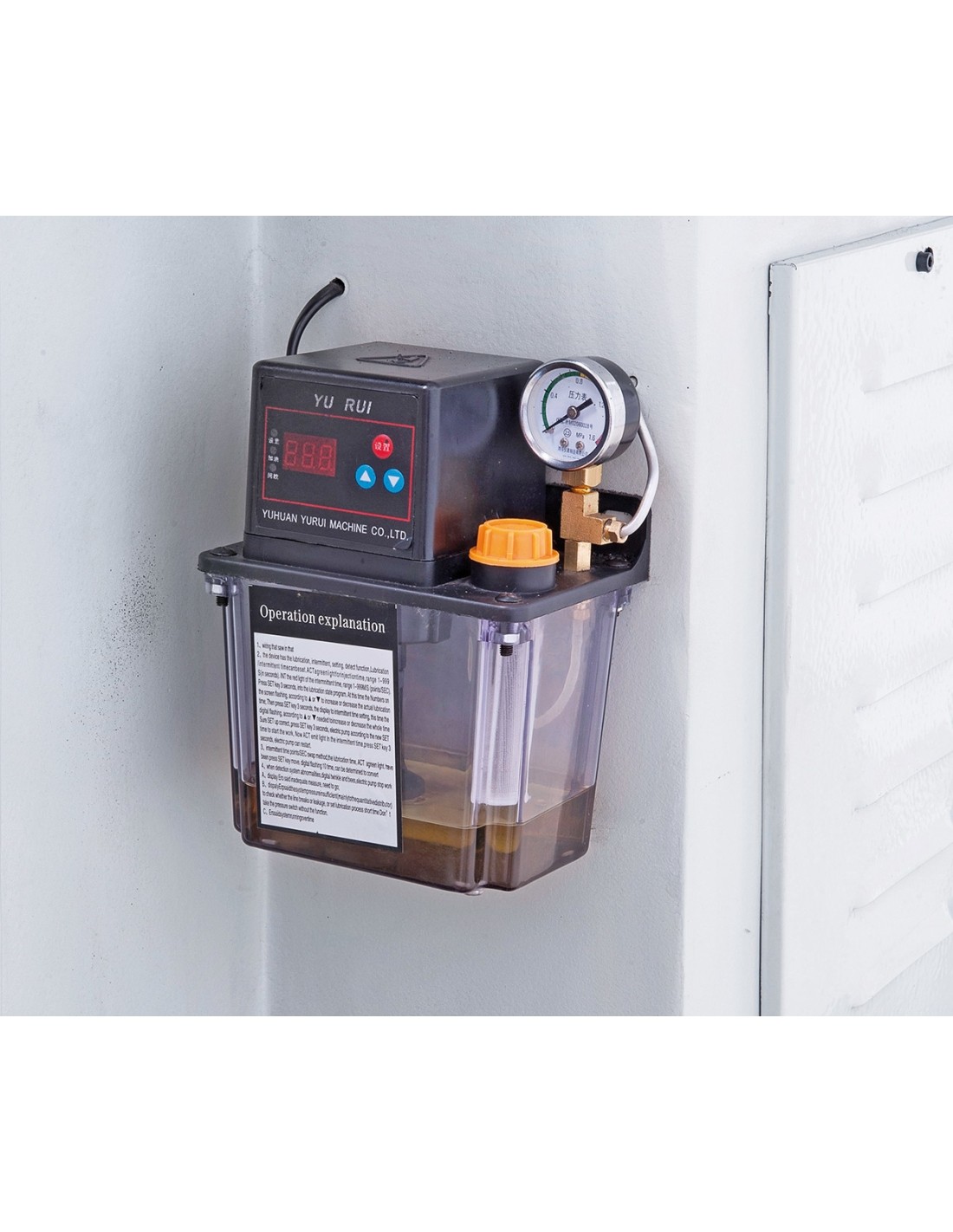

- Central lubrication
- Tools
