WARRANTY

Max. workpiece weight: 600 kg
Weight approx.: 3700 kg
Table dimensions: 405 x 1020 mm
T-slot quantity / width: 3 / 14 mm
Electric magnet clamping plate: 400 x 1000 mm
Max. travel, longitudinal: 1130 mm
Max. travel, cross: 450 mm
Max. distance spindle / table: 580 mm
Grinding wheel: 350 x 40 x 127 mm
Table speed, hydraulic: 5 - 25 m/min
Automatic adjustment, cross: 0,5 - 8 mm/Stroke
Rapid feed, cross: 990 mm/min
Adjustment per handwheel rotation: 2 mm/rev.
Scale division on handwheel: 0,005 mm
Automatic adjustment, vertical: 0,005 / 0,01 / 0,02 / 0,03 / 0,04 / 0,05 mm
Rapid feed, vertical: 480 mm/min
Motor power of sanding spindle: 4,0 kW
Spindle speed: 1450 rpm
Motor power of hydraulic pump: 2,2 kW
Motor power of vertical feed: 0,5 kW
Length: 3100 mm
Depth: 2200 mm
Height: 1900 mm
Adjustment per handhweel rotation: 5 mm/rev.

Brand

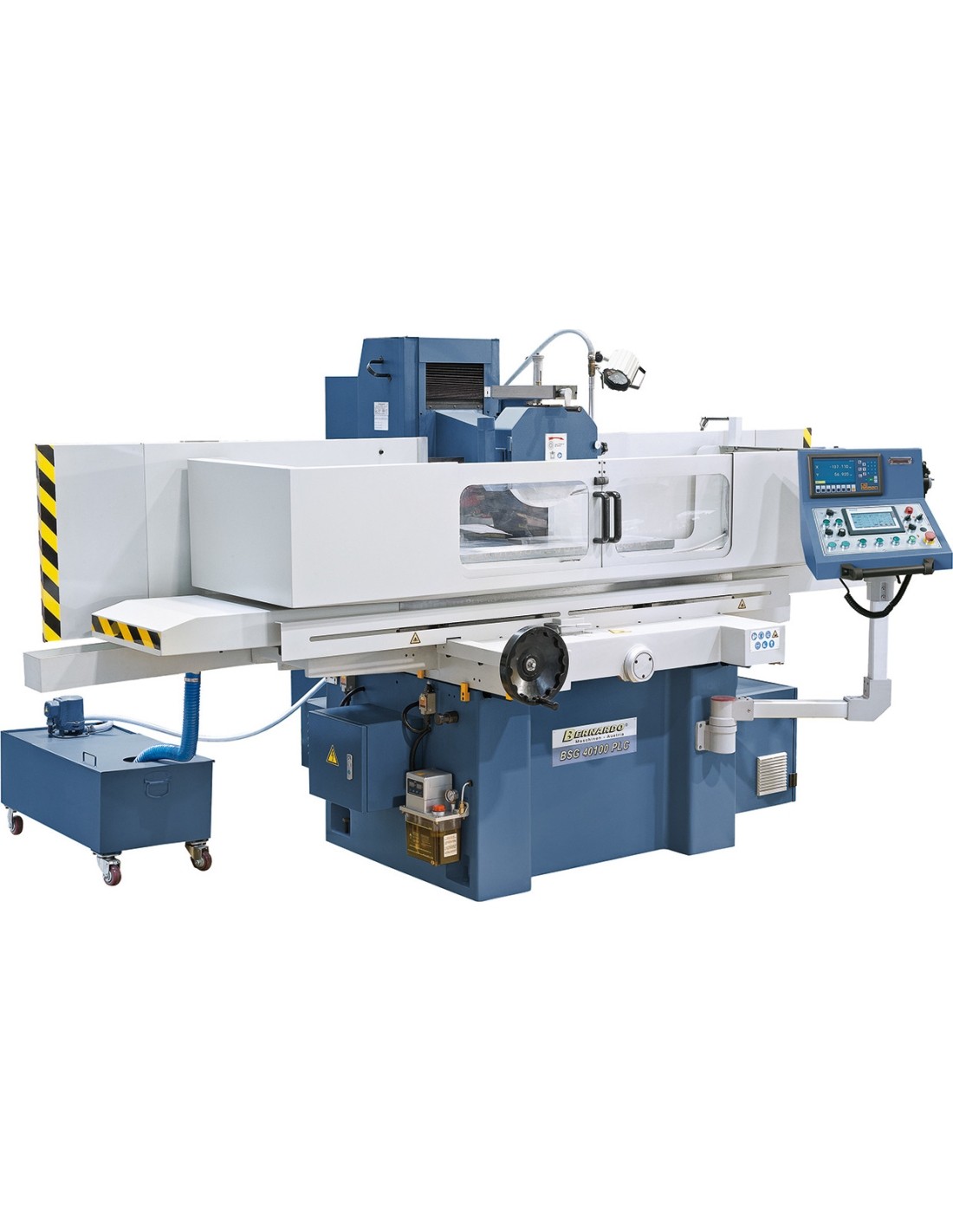

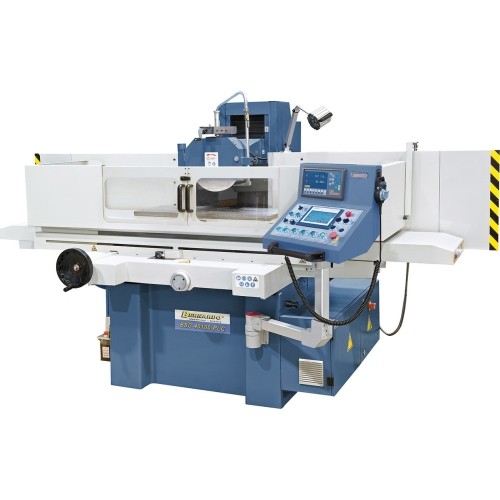

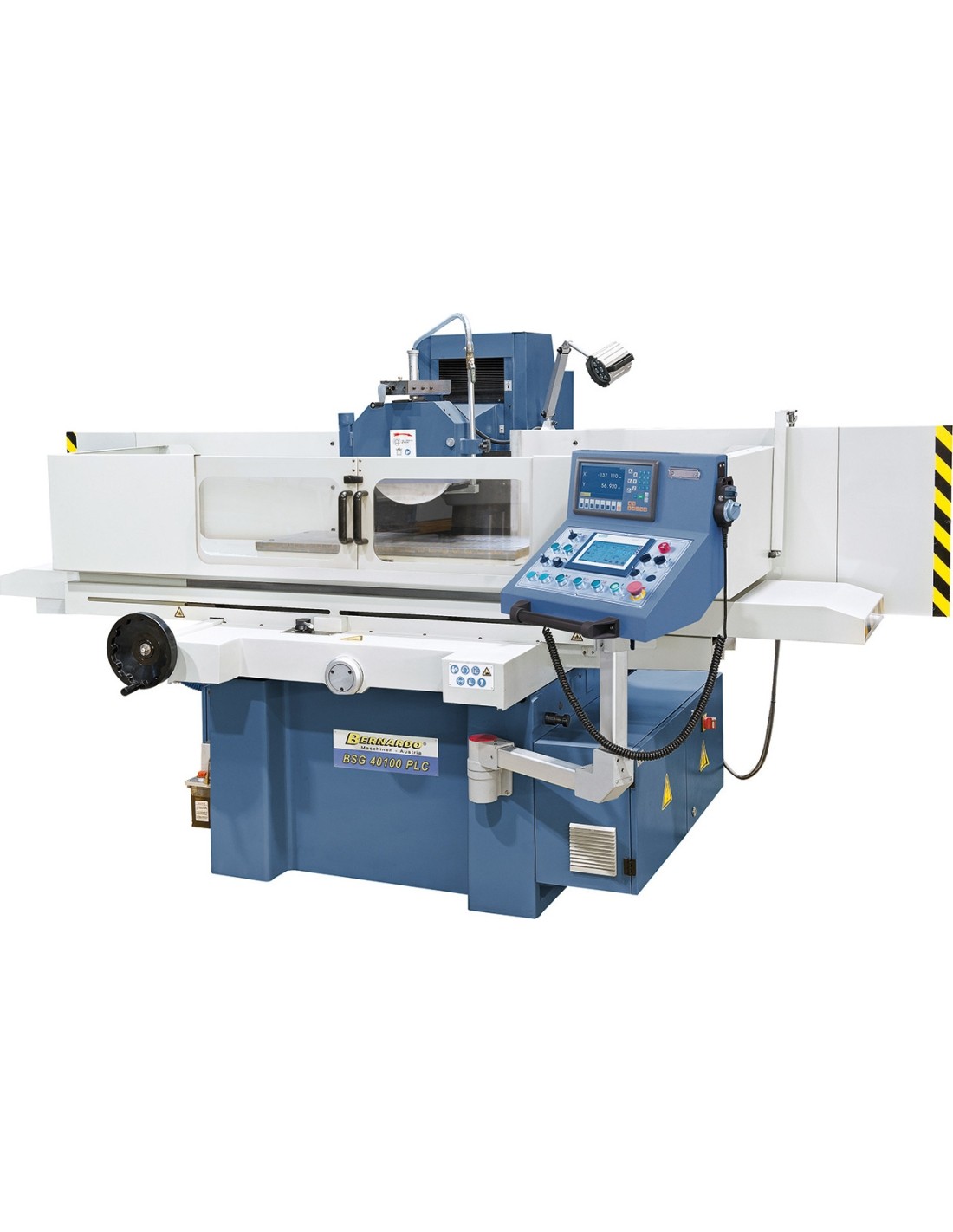

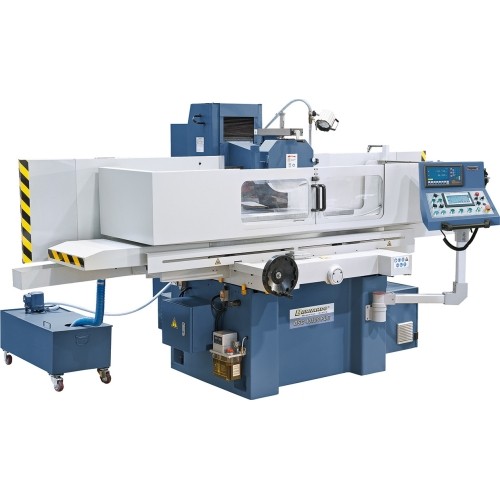

BSG 40100 PLC

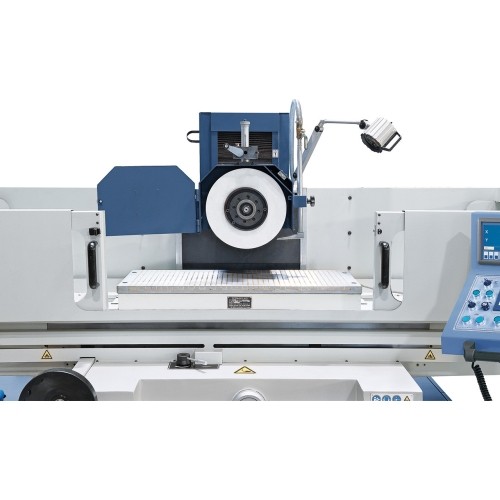

Name: BSG 40100 PLC
Brand: Bernardo
SKU: 1289833
Price: 47441 EUR
Availability: PreOrder

Reference 1289833

€47,441.00

Tax included

Stock Quantity:

In S01 store
not available

In S02 store
not available

In Supplier store
(5+ pcs)

Delivery terms:

NEMOKAMAI atsiimkite thursday, december 5 d., parduotuvėje, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 3700 kg.

Description

Properties

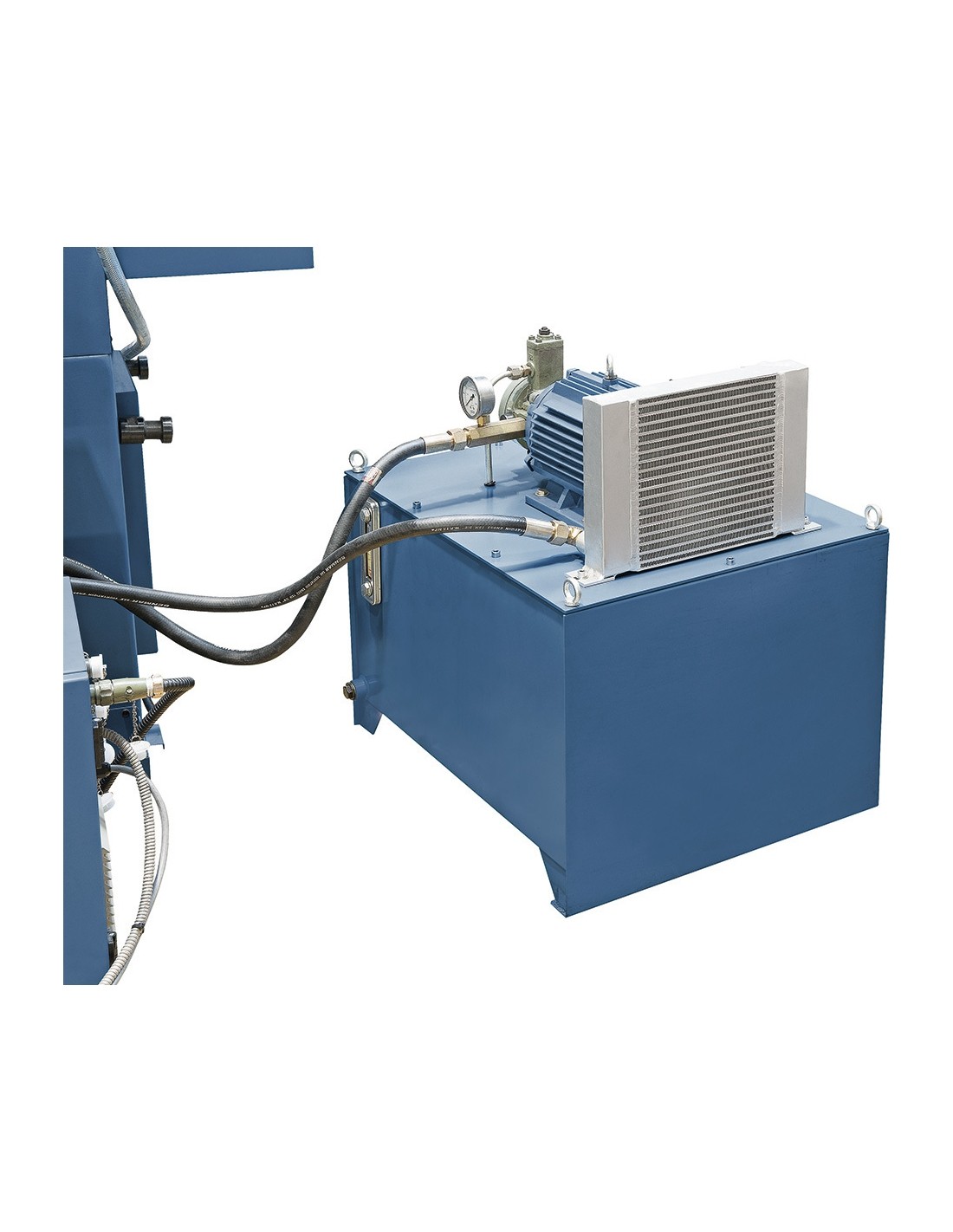

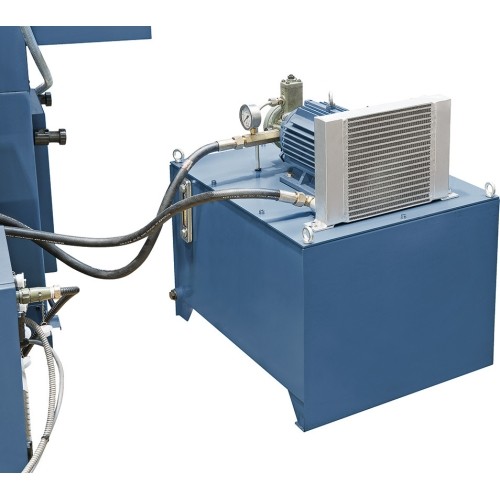

Separate hydraulic unit with heat exchanger eliminates vibrations and thermal strain
Hardened and polished table guides cross and longitudinal. Durcite- B coated counter guides ensure high rigidity and low friction
Longitudinal table guide V-flat, cross table guide double V
Computer automated feed via rapid feed to workpiece height, adjustable roughing and surface finishing stroke, automatic return into start position at end of program
Axial and radial bearings in grinding spindle are clamped clearance free
Annealed machine base guarantees high accuracy
Strong reinforcements and thick walls ensure rigidity
Digital automatic vertical feed features servo motor
End stops allow adjustable longitudinal and cross travel
State of the art hydraulic system guarantees soft table traverse even at high work load

Standard accessories

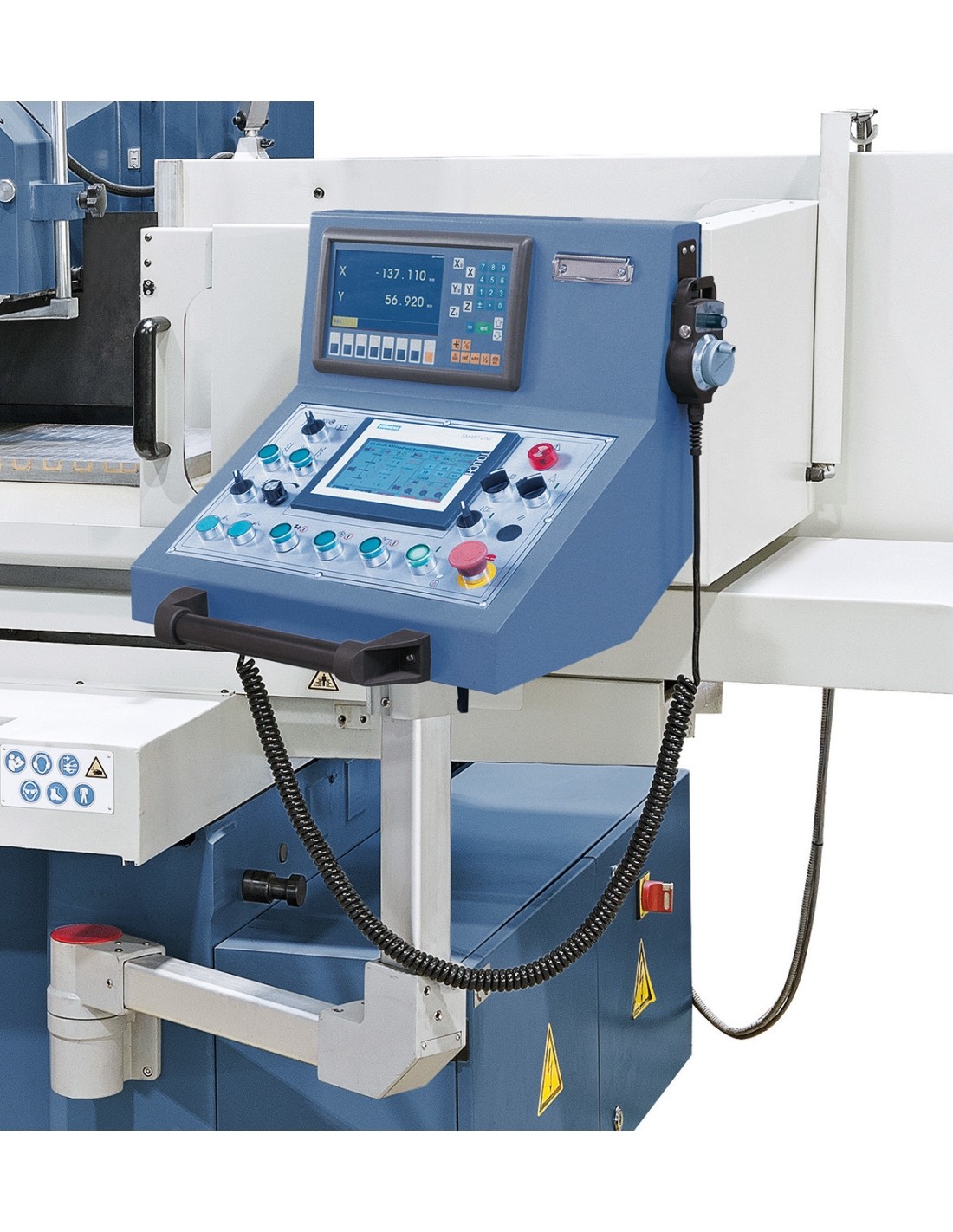

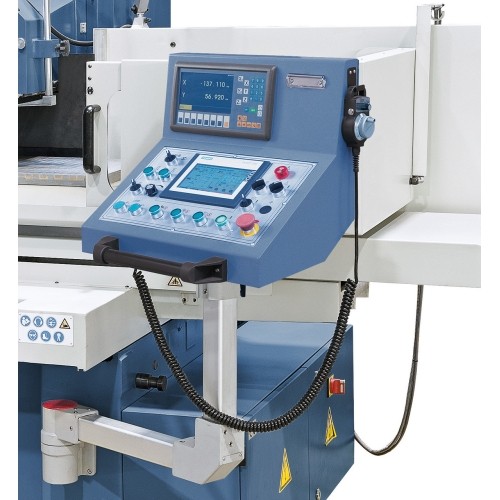

2-axis digital readout ES-12 H with LCD-display

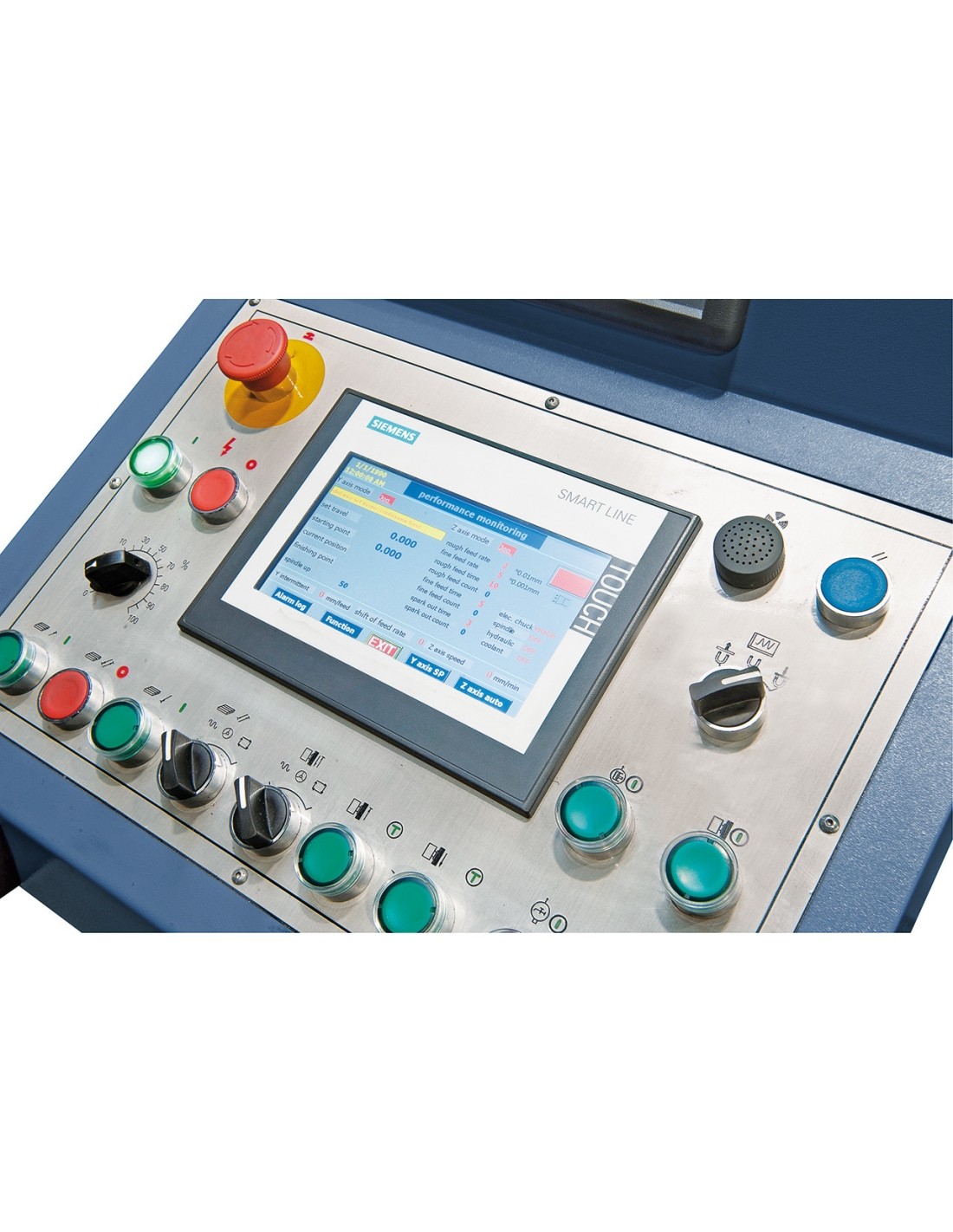

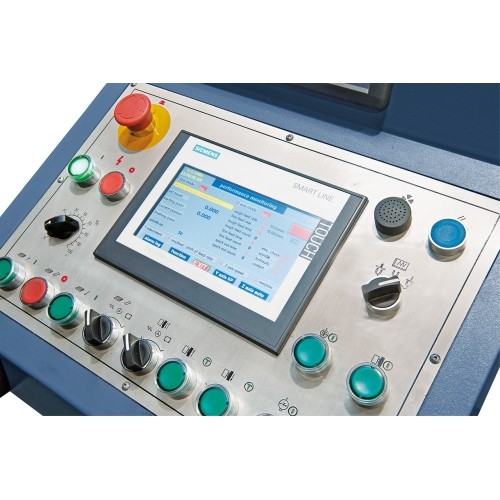

Siemens SMART-panel IE V3 with touch screen

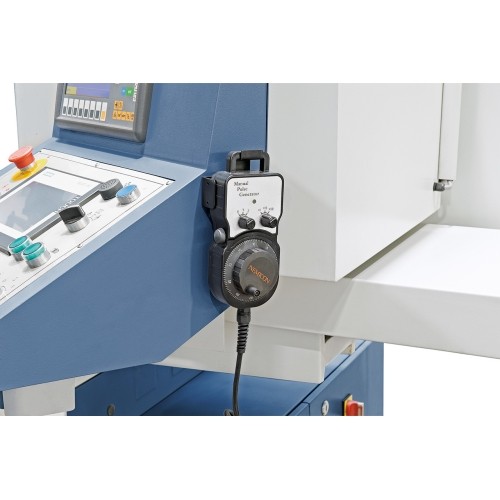

Electronic handwheel
Grinding wheel
Flange
LED machine light

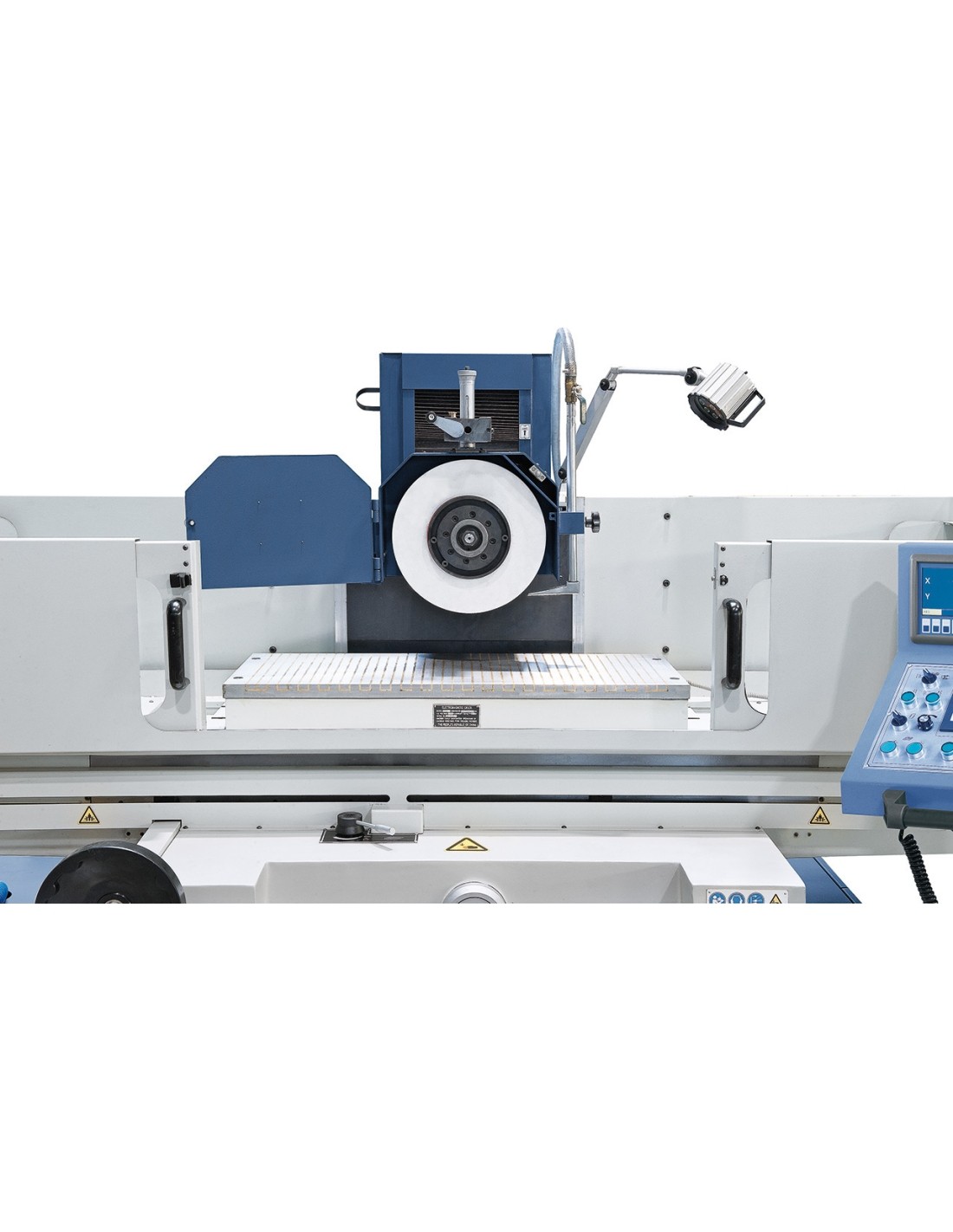

Magnetic clamping plate
Balancing stand
Balancing arbor

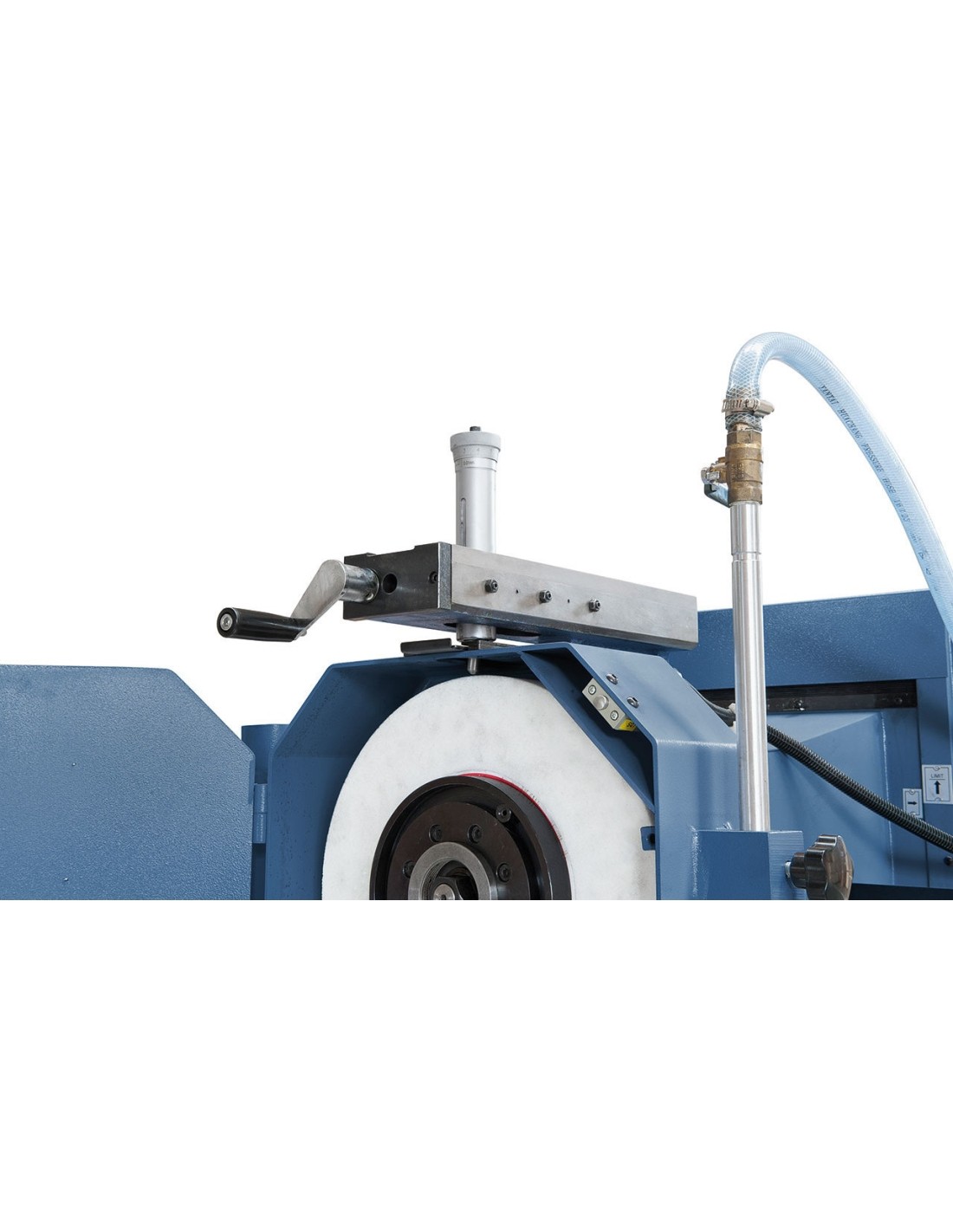

Parallel dresser
Protective covers
Demagnetization device

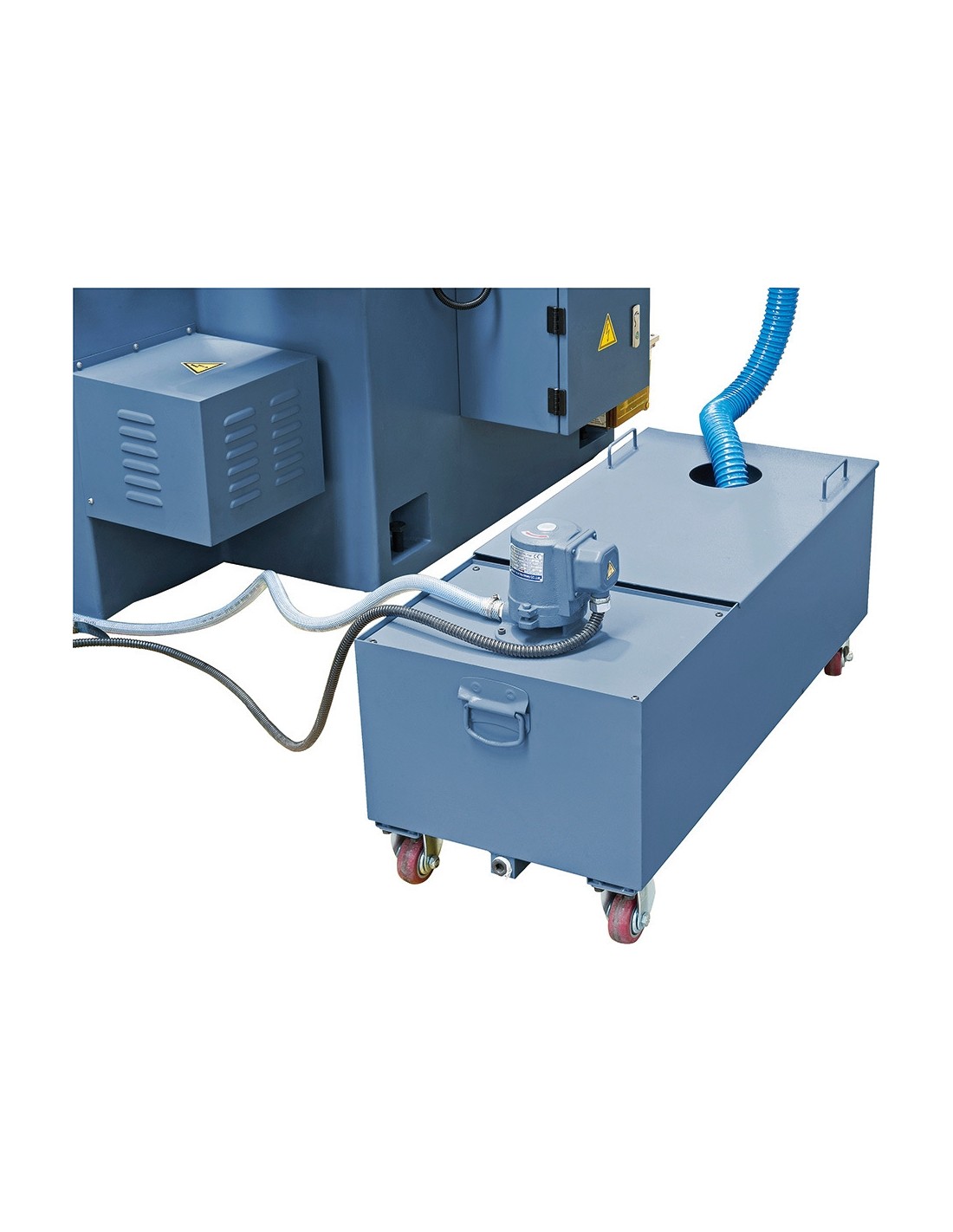

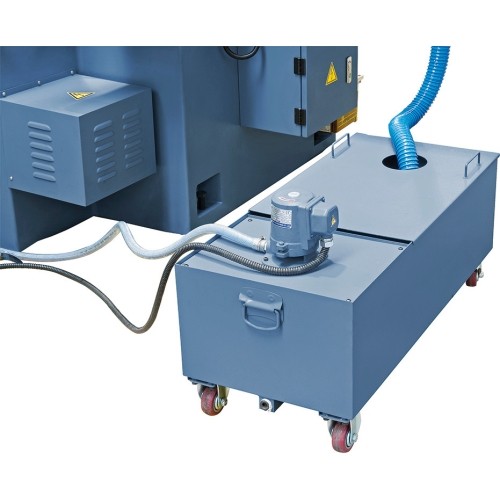

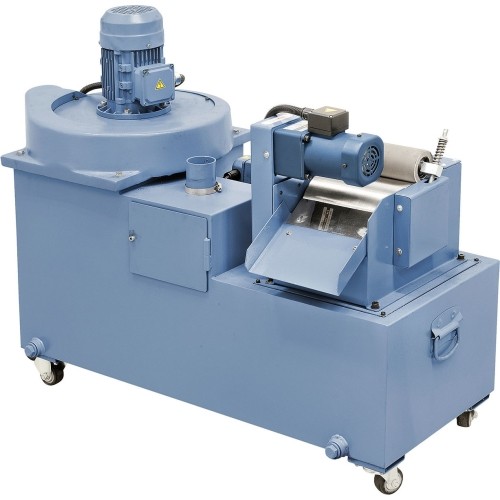

Coolant device

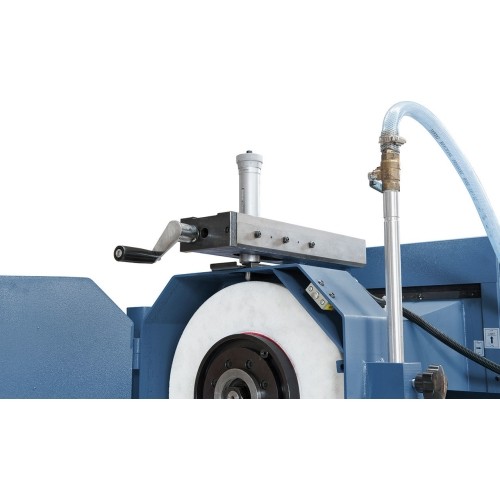

Dressing diamond
Machine feet

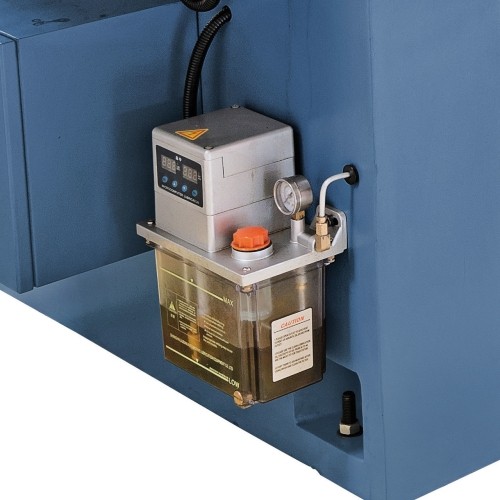

Central lubrication
Tools
