Weight approx.
750 kg
Table dimensions
500 x 210 mm
T-slot quantity / width
1 / 14 mm
Max. travel, longitudinal
530 mm
Max. travel, cross
220 mm
Max. distance spindle / table
420 mm
Grinding wheel
200 x 20 x 31,75 mm
Adjustment per handwheel rotation
1,25 mm
2,5 mm
Scale division on handwheel
0,01 mm
0,02 mm

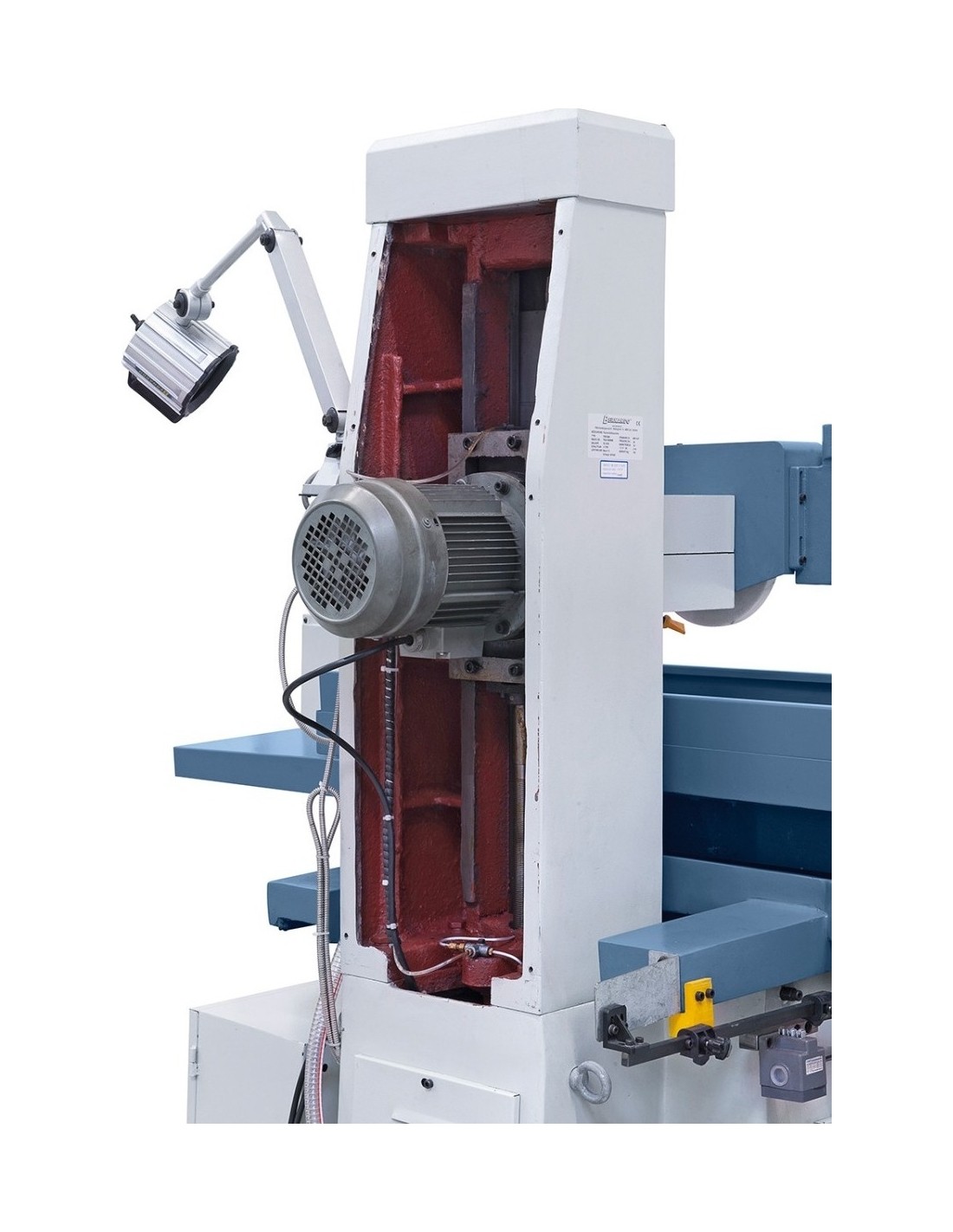

Motor power of sanding spindle
1,5 kW
Spindle speed
2800 rpm
Length
1250 mm
Depth
1400 mm
Height
1730 mm
Permanent magnet clamping plate
200 x 400 mm
Table speed, electric
0,1 – 2 m/min
3 – 20 m/min

FSM 2040

1092244
Price €16,325.00 VAT incl.

Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Manufacturer / Supplier warehouse
(10 pcs)
Delivery terms:
FREE pick up tuesday, august 4 d., in the store, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 750 kg.
We will deliver the product to you via: 5-11 w.d. Venipak (€40.99)
Weight: 750 kg.

Description

Properties

  • High quality bearings of spindle ensure vibration-free run
  • Hardened, polished linear guiding for table longitudinal movement
  • Double V-guide of cross table movement
  • Main parts, such as stand, base and apron made of high quality grey cast iron
  • Completely equipped with 2-axis digital readout and permanently magnetic clamping plate

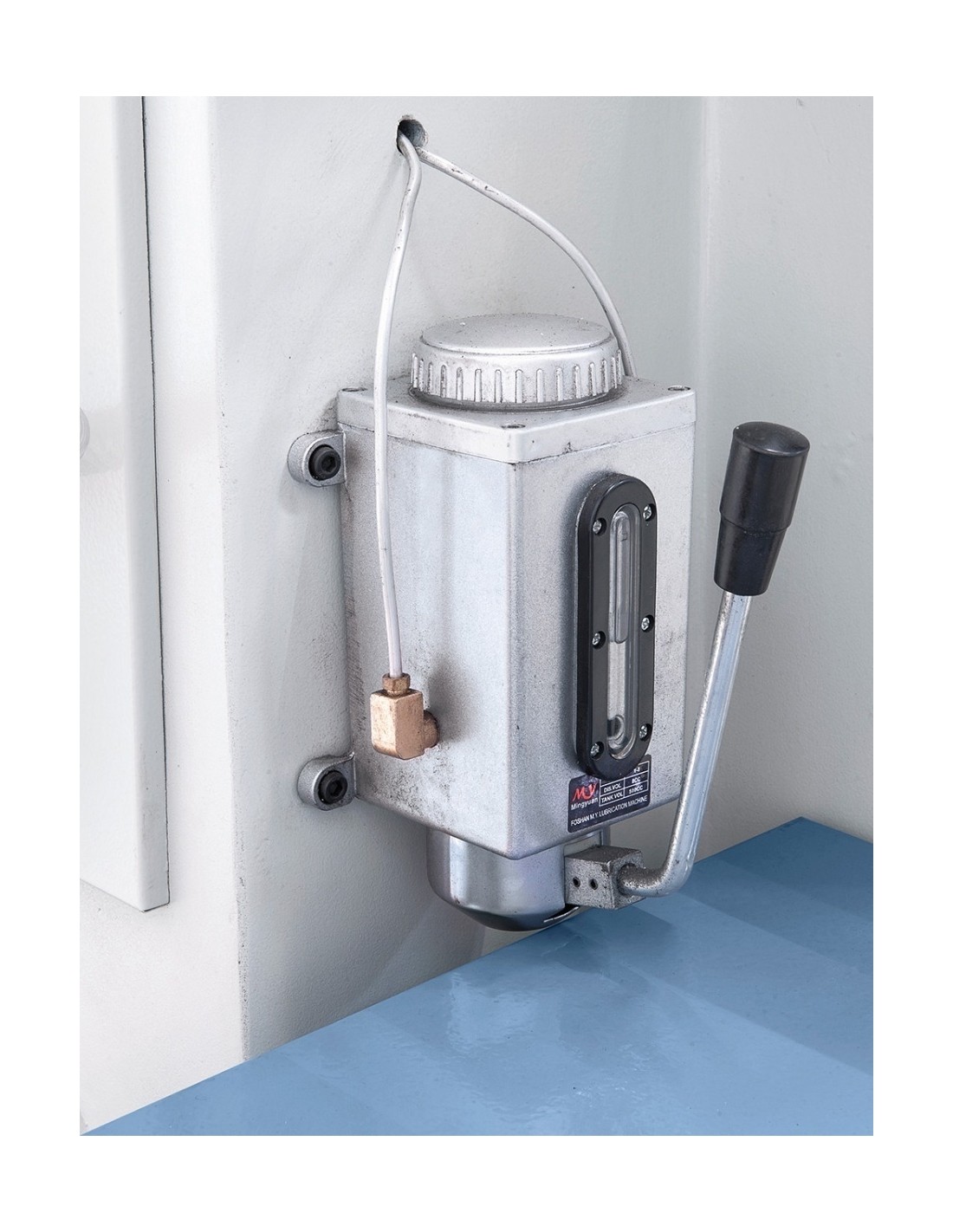

  • Central lubrication of all guide rails
  • Essential for grinding of small parts and fast grinding

Standard accessories

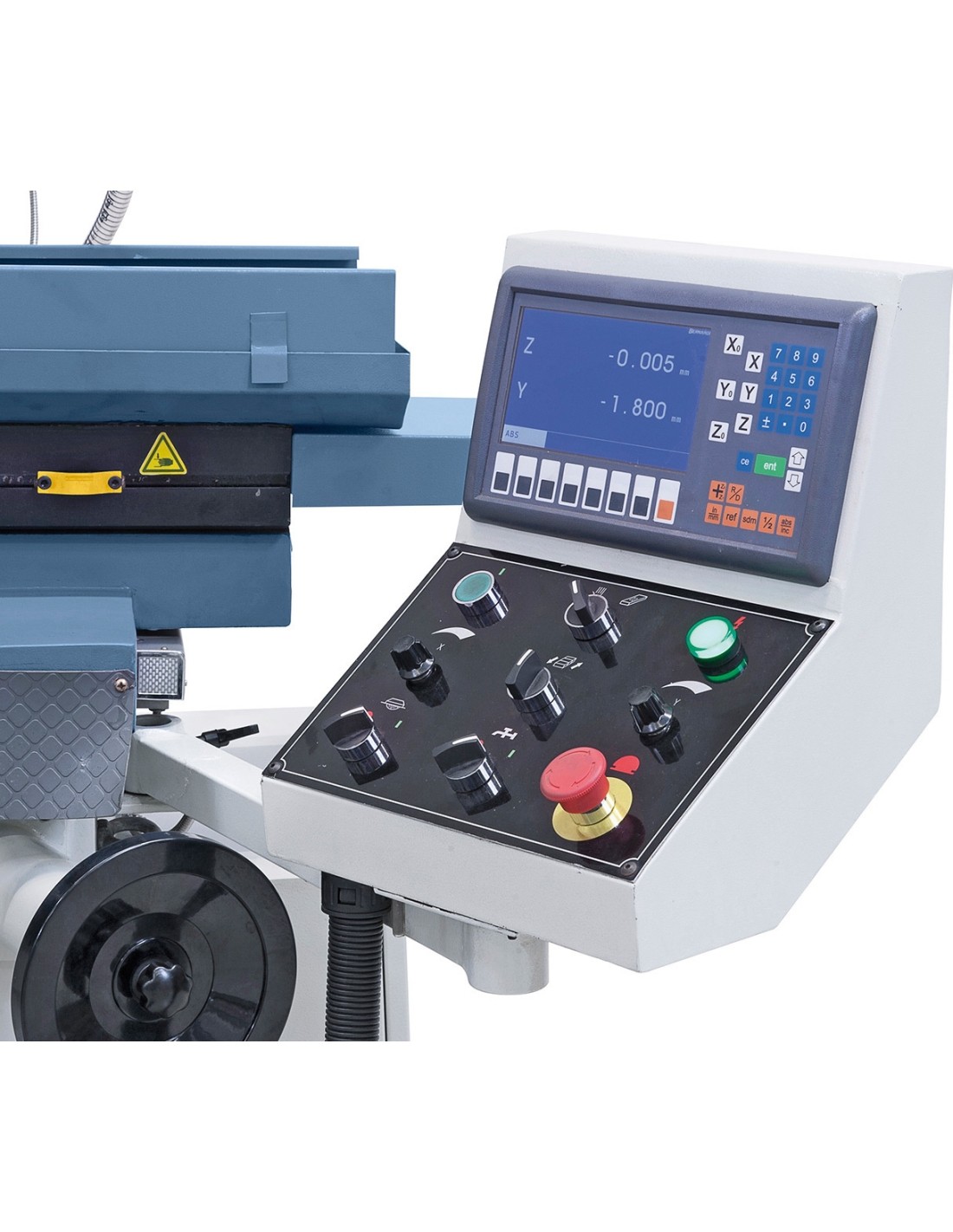

  • 2-axis digital readout ES-12 H with LCD-display

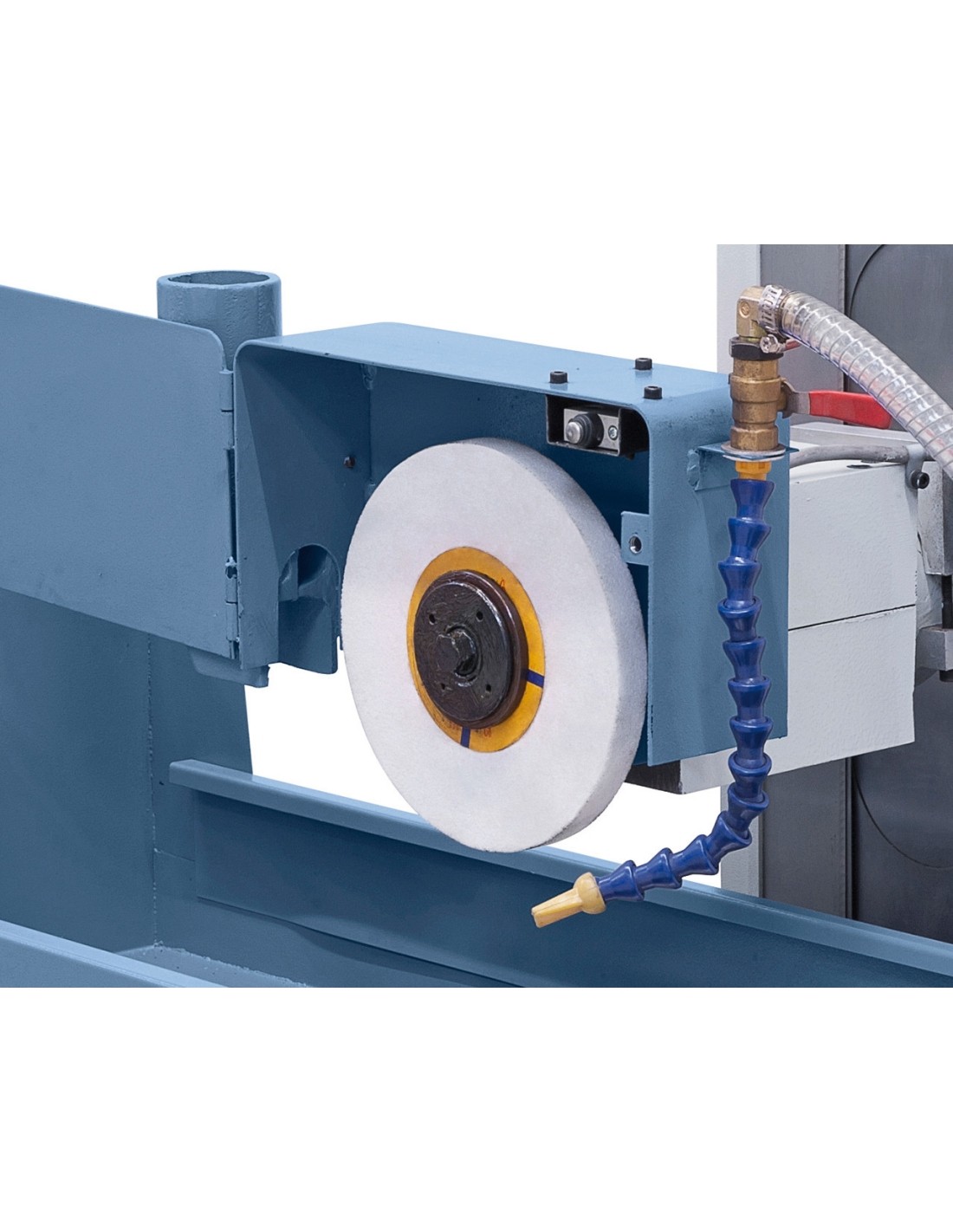

  • Grinding wheel
  • Flange
  • LED working light
  • Permanent magnet clamping plate
  • Balancing stand
  • Balancing arbor
  • Protective cover
  • Demagnetization device

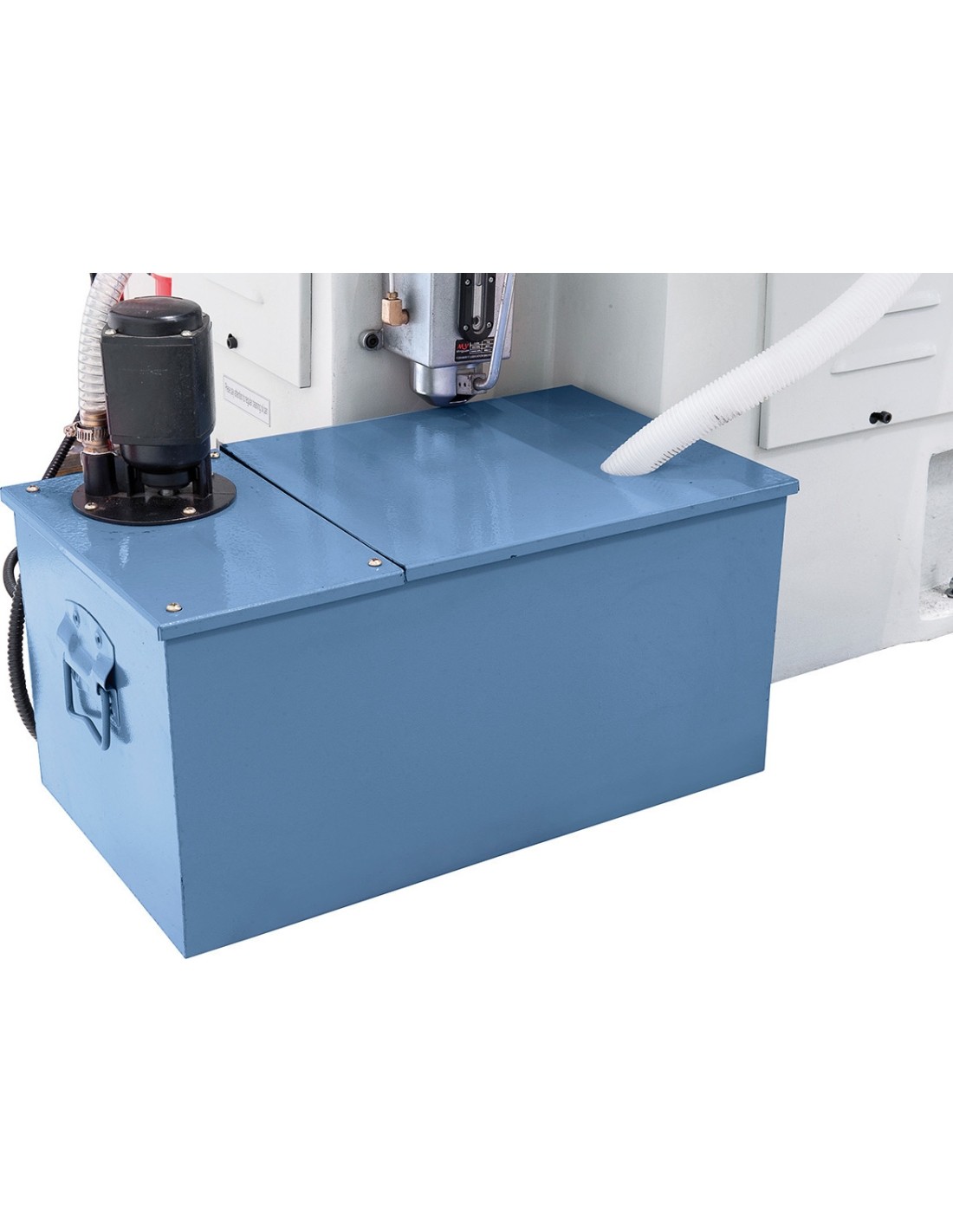

  • Coolant device
  • Dressing diamond
  • Machine feet
  • Central lubrication
  • Tools
