Max. workpiece weight
270 kg
Weight approx.
2375 kg
Table dimensions
305 x 635 mm
T-slot quantity / width
3 / 14 mm
Electric magnet clamping plate
300 x 600 mm
Max. travel, longitudinal
765 mm
Max. travel, cross
340 mm
Max. distance spindle / table
580 mm
Grinding wheel
350 x 40 x 127 mm
Table speed, hydraulic
5 - 25 m/min
Automatic adjustment, cross
0,5 - 8 mm/Stroke
Rapid feed, cross
990 mm/min
Adjustment per handwheel rotation
5 mm/rev.
Scale division on handwheel
0,005 mm
0,02 mm
Automatic adjustment, vertical
0,005 / 0,01 / 0,02 / 0,03 / 0,04 / 0,05 mm
Rapid feed, vertical
480 mm/min
Adjustment per handhwheel rotation
2 mm/rev.
Motor power of sanding spindle
4,0 kW
Spindle speed
1450 rpm
Motor power of hydraulic pump
2,2 kW
Motor power of vertical feed
0,5 kW
Length
2350 mm
Depth
2220 mm
Height
1910 mm

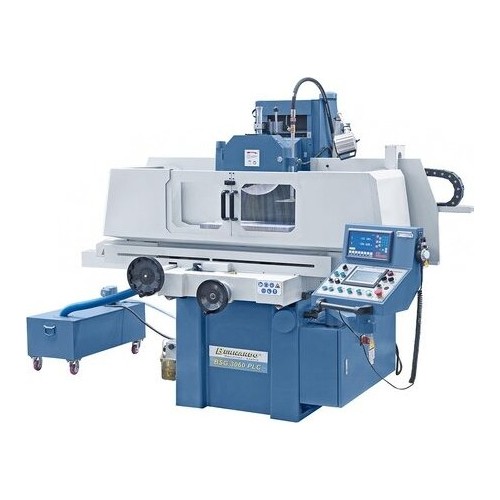

BSG 3060 PLC

1322659
Price €46,988.00 VAT incl.

Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Supplier store
(10 pcs)
Delivery terms:
FREE pick up wednesday, july 15 d., in the store, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 2375 kg.

Description

Properties

  • Plastic-coated counter guide in x- and y-axis assure a low slip-stick-effect
  • V-flat longitudinal table guide, double-V cross table guide
  • Spindle features axial and radial, clearance-free, pre-tensioned bearings

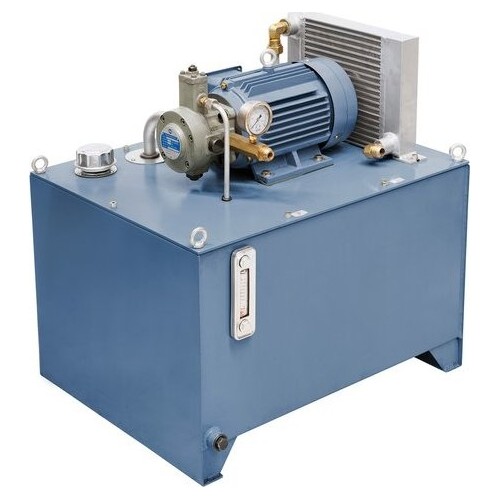

  • Seperate hydraulic unit with heat exchanger to omit vibrations and thermal load
  • Special hydraulic system guarantees gentle table adjustment even at full load
  • Solidly constructed and well supported structure assures high stability
  • Digitally controlled, automatic vertical feed with servo motor
  • Infeed via rapid feed to height of workpiece, adjustable to finishing and sparking, automatic lift at program end
  • Adjustable longitudinal and cross table movement via end stops

Standard accessories

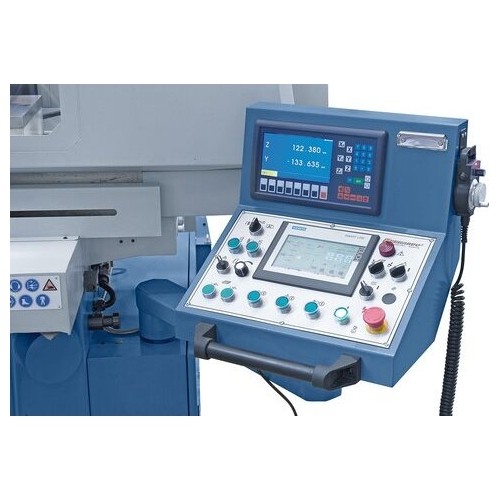

  • 2-axis digital readout ES-12 H with LCD-display

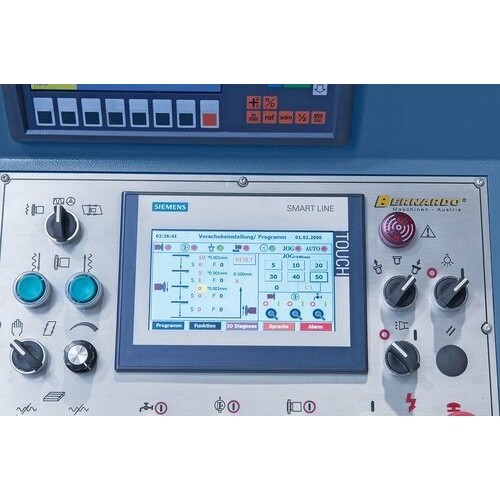

  • Siemens SMART-panel IE V3 with touch screen

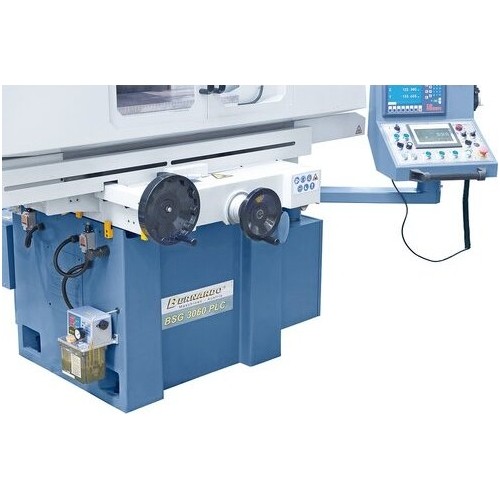

  • Electronic handwheel

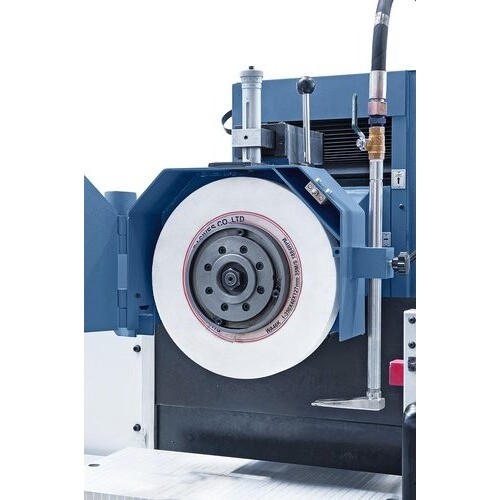

  • Grinding wheel
  • Flange
  • LED machine light
  • Magnetic clamping plate
  • Balancing stand
  • Balancing arbor

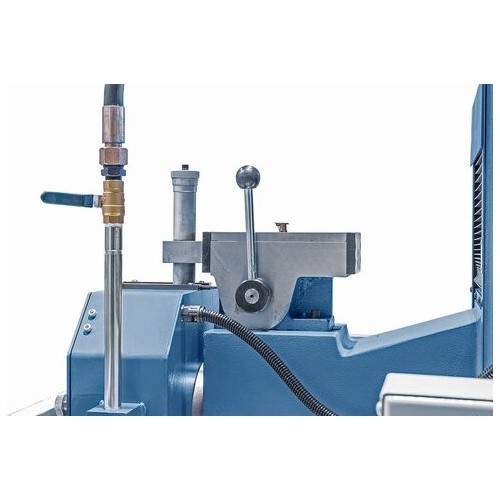

  • Parallel dresser
  • Protective covers

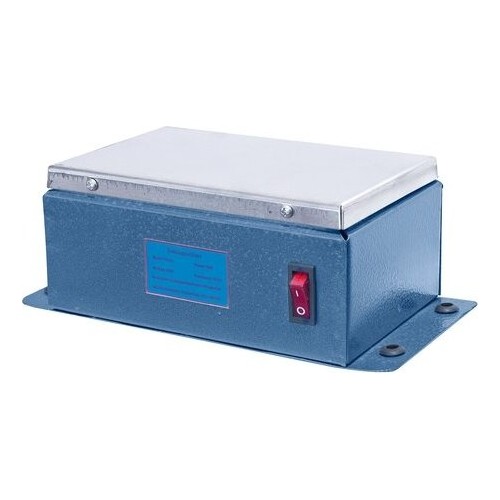

  • Demagnetization device

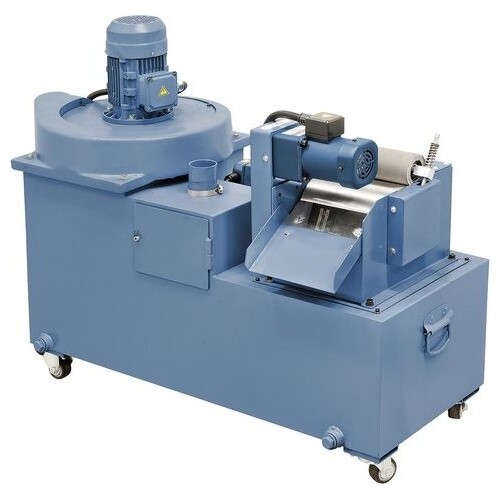

  • Coolant device
  • Dressing diamond
  • Machine feet

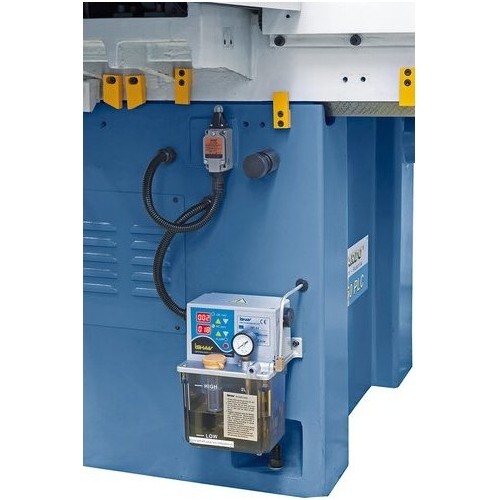

  • Central lubrication
  • Tools
