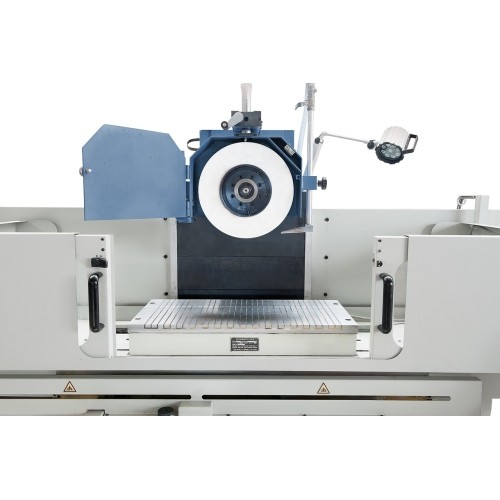

BSG 4080 PLC
BSG 4080 PLC
BSG 4080 PLC
BSG 4080 PLC
BSG 4080 PLC
BSG 4080 PLC
BSG 4080 PLC
BSG 4080 PLC
BSG 4080 PLC
  • Online only
BSG 4080 PLC
BSG 4080 PLC
BSG 4080 PLC
BSG 4080 PLC
BSG 4080 PLC
BSG 4080 PLC
BSG 4080 PLC
BSG 4080 PLC
BSG 4080 PLC

Max. workpiece weight
500 kg
Weight approx.
3400 kg
Table dimensions
405 x 815 mm
T-slot quantity / width
3 / 14 mm
Electric magnet clamping plate
400 x 800 mm
Max. travel, longitudinal
900 mm
Max. travel, cross
450 mm
Max. distance spindle / table
580 mm
Grinding wheel
350 x 40 x 127 mm
Table speed, hydraulic
5 - 25 m/min
Automatic adjustment, cross
0,5 - 8 mm/Stroke
Rapid feed, cross
990 mm/min
Adjustment per handwheel rotation
2 mm/rev.
Scale division on handwheel
0,005 mm
0,02 mm
Automatic adjustment, vertical
0,005 / 0,01 / 0,02 / 0,03 / 0,04 / 0,05 mm
Rapid feed, vertical
480 mm/min
Motor power of sanding spindle
4,0 kW
Spindle speed
1450 rpm
Motor power of hydraulic pump
2,2 kW
Motor power of vertical feed
0,5 kW
Length
2650 mm
Depth
2200 mm
Height
1900 mm
Adjustment per handhweel rotation
5 mm/rev.

BSG 4080 PLC

1363415
Price €55,968.00 VAT incl.

Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Supplier store
(10 pcs)
Delivery terms:
FREE pick up wednesday, july 15 d., in the store, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 3400 kg.

Description

Properties

  • Separate hydraulic unit with heat exchanger eliminates vibrations and thermal strain
  • Hardened and polished table guides cross and longitudinal. Durcite- B coated counter guides ensure high rigidity and low friction
  • Longitudinal table guide V-flat, cross table guide double V
  • Computer automated feed via rapid feed to workpiece height, adjustable roughing and surface finishing stroke, automatic return into start position at end of program
  • Axial and radial bearings in grinding spindle are clamped clearance free
  • Annealed machine base guarantees high accuracy
  • Strong reinforcements and thick walls ensure rigidity
  • Digital automatic vertical feed features servo motor
  • End stops allow adjustable longitudinal and cross travel
  • State of the art hydraulic system guarantees soft table traverse even at high work load

Standard accessories

  • 2-axis digital readout ES-12 H with LCD-display

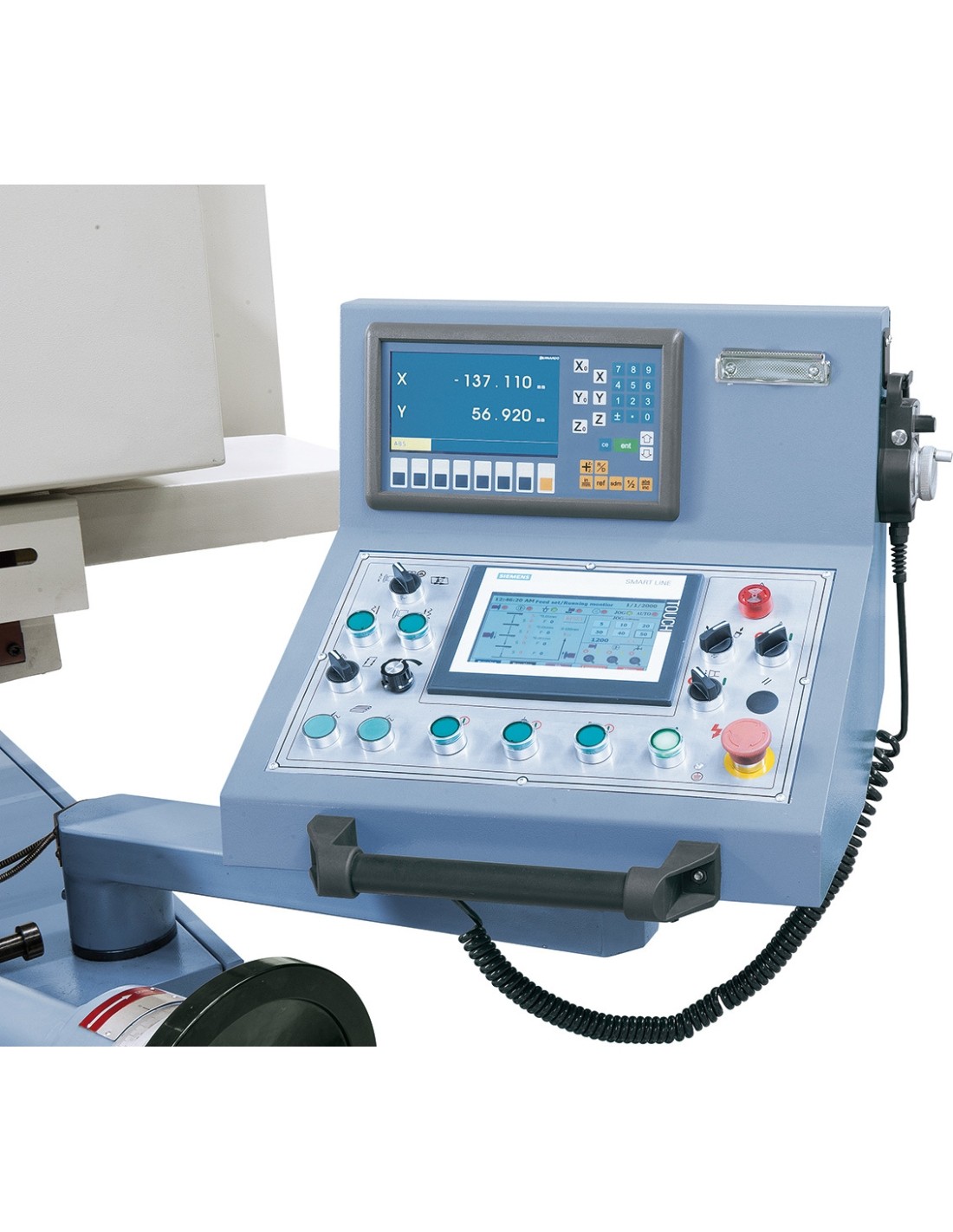

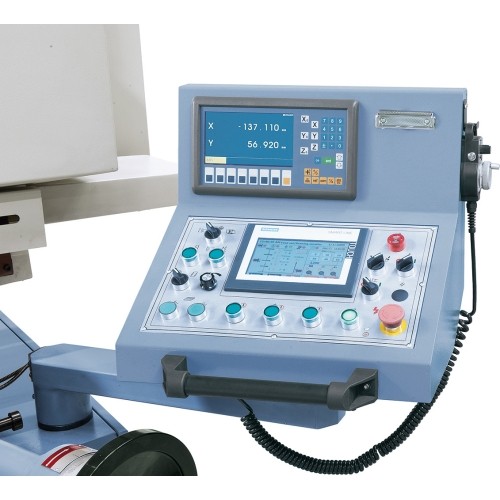

  • Siemens SMART-panel IE V3 with touch screen

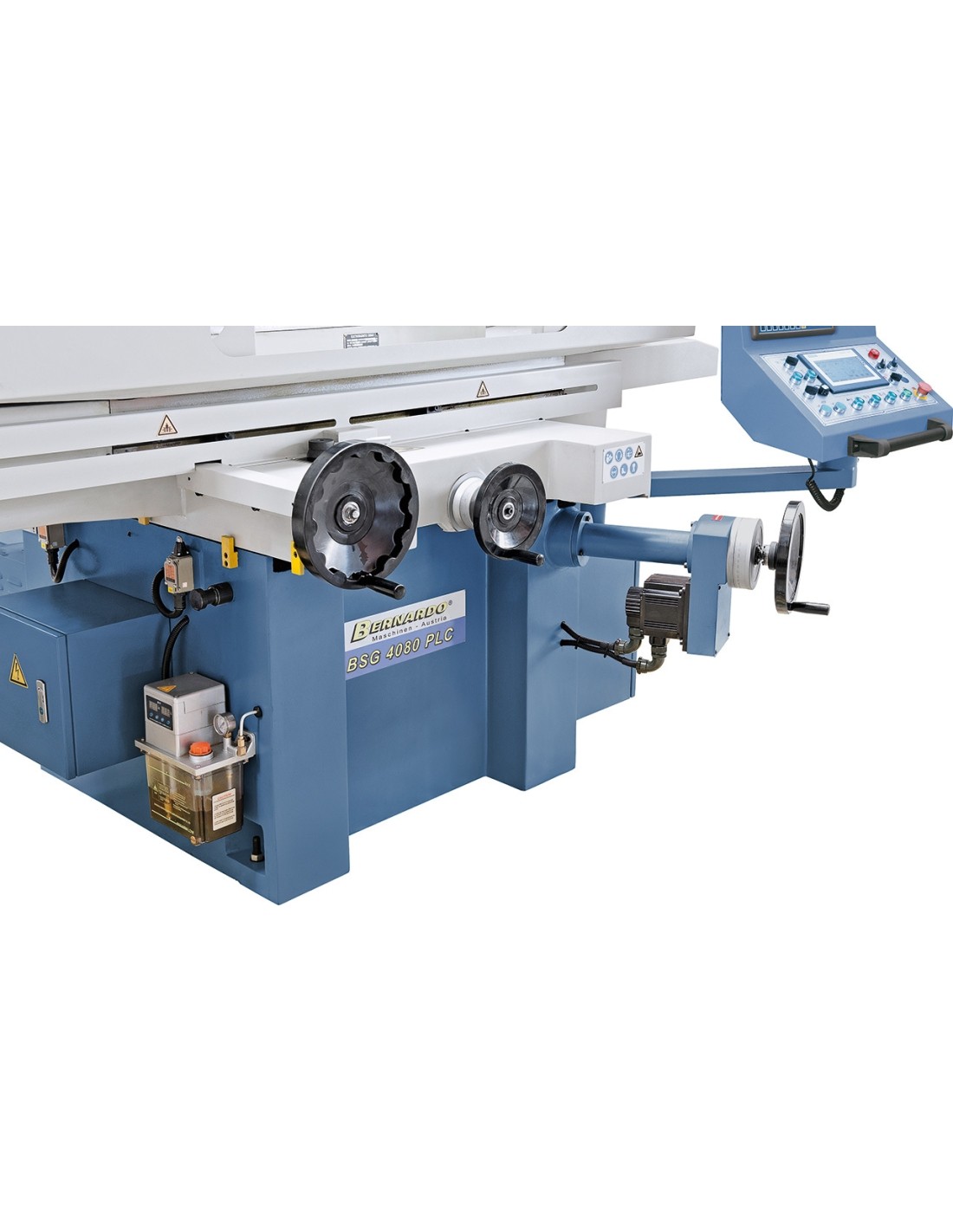

  • Electronic handwheel
  • Grinding wheel
  • Flange
  • LED machine light

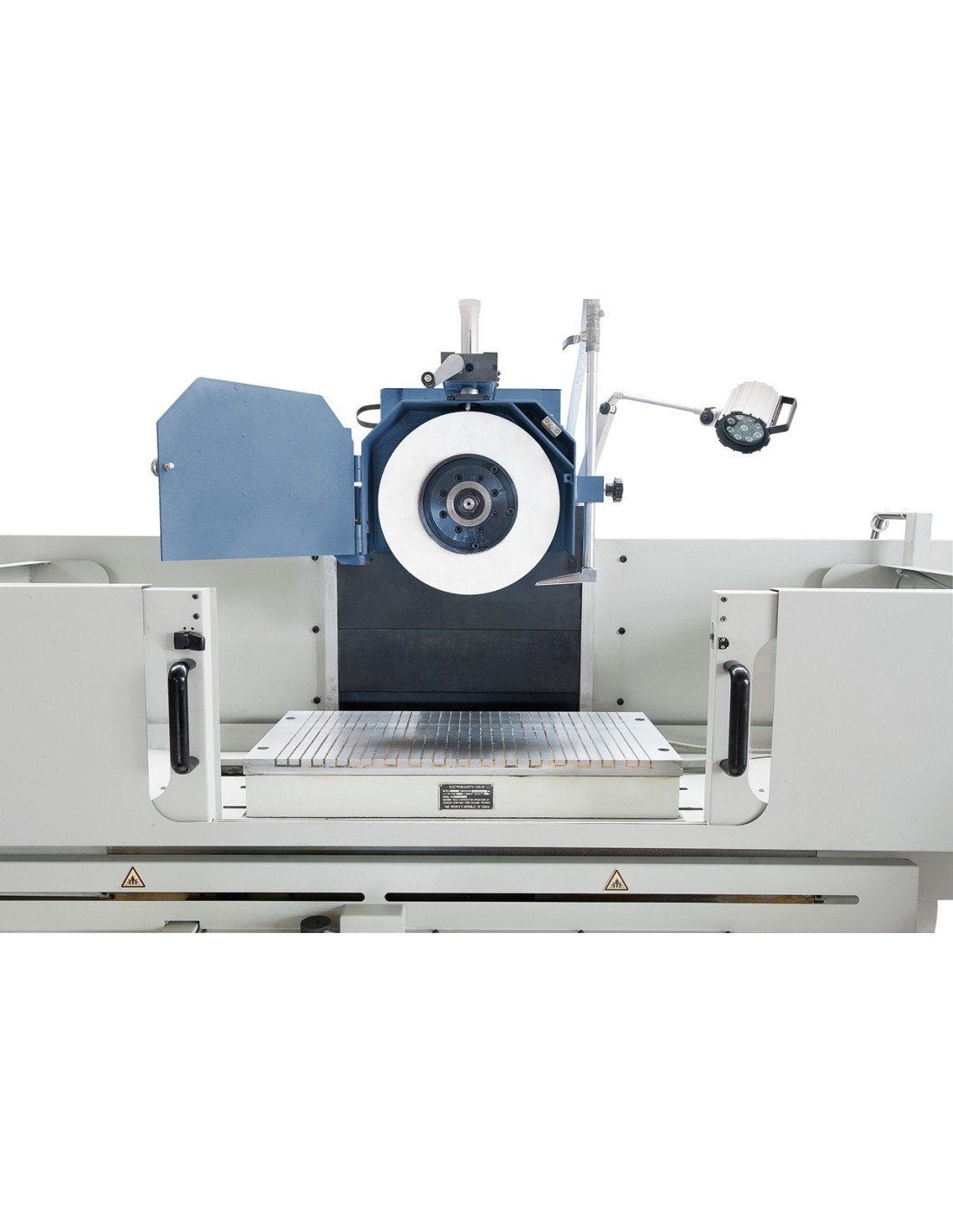

  • Magnetic clamping plate
  • Balancing stand
  • Balancing arbor

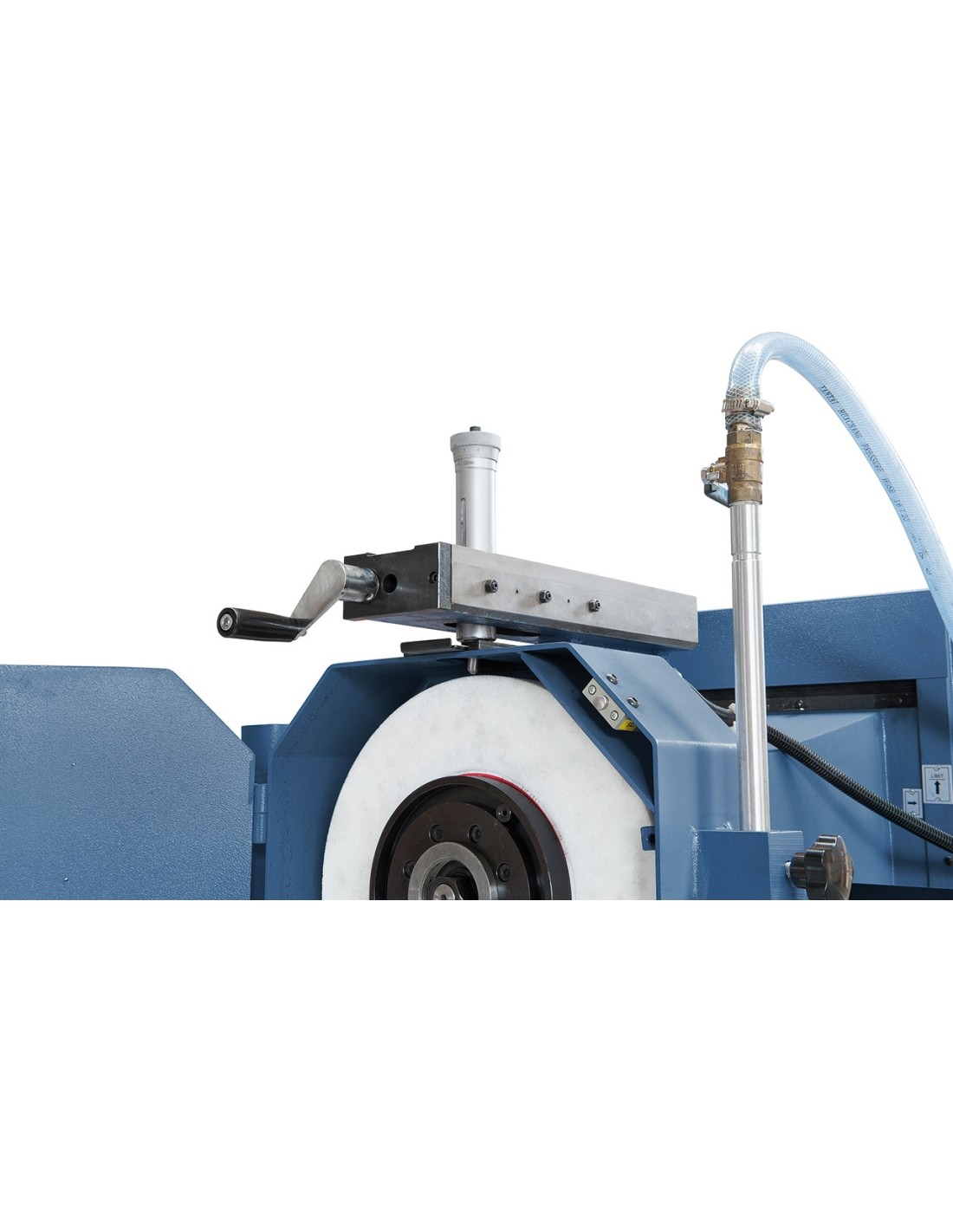

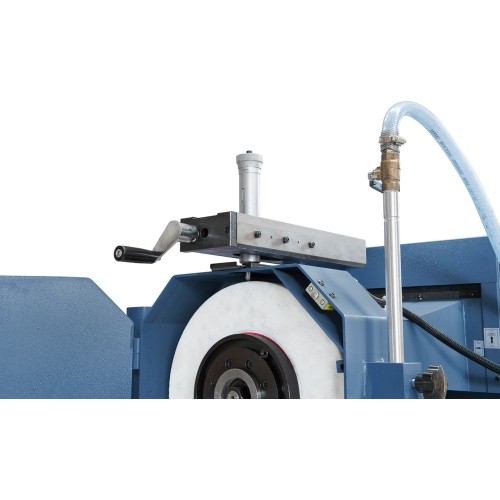

  • Parallel dresser
  • Protective covers
  • Demagnetization device

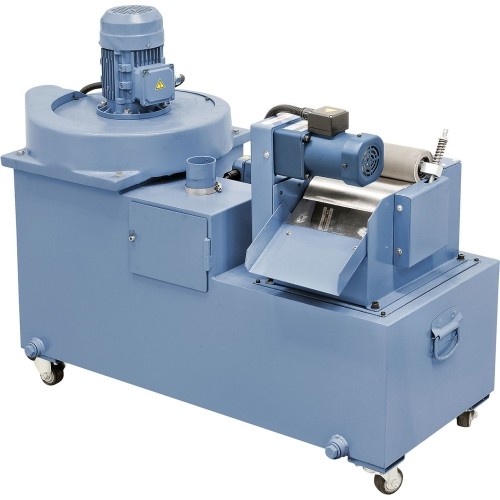

  • Coolant device
  • Dressing diamond
  • Machine feet

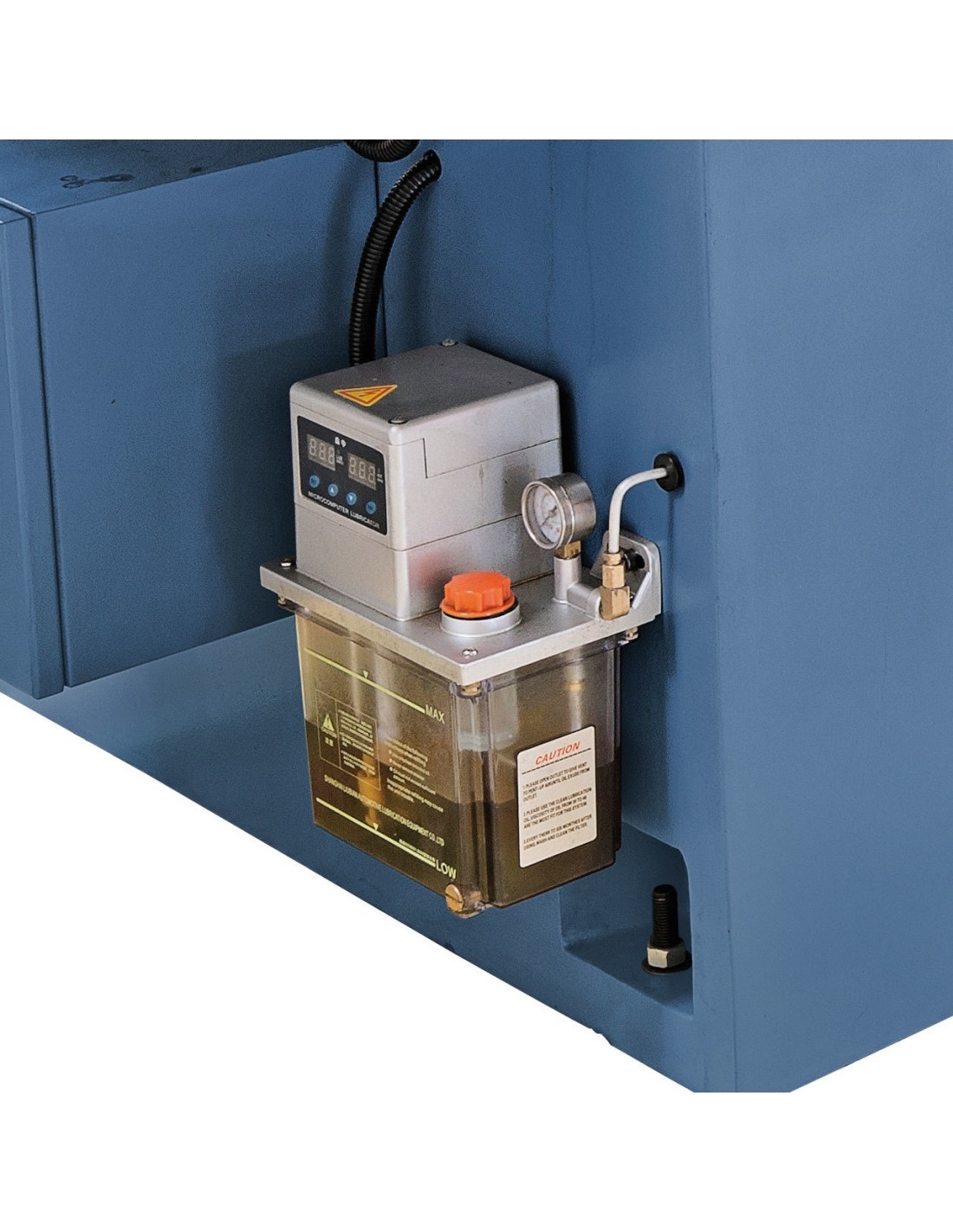

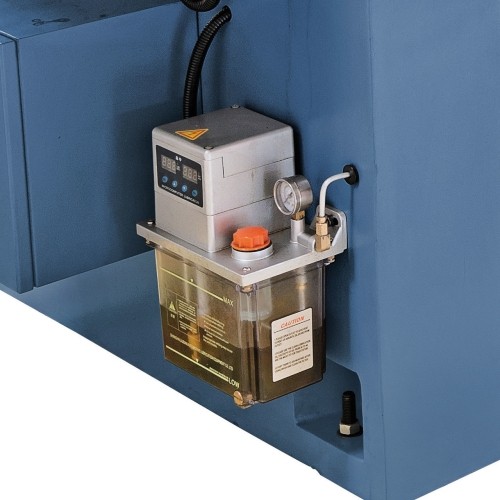

  • Central lubrication
  • Tools
