Distance between centers
750 mm
Taper of tailstock sleeve
MT 2
Travel of tailstock sleeve
75 mm
Weight approx.
145 kg
Center height
130 mm
Swing over bed
250 mm
Spindle bore
26 mm
Longitudinal feed
(6) 0,08 - 0,48 mm/rev.
Cross feed
(6) 0,026 - 0,156 mm/rev.
Metric thread
(18) 0,2 - 3,5 mm
Inch thread
(21) 8 – 56 Gg/1“
T-slot size
10 mm
Motor power output S1 100%
0,75 kW / 230 V
Motor power input S6 40%
1,0 kW / 230 V
Taper at spindle bore
MT 4
Speed range, stepless
50 - 1000 / 100 - 2000 rpm
Bed width
135 mm
Machine dimensions (W x D x H)
1350 x 600 x 460 mm

Tekinimo staklės Bernardo Profi 750 LZ

1052653
Price €3,866.00 VAT incl.

Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Supplier store
(10 pcs)
Delivery terms:
FREE pick up wednesday, july 15 d., in the store, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 145 kg.
We will deliver the product to you via: 5-11 w.d. Venipak (€40.99)
Weight: 145 kg.

Description

Properties

  • Practical, solid machine with leadscrew and feed rod
  • Logically arranged feed setting allows easy, smooth adjustment
  • Wide range of applications: precision mechanics, training and education, etc.
  • Ideal for processing steel, non-ferrous metals and plastics
  • Apron features handwheels with fine scale
  • Headstock serves as temporary tool storage
  • Adjustable headstock, tailstock and guides
  • Powerful motor, even at longer operation
  • Electronic, stepless speed setting allows ideal adjustment to each workpiece

Standard accessories

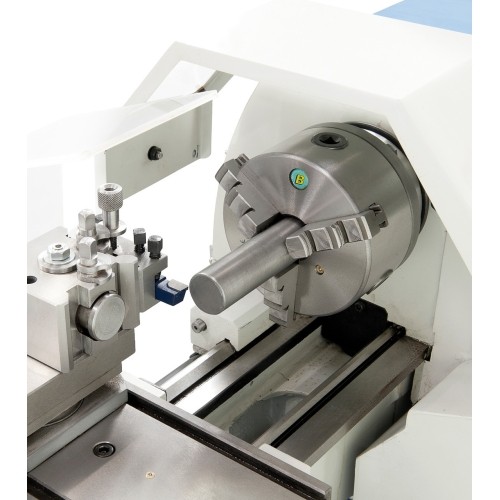

  • 3-jaw chuck DK11-125 mm
  • Flange 125 mm
  • Dead centers

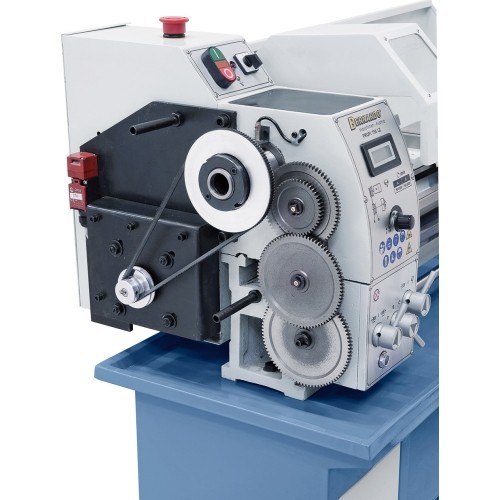

  • Change gears

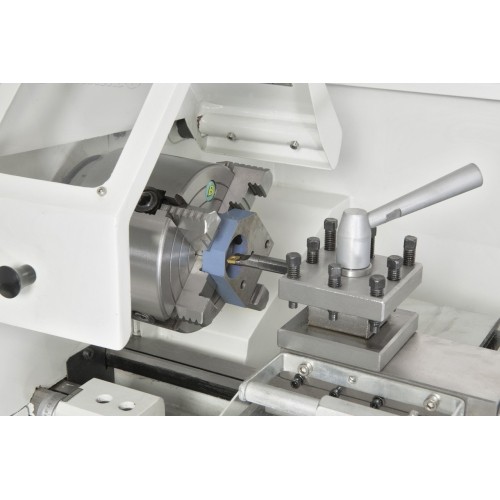

  • 4-way tool post holder
  • Safety clutch
  • Micrometer longitudinal fence

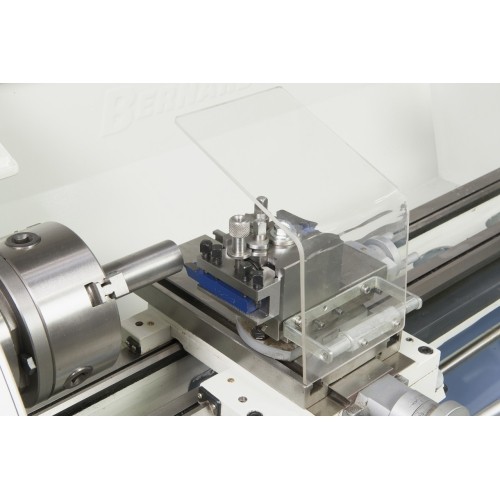

  • Cross slide with top support

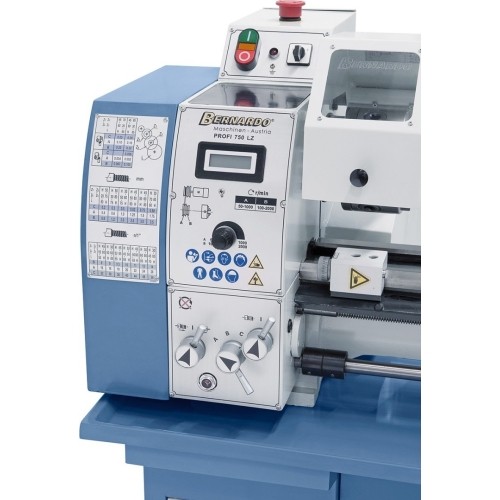

  • Digital speed display
  • Thread dial
  • Chuck guard
  • Splash guard
  • Leadsrew cover
  • Tools
