- Distance between centers
- 1000 mm
- Taper of tailstock sleeve
- MT 3
- Travel of tailstock sleeve
- 110 mm
- Weight approx.
- 495 kg
- Center height
- 175 mm
- Swing over bed
- 350 mm
- Swing over gap*
- 450 mm
- Swing over cross slide
- 190 mm
- Spindle bore
- 40 mm
- Spindle nose fixture
- DIN 55029, D1-4
- Speed Range
- (8) 70 - 2000 rpm
- Longitudinal feed
- (40) 0,053 - 1,29 mm/rev.
- Cross feed
- (40) 0,013 - 0,31 mm/rev.
- Metric thread
- (32) 0,4 - 7 mm
- Inch thread
- (36) 4 - 60 threads/1“
- Machine dimension (W x D x H)
- 1730 x 700 x 1340 mm
- Motor power output S1 100%
- 1,5 kW / 400 V
- Motor power input S6 40%
- 2,2 kW / 400 V
- Bed width
- 180 mm

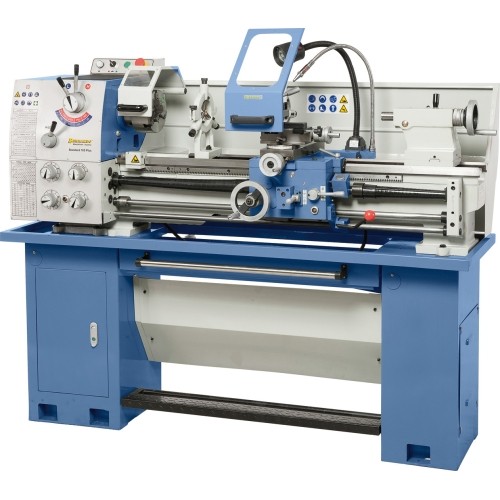

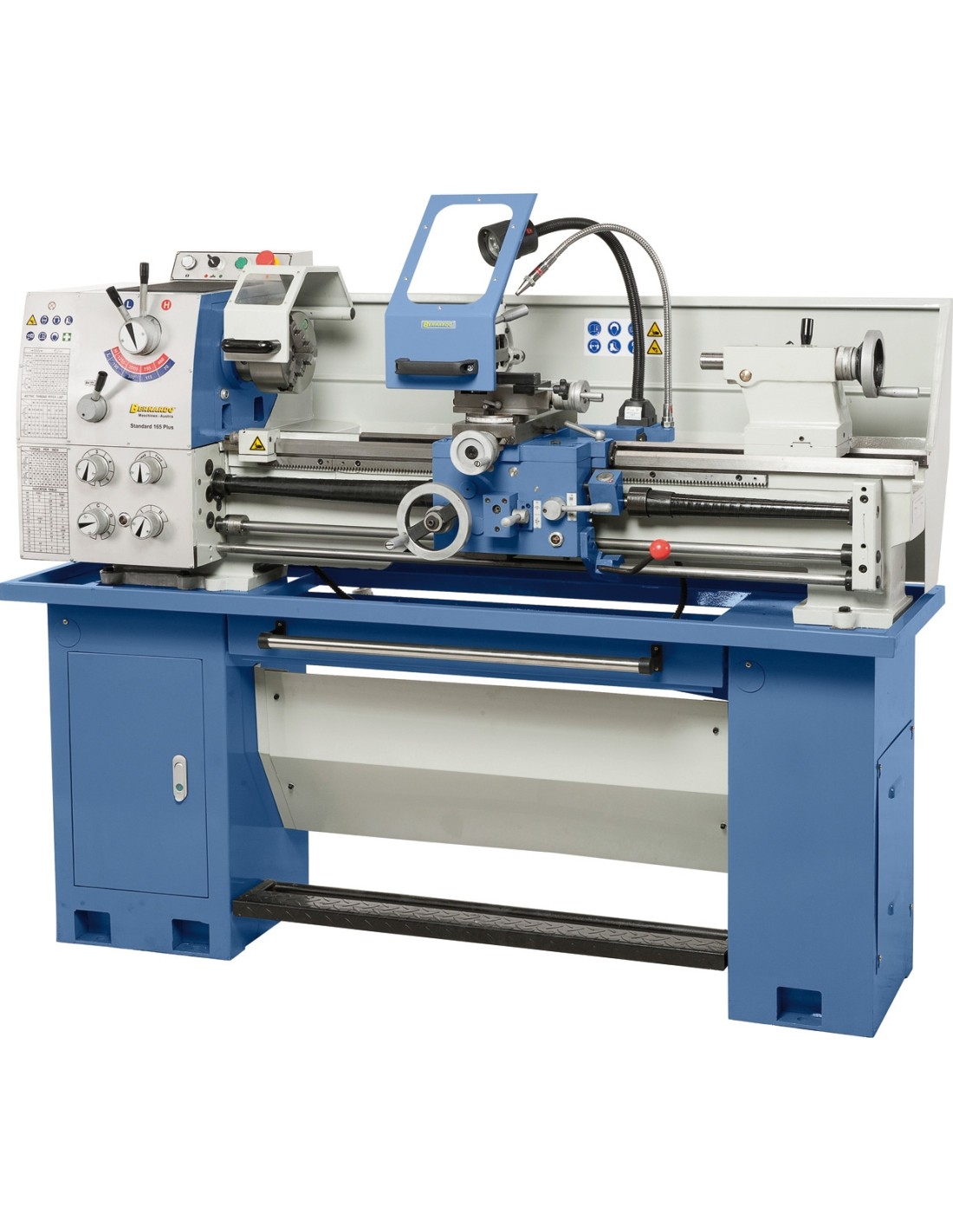

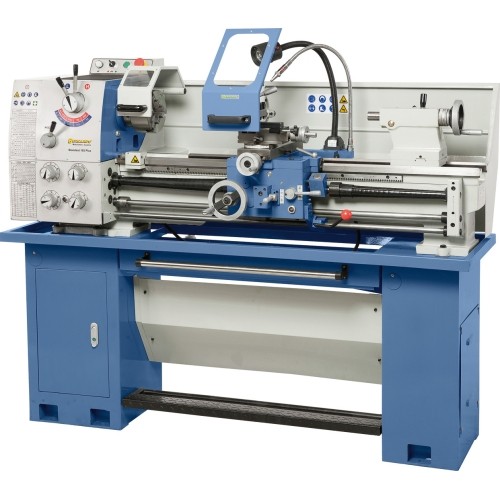

Standard 165 Plus
Weight: 495 kg.
Weight: 495 kg.
Description
Properties
- Wide range of applications include: training workshops, tool construction, repair shops etc.
- Prism-shaped grey cast-iron machine bed, induction hardened and precisely polished

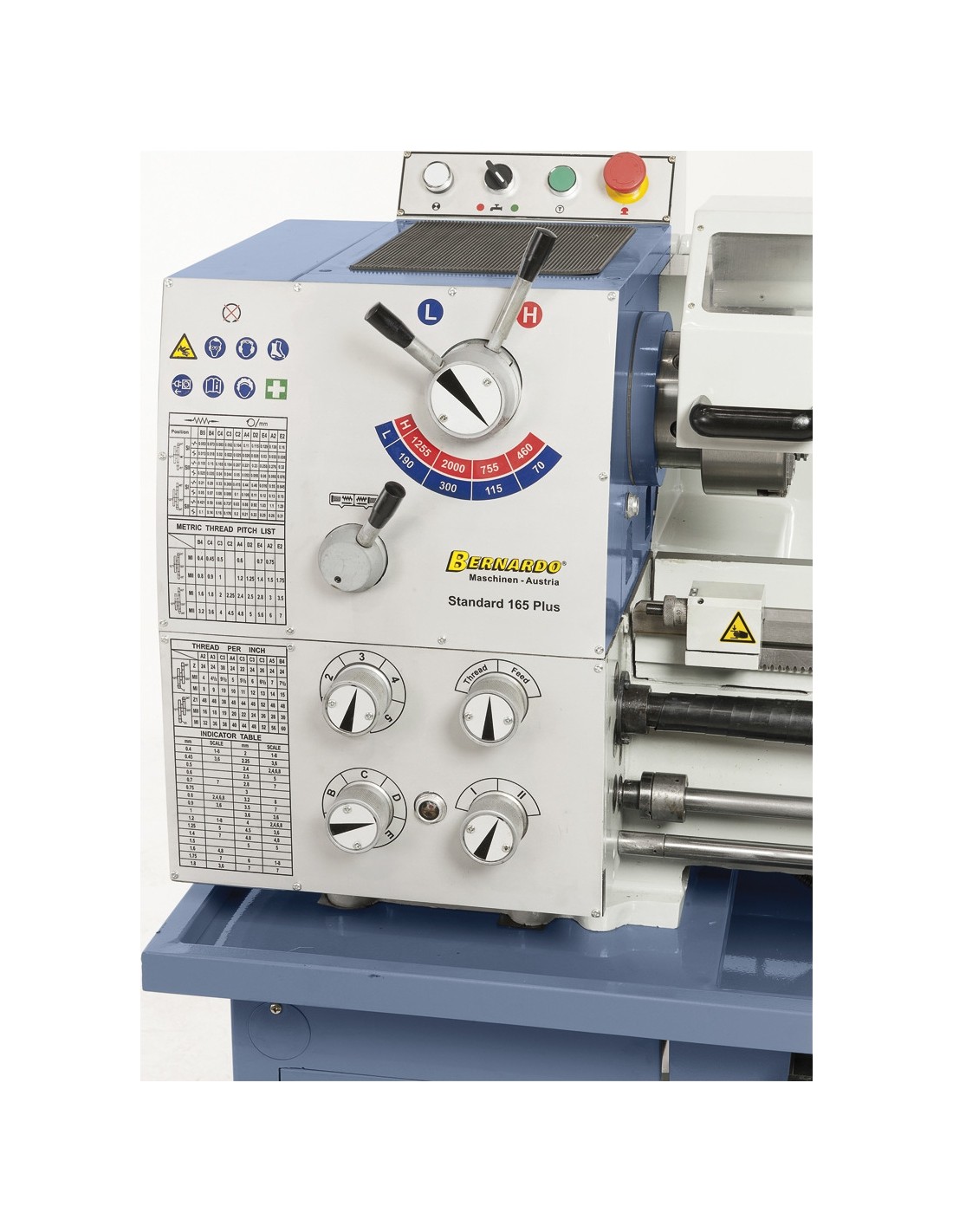

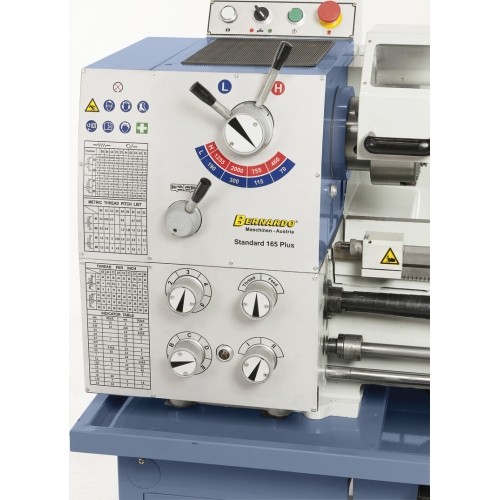

- Speed and feed change features clear arrangement, accurate control and smooth operation

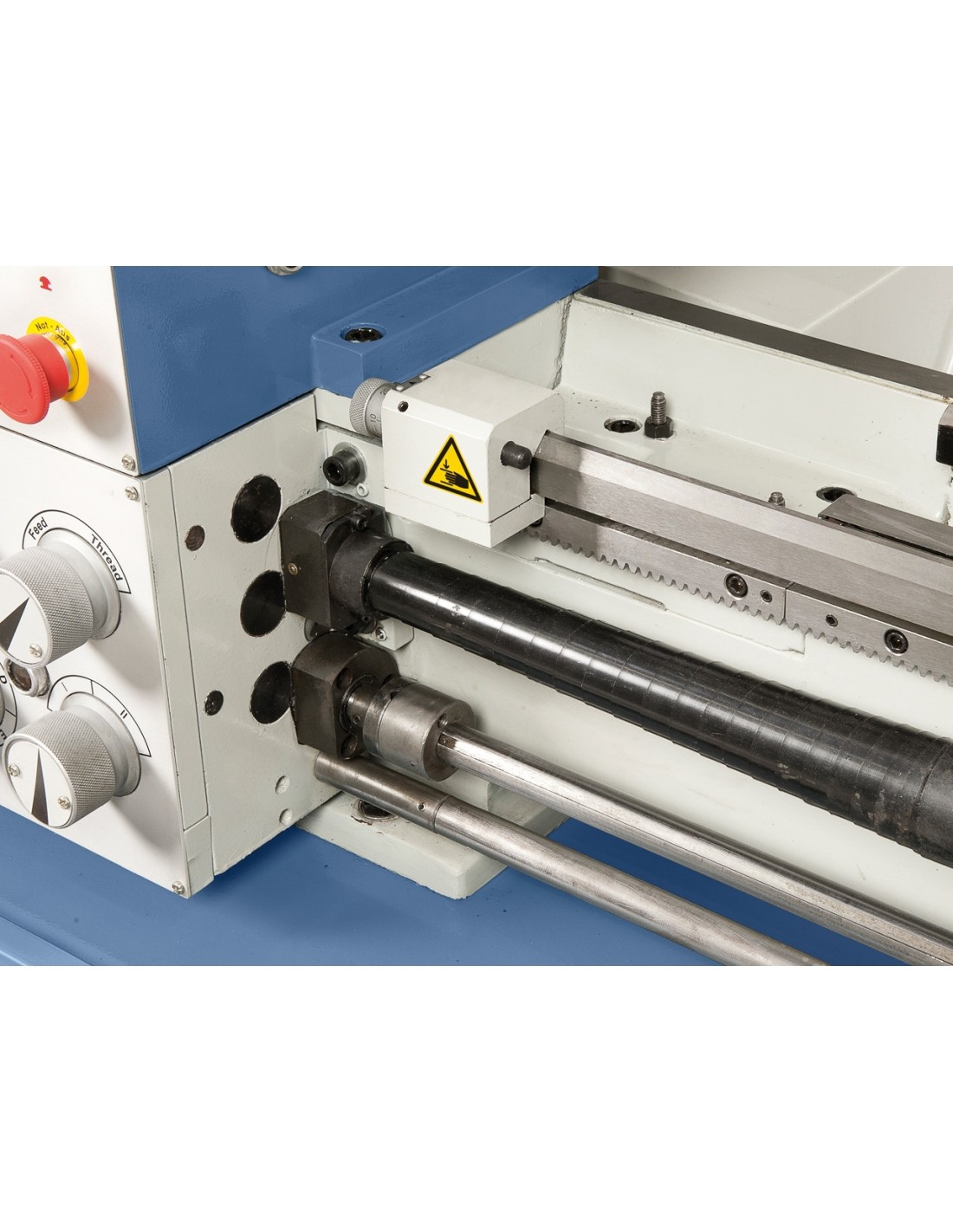

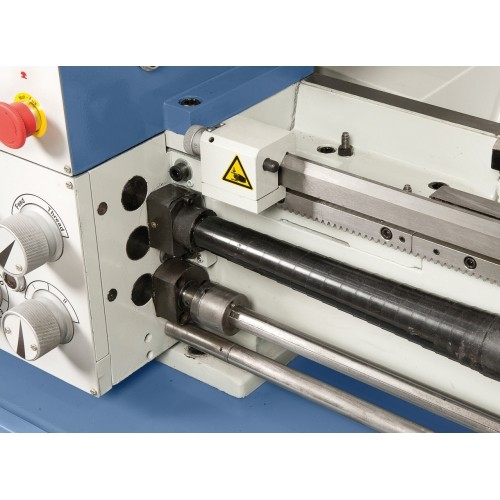

- Practical lathe with leadscrew and feed rod for thread cutting and automatic feed
- Single lever clamping on tailstock, adjustable for taper turning
- Removable bridge allows processing of workpieces with large diameter
- Spindle bearing features 2 adjustable precision bearings
- Hardened and polished gear wheels and shafts
- Extractable chip tray reduces space requirements
- Electro-mechanic foot brake clearly reduces downtime
Standard accessories

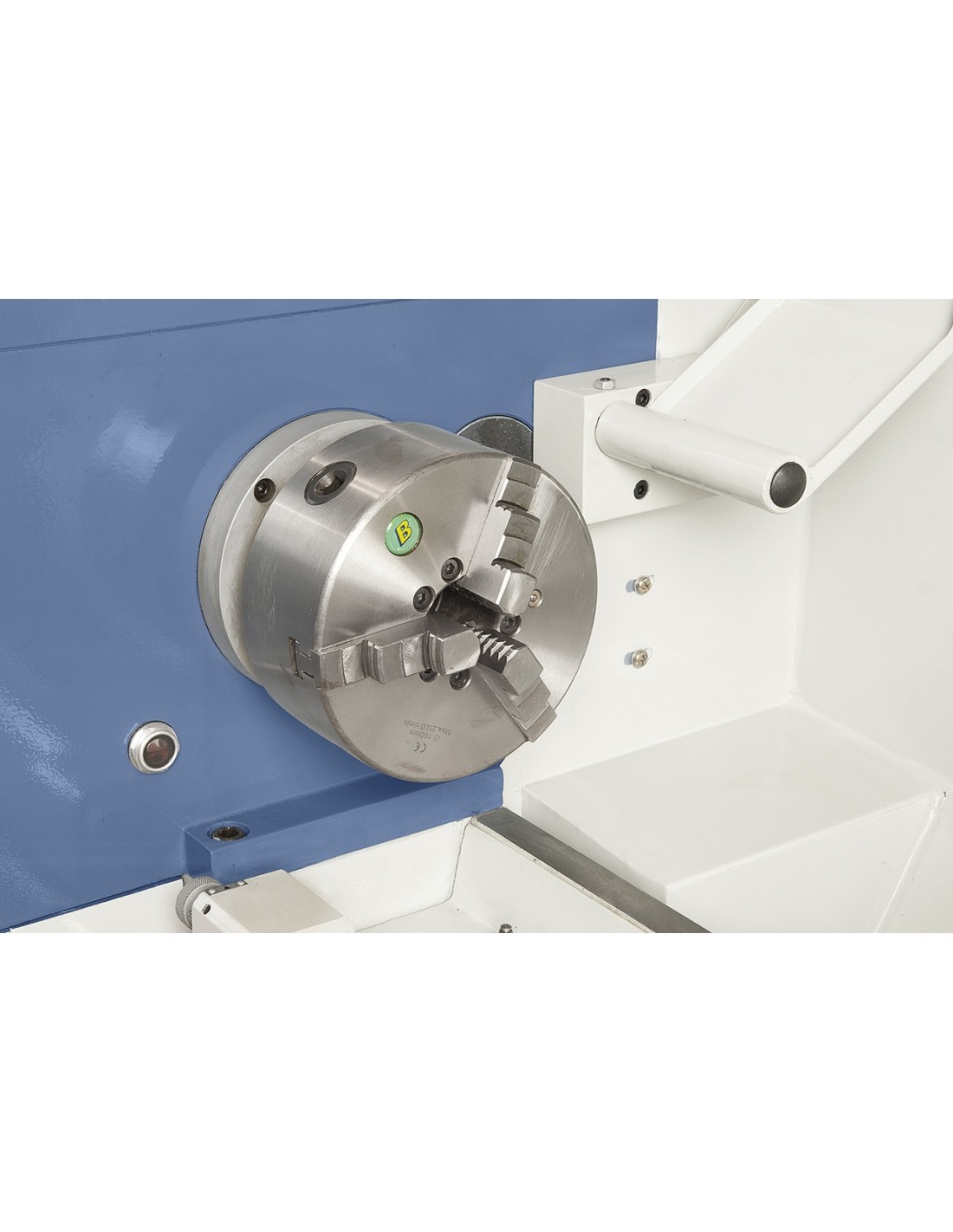

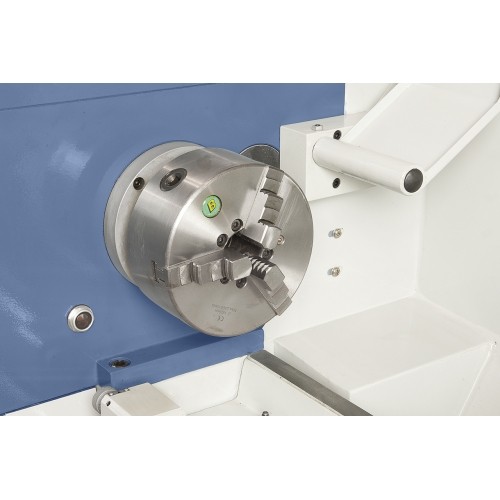

- 3-jaw chuck DK11-160 mm / D4
- Independent chuck 200 mm / D4, according DIN 55029

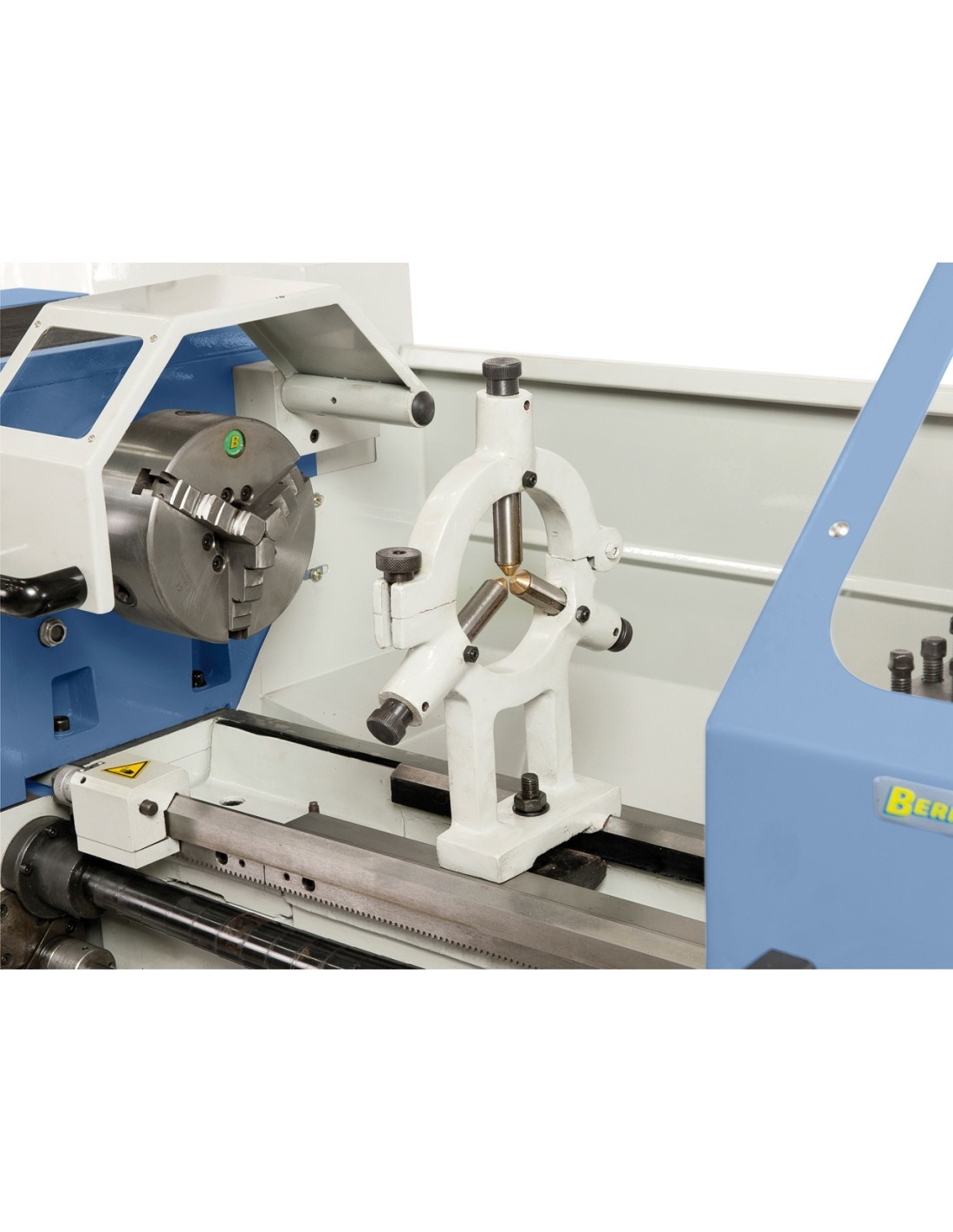

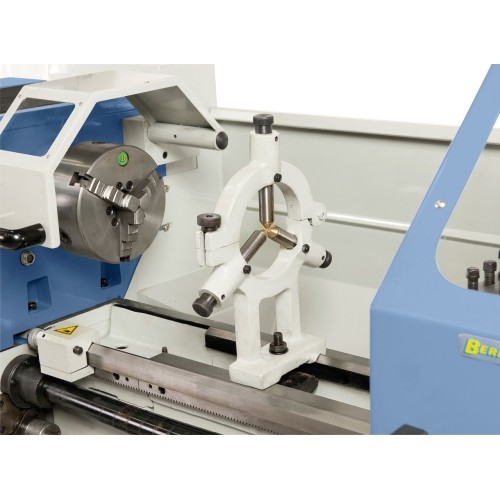

- Steady rest – Passage up to 60 mm
- Follow rest – Passage up to 60 mm

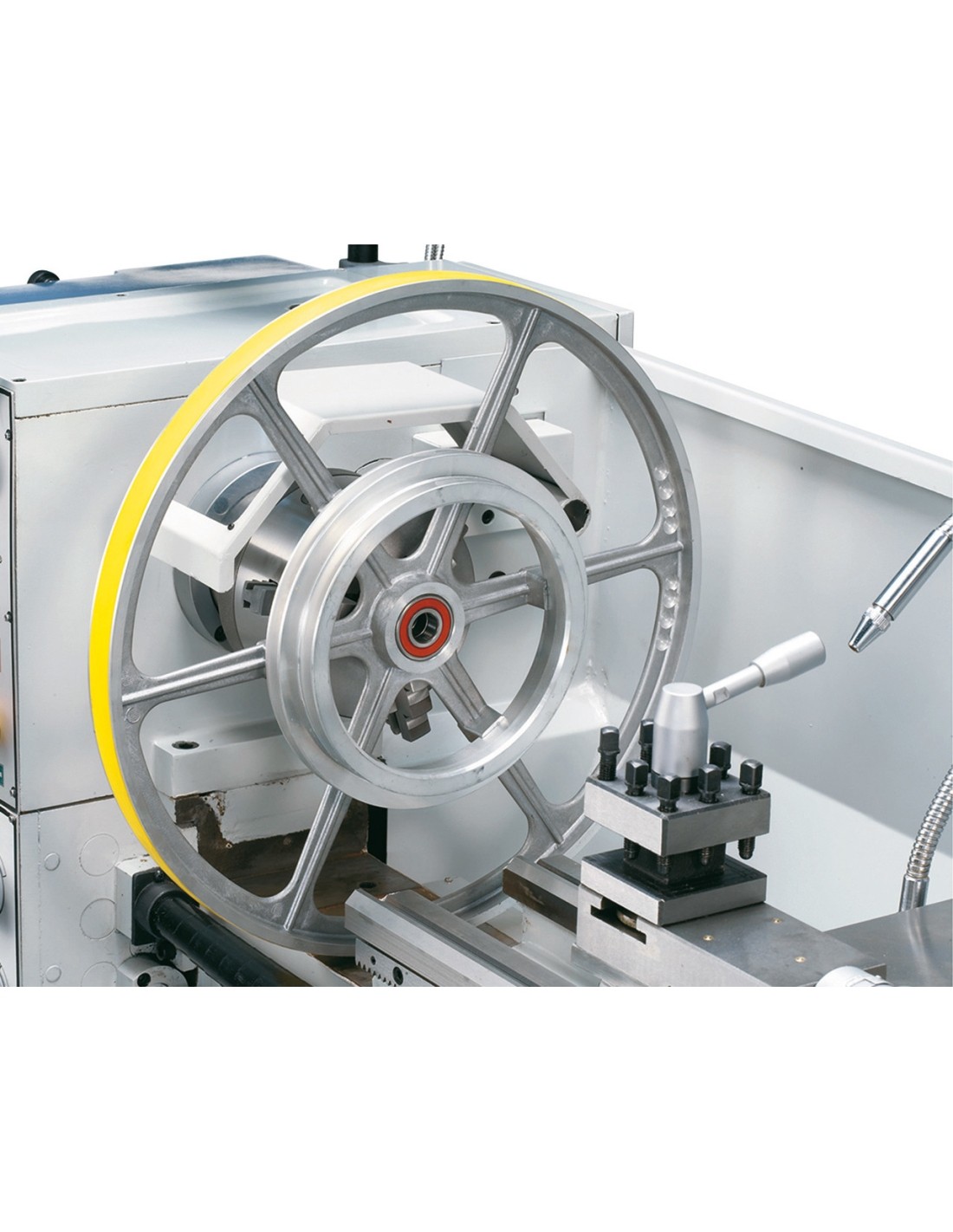

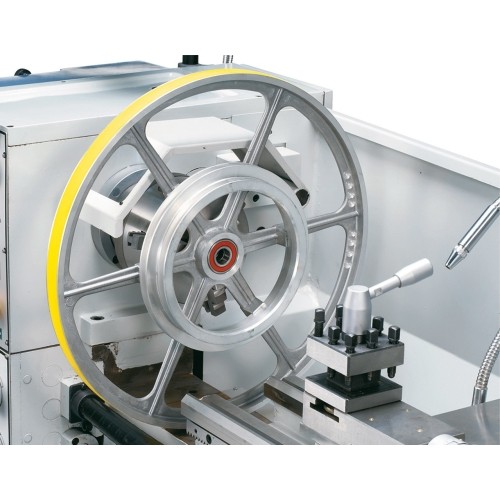

- Face plate 250 mm
- 4-way tool post holder
- Protective device at
- 4-way tool post holder
- Safety clutch
- Micrometer longitudinal fence
- Coolant device
- Extractable chip tray

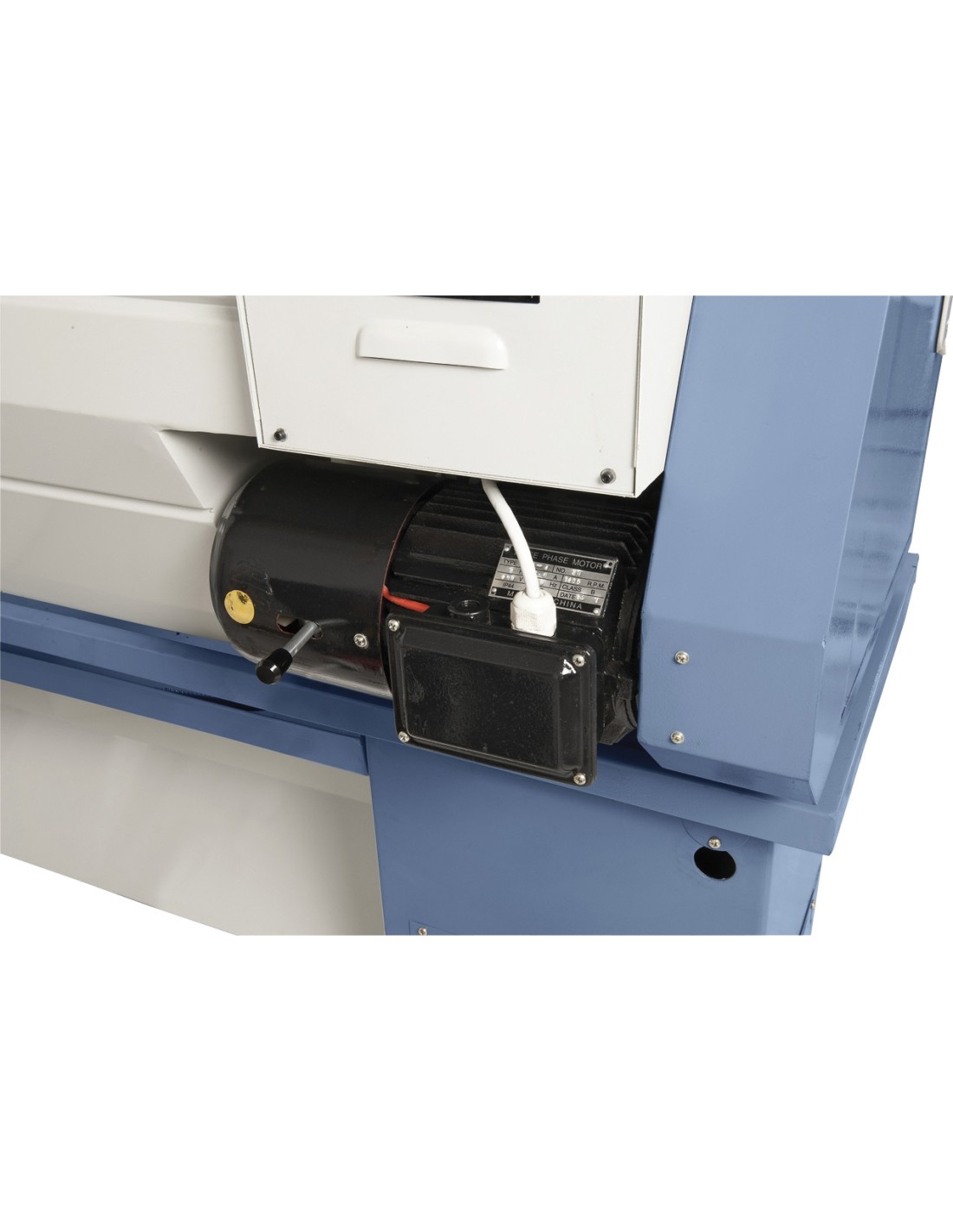

- Motor with magnet brake according CE
- Foot pedal with brake function according CE
- Splash guard
- Thread dial
- LED machine light
- Morse taper drill sleeve

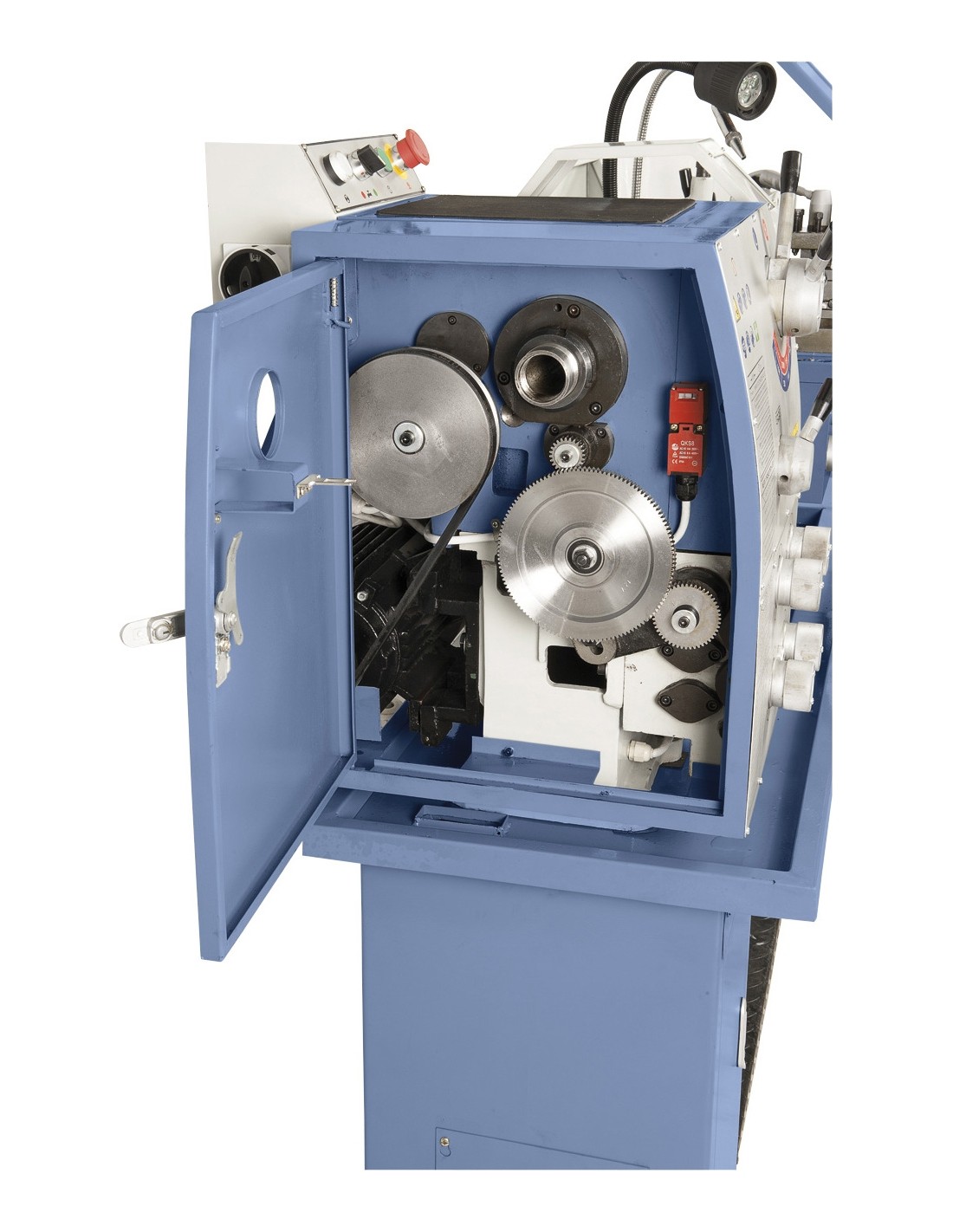

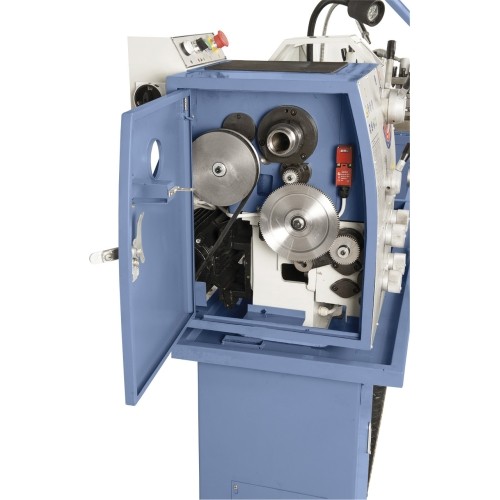

- Change gears
- 2 dead centers
- Stand
- Tools
