WARRANTY

  • 30 days return policy
  • 24 month product warranty
  • Free consultation
  • 30 days return policy
  • 24 month product warranty
  • Free consultation

Distance between centers
880 mm
Taper of tailstock sleeve
MT 3
Travel of tailstock sleeve
100 mm
Weight approx.
255 kg
Center height
160 mm
Swing over bed
320 mm
Spindle bore
38 mm
Spindle nose fixture
DIN 55029, D1-4
Longitudinal feed
(15) 0,07 – 1,0 mm/rev.
Cross feed
(15) 0,017 – 0,25 mm/rev.
Metric thread
(18) 0,2 - 3,5 mm
Inch thread
(21) 8 - 56 threads/1"
Machine dimension (W x D x H)
1660 x 650 x 570 mm
Motor power output S1 100%
1,5 KW / 230 V
Motor power input S6 40%
2,2 kW / 230 V

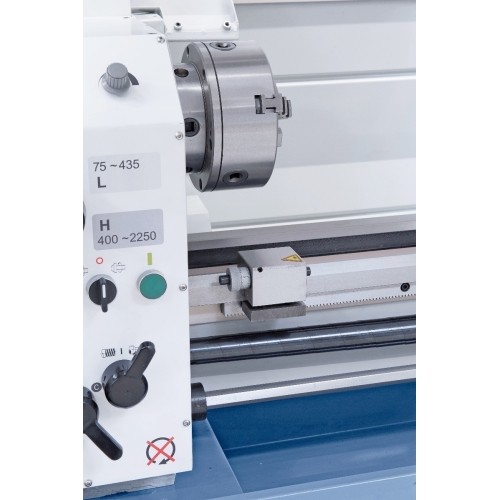

Speed range, stepless
75 – 435 / 400 – 2250 rpm

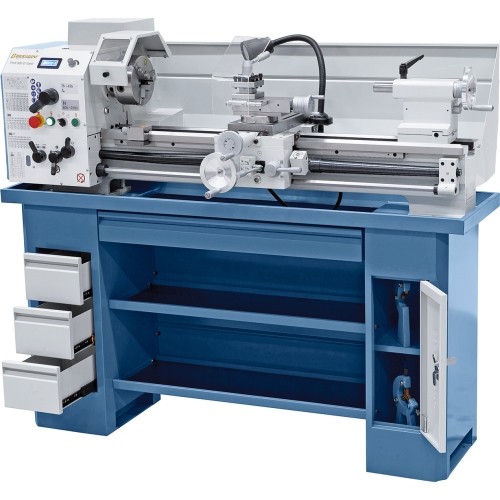

Profi 880 G Vario - 230 V

1092109
€4,871.00
Tax included
Monthly payment from 119.54€

Stock Quantity:
In S01 store
not available
In S02 store
not available
In Supplier store
(5+ pcs)
Delivery terms:
NEMOKAMAI atsiimkite thursday, december 5 d., parduotuvėje, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 255 kg.
Prekę pristatysime Jums per: 5-10 d.d. Venipak (€40.99)
Weight: 255 kg.

Description

Properties

  • Complete with 38 mm spindle bore to allow processing of large shaft diameters
  • Strongly reinforced machine bed featuring induction-hardened, polished guide
  • Suitable for processing of steel, non-ferrous metals and plastics
  • Universal in use: longitudinal turning, facing, profiling, thread cutting etc.
  • Change gears for cutting of metric threads are part of the standard accessories
  • Main spindle features adjustable tapered roller bearings in P5 quality

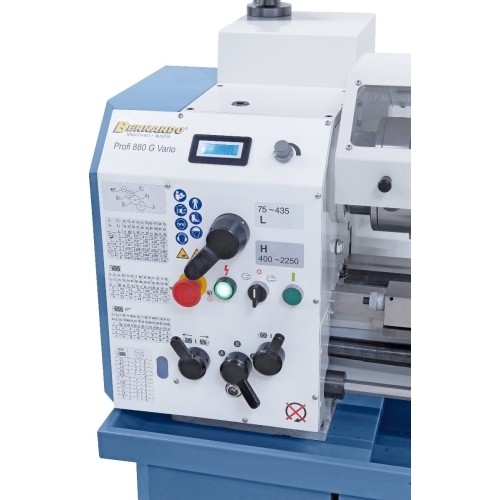

  • User-friendly arrangement of control elements on gear head
  • Tailstock features single-lever clamping, adjustable for taper turning
  • V-ledges allow for adjustment of bed way guides
  • Serially with Delta frequency inverter for high torque in low speed range and nearly constant speed at heavy workloads

Standard accessories

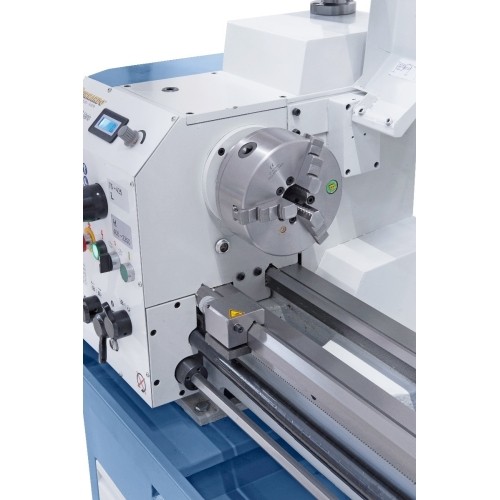

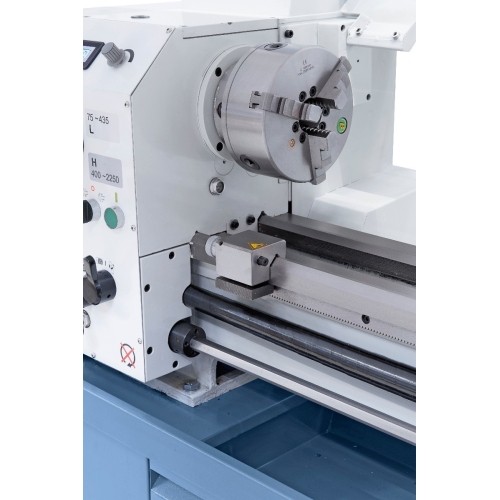

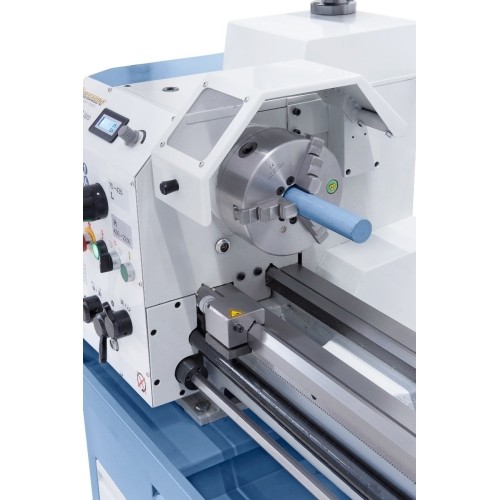

  • 3-jaw chuck DK11-160 mm / D4

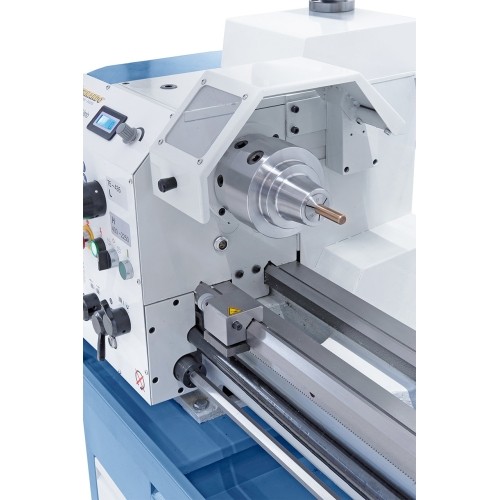

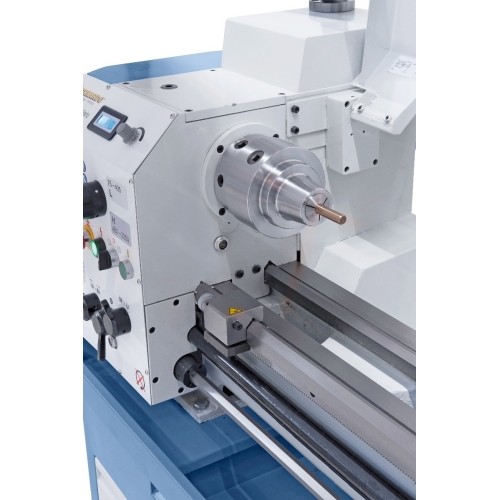

  • Dead centers

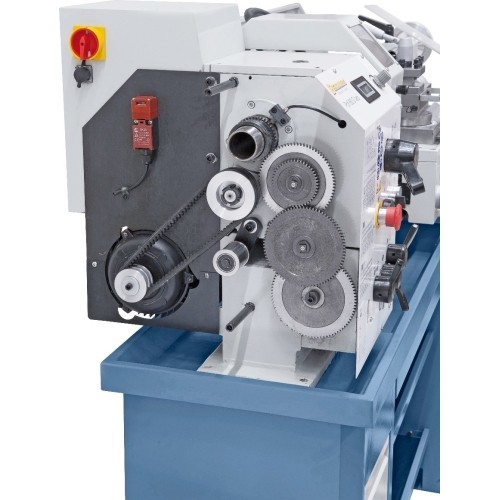

  • Change gears

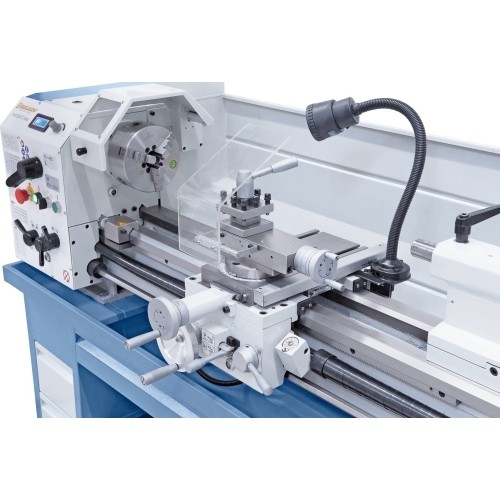

  • 4-way tool post holder
  • Safety clutch
  • Micrometer longitudinal fence
  • Cross slide with top support
  • Frequency inverter
  • Digital speed indication
  • Thread dial
  • LED machine light
  • Chuck guard
  • Splash guard
  • Leadscrew cover
  • Tools
