Distance between centers
750 mm

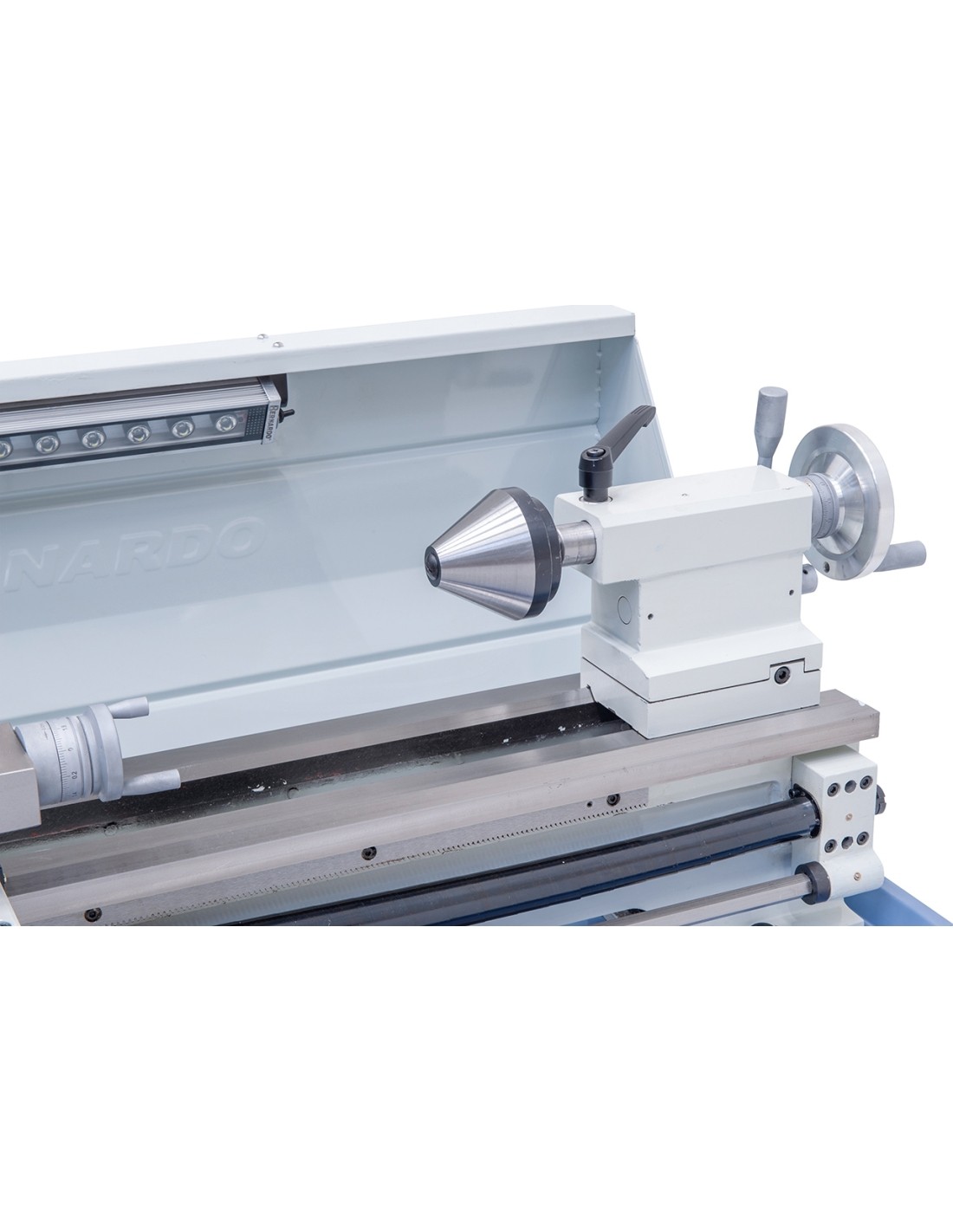

Taper of tailstock sleeve
MT 3
Travel of tailstock sleeve
90 mm
Weight approx.
220 kg
Center height
140 mm
Swing over bed
280 mm
Spindle bore
38 mm
Spindle nose fixture
DIN 55029, D1-4
Longitudinal feed
(15) 0,07 – 1,0 mm/rev.
Cross feed
(15) 0,017 – 0,25 mm/rev.
Metric thread
(18) 0,2 - 3,5 mm
Inch thread
(21) 8 - 56 threads/1"
Machine dimension (W x D x H)
1400 x 730 x 520 mm
Motor power output S1 100%
1,5 KW / 230 V
Motor power input S6 40%
2,2 kW / 230 V
Speed range, stepless
75 – 500 / 300 – 2000 rpm

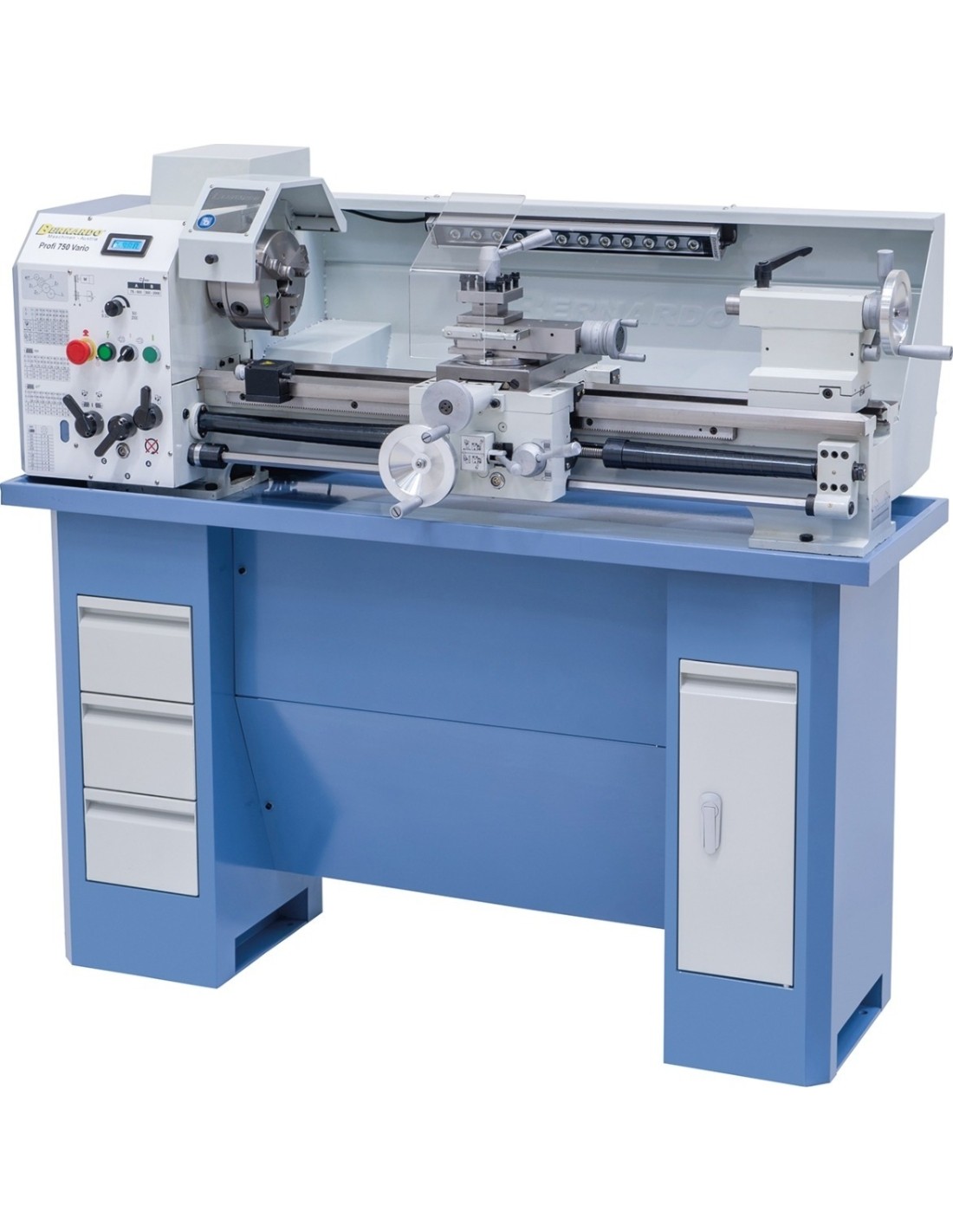

Profi 750 Vario / 230 V

1129797
Price €4,744.00 VAT incl.

Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Supplier store
(10 pcs)
Delivery terms:
FREE pick up wednesday, july 15 d., in the store, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 220 kg.
We will deliver the product to you via: 5-11 w.d. Venipak (€40.99)
Weight: 220 kg.

Description

Properties

  • Three -phase motor with frequency inverter for higher performance and high torque
  • Complete with 38 mm spindle bore to allow processing of large shaft diameters
  • Stepless speed adjustment as part of standard accessories, set speed can be read on digital display
  • Wide range of applications: precision mechanics, training and education, etc.
  • Feed settings are logically arranged, easy to control with top accuracy
  • Suitable for processing of steel, non-ferrous metals and plastics
  • Prism bed with large support surface, inductively hardened and polished
  • Precise spindle bearing with two adjustable precision taper roller bearings
  • High concentricity of spindle nose – better than 0.009 mm
  • Practical, solid machine with leadscrew and feed rod

Standard accessories

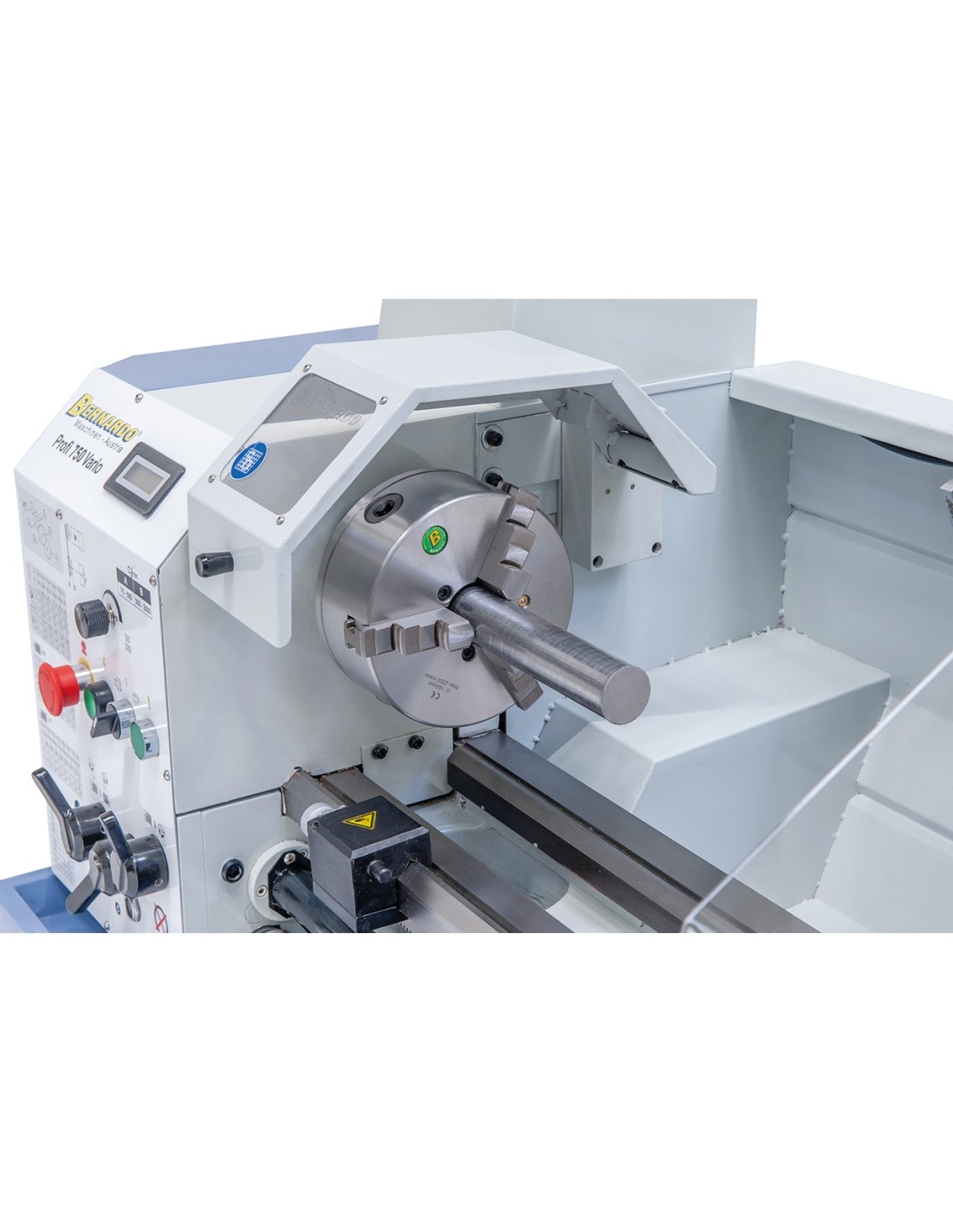

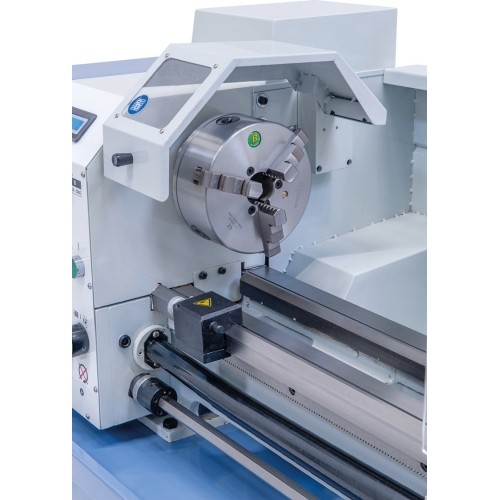

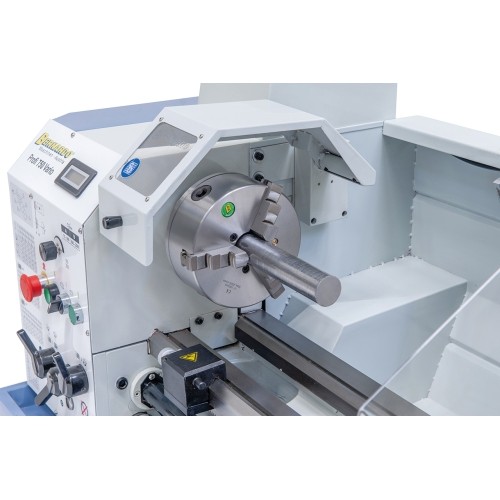

  • 3-jaw chuck DK11-160 mm / D4

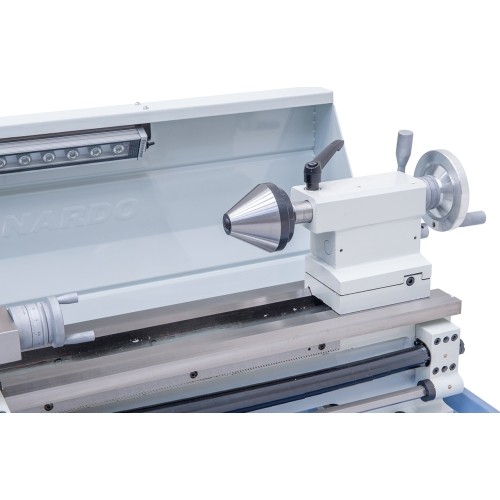

  • Dead centers

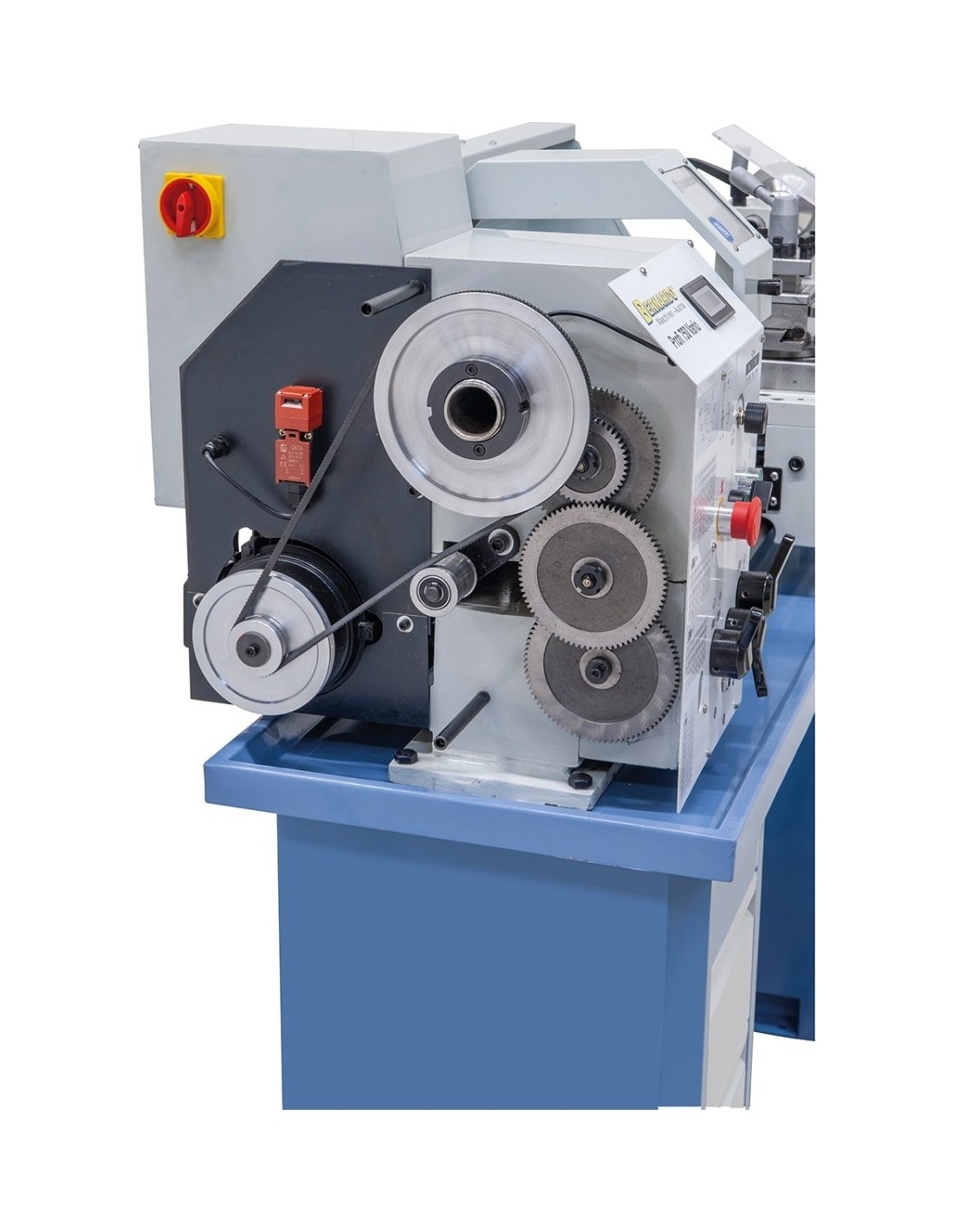

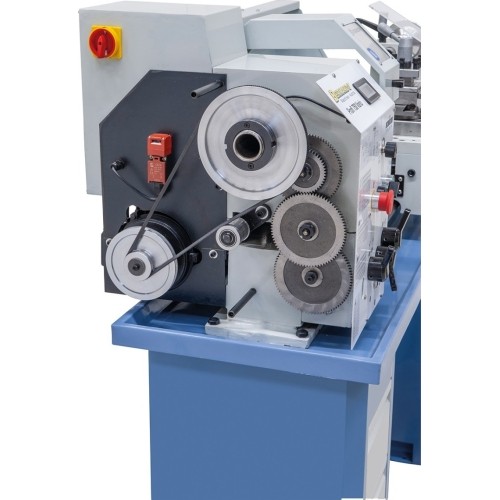

  • Change gears

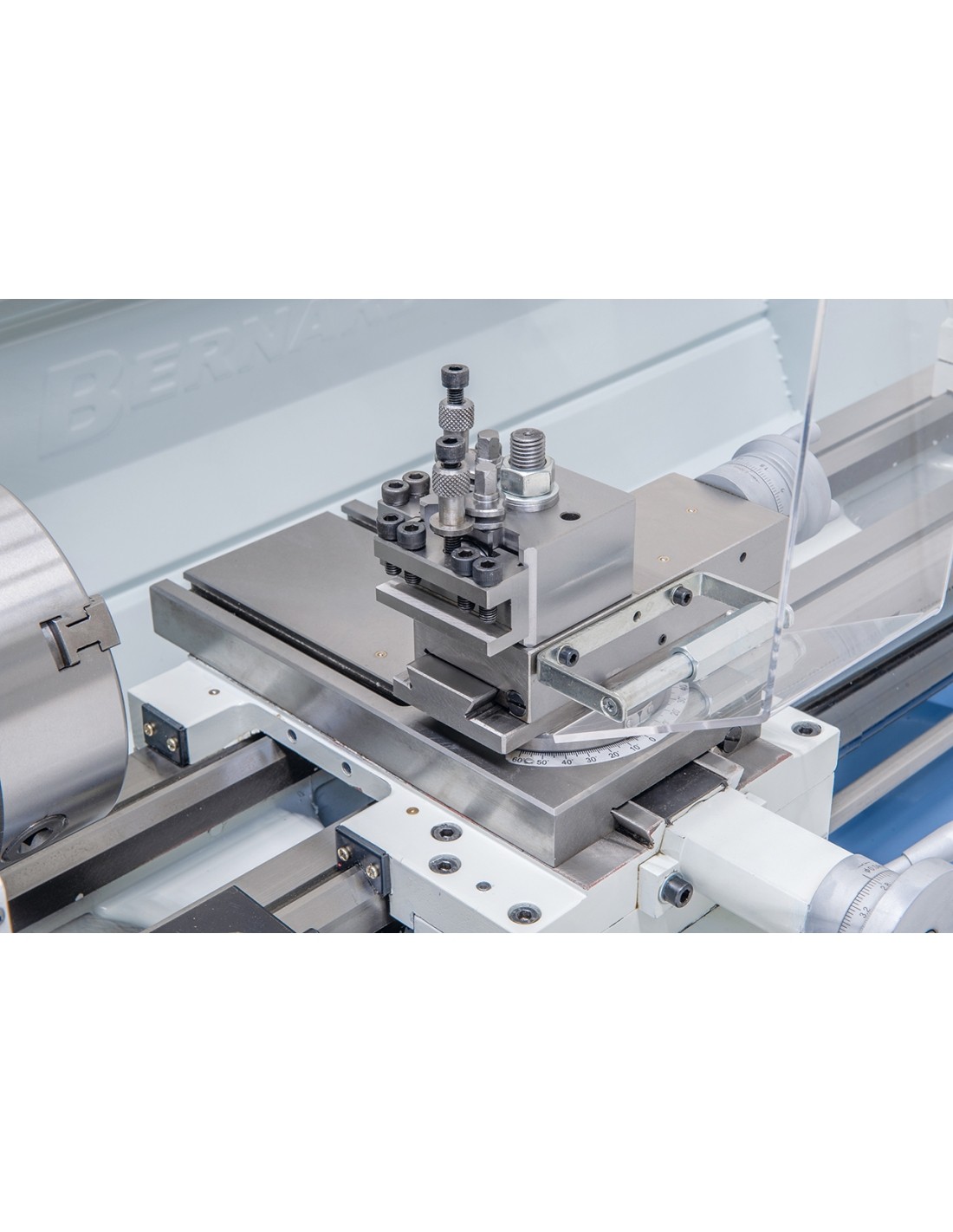

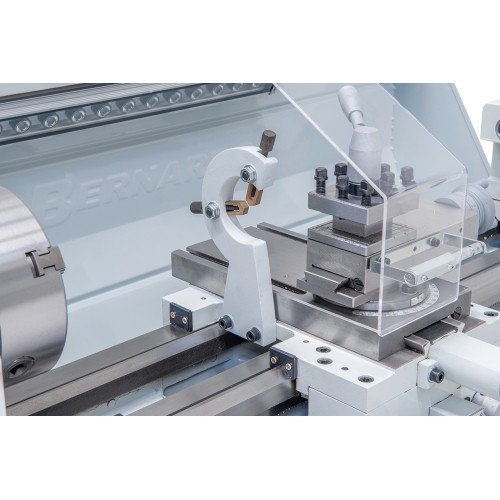

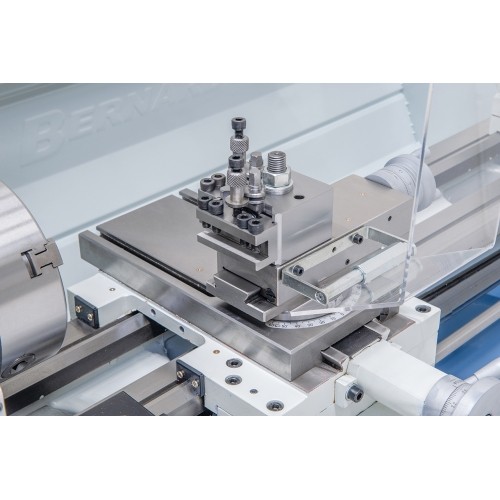

  • 4-way tool post holder
  • Safety clutch
  • Micrometer longitudinal fence
  • Cross slide with top support
  • Frequency inverter

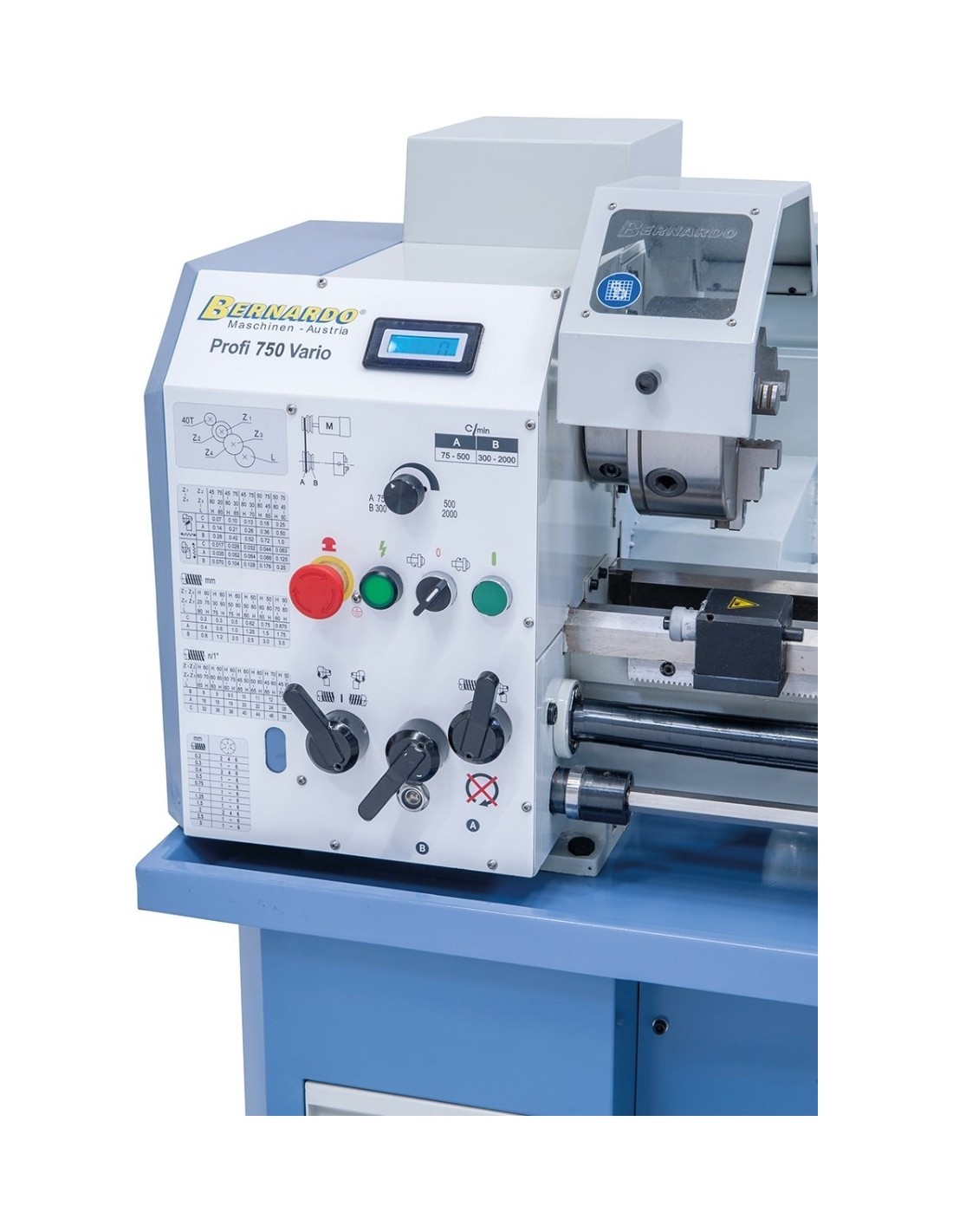

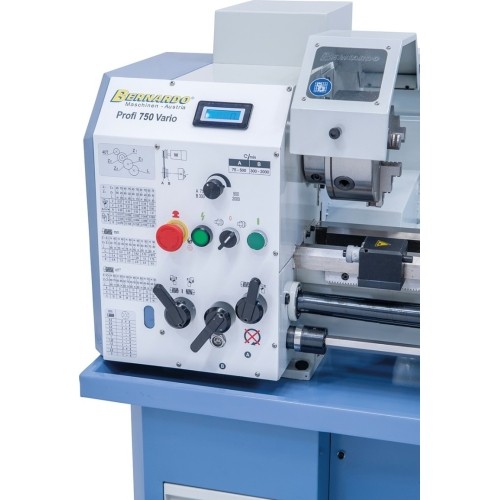

  • Digital speed indication

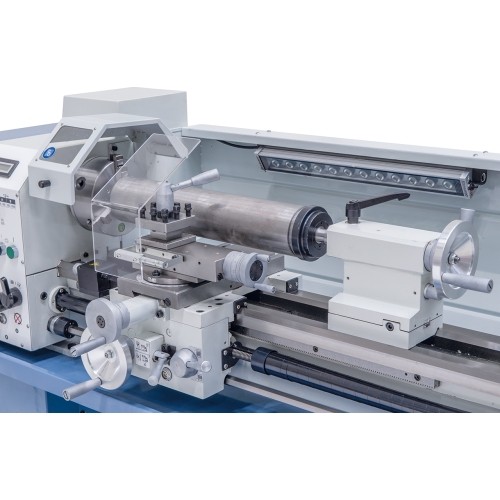

  • LED machine light

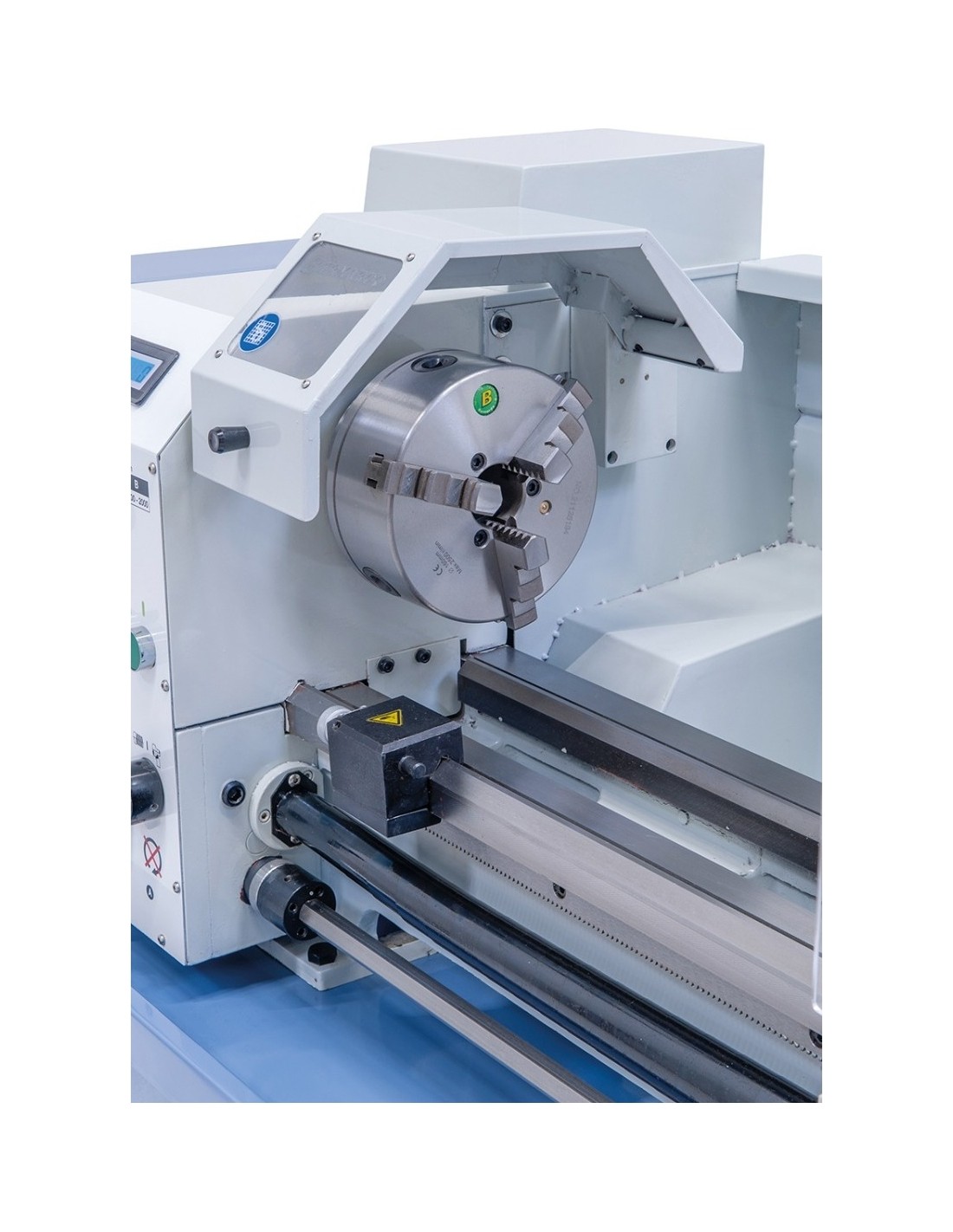

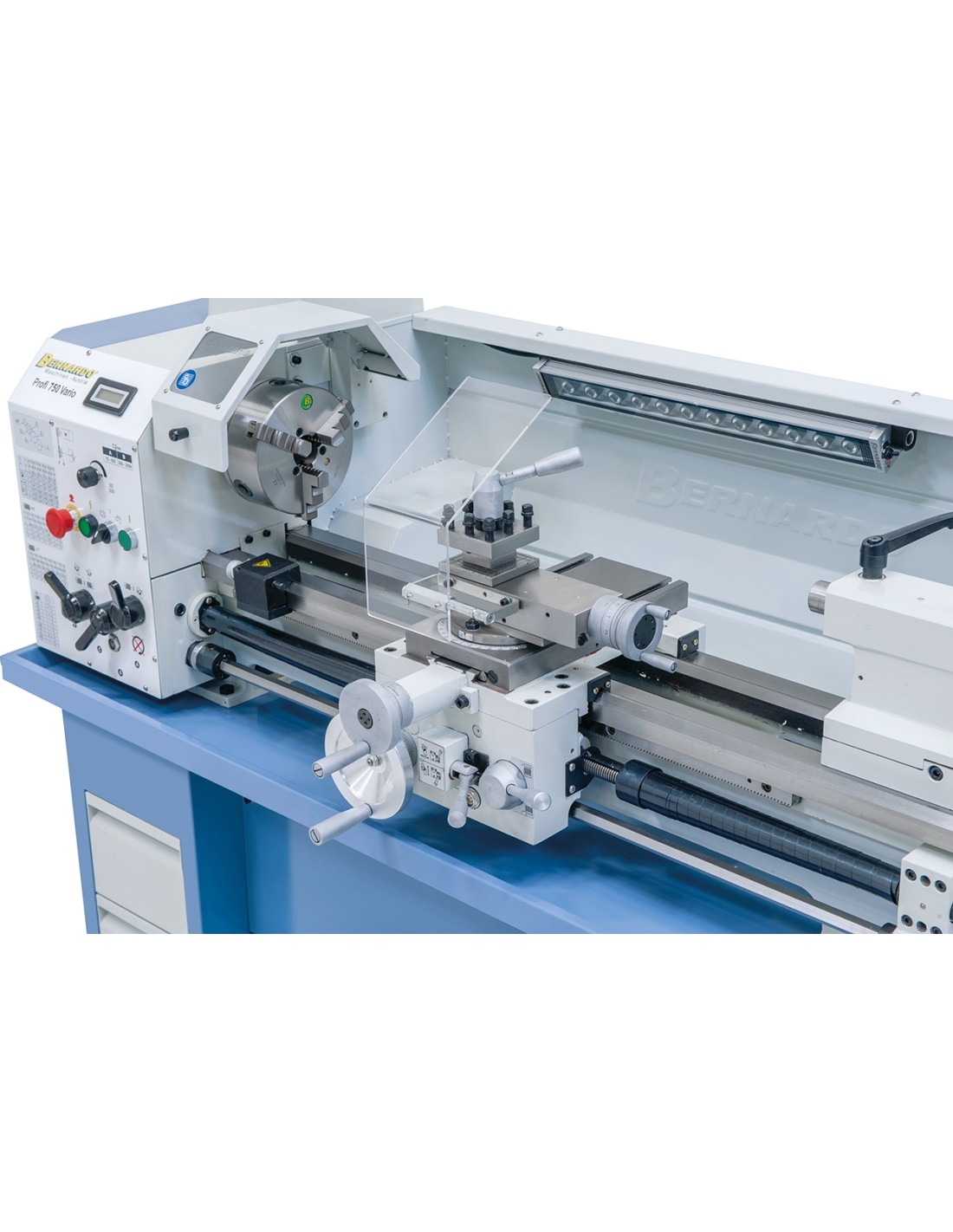

  • Chuck guard
  • Splash guard
  • Leadscrew cover
  • Tools
