WARRANTY

  • 30 days return policy
  • 24 month product warranty
  • Free consultation
  • 30 days return policy
  • 24 month product warranty
  • Free consultation

Distance between centers
900 mm

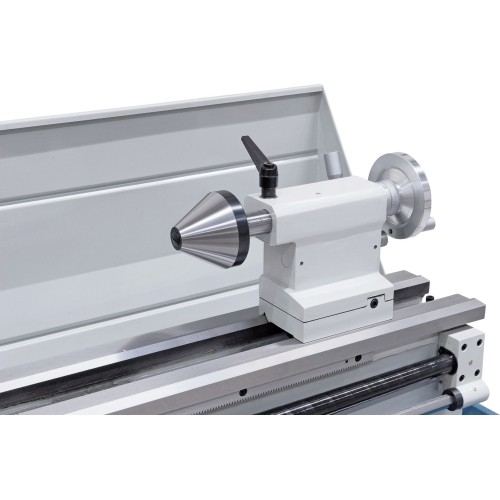

Taper of tailstock sleeve
MT 3
Travel of tailstock sleeve
100 mm
Weight approx.
240 kg
Center height
160 mm
Swing over bed
320 mm
Spindle bore
38 mm
Spindle nose fixture
DIN 55029, D1-4
Longitudinal feed
(15) 0,07 – 1,0 mm/rev.
Cross feed
(15) 0,017 – 0,25 mm/rev.
Metric thread
(18) 0,2 - 3,5 mm
Inch thread
(21) 8 - 56 threads/1"
Machine dimension (W x D x H)
1650 x 650 x 600 mm
Motor power output S1 100%
1,5 kW / 400 V
Motor power input S6 40%
2,2 kW / 400 V
Speed range, stepless
75 – 500 / 300 – 2000 rpm

Profi 900 Vario - 400 V

1092130
€4,475.00
Tax included
Monthly payment from 109.88€

Stock Quantity:
In S01 store
not available
In S02 store
not available
In Supplier store
(5+ pcs)
Delivery terms:
NEMOKAMAI atsiimkite thursday, december 5 d., parduotuvėje, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 240 kg.
Prekę pristatysime Jums per: 5-10 d.d. Venipak (€40.99)
Weight: 240 kg.

Description

Properties

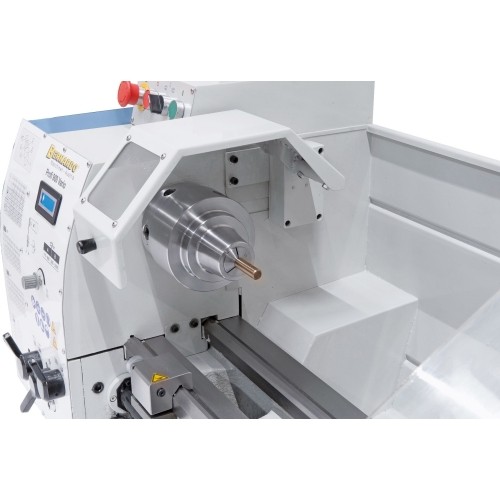

  • Three -phase motor with frequency inverter for higher performance and high torque
  • Complete with 38 mm spindle bore to allow processing of large shaft diameters

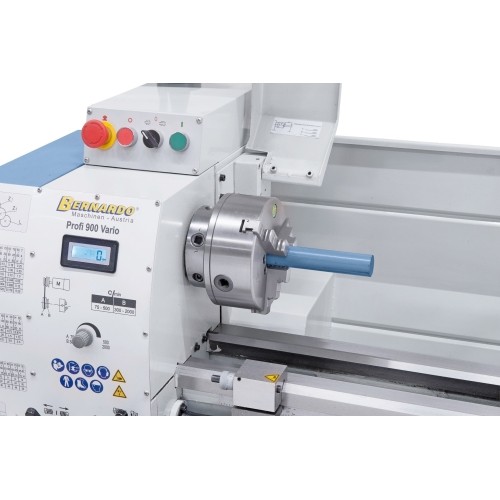

  • Stepless speed adjustment as part of standard accessories, set speed can be read on digital display
  • Wide range of applications: precision mechanics, training and education, etc.
  • Feed settings are logically arranged, easy to control with top accuracy
  • Suitable for processing of steel, non-ferrous metals and plastics
  • Prism bed with large support surface, inductively hardened and polished
  • Precise spindle bearing with two adjustable precision taper roller bearings
  • High concentricity of spindle nose – better than 0.009 mm
  • Practical, solid machine with leadscrew and feed rod

Standard accessories

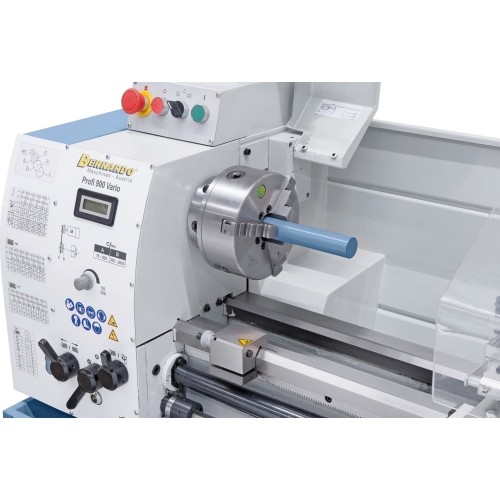

  • 3-jaw chuck DK11-160 mm / D4
  • Dead centers

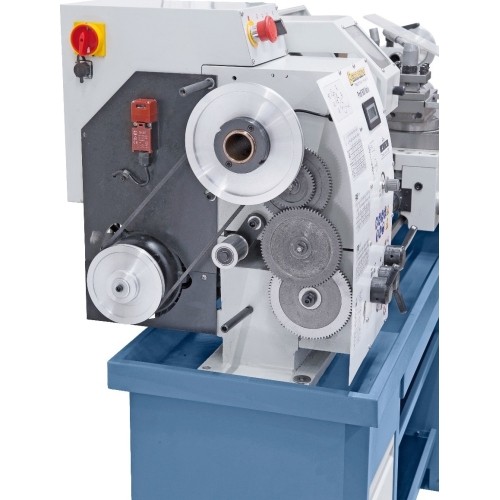

  • Change gears

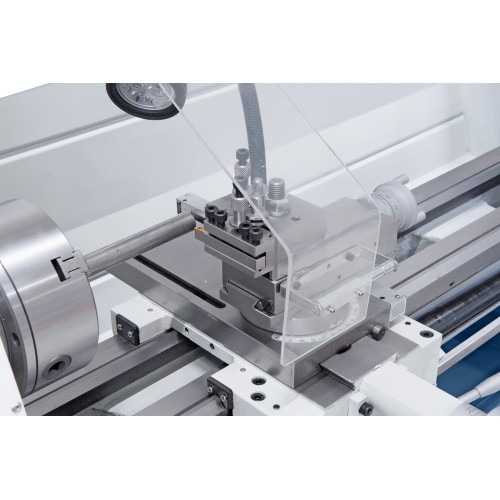

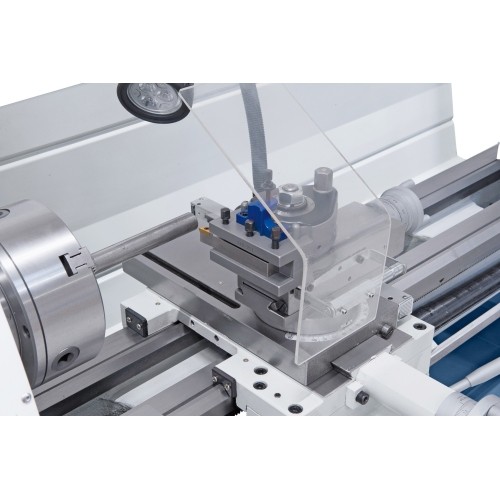

  • 4-way tool post holder
  • Safety clutch

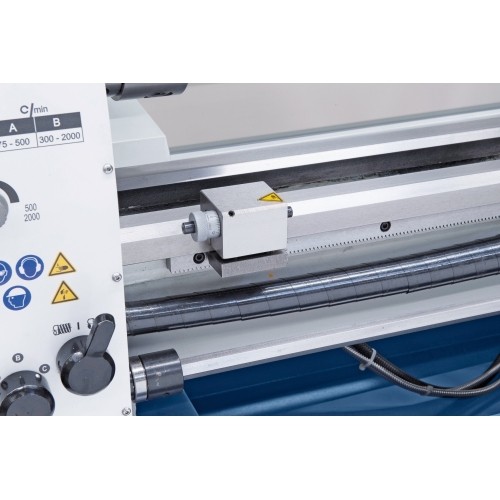

  • Micrometer longitudinal fence
  • Cross slide with top support
  • Frequency inverter

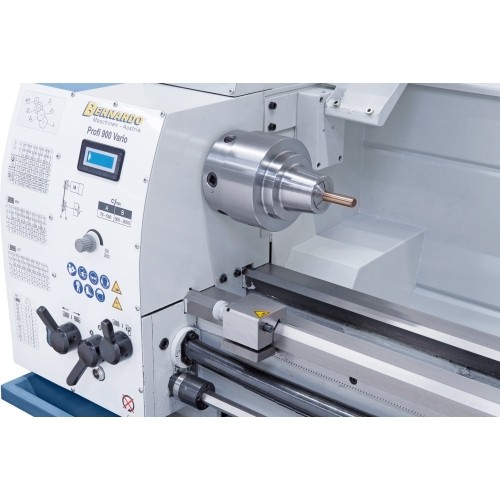

  • Digital speed indication
  • Thread dial

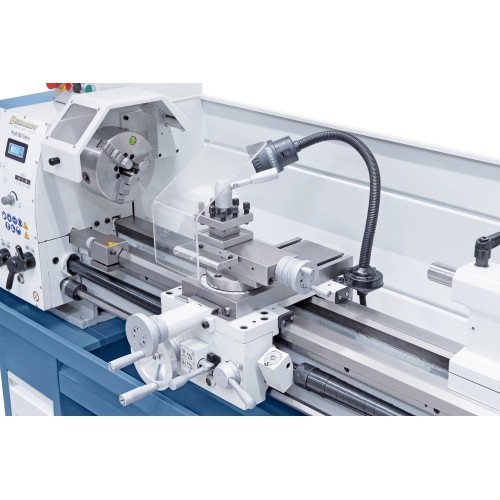

  • LED machine light

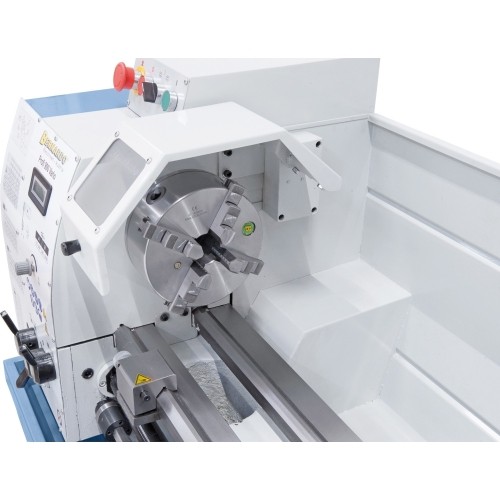

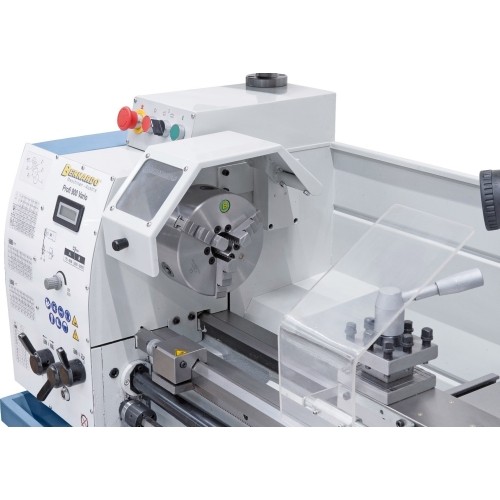

  • Chuck guard
  • Splash guard
  • Leadscrew cover
  • Tools
