Distance between centers
750 mm
Taper of tailstock sleeve
MT 3
Travel of tailstock sleeve
75 mm
Weight approx.
268 kg
Center height
165 mm
Swing over bed
330 mm
Spindle bore
38 mm
Speed Range
(12) 70 - 1800 rpm
Longitudinal feed
(45) 0,0087 - 1,395 mm/rev.
Cross feed
(48) 0,018 - 0,296 mm/rev.
Metric thread
(17) 0,5 - 4 mm
Inch thread
(26) 8 - 40 threads/1“
Machine dimension (W x D x H)
1370 x 680 x 1320 mm
Motor power output S1 100%
1,1 kW / 400 V
Motor power input S6 40%
1,5 kW / 400 V
Taper at spindle bore
MT 5
Bed width
160 mm

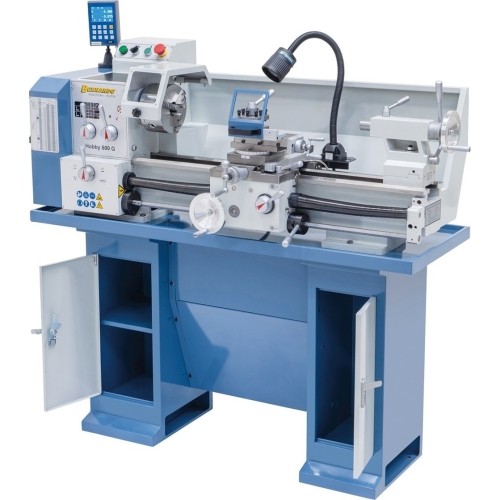

Hobby 800 G / 400 V incl. 3-axis digital readout DT 40

1227908
Price €5,114.00 VAT incl.

Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Supplier store
(10 pcs)
Delivery terms:
FREE pick up wednesday, july 15 d., in the store, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 268 kg.
We will deliver the product to you via: 5-11 w.d. Venipak (€40.99)
Weight: 268 kg.

Description

Properties

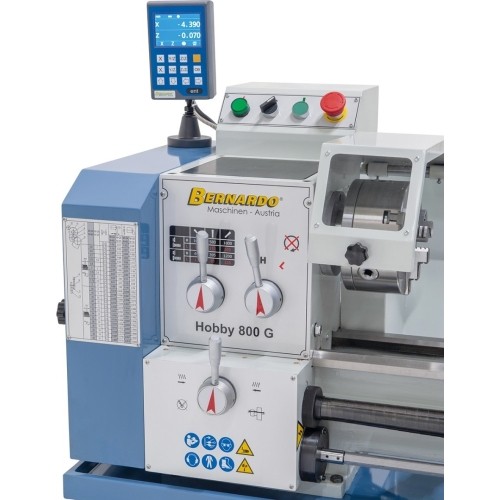

  • Control gear allows easy and quick speed change
  • High-quality tapered rollerbearings ensure high concentricity of spindle nose (≤ 0,009 mm)
  • Powerful motor for high torque, speed range 70 – 1800 rpm
  • Wide range of applications: precision mechanics, training and education, etc.
  • Logically arranged feed setting allows easy, smooth adjustment
  • Solid machine bed with inductive hardened and polished guideways
  • Ideal for processing steel, non-ferrous metals and plastics
  • Comes complete with feed rod for automatic longitudinal and cross feed

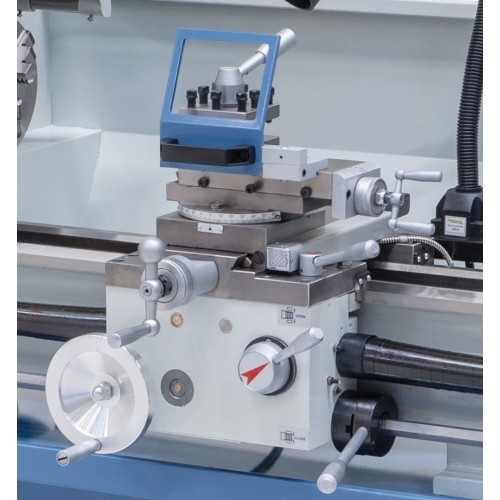

  • Apron features handwheels with fine scale

Standard accessories

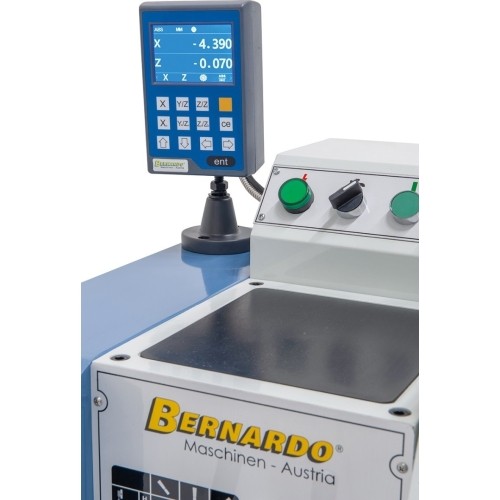

  • 3-axis digital readout DT 40 with LCD-display

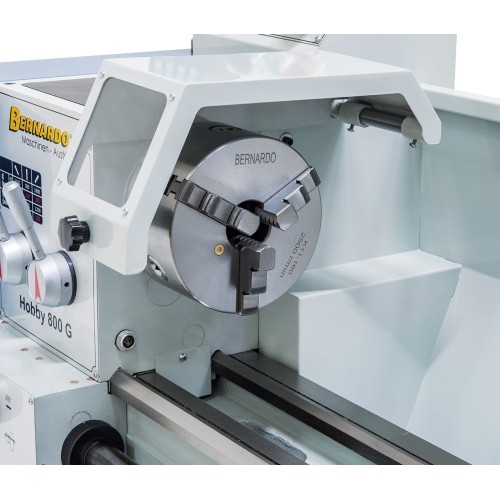

  • 3-jaw chuck 160 mm
  • Cross slide with top support

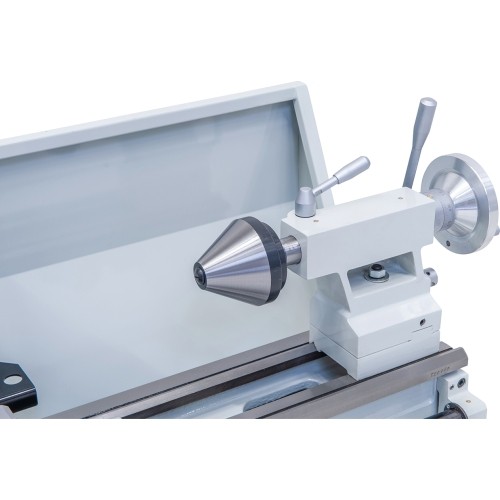

  • Dead center

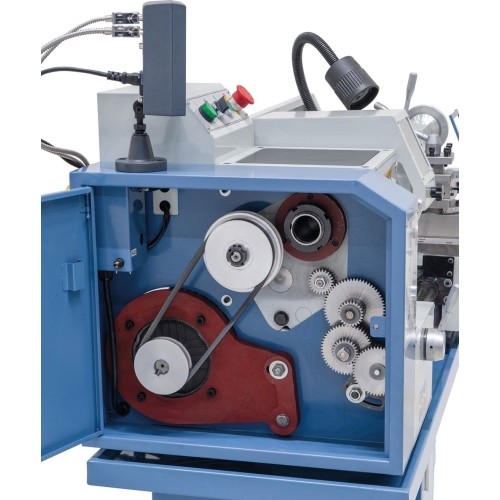

  • Change gears

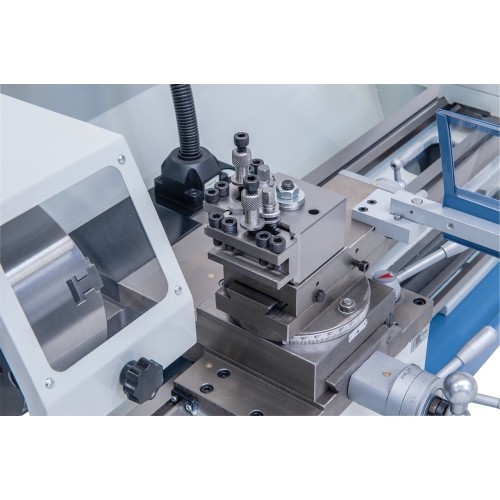

  • 4-way tool post holder
  • LED machine light
  • Chuck guard
  • Splash  guard
  • Leadscrew cover
  • Chip tray
  • Stand
  • Tools
