Distance between centers
1000 mm
Taper of tailstock sleeve
MT 3
Travel of tailstock sleeve
110 mm
Weight approx.
530 kg
Center height
175 mm
Swing over bed
350 mm
Swing over gap*
450 mm
Swing over cross slide
190 mm
Spindle bore
40 mm
Spindle nose fixture
DIN 55029, D1-4
Longitudinal feed
(40) 0,053 - 1,29 mm/rev.
Cross feed
(40) 0,013 - 0,31 mm/rev.
Metric thread
(32) 0,4 - 7 mm
Inch thread
(36) 4 - 60 threads/1“
Machine dimension (W x D x H)
1730 x 700 x 1340 mm
Motor power output S1 100%
1,5 kW / 400 V
Motor power input S6 40%
2,2 kW / 400 V
Speed range, stepless
70 - 400 / 350 - 2000 rpm
Bed width
180 mm

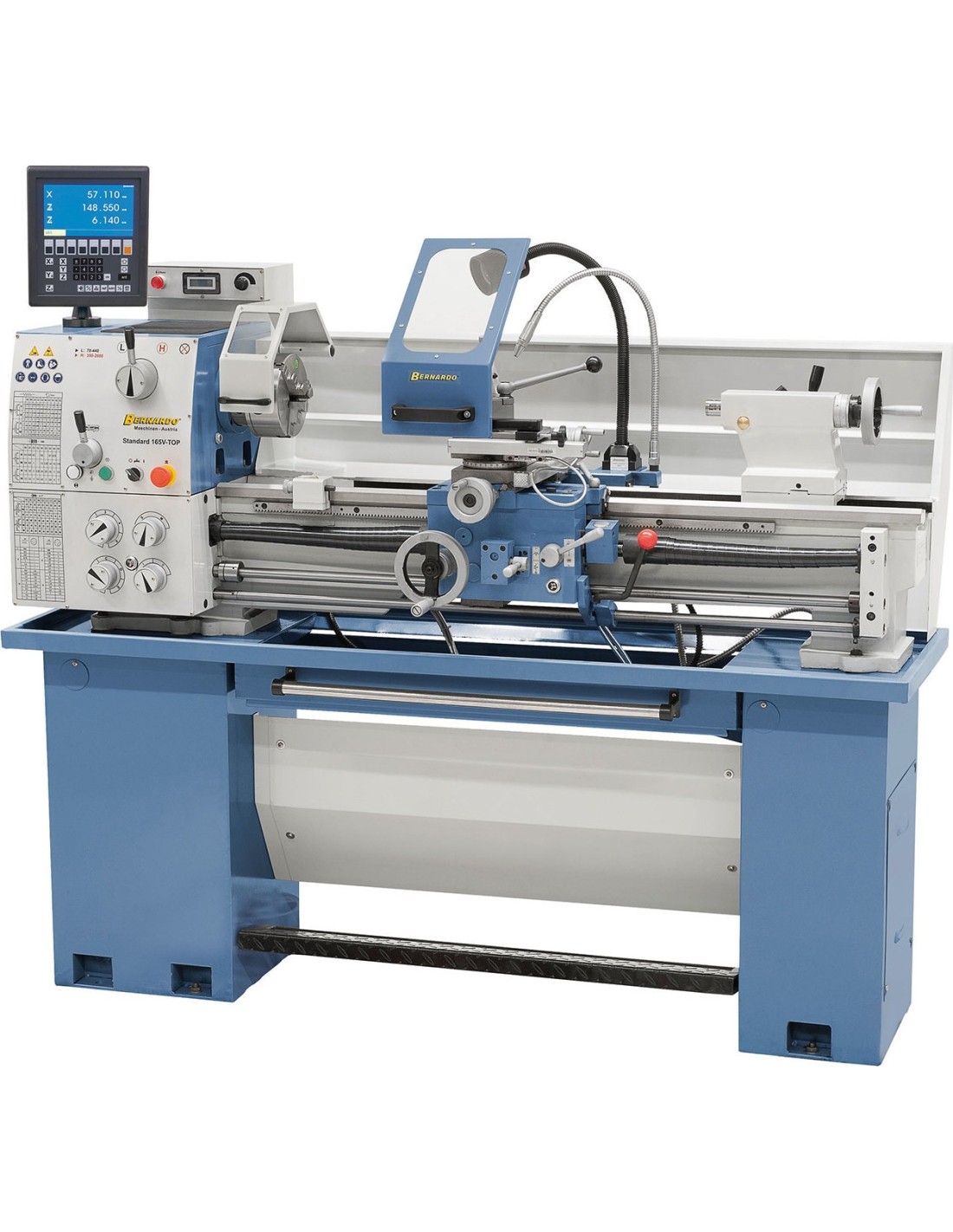

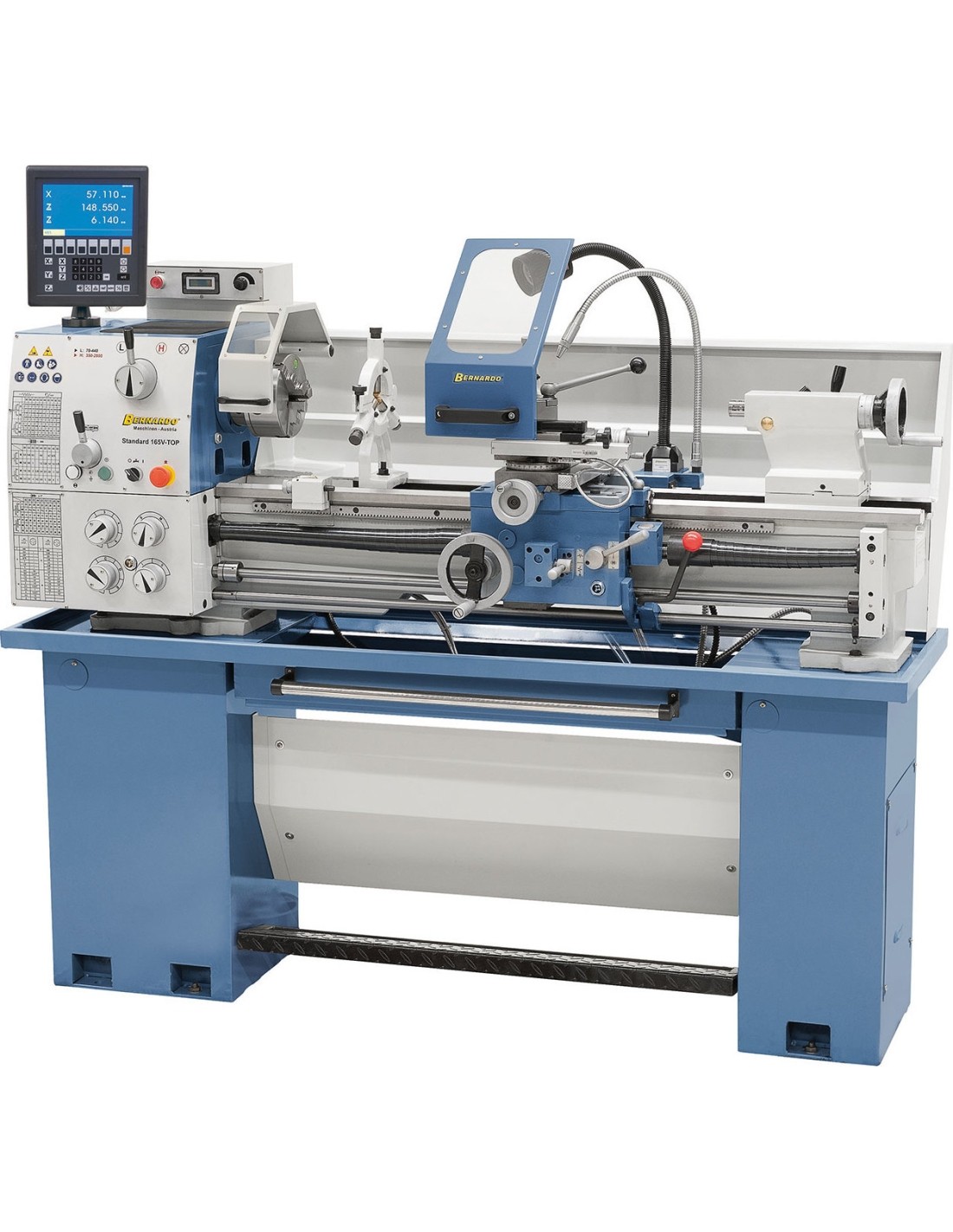

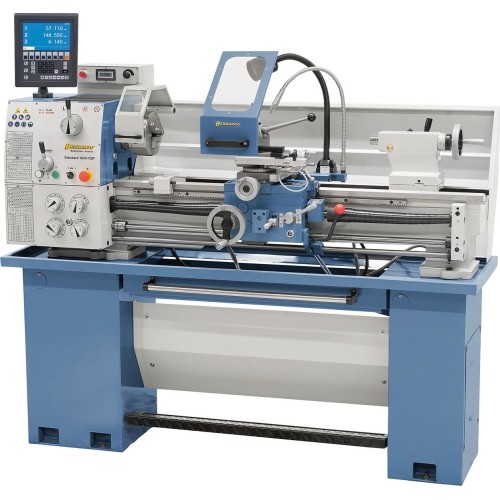

Tekinimo staklės Bernardo Standard 165 V-Top

1055613
Price €10,924.00 VAT incl.

Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Supplier store
(10 pcs)
Delivery terms:
FREE pick up wednesday, july 15 d., in the store, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 530 kg.
We will deliver the product to you via: 5-11 w.d. Venipak (€40.99)
Weight: 530 kg.

Description

Properties

  • Serially with Delta-frequency inverter for high torque in low speed range and nearly constant speed at heavy workloads
  • Stepless speed adjustment, set speed can be read on digital display
  • Perfect machine for technical schools, repair shops and training workshops
  • State-of-the-art spindle bedding with high-quality, angular ball bearings

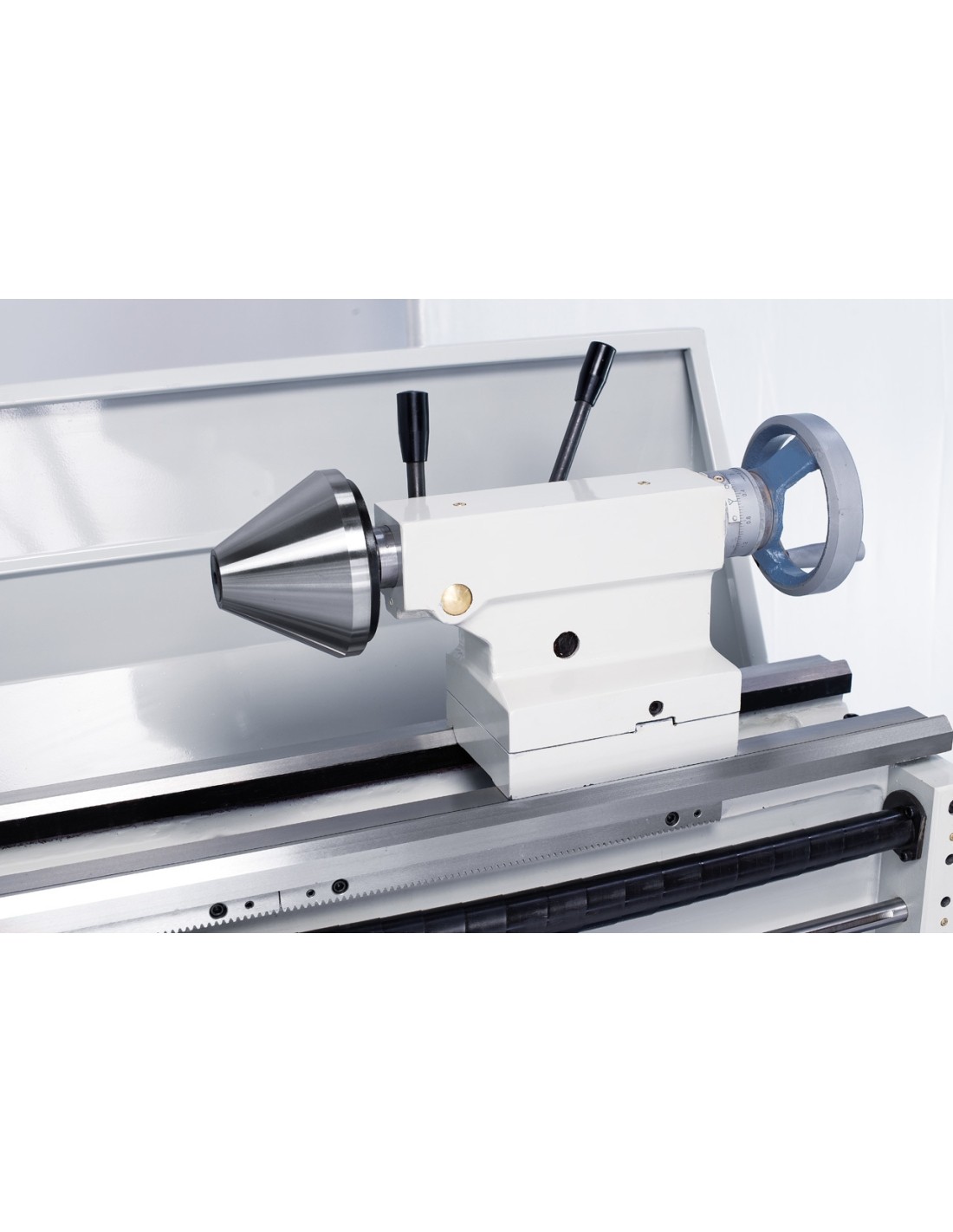

  • One-hand clamping for tailstock, adjustable for taper turning
  • Hardened and polished gear wheels and shafts
  • Ideal for processing of steel, non-ferrous materials and plastics
  • Removable bridge allows processing of workpieces of large diameter
  • Solid prism-shaped machine bed features additional reinforcements to keep vibrations to a minimum

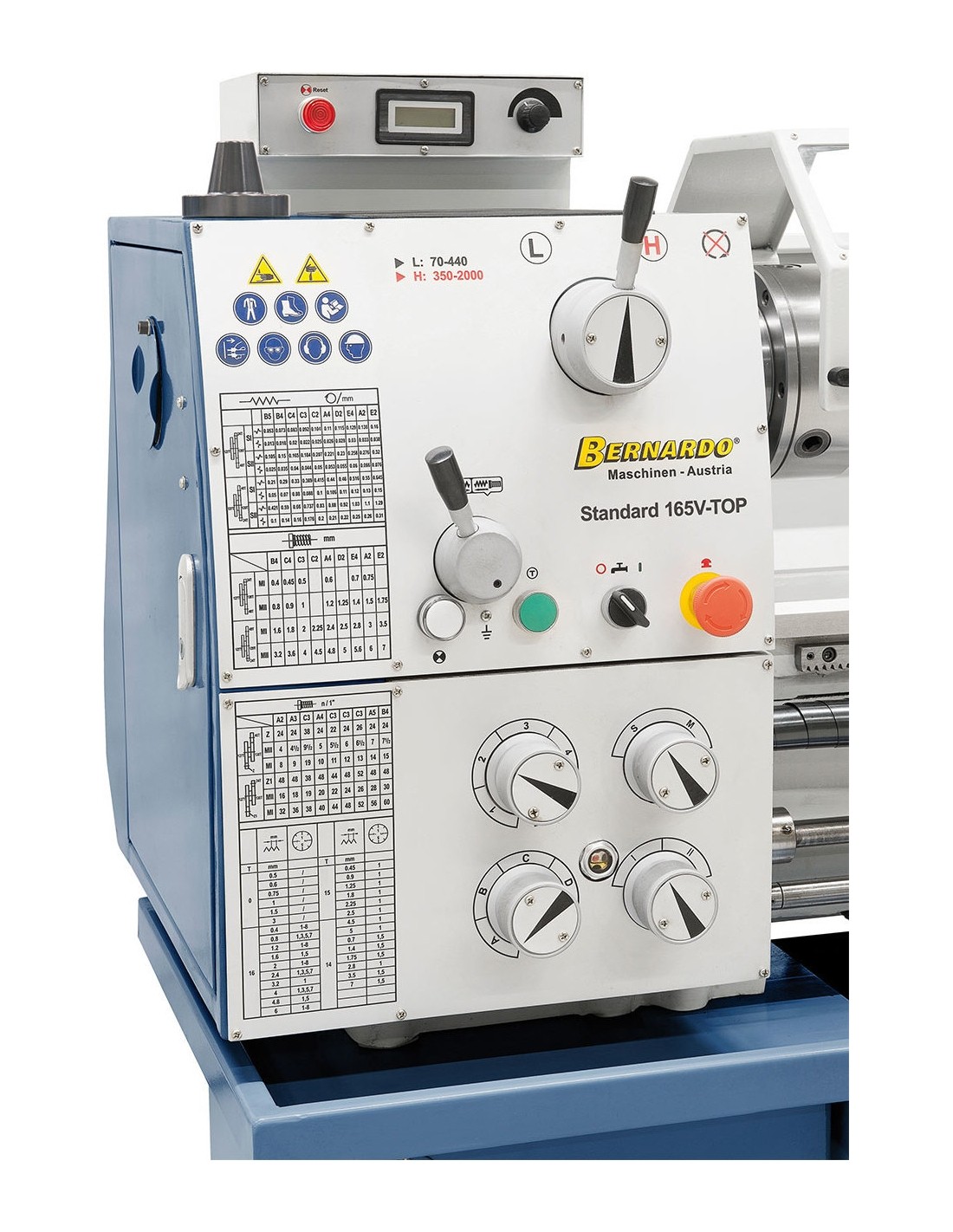

  • Clearly arranged speed and feed control settings, smooth operation and accurate control

Standard accessories

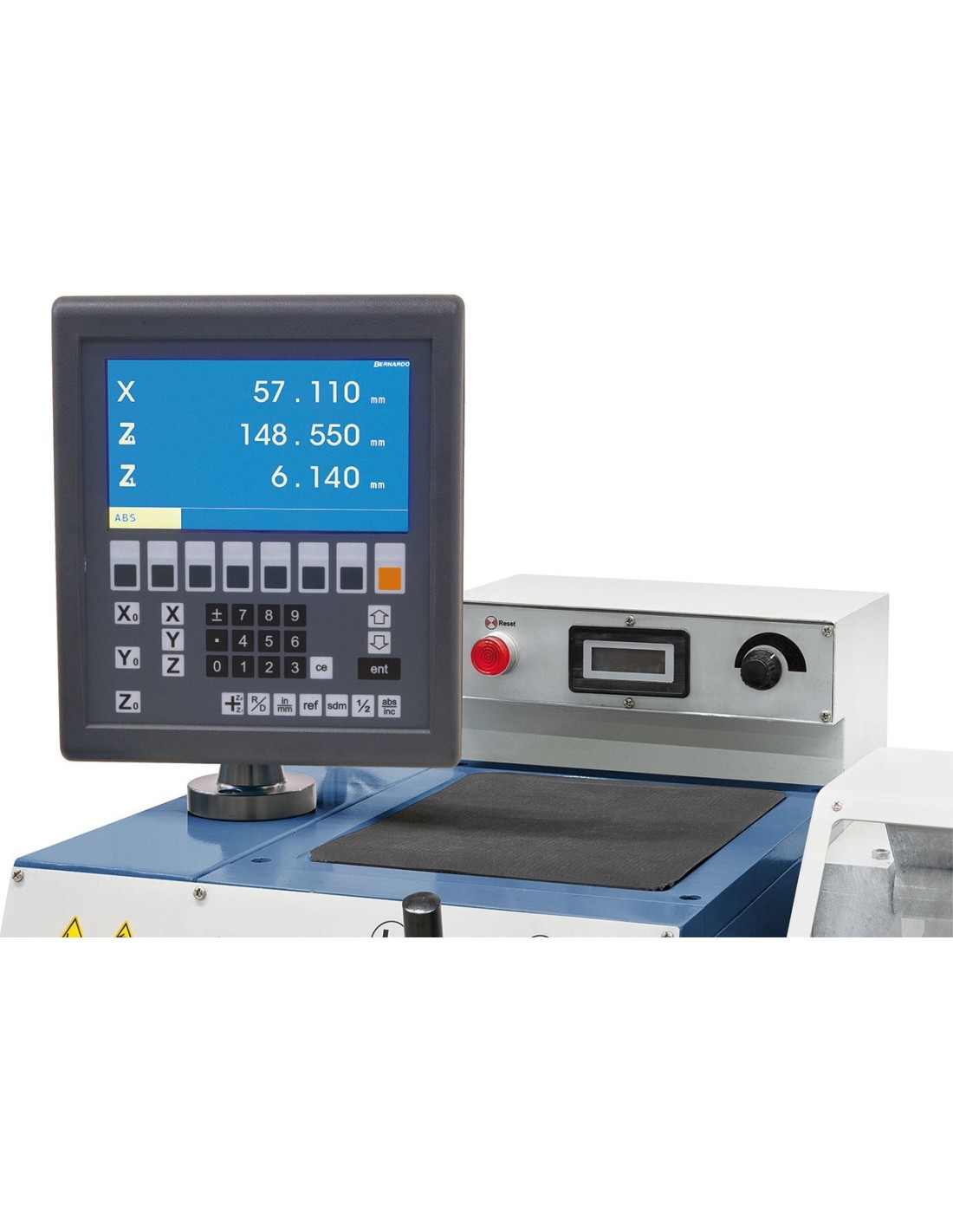

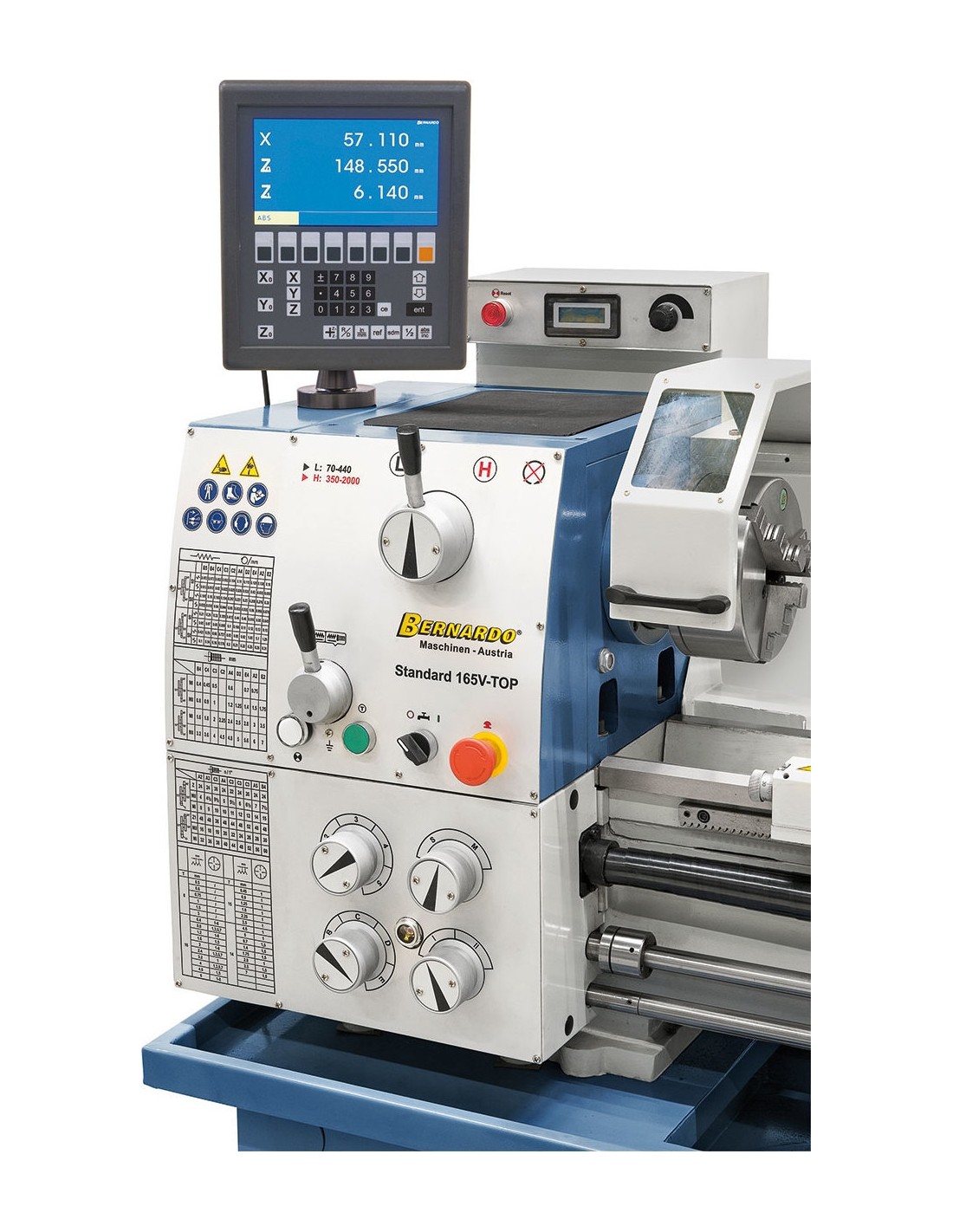

  • 3-axis digital readout ES-12 V with LCD-display

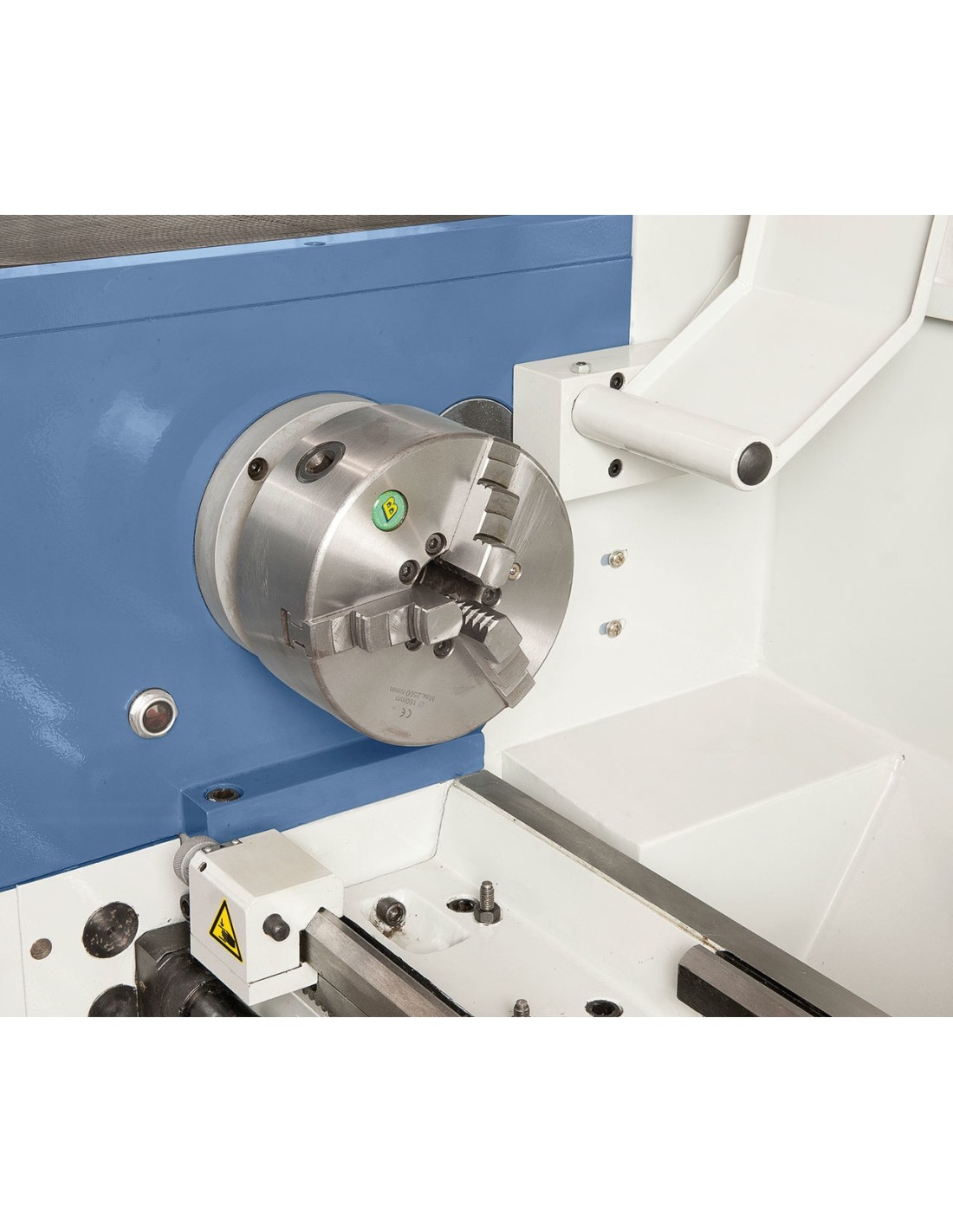

  • 3-jaw chuck DK11-160 mm / D4
  • Independent chuck 200 mm / D4, according DIN 55029

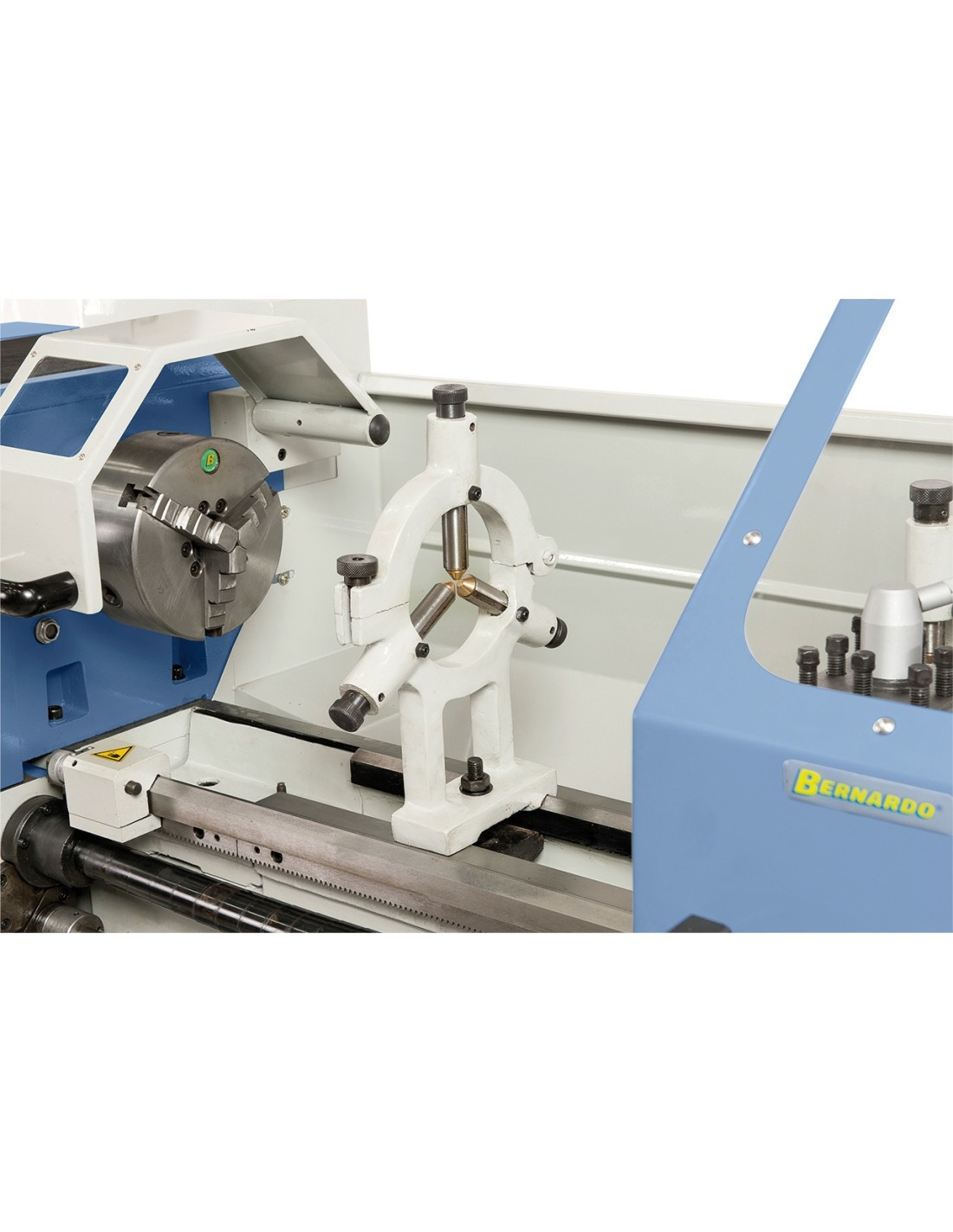

  • Steady rest – Passage up to 60 mm
  • Follow rest – Passage up to 60 mm
  • Face plate 250 mm

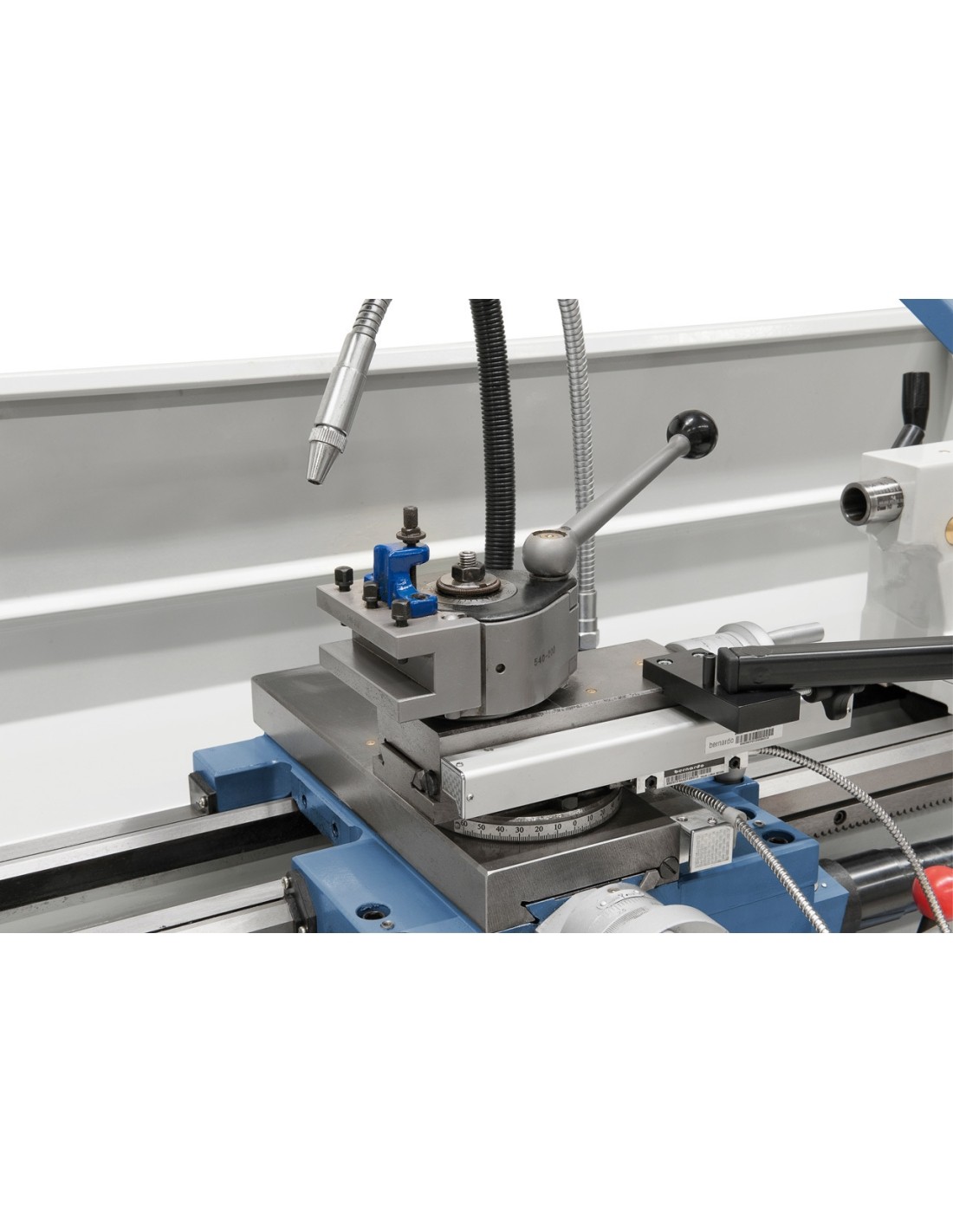

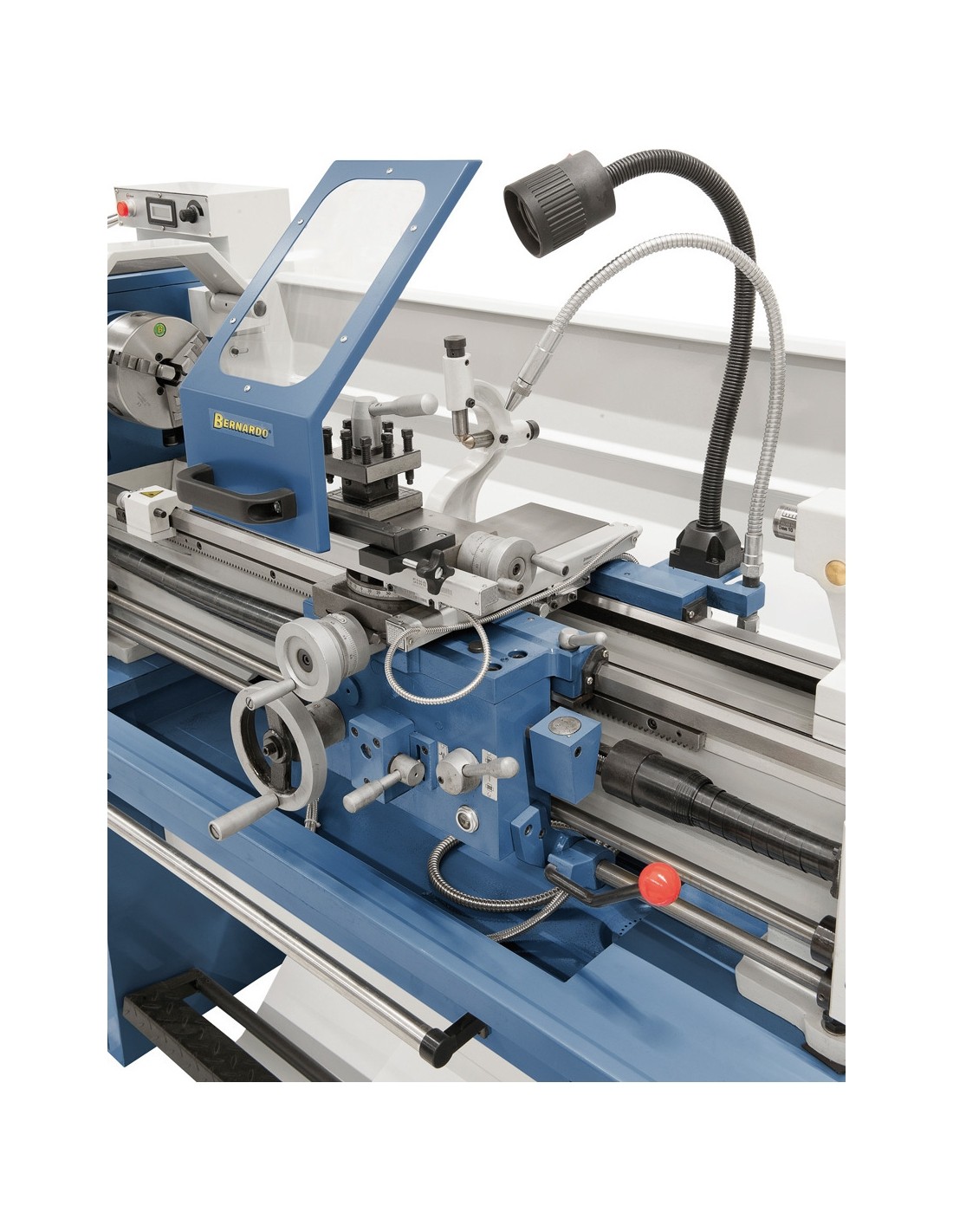

  • Quick change tool post holder System Multifix with 4 insters
  • Protective device at tool holder
  • Safety clutch
  • Micrometer longitudinal fence
  • Coolant device
  • Extractable chip tray
  • Frequency inverter
  • Foot pedal with brake function according CE
  • Splash guard
  • Thread dial
  • LED machine light
  • Digitale speed indication
  • Morse taper drill sleeve

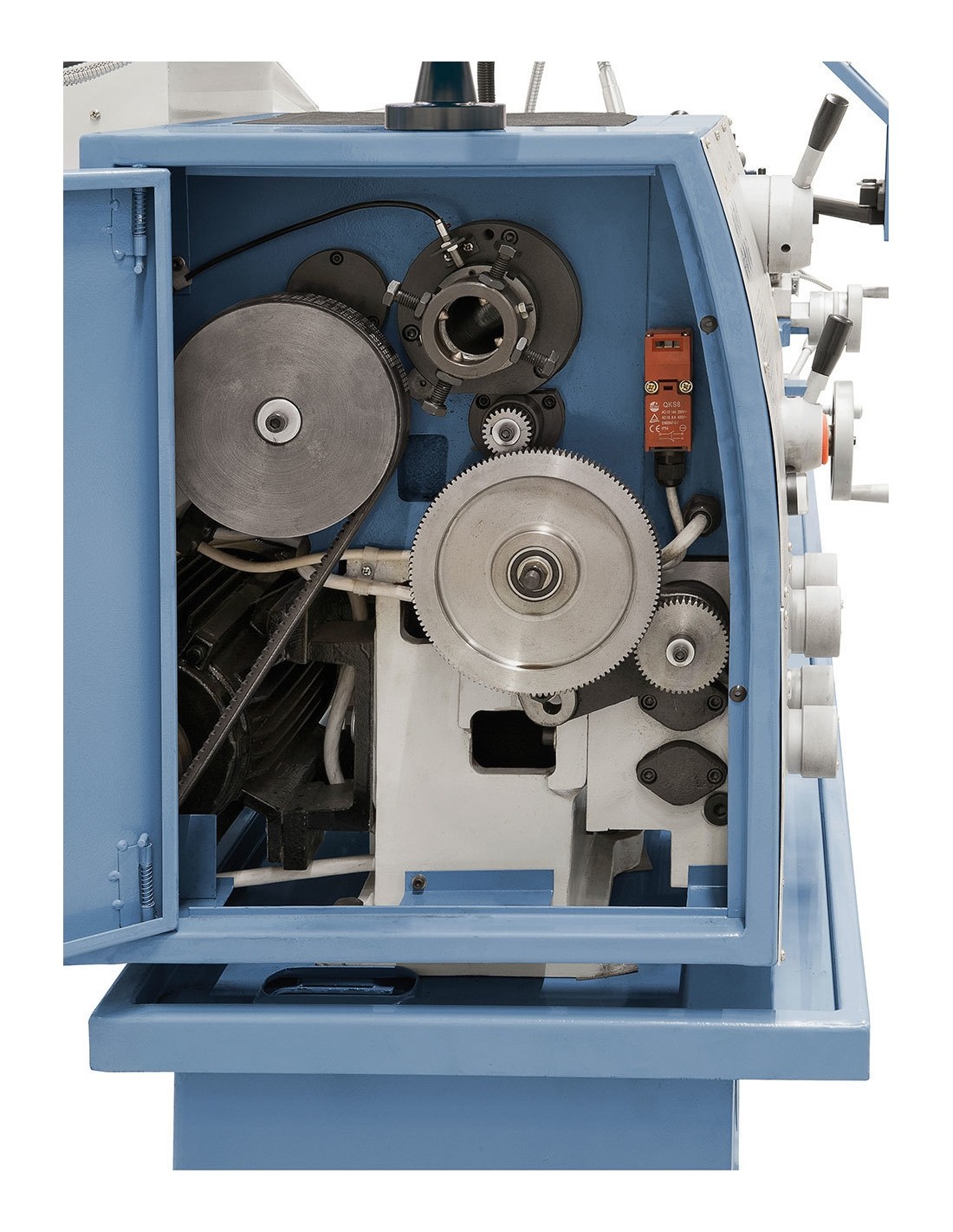

  • Change gears
  • 2 dead centers
  • Stand
  • Tools
