Spindle taper
MT 4
Weight approx.
322 kg
Machine dimension (W x D x H)
1140 x 970 x 1460 mm
Drilling capacity in steel
32 mm
Distance spindle to column
220 mm
Spindle stroke
120 mm
Travel (x / y)
555 / 225 mm
Mill head tiltable
-60° to +60°
Height adjustment of mill head
390 mm
T-slot size
14 mm
Motor power output S1 100%
1,1 / 1,5 kW (400 V)
Motor power input S6 40%
1,5 / 2,2 kW (400 V)
Spindle speeds
(12) 75 - 3200 rpm
Table size
800 x 240 mm
Distance spindle to table
95 - 485 mm
Lifting motor
90 W
Drilling capacity in cast iron
40 mm
Spindle feed
(3) 0,10 / 0,18 / 0,26 mm/rev.
Milling head max.
80 mm

Gręžimo ir frezavimo staklės Bernardo FM 50 HSV

1055646
Price €5,608.00 VAT incl.

Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Manufacturer / Supplier warehouse
(10 pcs)
Delivery terms:
FREE pick up friday, august 28 d., in the store, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 322 kg.
We will deliver the product to you via: 5-11 w.d. Venipak (€40.99)
Weight: 322 kg.

Description

Properties

  • Wide range of applications, such as slotting, face milling, circular milling etc.
  • Automatic spindle feed and thread cutting device come standard

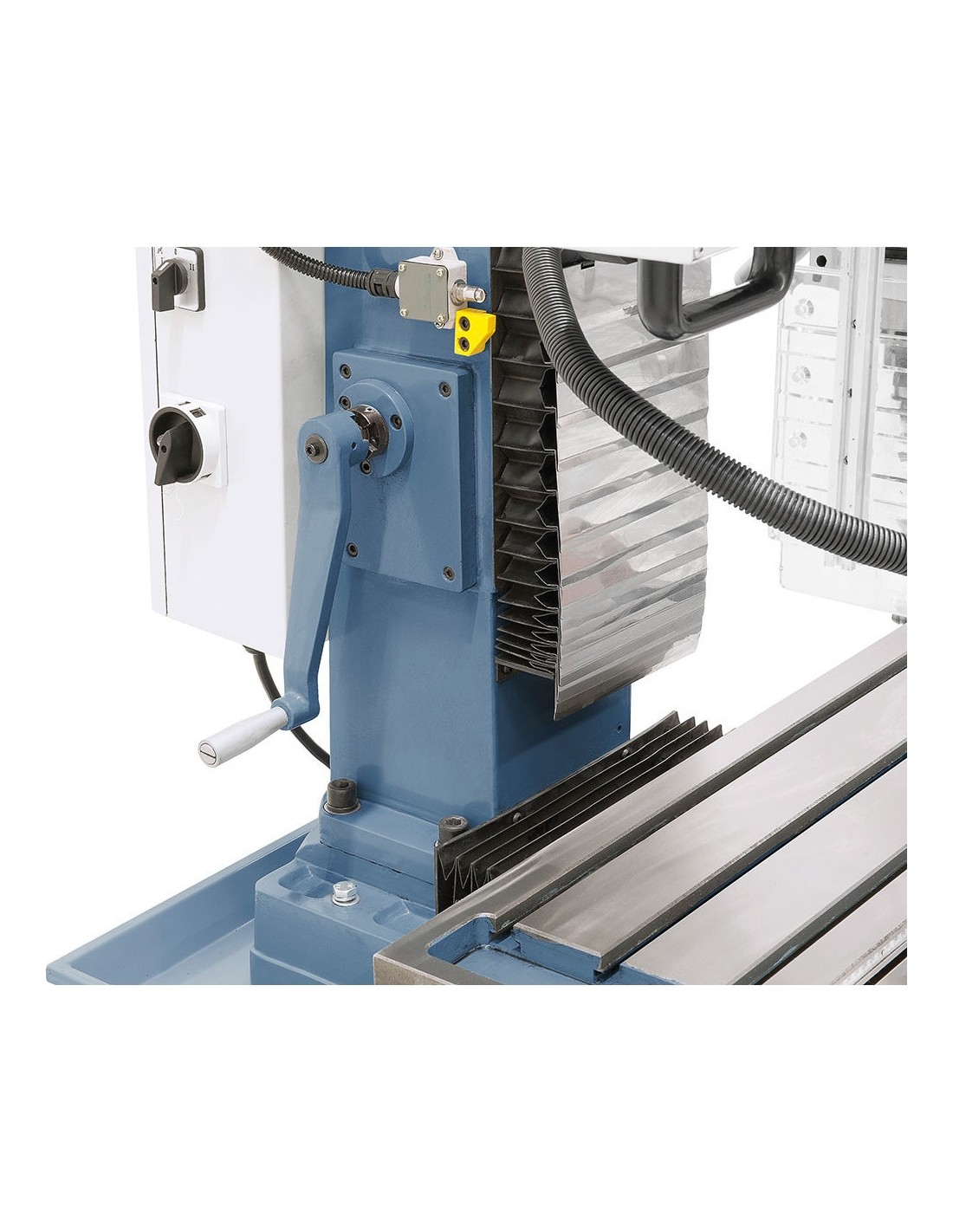

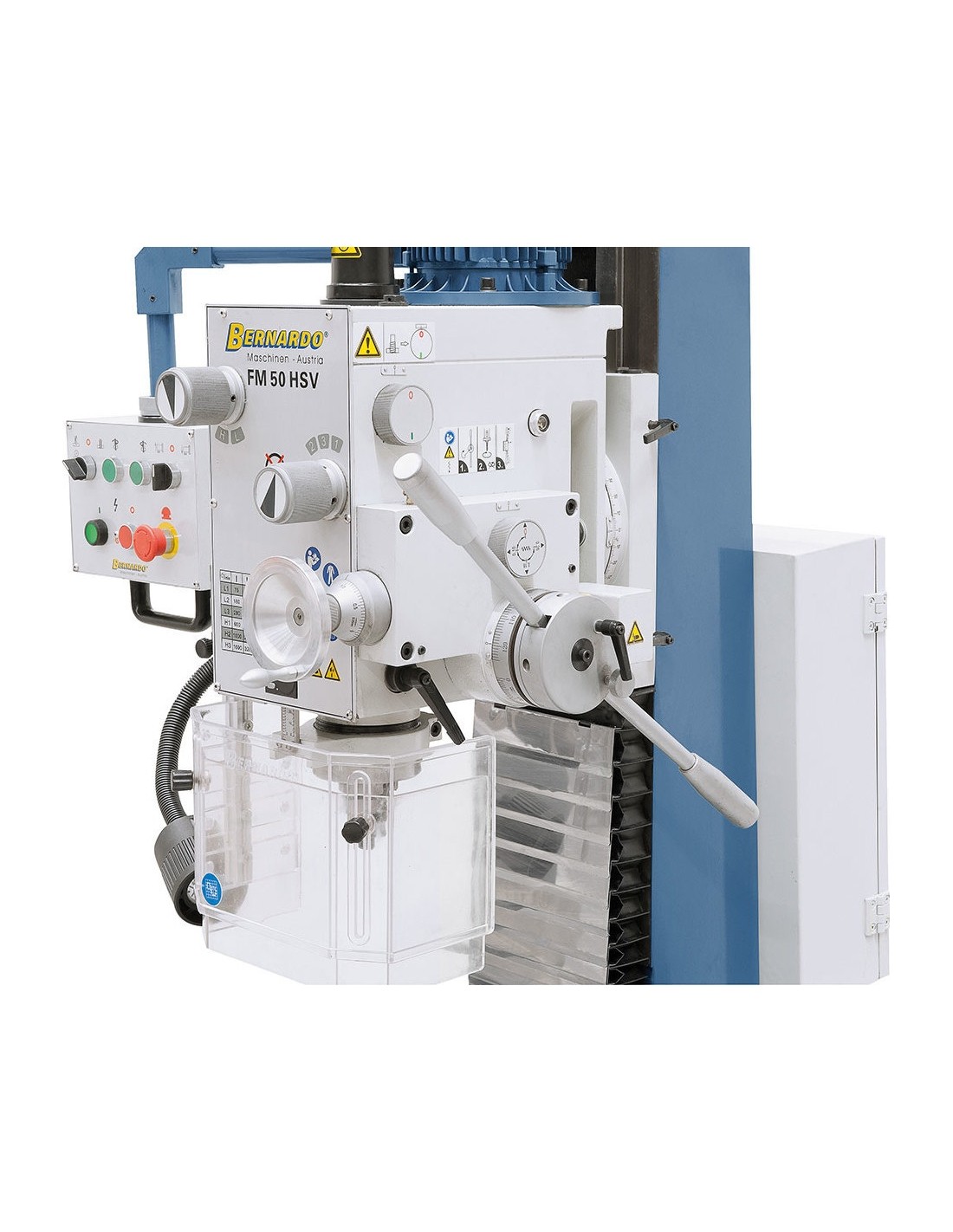

  • Lifting motor allows convenient height adjustment of mill head
  • Digital display for spindle feed included

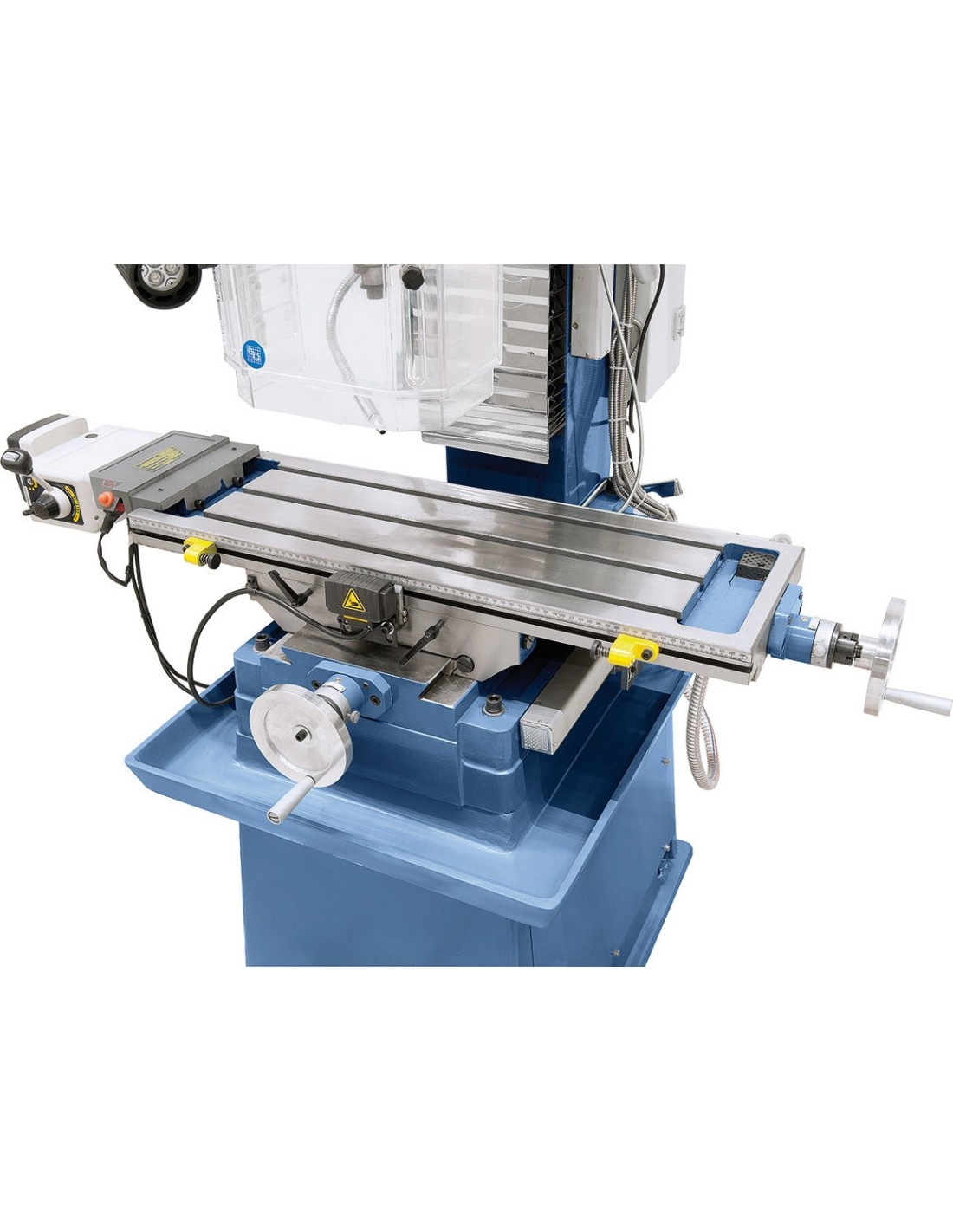

  • Dovetail guiding in x-, y- and z-axis, adjustable by gibs
  • Polished gear wheels, in oil bath, ensure smooth running

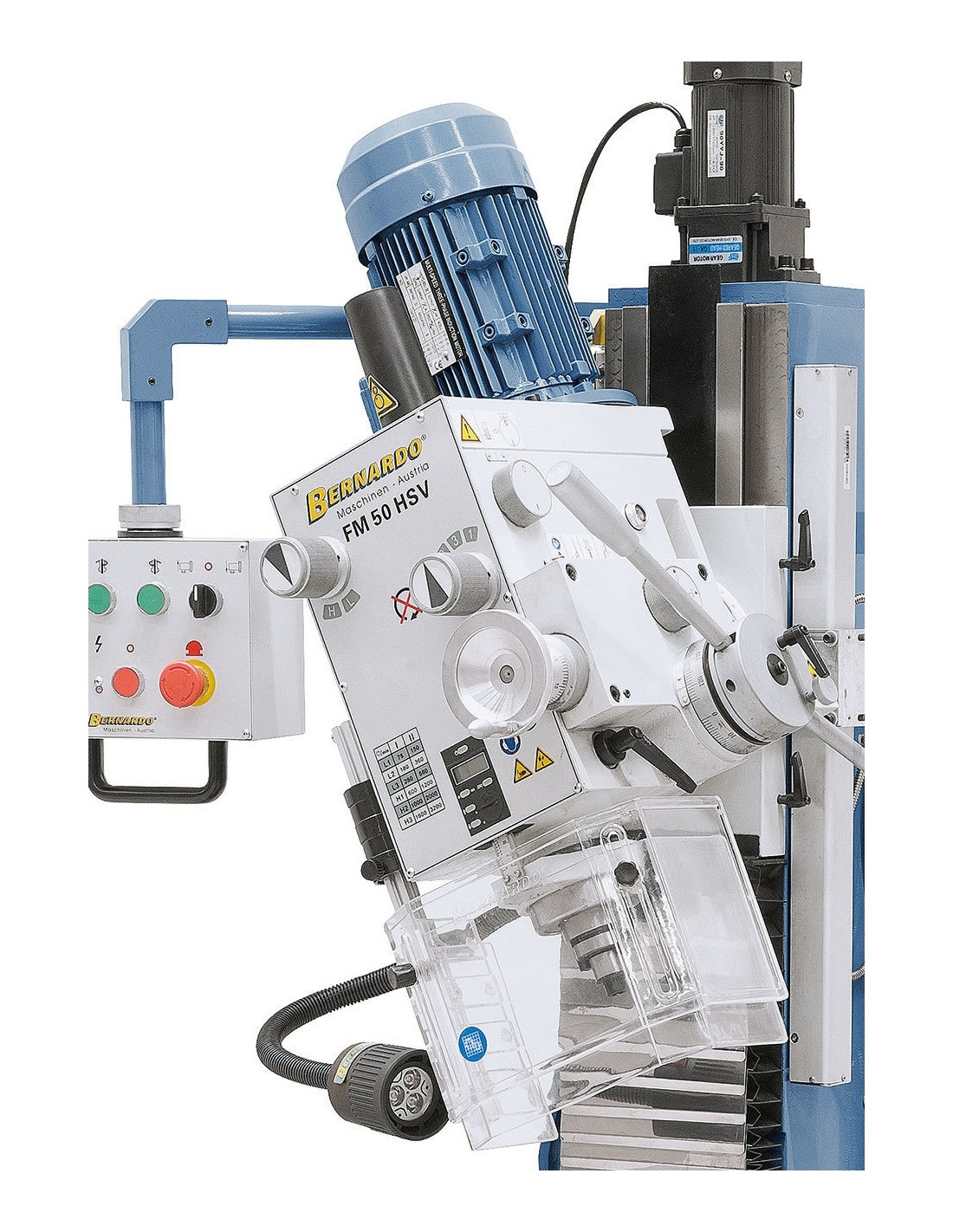

  • Mill head tilts to both sides for angular boring, groove milling and many more
  • Dovetail guide of gear unit guarantees rigidity
  • Handle allows for spindle adjustment, hand wheel allows for fine feed

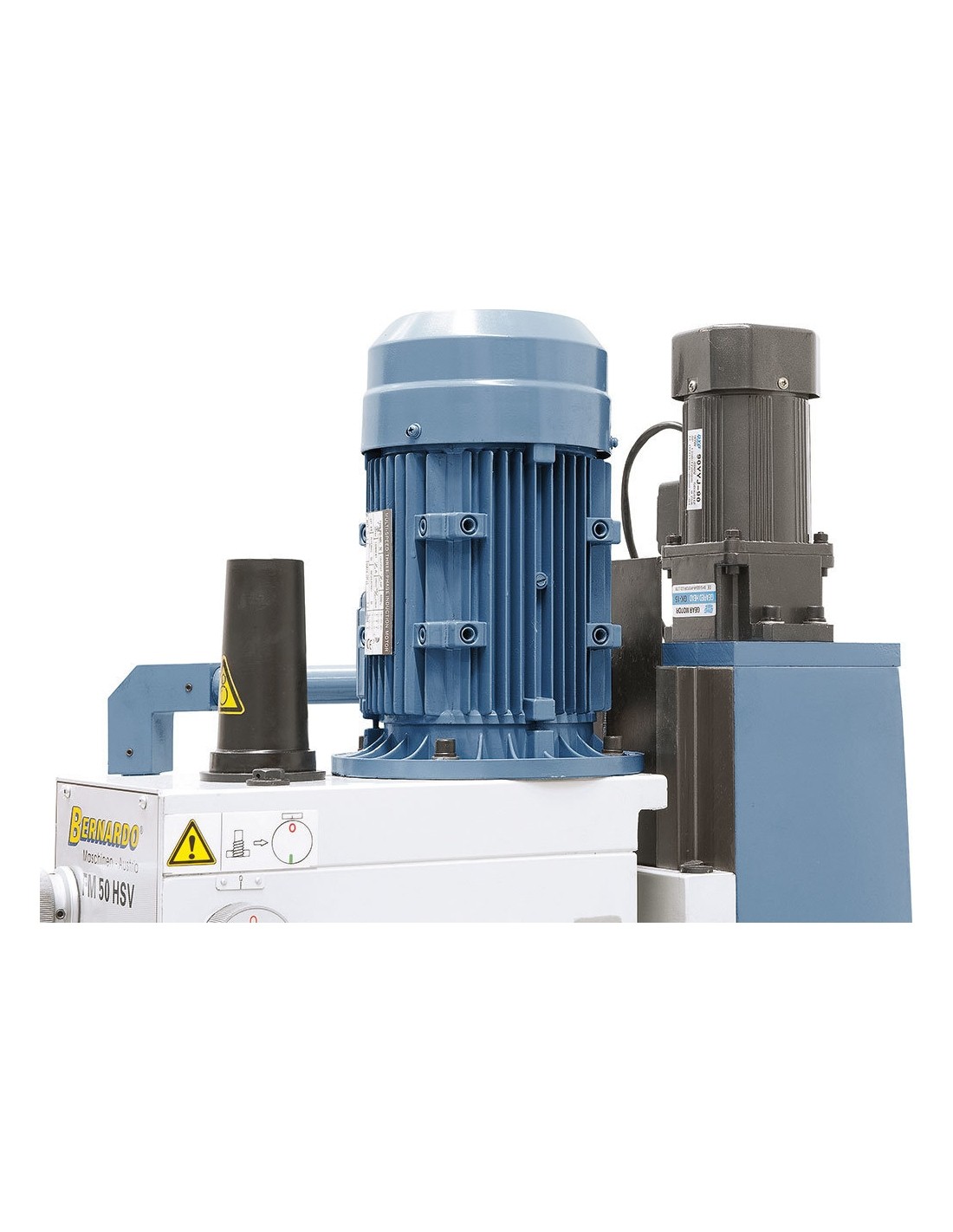

  • Powerful 2-step motor, speed range 75 - 3200 rpm
  • Height adjustable protective cover with micro switch for increased safety

Standard accessories

  • Keyless drill chuck 3 – 16 mm / B 16
  • Morse taper drill sleeve MT 4 / B 16
  • Drawbar M 16
  • Morse taper drill sleeve MT 4 / 3
  • Taper shell end mill holder MT 4 / 27 mm
  • Height adjustable protective cover
  • Automatic spindle feed
  • Lifting motor for mill head
  • LED machine light
  • Digital spindle stroke indication
  • Thread cutting device
  • Steel cover
  • Longitudinal scale
  • Tools
