WARRANTY

  • 30 days return policy
  • 24 month product warranty
  • Free consultation
  • 30 days return policy
  • 24 month product warranty
  • Free consultation

Spindle taper
MT 4
Weight approx.
287 kg
Machine dimension (W x D x H)
1140 x 770 x 1500 mm
Drilling capacity in steel
32 mm
Distance spindle to column
220 mm
Spindle stroke
125 mm
Travel (x / y)
555 / 205 mm
Mill head tiltable
-60° to +60°
Height adjustment of mill head
425 mm
T-slot size
14 mm
Motor power output S1 100%
1,1 / 1,5 kW (400 V)
Motor power input S6 40%
1,5 / 2,2 kW (400 V)
Spindle speeds
(12) 75 - 3200 rpm
Table size
800 x 240 mm
Distance spindle to table
60 – 485 mm
Drilling capacity in cast iron
40 mm
Milling head max.
80 mm

FM 45 HS incl. 3-axis digital readout ES-12 V

1092060
€4,171.00
Tax included
Monthly payment from 102.23€

Stock Quantity:
In S01 store
not available
In S02 store
not available
In Supplier store
(5+ pcs)
Delivery terms:
NEMOKAMAI atsiimkite friday, november 15 d., parduotuvėje, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 287 kg.
Prekę pristatysime Jums per: 5-11 d.d. Venipak (€25.00)
Weight: 287 kg.

Description

Properties

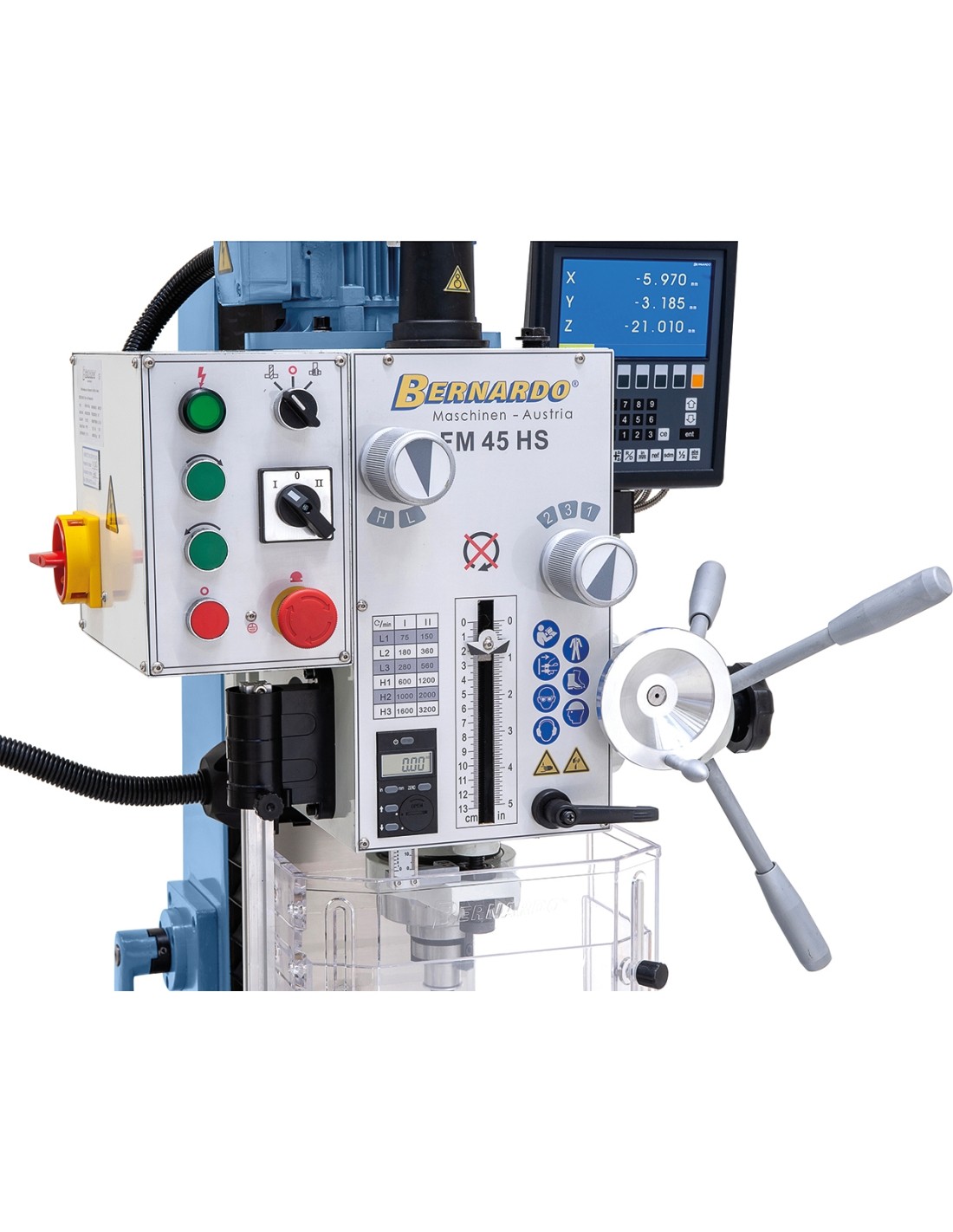

  • Gear selector switch allows for quick and easy speed change
  • Wide range of applications, such as drilling, milling, thread cutting etc.
  • Polished gear wheels, in oil bath, ensure smooth running
  • Right and left turning device for tapping
  • Handle allows spindle feed, handwheel allows fine feed
  • Dovetail guiding in x-, y- and z-axis, adjustable by gibs
  • Milling table tilts to both sides to allow angular boring, milling of bevels etc.
  • Large, surface-treated cross table
  • Attractive price-to-performance ratio for price conscious users

Standard accessories

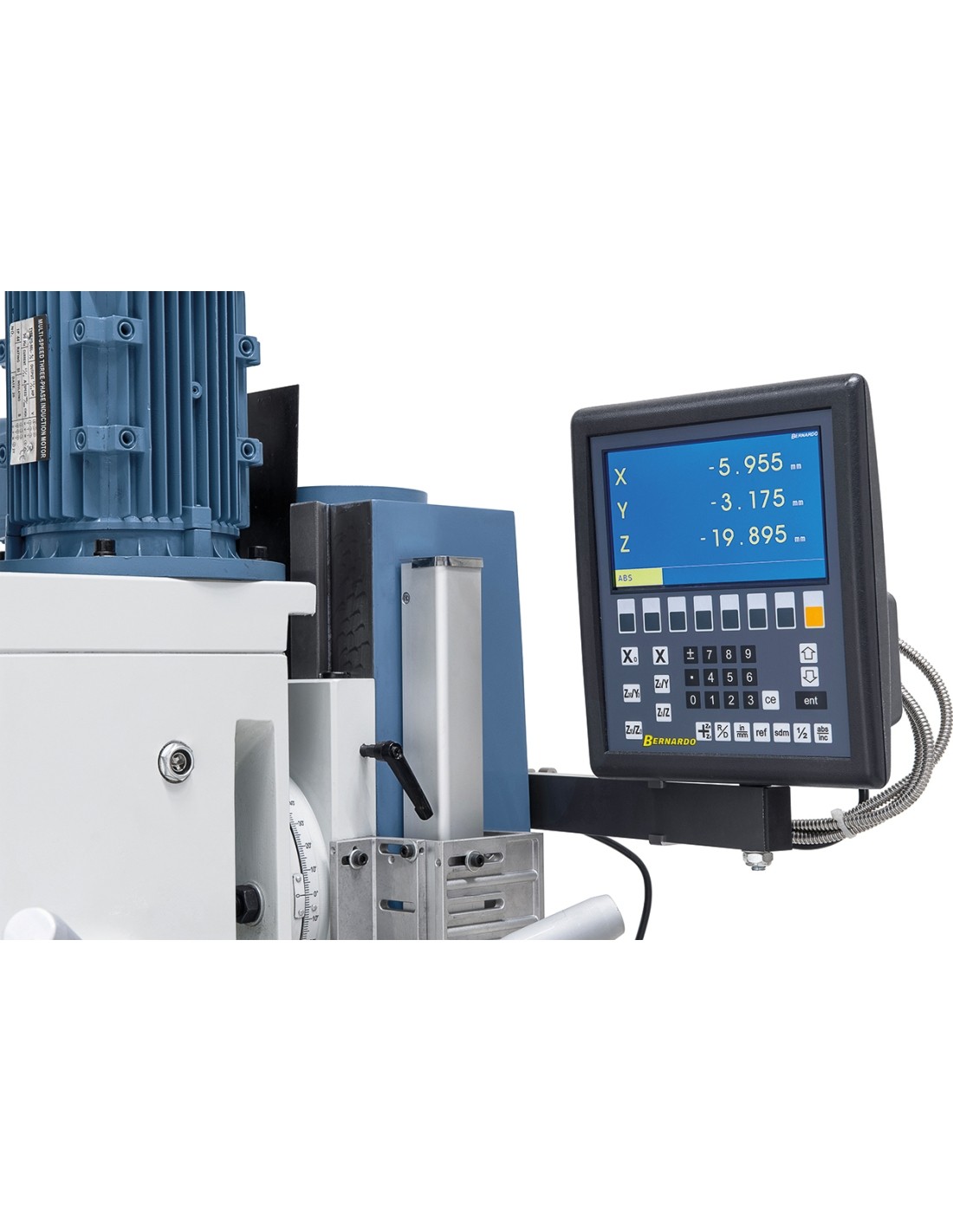

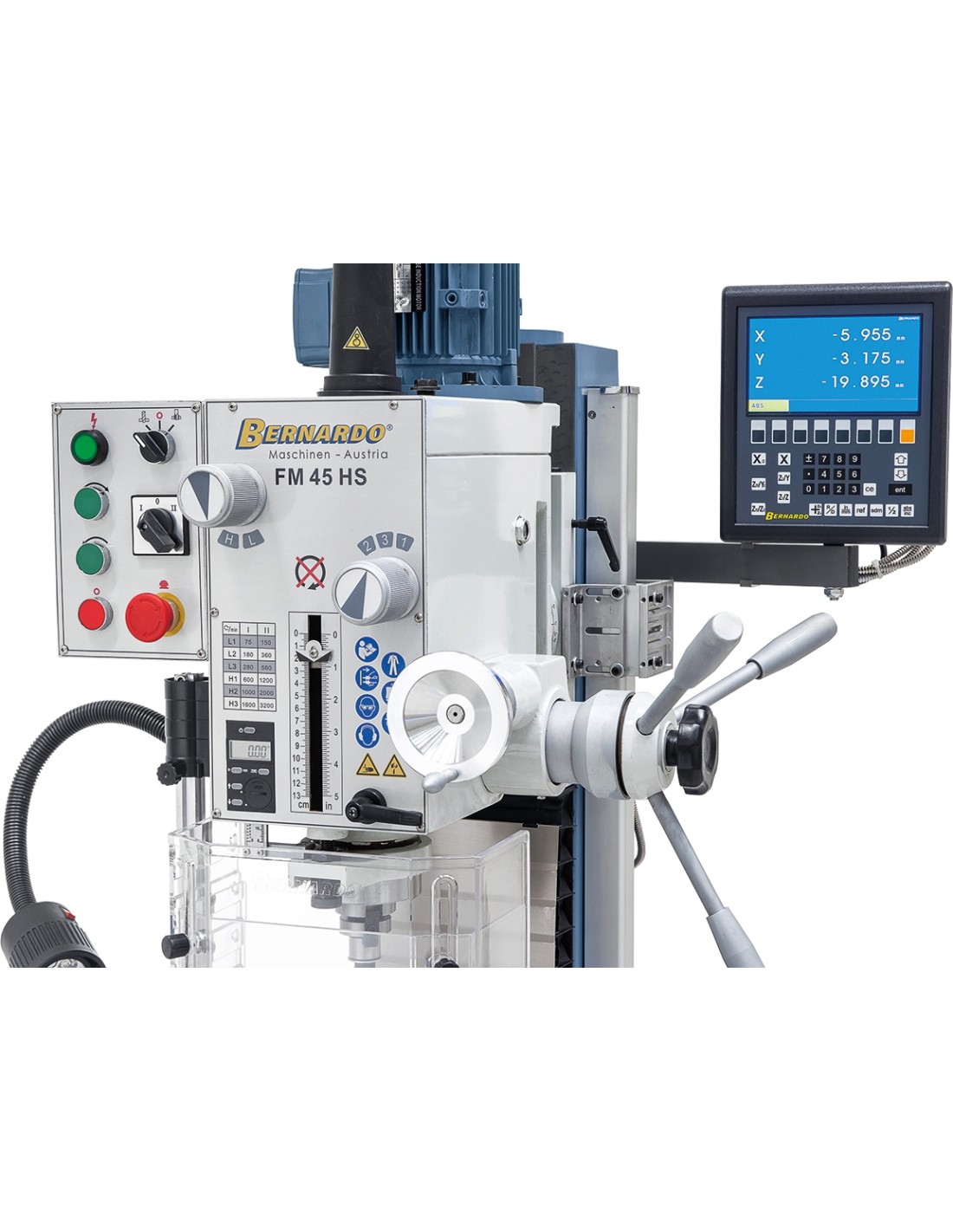

  • 3-axis digital readout ES-12 V with LCD-display
  • Keyless drill chuck 3 – 16 mm / B 16
  • Drill chuck arbor MT 4 / B 16
  • Drawbar M 16
  • Morse taper drill sleeve MT 4 / 3
  • Taper shell end mill holder MT4 / 27 mm

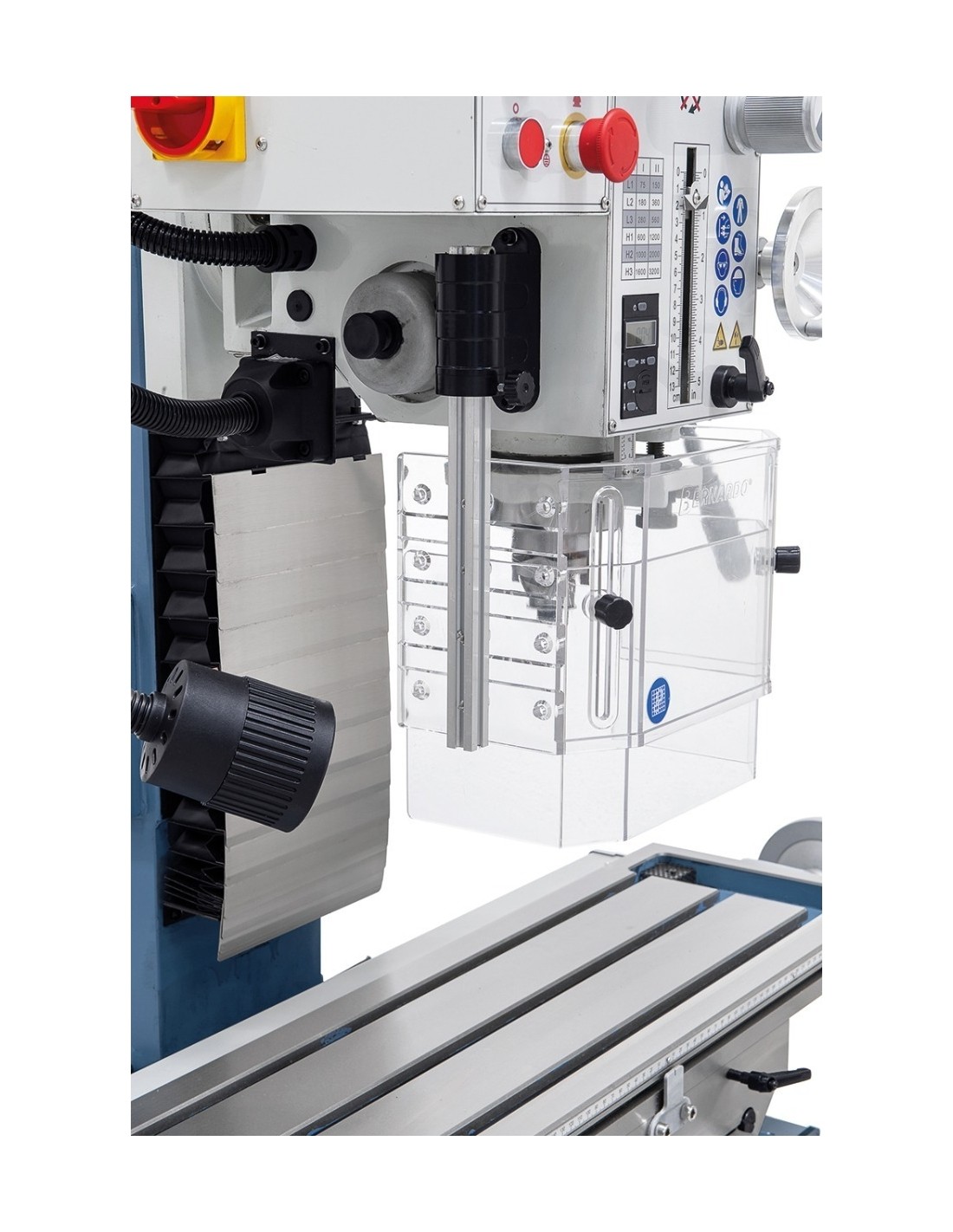

  • Height adjustable protective cover
  • Thread cutting devcie
  • LED machine light

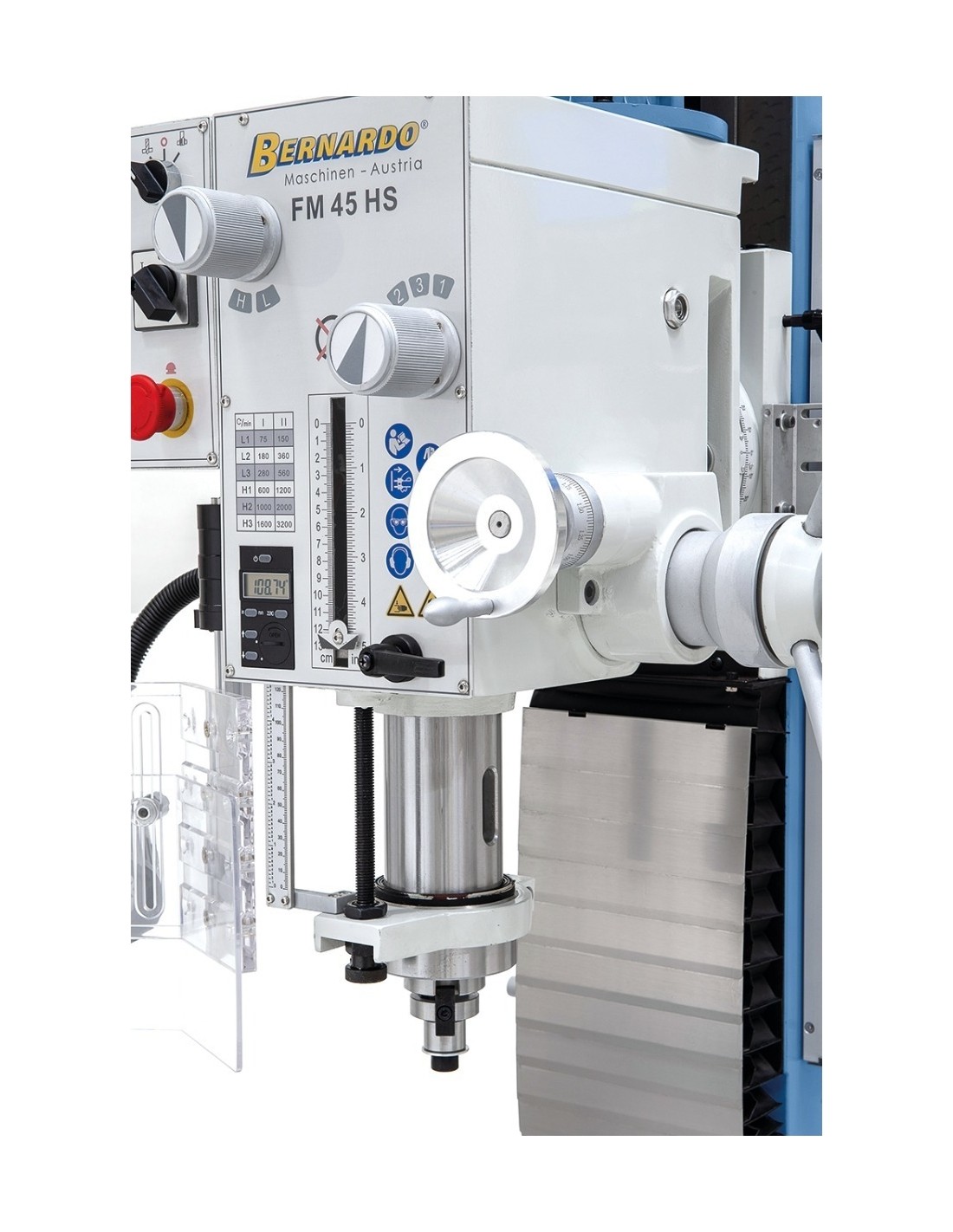

  • Digital spindle stroke indication
  • Steel cover
  • Longitudinal scale
  • Tools
