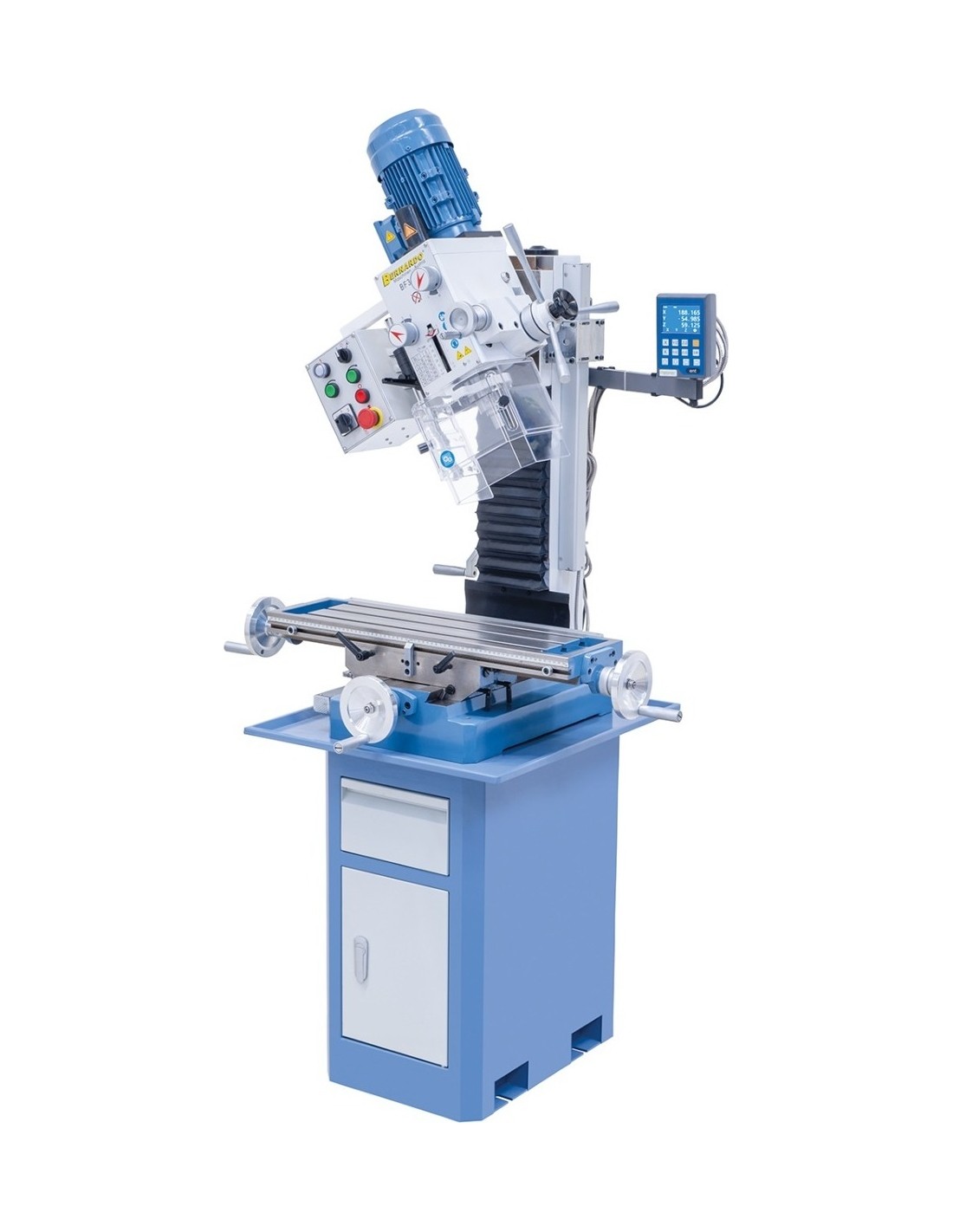

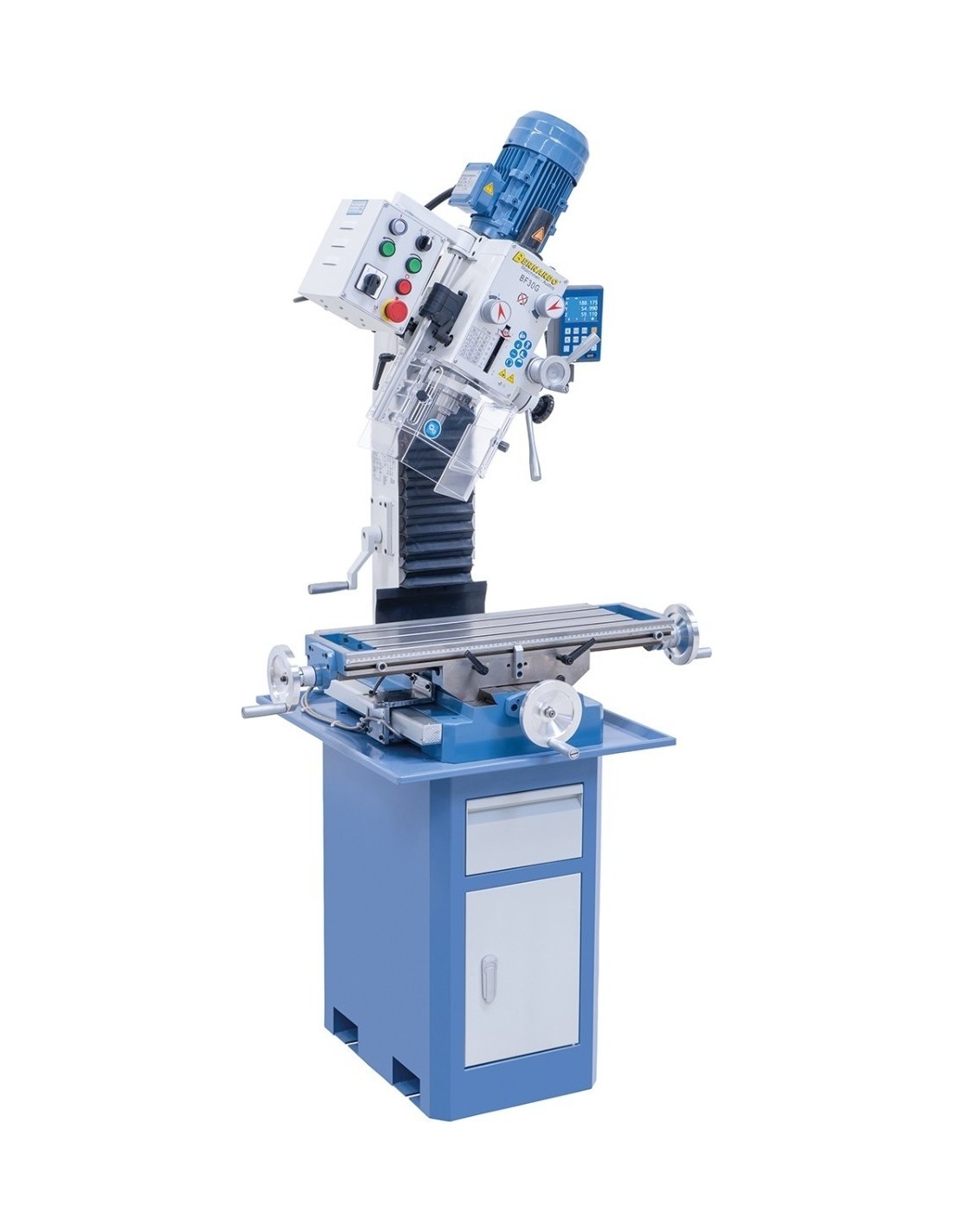

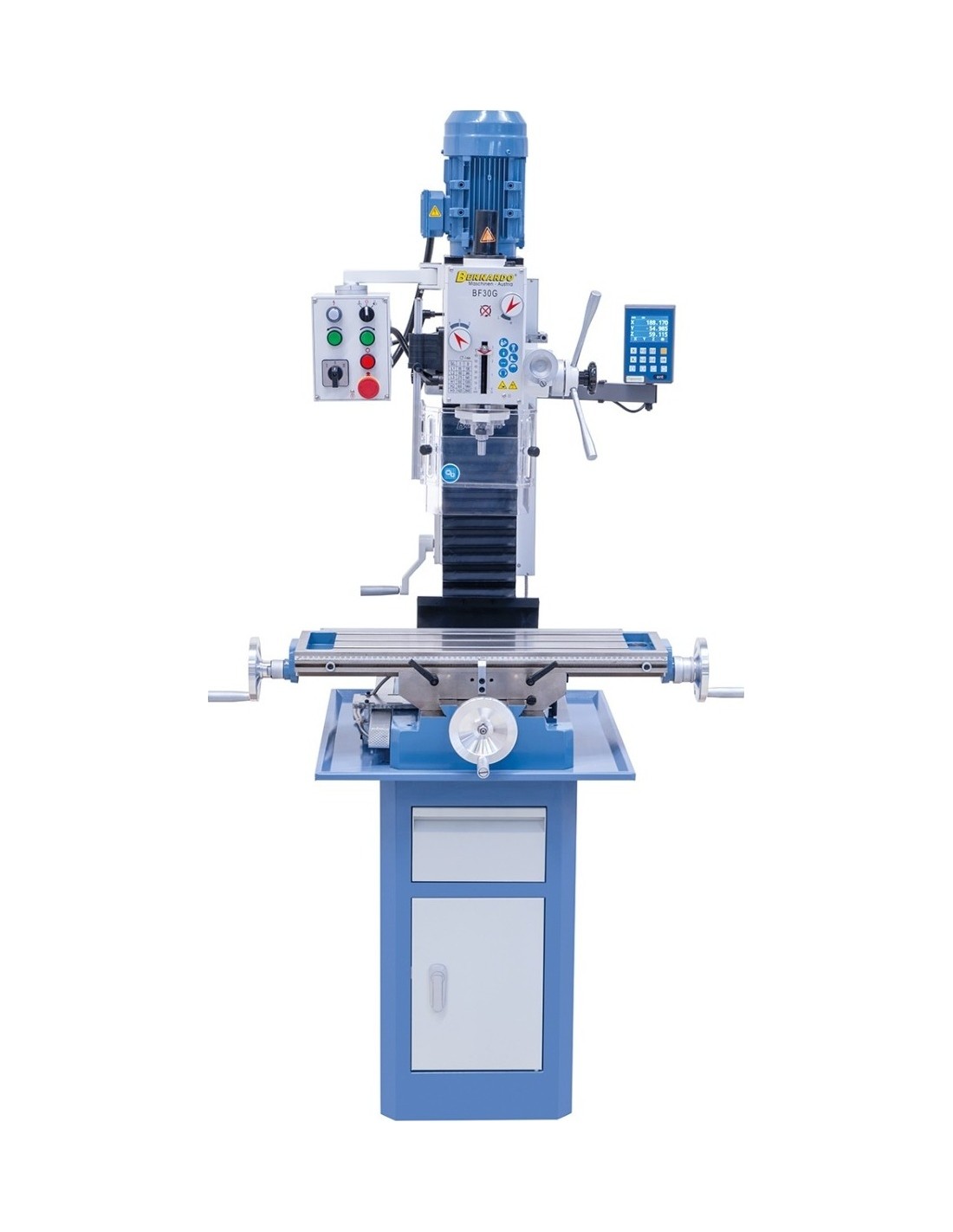

BF 30 G incl. 3-axis digital readout DT 40
BF 30 G incl. 3-axis digital readout DT 40
BF 30 G incl. 3-axis digital readout DT 40
BF 30 G incl. 3-axis digital readout DT 40
BF 30 G incl. 3-axis digital readout DT 40
BF 30 G incl. 3-axis digital readout DT 40
BF 30 G incl. 3-axis digital readout DT 40
BF 30 G incl. 3-axis digital readout DT 40
BF 30 G incl. 3-axis digital readout DT 40
BF 30 G incl. 3-axis digital readout DT 40
BF 30 G incl. 3-axis digital readout DT 40
BF 30 G incl. 3-axis digital readout DT 40
BF 30 G incl. 3-axis digital readout DT 40
BF 30 G incl. 3-axis digital readout DT 40
BF 30 G incl. 3-axis digital readout DT 40
BF 30 G incl. 3-axis digital readout DT 40
BF 30 G incl. 3-axis digital readout DT 40
BF 30 G incl. 3-axis digital readout DT 40
  • Online only
BF 30 G incl. 3-axis digital readout DT 40
BF 30 G incl. 3-axis digital readout DT 40
BF 30 G incl. 3-axis digital readout DT 40
BF 30 G incl. 3-axis digital readout DT 40
BF 30 G incl. 3-axis digital readout DT 40
BF 30 G incl. 3-axis digital readout DT 40
BF 30 G incl. 3-axis digital readout DT 40
BF 30 G incl. 3-axis digital readout DT 40
BF 30 G incl. 3-axis digital readout DT 40
BF 30 G incl. 3-axis digital readout DT 40
BF 30 G incl. 3-axis digital readout DT 40
BF 30 G incl. 3-axis digital readout DT 40
BF 30 G incl. 3-axis digital readout DT 40
BF 30 G incl. 3-axis digital readout DT 40
BF 30 G incl. 3-axis digital readout DT 40
BF 30 G incl. 3-axis digital readout DT 40
BF 30 G incl. 3-axis digital readout DT 40
BF 30 G incl. 3-axis digital readout DT 40

Spindle taper
MT 3
Weight approx.
190 kg
Spindle speed
(12) 95 - 2840 rpm
Machine dimension (W x D x H)
1000 x 720 x 1300 mm
Drilling capacity in steel
30 mm
Face mill capacity max.
63 mm
End mill capacity max.
25 mm
Distance spindle to column
170 mm
Spindle stroke
70 mm
Travel (x / y)
460 / 230** mm
Mill head tiltable
-45° to +45°

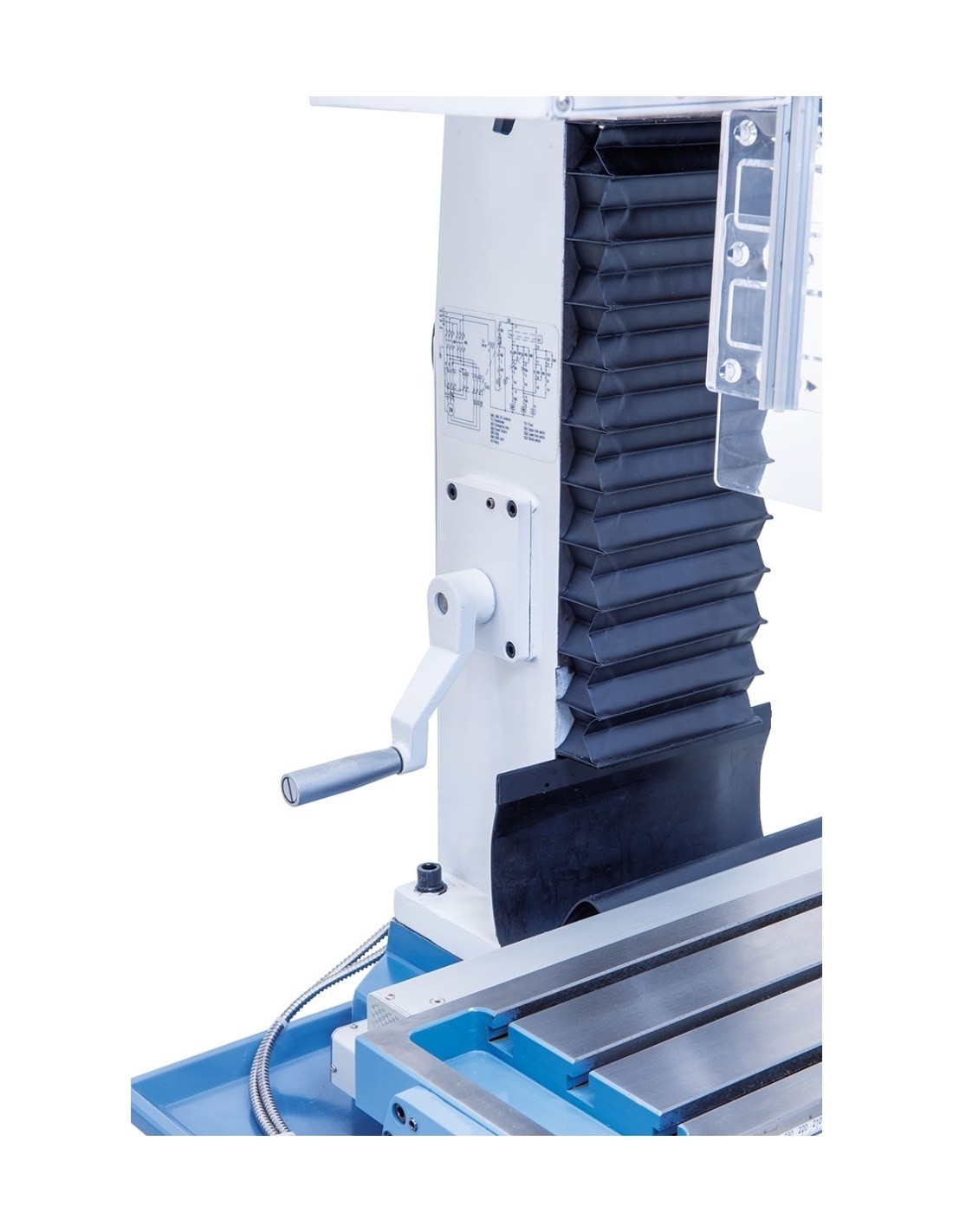

Height adjustment of mill head
360 mm
T-slot size
12 mm
Motor power output S1 100%
0,75 / 1,1 kW (400 V)
Motor power input S6 40%
1,1 / 1,6 kW (400 V)
Table size
700 x 190 mm
Distance spindle to table
105 - 465 mm

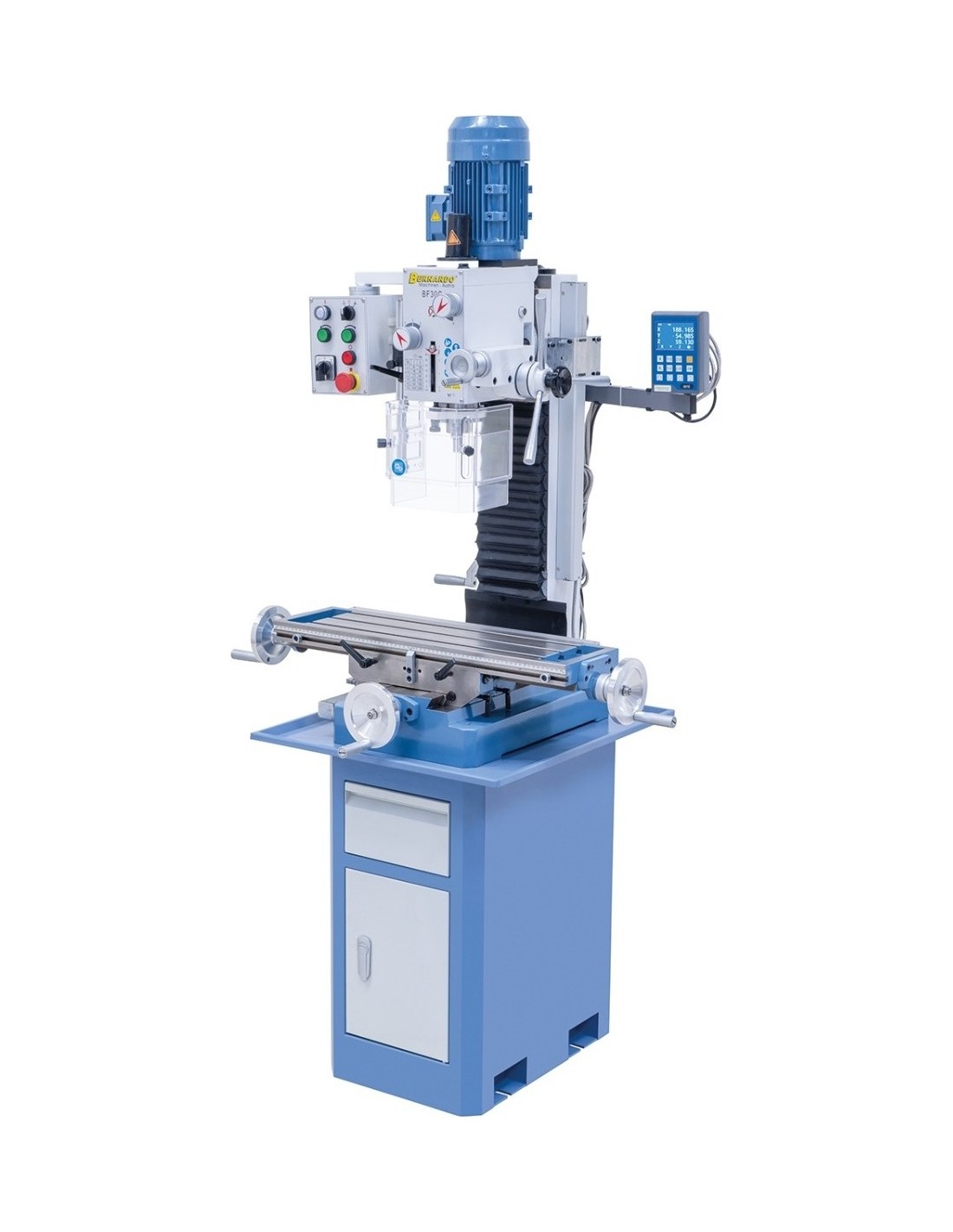

BF 30 G incl. 3-axis digital readout DT 40

1289335
Price €5,006.00 VAT incl.

Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Manufacturer / Supplier warehouse
(10 pcs)
Delivery terms:
FREE pick up friday, august 28 d., in the store, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 190 kg.
We will deliver the product to you via: 5-11 w.d. Venipak (€40.99)
Weight: 190 kg.

Description

Properties

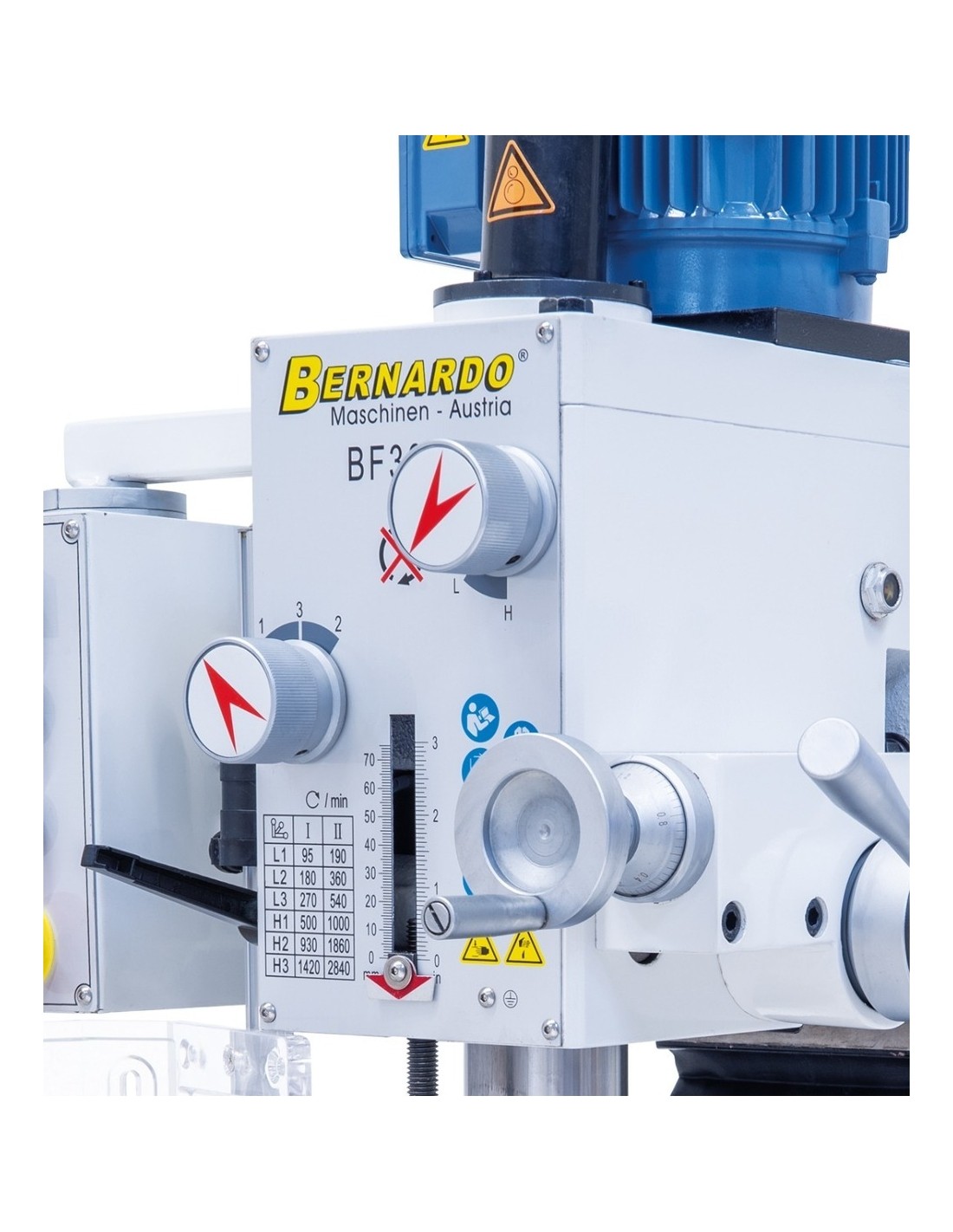

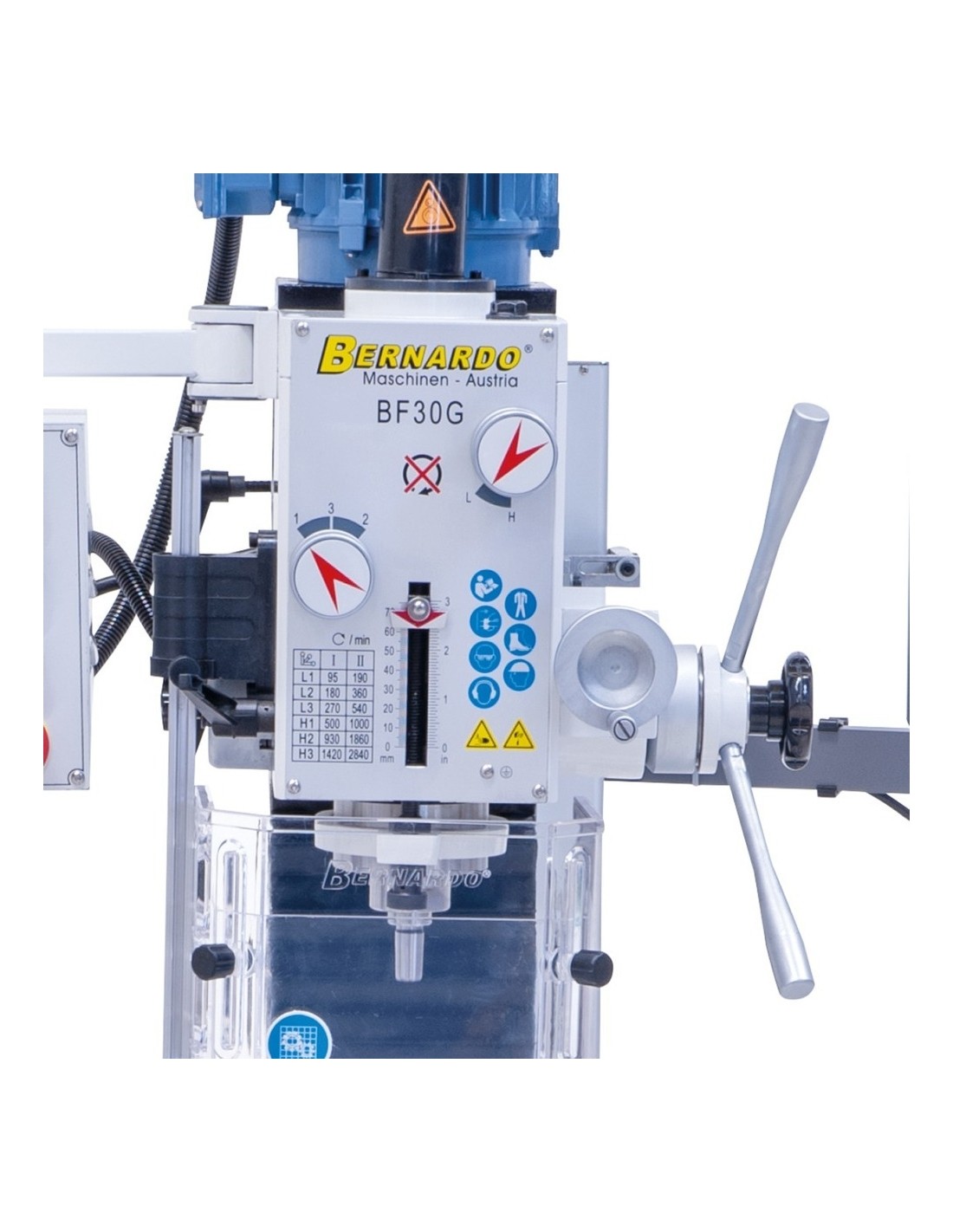

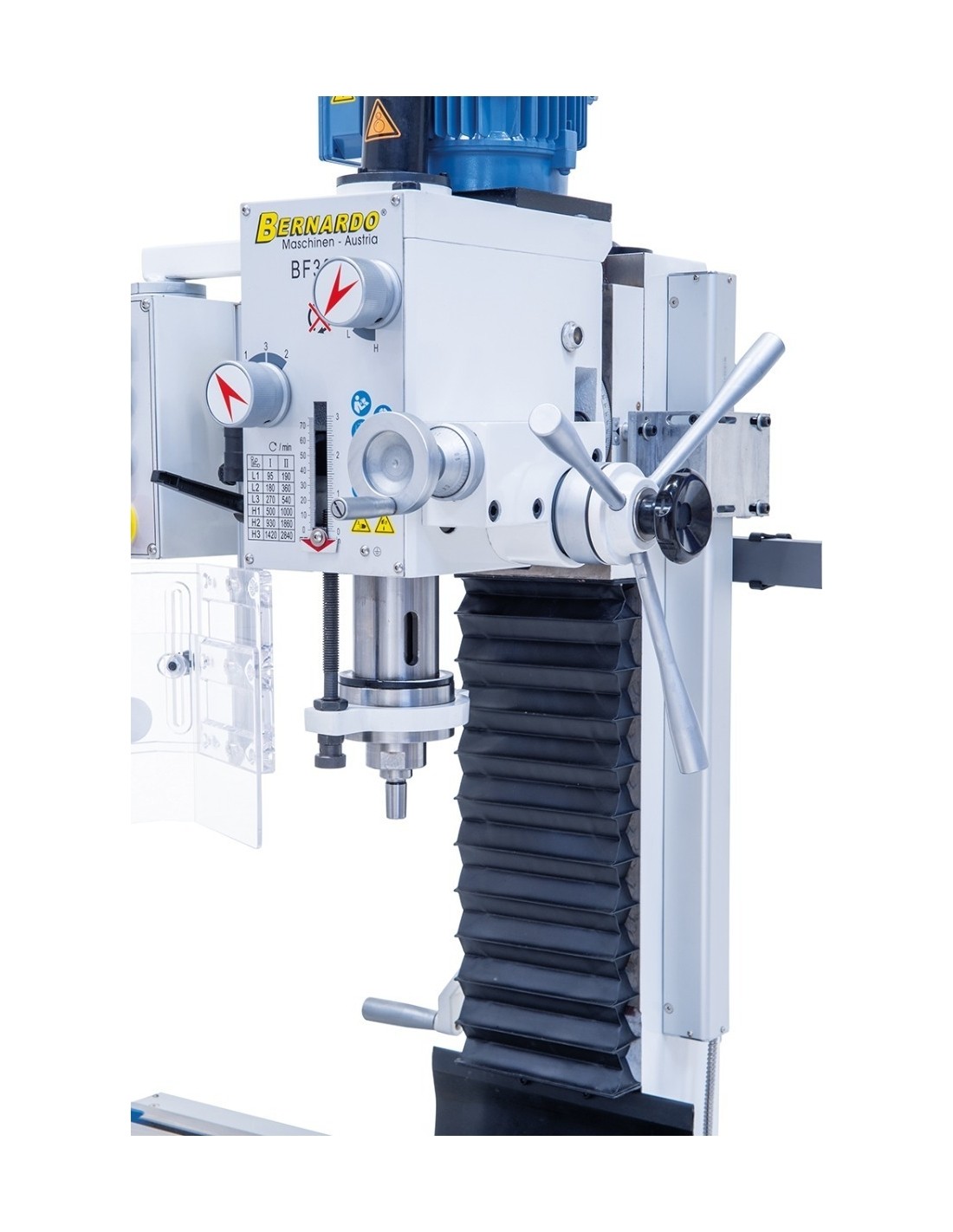

  • Powerful 2-step drive motor allows for 12 different speed setting
  • High-quality ball bearings allow for high concentricity

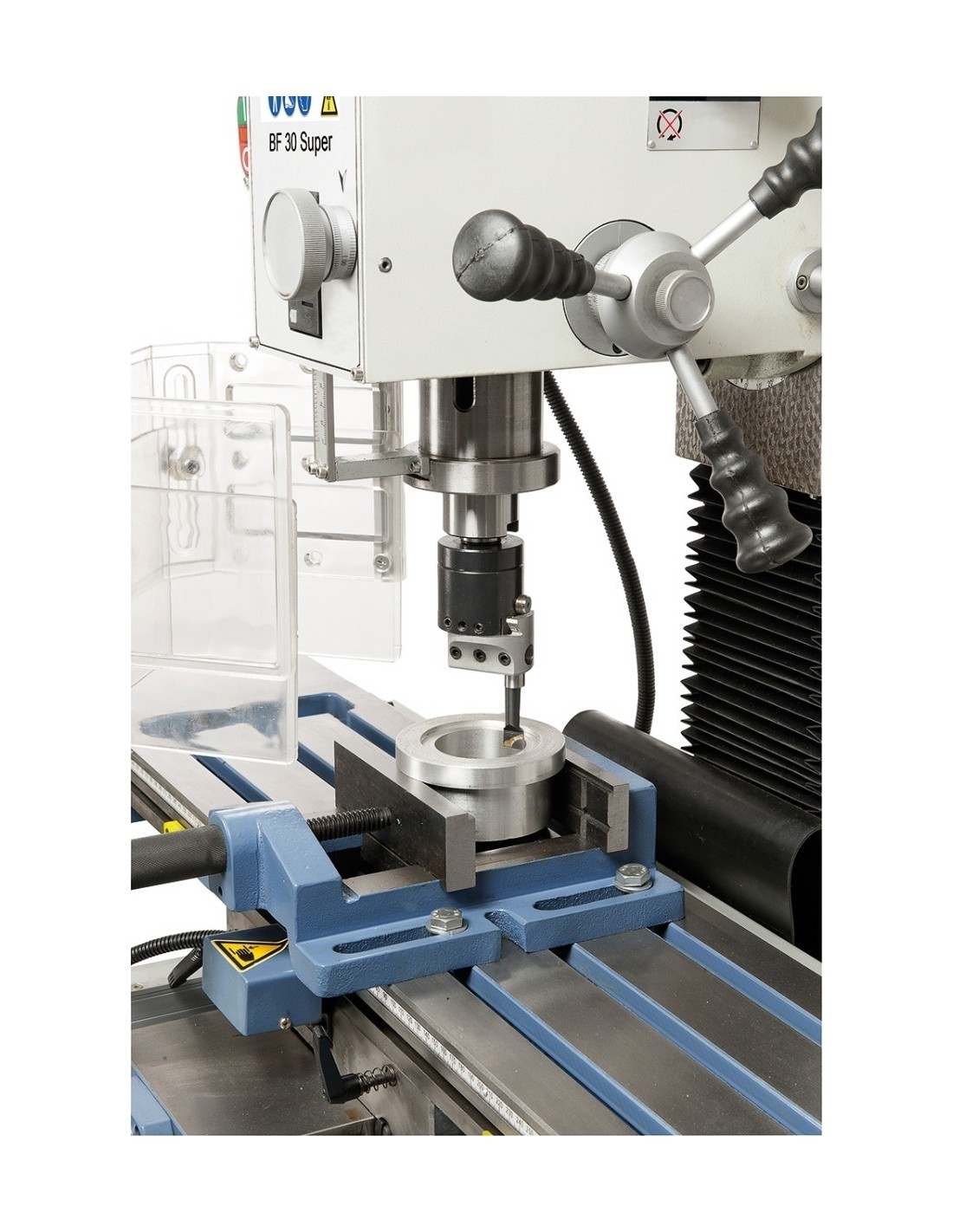

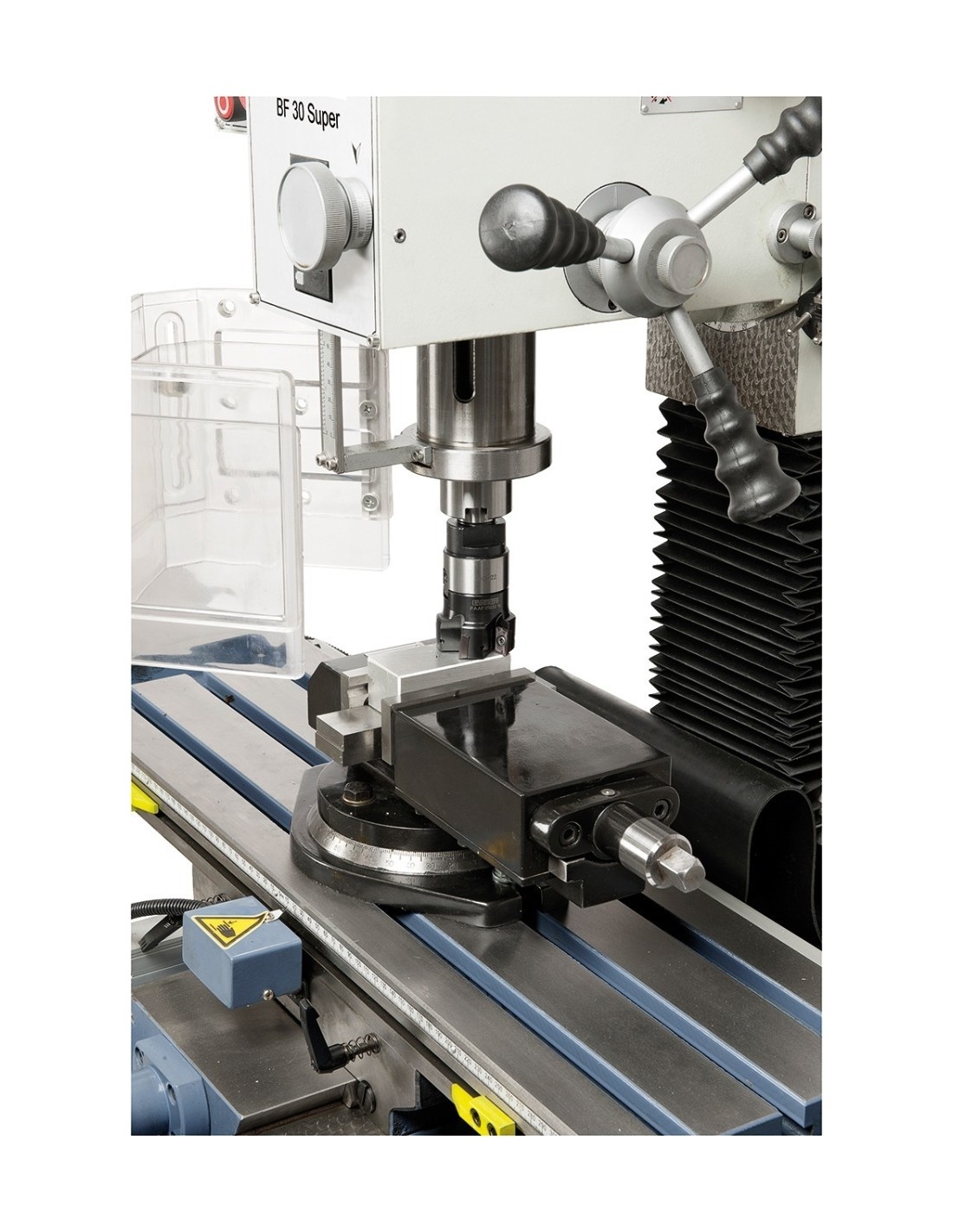

  • Wide range of applications, such as drilling, milling, thread cutting etc.
  • Polished gear wheels, in oil bath, ensure smooth running
  • Right and left turning device for tapping
  • Dovetail guiding in x-, y- and z-axis, adjustable by gibs
  • Milling head tilts to both sides to allow angular boring, milling of bevels etc.
  • Attractive price-to-performance ratio for price conscious users
  • High-quality aluminium motor, designed for longer use

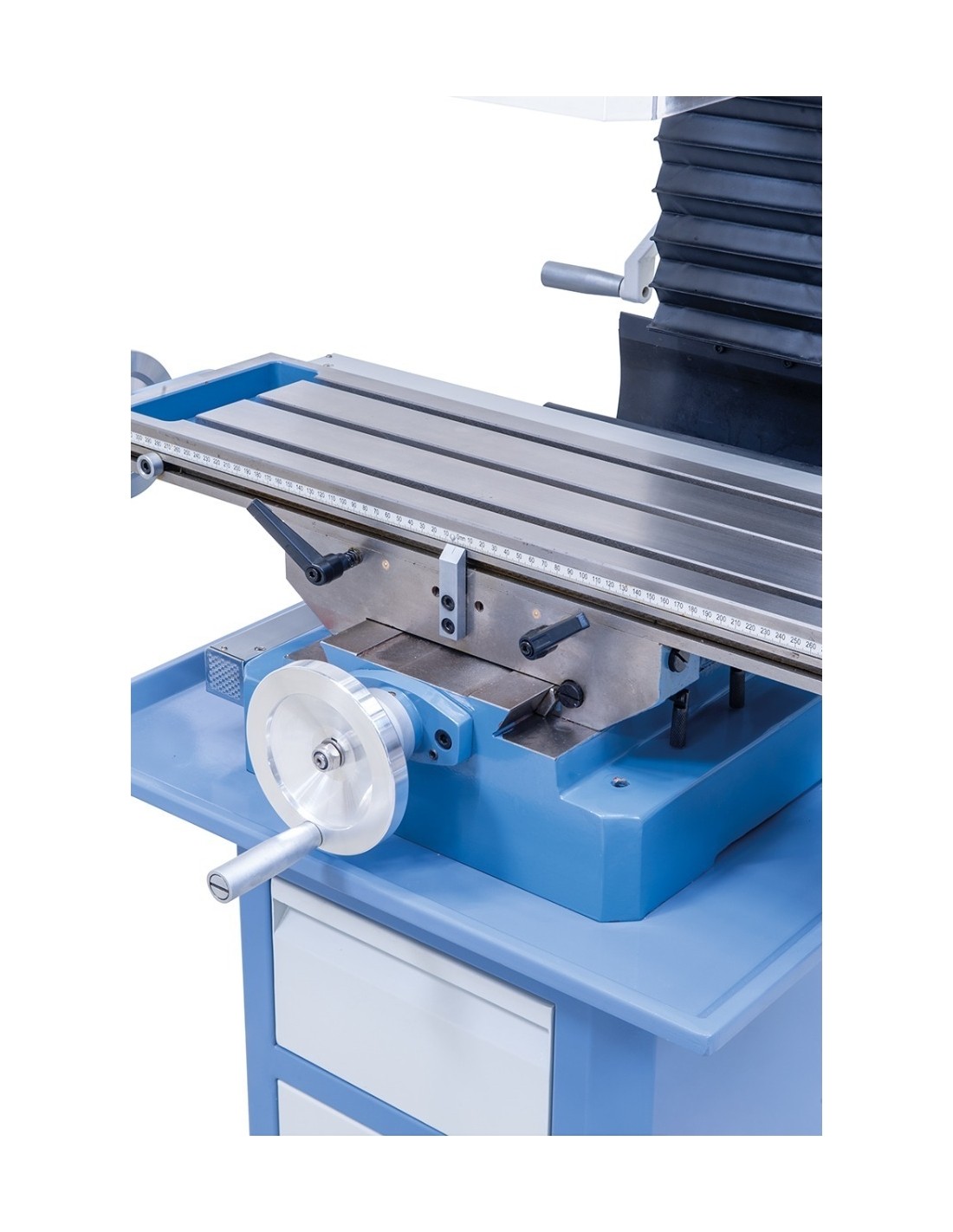

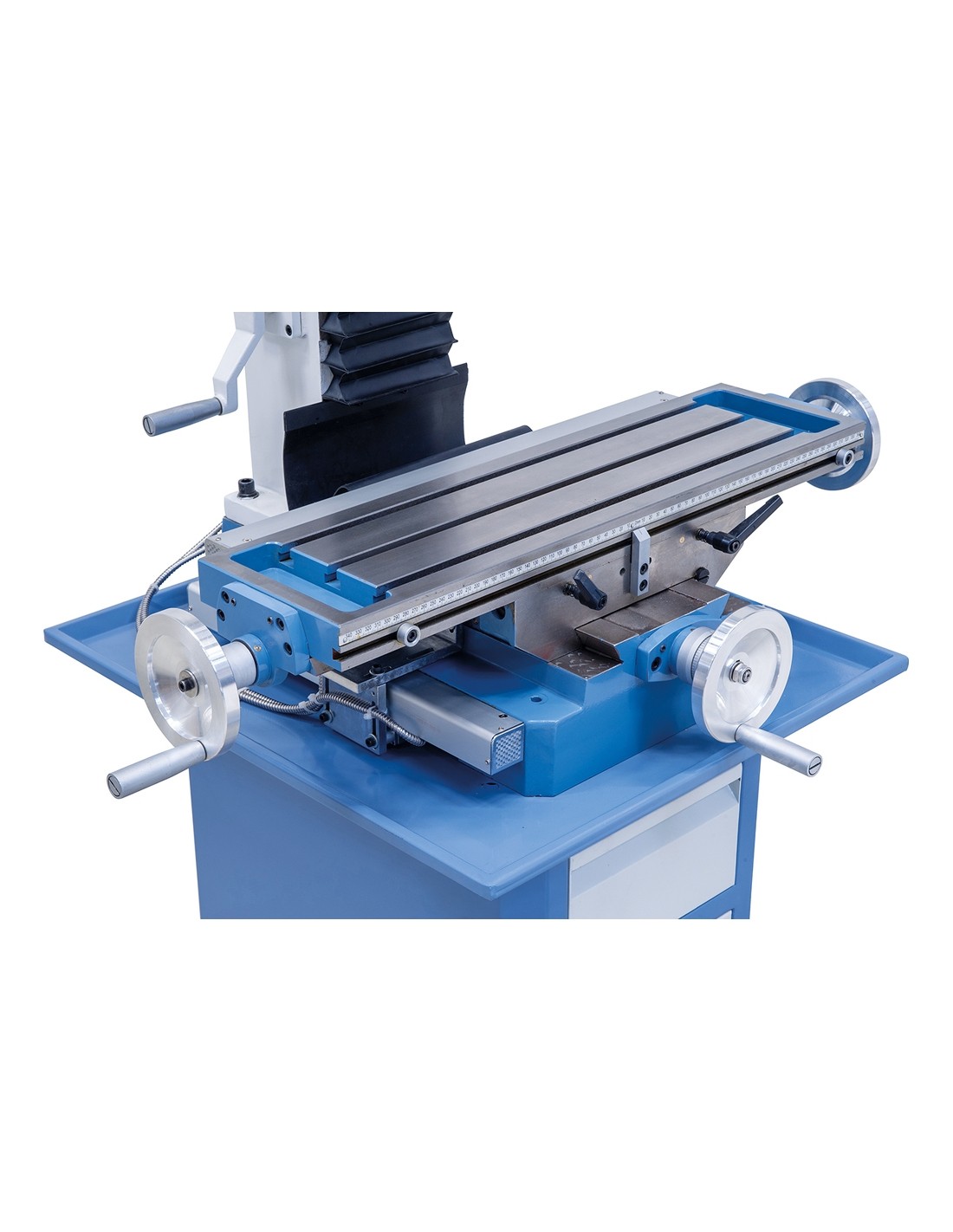

  • Grey, cast iron table features T-slots and coolant groove

Standard accessories

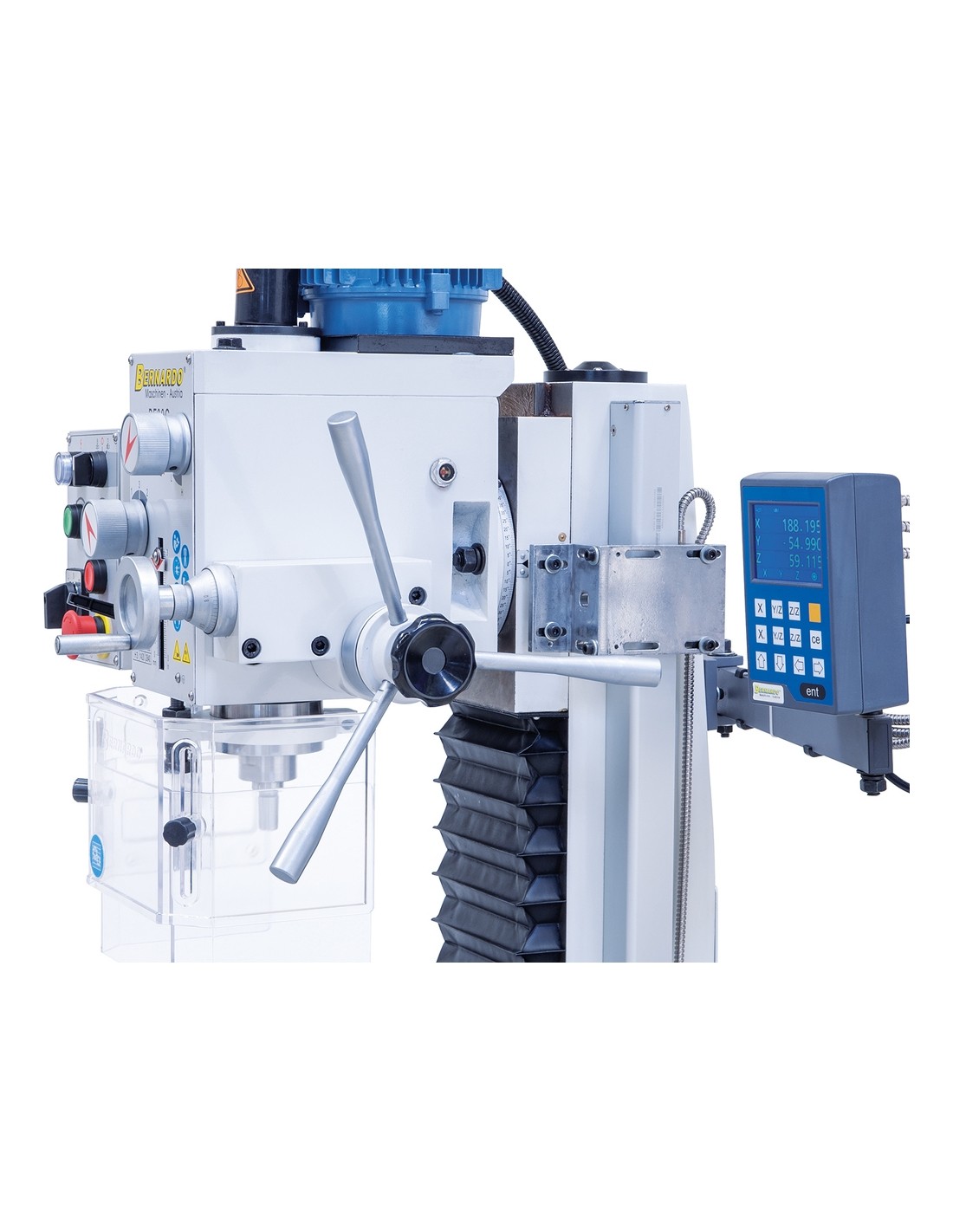

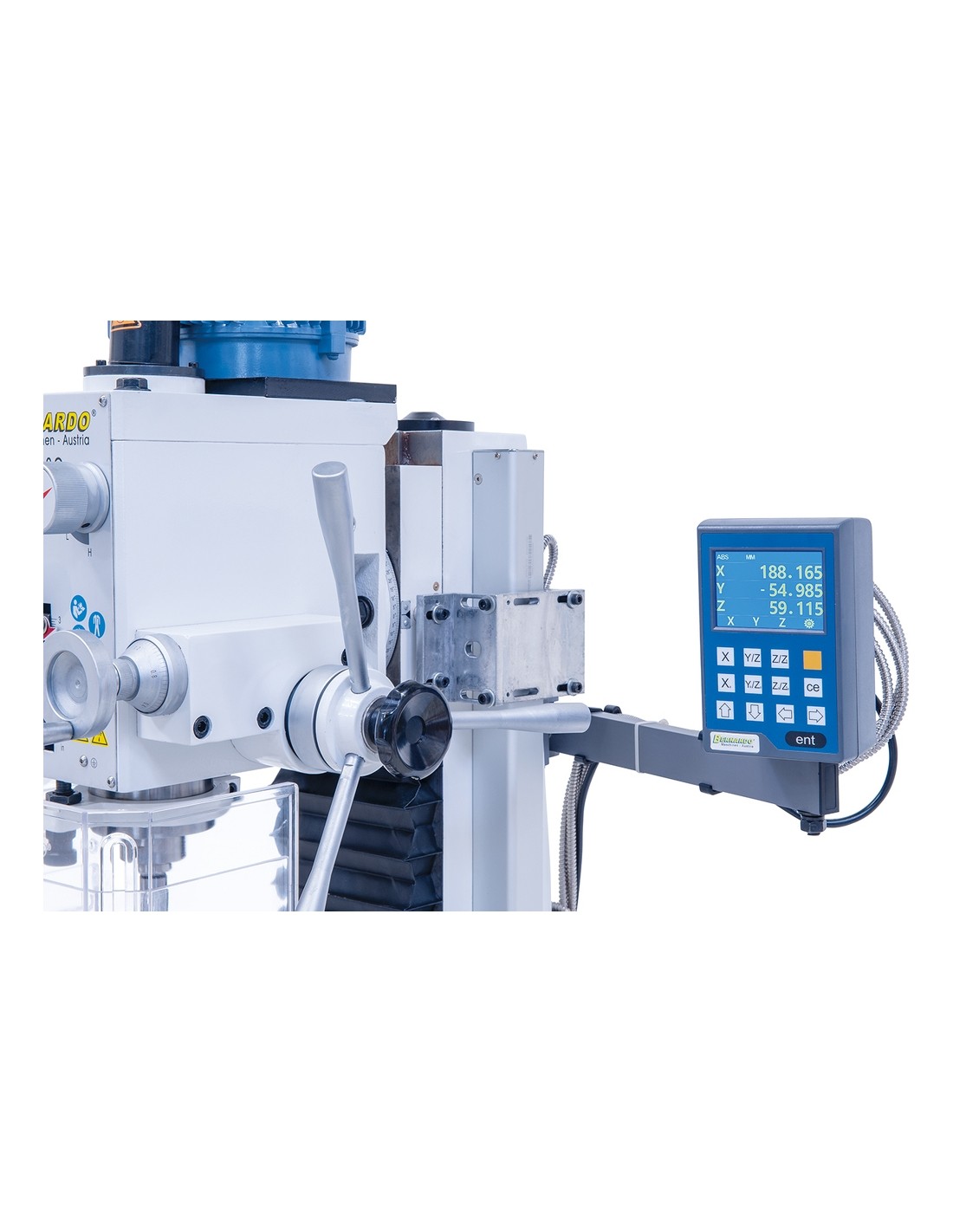

  • 3-axis digital readout DT 40
  • Drill chuck arbor MT 3 / B 16
  • Drill chuck 3 - 16 mm / B 16
  • Drawbar M 12
  • Thread cutting device

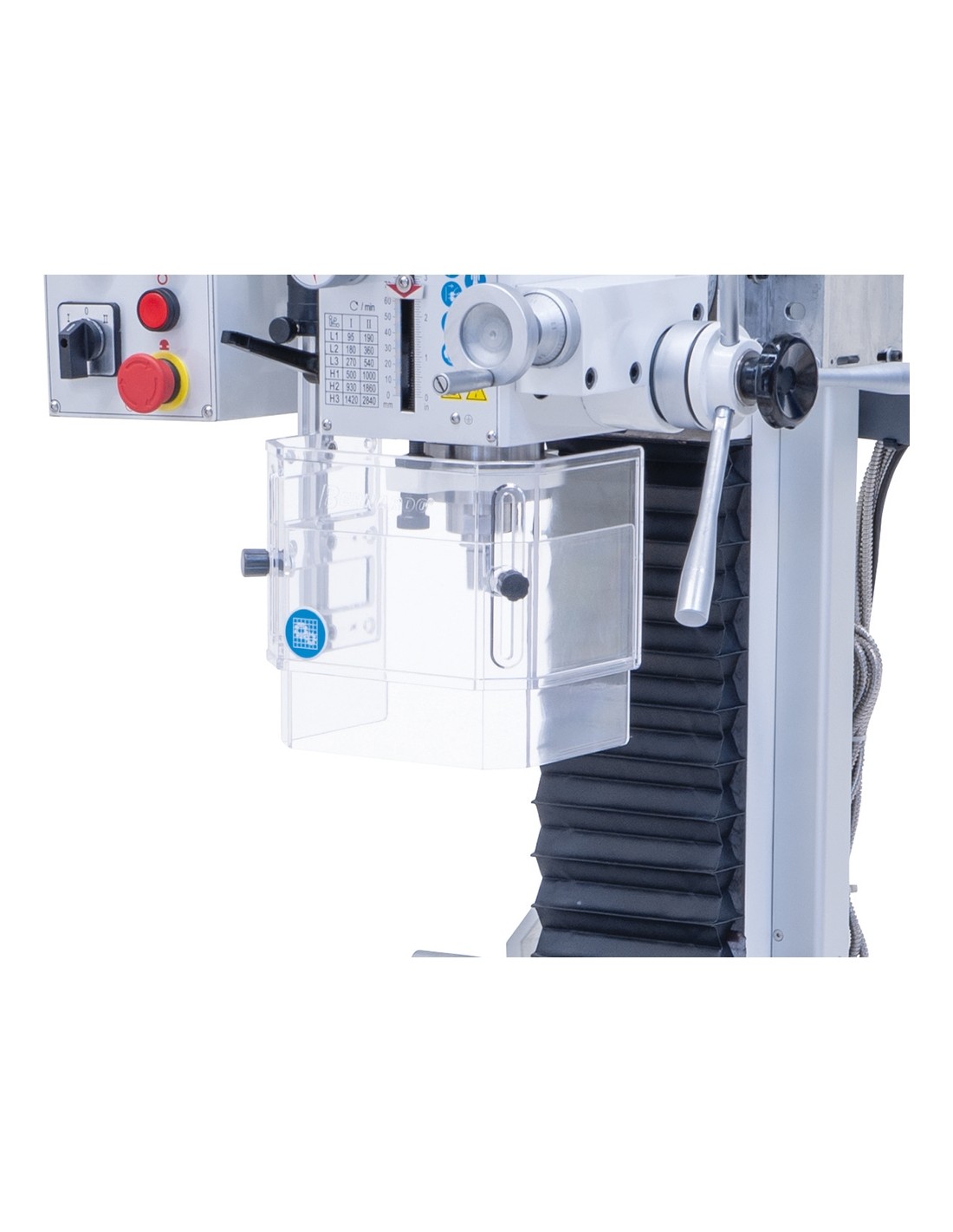

  • Height adjustable protective cover
  • Longitudinal scale
  • Tools
