WARRANTY

Spindle taper: MT 3
Weight approx.: 222 kg
Machine dimension (W x D x H): 1350 x 710 x 1200 mm
Drilling capacity in steel: 30 mm
Face mill capacity max.: 75 mm
End mill capacity max.: 25 mm
Distance spindle to column: 180 mm
Spindle stroke: 70 mm
Spindle speed, stepless: 50 - 1100 / 150 - 3000 rpm
Travel (x / y): 455 / 195 mm
Mill head tiltable: -90° to +90°
Height adjustment of mill head: 350 mm
T-slot size: 14 mm
Motor power output S1 100%: 1,1 kW / 230 V
Motor power input S6 40%: 1,6 kW / 230 V
Table size: 840 x 210 mm
Distance spindle to table: 115 - 465 mm

Brand

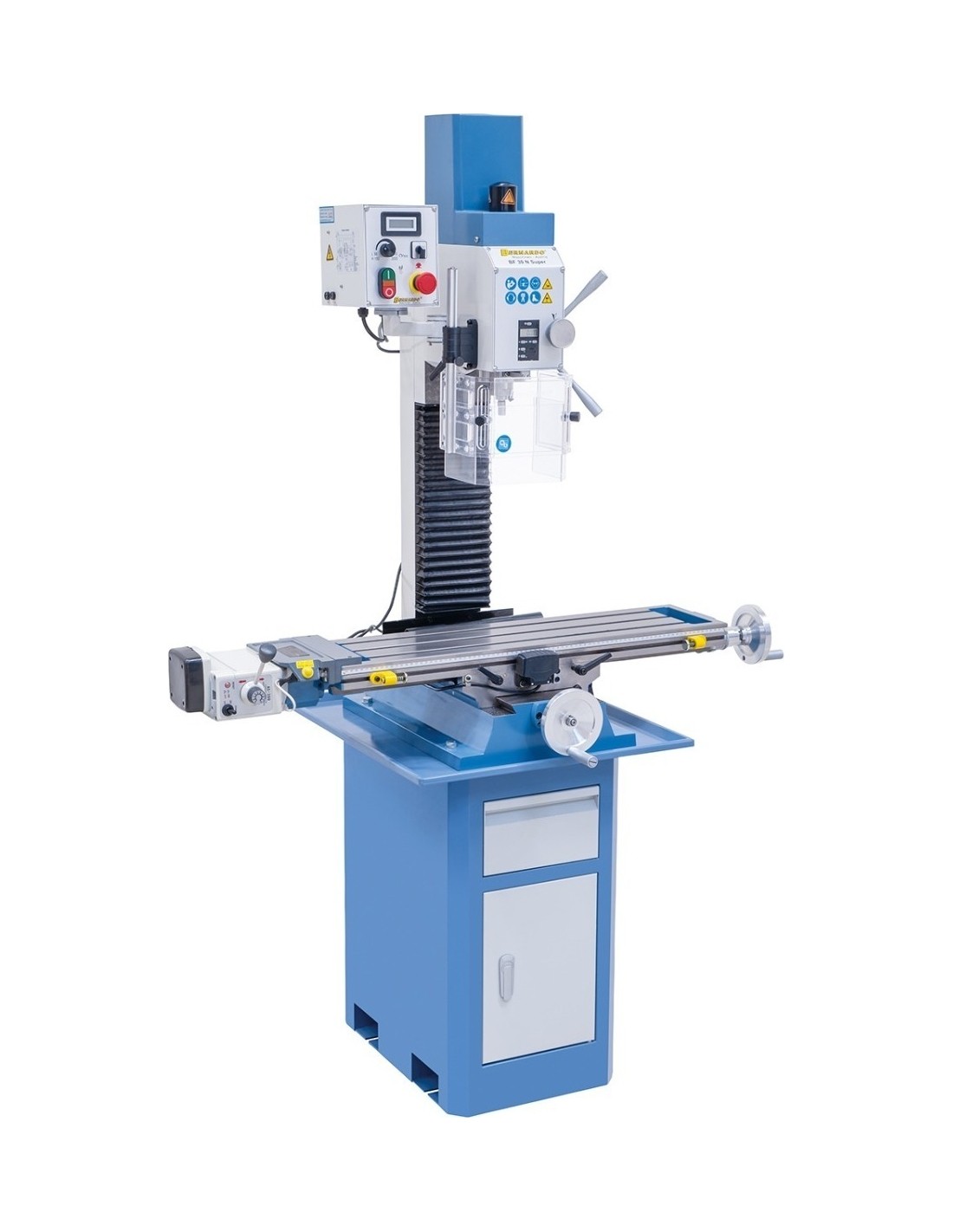

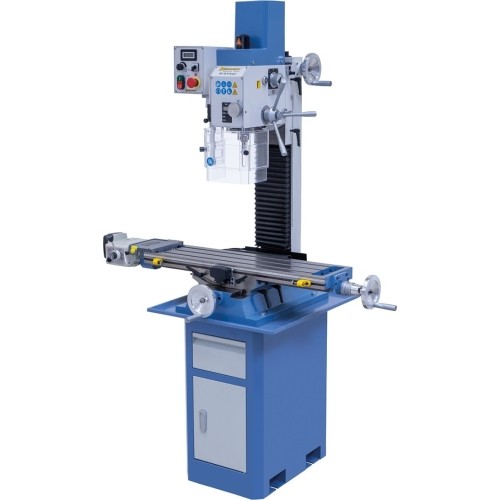

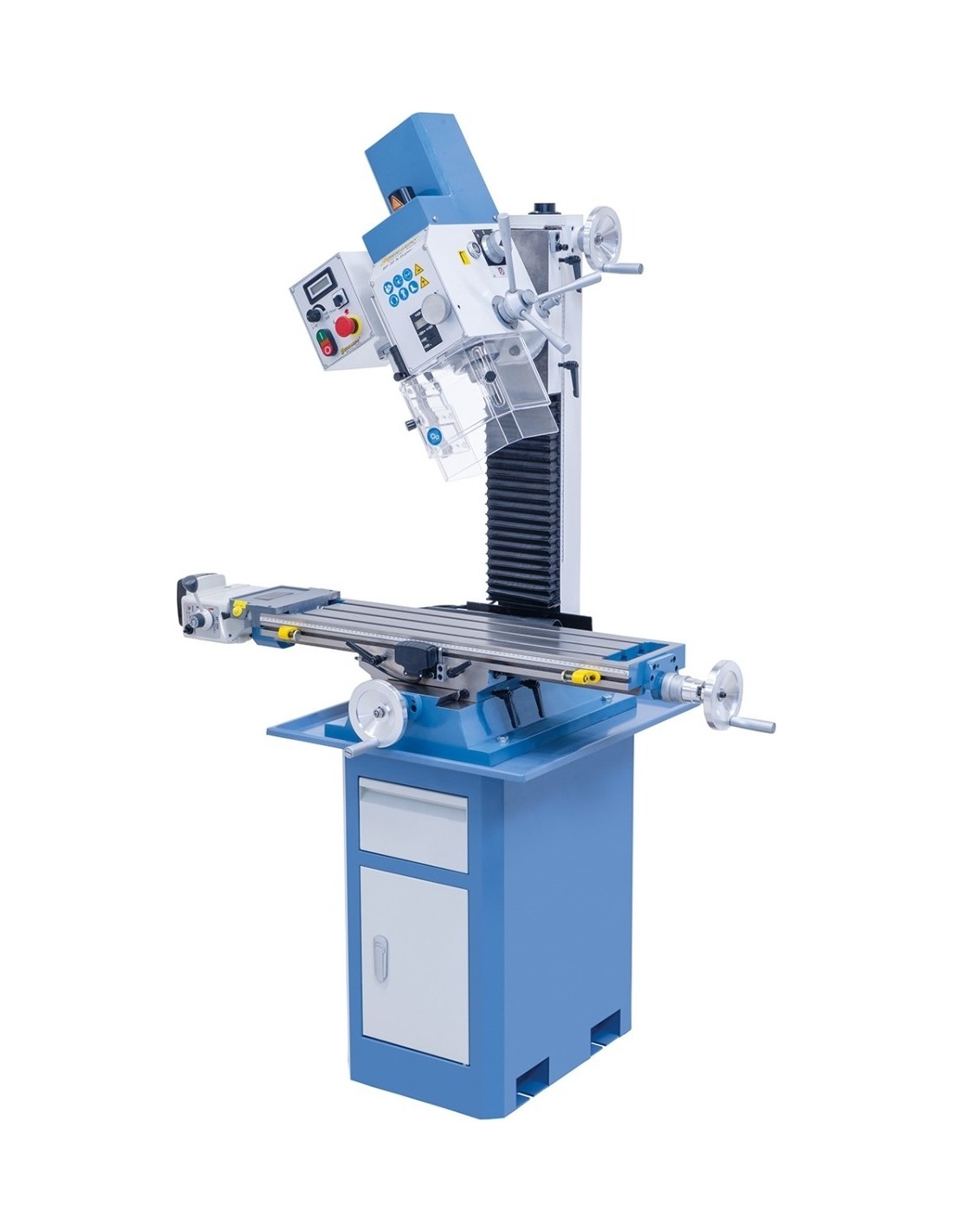

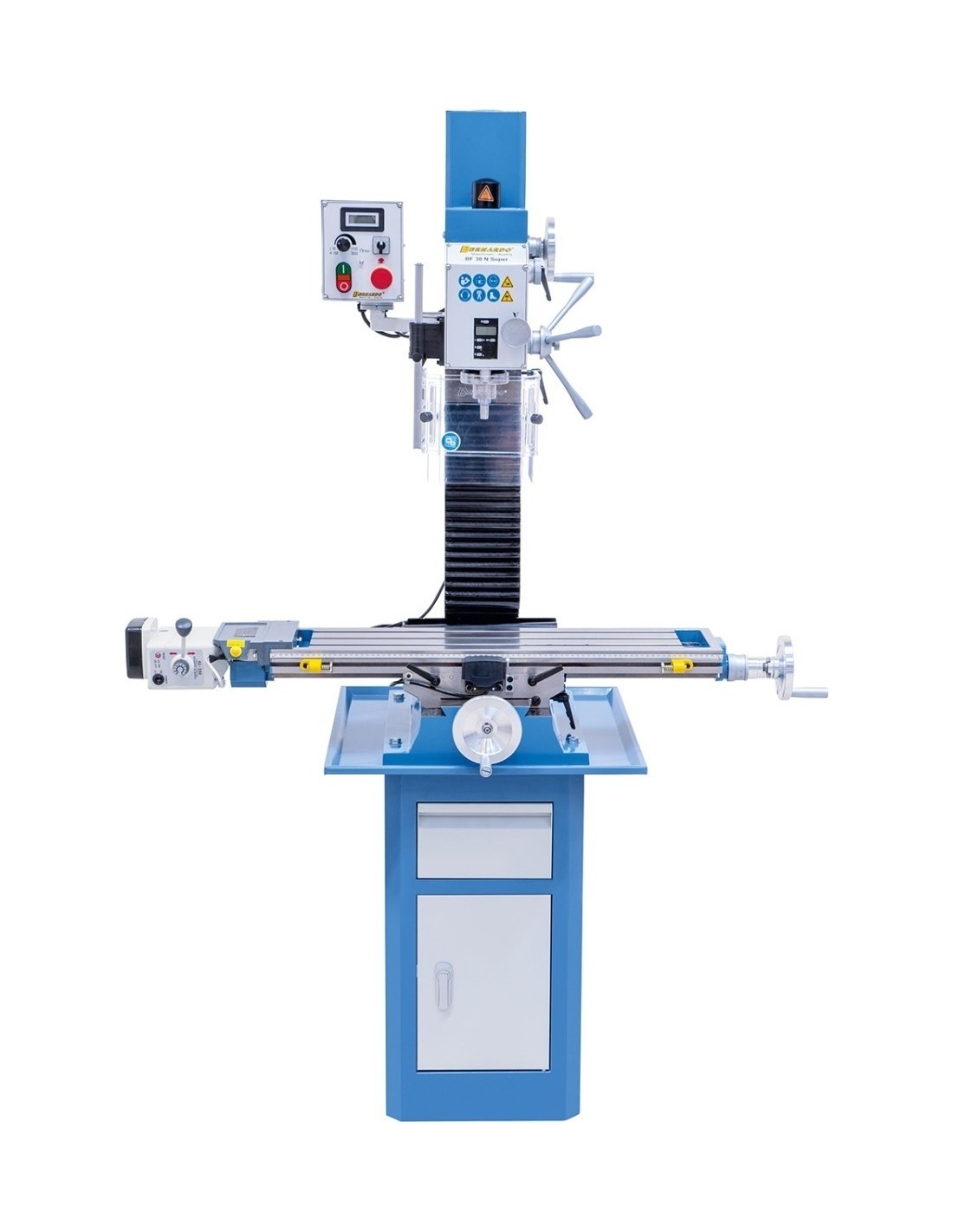

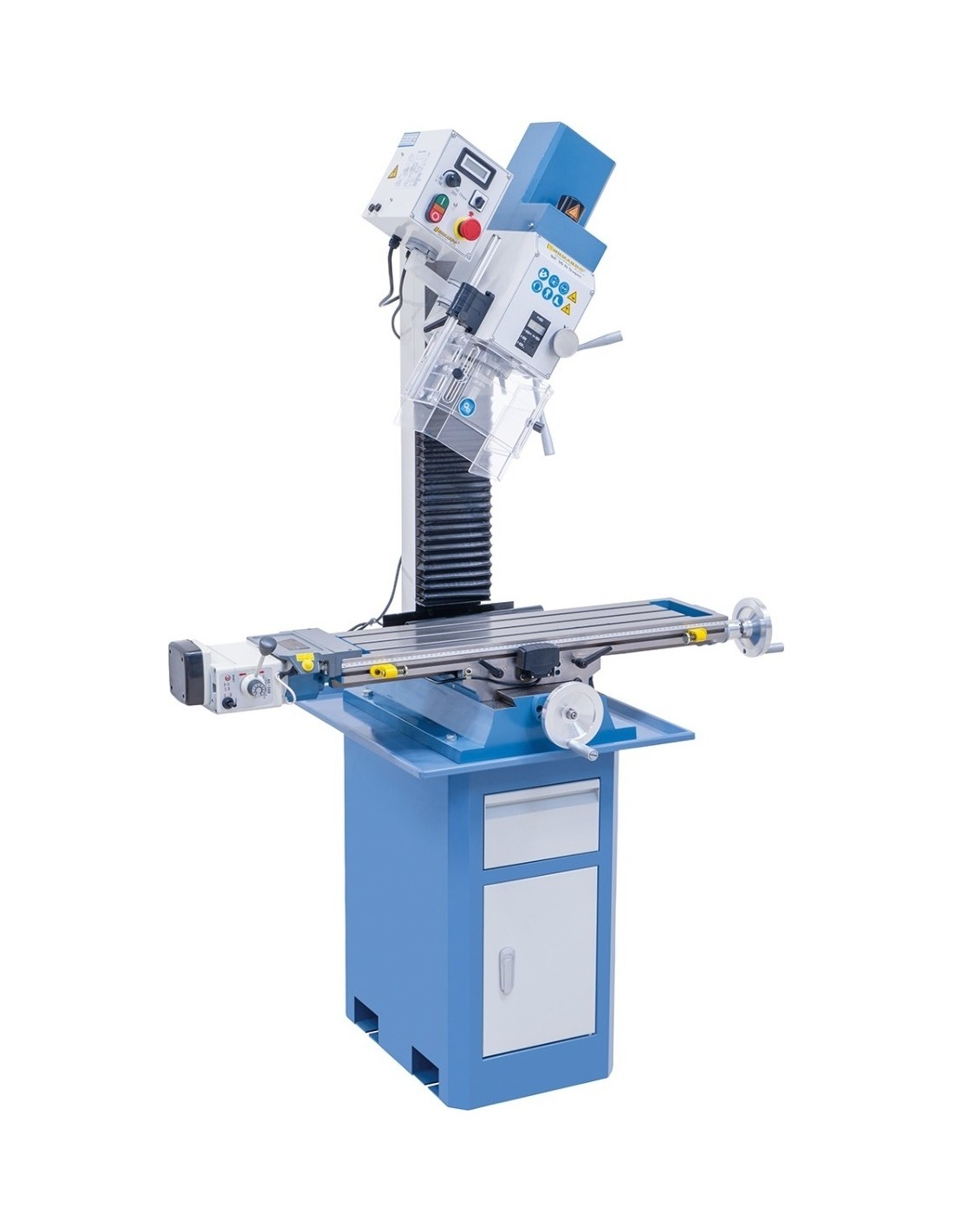

BF 30 N Super with power feed AL 350 D

Name: BF 30 N Super with power feed AL 350 D
Brand: Bernardo
SKU: 1092057
Price: 3749 EUR
Availability: PreOrder

Reference 1092057

€3,749.00

Tax included

Monthly payment from 95.85€

Stock Quantity:

In S01 store
not available

In S02 store
not available

In Supplier store
(5+ pcs)

Delivery terms:

NEMOKAMAI atsiimkite friday, november 15 d., parduotuvėje, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 222 kg.

Prekę pristatysime Jums per: 5-11 d.d. Venipak (€25.00)
Weight: 222 kg.

Description

Properties

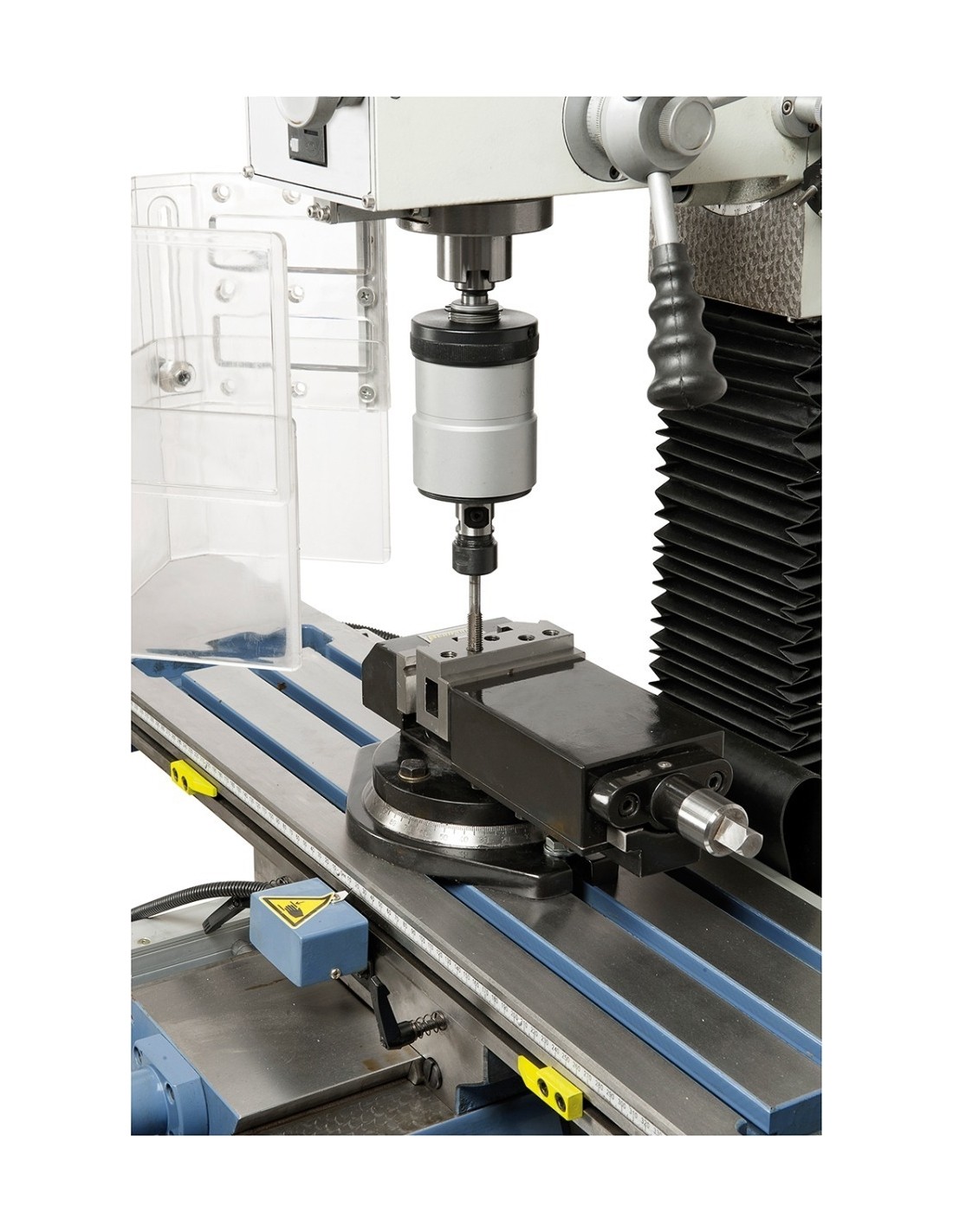

Many possible applications, such as groove milling, face milling, reboring etc.
Digital speed and spindle stroke indicator included as standard equipment
2-step gear unit for optimal power transmission
Serially equipped with left and right turning, ideal for thread cutting
Direct current motor for ideal torque at lower speed
Dovetail guiding for the x-, y- and z-axis, adjustable via gibs
High-quality bearings guarantees high spindle concentricity (≤0.015 mm)

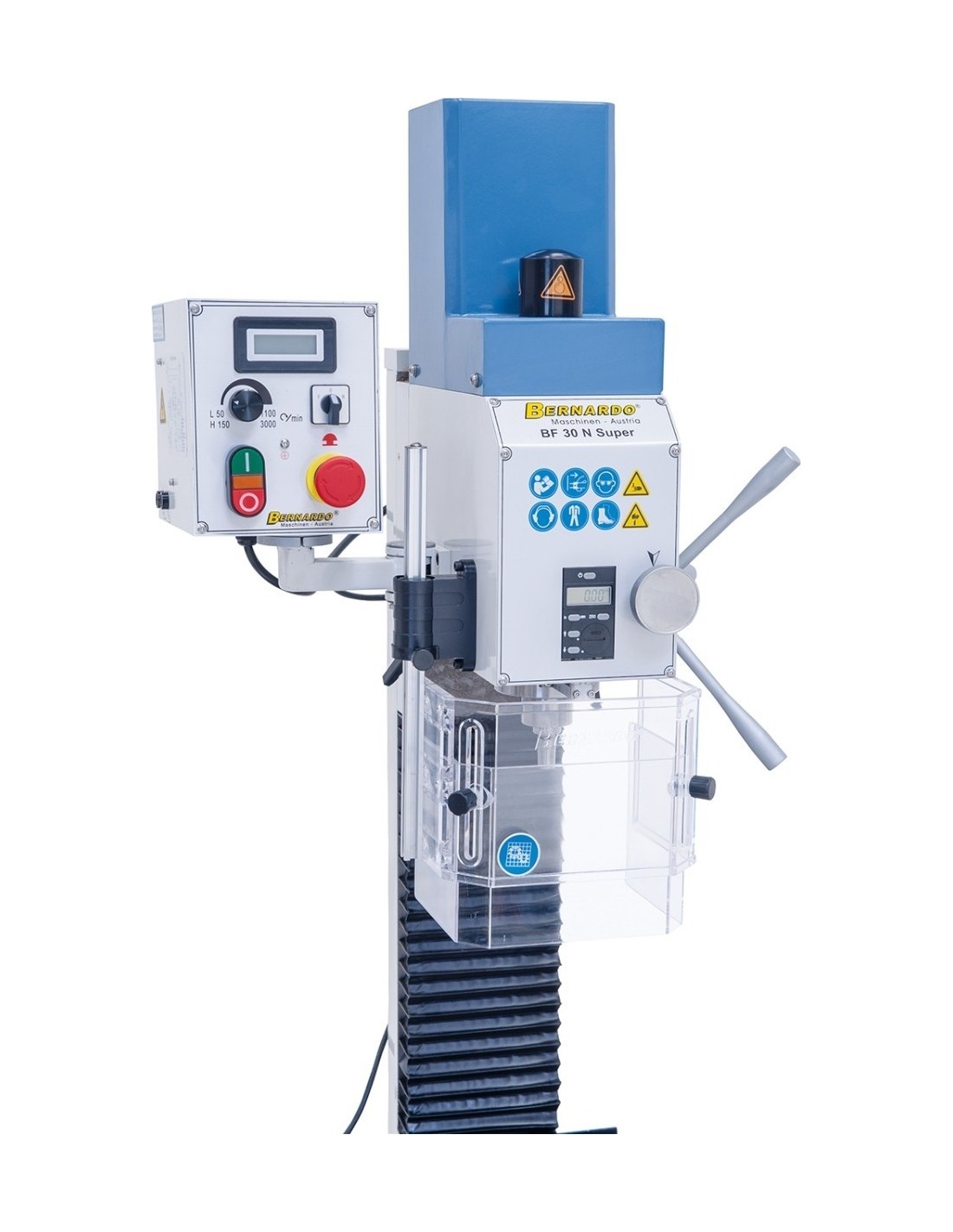

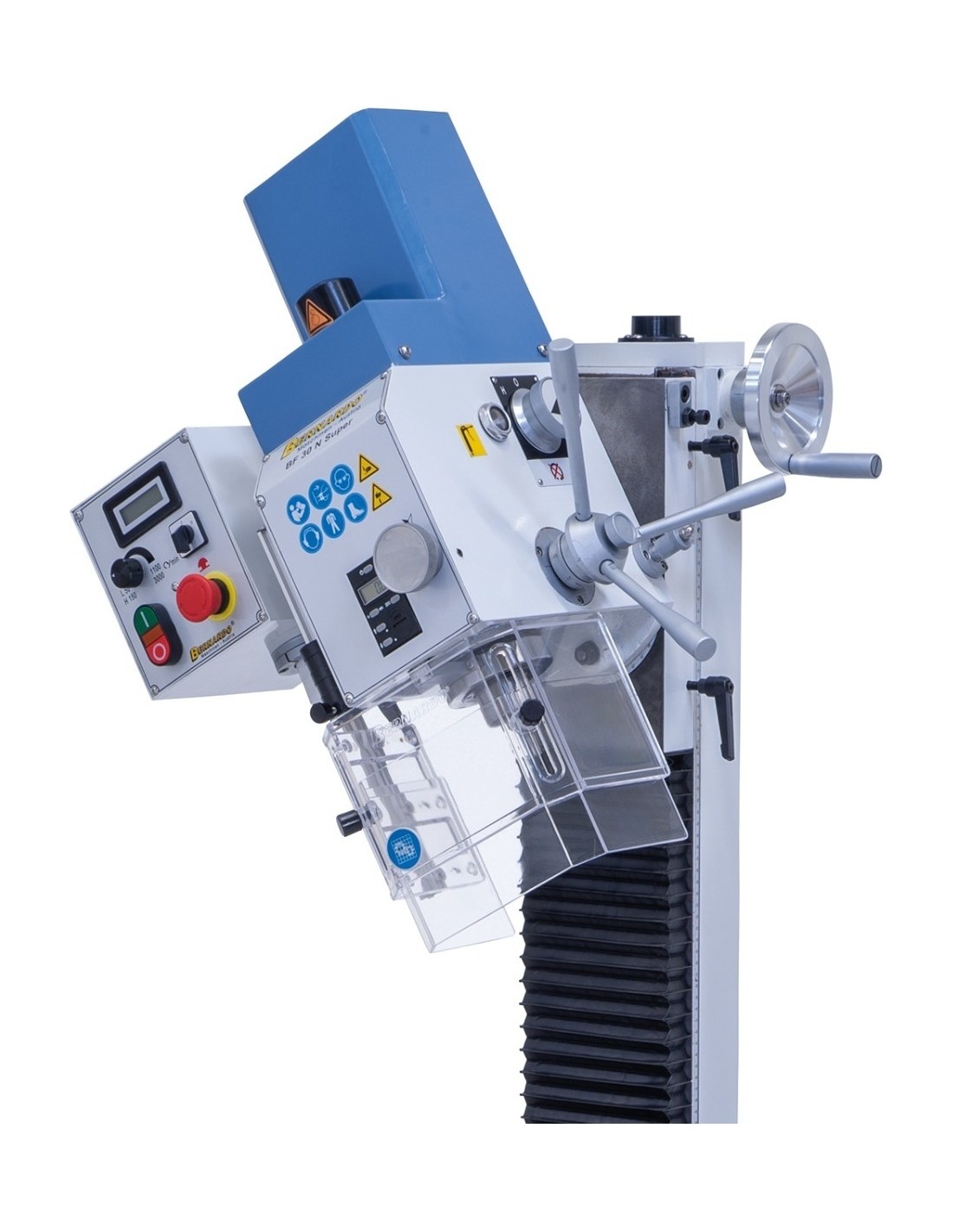

Mill head tiltable to both sides for angular boring, milling of bevels etc.
Large, surface treated cross table

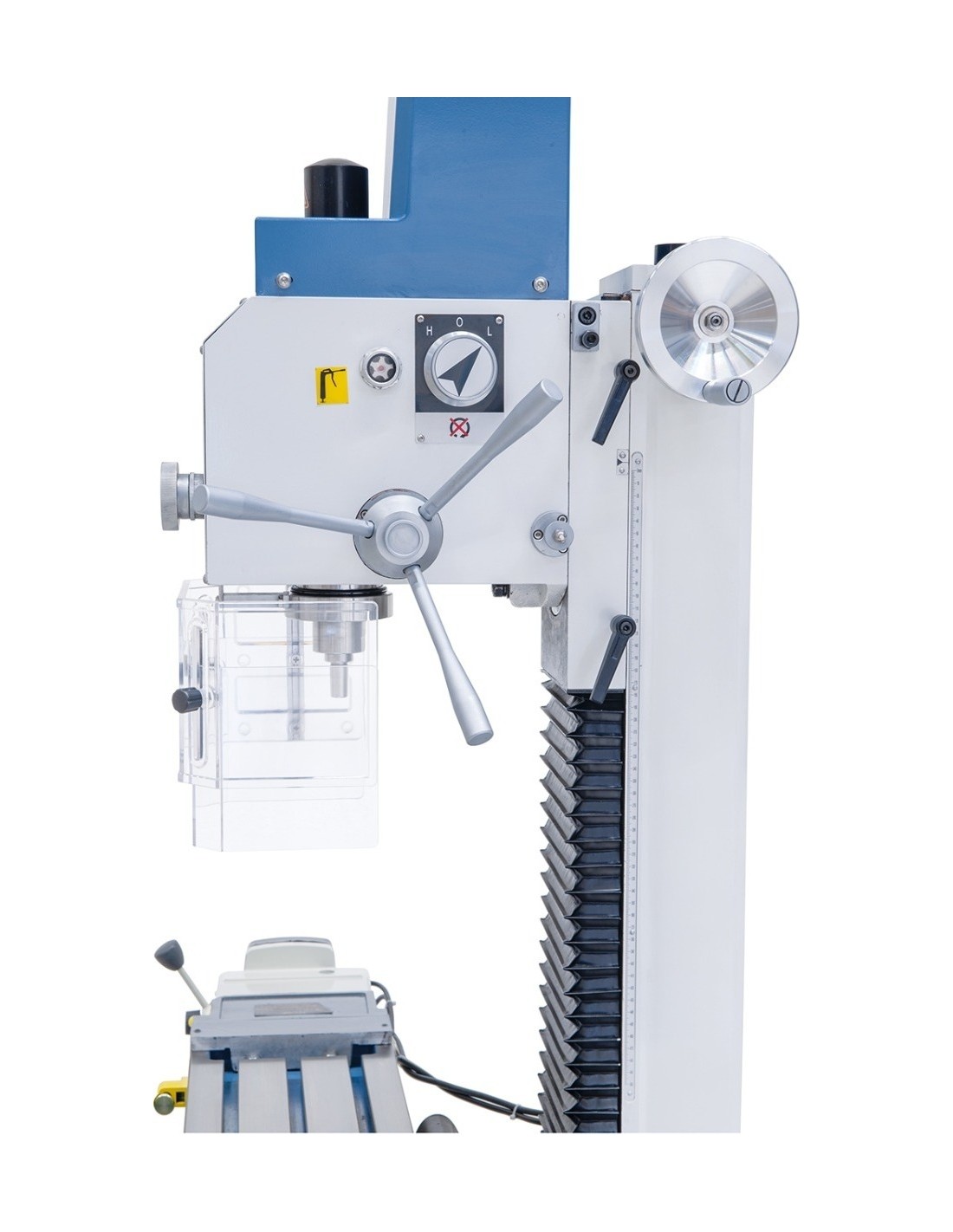

Handle for spindle adjustment, handwheel for fine feed

Standard accessories

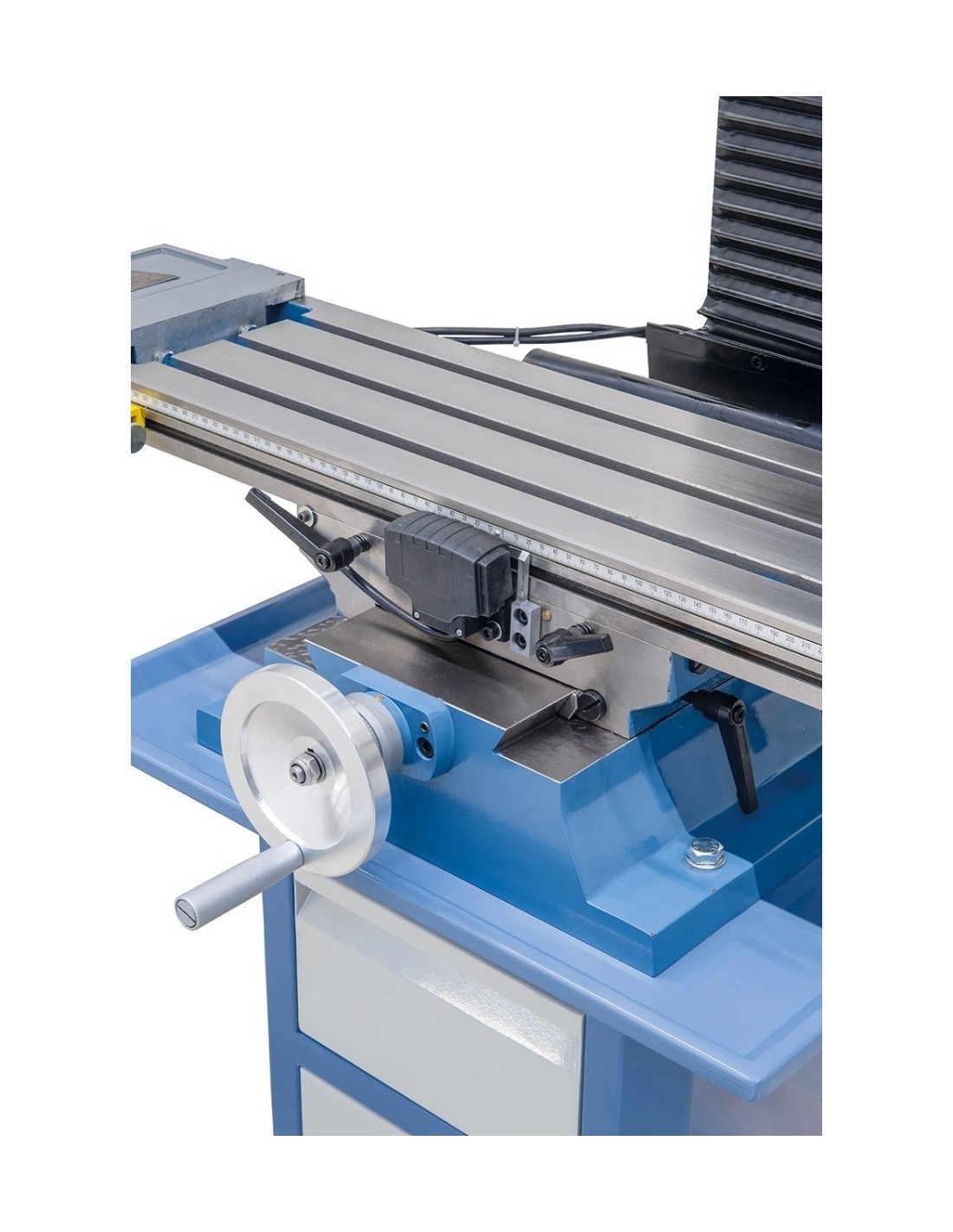

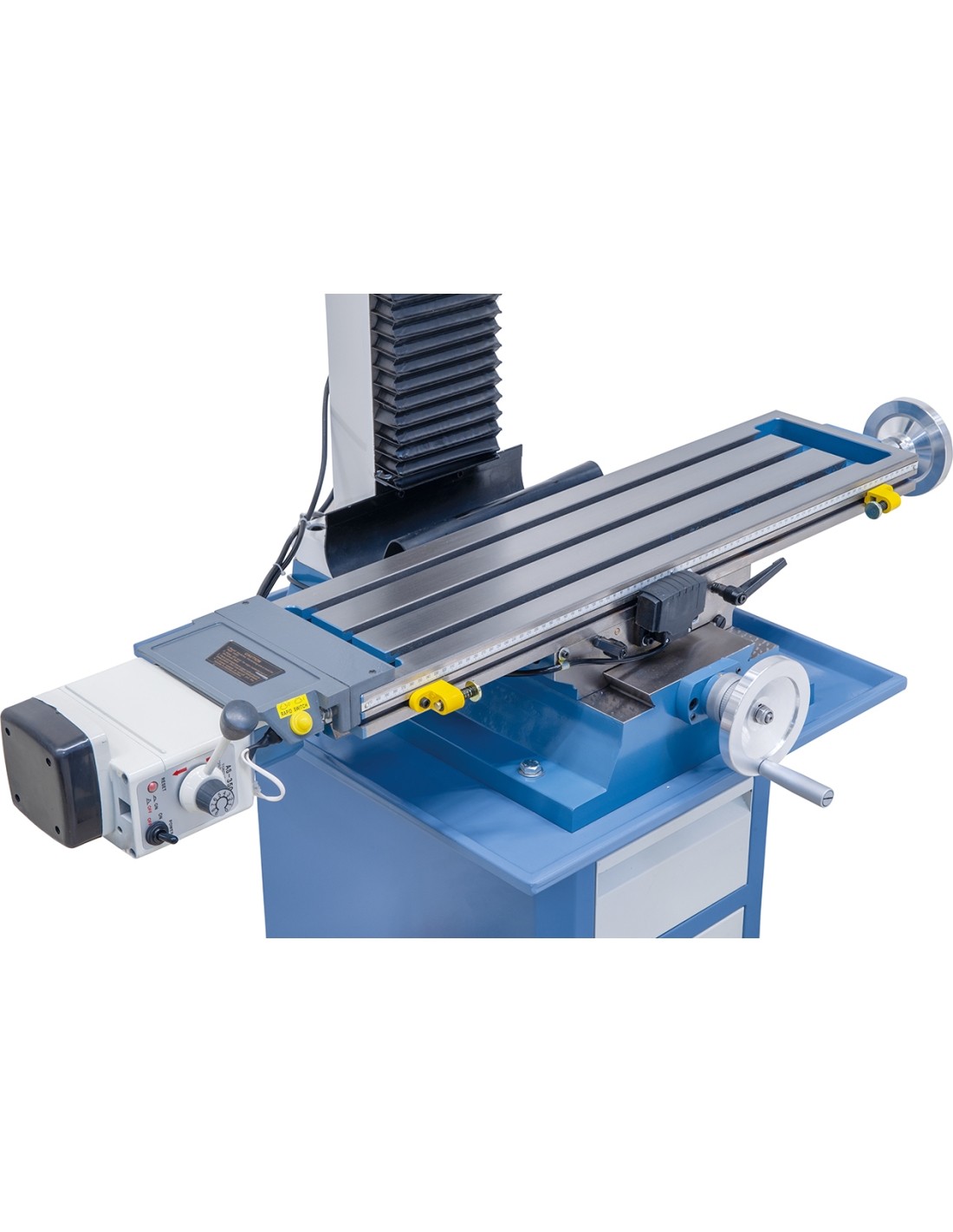

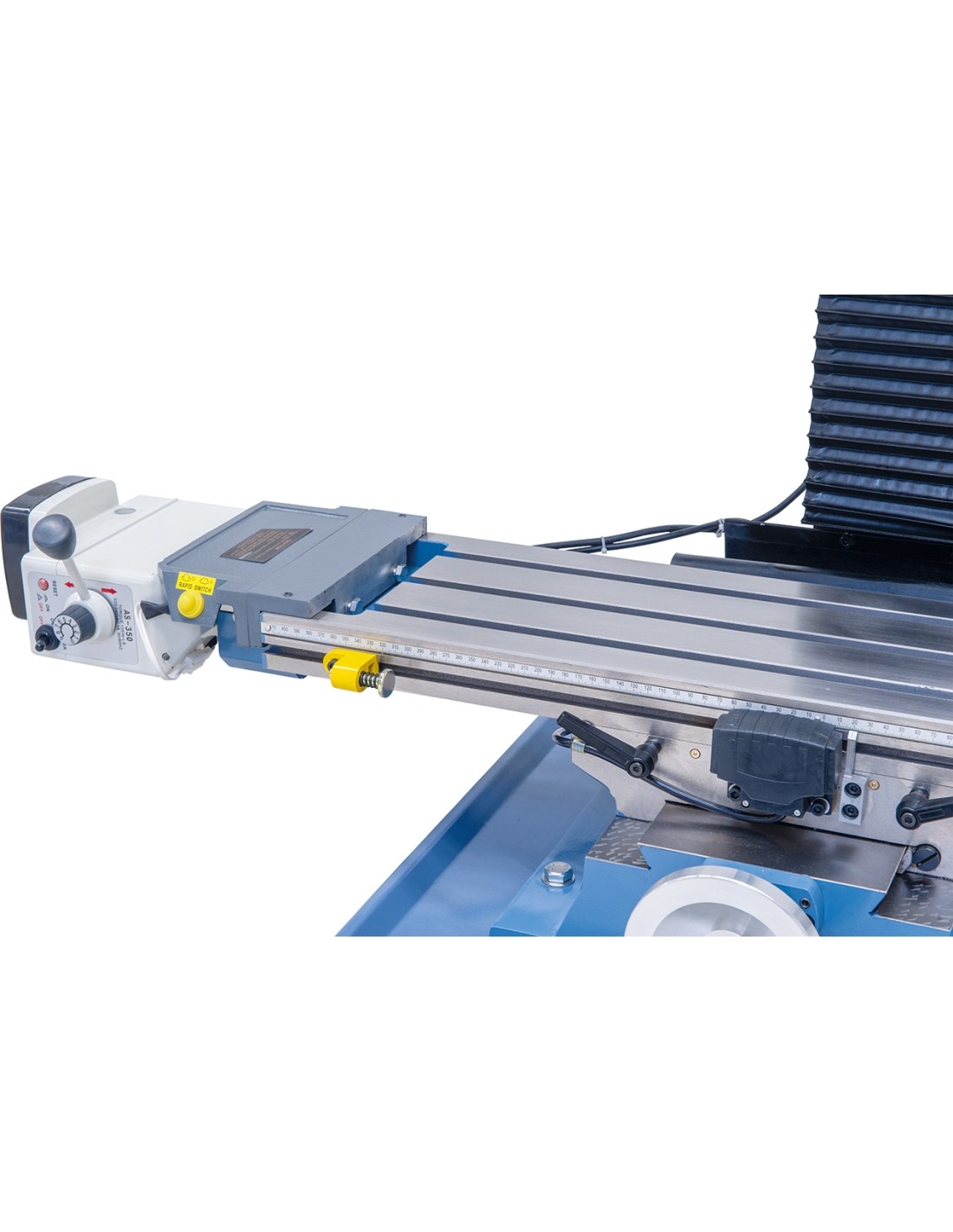

x-axis power feed AL 350 D
Keyless drill chuck 1 - 16 mm / B 16
Drill chuck arbor MT 3 / B 16
Drawbar M 12
Digital speed indicator
Digital spindle stroke indicator
EMC filter according to CE standard
Height adjustable protective cover
