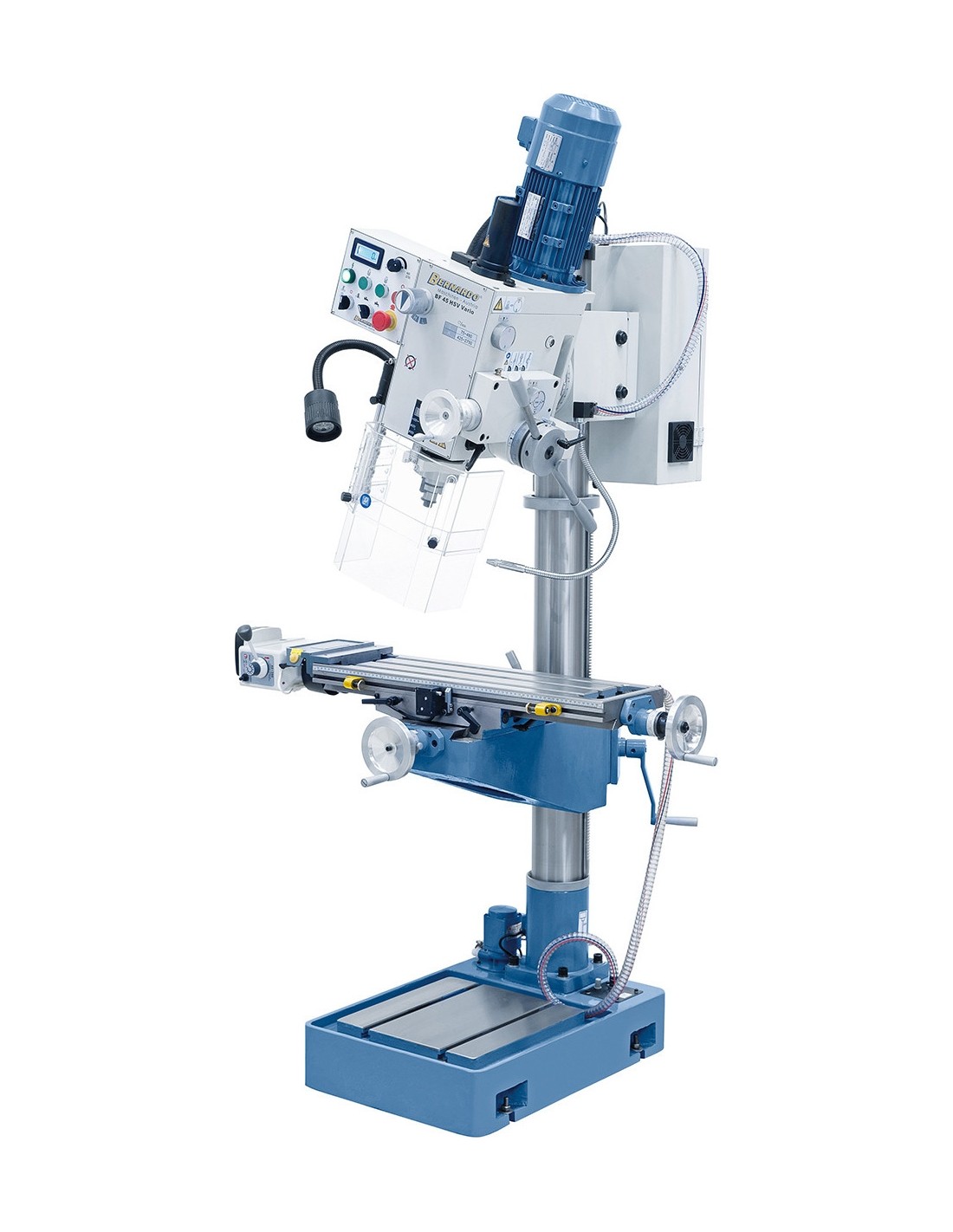

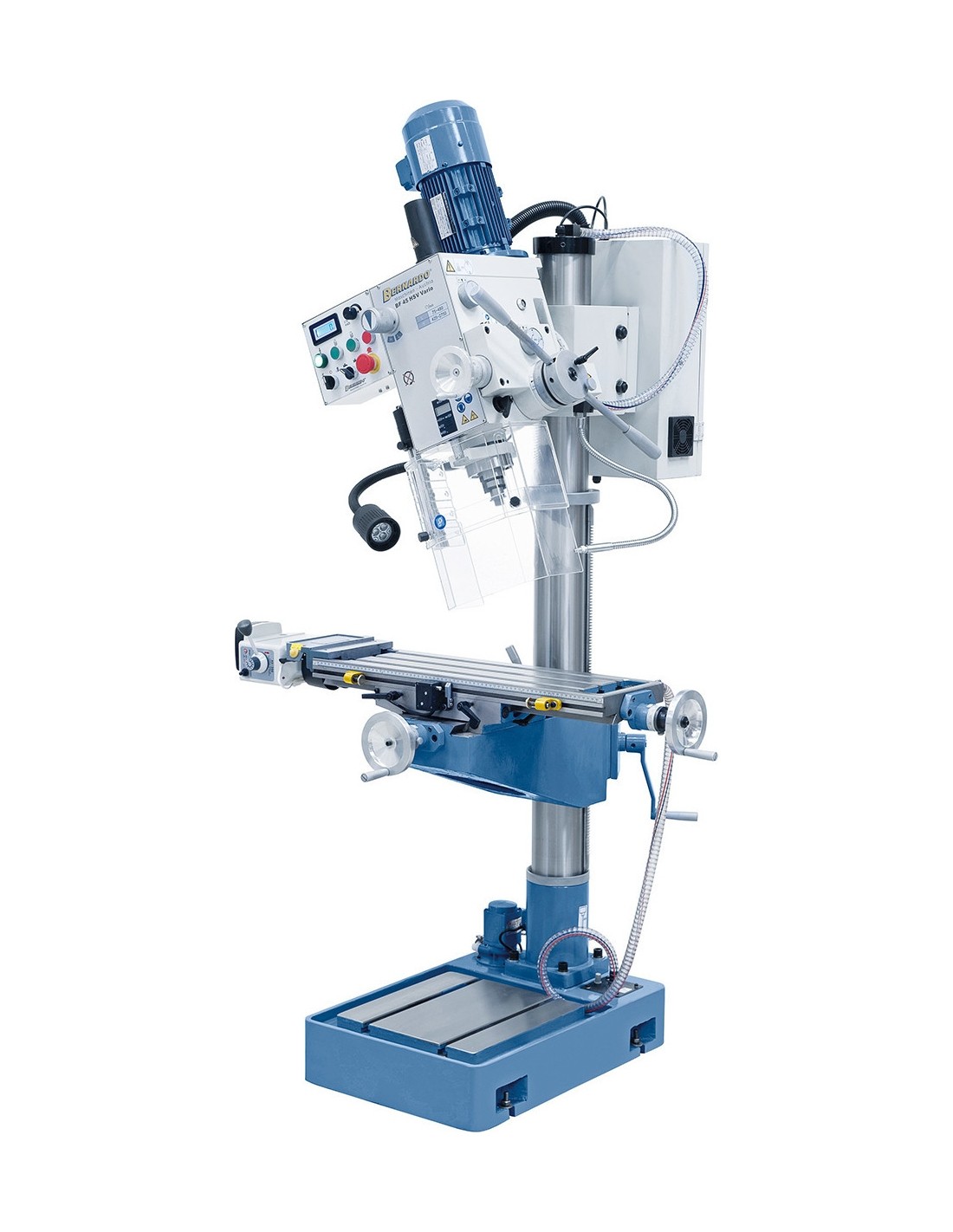

BF 45 HSV Vario with x-axis power feed
BF 45 HSV Vario with x-axis power feed
BF 45 HSV Vario with x-axis power feed
BF 45 HSV Vario with x-axis power feed
BF 45 HSV Vario with x-axis power feed
BF 45 HSV Vario with x-axis power feed
BF 45 HSV Vario with x-axis power feed
BF 45 HSV Vario with x-axis power feed
BF 45 HSV Vario with x-axis power feed
BF 45 HSV Vario with x-axis power feed
BF 45 HSV Vario with x-axis power feed
BF 45 HSV Vario with x-axis power feed
BF 45 HSV Vario with x-axis power feed
BF 45 HSV Vario with x-axis power feed
BF 45 HSV Vario with x-axis power feed
BF 45 HSV Vario with x-axis power feed
  • Online only
BF 45 HSV Vario with x-axis power feed
BF 45 HSV Vario with x-axis power feed
BF 45 HSV Vario with x-axis power feed
BF 45 HSV Vario with x-axis power feed
BF 45 HSV Vario with x-axis power feed
BF 45 HSV Vario with x-axis power feed
BF 45 HSV Vario with x-axis power feed
BF 45 HSV Vario with x-axis power feed
BF 45 HSV Vario with x-axis power feed
BF 45 HSV Vario with x-axis power feed
BF 45 HSV Vario with x-axis power feed
BF 45 HSV Vario with x-axis power feed
BF 45 HSV Vario with x-axis power feed
BF 45 HSV Vario with x-axis power feed
BF 45 HSV Vario with x-axis power feed
BF 45 HSV Vario with x-axis power feed

Spindle taper
MT 4
Weight approx.
362 kg
Machine dimension (W x D x H)
1070 x 800 x 2060 mm
Drilling capacity in steel
32 mm
Distance spindle to column
280 mm
Spindle stroke
120 mm
Spindle speed, stepless
75 - 2750 rpm
Travel (x / y)
495 / 200 mm
Mill head tiltable
-90° to +90°
Height adjustment of mill head
260 mm
T-slot size
14 mm
Motor power output S1 100%
1,5 kW / 400 V
Motor power input S6 40%
2,2 kW / 400 V
Distance spindle to table max.
640 mm
Column diameter
115 mm
Table size
730 x 210 mm
Drilling capacity in cast iron
40 mm
Spindle feed
(3) 0,10 / 0,18 / 0,26 mm/r
Milling head max.
80 mm
Distance spindle to base plate max.
1190 mm

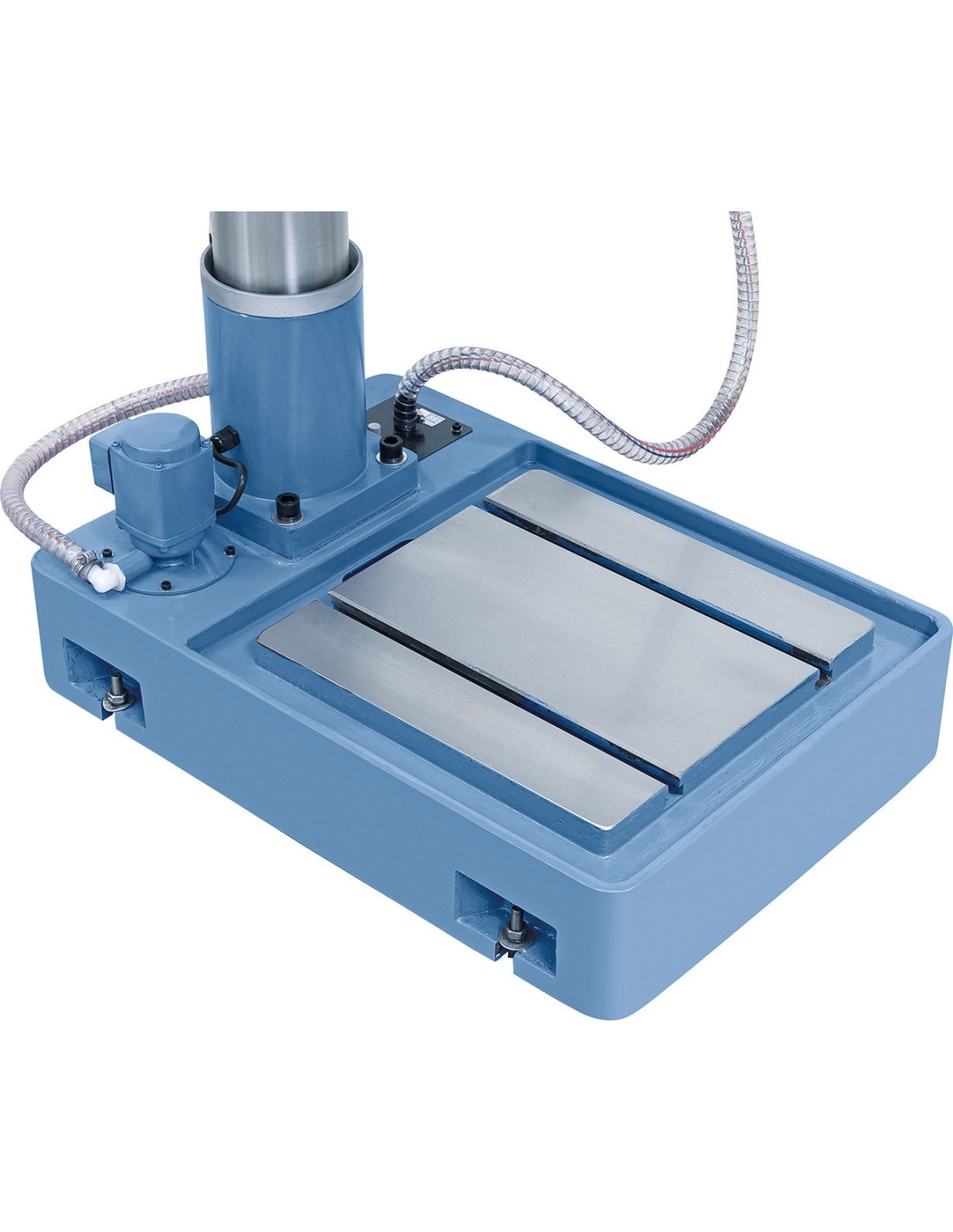

Base plate
365 x 375 mm

BF 45 HSV Vario with x-axis power feed

1092059
Price €6,751.00 VAT incl.

Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Supplier store
(10 pcs)
Delivery terms:
FREE pick up monday, july 20 d., in the store, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 362 kg.
We will deliver the product to you via: 6-12 w.d. Venipak (€40.99)
Weight: 362 kg.

Description

Properties

  • Delta-frequency inverter ensures variable speed adjustment with optimal torque
  • Height adjustable protective cover in accordance to CE standards for increased safety

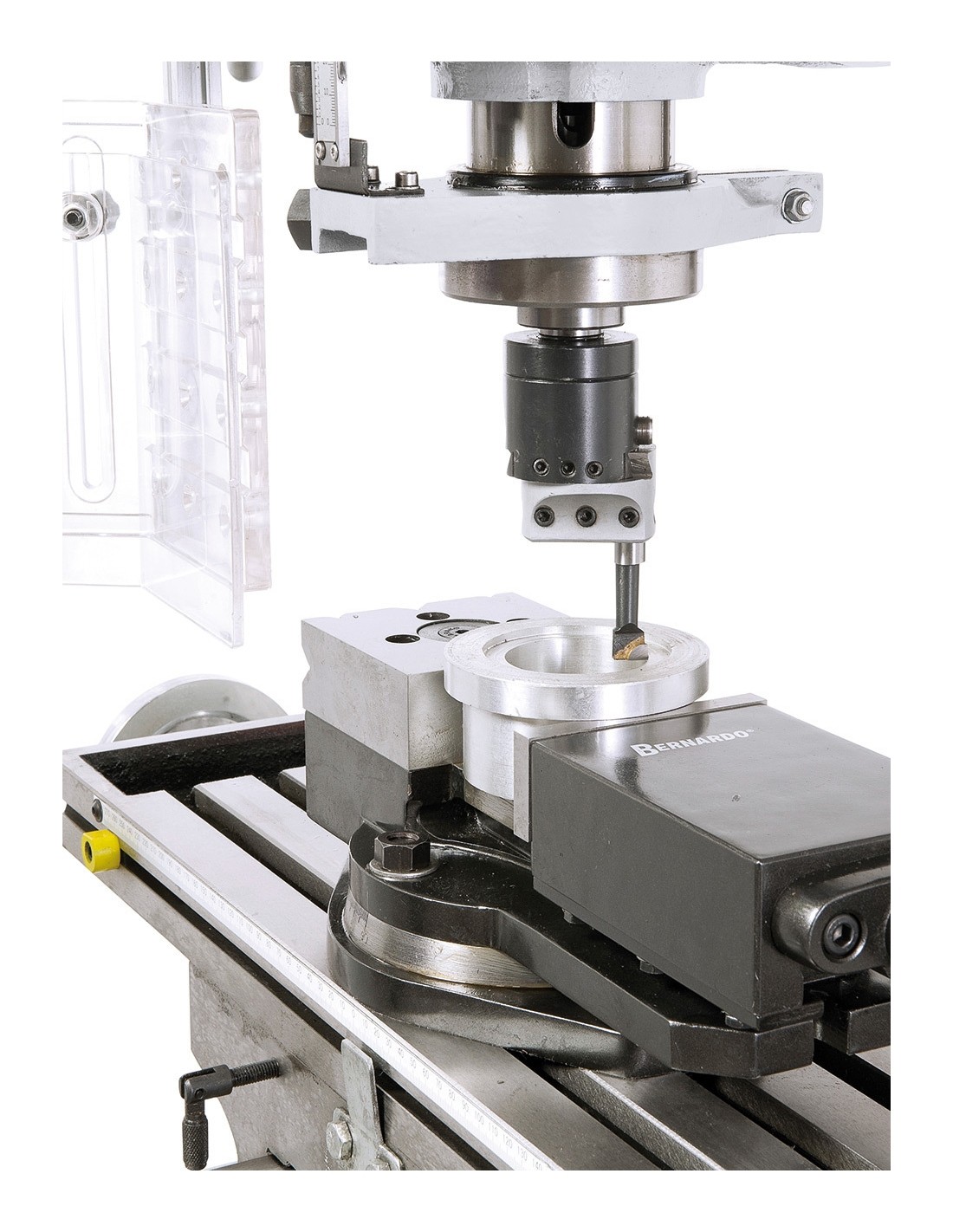

  • Many possible applications, such as groove milling, face milling, reboring etc.
  • Large cross table with T-slots and coolant groove
  • Polished gear wheels, in oil bath, allow smooth running

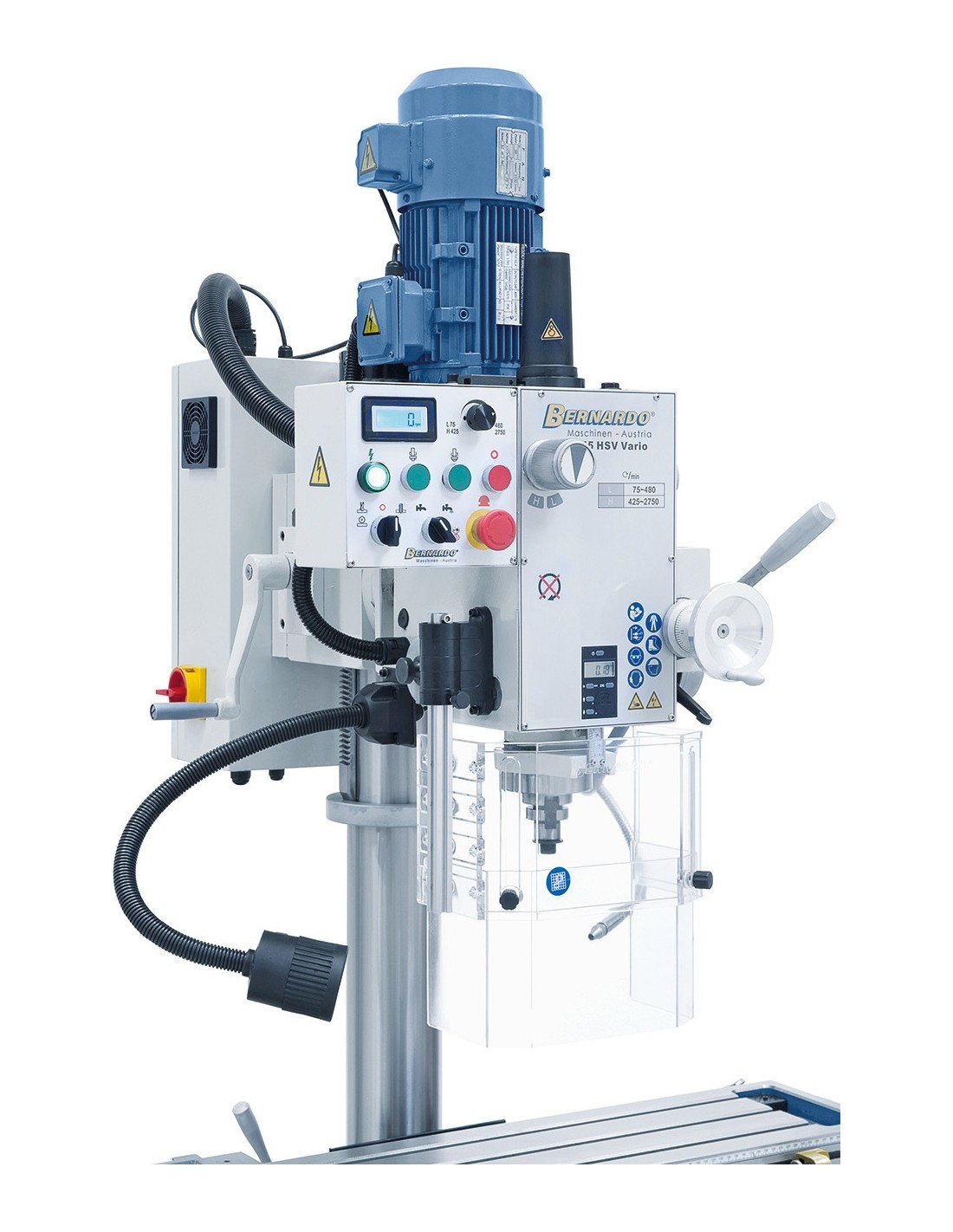

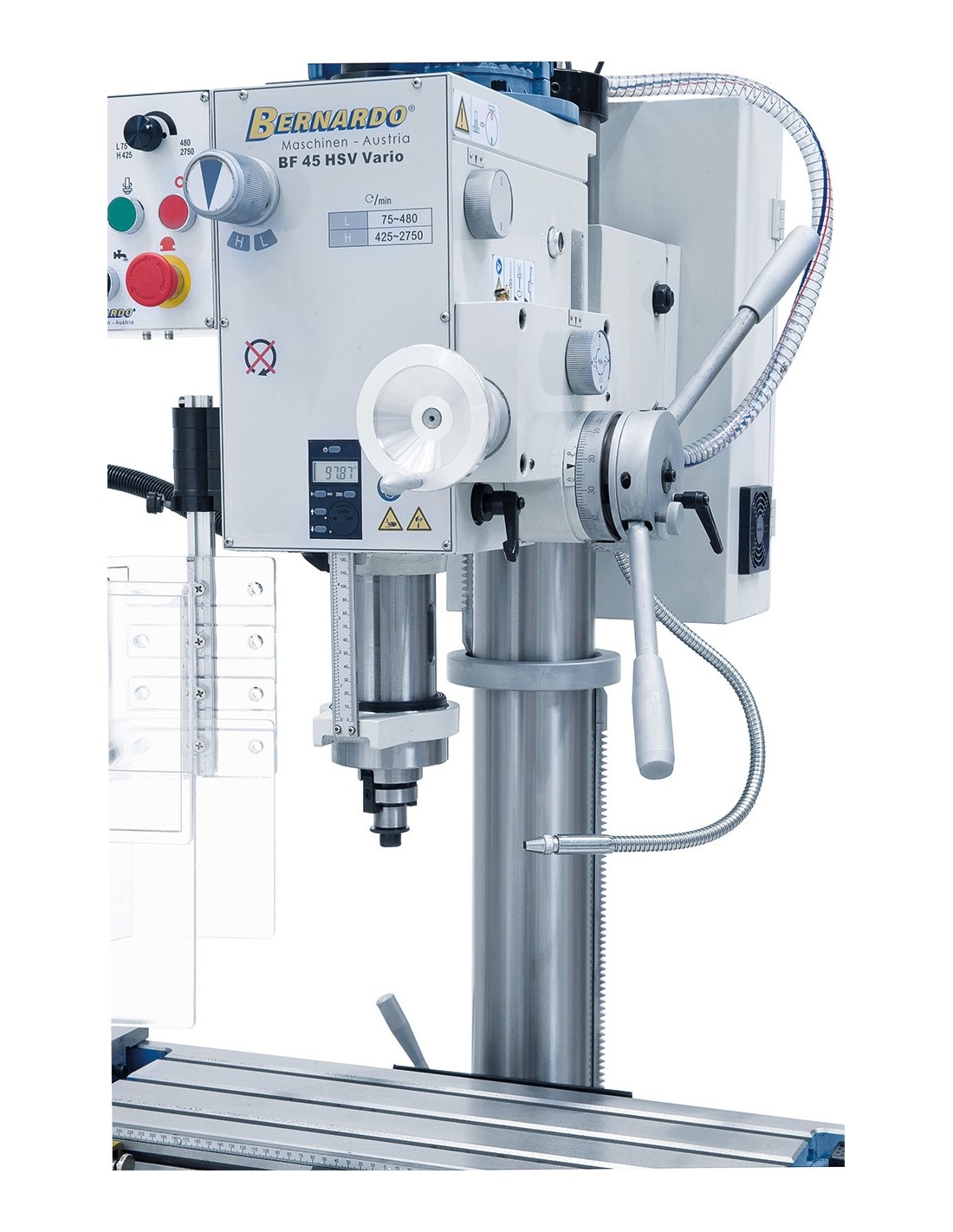

  • Digital display for speed and spindle stroke comes standard

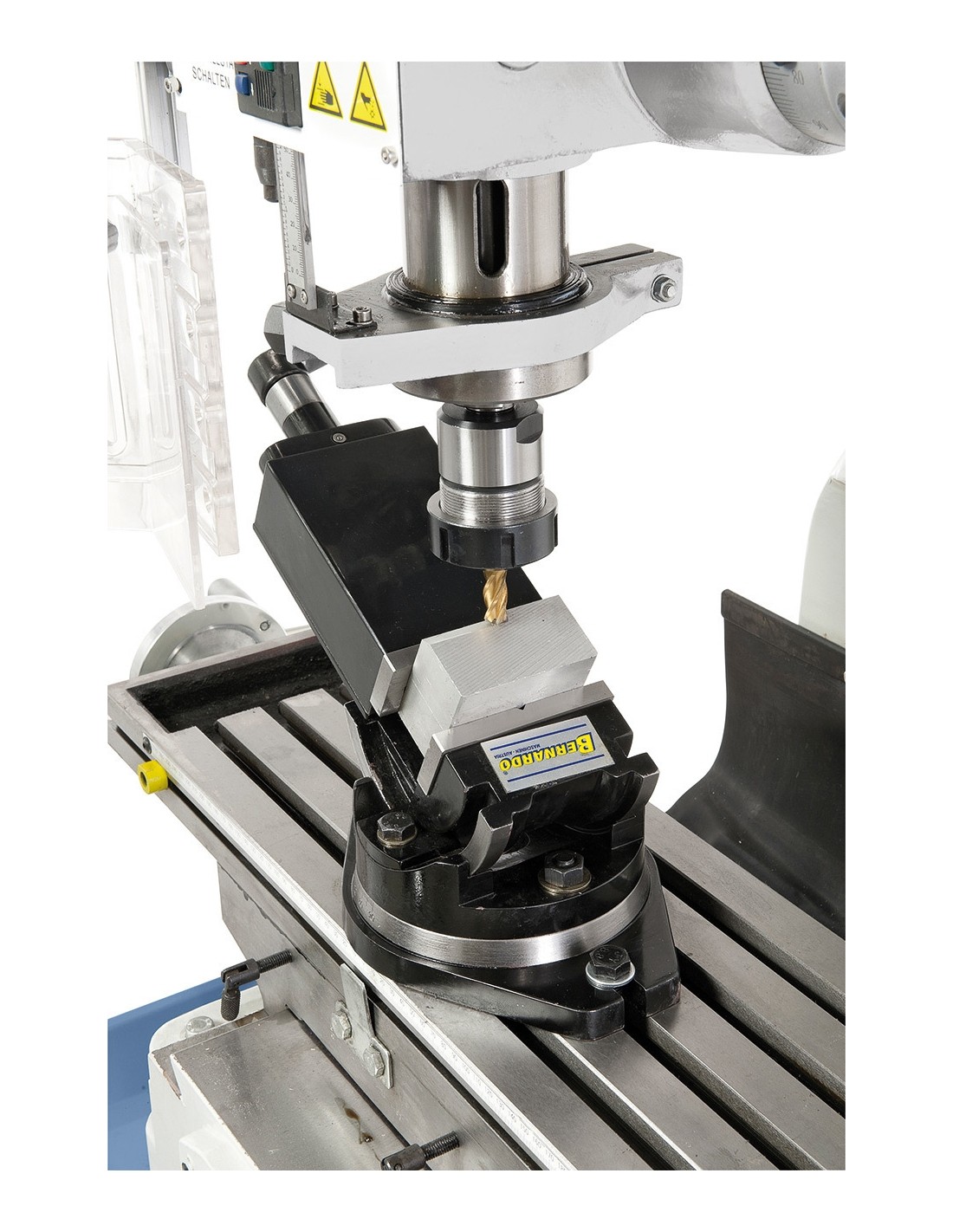

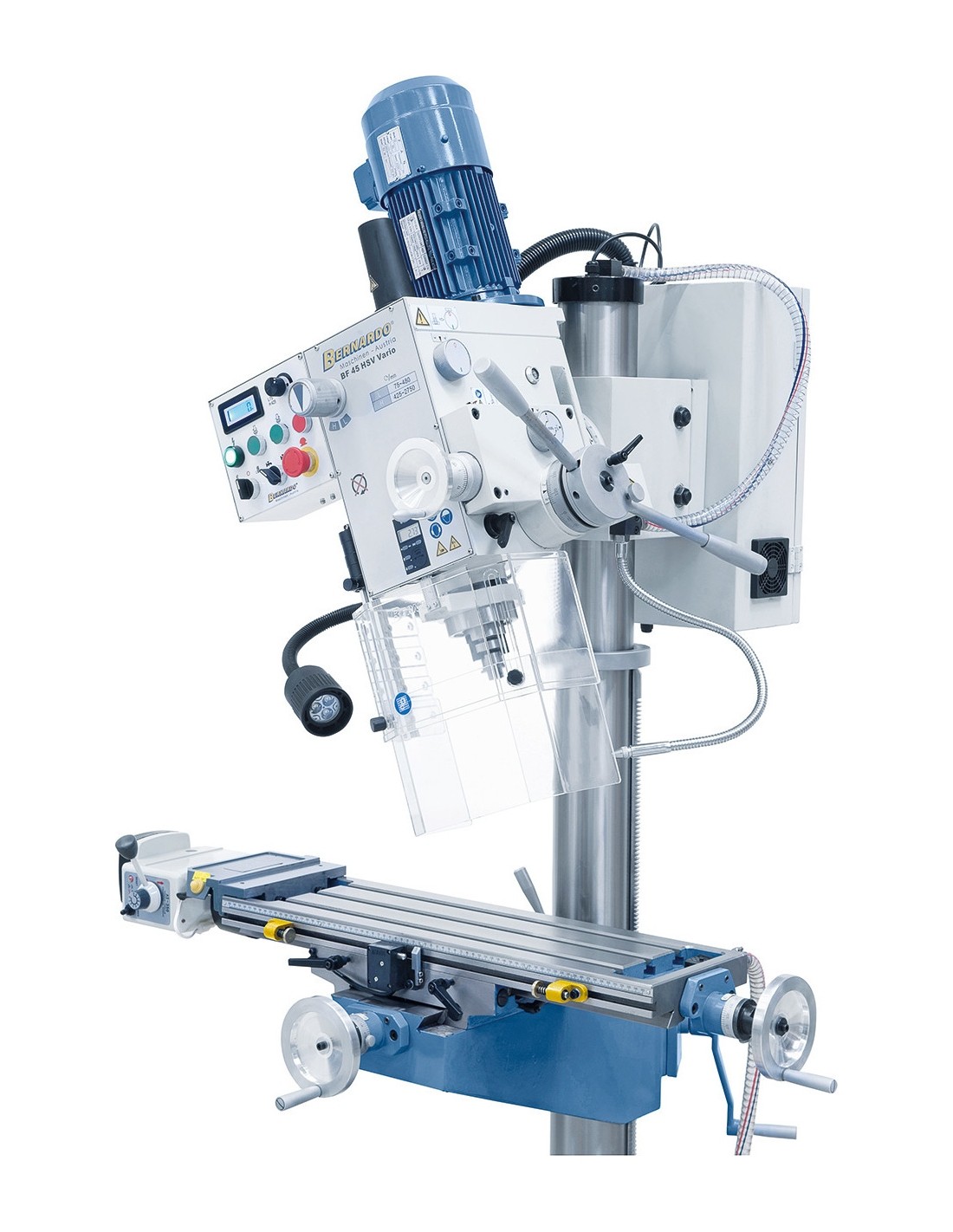

  • Mill head tilts to both sides for angular boring, groove milling and many more
  • Dovetail guiding in x- and z-axis, adjustable by gibs
  • Solid, polished steel column in heavy-duty design
  • Comes complete with automatic spindle feed
  • Left and right turning for thread cutting

Standard accessories

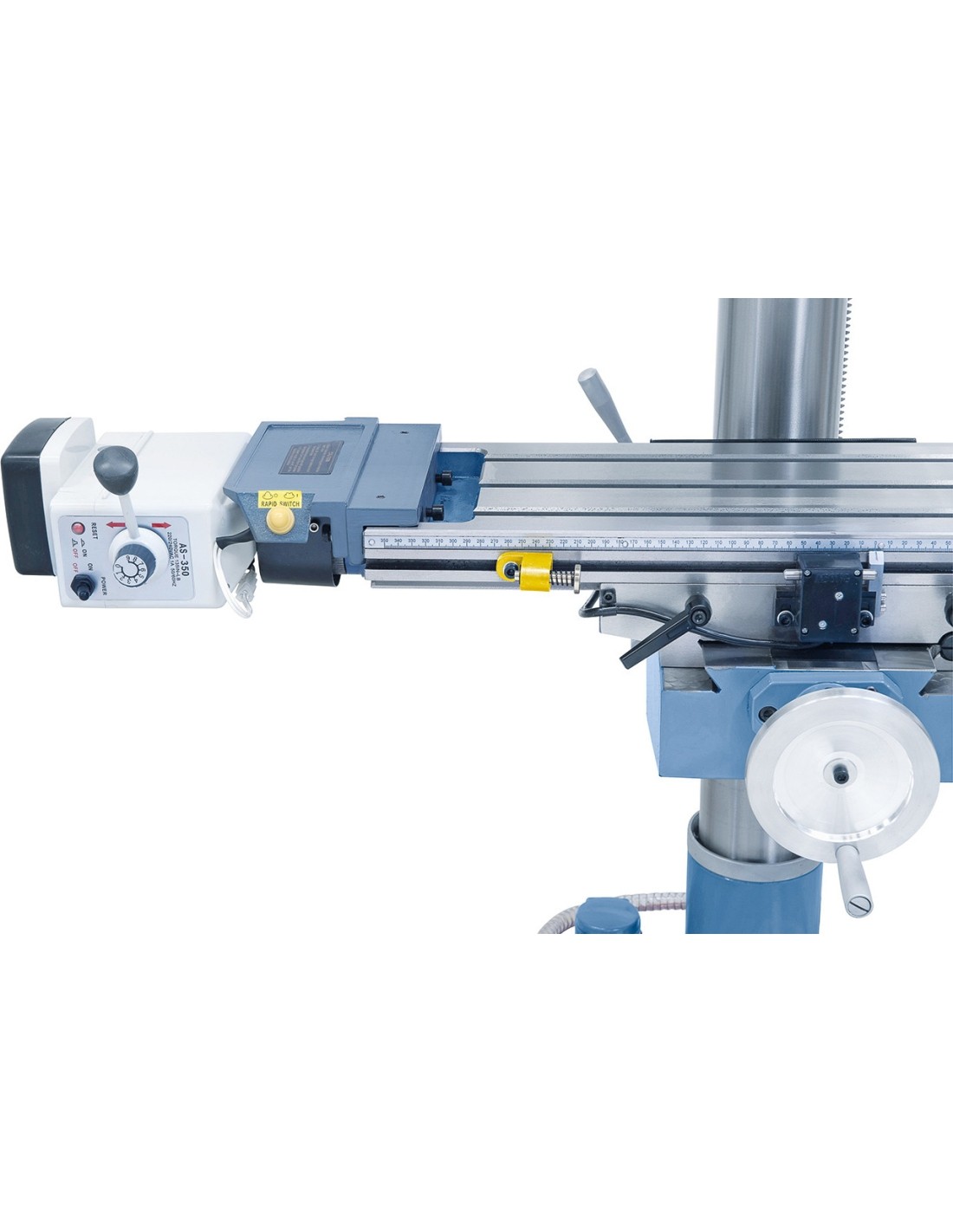

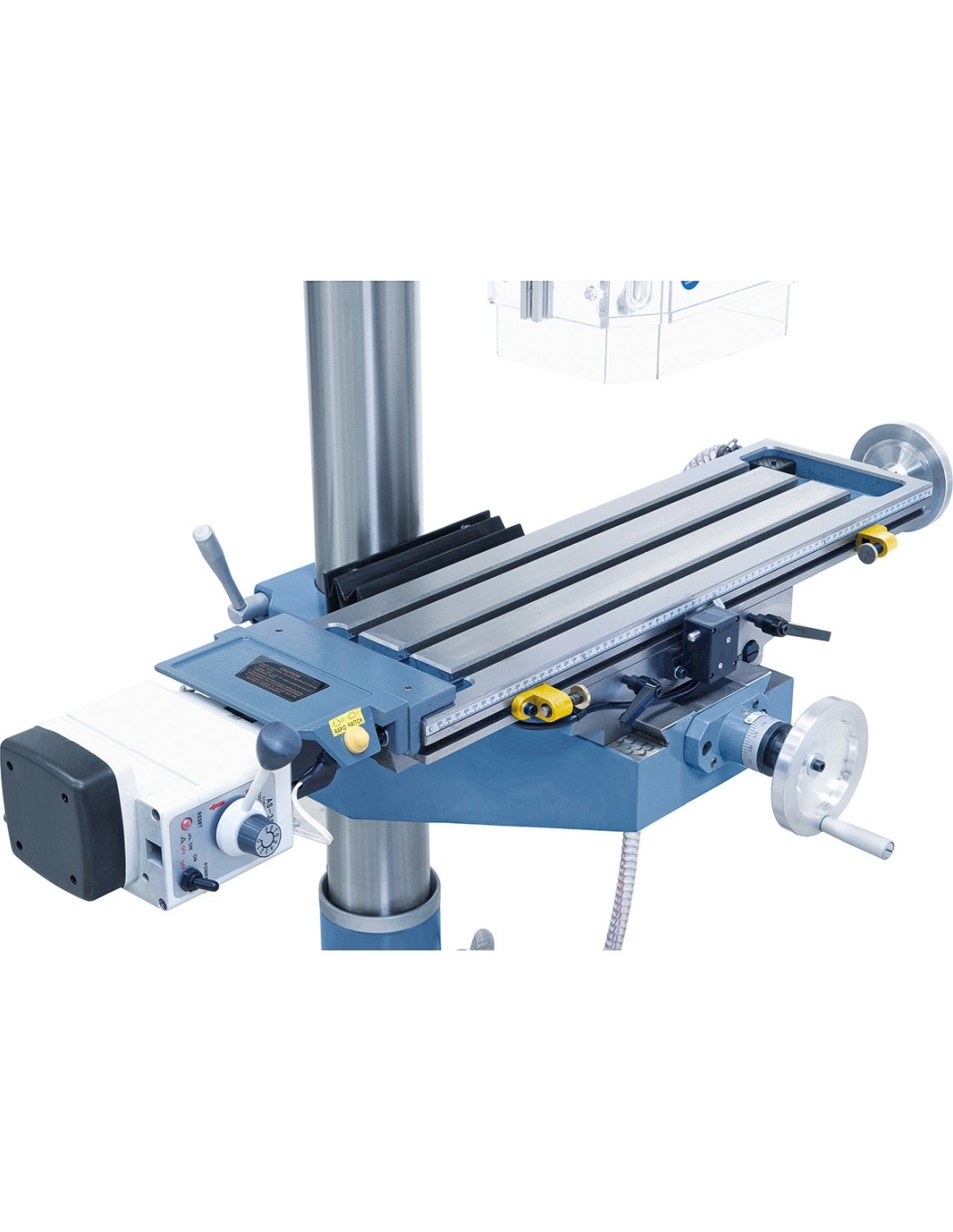

  • x-axis power feed AL 450 D
  • Keyless drill chuck 1 – 16 mm / B 16
  • Drill chuck arbor MT 4 / B 16
  • Drawbar M 16
  • Morse taper drill sleeve MT 4 / 3
  • Taper shell end mill holder MT 4 / 27 mm
  • Automatic spindle feed
  • Height adjustable protective cover
  • Digital spindle stroke indication
  • Digital speed indication

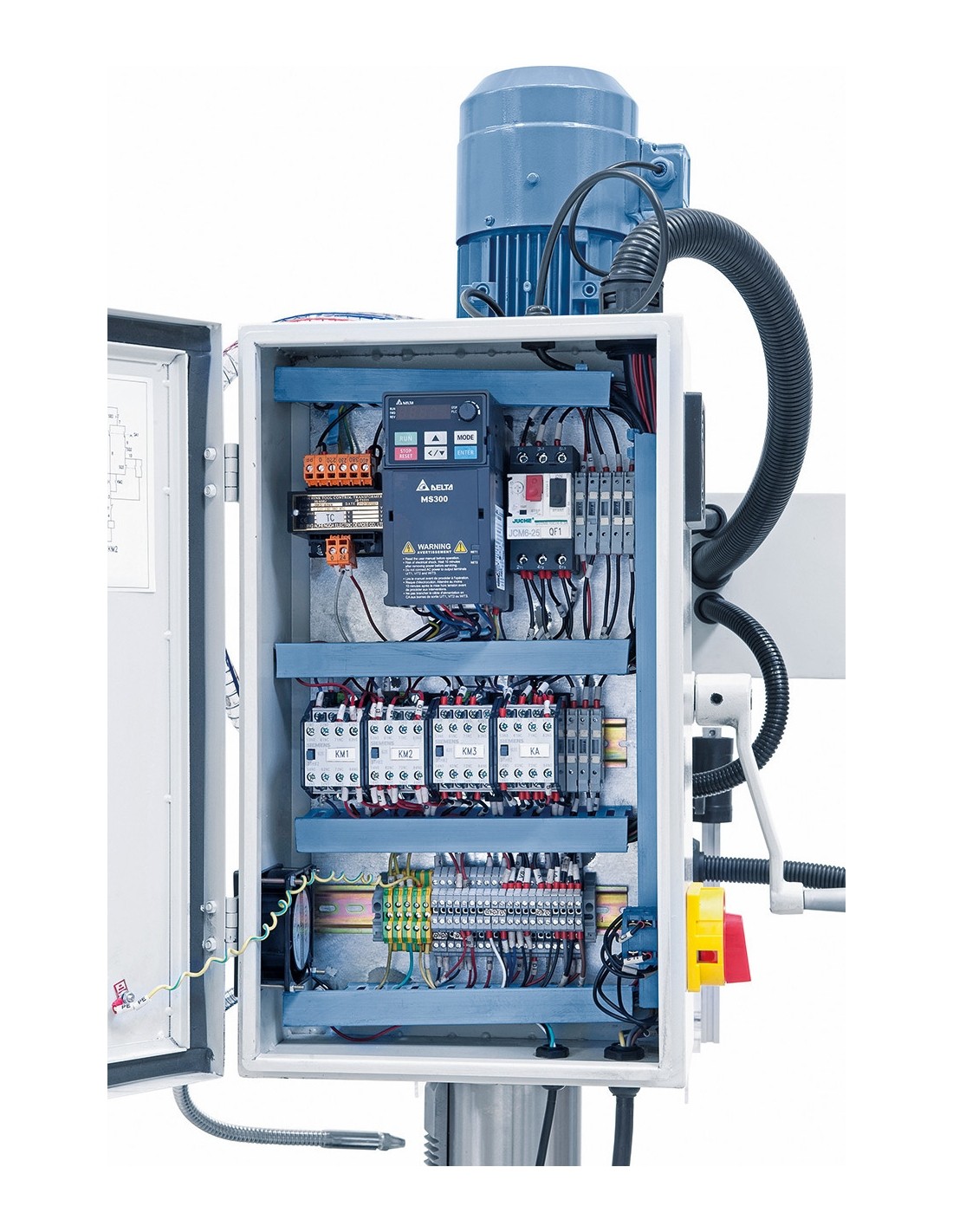

  • Frequency inverter
  • Thread cutting device
  • Coolant device
  • LED machine light
  • Longitudinal scale
  • Tools
