WARRANTY

  • 30 days return policy
  • 24 month product warranty
  • Free consultation
  • 30 days return policy
  • 24 month product warranty
  • Free consultation

Spindle taper
ISO 40
Weight approx.
750 kg
Machine dimension (W x D x H)
1300 x 1400 x 2100 mm
Drilling capacity in steel
35 mm
Distance spindle to column
210 - 550 mm
Spindle stroke
125 mm
T-slot size
14 mm
Motor power output S1 100%
0,85 / 1,5 kW
Motor power input S6 40%
1,1 / 2,2 kW
Thread cutting max.
M 16
Spindle speeds
(8) 115 - 1750 rpm
Table size
1000 x 240 mm
Table tiltable
-45° to +45°
Distance spindle to table
120 - 375 mm
Drilling capacity in cast iron
40 mm
Travel longitudinal (x)
590 mm
Travel cross (y)
180 mm
Travel vertical (z)
320 mm
Head tilting range
90°

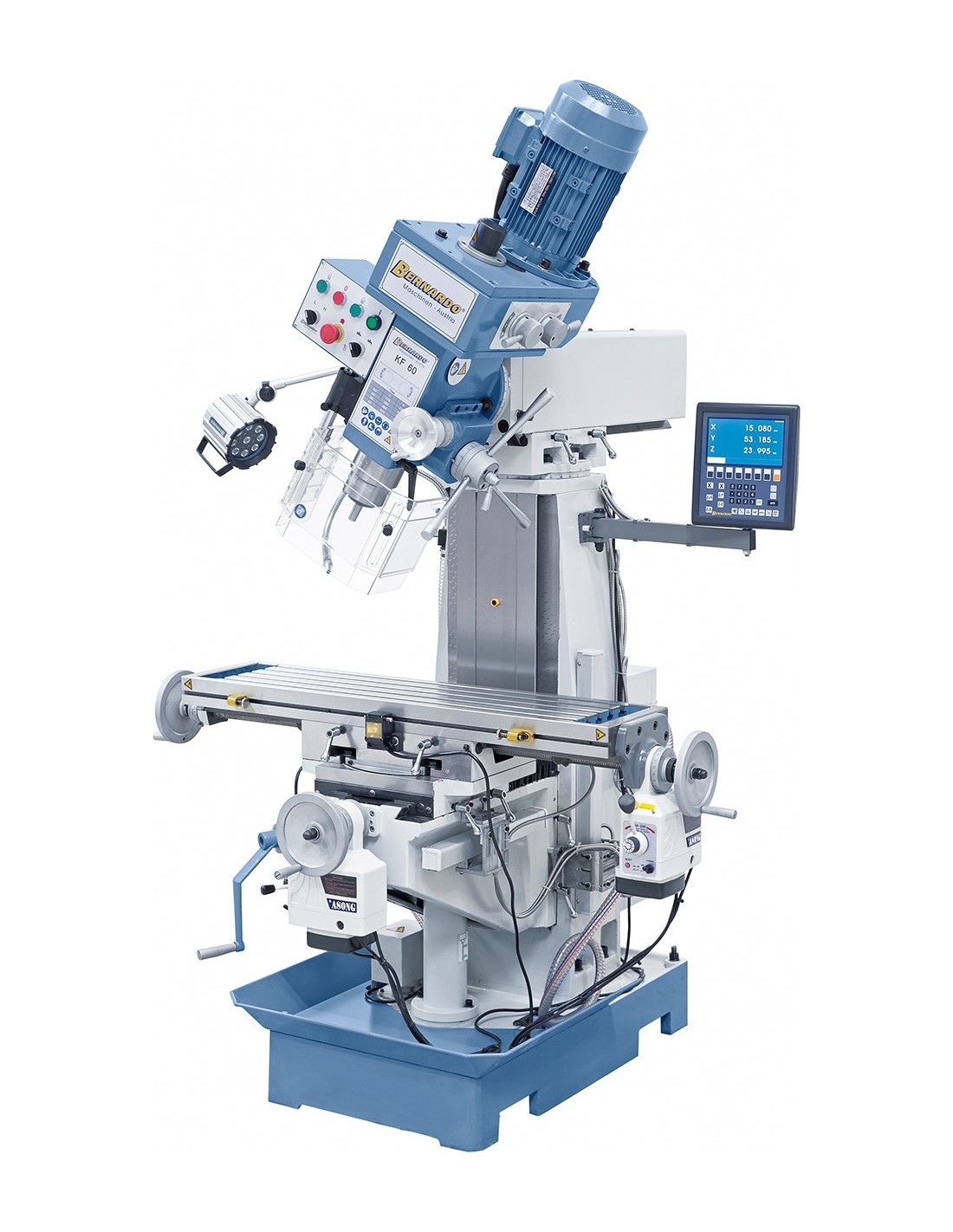

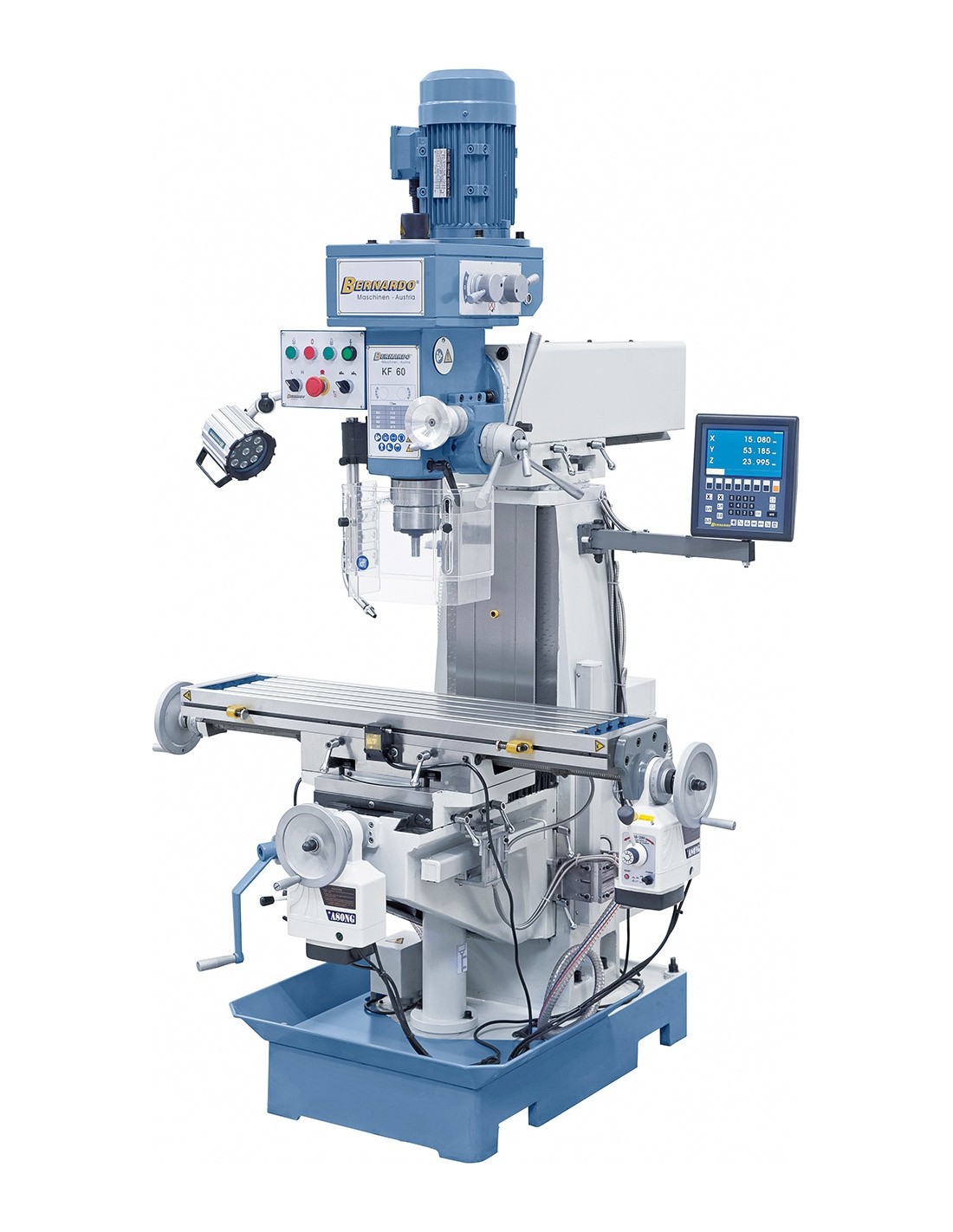

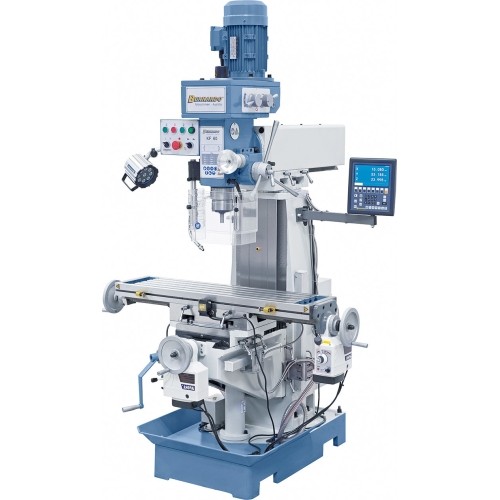

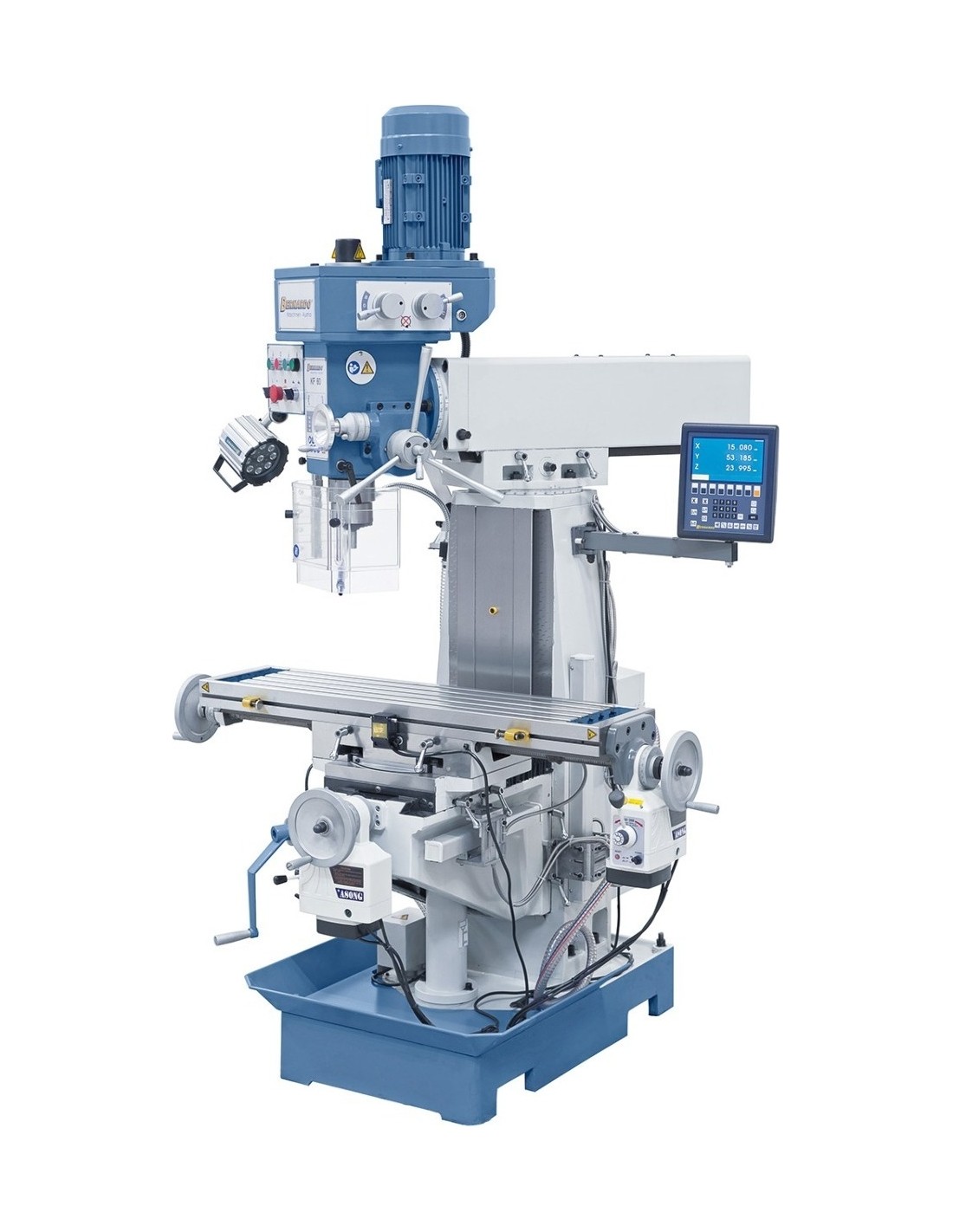

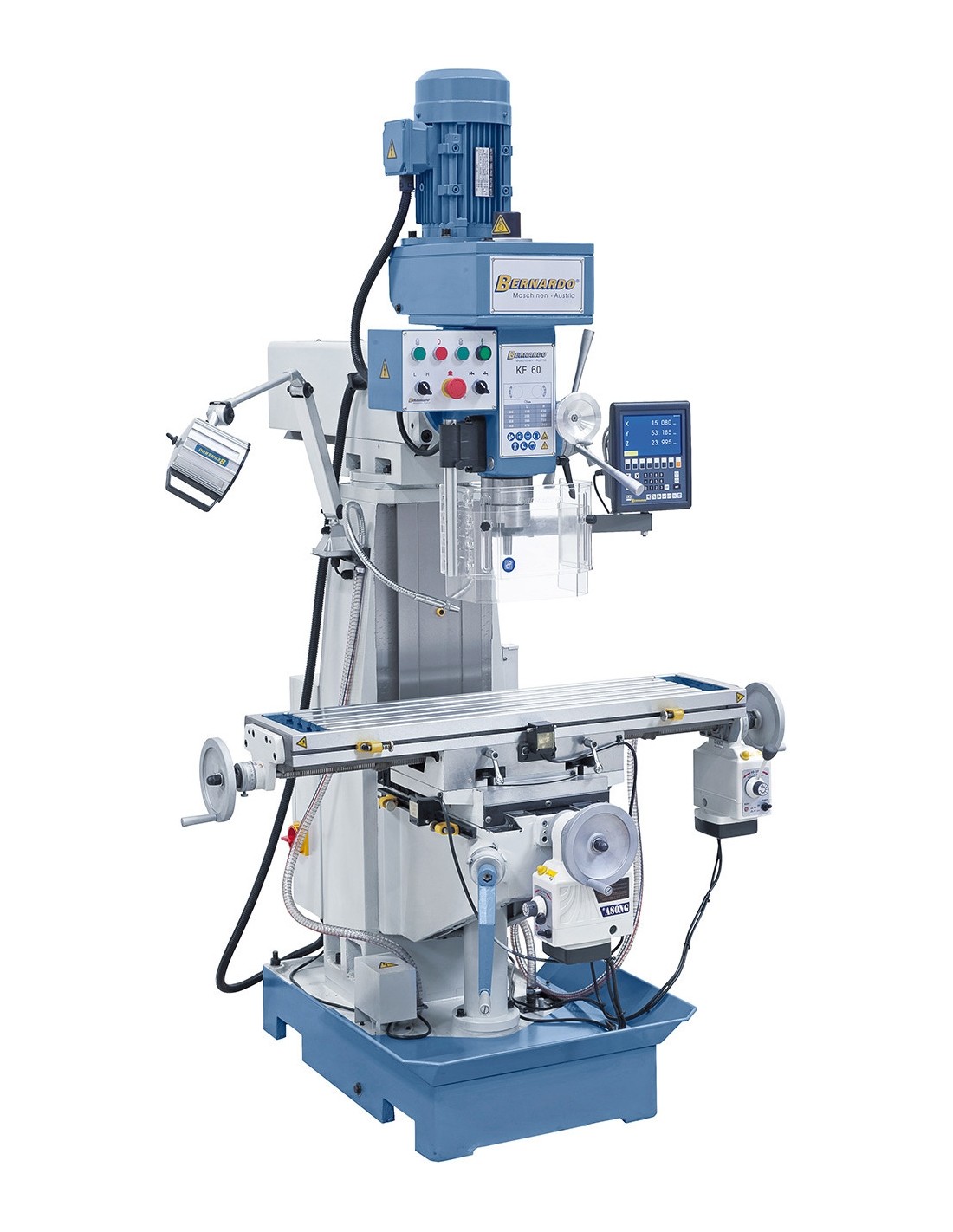

KF 60 incl. 3-axis digital readout ES-12 V and automatic table feed in x/y-axis

1092058
€9,715.00
Tax included
Monthly payment from 239.44€

Stock Quantity:
In S01 store
not available
In S02 store
not available
In Supplier store
(5+ pcs)
Delivery terms:
NEMOKAMAI atsiimkite thursday, december 5 d., parduotuvėje, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 750 kg.

Description

Properties

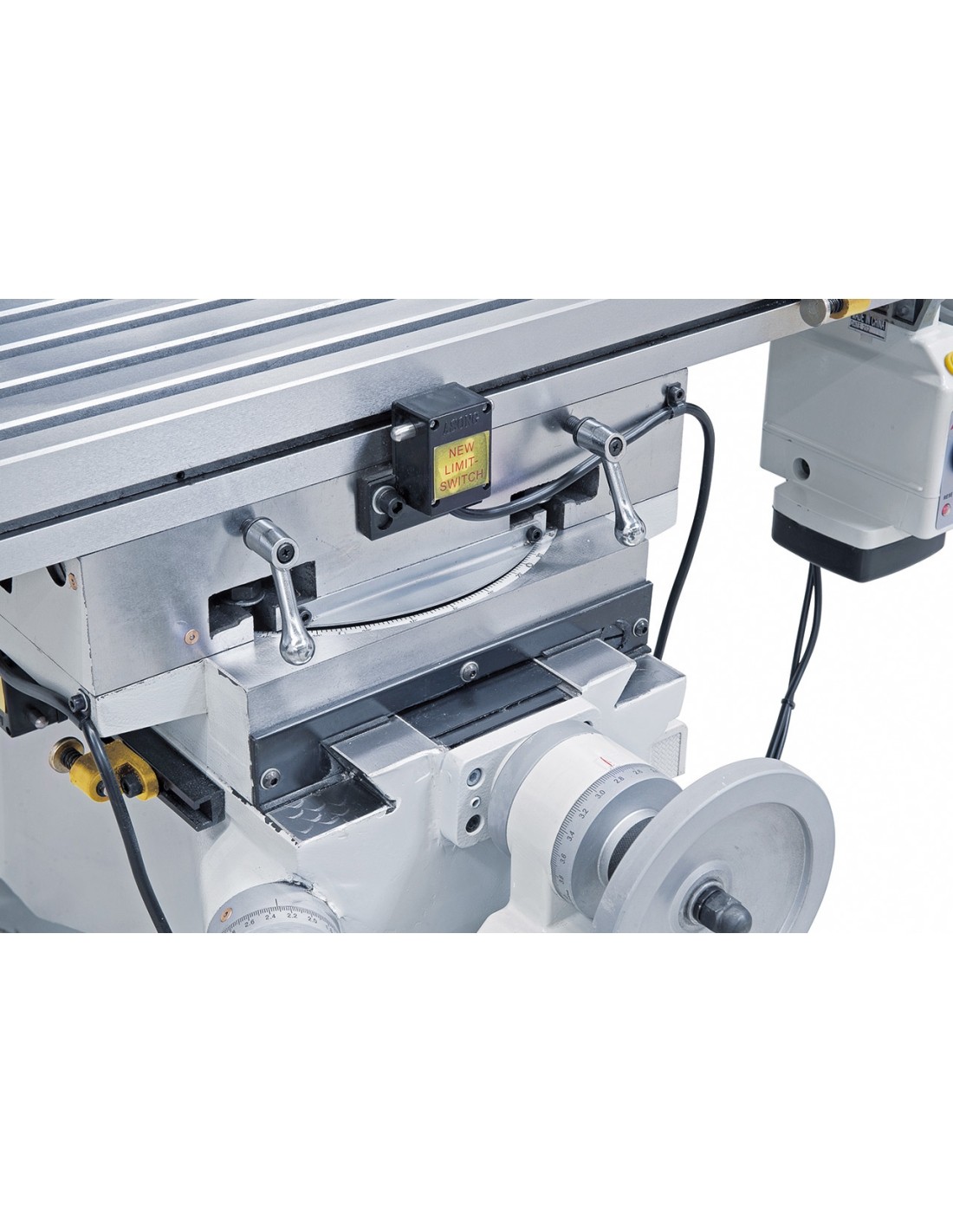

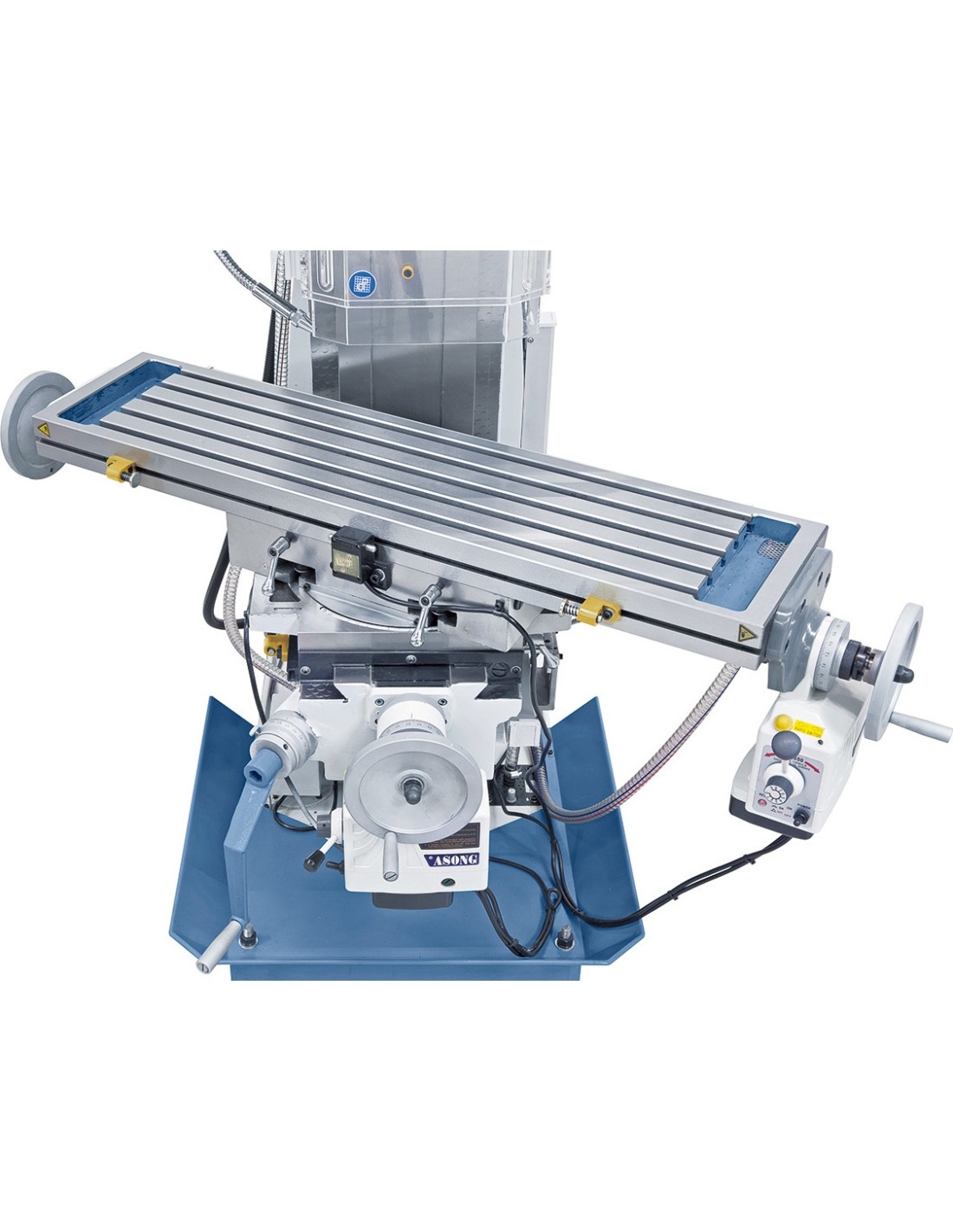

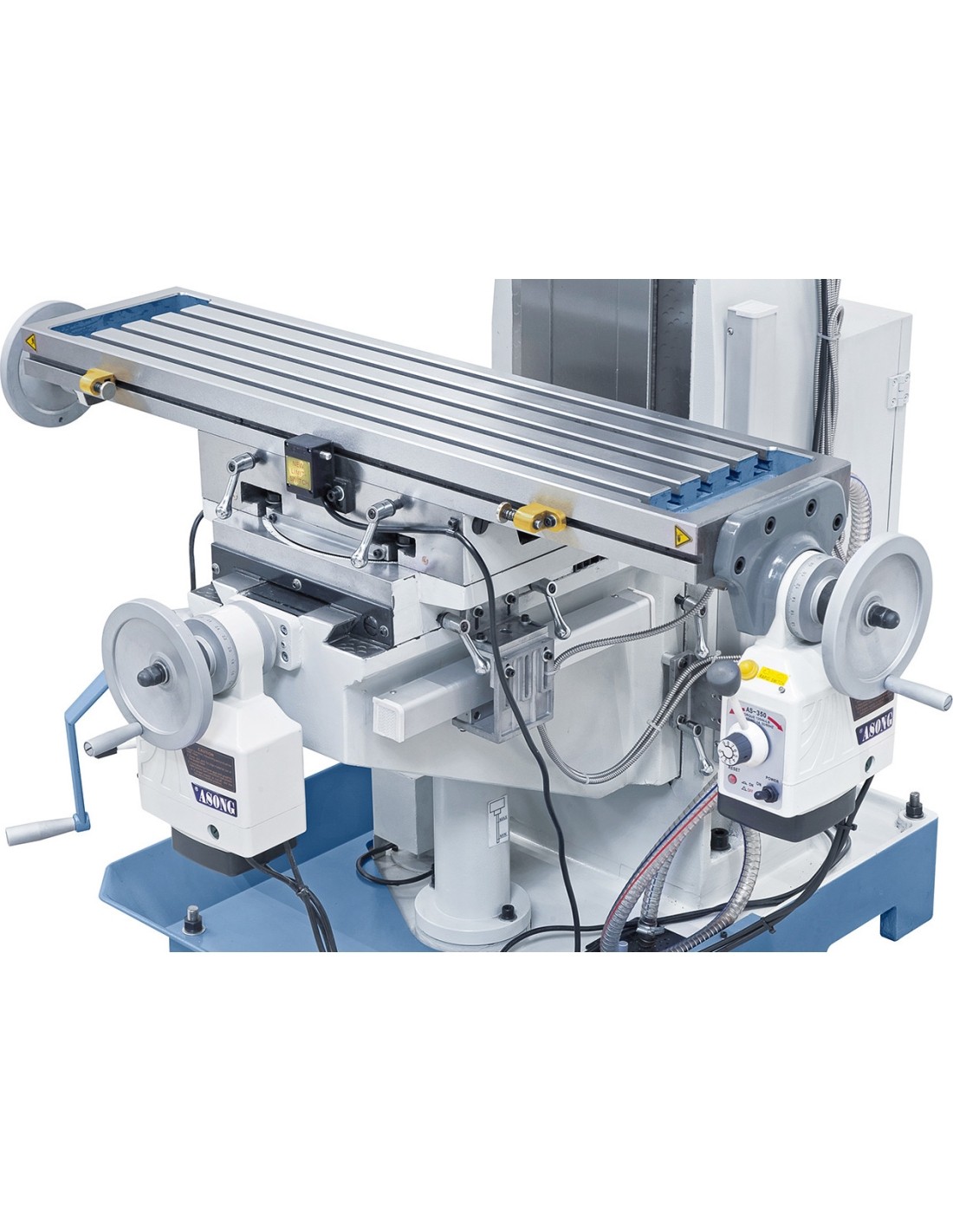

  • Automatic table feed with rapid feed allows for convenient table adjustment in x- and y-axis
  • Large variety of applications, such as slotting, faces milling, reboring etc.
  • Tiltable milling table -45° to +45° increases range of applications significantly

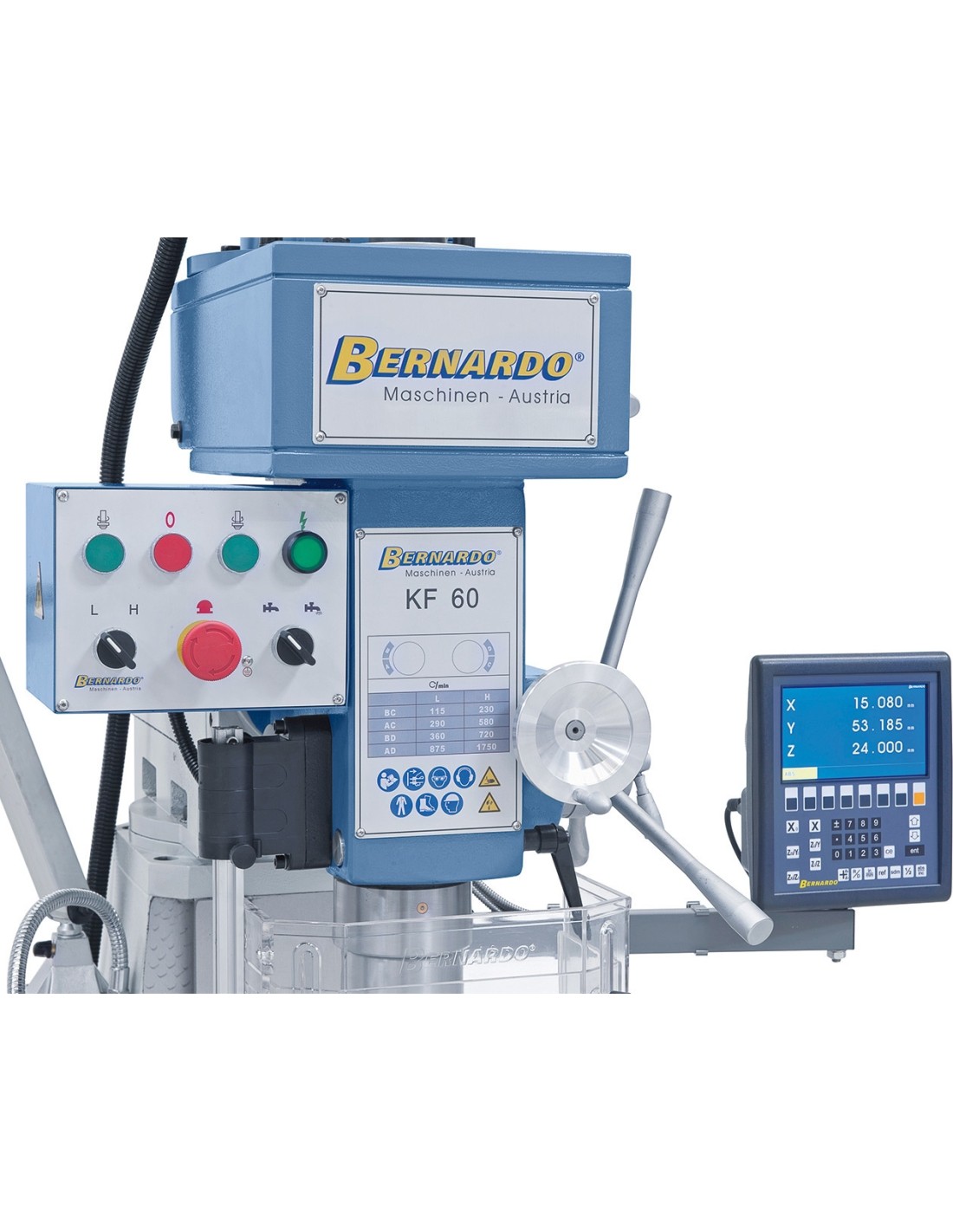

  • Complete with position display in all 3 axis raises productivity

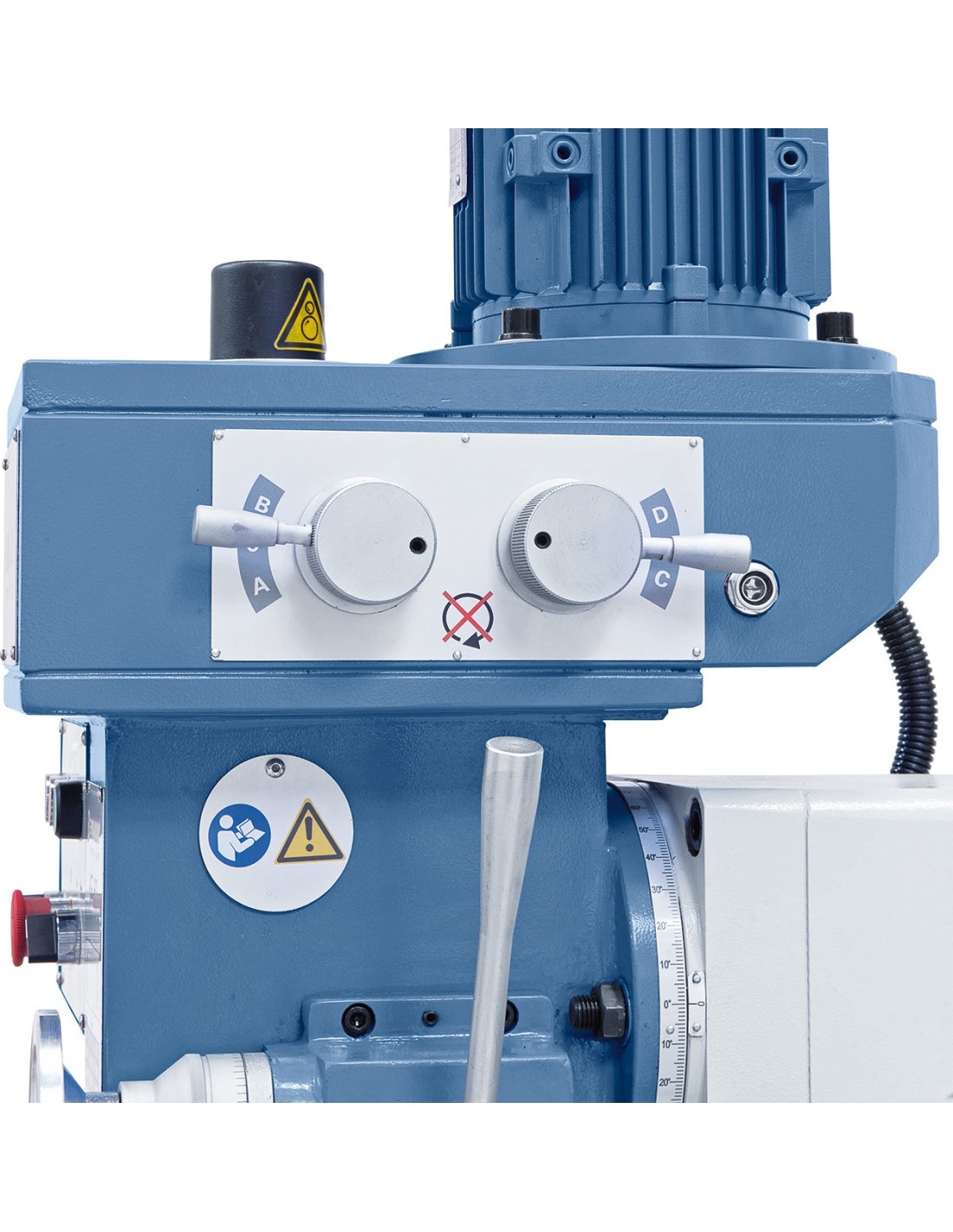

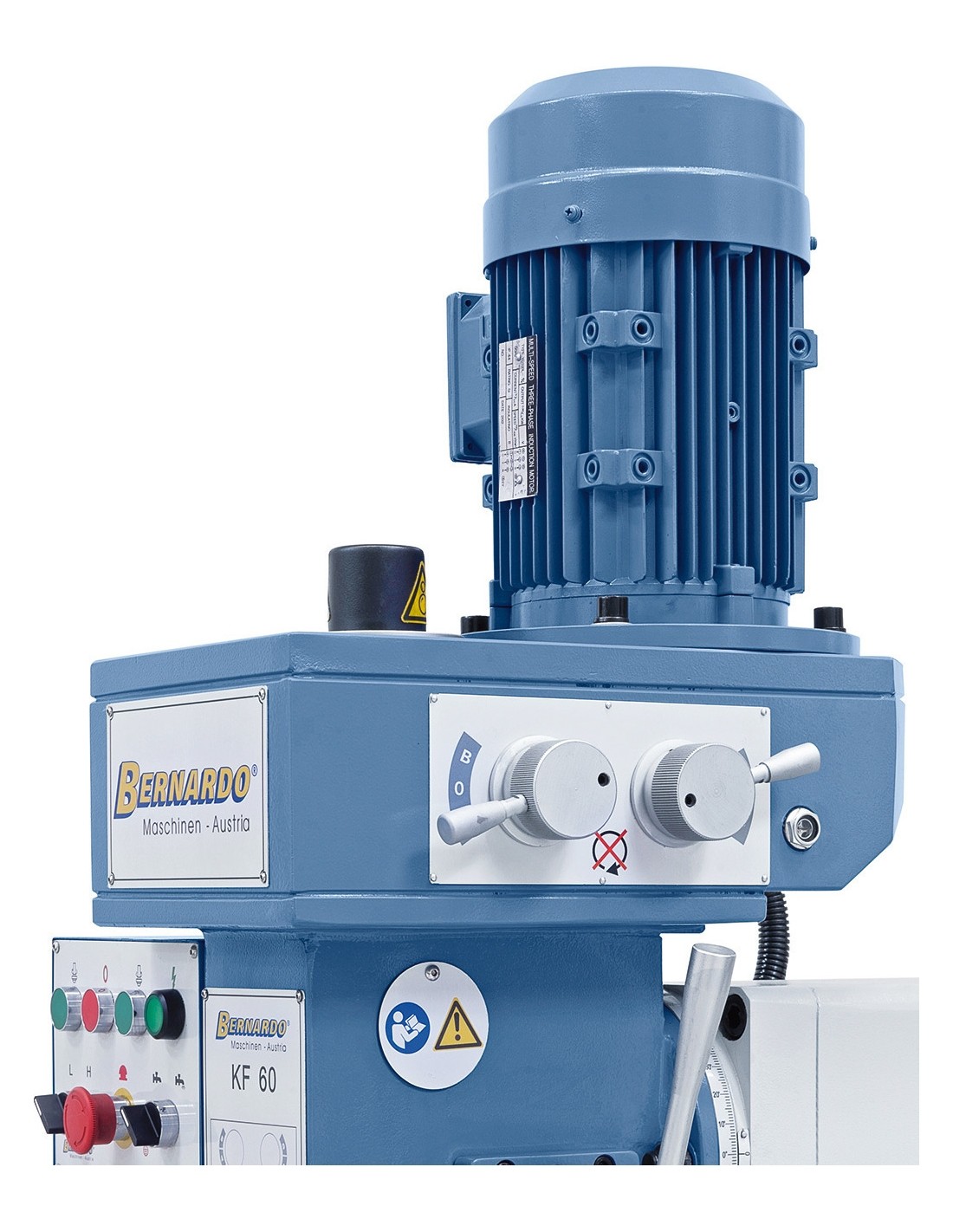

  • Polished gear wheels, in oil bath, ensure smooth running

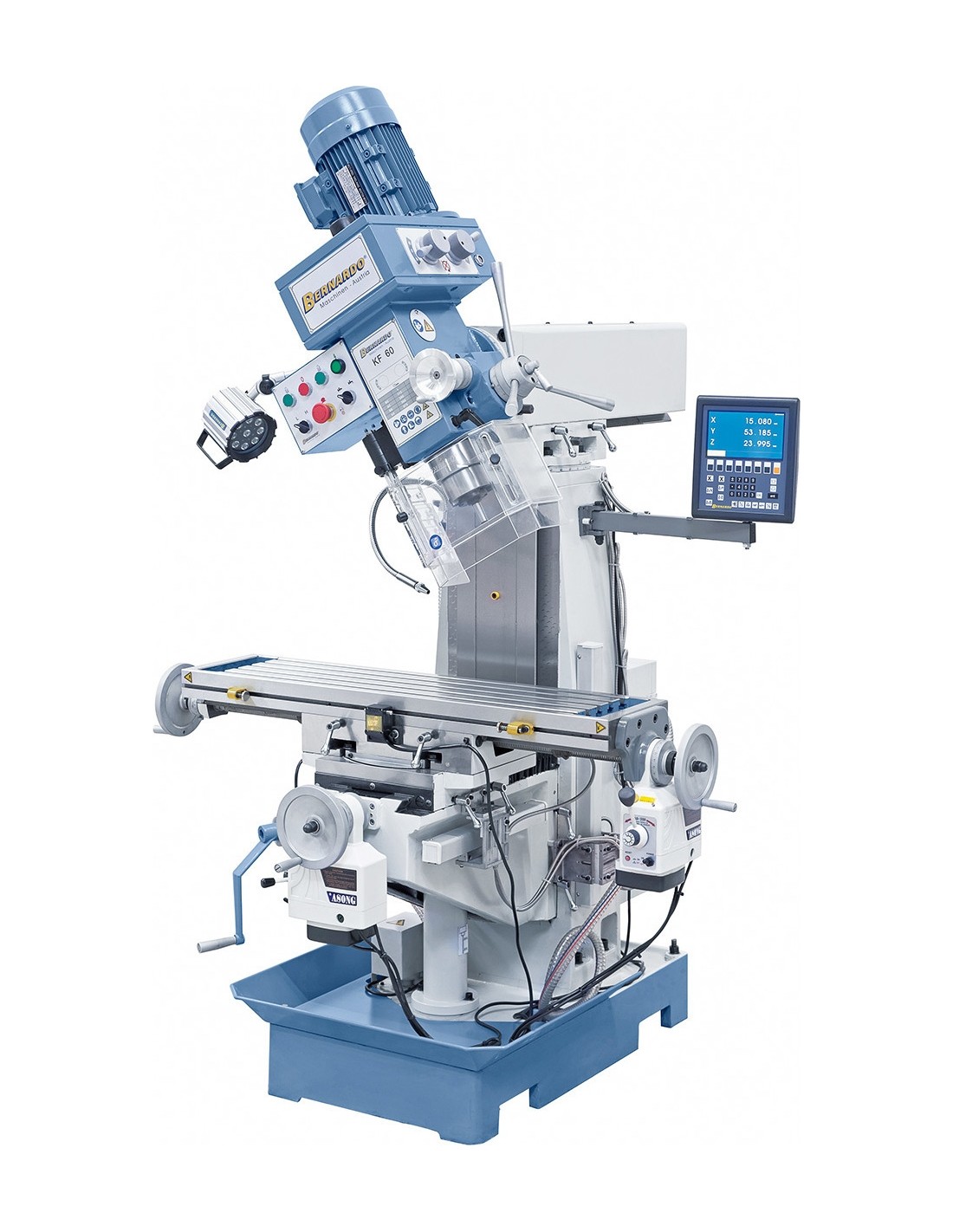

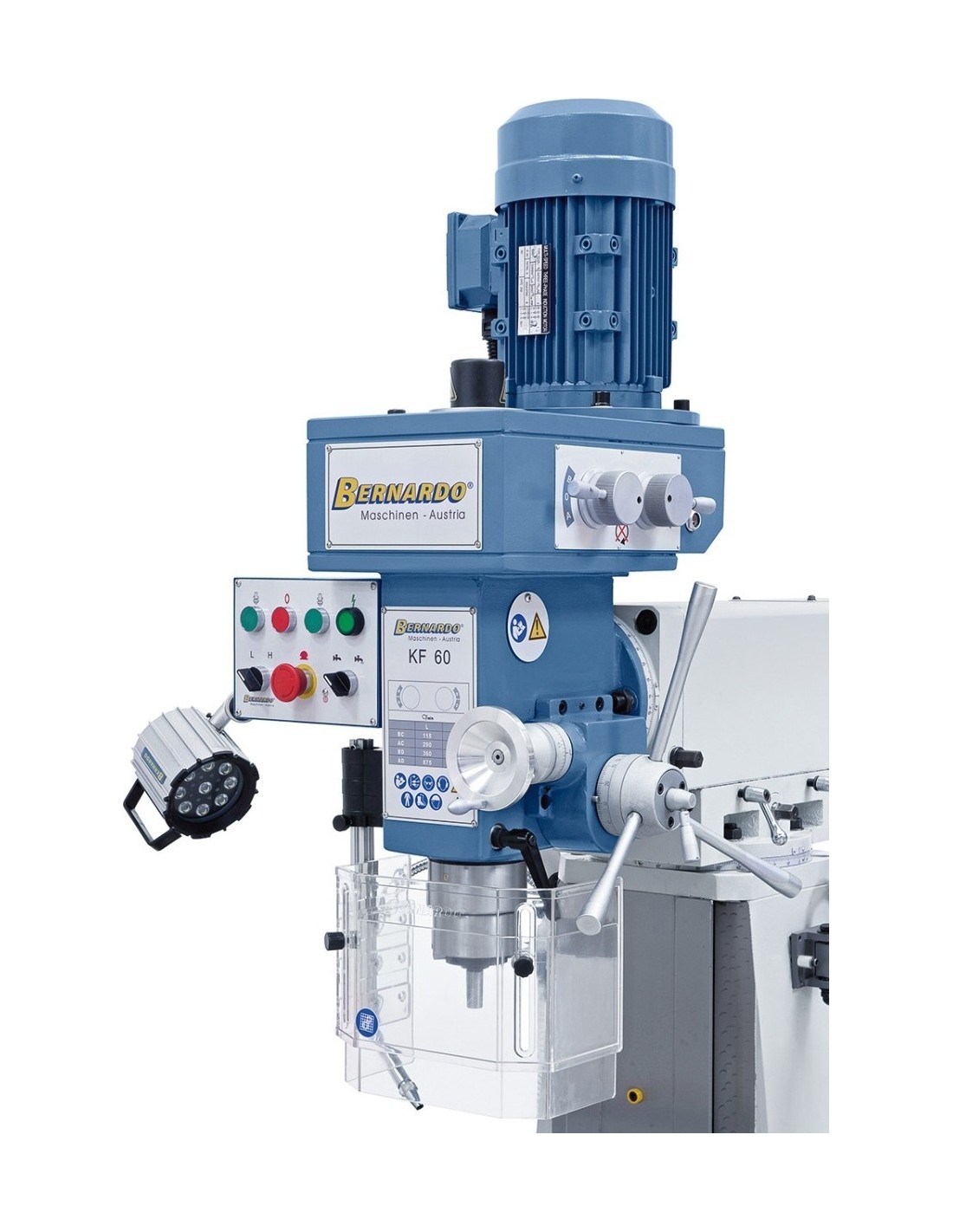

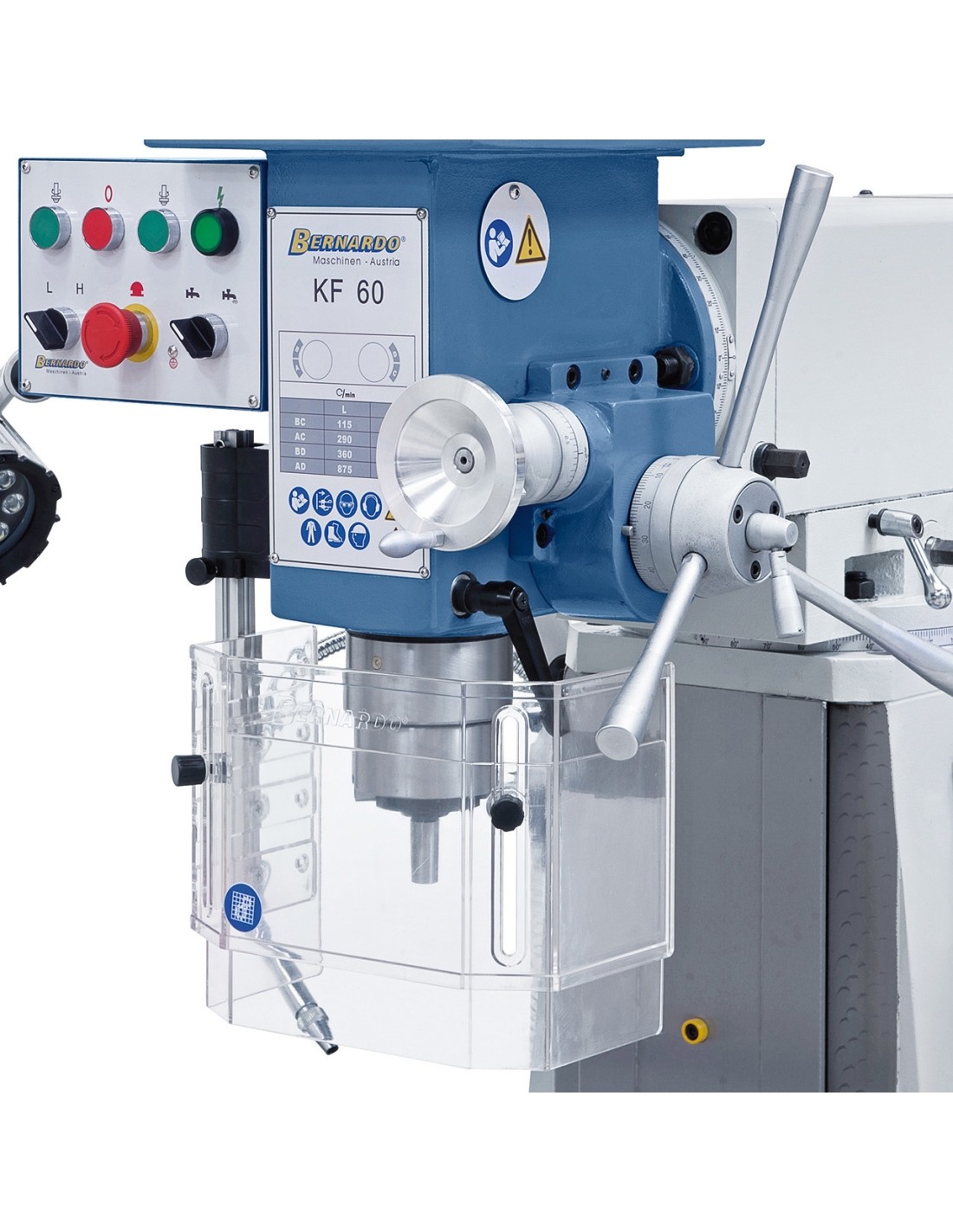

  • Milling head tilts to both sides for angular boring, milling of chamfers etc.

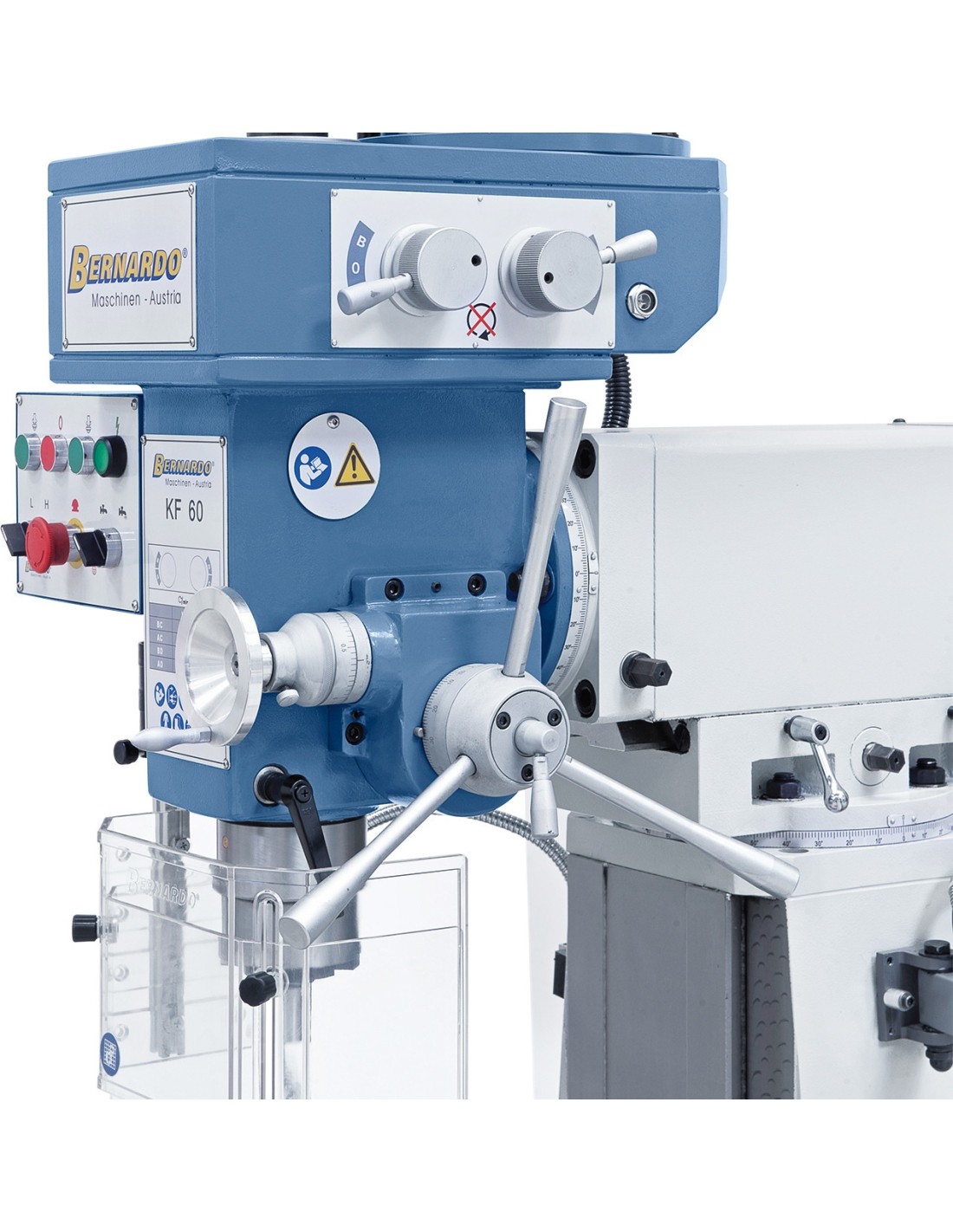

  • Clutch allows easy adjustment from manual to fine feed
  • Precision bearings ensure high concentricity of spindle (0.015 mm)

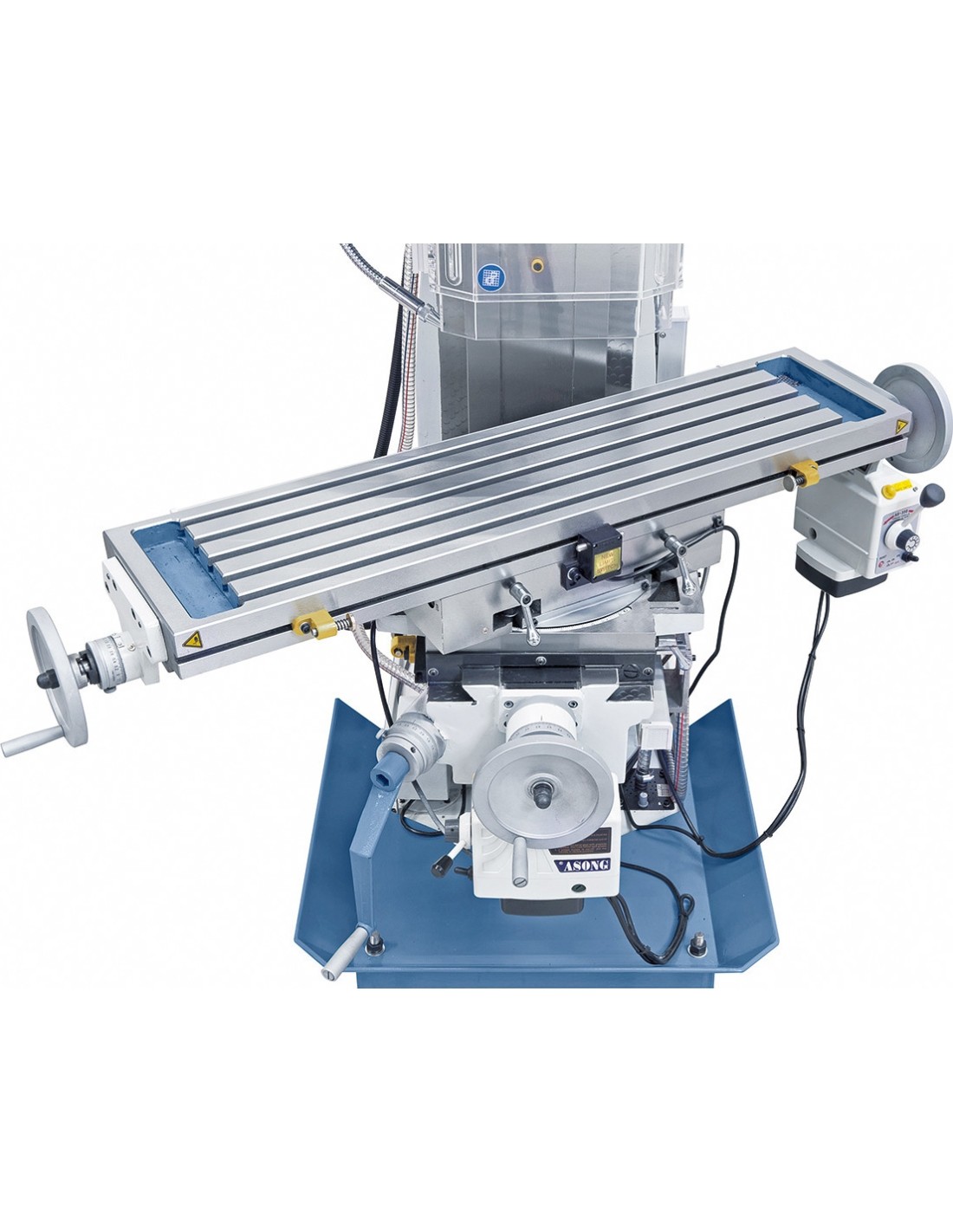

  • Large, surface treated, solid cross table
  • Extensive range of accessories comes standard

Standard accessories

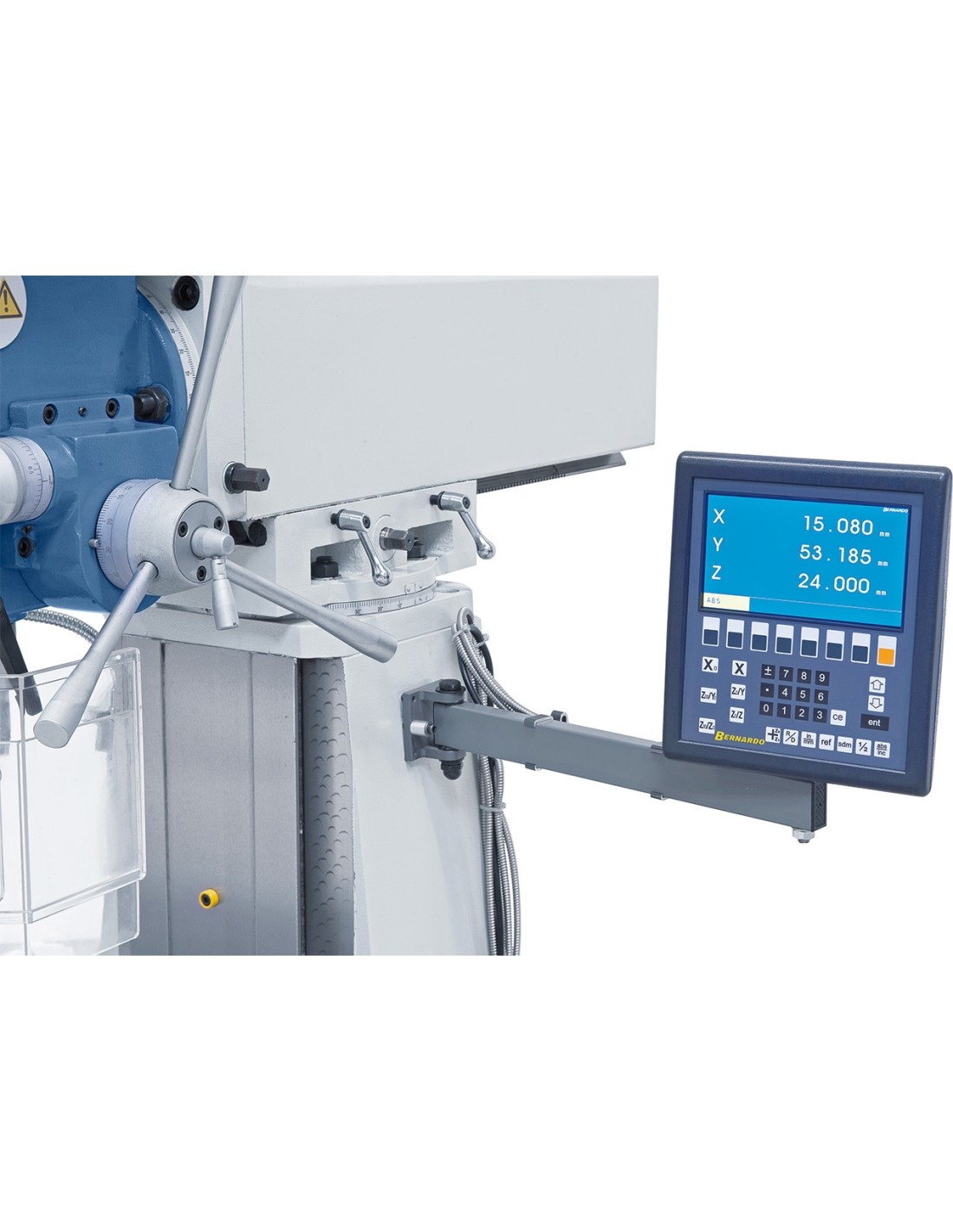

  • 3-axis digital readout ES-12 V with LCD-display
  • Drawbar M 16
  • LED machine light
  • Coolant system
  • Adapter ISO 40 / MT 3
  • Adapter ISO 40/B18
  • Morse taper drill sleeve MT 3/2
  • Height adjustable protective cover
  • Automatic table feed in x-axis
  • Automatic table feed in y-axis
