WARRANTY

  • 30 days return policy
  • 24 month product warranty
  • Free consultation
  • 30 days return policy
  • 24 month product warranty
  • Free consultation

Spindle taper
MT 3
Weight approx.
135 kg
Machine dimension (W x D x H)
940 x 650 x 930 mm
Drilling capacity in steel
25 mm
Face mill capacity max.
63 mm
End mill capacity max.
25 mm
Distance spindle to column
170 mm
Distance spindle/table min./max.
50 / 315 mm
Spindle stroke
52 mm
Spindle speed, stepless
50 - 1400 / 100 - 2600 rpm
Travel (x / y)
430 / 120 mm
Mill head tiltable
-90° to +90°
Height adjustment of mill head
265 mm
T-slot size
12 mm
Motor power output S1 100%
0,90 kW / 230 V
Motor power input S6 40%
1,35 kW / 230 V
Table size
700 x 180 mm

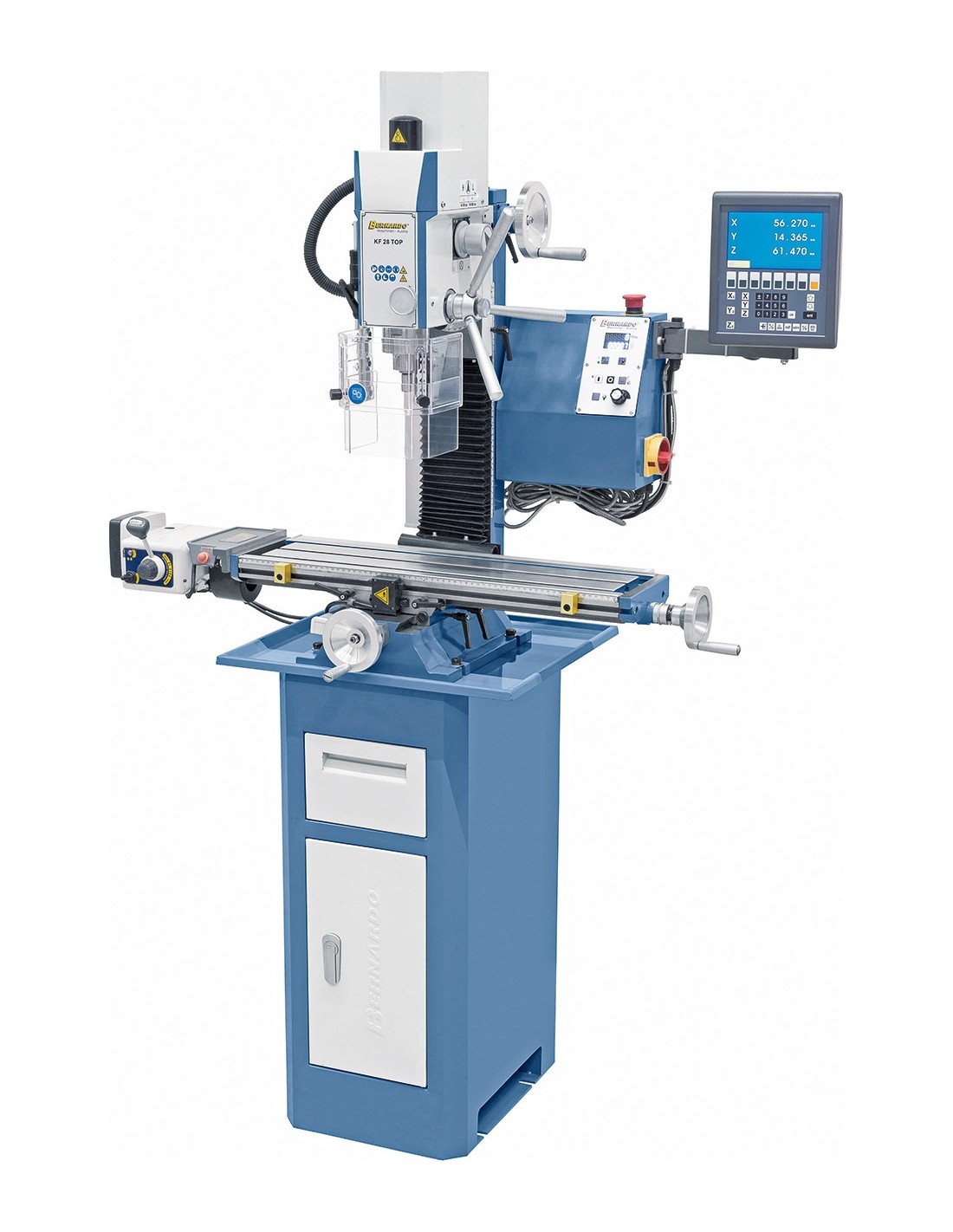

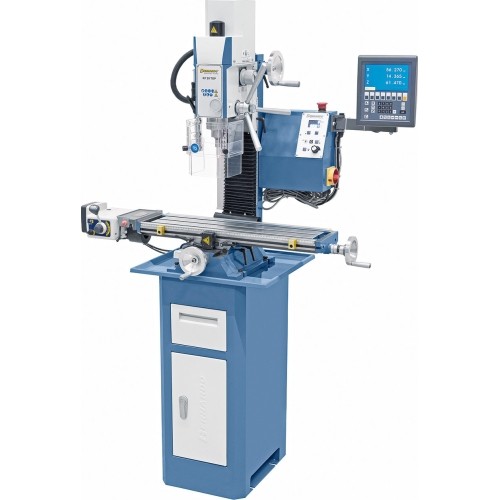

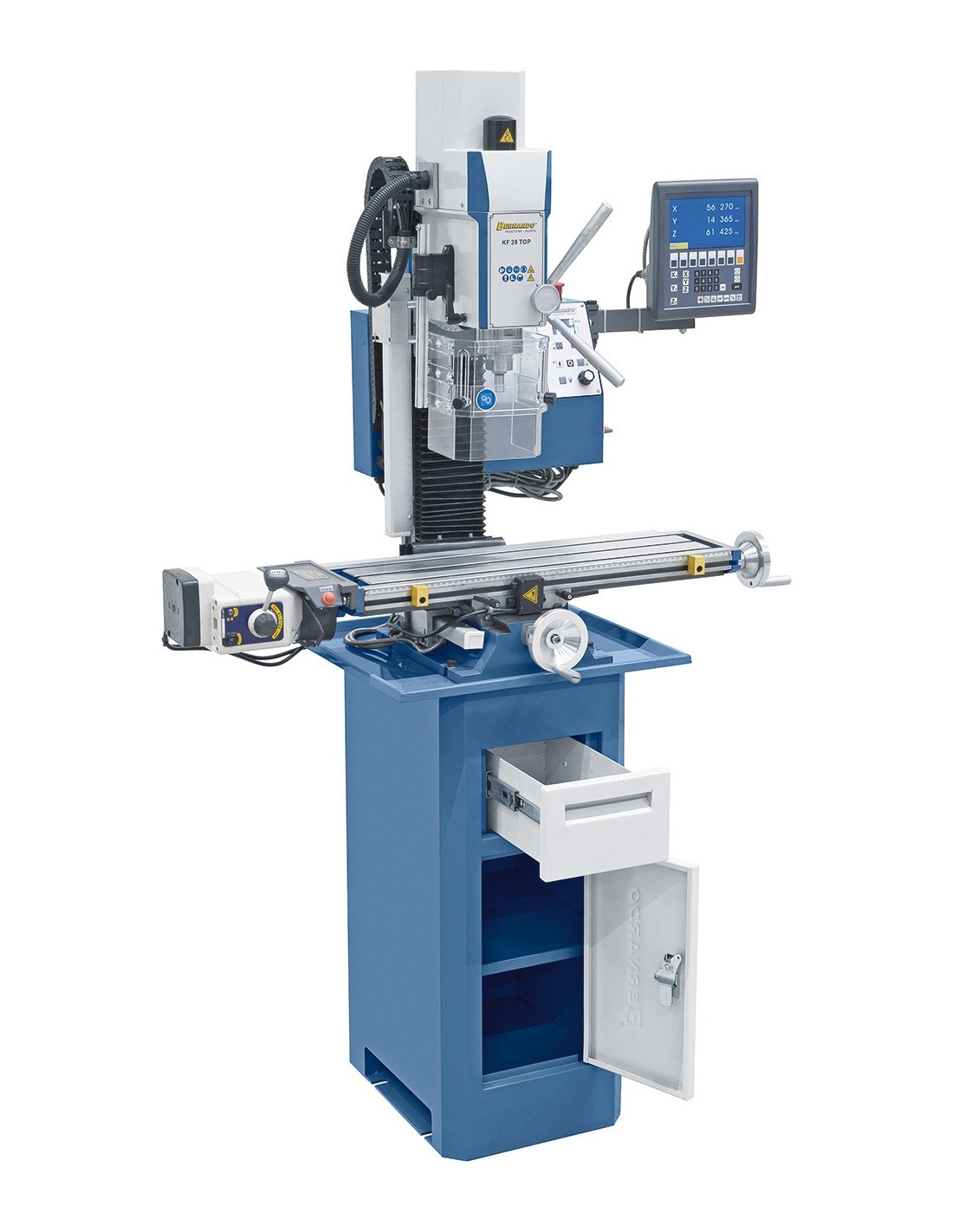

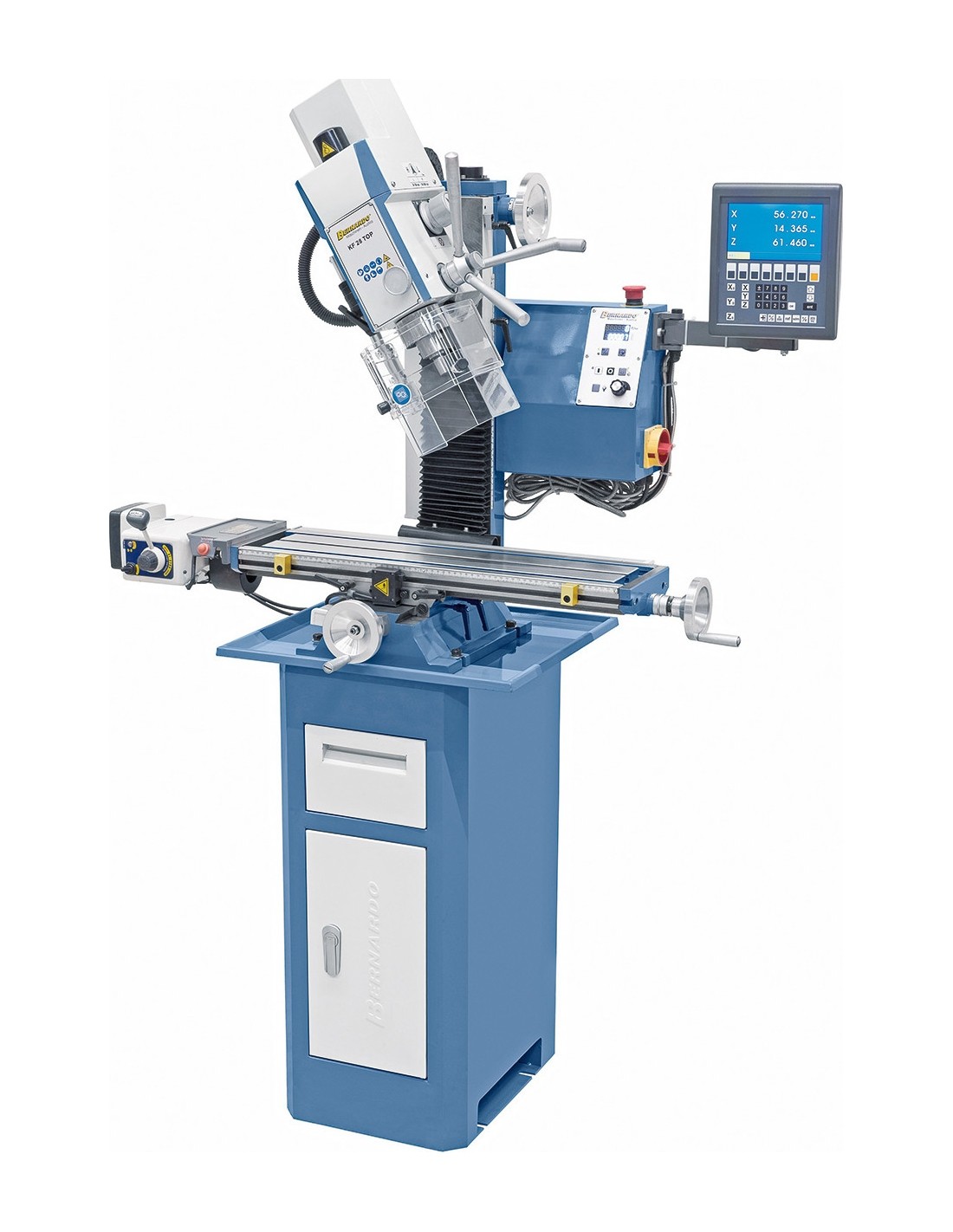

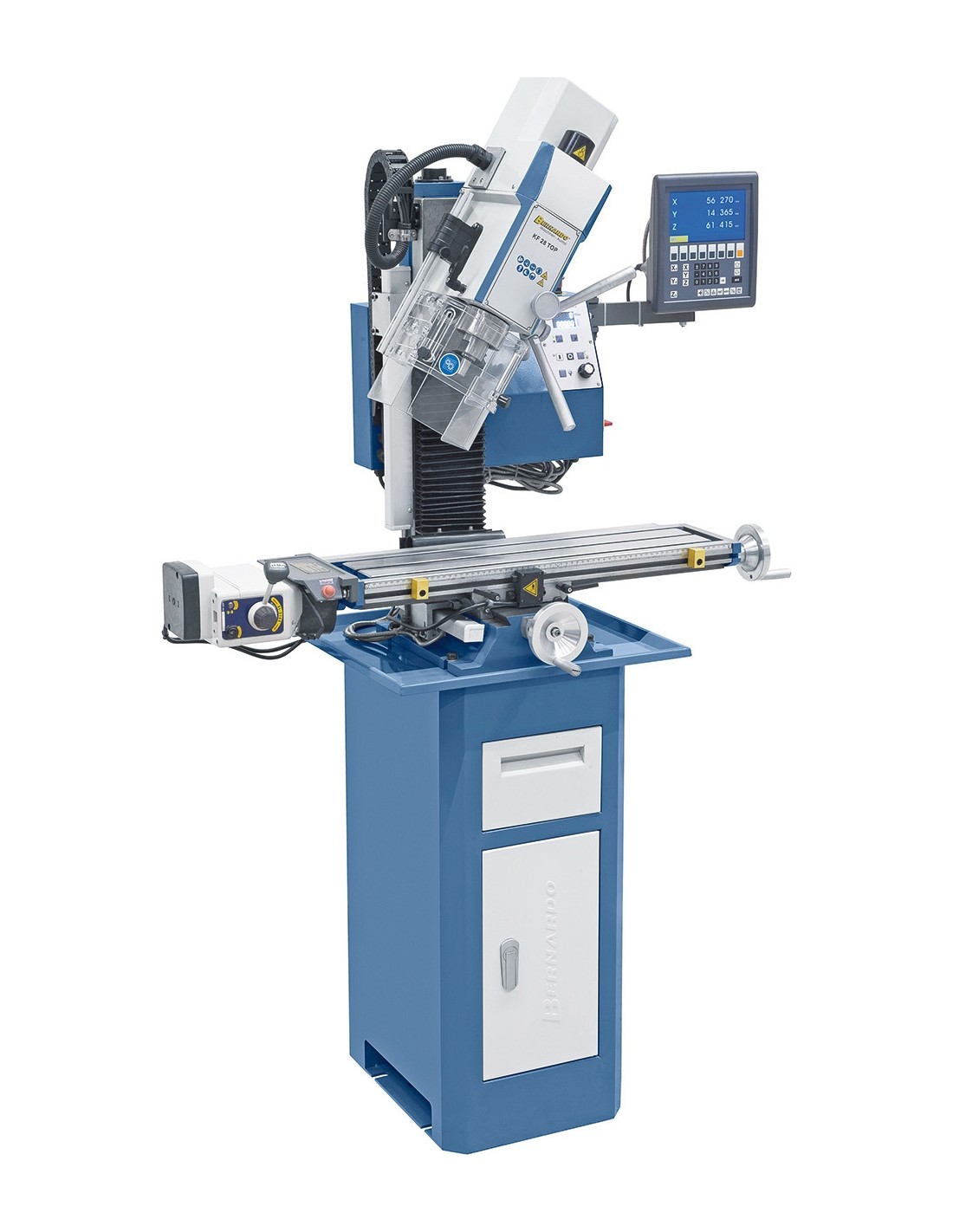

KF 28 Top with table feed and digital readout ES-12 V

1092047
Price €4,644.00 Tax included

Stock Quantity:
In S01 store
not available
In S02 store
not available
In Supplier store
(5+ pcs)
Delivery terms:
NEMOKAMAI atsiimkite friday, march 28 d., parduotuvėje, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 135 kg.
Prekę pristatysime Jums per: 5-10 d.d. Venipak (€40.99)
Weight: 135 kg.

Description

Properties

  • High speed range from 50 - 2600 rpm, 2-step gear box ensures optimal transmission
  • Variable speed adjustment, stepless speed change for ideal adjustment to the workpiece
  • Model can optional be equipped with stepless table feed and 3-axis digital readout

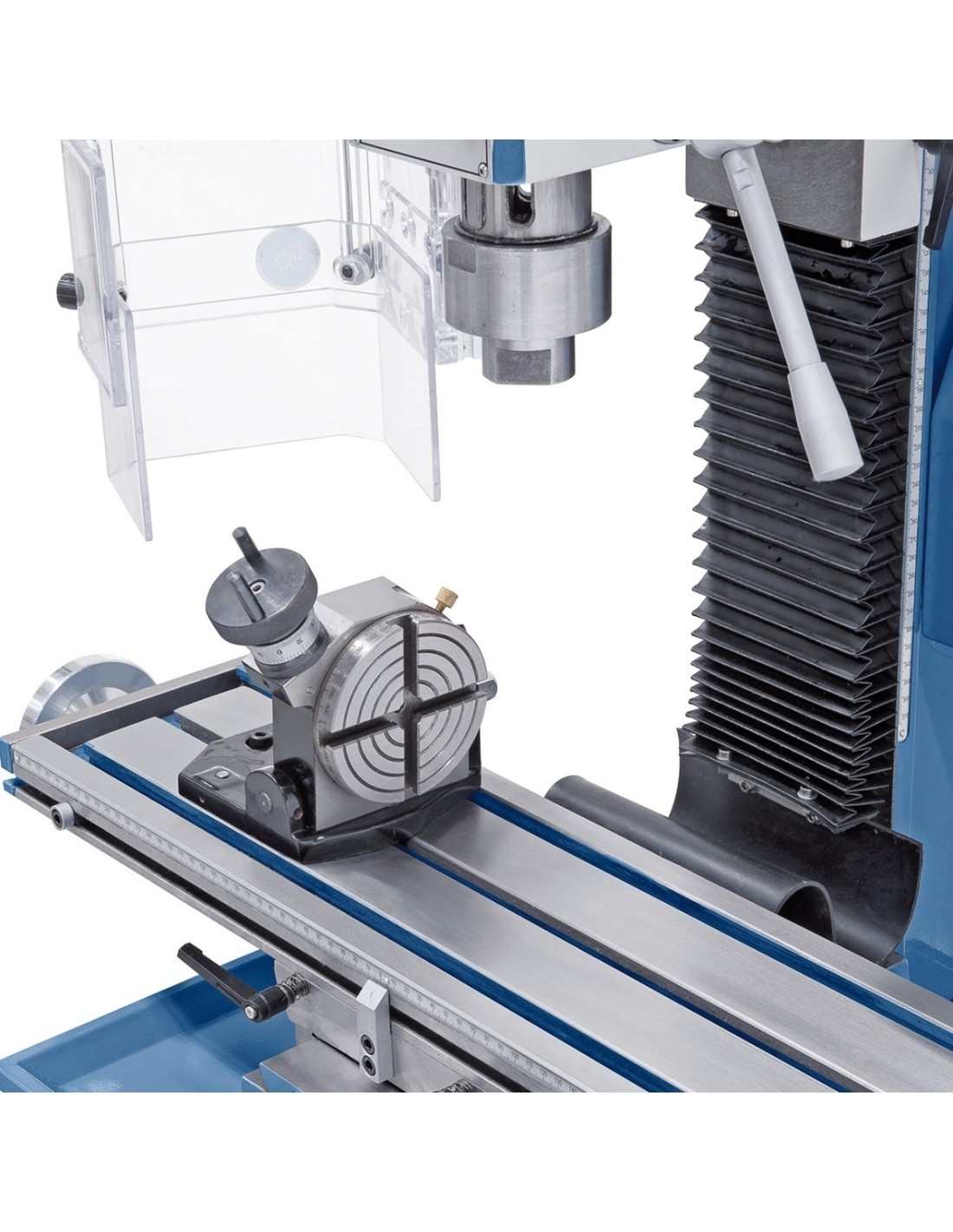

  • Oversize cross table features T-slots, high grade surface finish

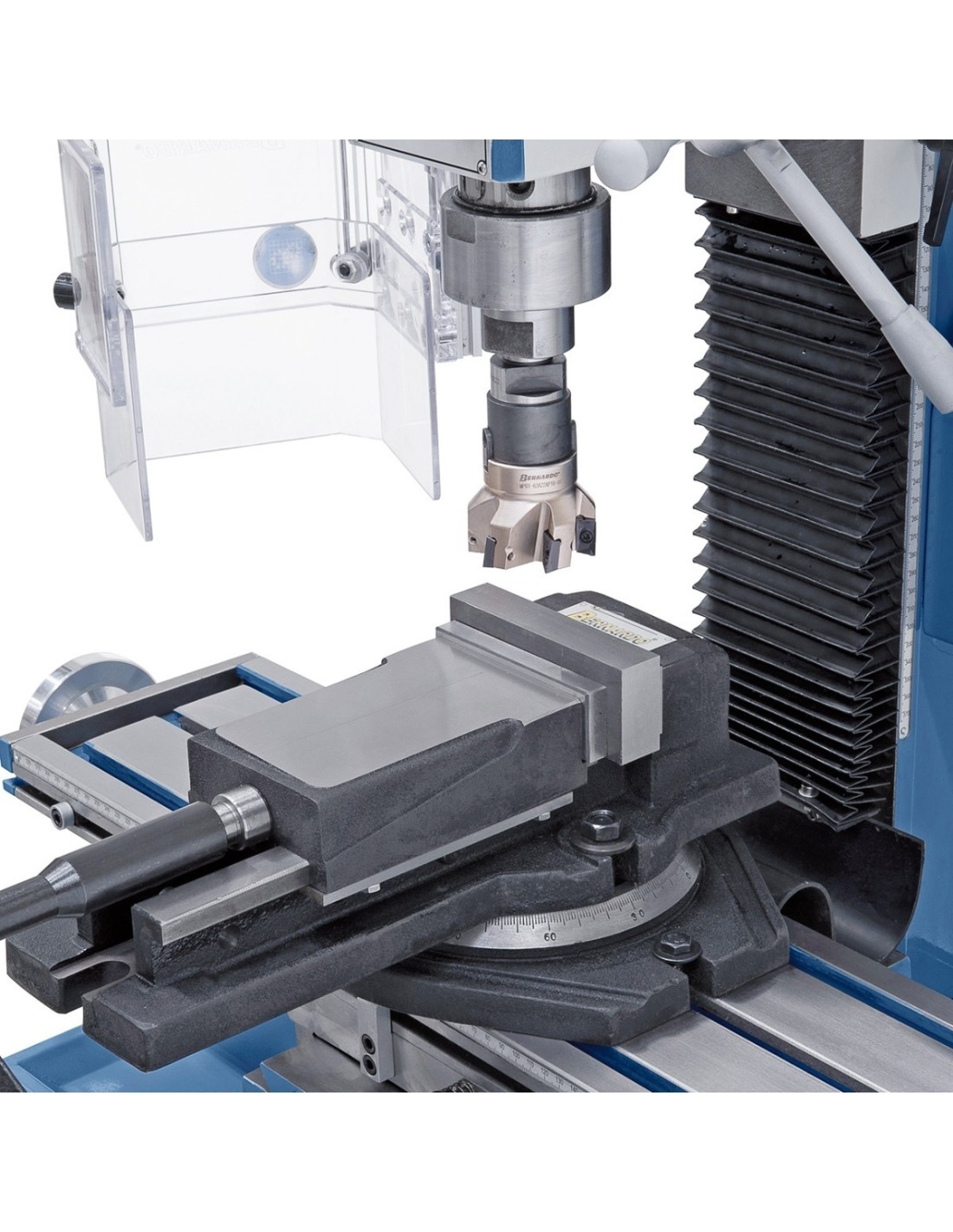

  • Many possible applications, such as groove milling, face milling, reboring, etc.
  • Direct current motor for ideal torque at lower speed

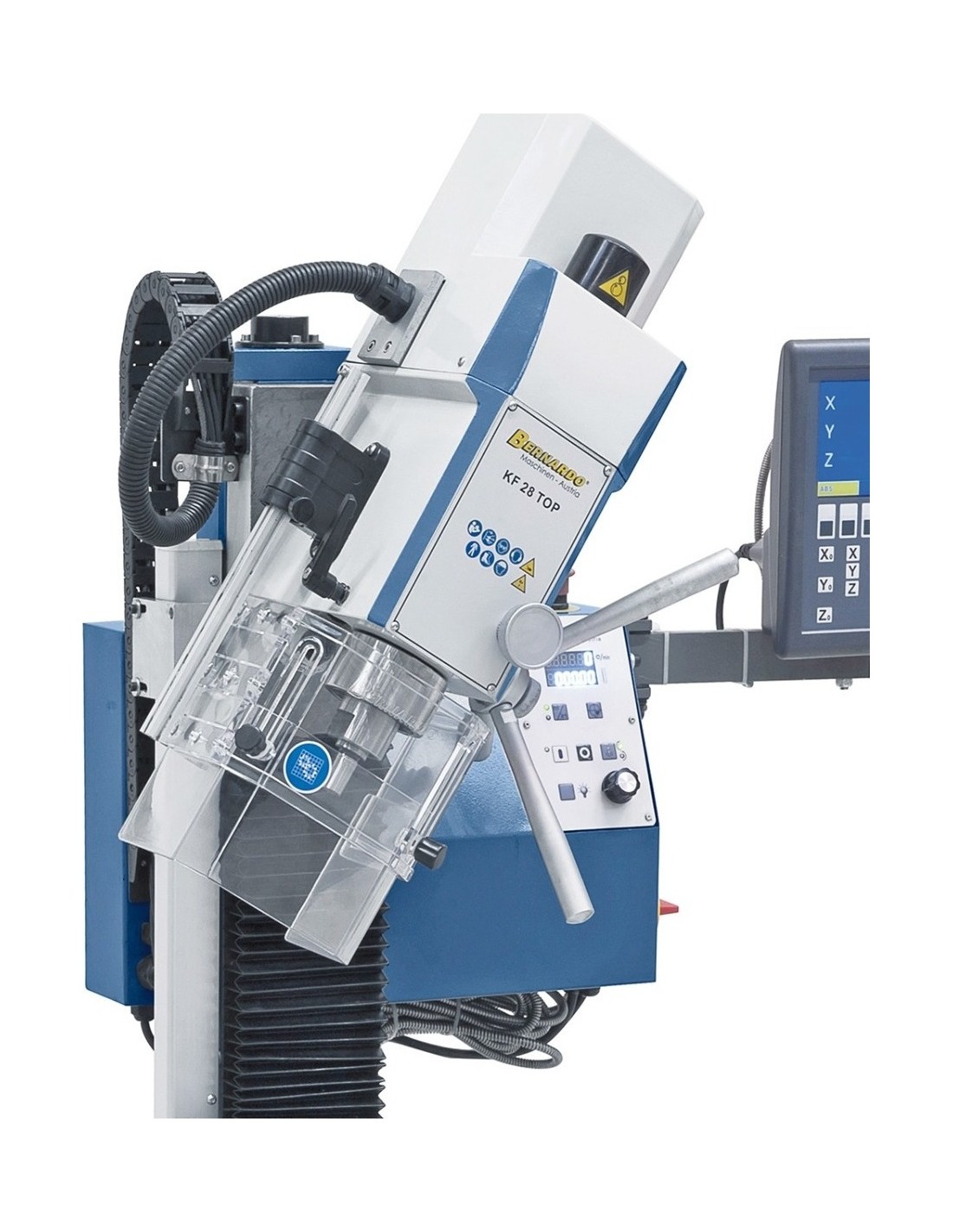

  • Mill head tilts to both sides allowing angular boring, milling of bevels, etc.
  • Incl. EMC filter, protect electrical equipment against electromagnetic interferences
  • Left and right rotation for thread cutting comes standard
  • Taper roller bearing guarantees high spindle concentricity (≤ 0,015 mm)
  • Dovetail guiding in x-, y- and z-axis, adjustable via gibs
  • Spindle adjustment via handle, fine feed via handwheel

Standard accessories

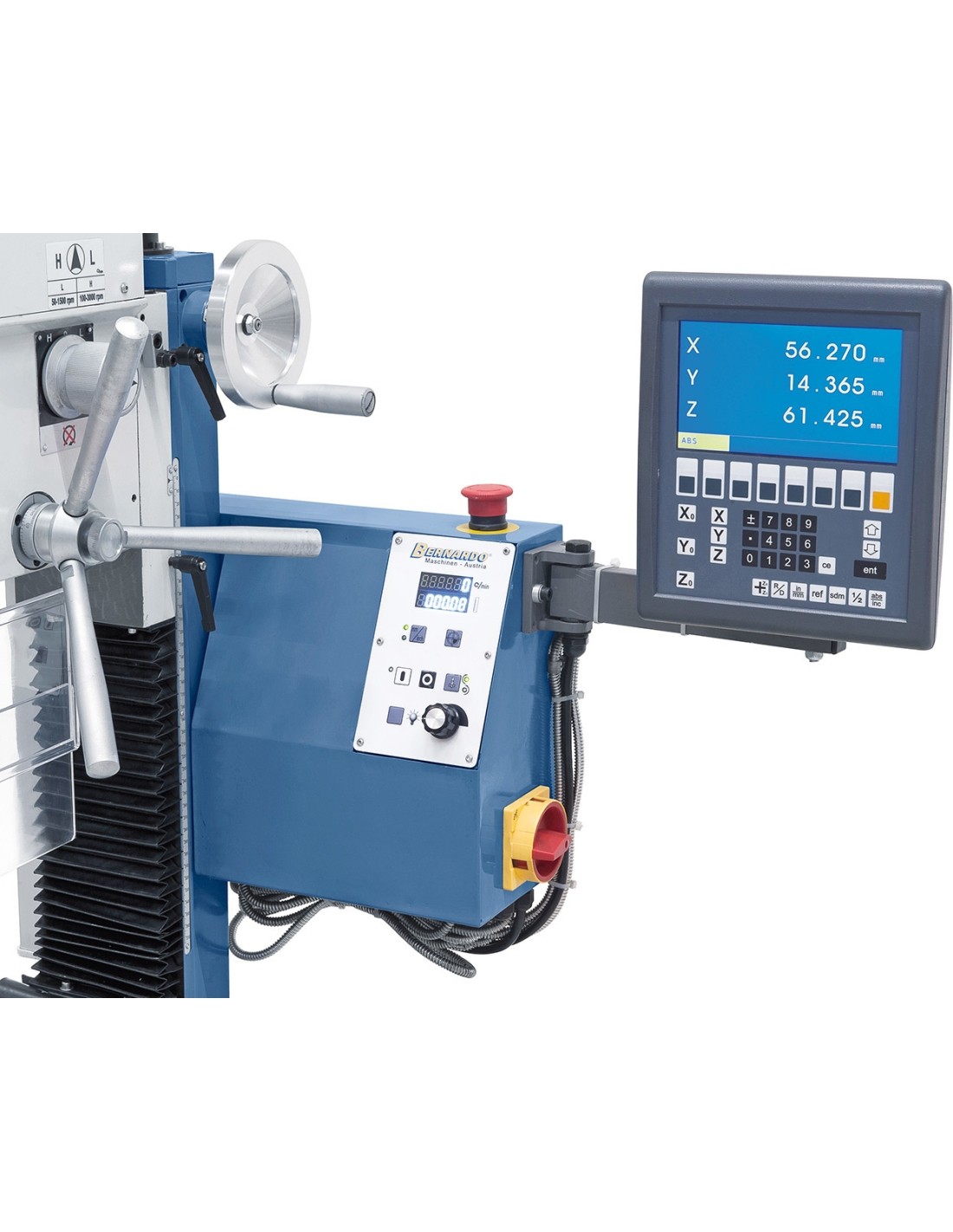

  • 3-axis digital readout ES-12 V with LCD-display
  • Drill chuck 3 - 16 mm / B 16
  • Drill chuck arbor MT 3 / B 16
  • Drawbar

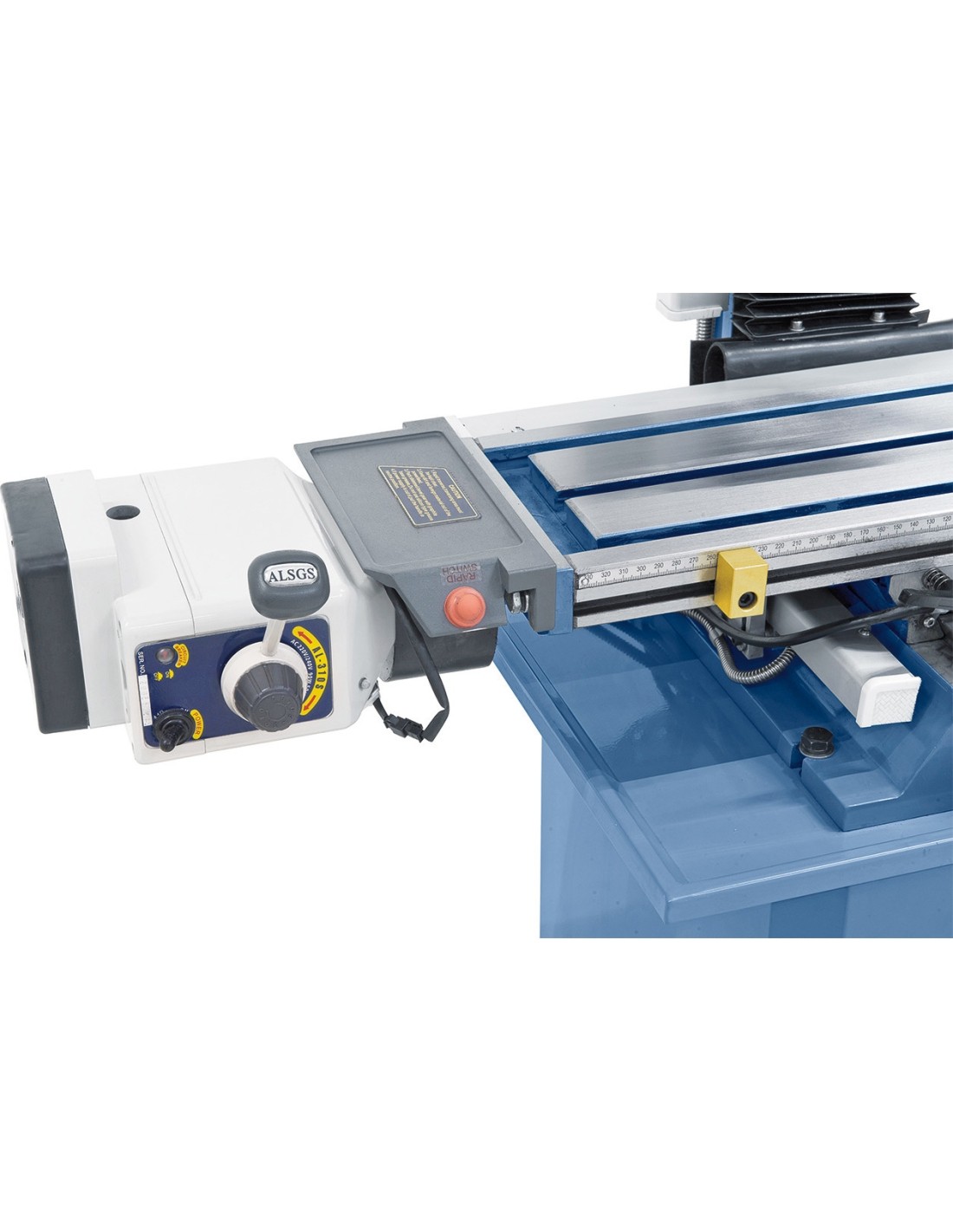

  • X-axis power feed
  • LED machine light
  • Digital display of spindle stroke
  • Digital display of speed range
  • EMC filter according to CE standard
  • Height adjustable protective cover
  • Energy chain
  • Tools
