WARRANTY

  • 30 days return policy
  • 24 month product warranty
  • Free consultation
  • 30 days return policy
  • 24 month product warranty
  • Free consultation

Spindle taper
MT 3
Weight approx.
210 kg
Machine dimension (W x D x H)
1180 x 710 x 1220 mm
Drilling capacity in steel
35 mm
Face mill capacity max.
75 mm
End mill capacity max.
25 mm
Distance spindle to column
190 mm
Spindle stroke
90 mm
Spindle speed, stepless
100 – 1500 / 200 – 3000 rpm
Travel (x / y)
535 / 225 mm
Mill head tiltable
-90° to +90°
Height adjustment of mill head
350 mm
T-slot size
14 mm
Motor power output S1 100%
1,5 KW / 230 V
Motor power input S6 40%
2,2 kW / 230 V
Thread cutting max.
M 20
Table size
840 x 210 mm
Distance spindle to table min./max.
90 – 440 mm

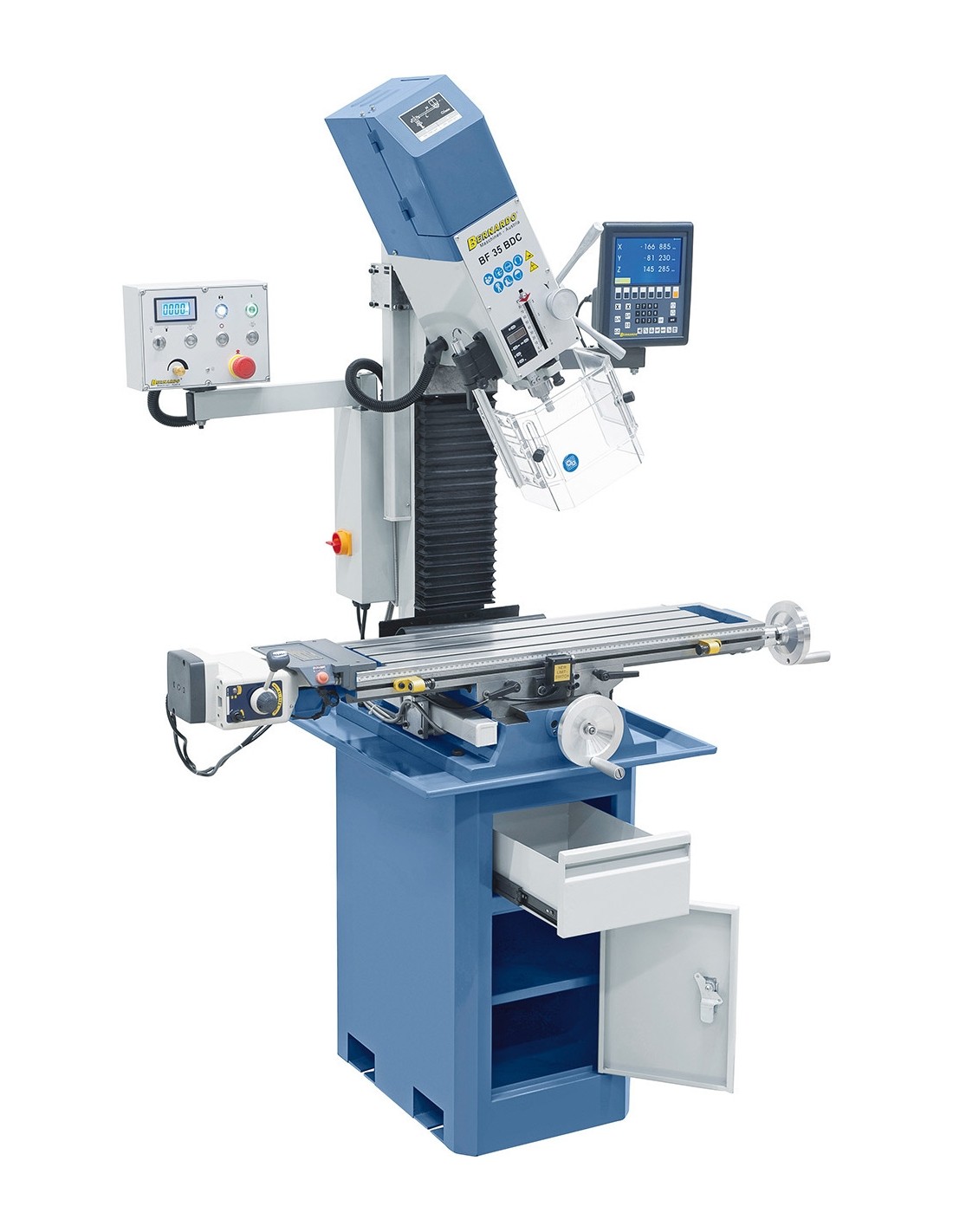

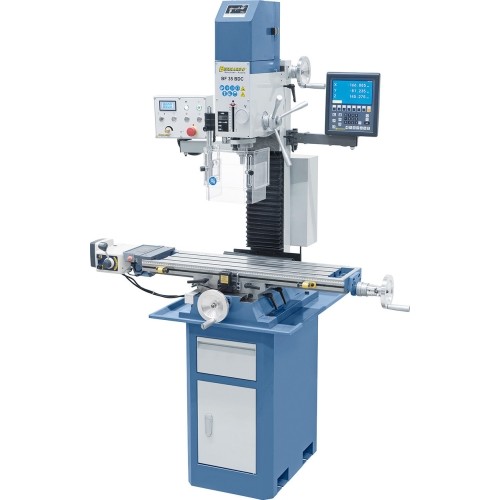

BF 35 BDC with power feed and 3-axis digital readout

1092055
€5,082.00
Tax included
Monthly payment from 124.82€

Stock Quantity:
In S01 store
not available
In S02 store
not available
In Supplier store
(5+ pcs)
Delivery terms:
NEMOKAMAI atsiimkite thursday, december 5 d., parduotuvėje, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 210 kg.
Prekę pristatysime Jums per: 5-10 d.d. Venipak (€40.99)
Weight: 210 kg.

Description

Properties

  • Variable speed adjustment, stepless speed change for ideal adjustment to the workpiece
  • Many possible applications, such as groove milling, face milling, reboring etc.
  • Digital speed and spindle stroke indicator included as standard equipment
  • Serially equipped with left and right turning, ideal for thread cutting

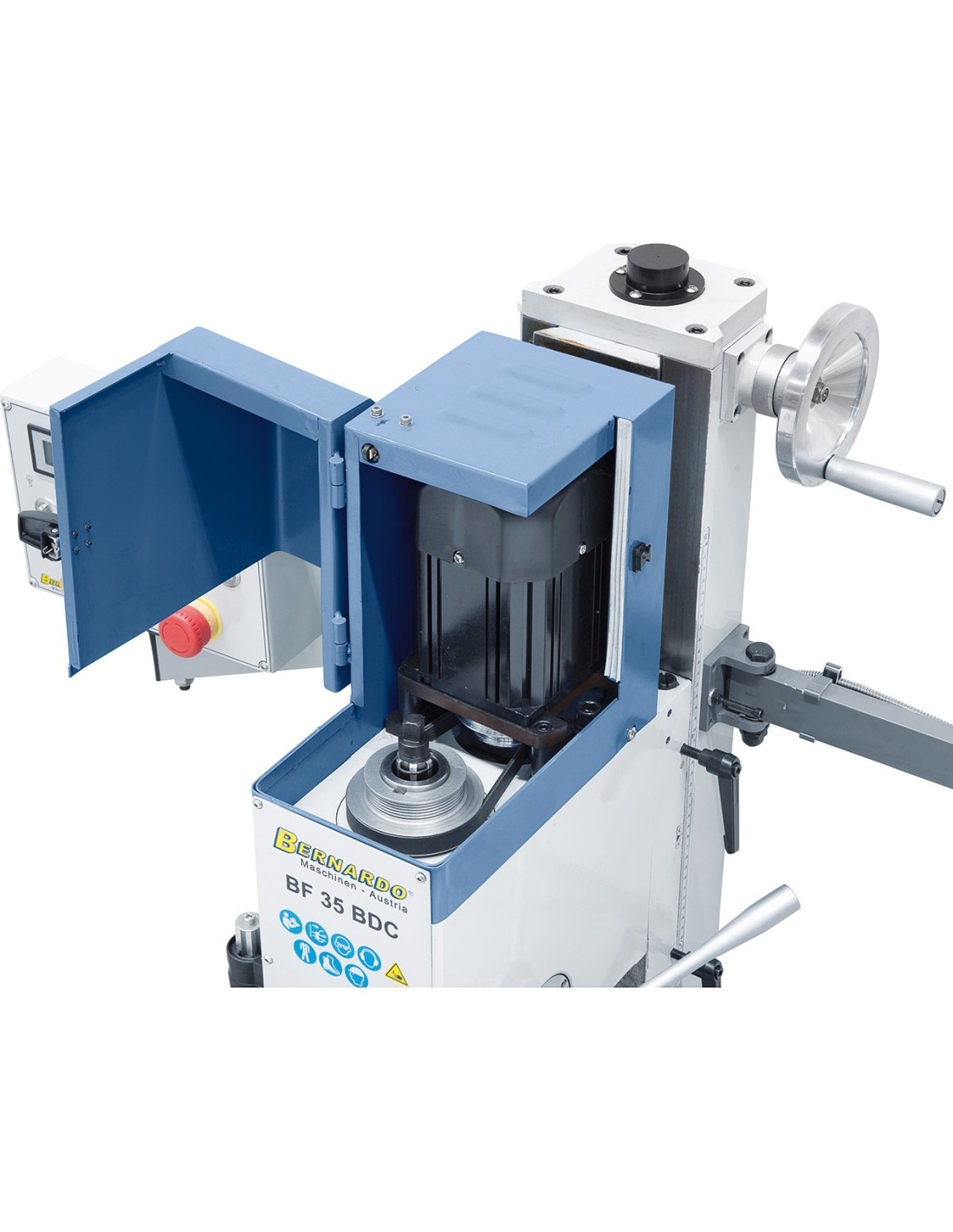

  • Direct current motor for ideal torque at lower speed
  • Dovetail guiding for the x-, y- and z-axis, adjustable via gibs
  • High-quality bearings guarantees high spindle concentricity (≤0.015 mm)

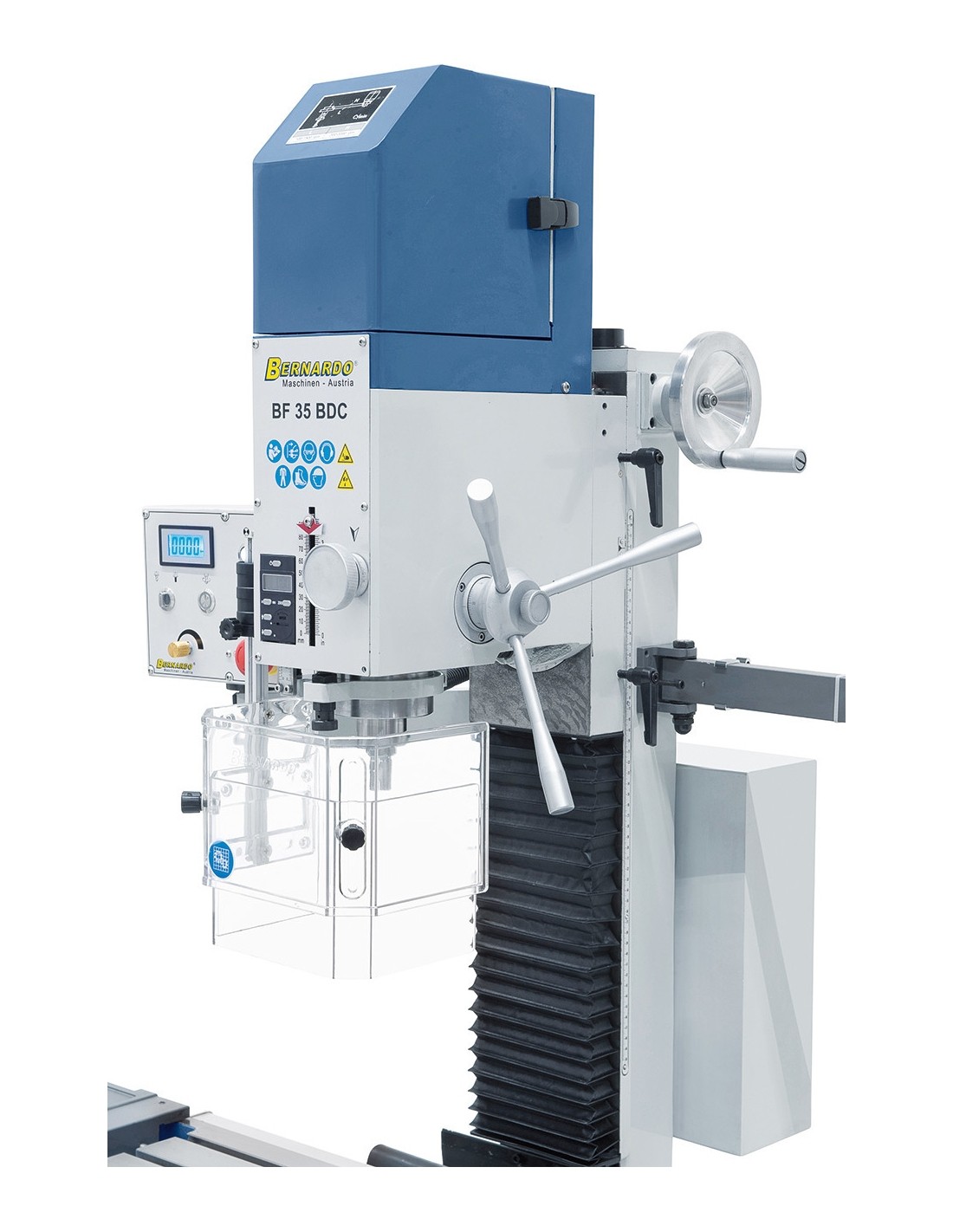

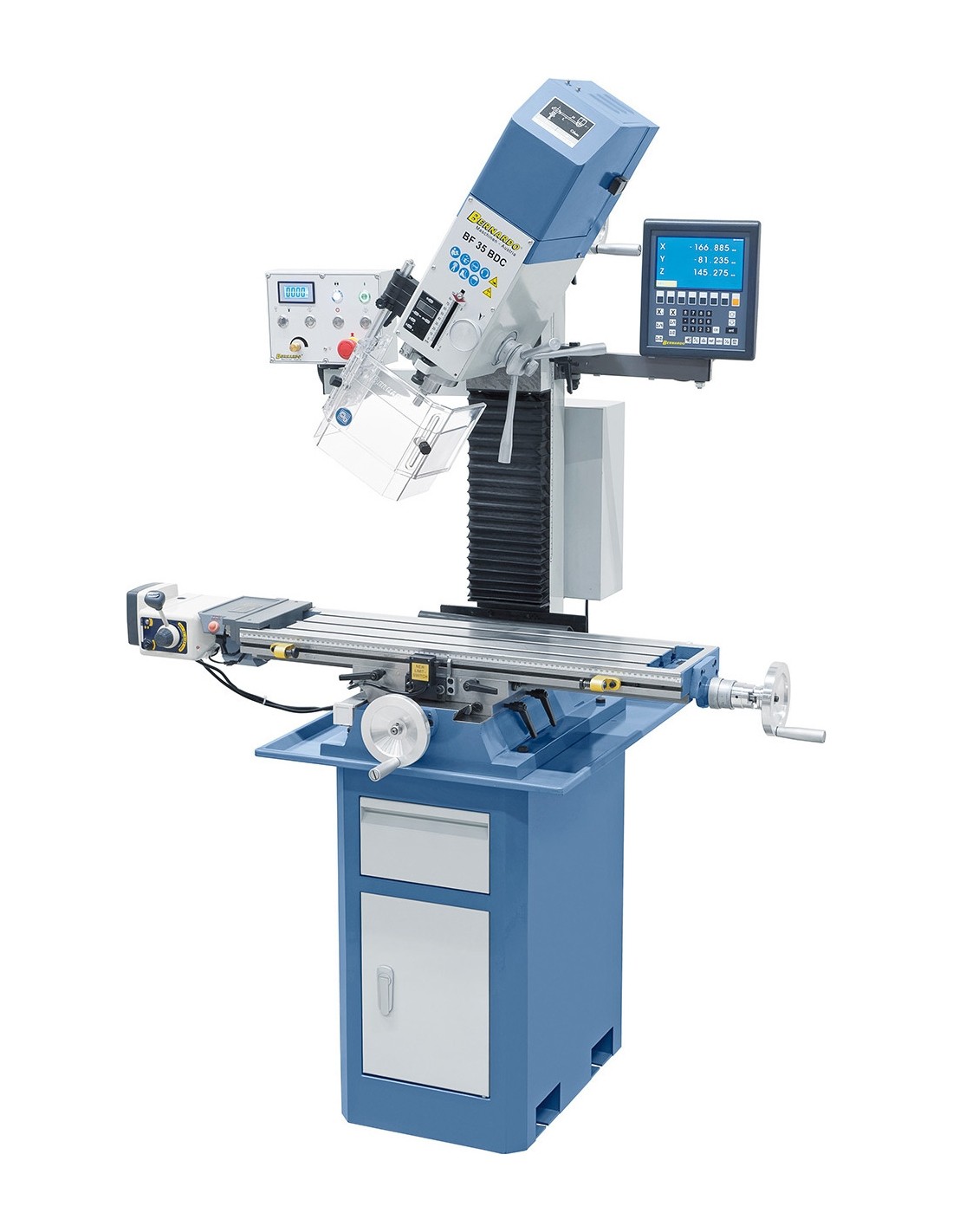

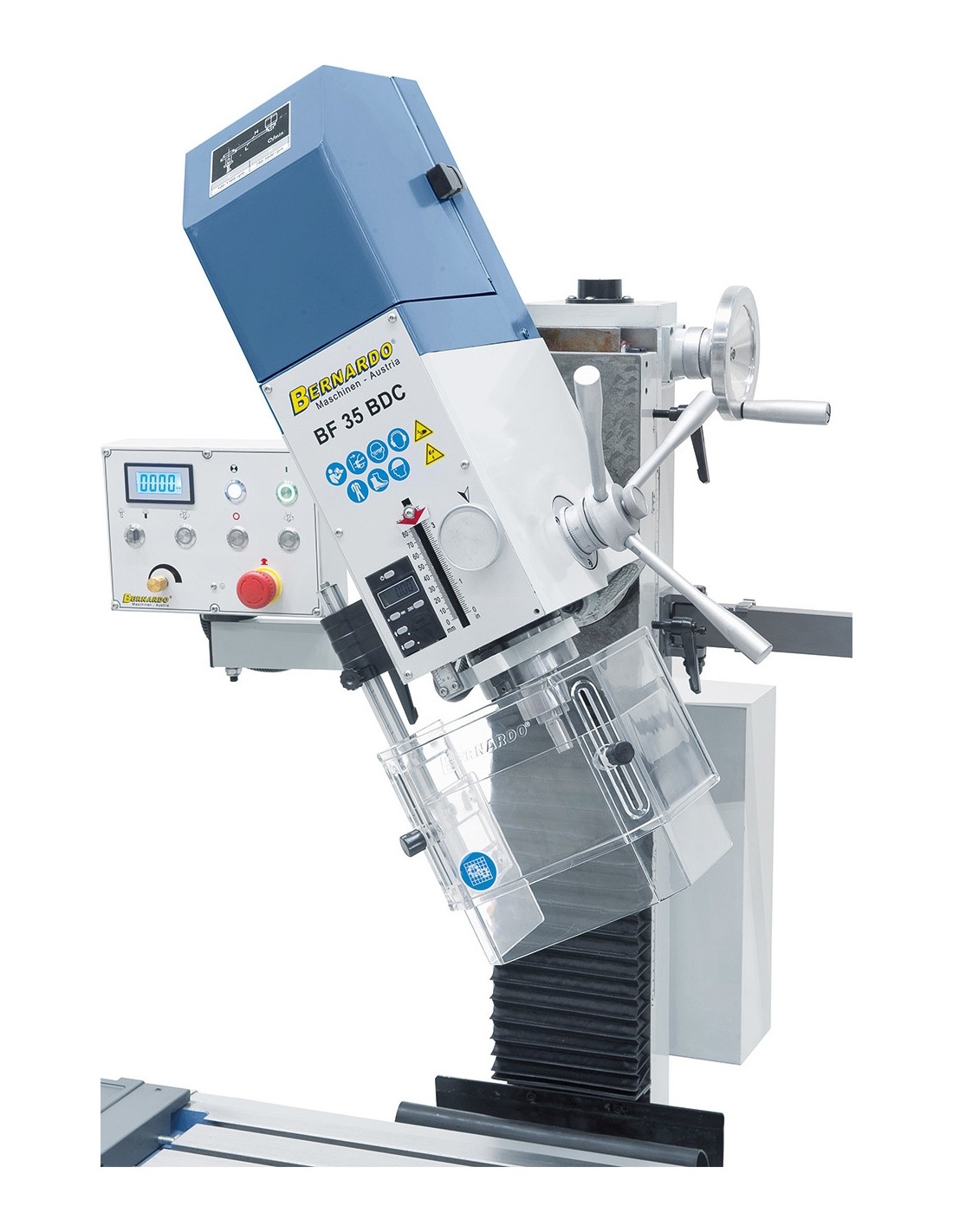

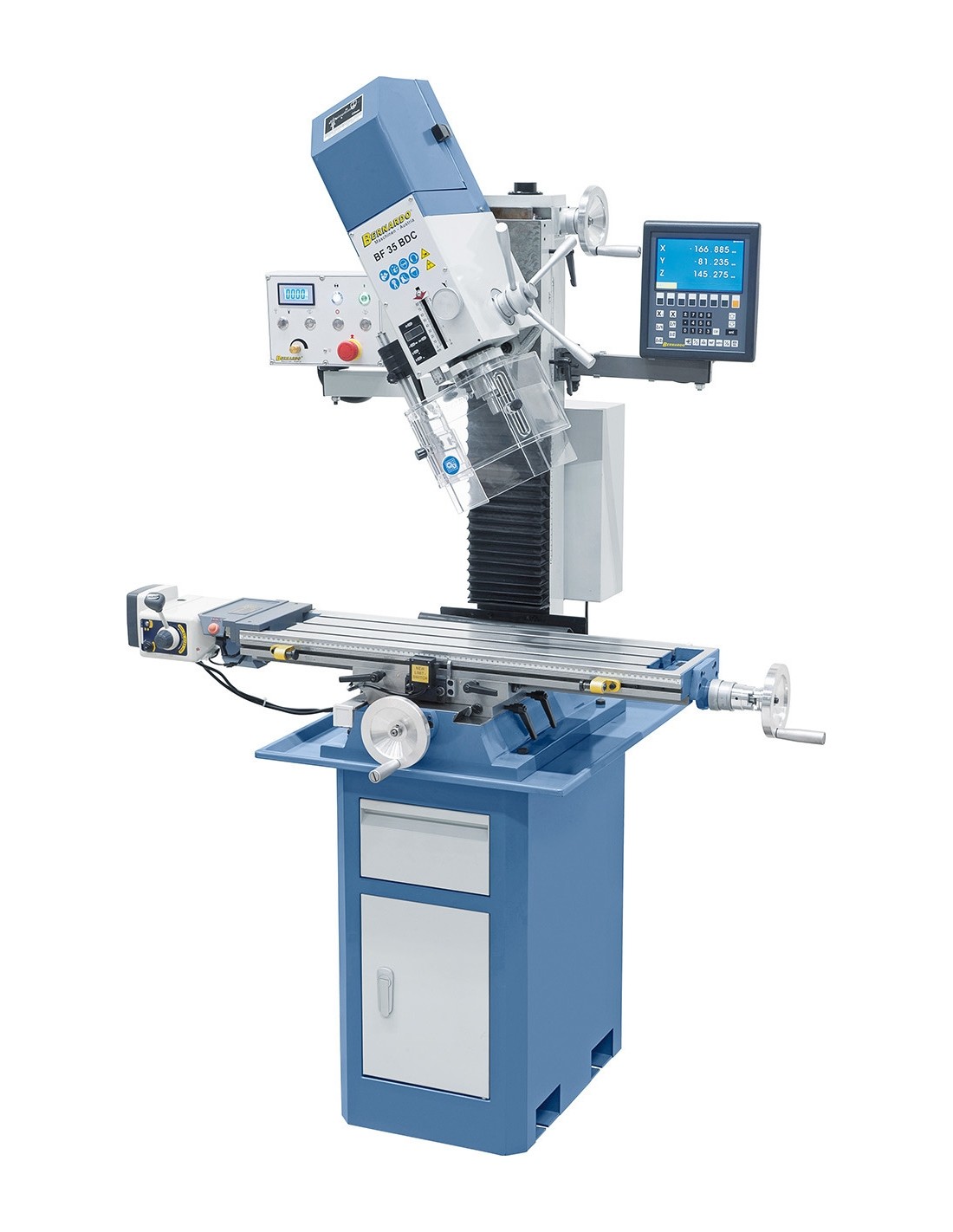

  • Mill head tiltable to both sides for angular boring, milling of bevels etc.

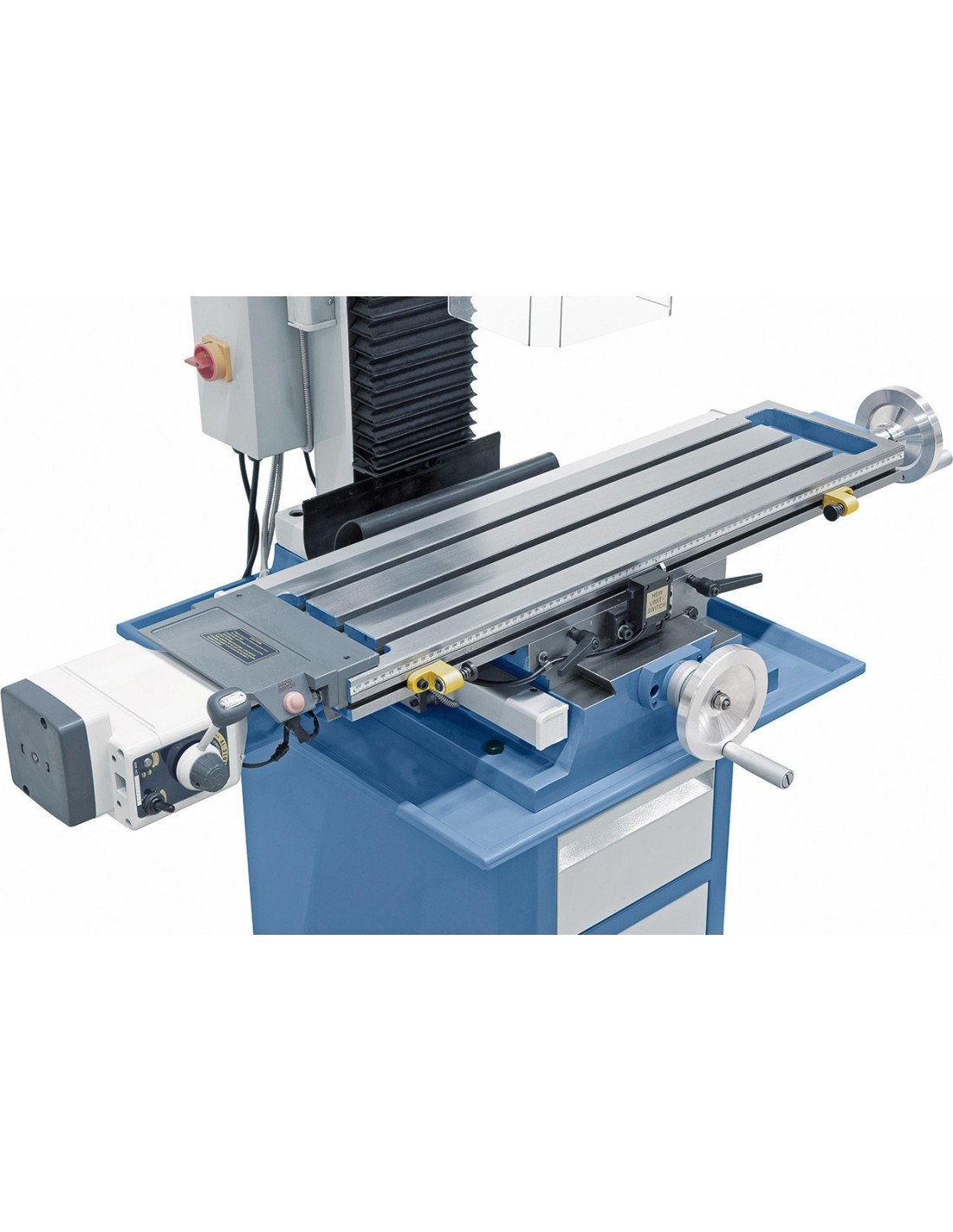

  • Large, surface treated cross table

Standard accessories

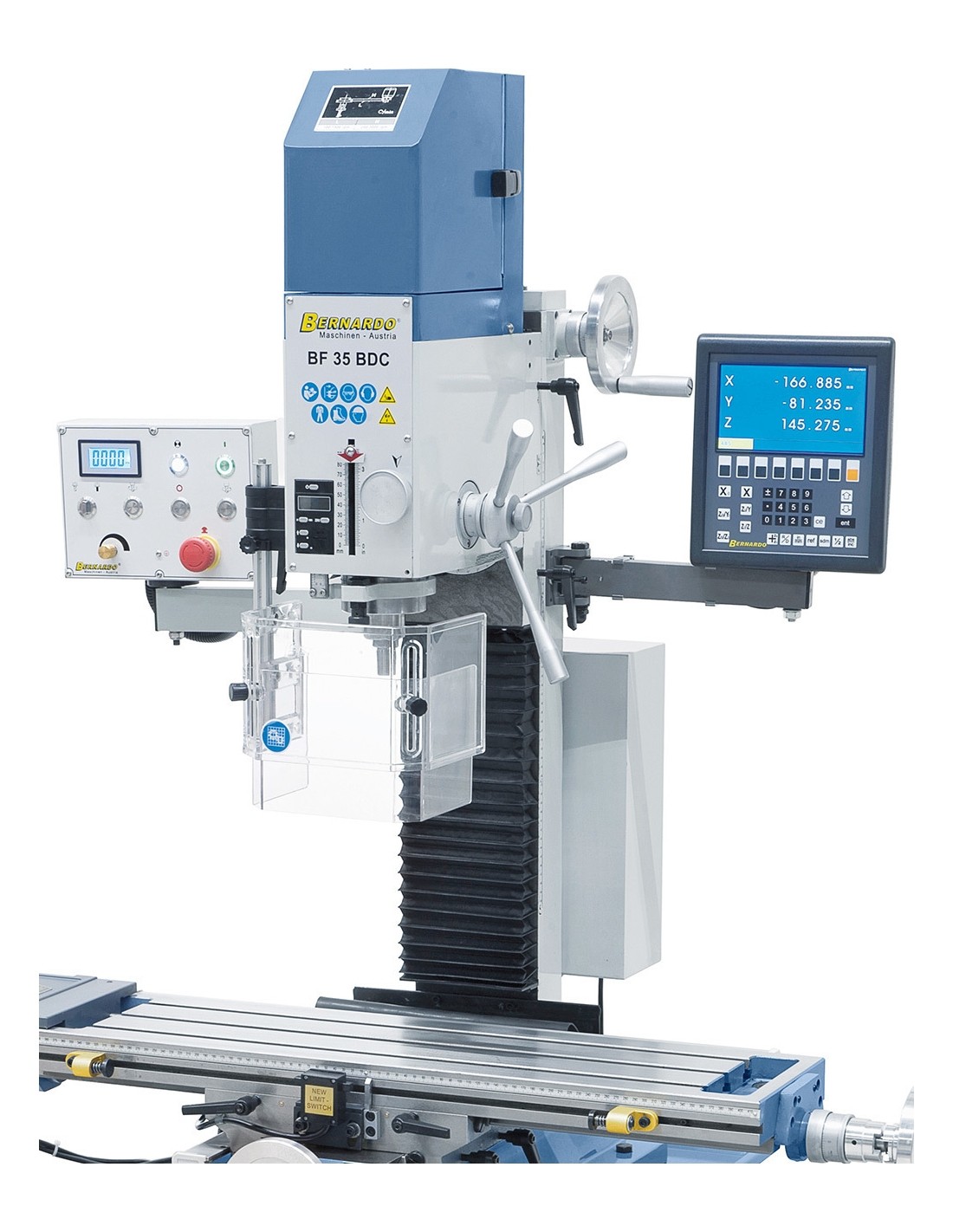

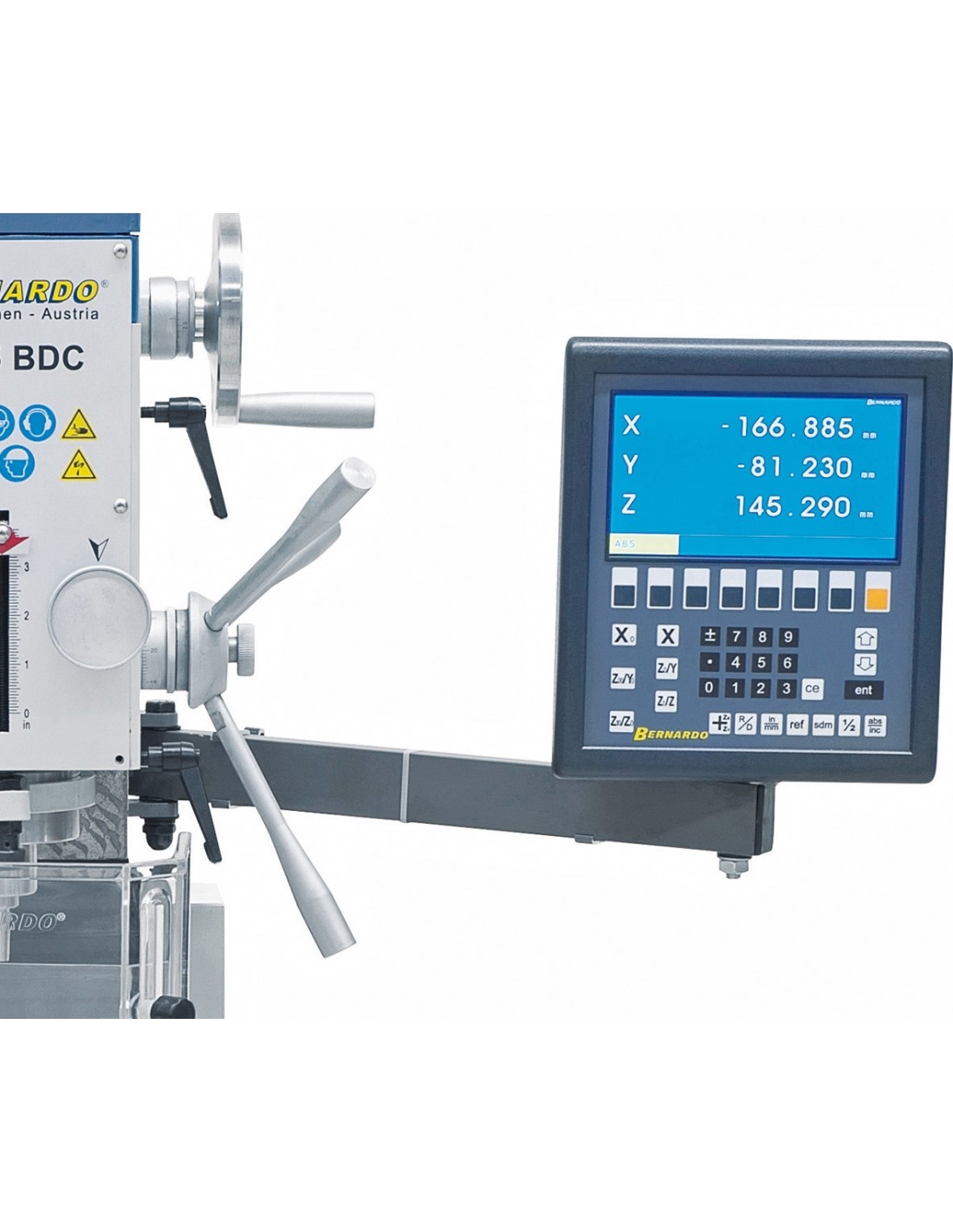

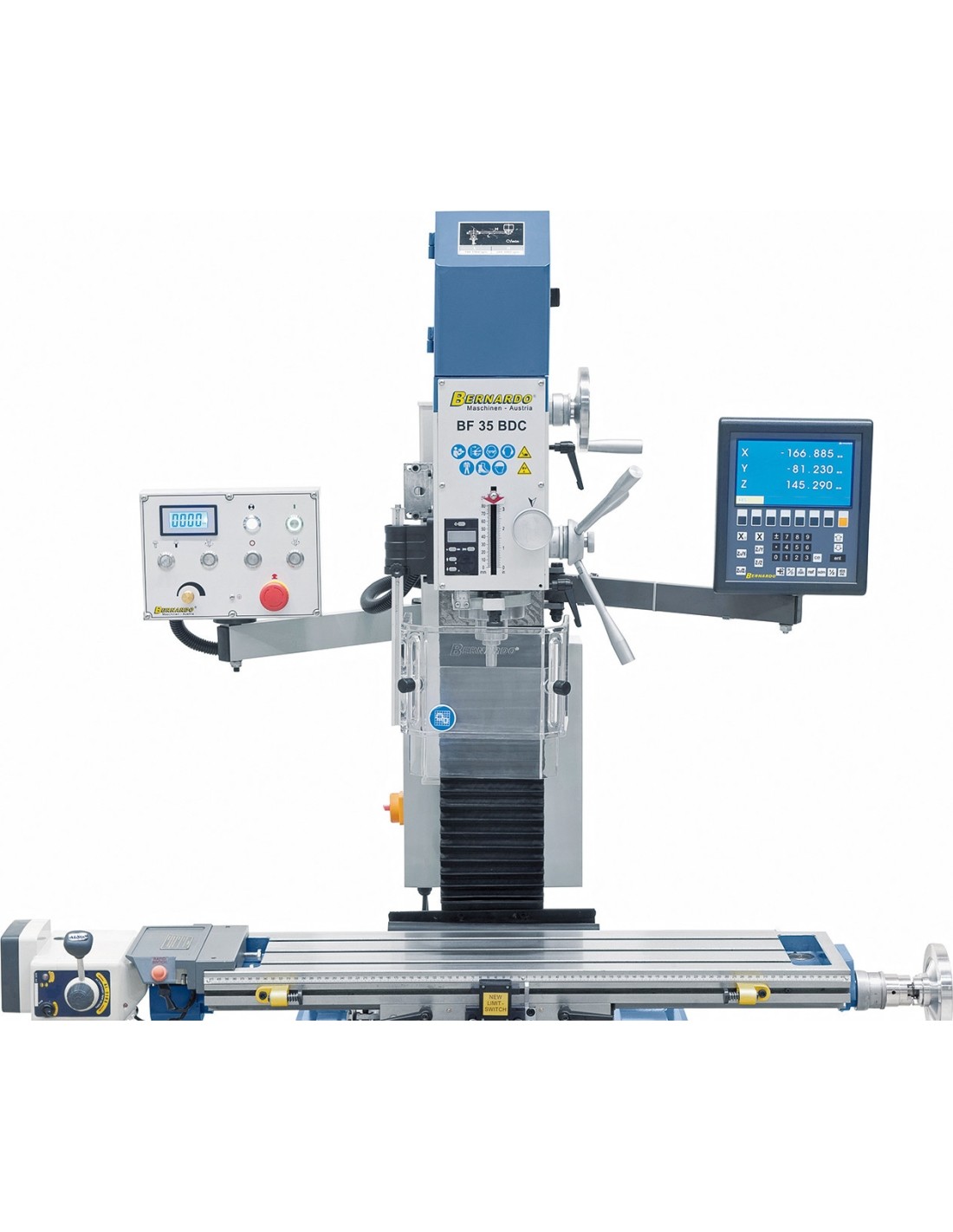

  • 3-axis digital readout ES-12 V with LCD-display

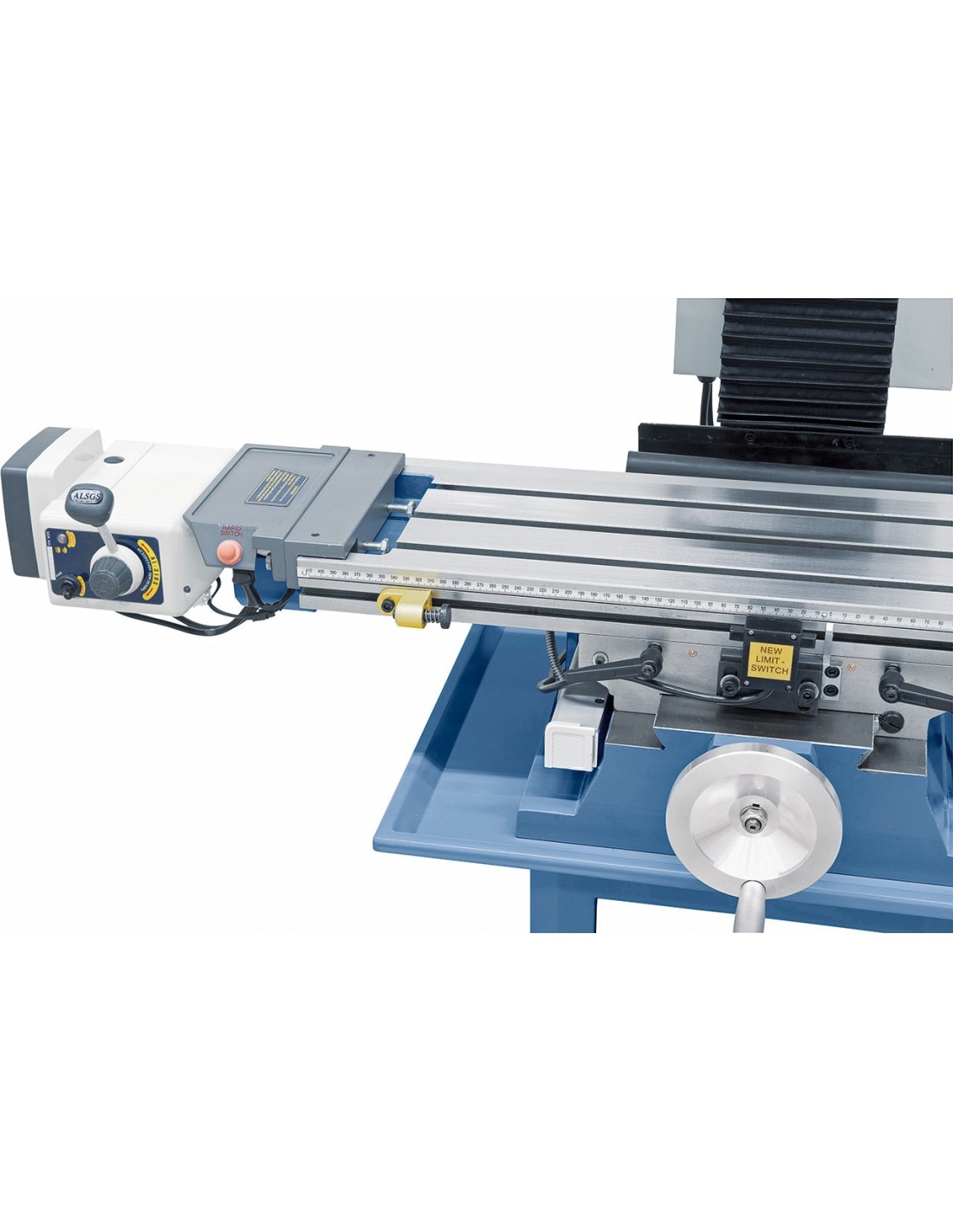

  • x-axis power feed AL 450 D
  • Drill chuck 3 - 16 mm / B 16
  • Drill chuck arbor MT 3 / B 16
  • Drawbar M 12

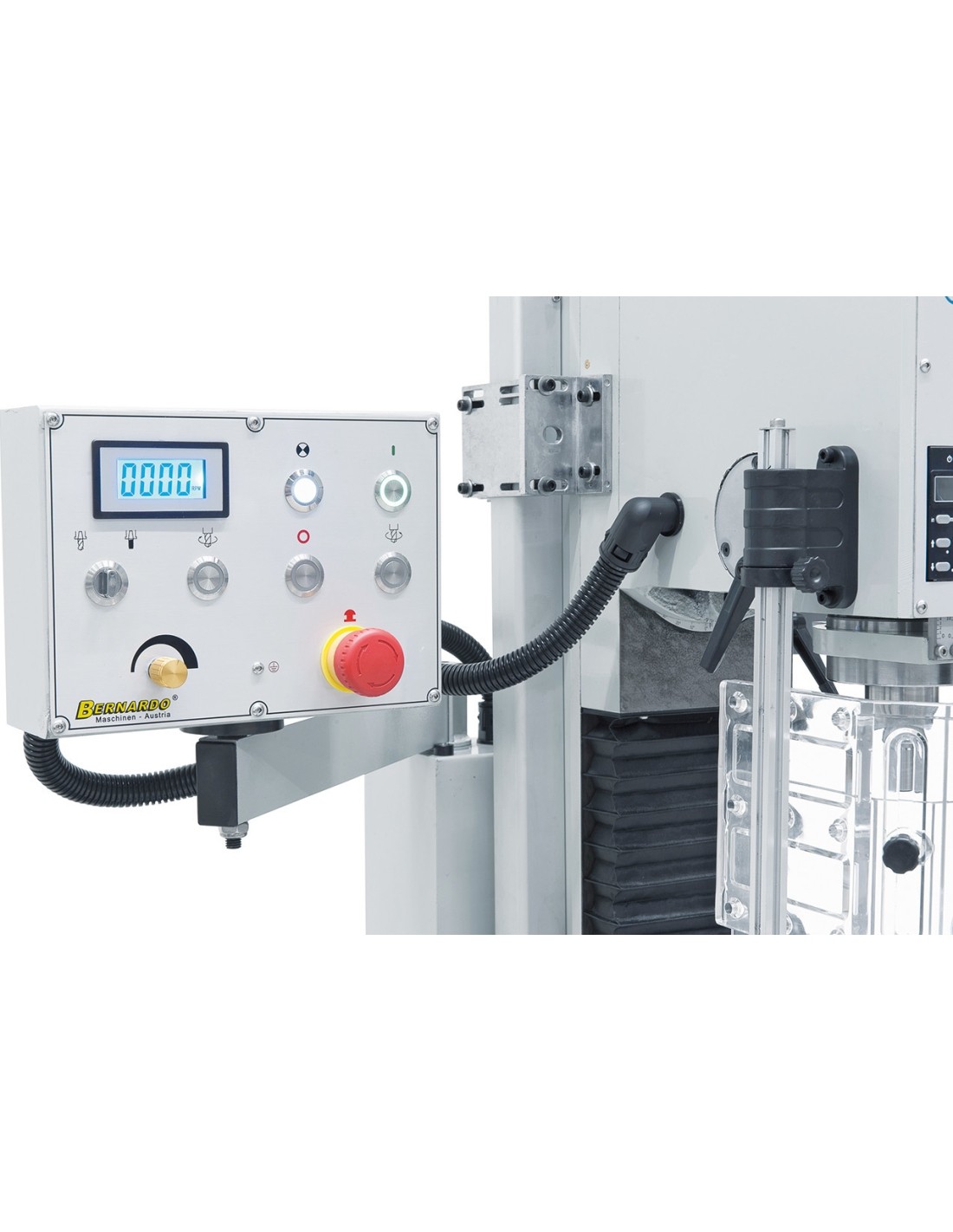

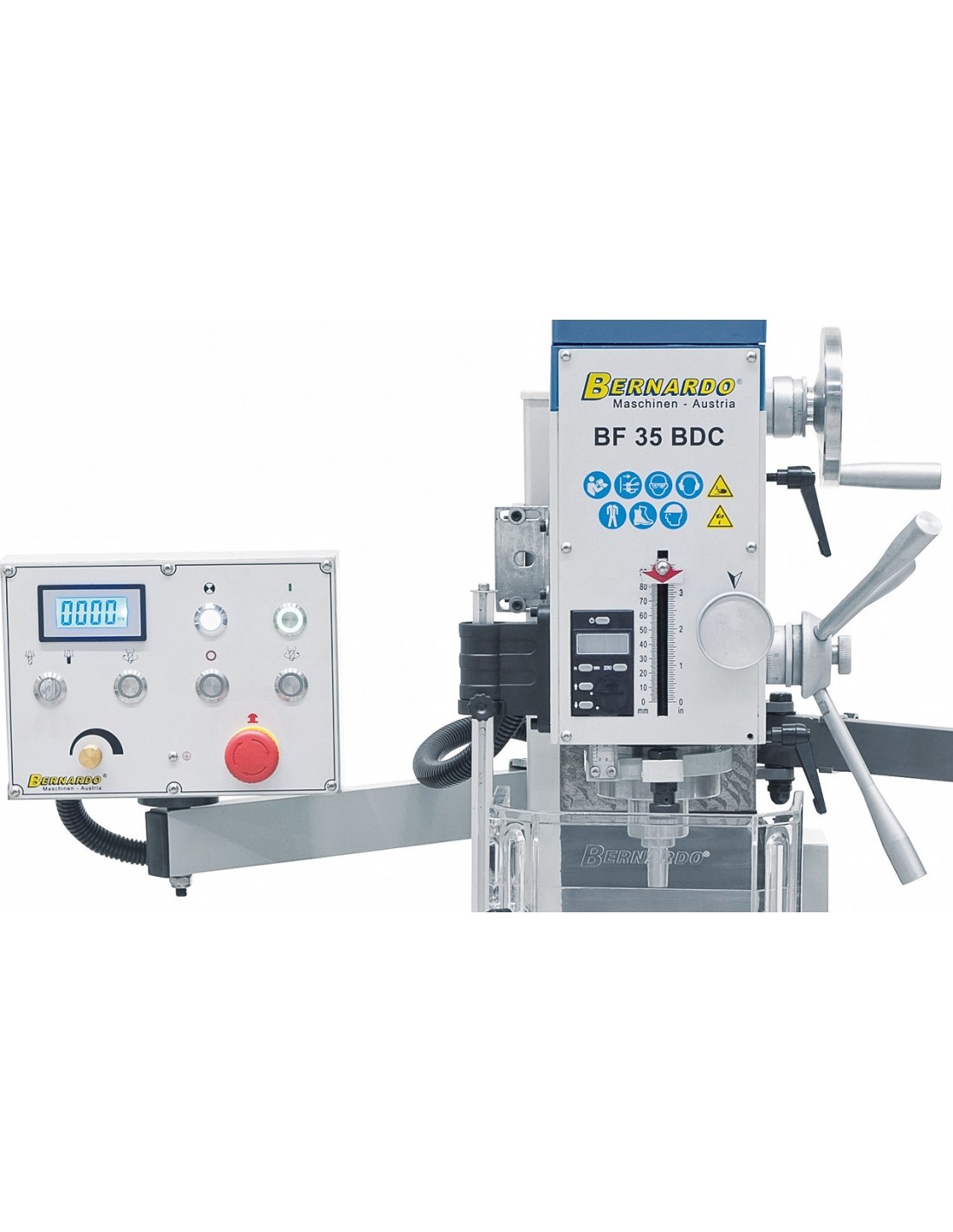

  • Digital speed indicator
  • Digital spindle stroke indicator
  • EMC filter according to CE standard
  • Height adjustable protective cover
  • Thread cutting device
  • Tools
