WARRANTY

  • 30 days return policy
  • 24 month product warranty
  • Free consultation
  • 30 days return policy
  • 24 month product warranty
  • Free consultation

Weight approx.
2800 kg
Motor power
2,2 kW
Machine dimension (W x D x H)
1200 x 2450 x 2720 mm
Spindle stroke
200 mm
Spindle speed, stepless
50 - 316 / 316 - 2000 rpm
T-slot size
18 mm
Drilling capacity max.
40 mm
Thread cutting max.
M30
Distance spindle to column min./max.
370 - 950 mm
Vertical movement of the support
390 mm
Morse taper
MT 4
Feed range
(6) 0,08 - 0,50 mm/rev.
Column diameter
220 mm
Table size
1195 x 500 mm
Drill head tiltable
-90° to +90°
Distance spindle to table surface
390 - 780 mm

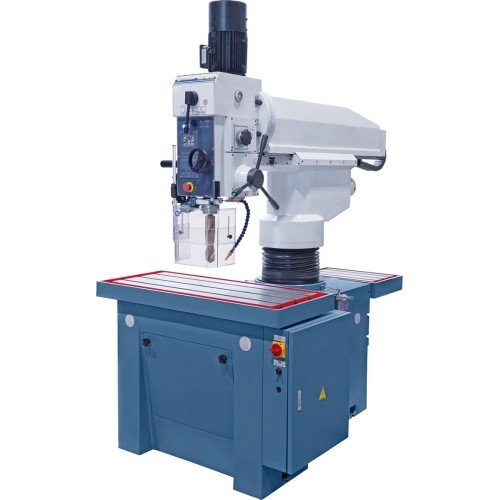

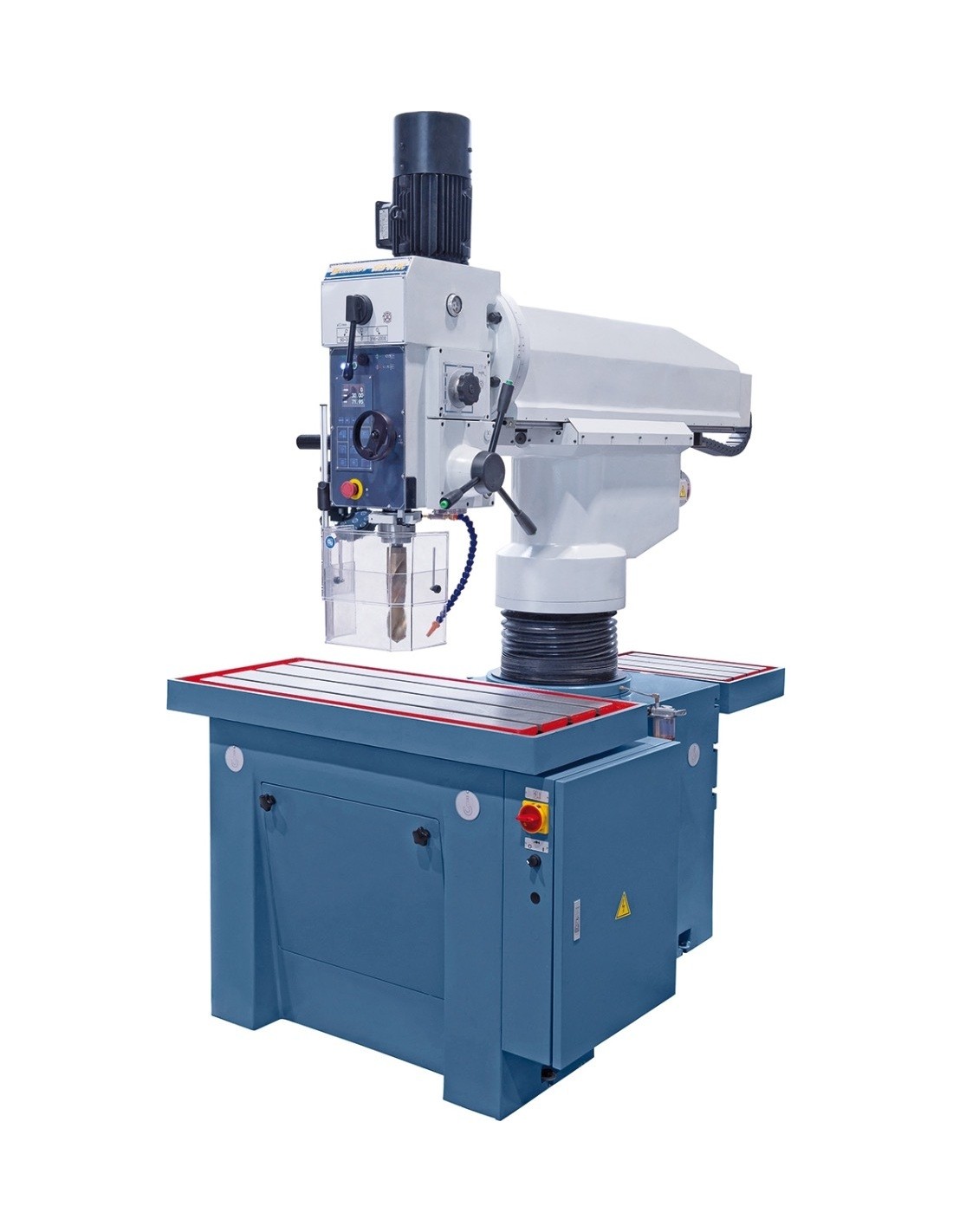

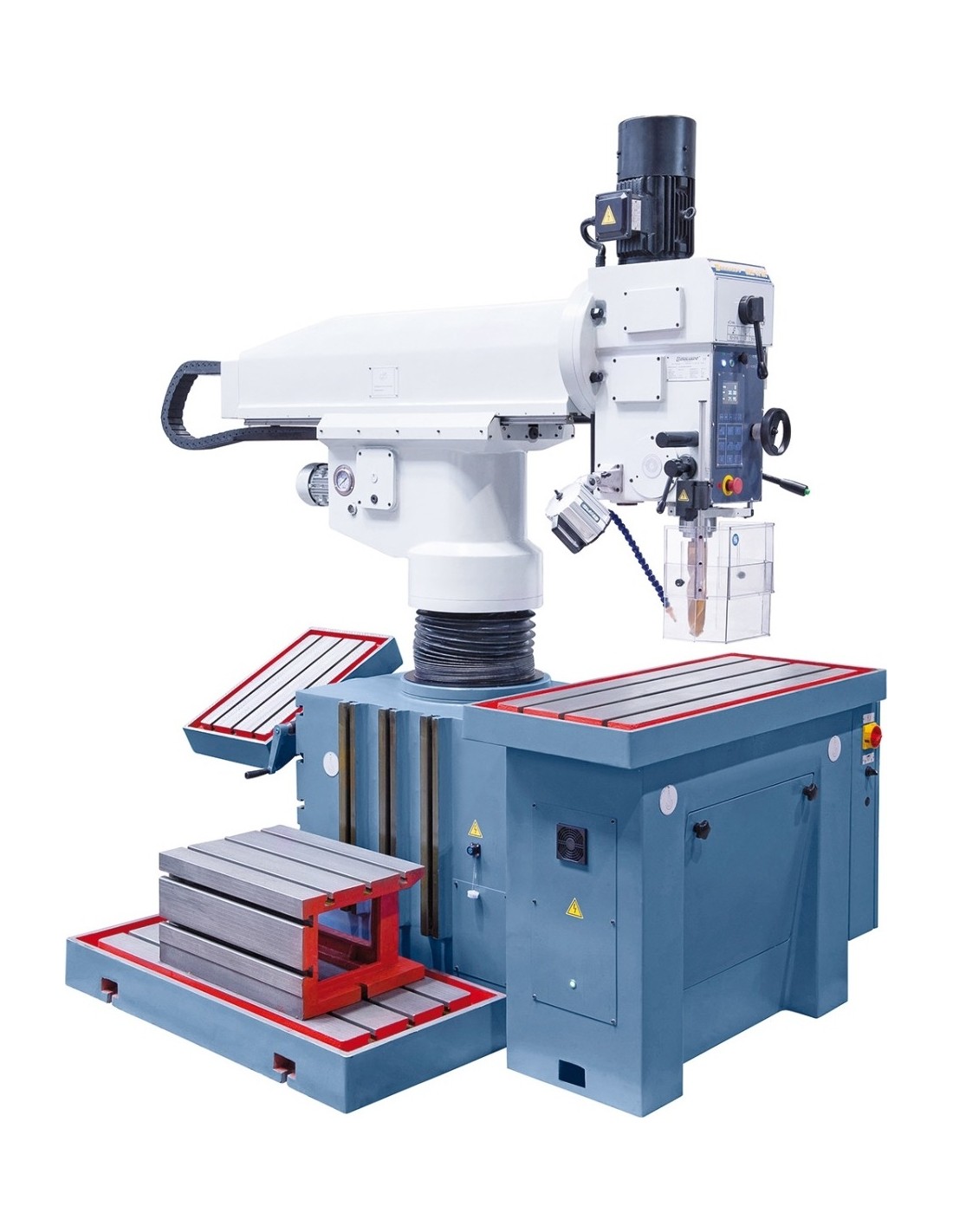

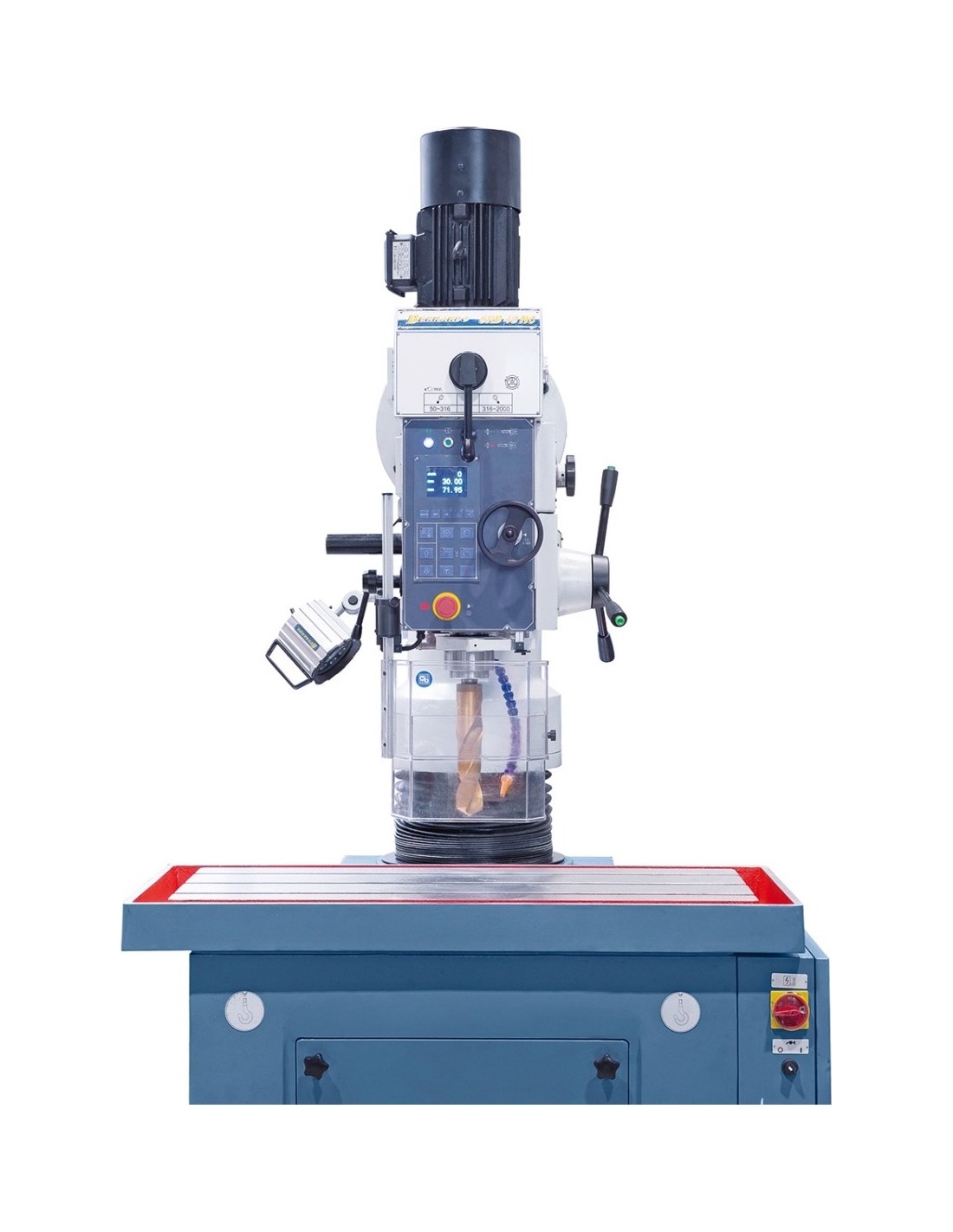

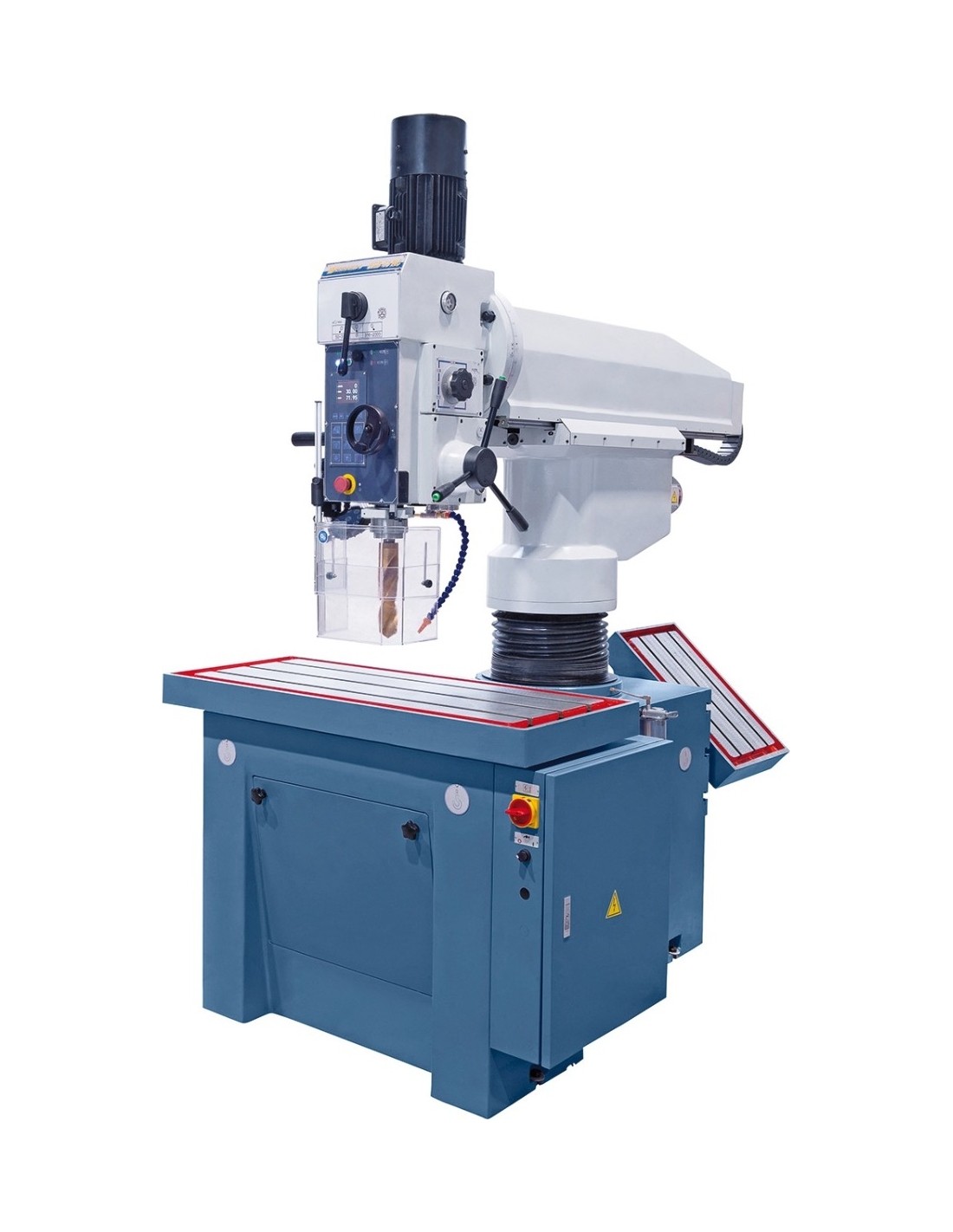

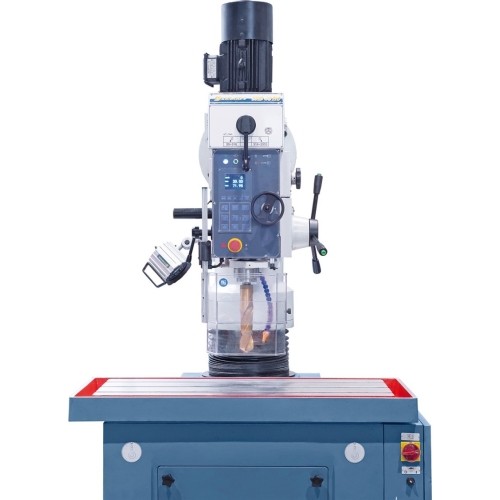

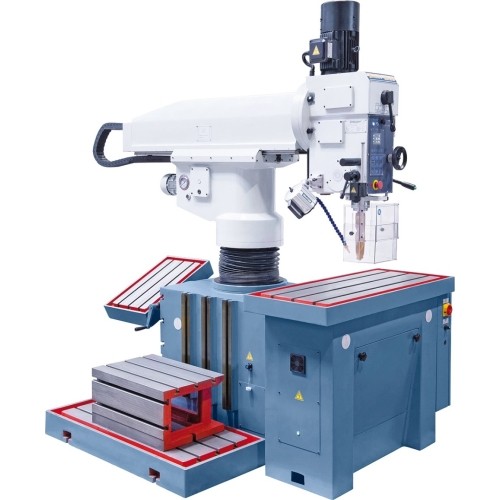

SRB 40 NC

1356373
€38,148.00
Tax included

Stock Quantity:
In S01 store
not available
In S02 store
not available
In Supplier store
(5+ pcs)
Delivery terms:
NEMOKAMAI atsiimkite thursday, december 5 d., parduotuvėje, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 2800 kg.

Description

Properties

  • The construction allows a variety of clamping and processing possibilities

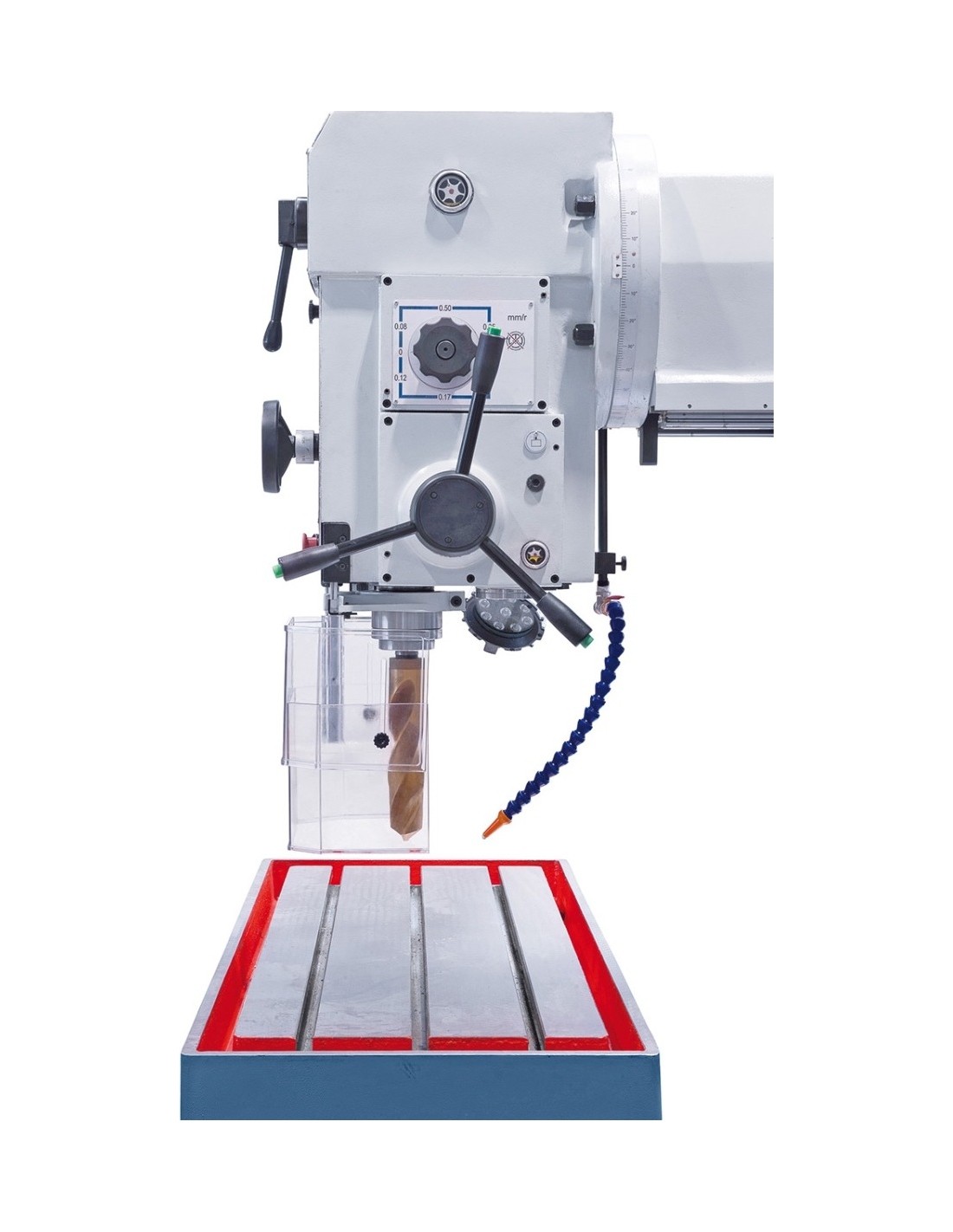

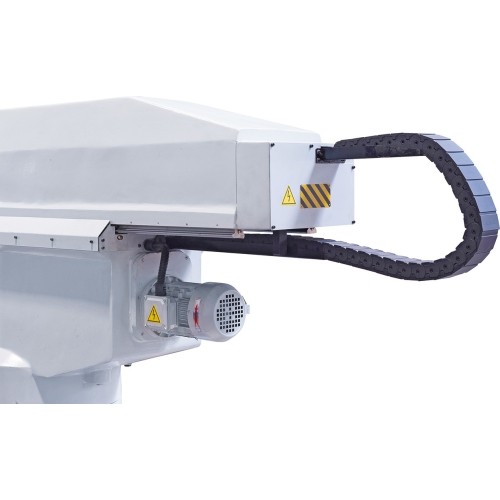

  • Electromotive height adjustment of drill head without changing drill position, ideal for deep hole drilling

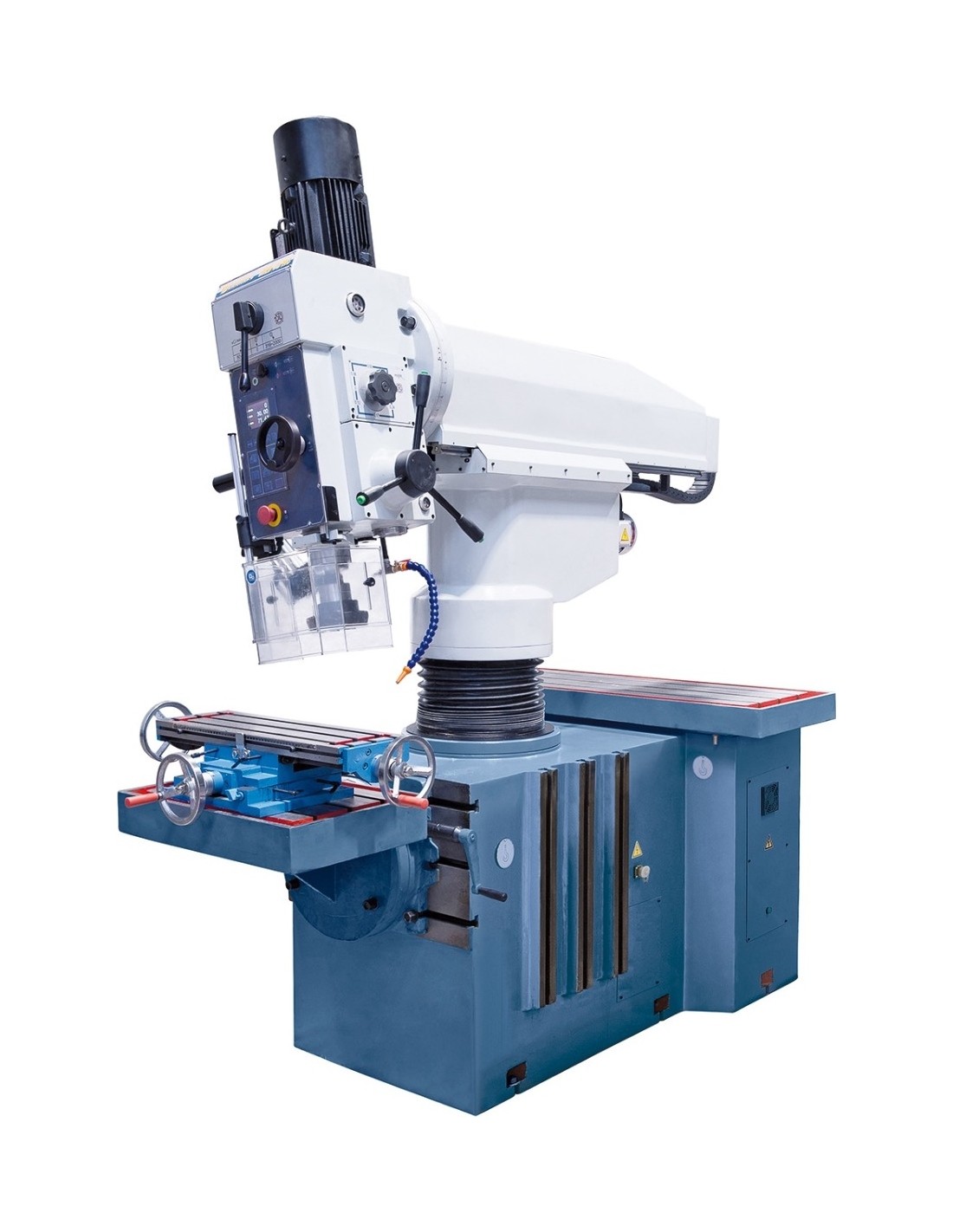

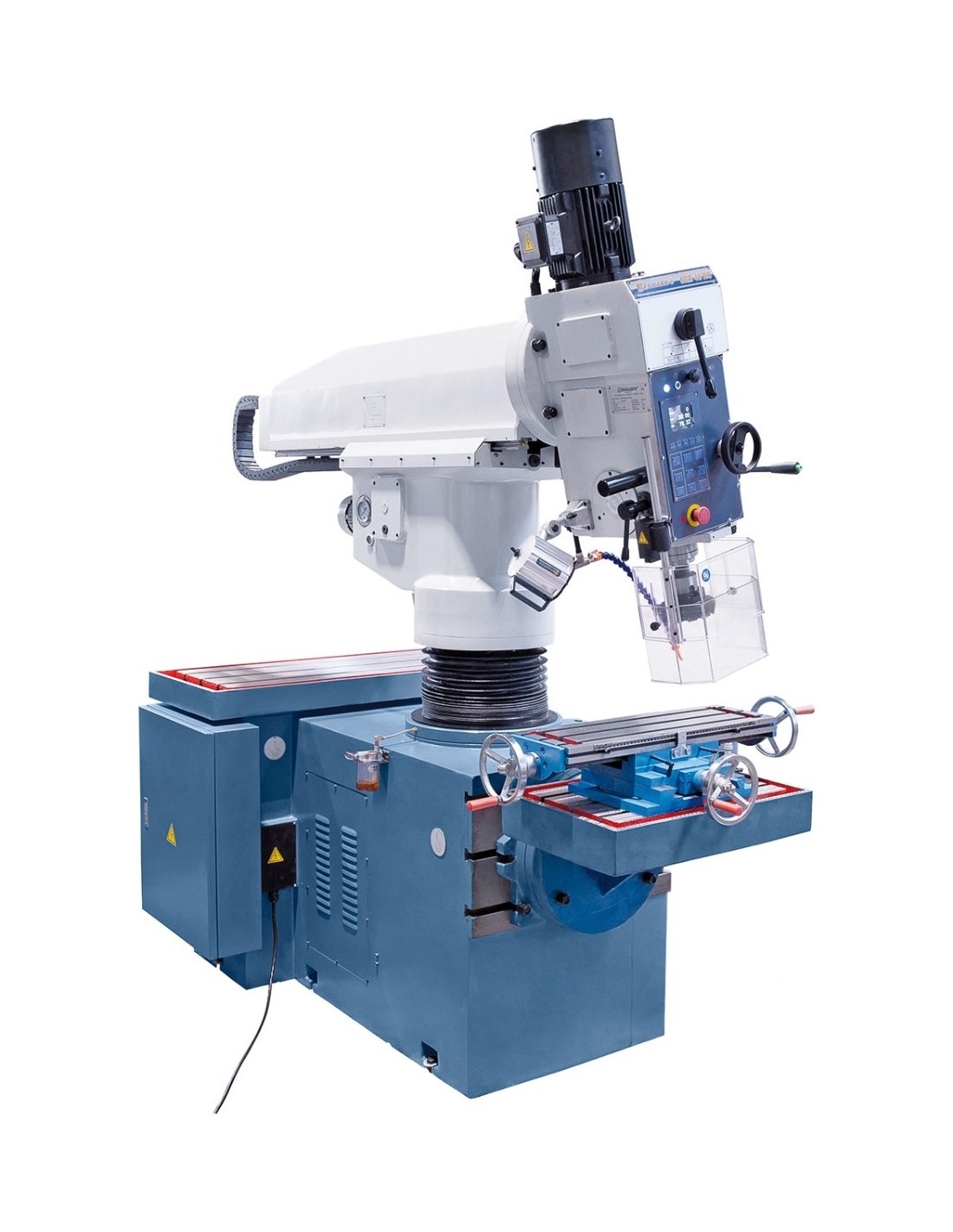

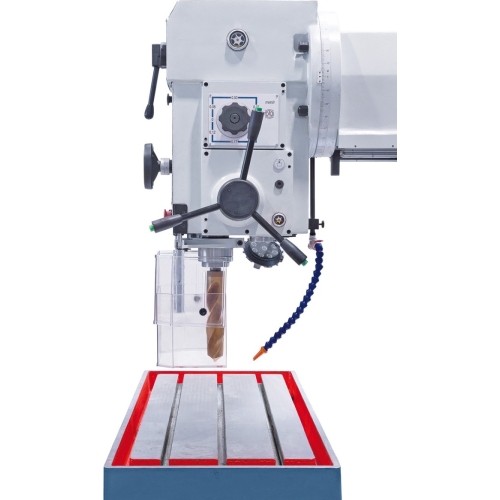

  • Drill head tilts 180°, support tilts horizontal and can be moved forwards and backwards
  • Thread cutting device and 6 automatic drill feeds as standard
  • Large table size (1195 x 500 mm) for simultaneous mounting of several workpieces
  • Solid construction eliminates vibrations
  • Digital display of speed and drill depth included
  • Quick adjustment of drill head to workpiece,  hydraulic clamping
  • Solidly designed column guarantees high rigidity of extension arm
  • Electronic, stepless speed adjustment as standard
  • Membrane keyboard ensures user-friendly operation

Standard accessories

  • Electromagnetic spindle feed
  • Digital readout of speeds
  • Digital readout of drill depth

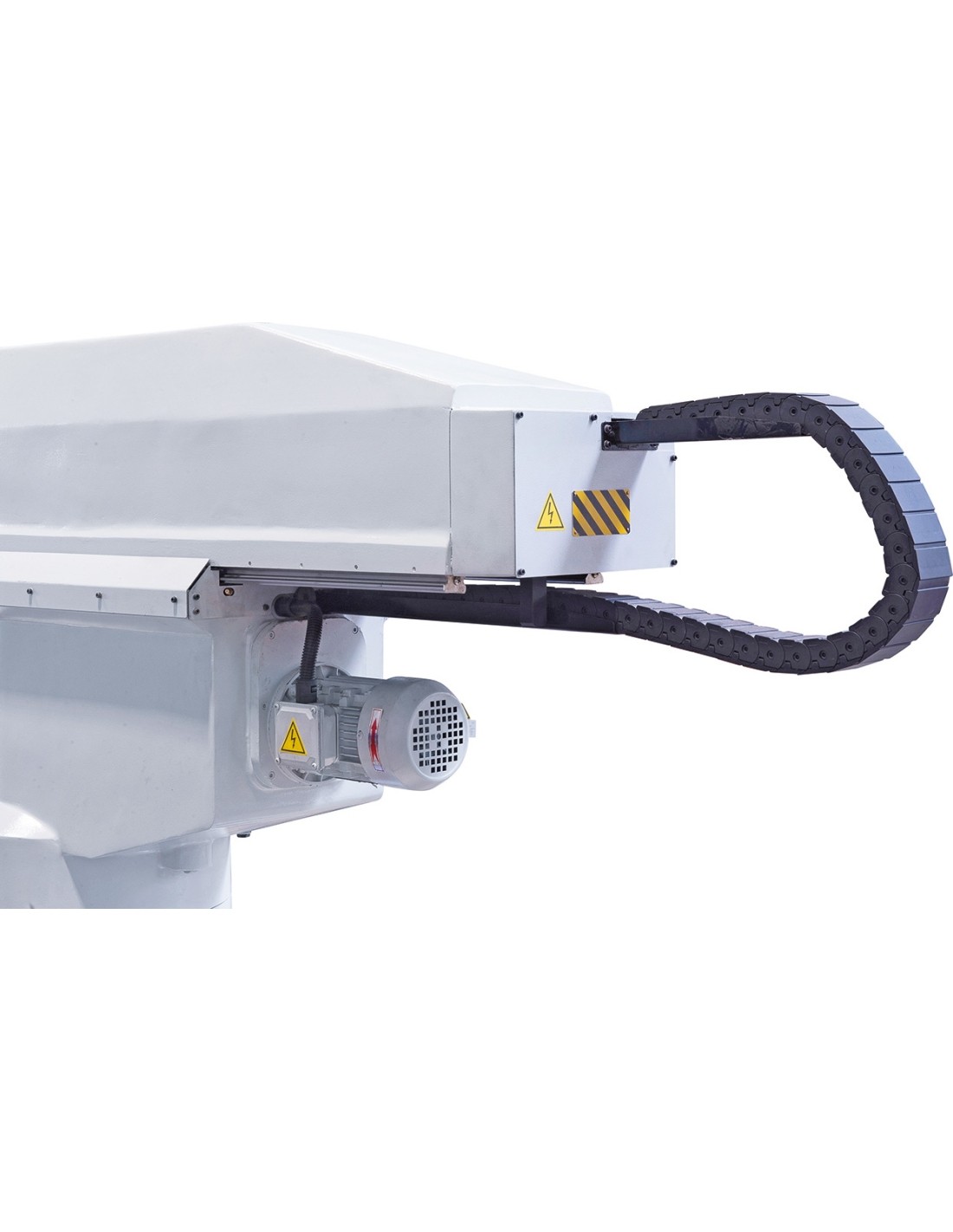

  • Electromotive drill head adjustment
  • Initial filling with Shell Tellus 46
  • Keyless drill chuck 1 - 13 mm / B 16
  • Drill chuck arbor MT 4 / B 16
  • Morse taper drill sleeve MT 4 / 3, 4 / 2, 3 / 1
  • LED machine light
  • Thread cutting device

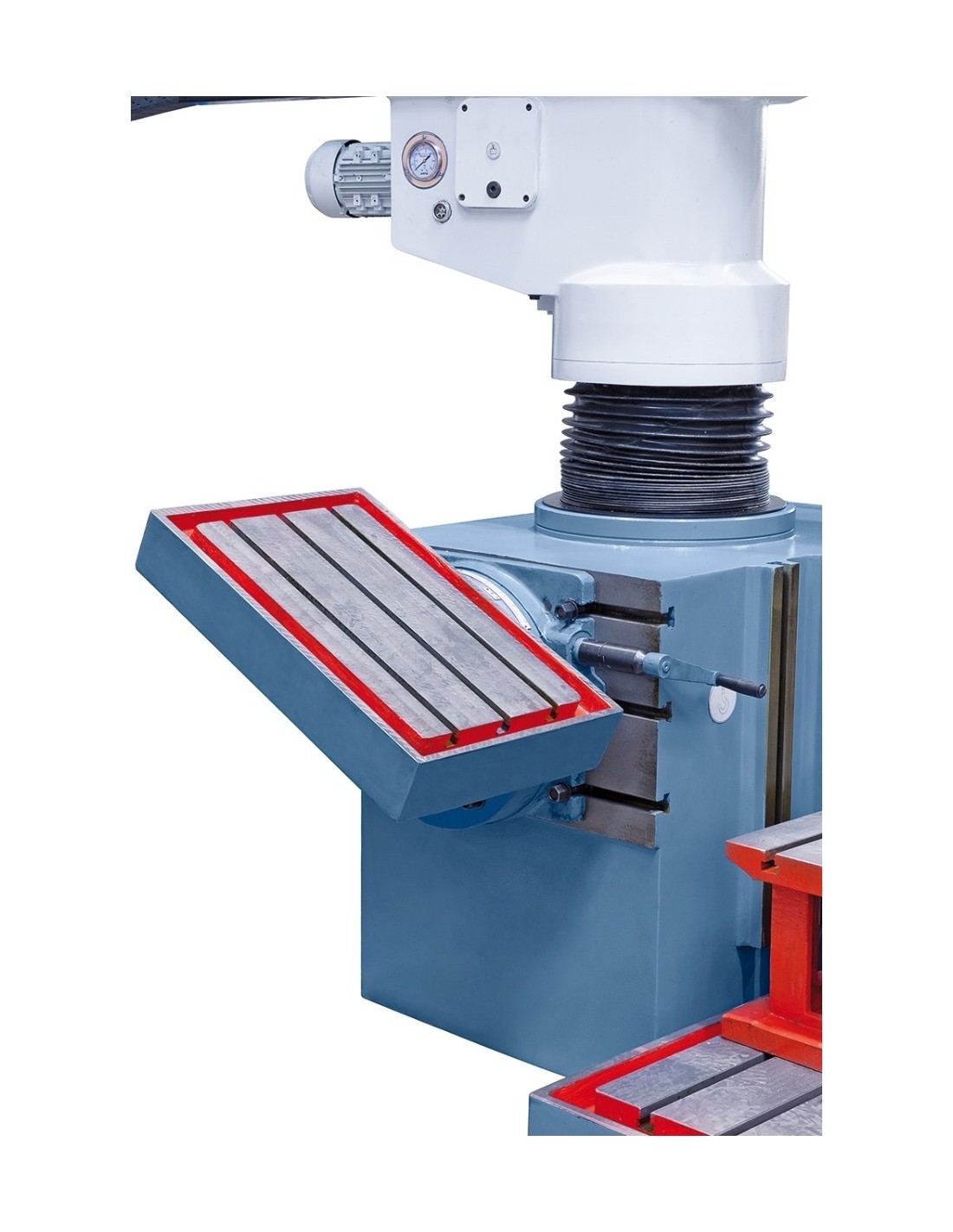

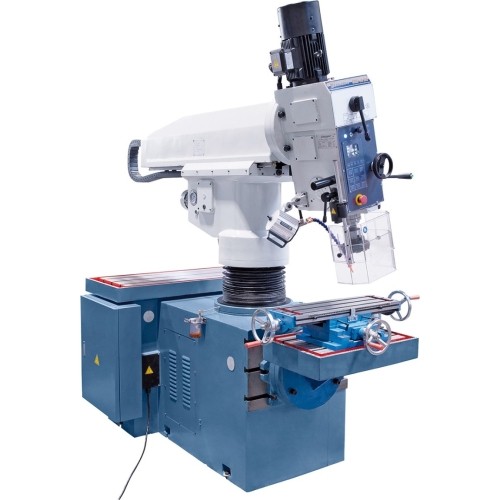

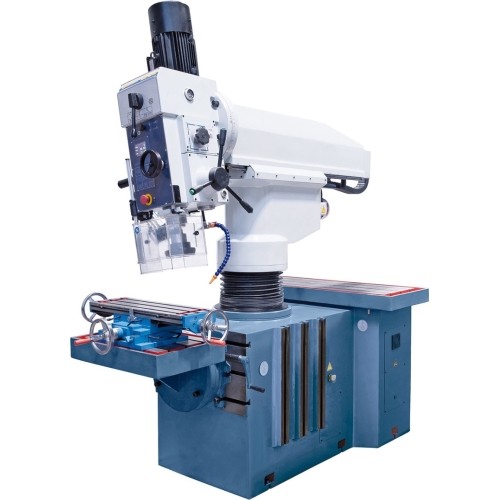

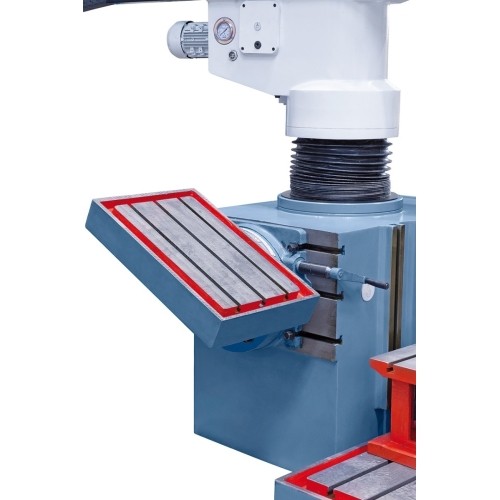

  • Tiltable horizontal table 400 x 600 mm

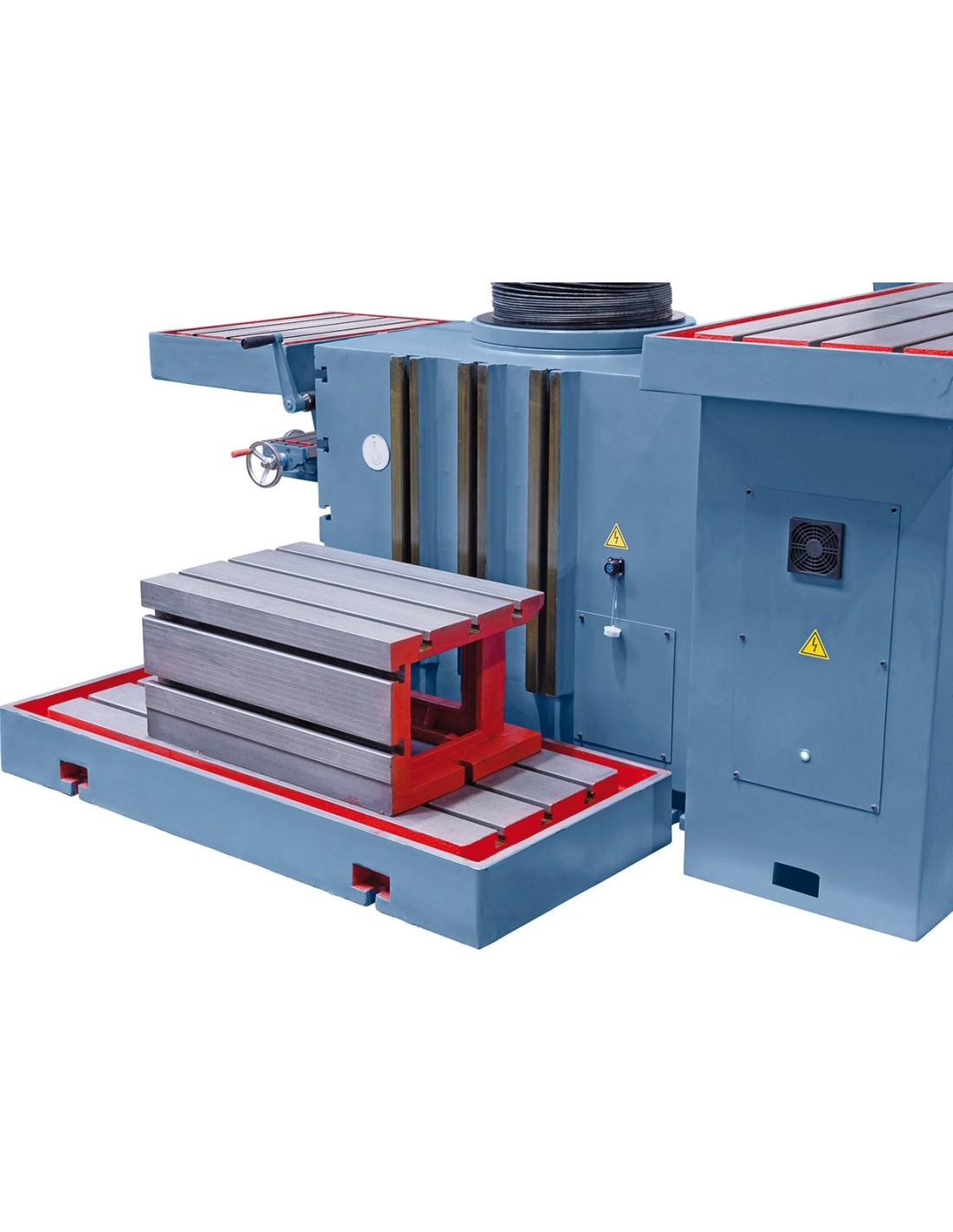

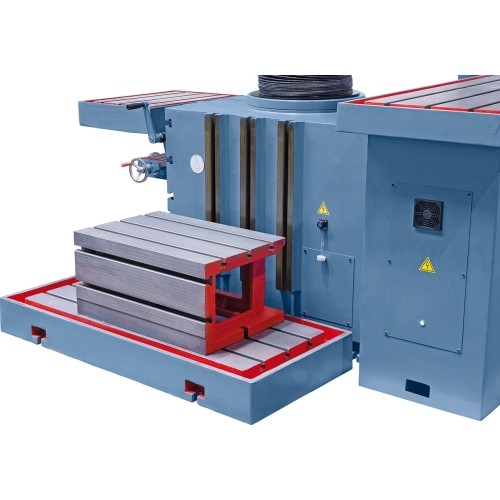

  • Box table 420 x 600 x 300 mm
  • Clamping plate 1200 x 550 mm
  • Coolant pump
  • Height adjustable protective cover
