- Weight approx.
- 2380 kg
- Motor power
- 2,2 kW
- Machine dimension (W x D x H)
- 2050 x 1050 x 2560 mm
- Spindle stroke
- 290 mm
- Drilling capacity max.
- 40 mm
- Thread cutting max.
- M40
- Distance spindle to column min./max.
- 300 - 1300 mm
- Vertical movement of the support
- 600 mm
- Travel of drill head (horizontally)
- 1000 mm
- Morse taper
- MT 4
- Spindle speeds
- 74 - 404 / 404 - 2200 rpm
- Feed range
- (4) 0,1 - 0,63 mm/rev.
- Distance spindle to box table
- 100 - 700 mm
- Distance spindle to base
- 570 - 1170 mm
- Clamping area base
- 1220 x 900 mm
- Box table (L x W x H)
- 640 x 450 x 450 mm

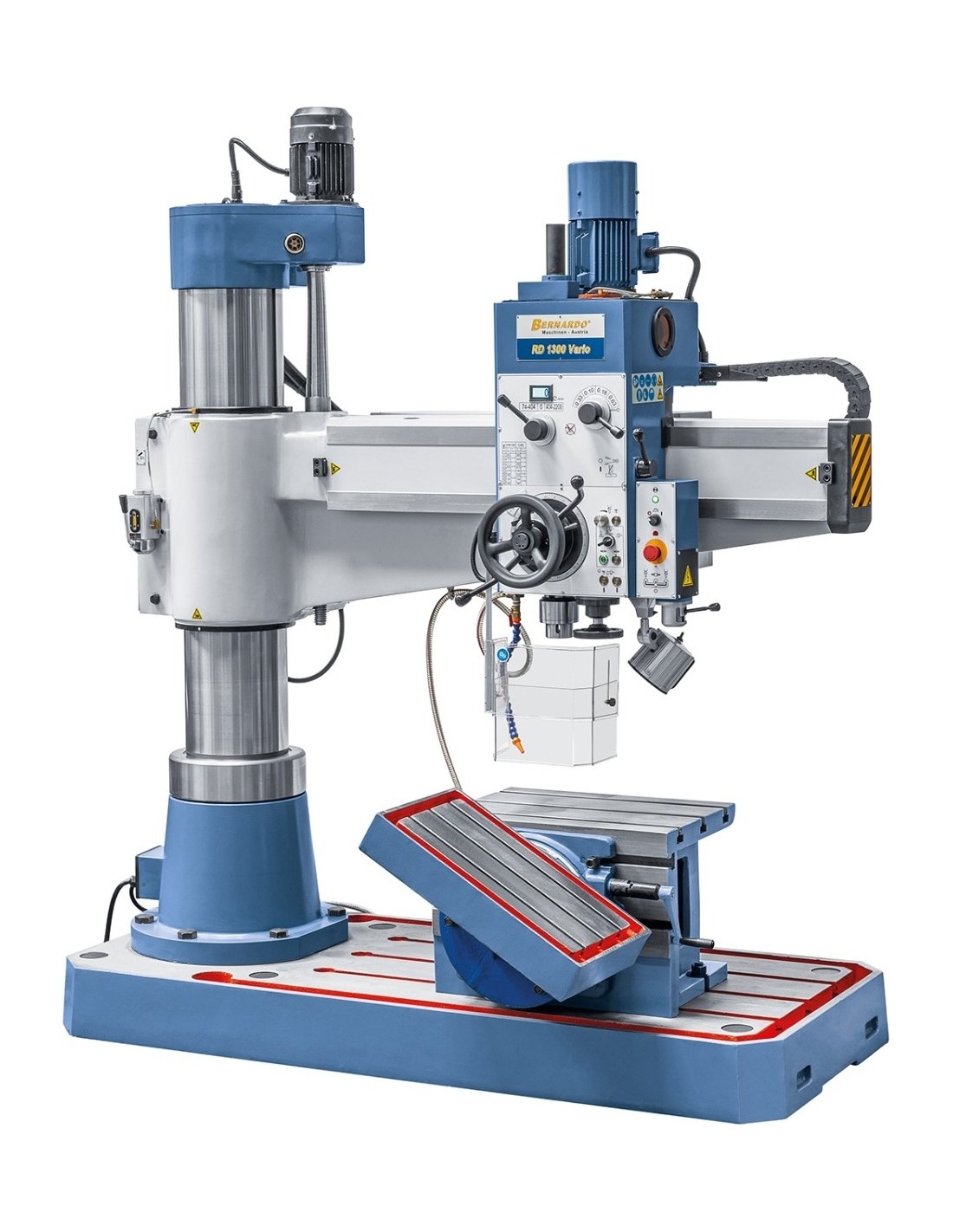

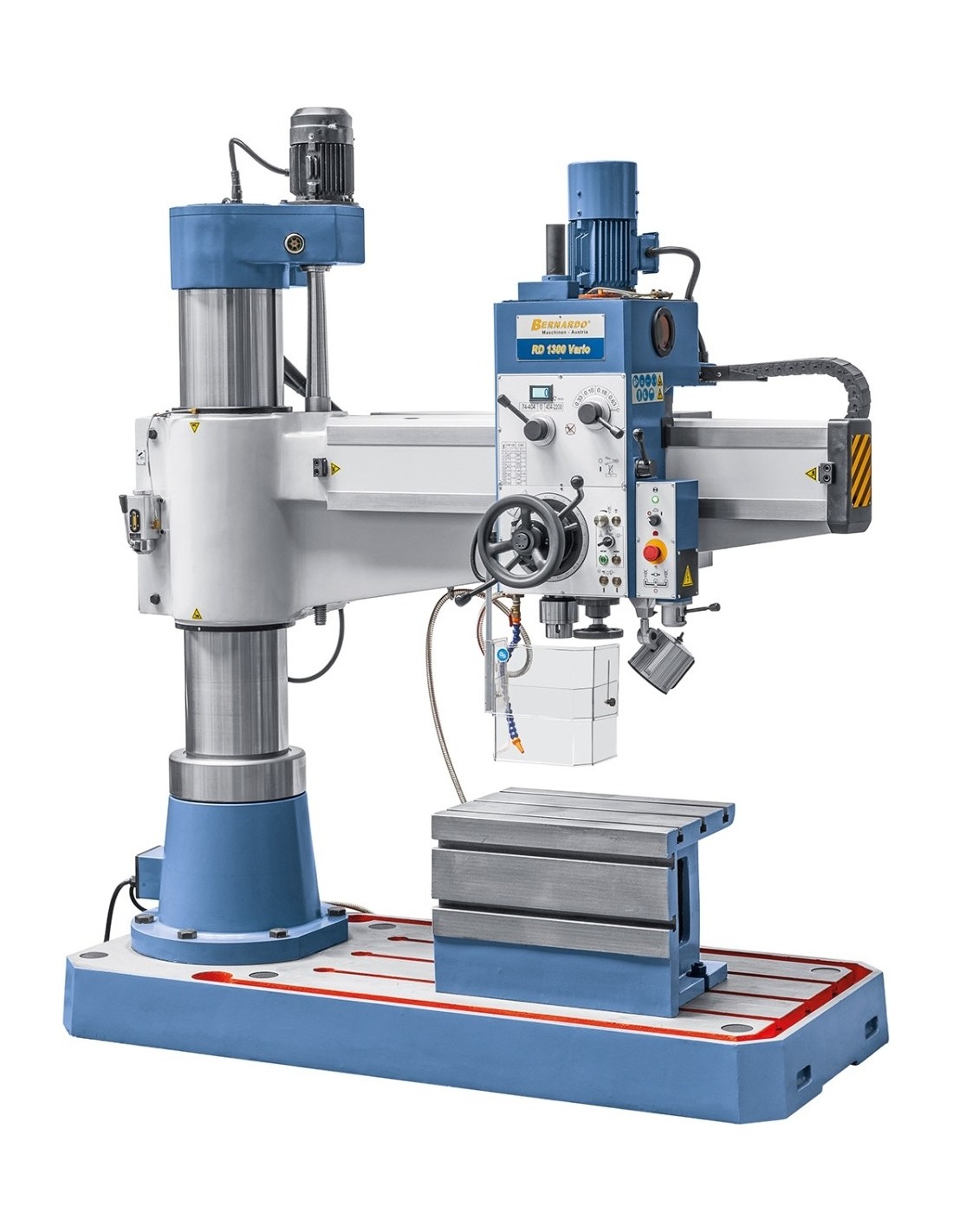

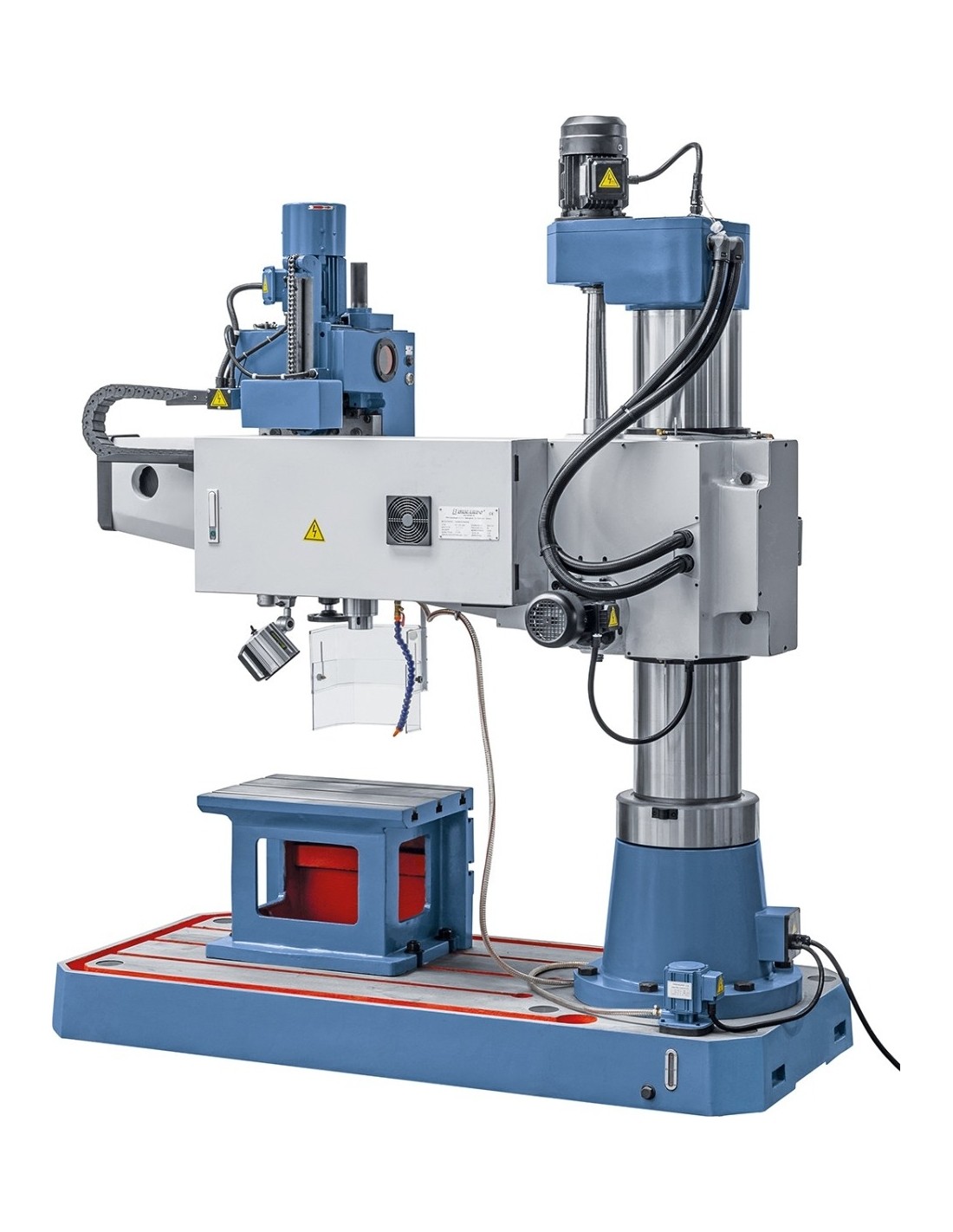

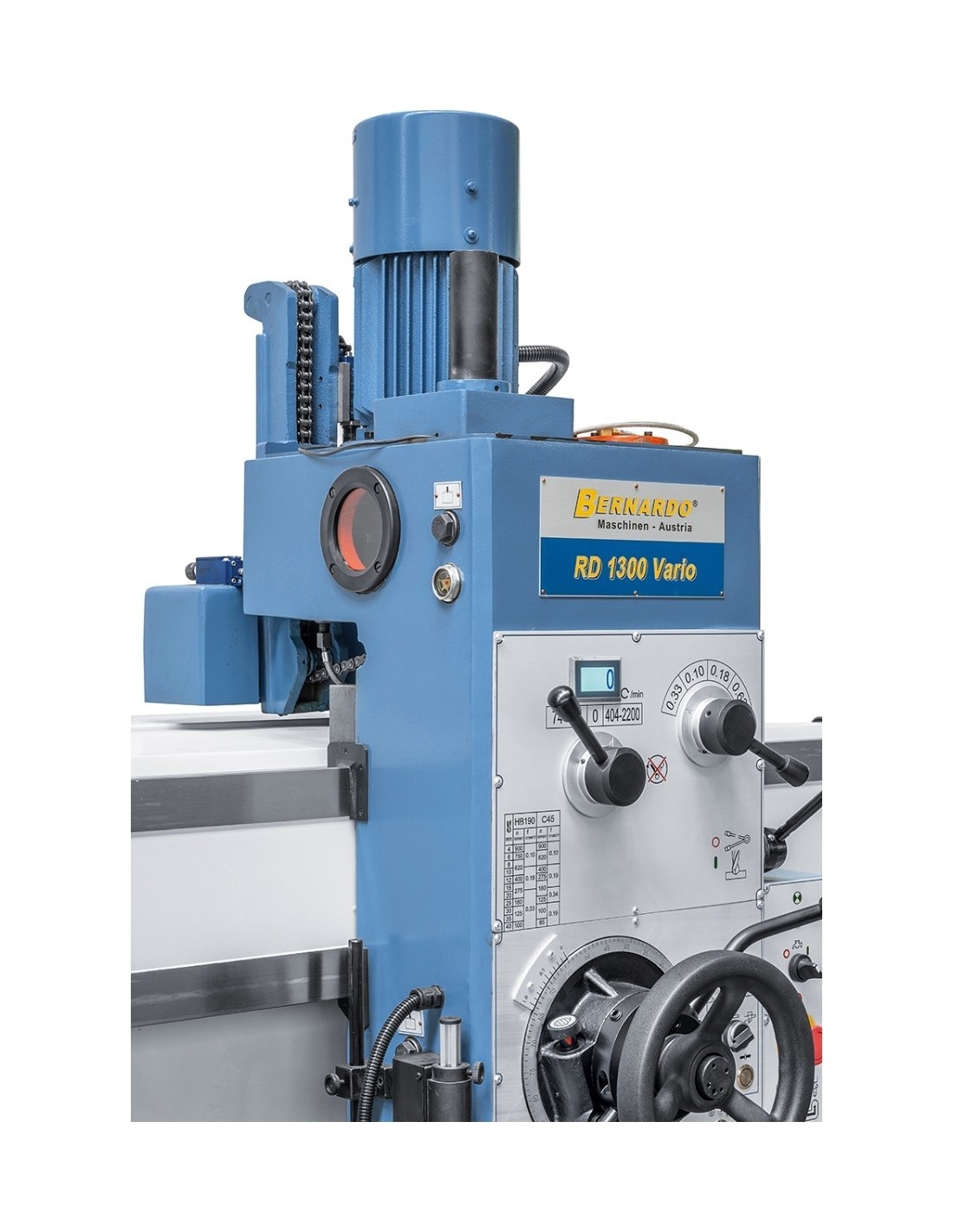

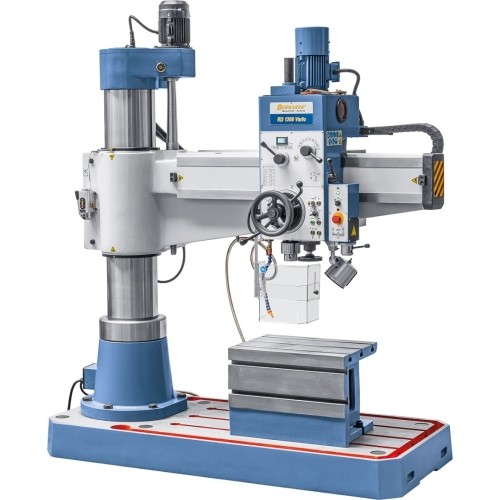

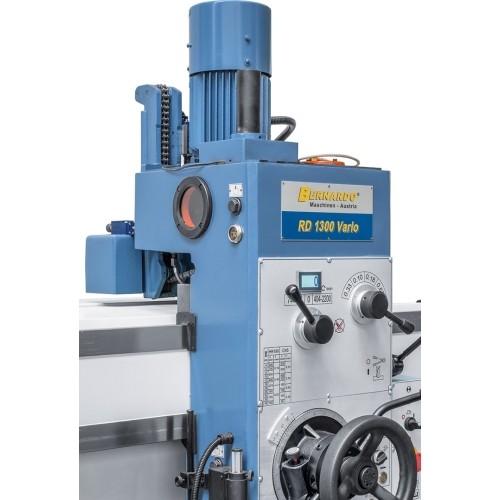

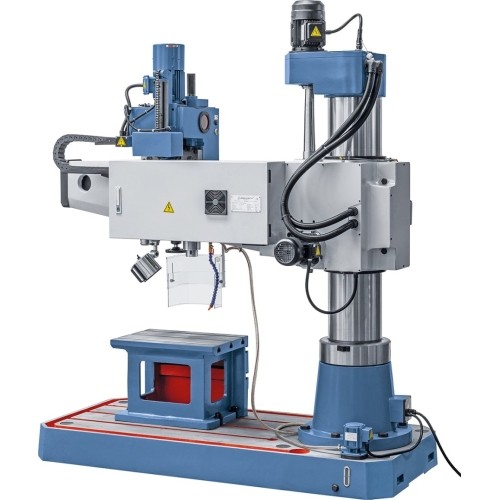

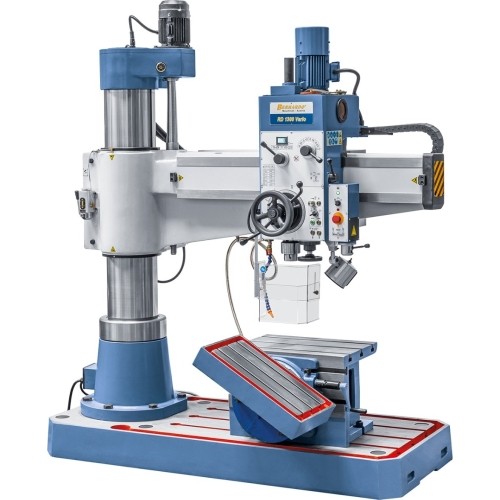

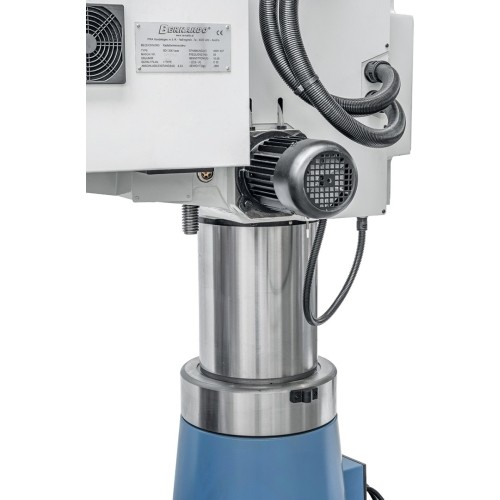

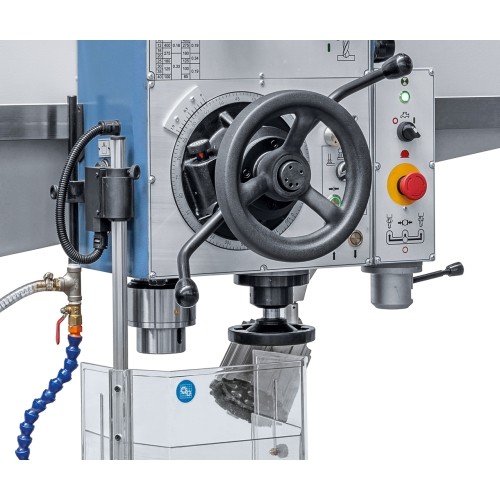

RD 1300 Vario
1366291
Price
€26,789.00
Tax included
Stock Quantity:
In S01 store
not available
In S02 store
not available
In Supplier store
(5+ pcs)
Delivery terms:
NEMOKAMAI atsiimkite tuesday, april 8 d., parduotuvėje, Raudondvario pl. 141, Kaunas
(€0.00) Weight: 2380 kg.
Description
Properties

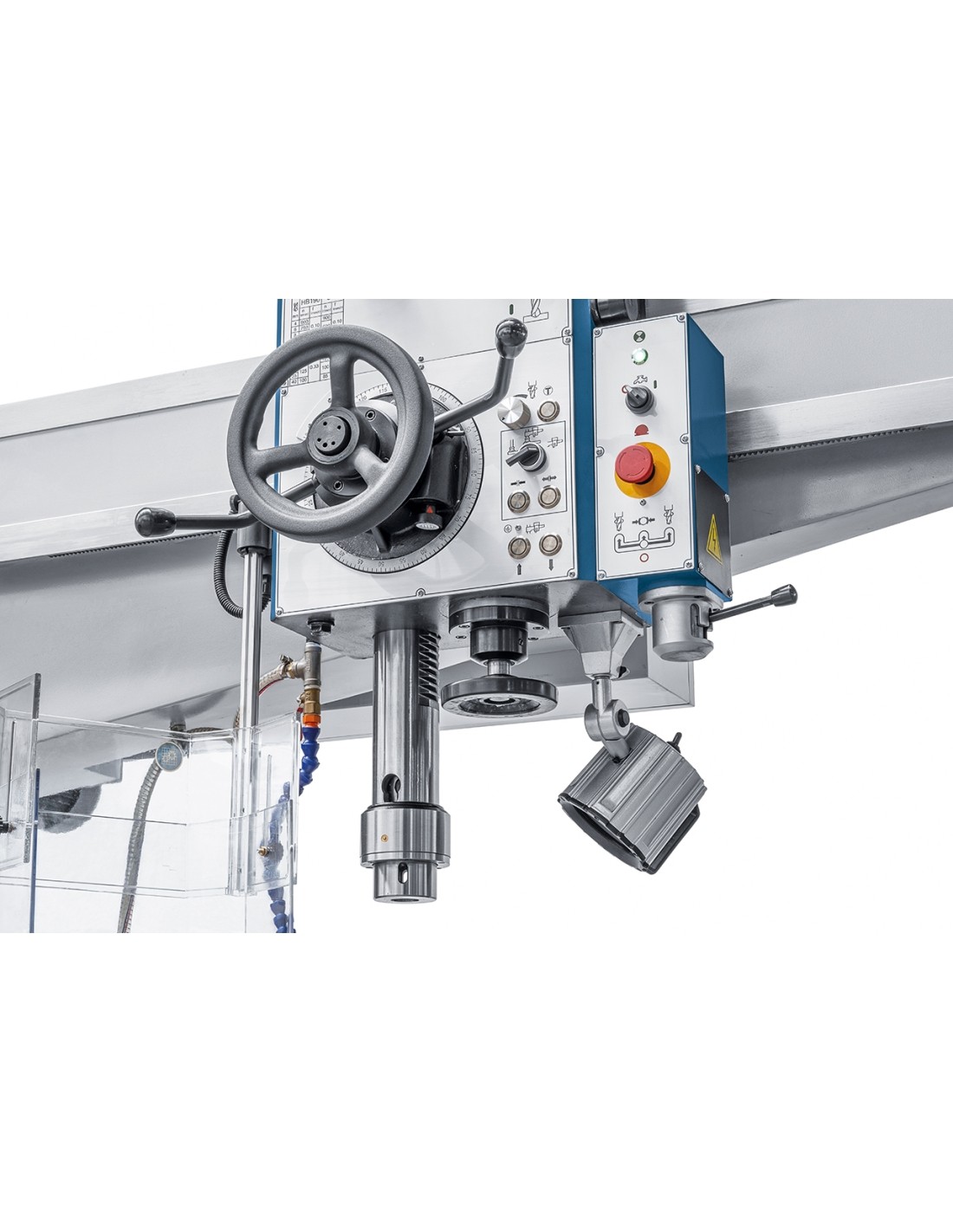

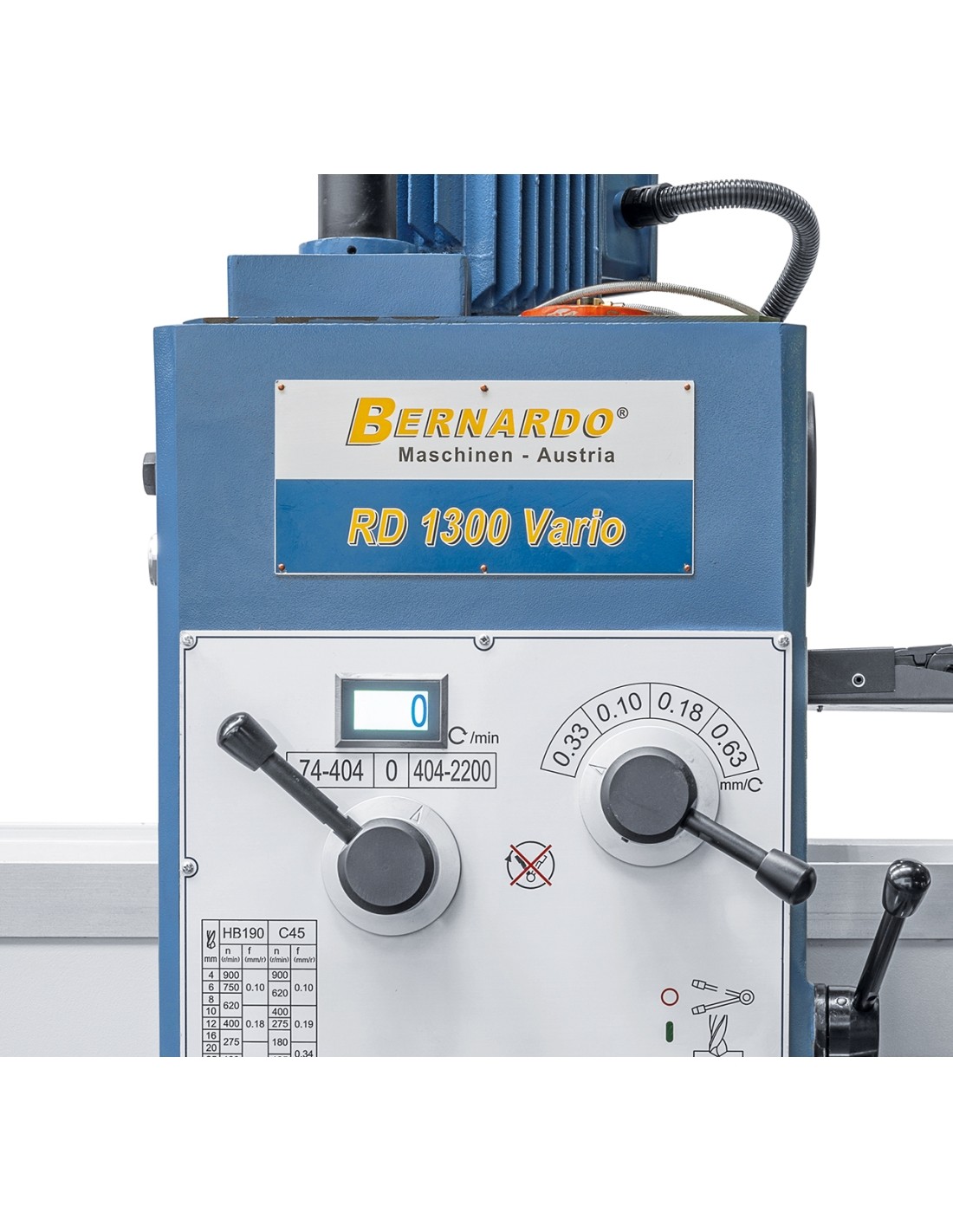

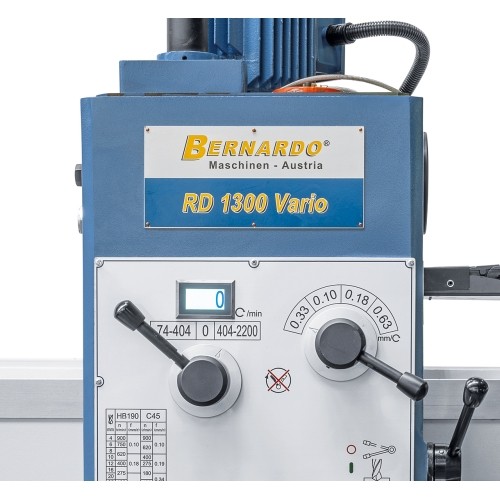

- Complete with stepless speed, set speed is visible on digital display

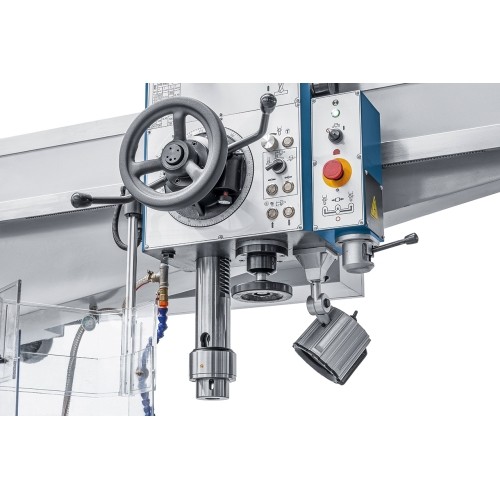

- Spindle features high concentricity and automatic spindle brake

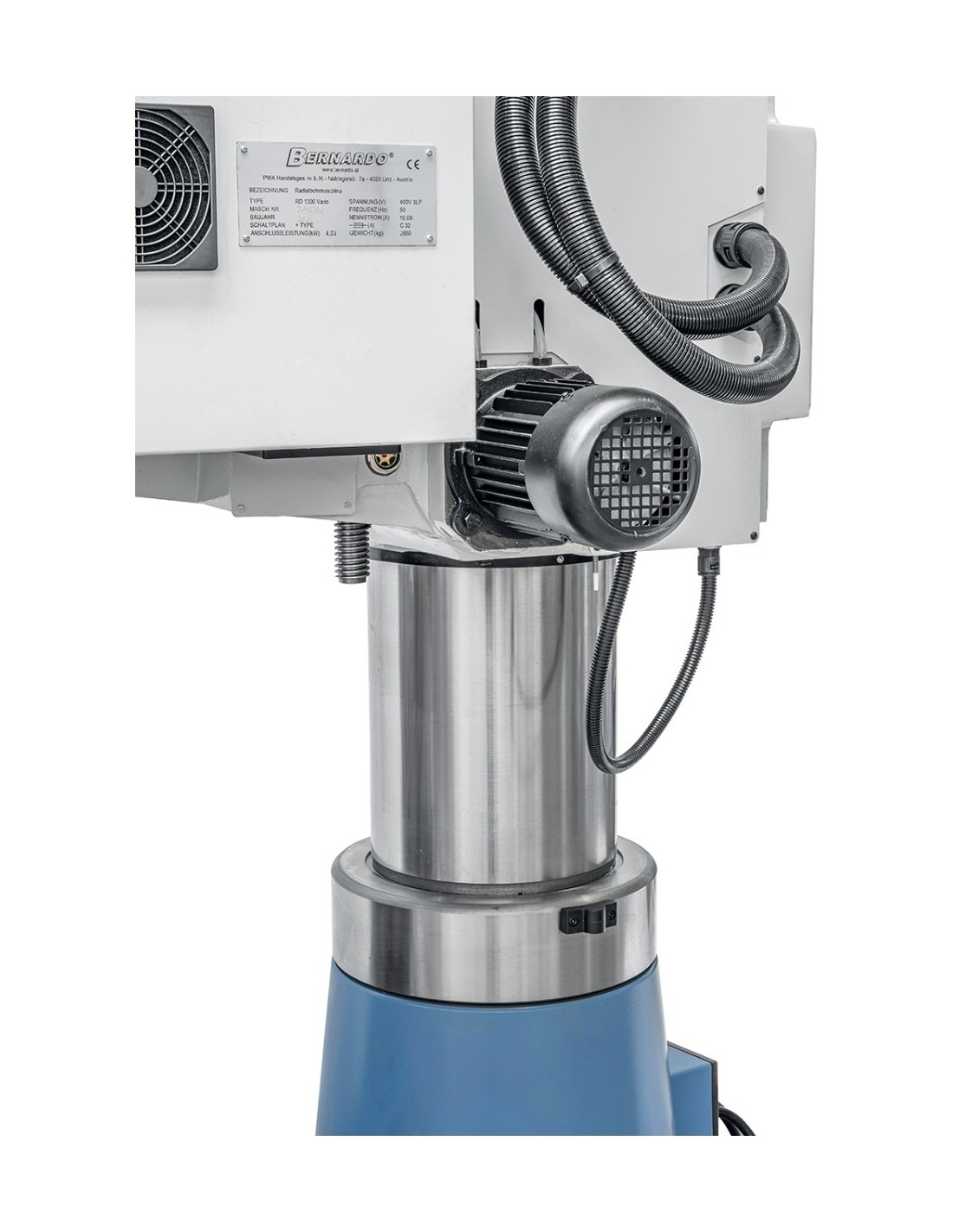

- Radial arm, drill head and column each with hydraulic clamp
- Large base plate, ideal for processing of oversize workpieces
- Torsion-free, polished column increases sliding capacity of radial arm
- Lifting motor ensures easy height adjustment of radial arm keeping the spindle in position – ideal for repetitive operations

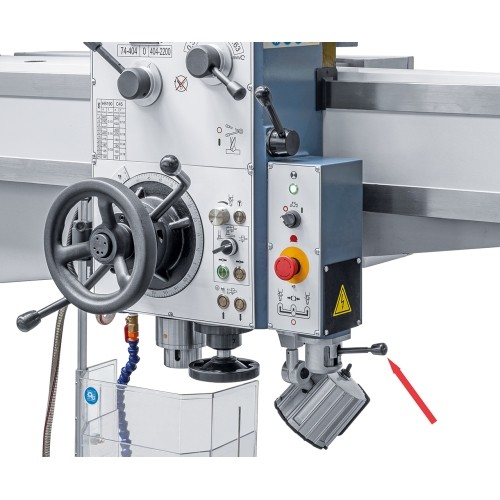

- Control switch allows for individual clamping or unclamping of drill head and/or column
- Guiderails on radial arm are hardened and polished
- Counter weight on spindle to ensure optimal balance
- Ideal for drilling, countersinking, reaming and tapping
Standard accessories

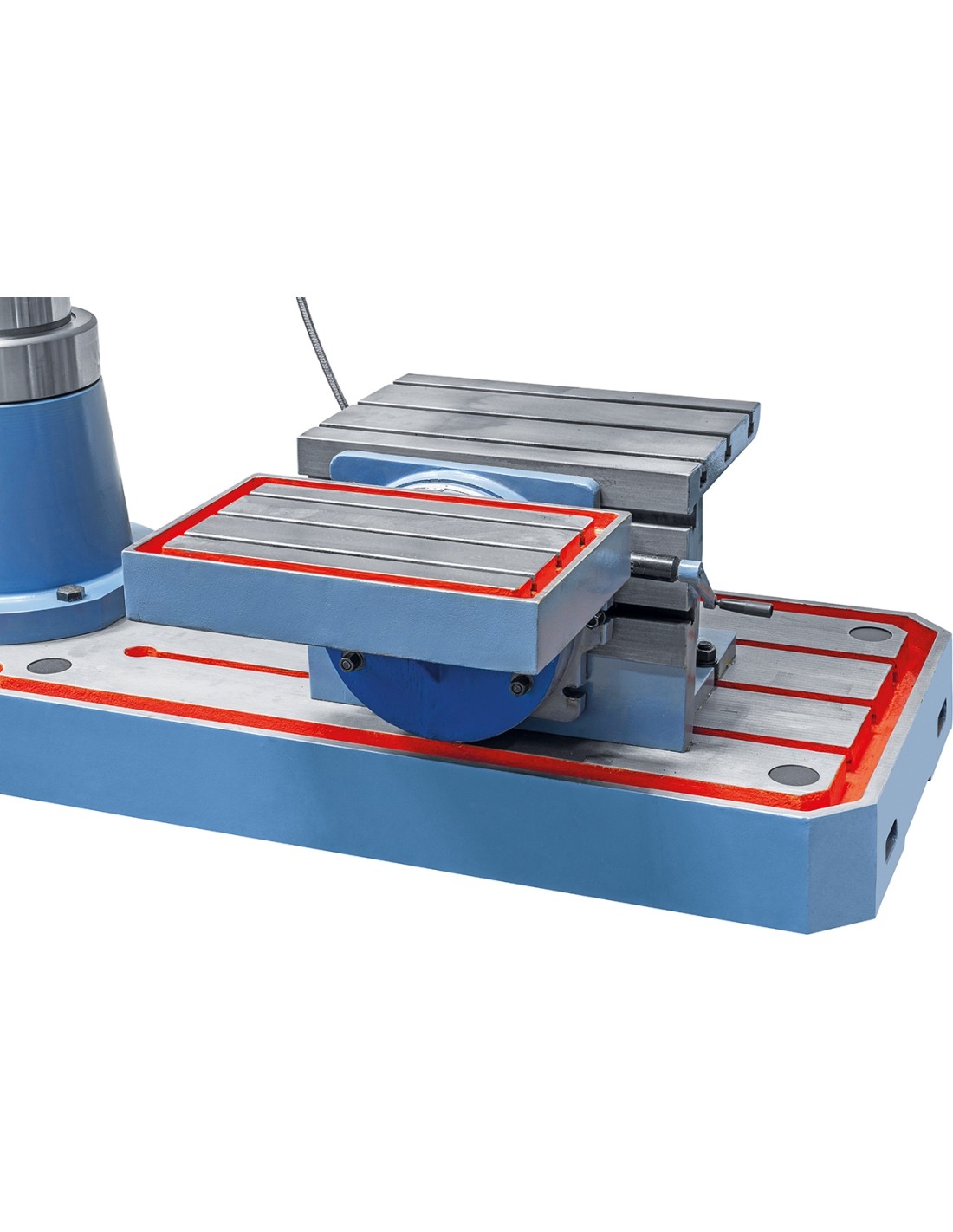

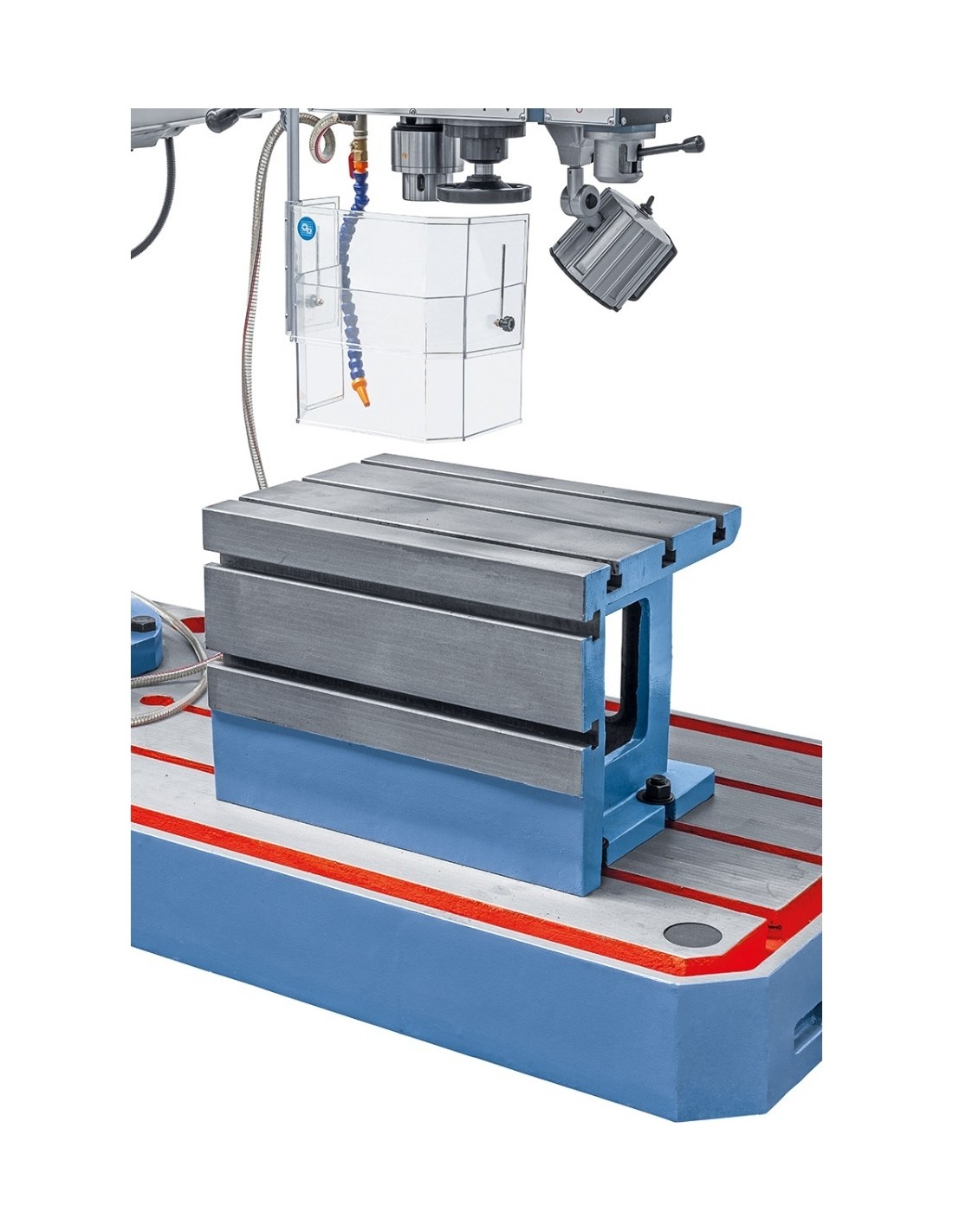

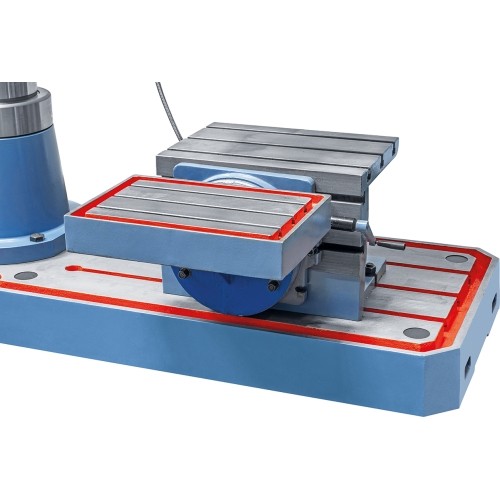

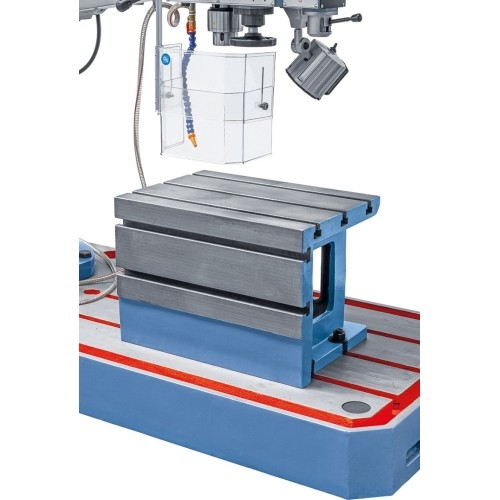

- Box table
- Drill chuck arbor
- Morse taper drill sleeve

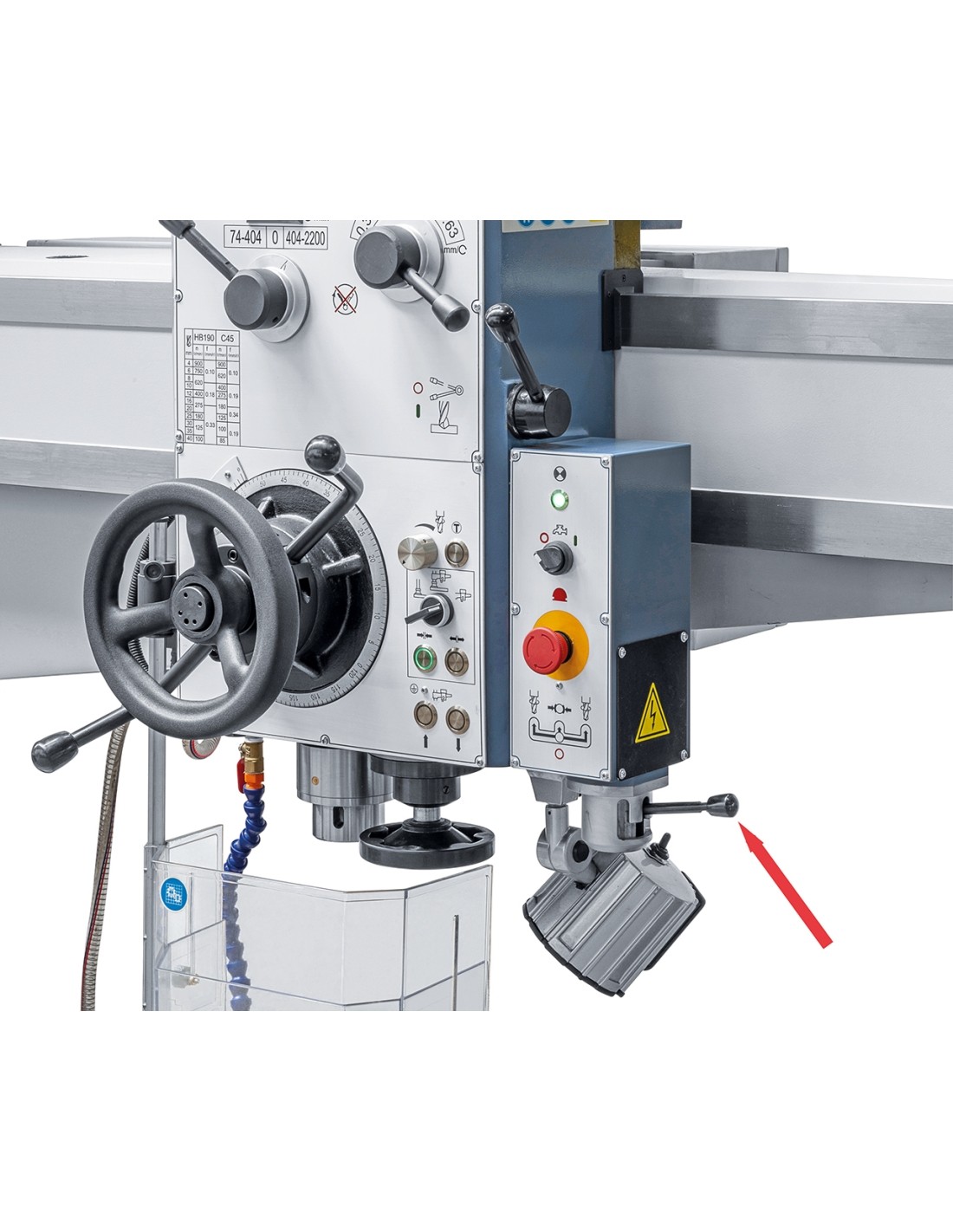

- LED machine light
- Initial filling with Shell Tellus 46

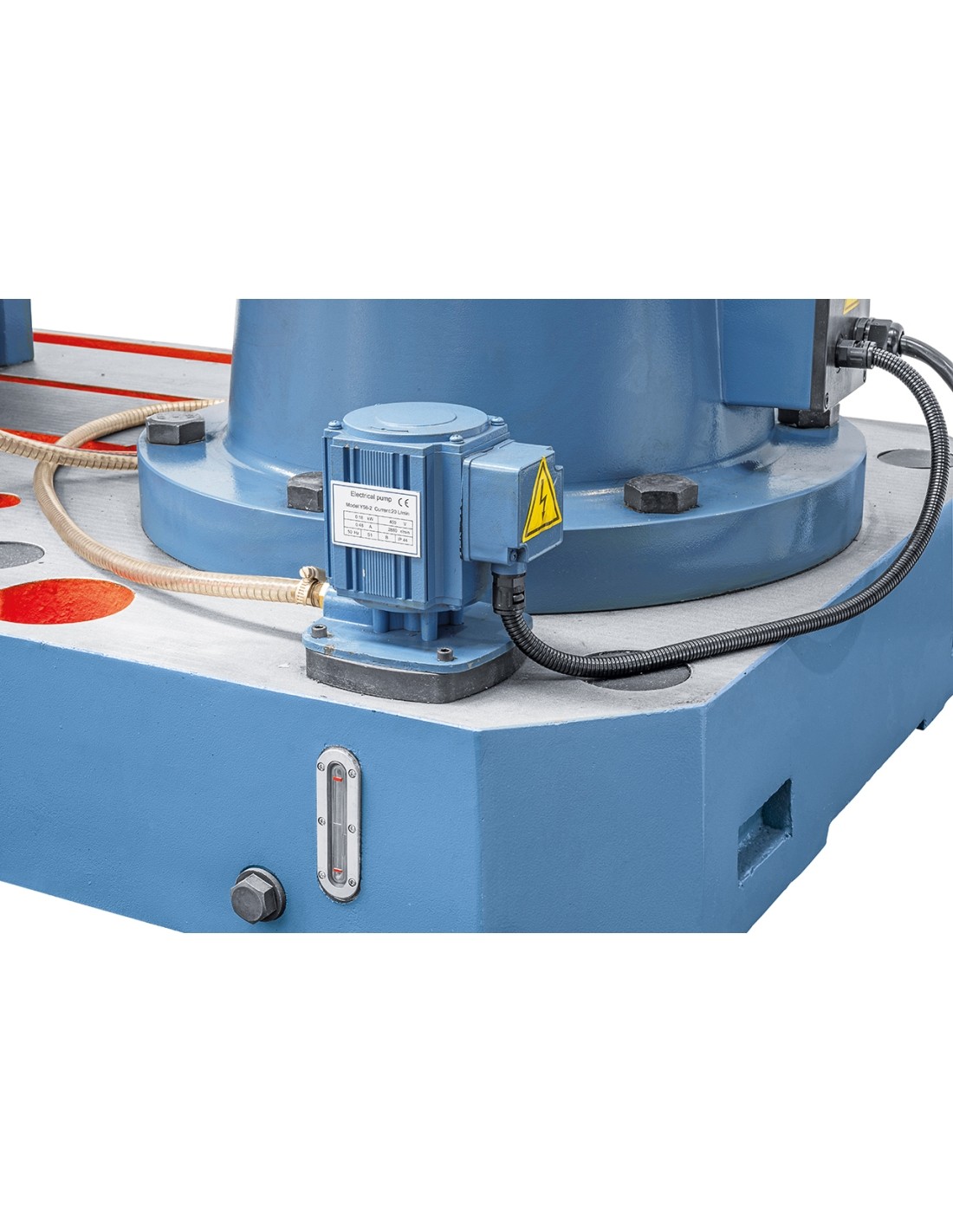

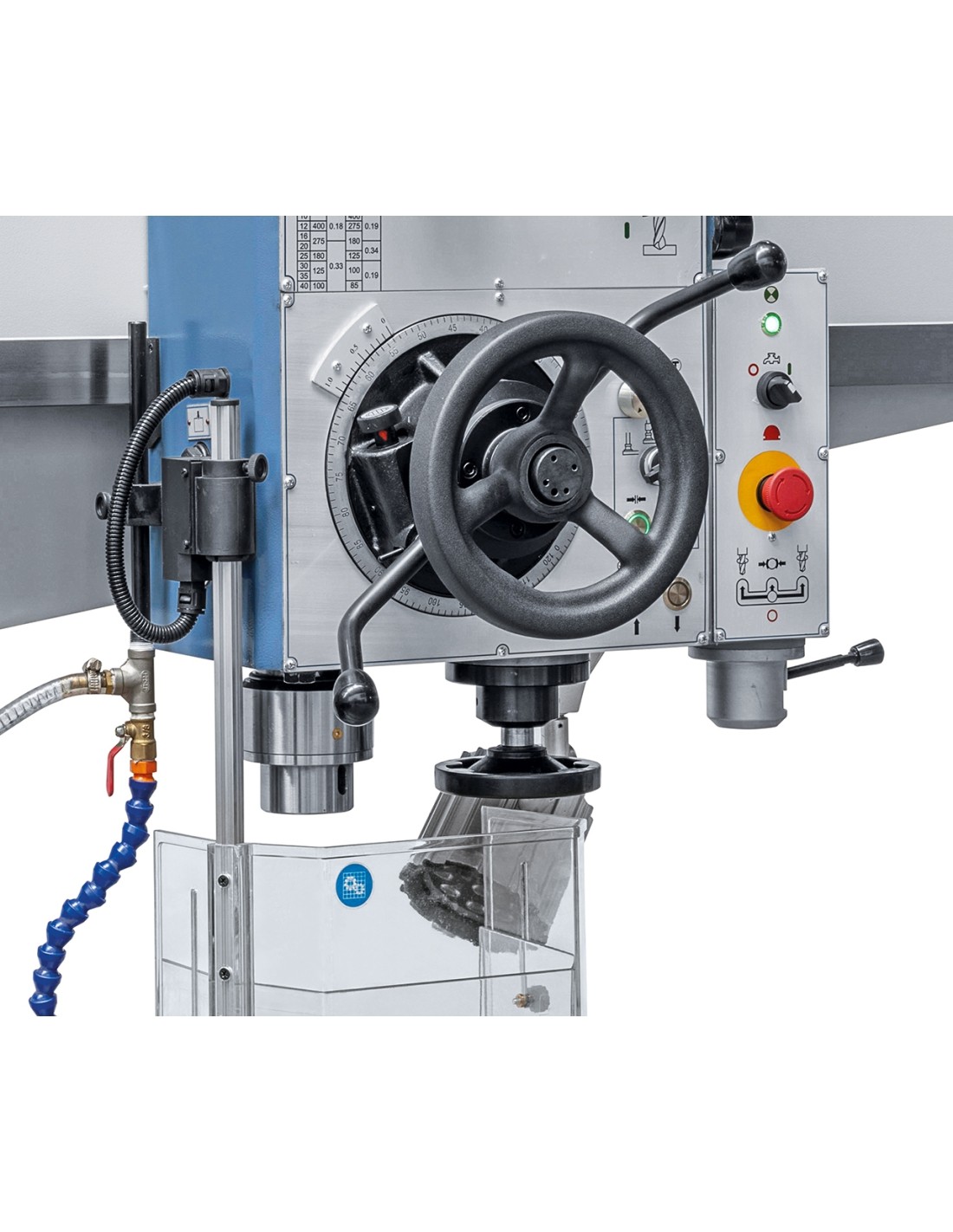

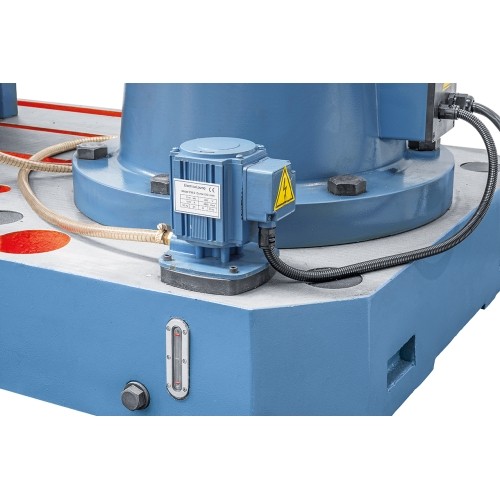

- Coolant device

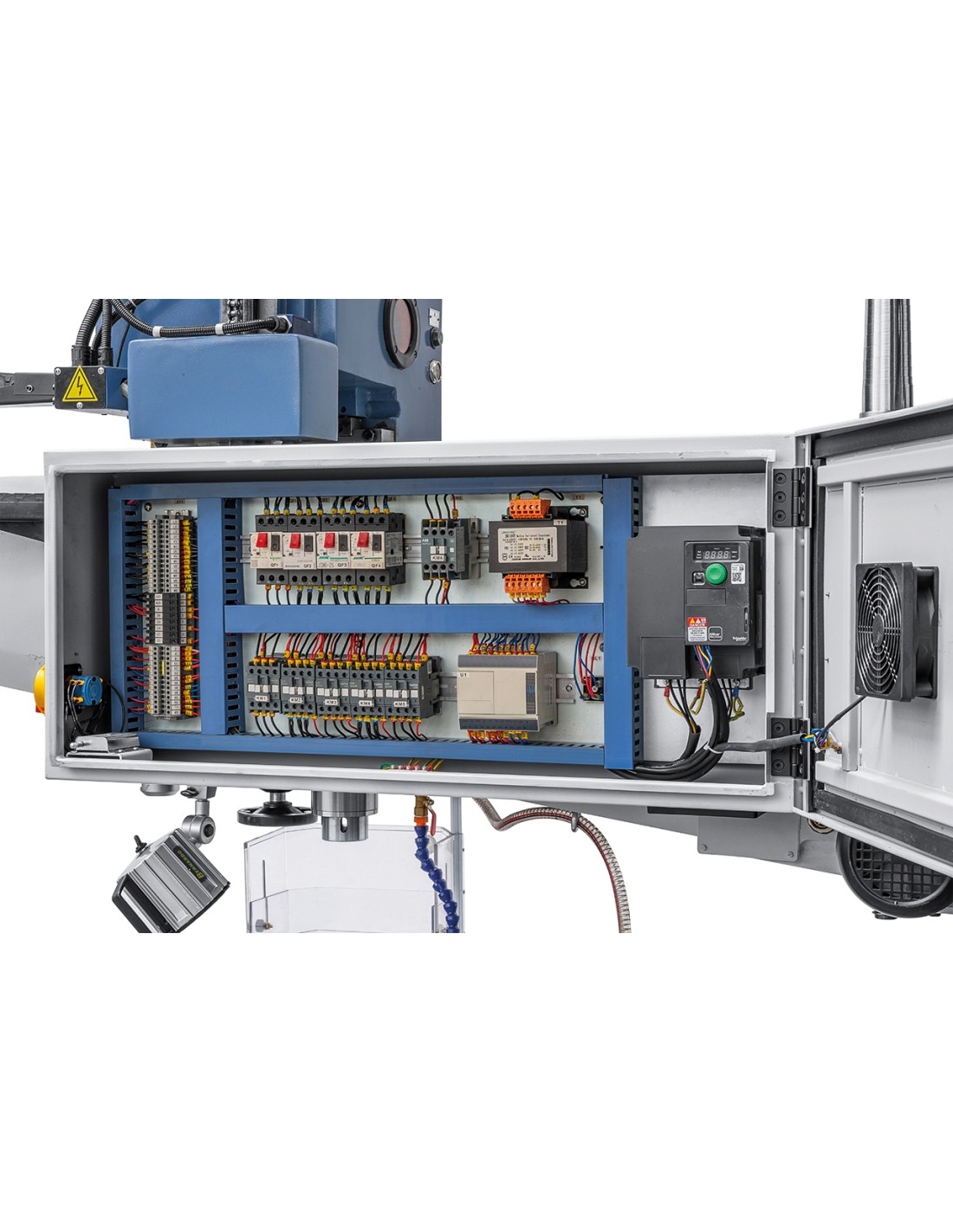

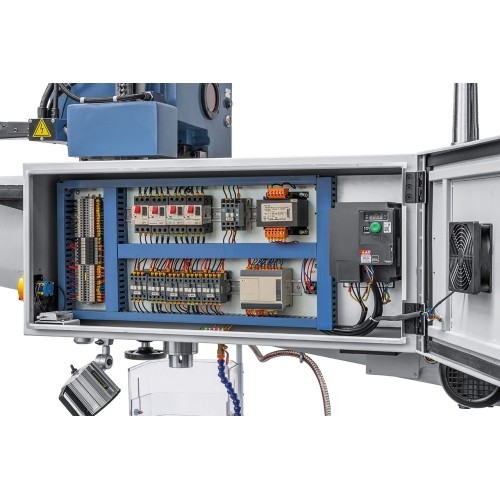

- Frequency inverter
- Digital readout of speeds

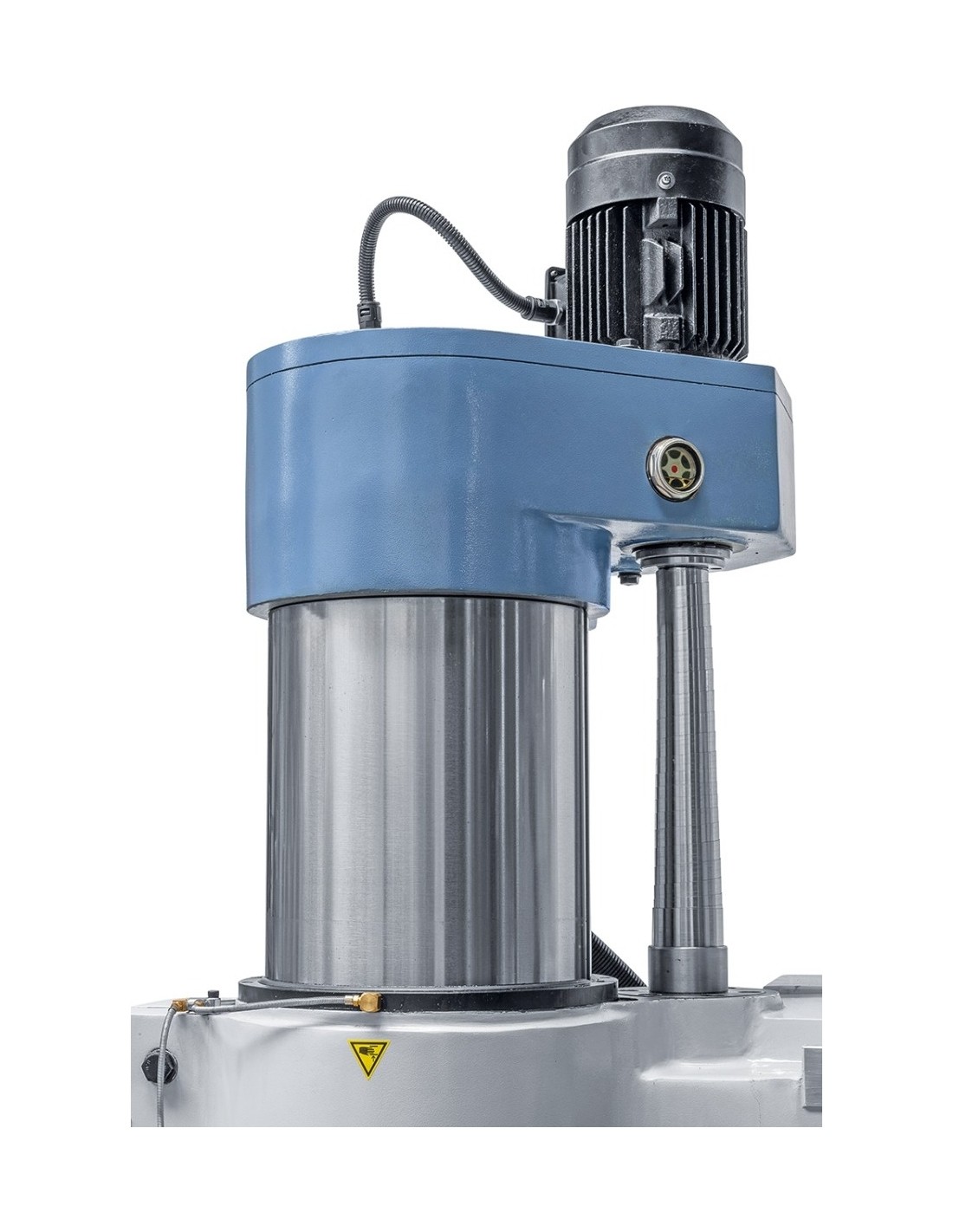

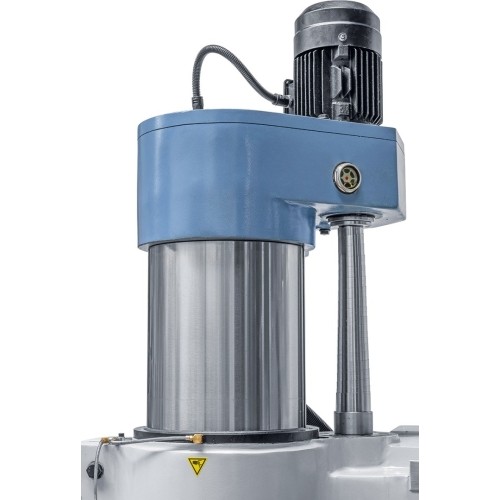

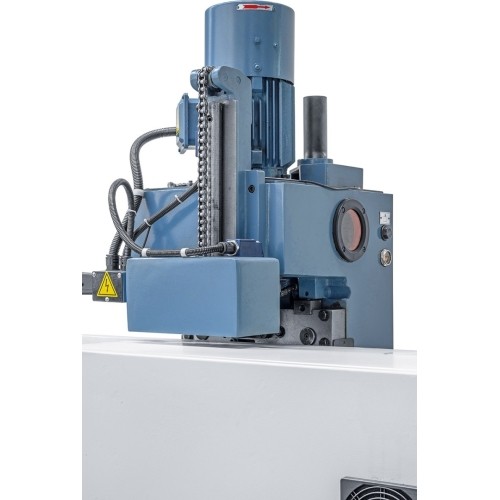

- Lifting motor
- Hydraulic motor
- Height adjustable protective cover
- Tools
