Weight approx.
2380 kg
Motor power
2,2 kW
Machine dimension (W x D x H)
2050 x 1050 x 2560 mm
Spindle stroke
290 mm
Drilling capacity max.
40 mm
Thread cutting max.
M40
Distance spindle to column min./max.
300 - 1300 mm
Vertical movement of the support
600 mm
Travel of drill head (horizontally)
1000 mm
Morse taper
MT 4
Spindle speeds
74 - 404 / 404 - 2200 rpm
Feed range
(4) 0,1 - 0,63 mm/rev.
Distance spindle to box table
100 - 700 mm
Distance spindle to base
570 - 1170 mm
Clamping area base
1220 x 900 mm
Box table (L x W x H)
640 x 450 x 450 mm

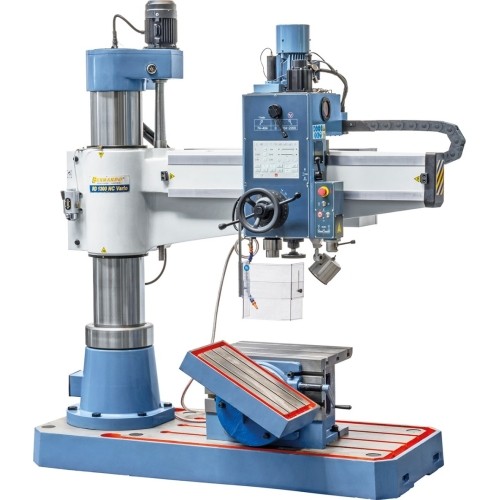

RD 1300 NC Vario

1366313
Price €37,208.00 VAT incl.

Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Supplier store
(10 pcs)
Delivery terms:
FREE pick up wednesday, july 15 d., in the store, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 2380 kg.

Description

Properties

  • The standard Bohrtronic control calculates the ideal speed or feed rate for drilling and thread cutting after entering the tool diameter and material (cast iron / steel)

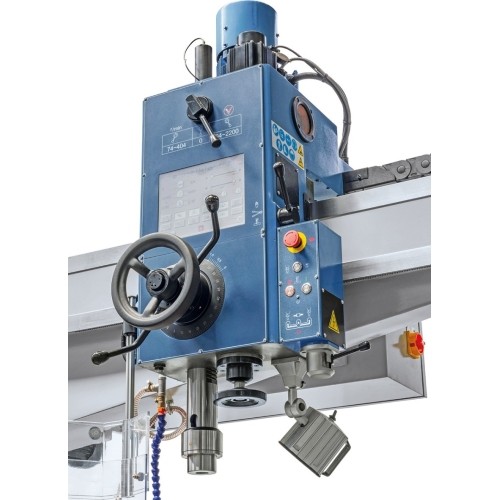

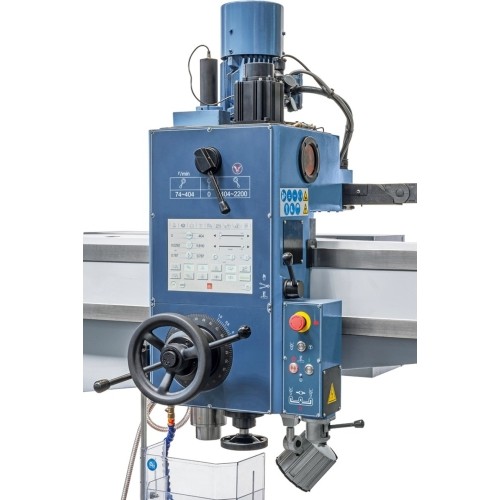

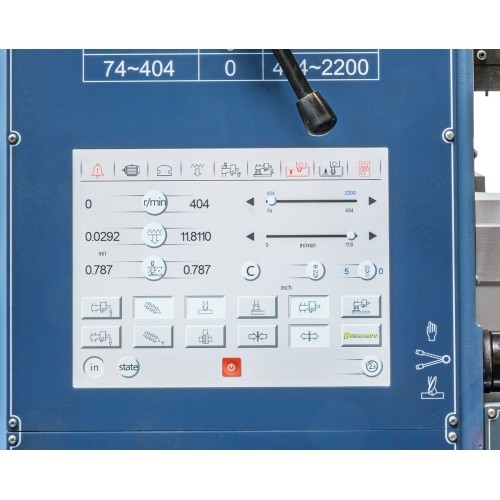

  • Large touchscreen for all settings, such as speed, drilling / thread cutting, height adjustment of support arm,….
  • The quill feed takes place by a high quality servo motor

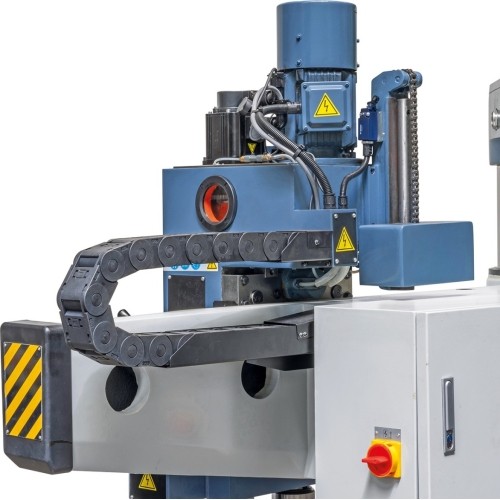

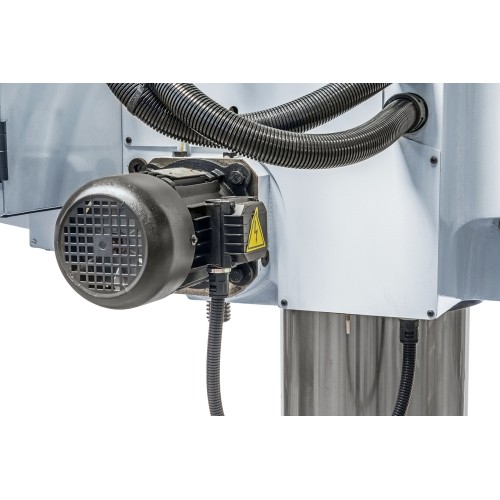

  • Lifting motor ensures easy height adjustment of radial arm keeping the spindle in position – ideal for repetitive operations
  • Electronically adjustable drill depth including checking of the input value
  • Complete with stepless speed, set speed is visible on digital display
  • Display of the measurements either mm or inch
  • Guiderails on radial arm are hardened and polished
  • Counter weight on spindle to ensure optimal balance
  • Ideal for drilling, countersinking, reaming and tapping

Standard accessories

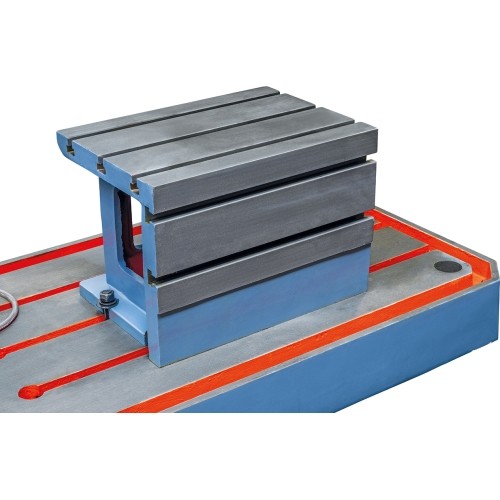

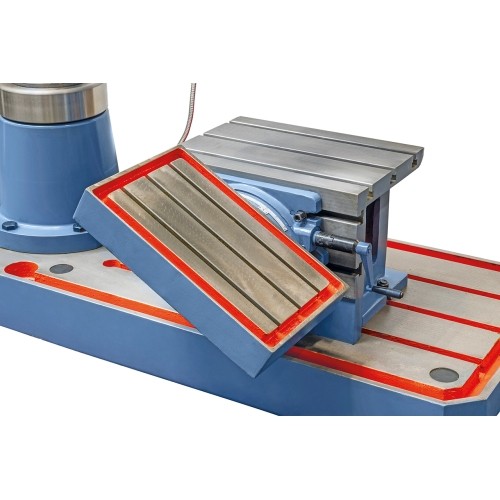

  • Box table
  • Drill chuck arbor
  • Morse taper drill sleeve
  • LED machine light
  • Initial filling with Shell Tellus 46

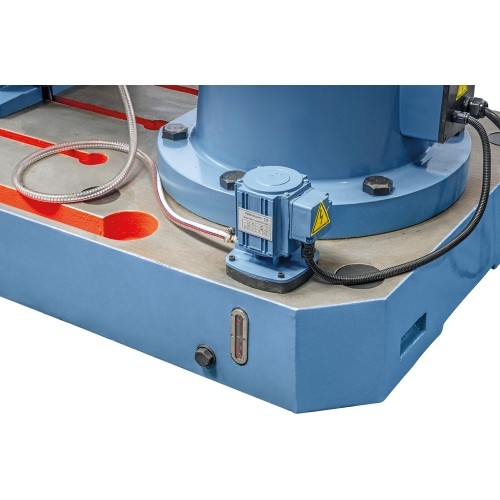

  • Coolant device
  • Frequency inverter
  • Digital readout of speeds

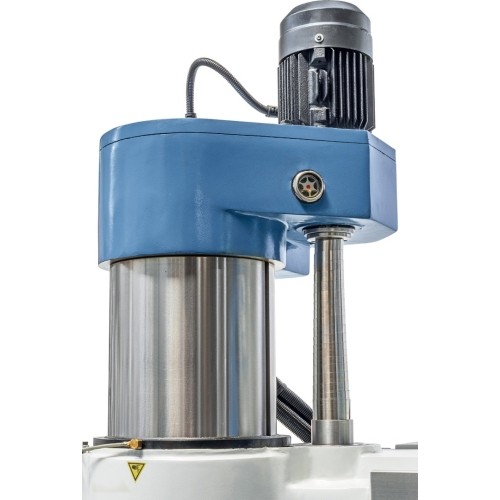

  • Lifting motor
  • Hydraulic motor
  • Height adjustable protective cover
  • Tools
