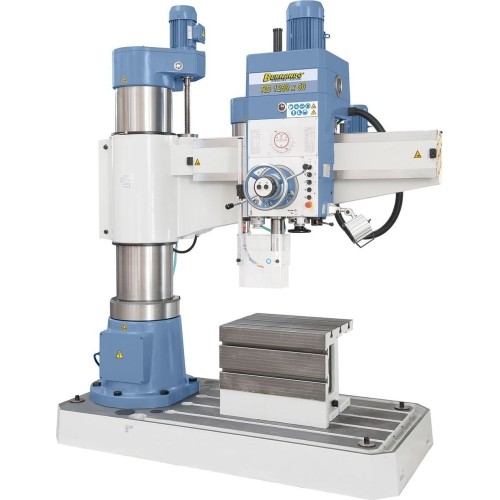

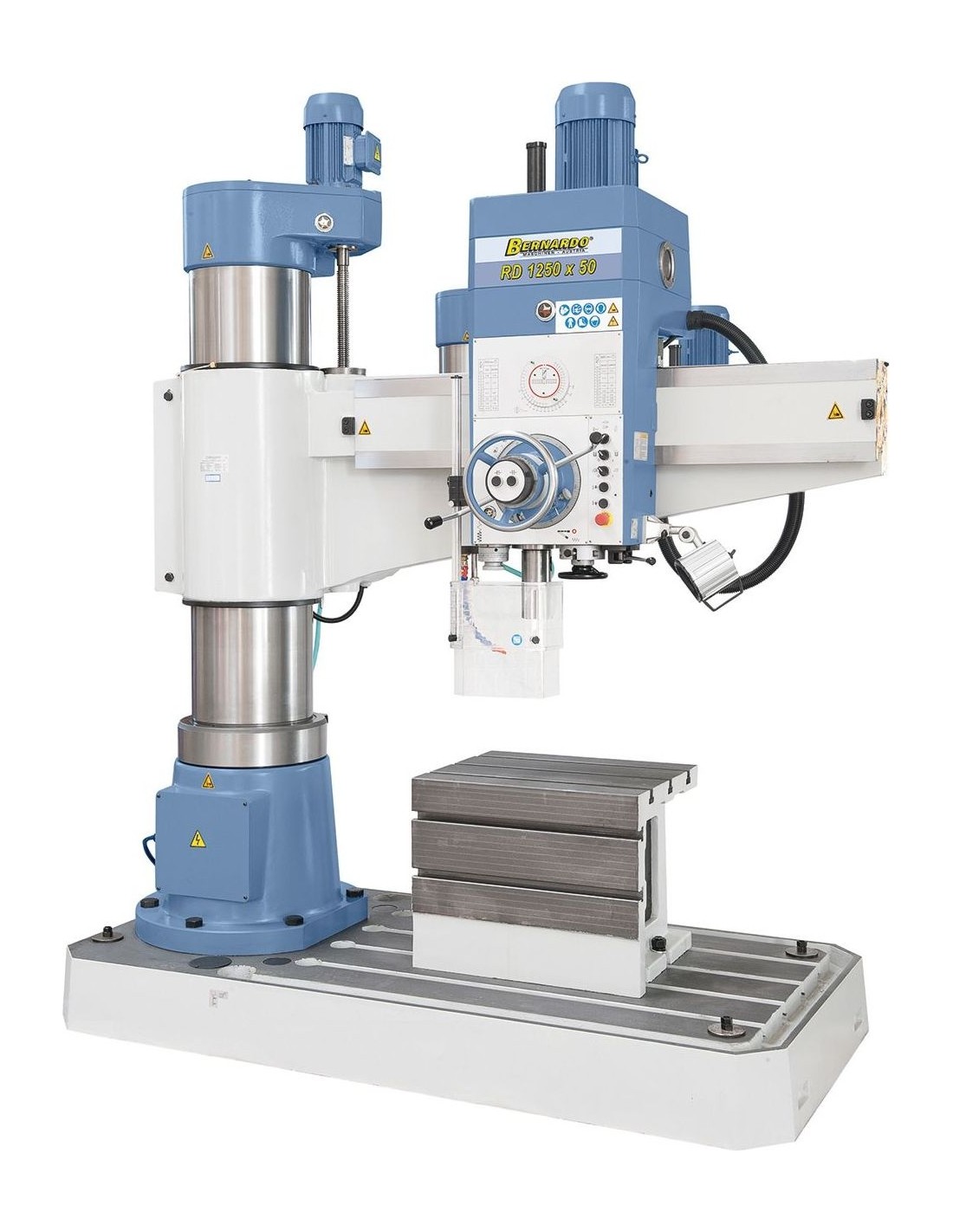

RD 1250 x 50
RD 1250 x 50
RD 1250 x 50
RD 1250 x 50
RD 1250 x 50
RD 1250 x 50
  • Online only
RD 1250 x 50
RD 1250 x 50
RD 1250 x 50
RD 1250 x 50
RD 1250 x 50
RD 1250 x 50

Weight approx.
3000 kg
Motor power
4,0 kW
Machine dimension (W x D x H)
2035 x 1000 x 2830 mm
Spindle stroke
335 mm
Drilling capacity max.
50 mm
Thread cutting max.
M42
Distance spindle to column min./max.
320 – 1220 mm
Vertical movement of the support
580 mm
Travel of drill head (horizontally)
900 mm
Morse taper
MT 5
Spindle speeds
(16) 25 - 2000 rpm
Feed range
(16) 0,04 – 3,2 mm/rev.
Distance spindle to box table
0 - 670 mm
Distance spindle to base
330 – 1170 mm
Clamping area base
1300 x 980 mm
Box table (L x W x H)
630 x 500 x 500 mm

RD 1250 x 50

1320310
Price €30,559.00 VAT incl.

Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Supplier store
(10 pcs)
Delivery terms:
FREE pick up wednesday, july 15 d., in the store, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 3000 kg.

Description

Properties

  • Oversize base plate, ideal for processing of large workpieces
  • Torsion-free, polished column promotes sliding capacity of radial arm
  • Radial arm and drill head feature independent hydraulic clamp
  • Lifting motor allows for easy height adjustment of radial arm

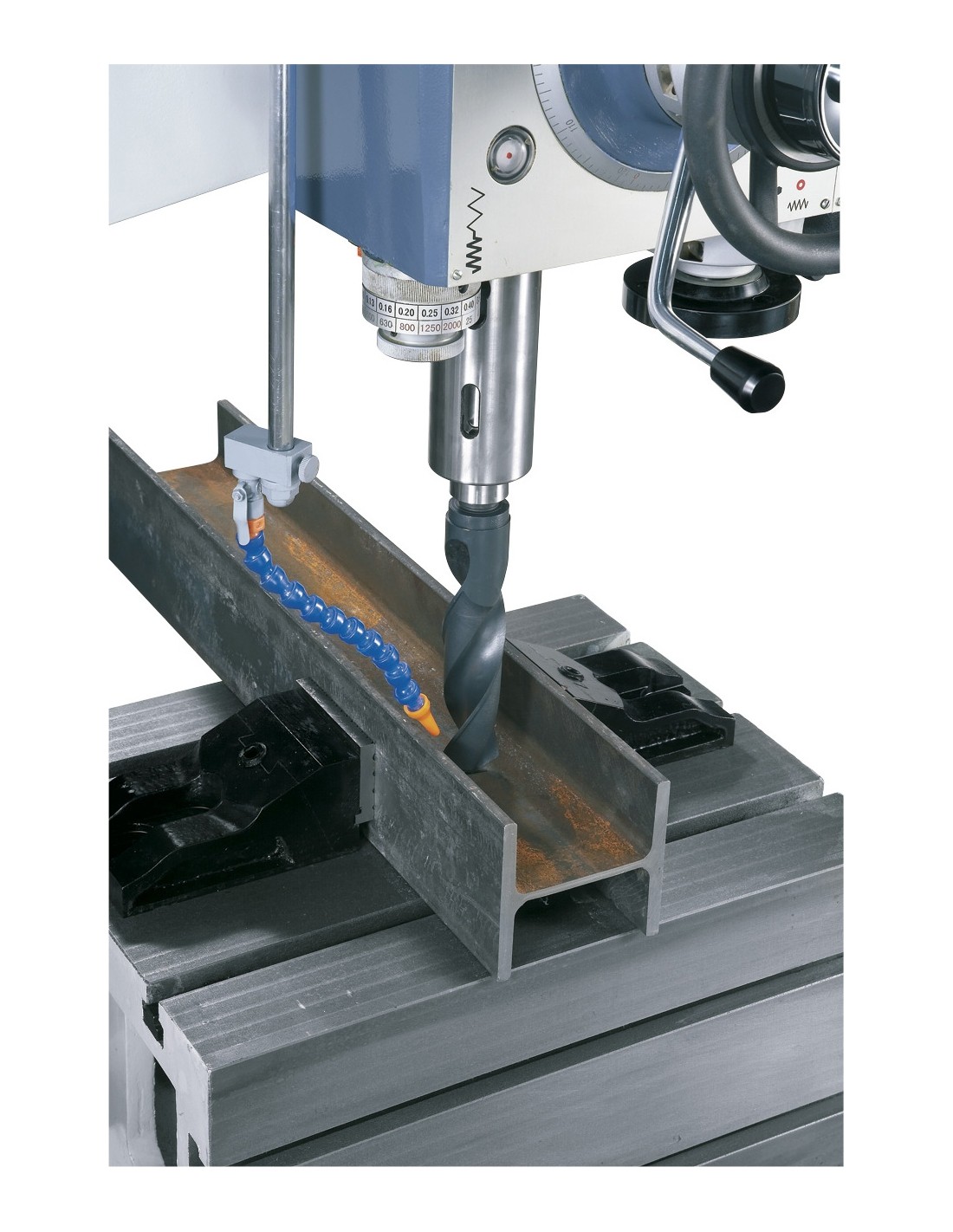

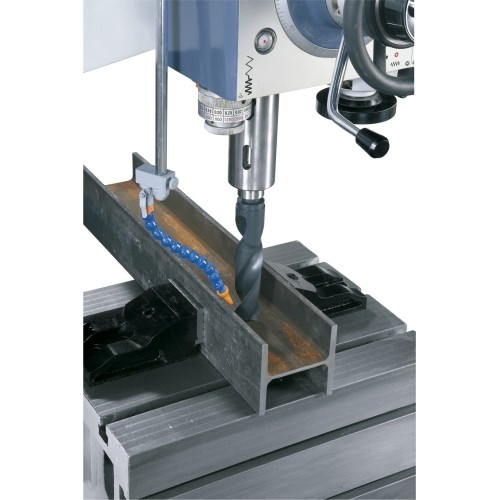

  • Ideal for drilling, countersinking, reaming and tapping
  • Hardened, polished gears in oil bath
  • Polished surface ensures for smooth movement of drill head on radial arm

Standard accessories

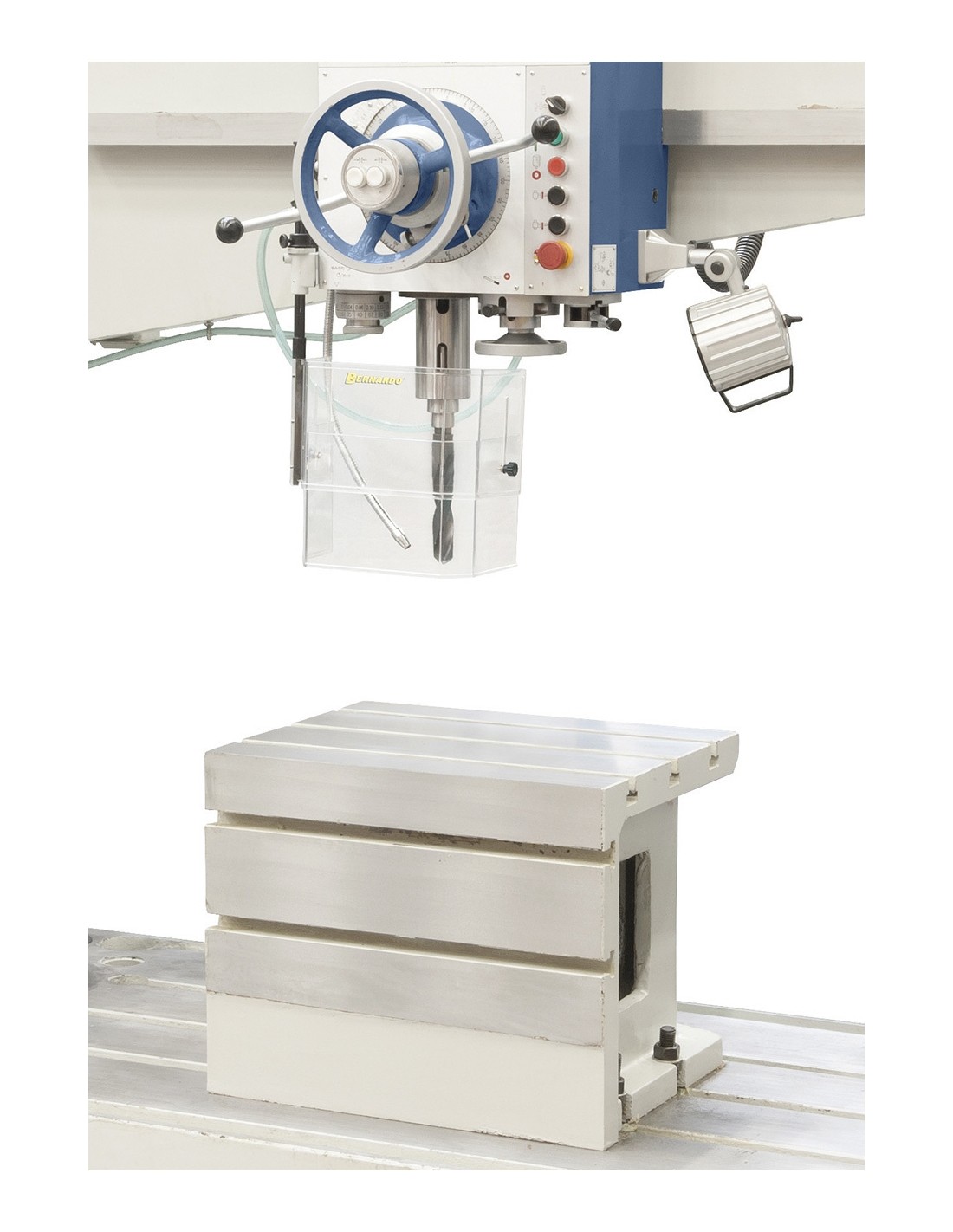

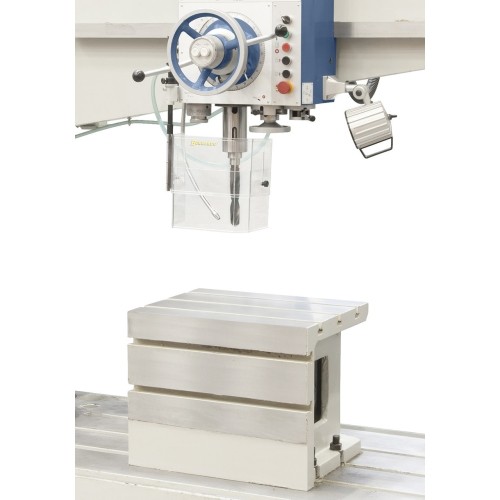

  • Box table
  • Morse taper drill sleeve MT 5/4, MT 4/3, MT 3/2
  • LED machine light
  • Initial filling with Shell Tellus 46
  • Coolant device

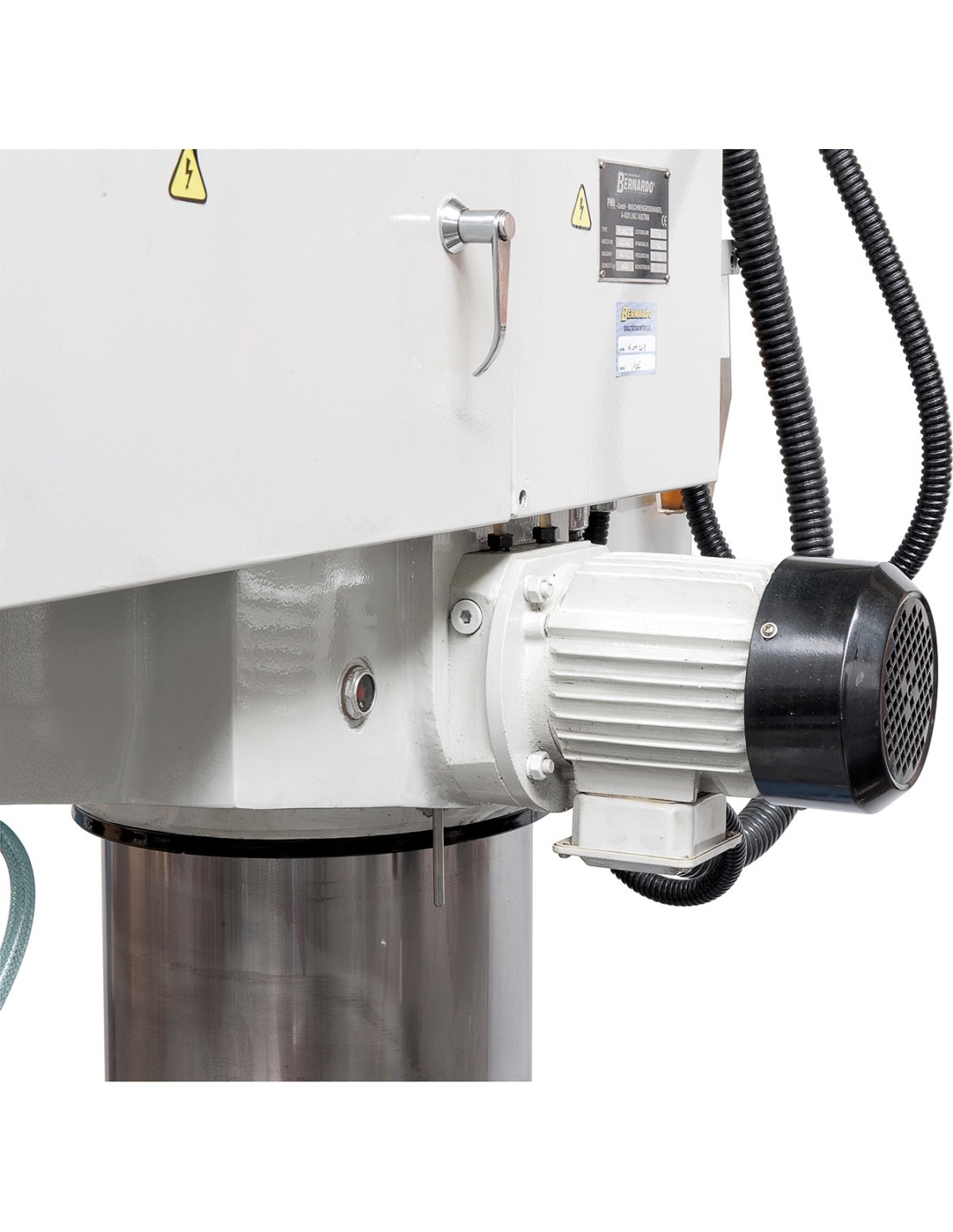

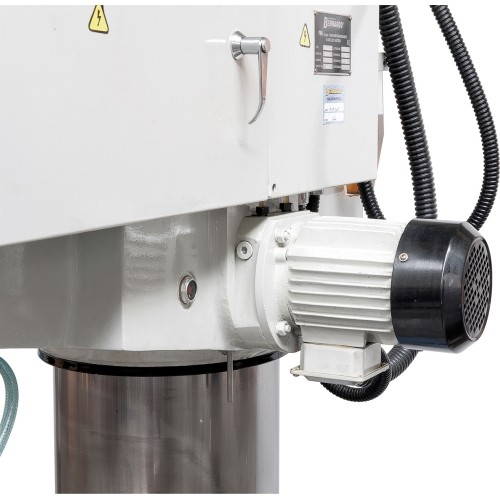

  • Lifting motor
  • Hydraulic motor
  • Tools
  • Height adjustable protective cover
