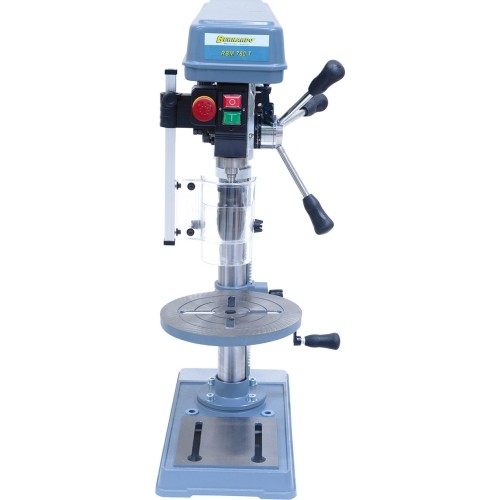

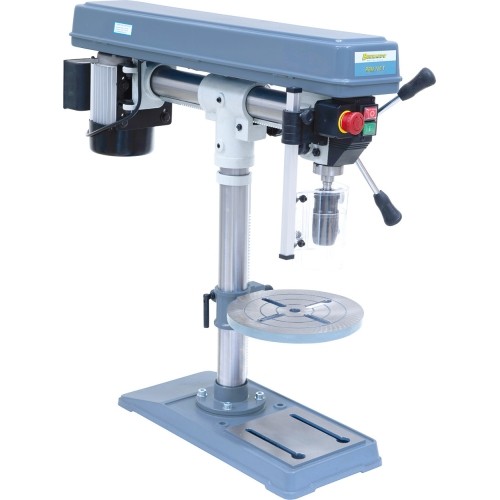

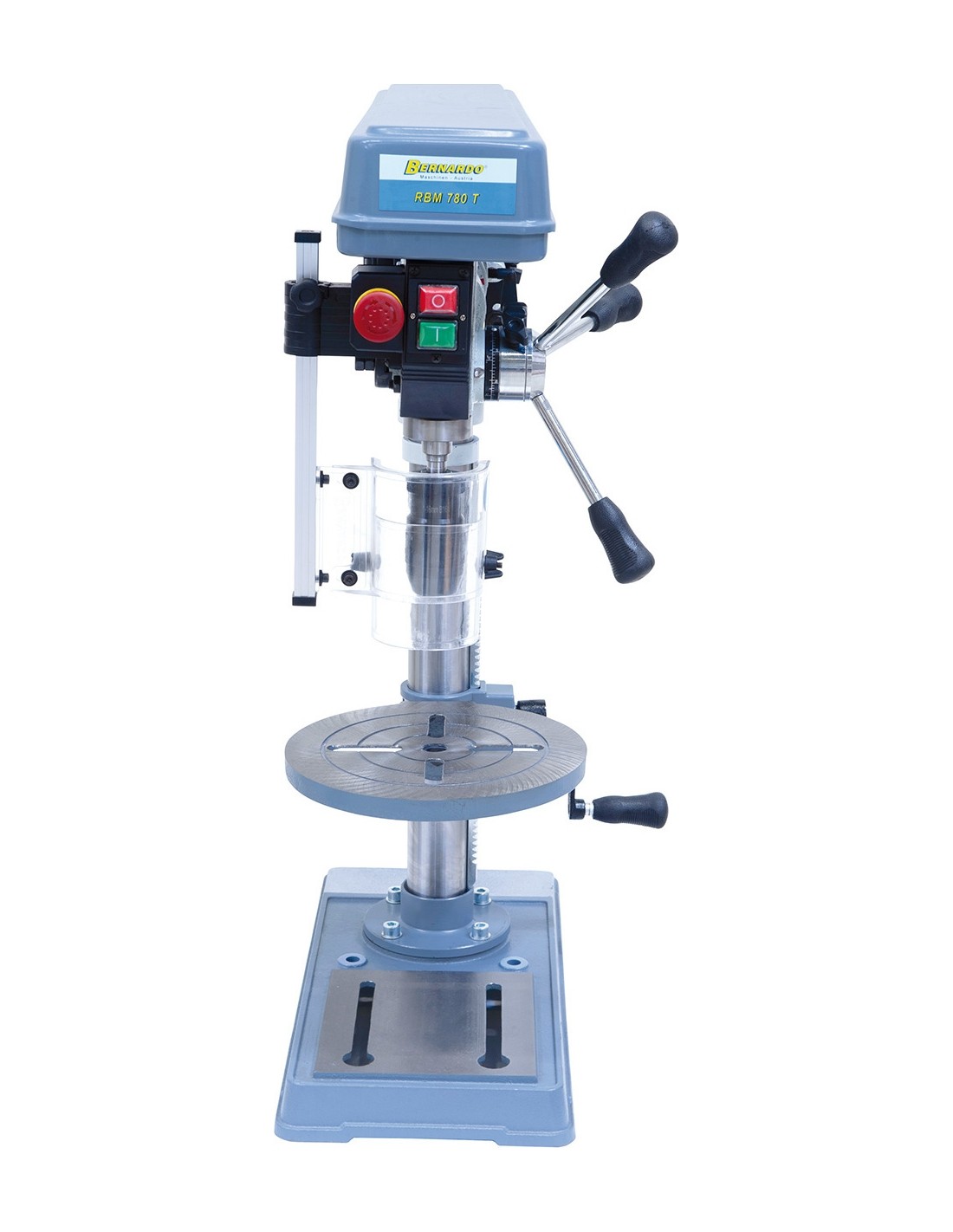

RBM 780 T - 230 V
RBM 780 T - 230 V
RBM 780 T - 230 V
RBM 780 T - 230 V
RBM 780 T - 230 V
RBM 780 T - 230 V
RBM 780 T - 230 V
RBM 780 T - 230 V
RBM 780 T - 230 V
RBM 780 T - 230 V
  • On sale!
RBM 780 T - 230 V
RBM 780 T - 230 V
RBM 780 T - 230 V
RBM 780 T - 230 V
RBM 780 T - 230 V
RBM 780 T - 230 V
RBM 780 T - 230 V
RBM 780 T - 230 V
RBM 780 T - 230 V
RBM 780 T - 230 V

Weight approx.
40 kg
Machine dimension (W x D x H)
280 x 850 x 820 mm
Spindle stroke
60 mm

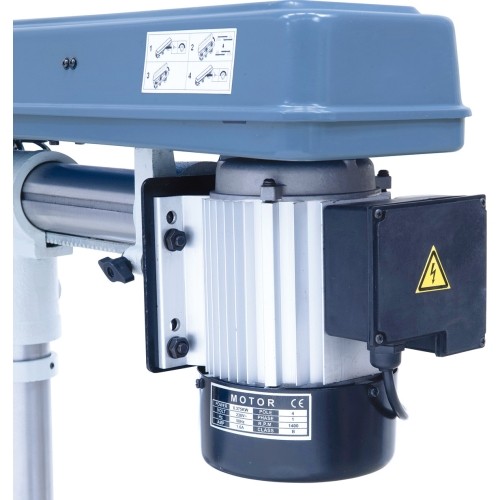

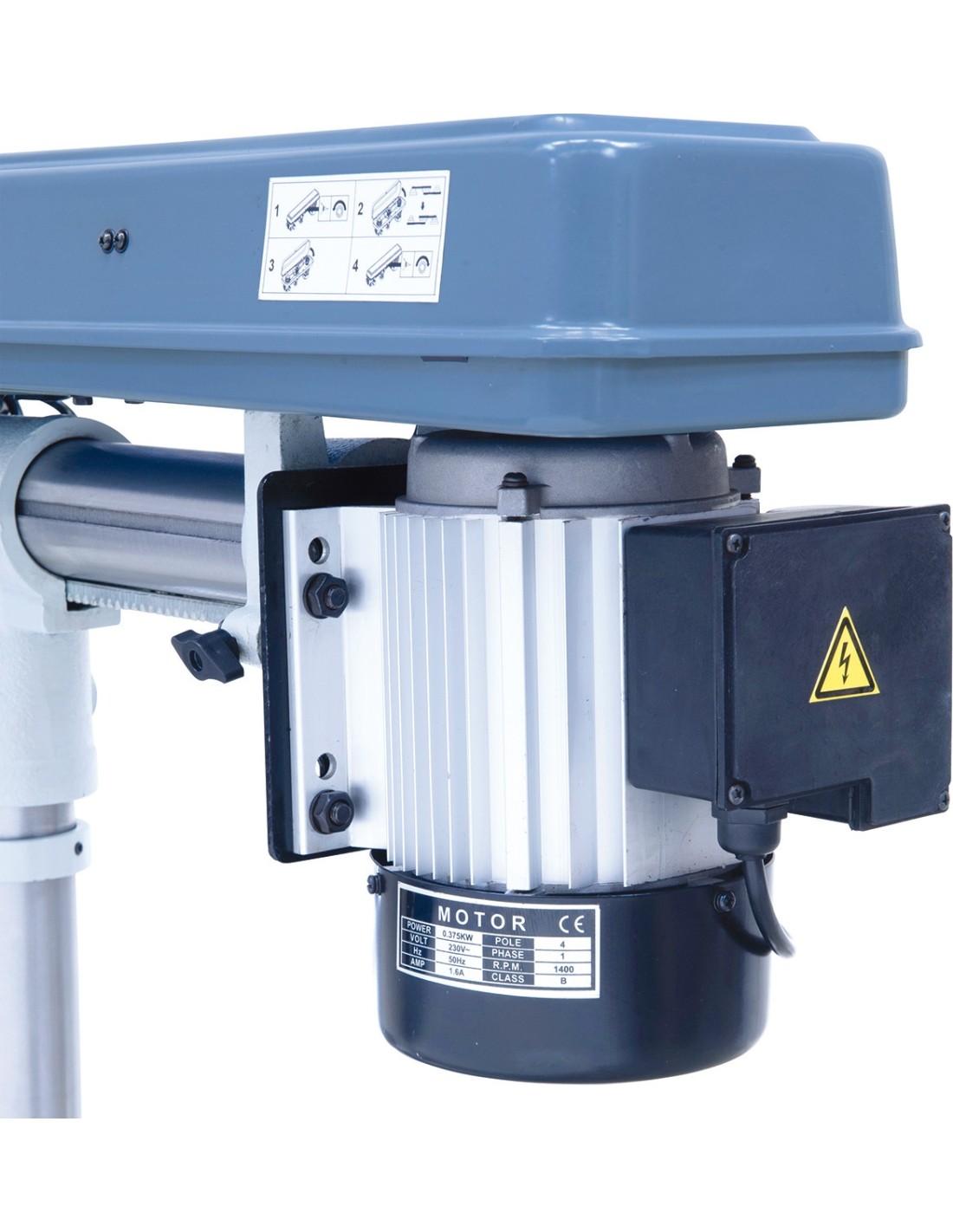

Motor power output S1 100%
0,37 kW
Motor power input S6 40%
0,55 kW
Drilling capacity max.
16 mm
Distance spindle to column min./max.
115 - 395 mm
Morse taper
MT 2
Spindle speeds
(12) 300 - 2550 rpm
Drill chuck
1 - 16 mm / B 16
Column diameter
58 mm
Working surface of base
185 x 200 mm
Table size
Ø 255 mm
Drill head tiltable
-90° to +45°
Phase
230 V

RBM 780 T - 230 V

1092023
Price €490.00 VAT incl.
Special price
A discounted price is currently applied to this product.
-24%
Standard price
€648.00 incl. VAT

Stock Quantity:
Kaunas Shop
(1 pcs)
Central warehouse
not available
Delivery terms:
FREE pick up today, in the store, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 40 kg.
We will deliver the product to you via: 1-2 w.d. Venipak (€10.00)
Weight: 40 kg.

Description

Properties

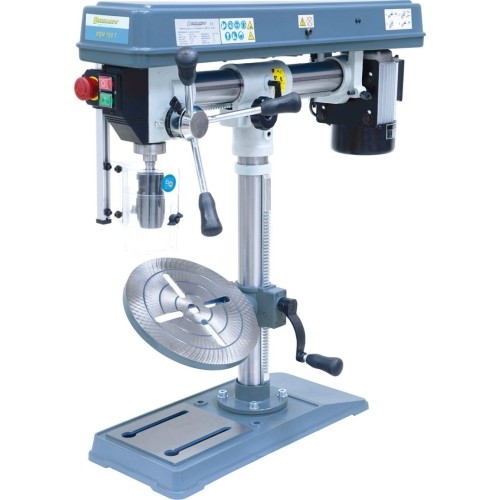

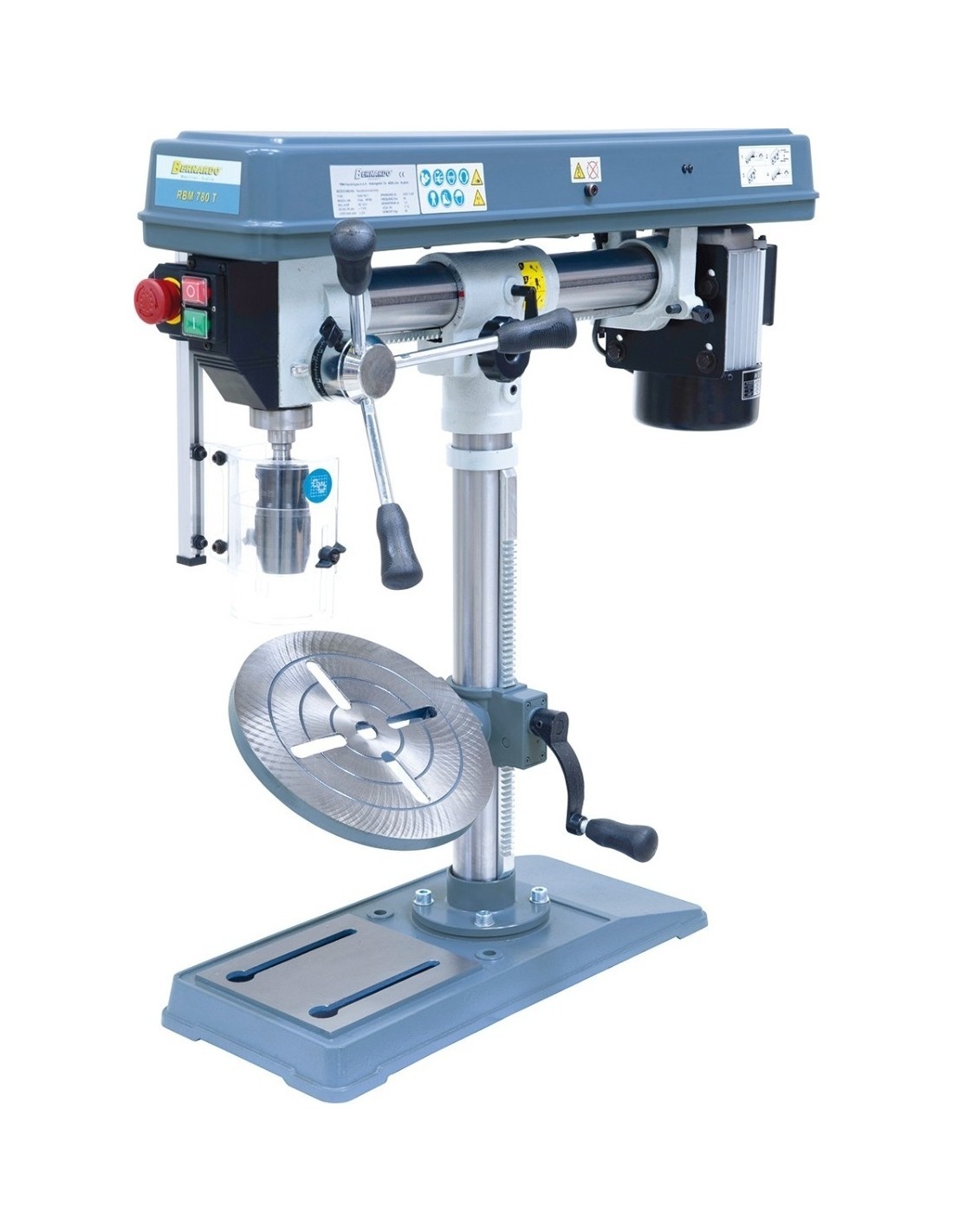

  • Precise machined work table tilts -45° to +45°
  • Safety switch in accordance with the IP 54 standard features undervoltage release
  • High concentricity, spindle seated in precision ball bearings

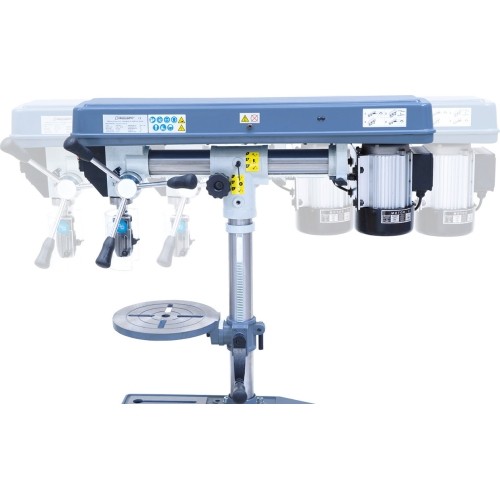

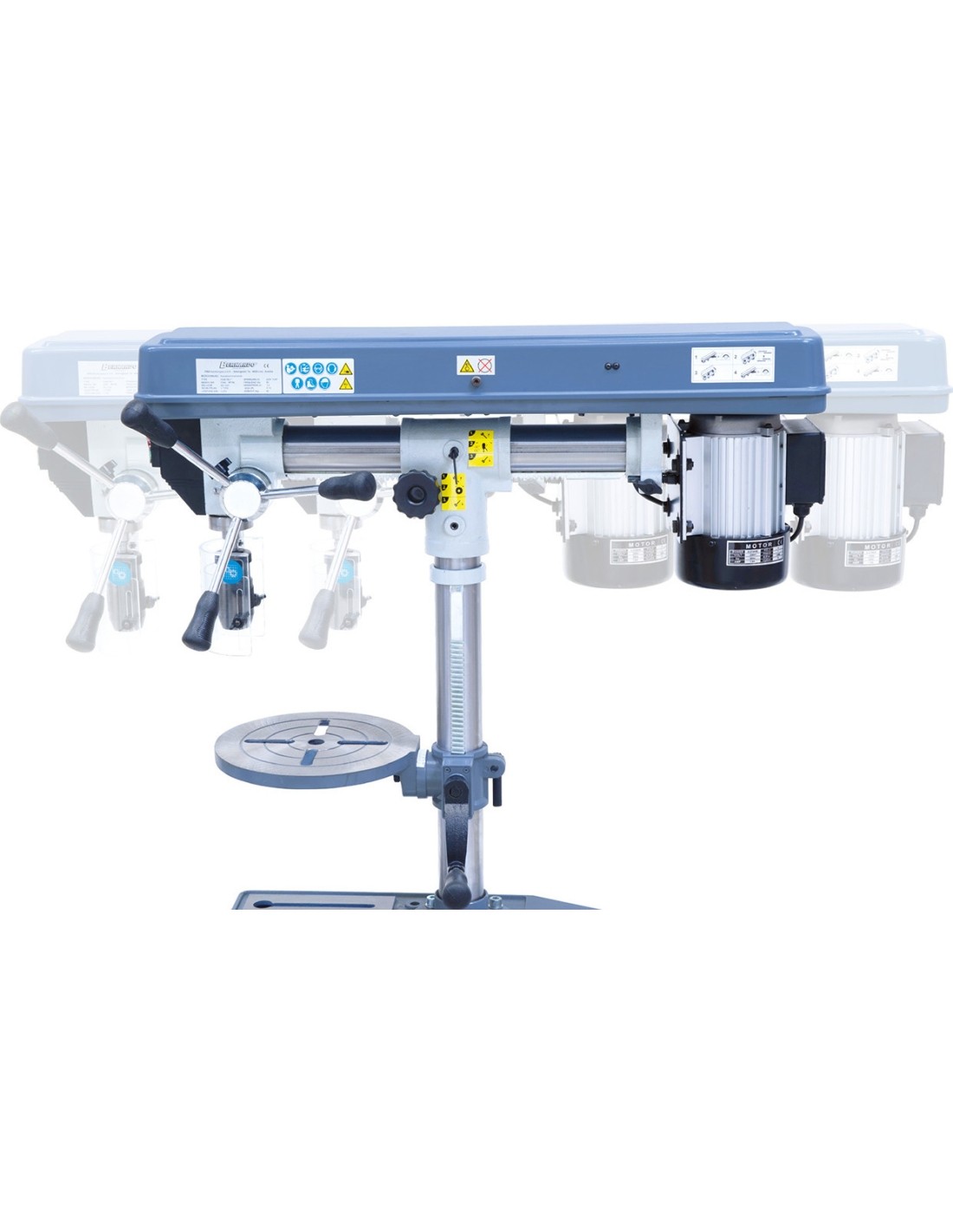

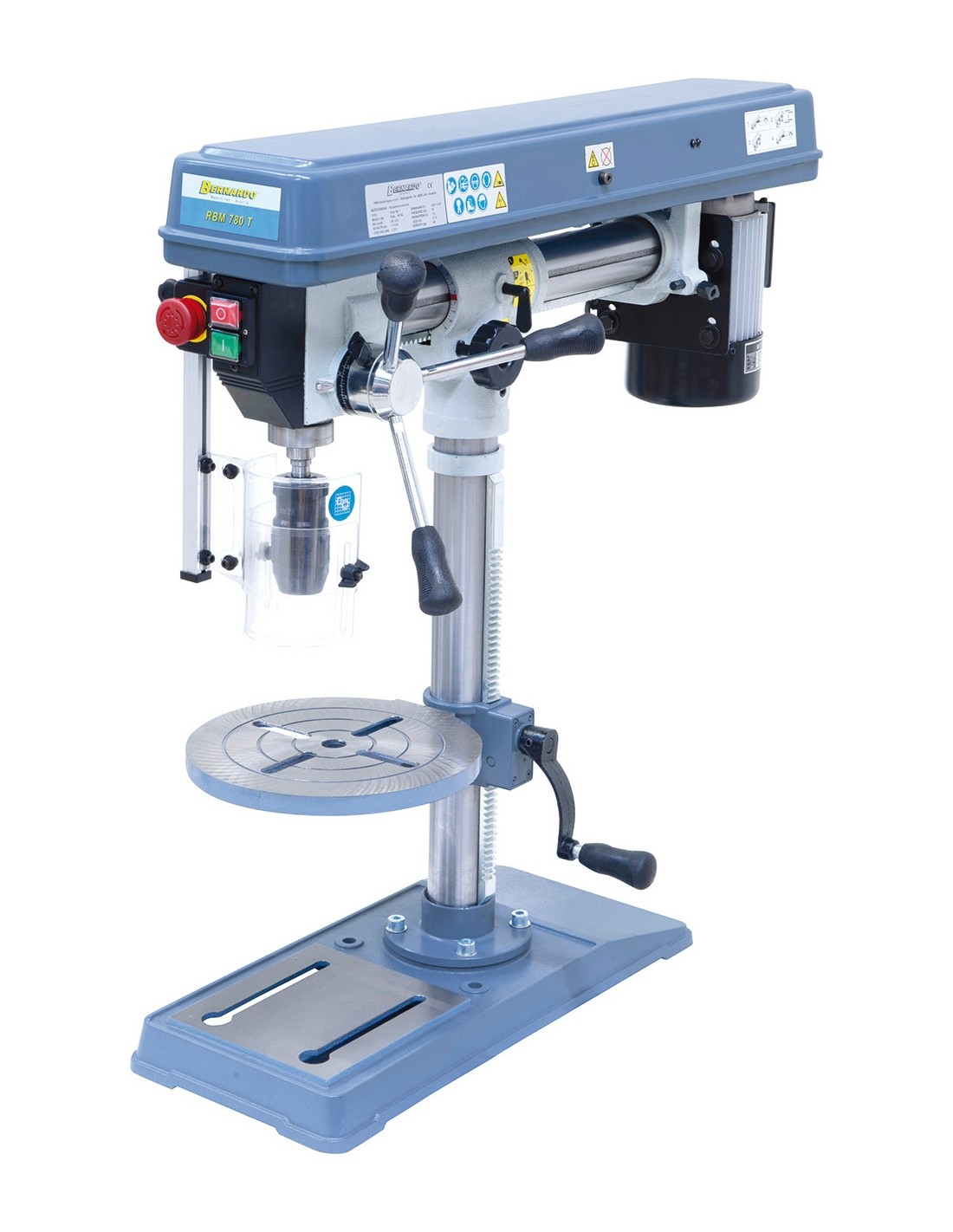

  • Extendable, turn- and tiltable drill head ensures high productivity

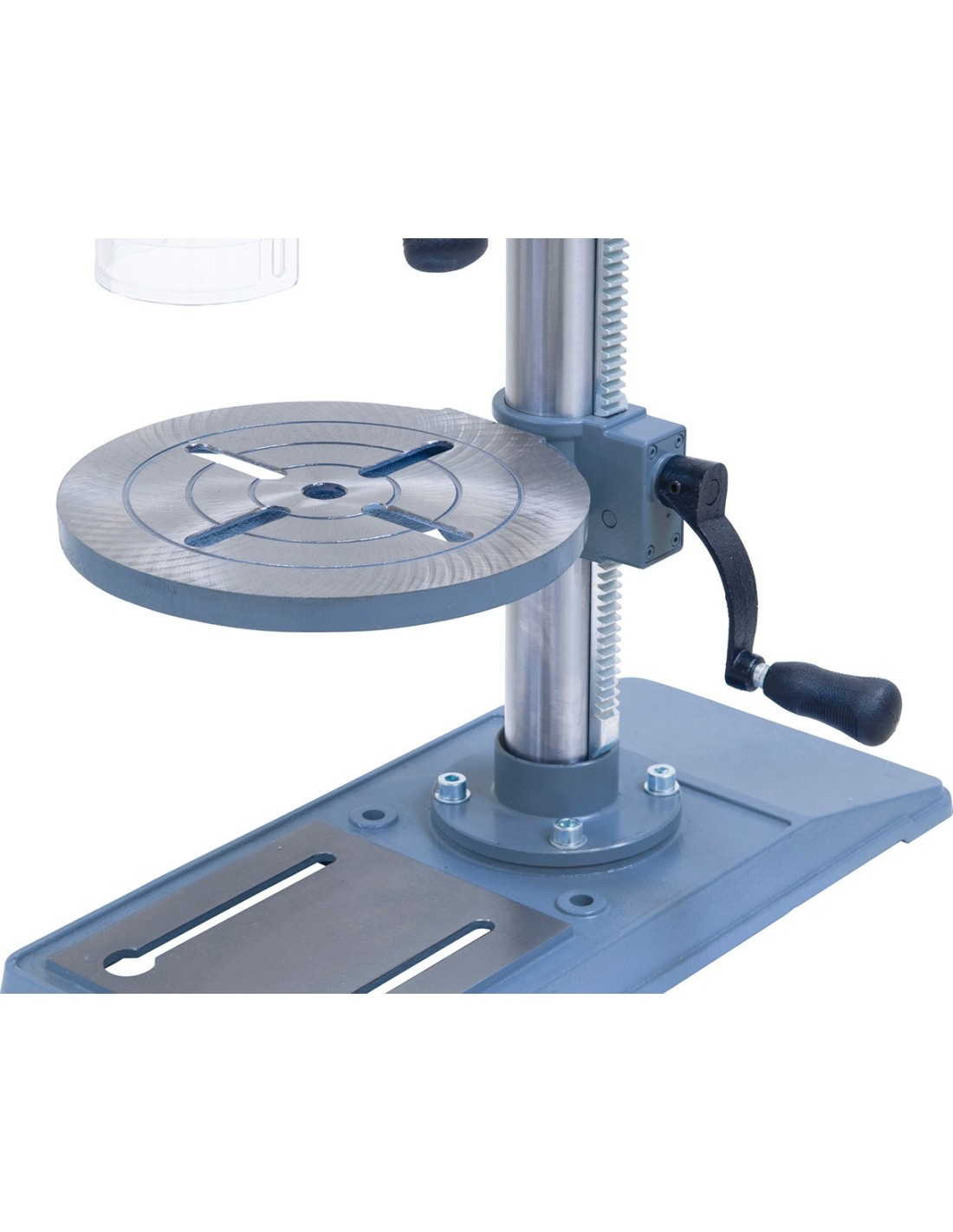

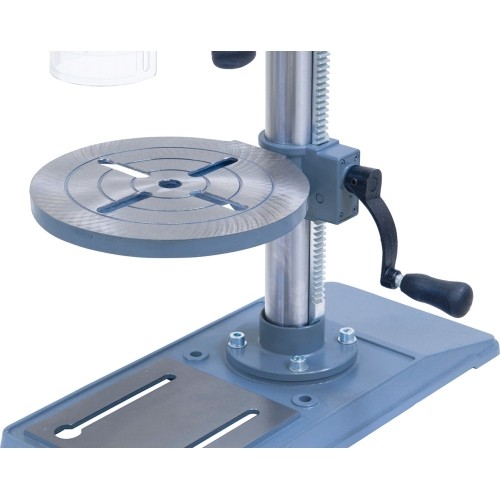

  • Solid, smooth steel column comes with gear rack for table height adjustment

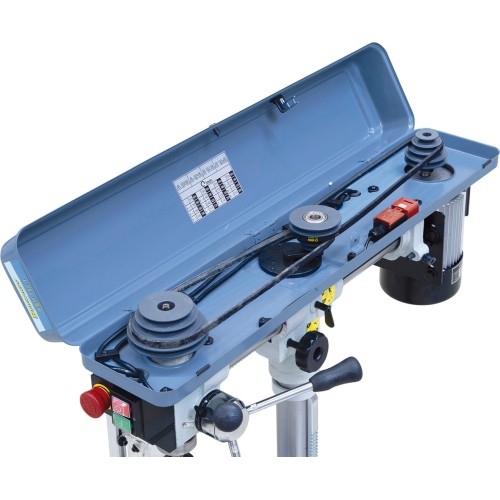

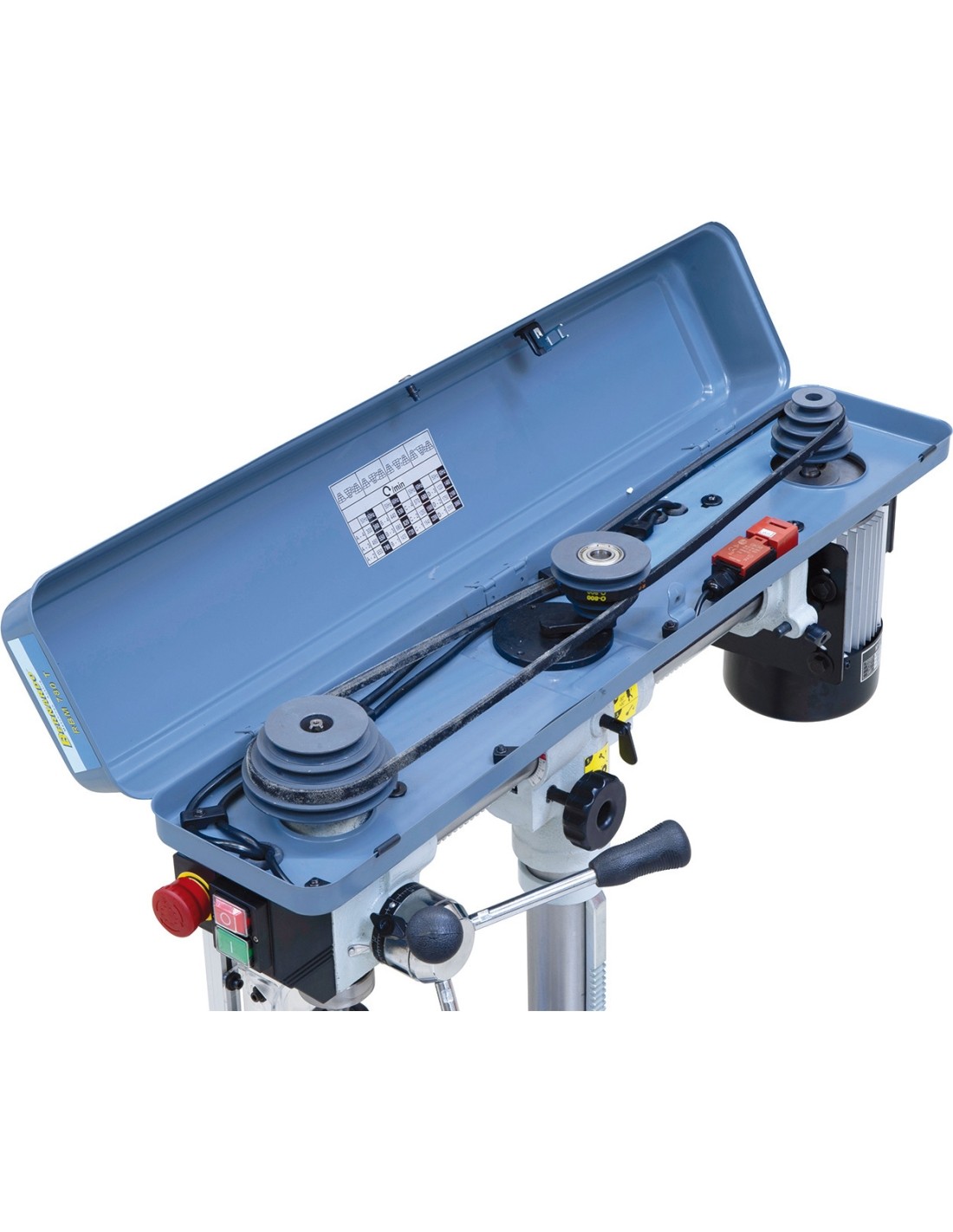

  • Grey cast-iron pulleys ensure smooth operation
  • Ergonomically positioned handles allow for high operating comfort
  • High-quality ball bearings ensure high spindle concentricity

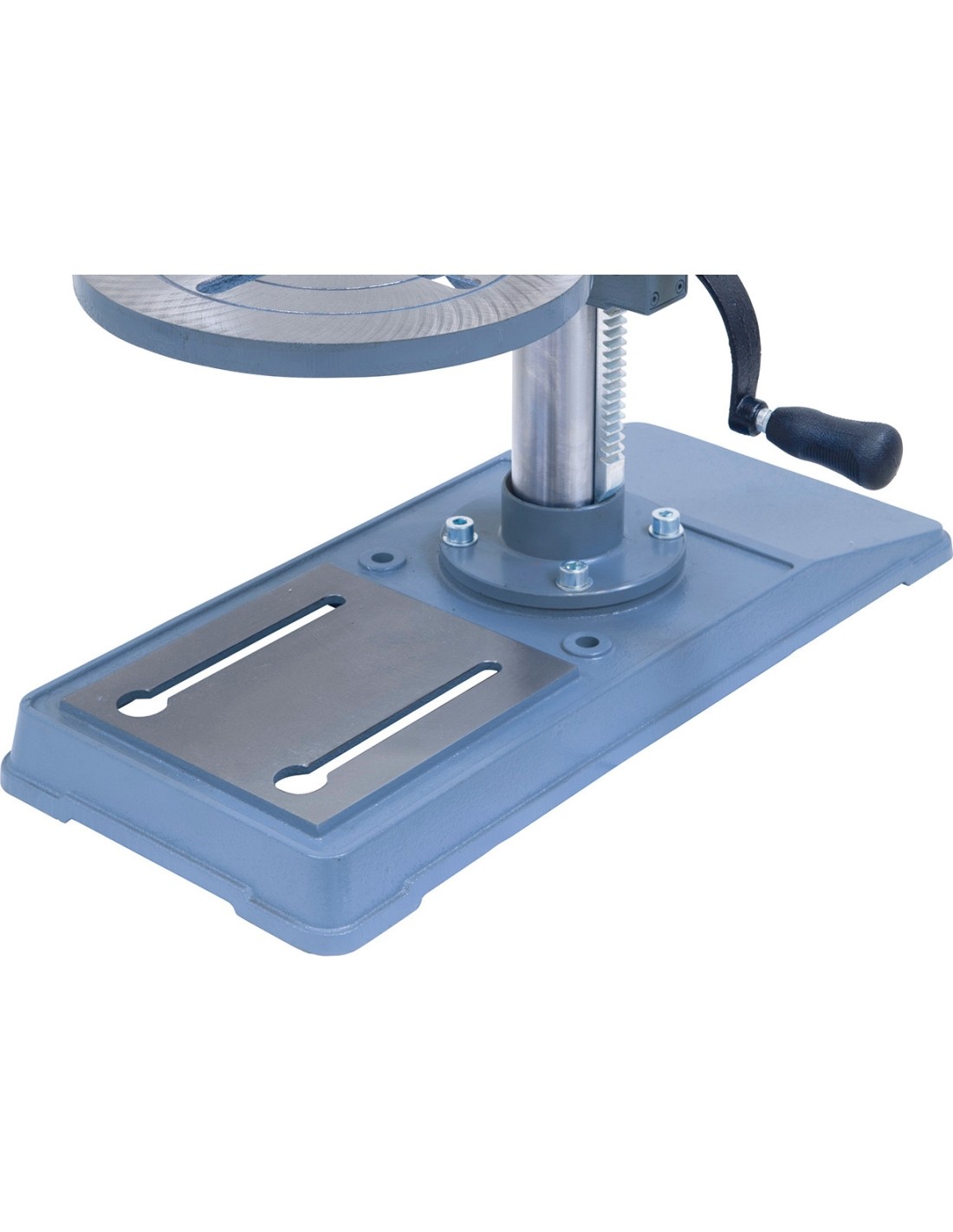

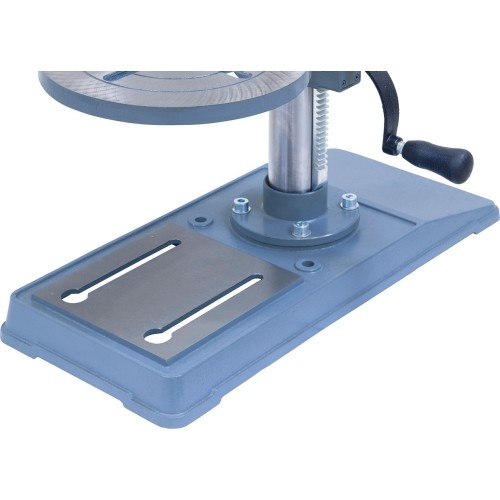

  • Large machine base increases stability

Standard accessories

  • Keyless drill chuck 1 - 16 mm / B 16
  • Drill chuck arbor MT 2 / B 16
  • T-slot nuts

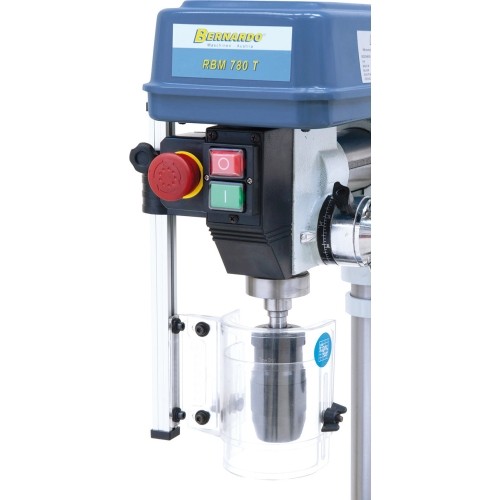

  • Height adjustable protective cover
  • Separate emergency stop switch
  • Tools
