Weight approx.
3200 kg
Motor power
3,0 kW
Machine dimension (W x D x H)
2300 x 1050 x 2720 mm
Spindle stroke
300 mm
Drilling capacity max.
50 mm
Thread cutting max.
M42
Distance spindle to column min./max.
320 - 1400 mm
Vertical movement of the support
565 mm
Travel of drill head (horizontally)
1080 mm
Morse taper
MT 5
Spindle speeds
38 – 275, 275 - 2000 rpm
Feed range
(6) 0,08 – 0,83 mm/rev.
Distance spindle to box table
140 - 710 mm
Distance spindle to base
640 - 1210 mm
Clamping area base
1400 x 900 mm
Box table (L x W x H)
750 x 500 x 500 mm

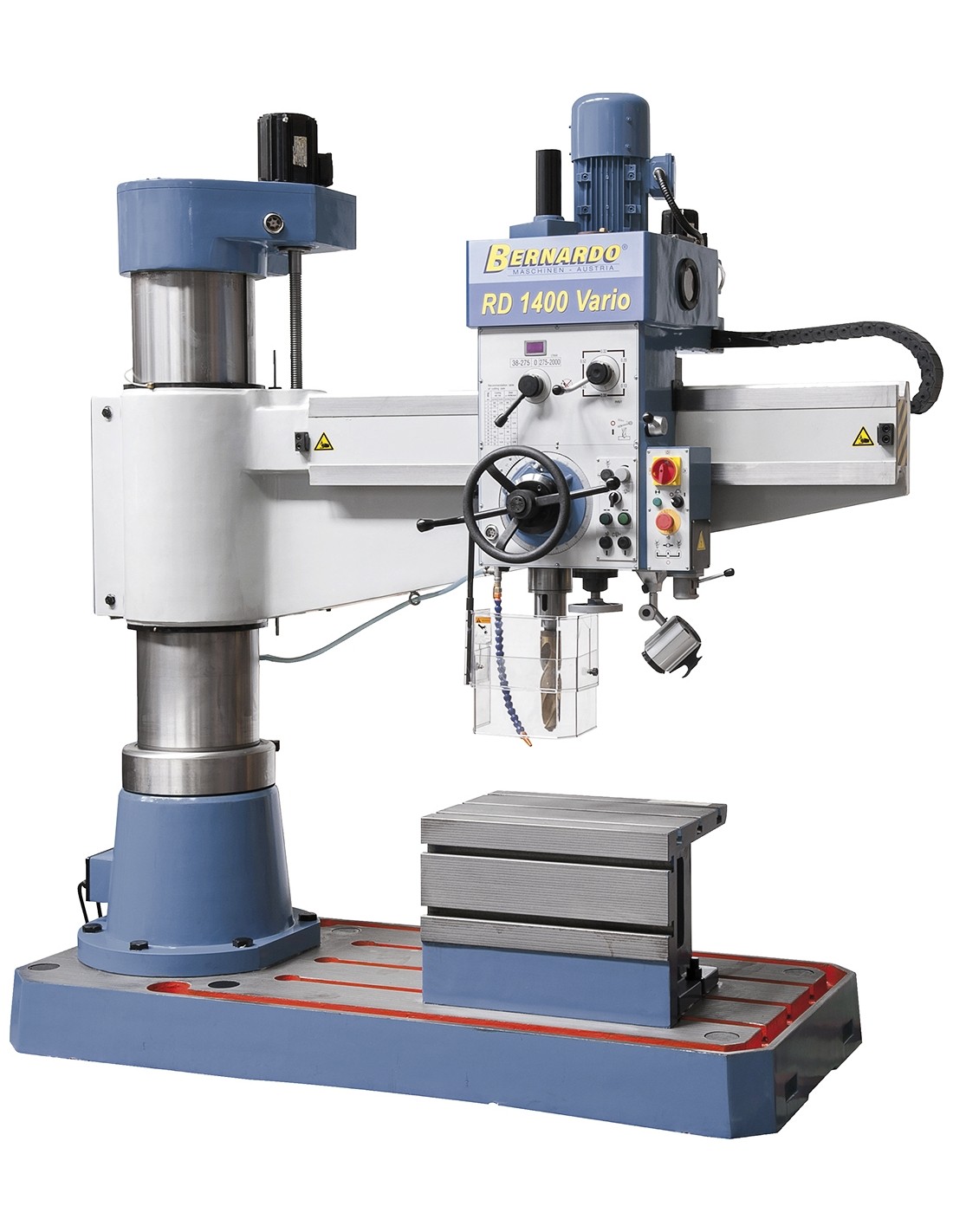

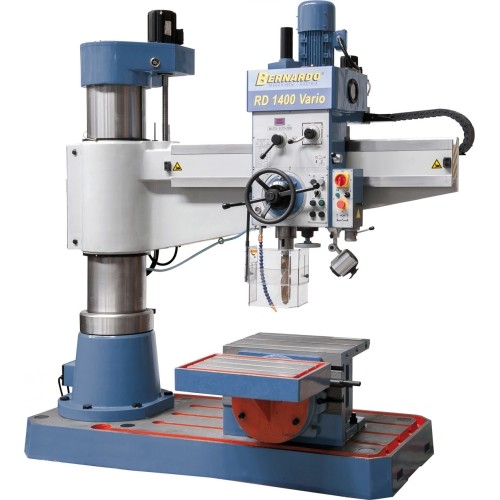

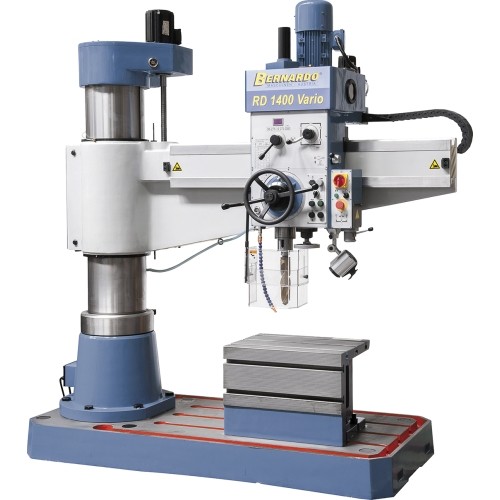

RD 1400 Vario

1356181
€27,324.00
Tax included

Stock Quantity:
In S01 store
not available
In S02 store
not available
In Supplier store
(5+ pcs)
Delivery terms:
NEMOKAMAI atsiimkite thursday, december 5 d., parduotuvėje, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 3200 kg.

Description

Properties

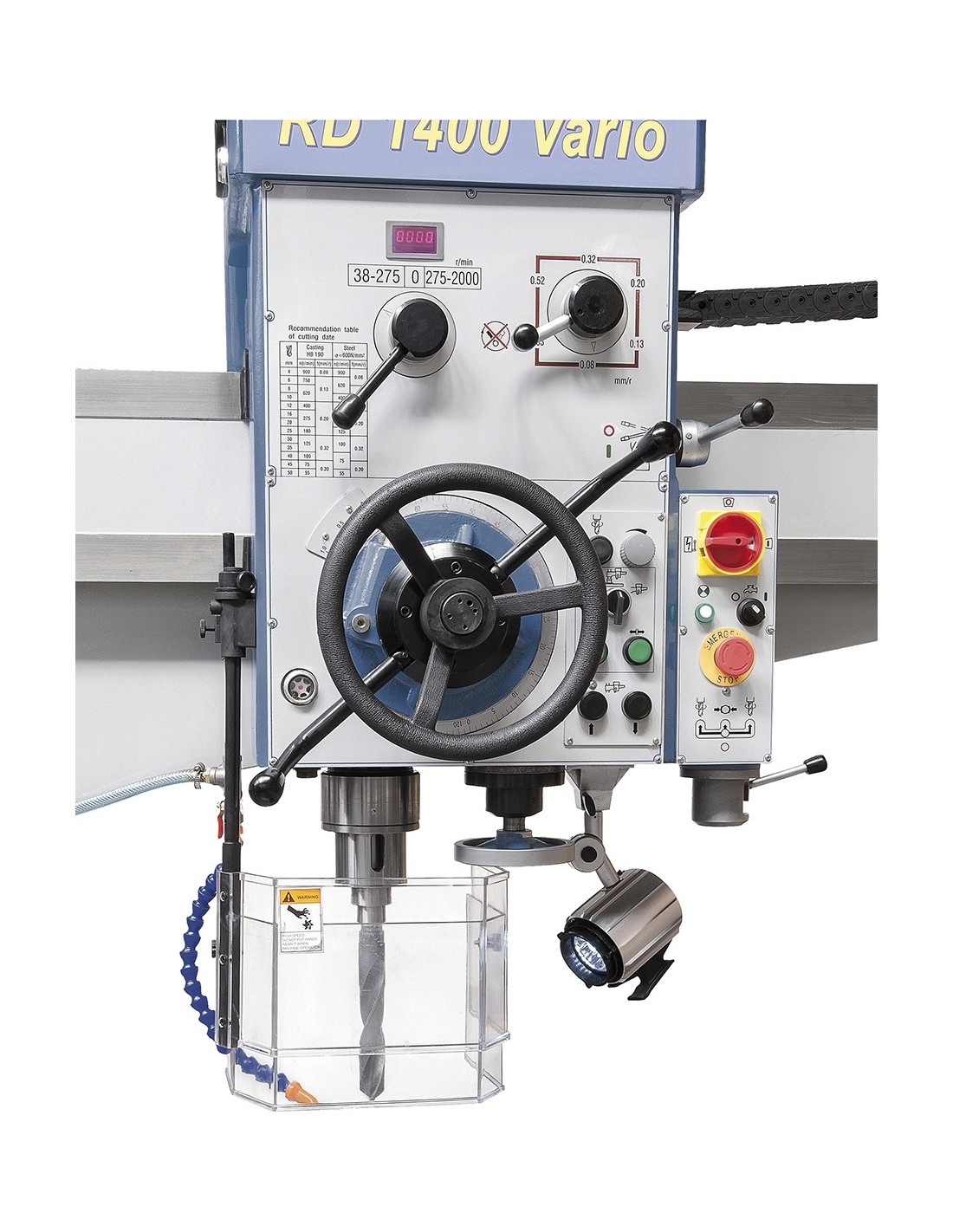

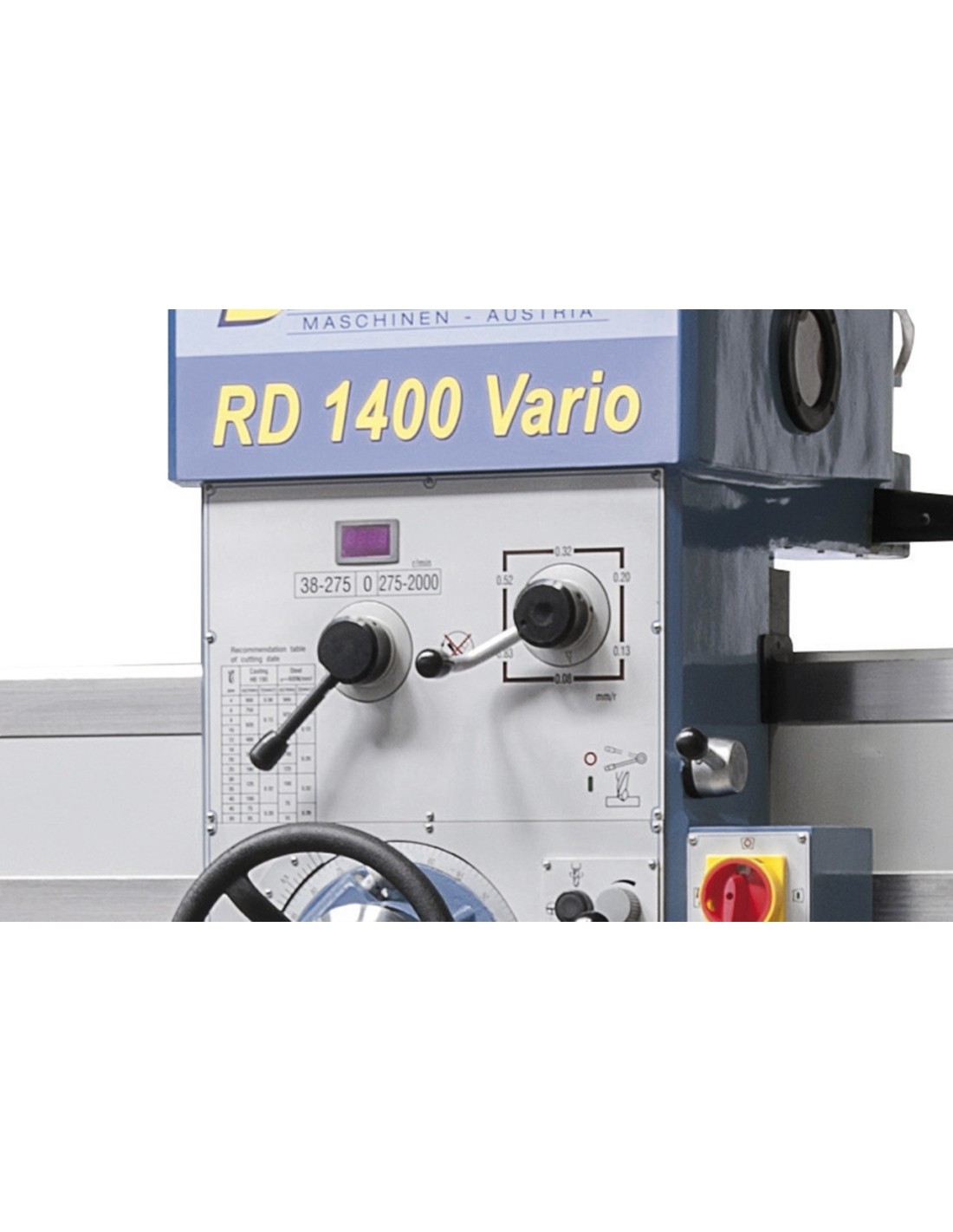

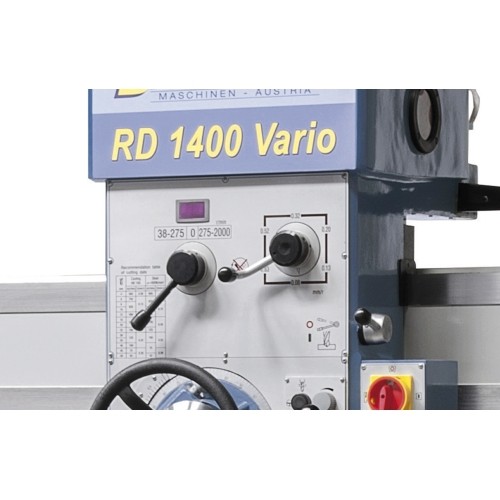

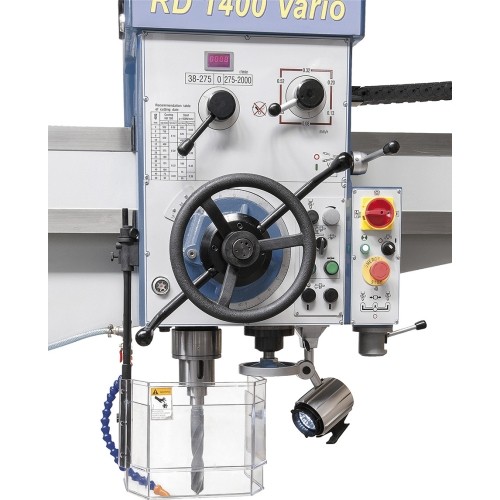

  • Complete with stepless speed, set speed is visible on digital display
  • Spindle features high concentricity and automatic spindle brake
  • Radial arm, drill head and column each with hydraulic clamp
  • Large base plate, ideal for processing of oversize workpieces
  • Torsion-free, polished column increases sliding capacity of radial arm
  • Lifting motor ensures easy height adjustment of radial arm keeping the spindle in position – ideal for repetitive operations

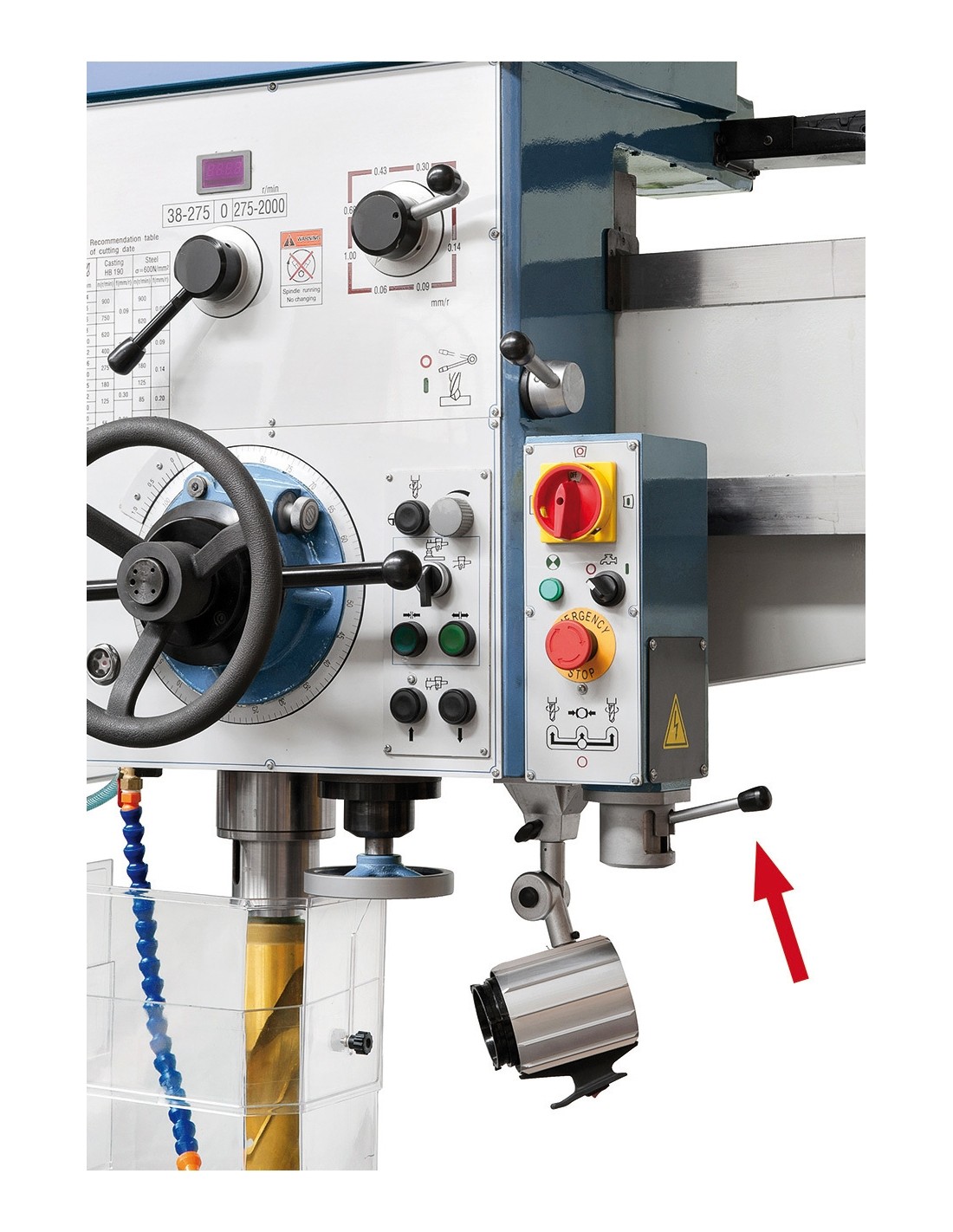

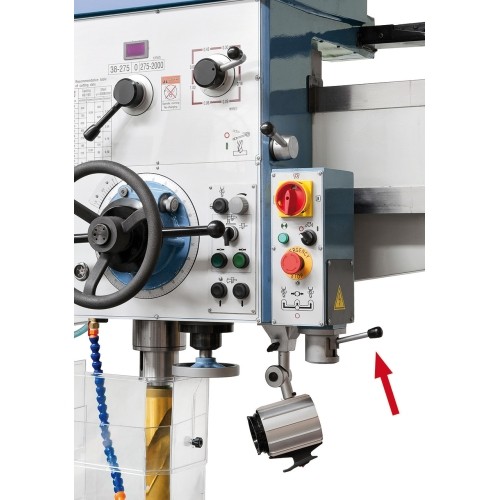

  • Control switch allows for individual clamping or unclamping of drill head and/or column
  • Guiderails on radial arm are hardened and polished
  • Counter weight on spindle to ensure optimal balance
  • Ideal for drilling, countersinking, reaming and tapping

Standard accessories

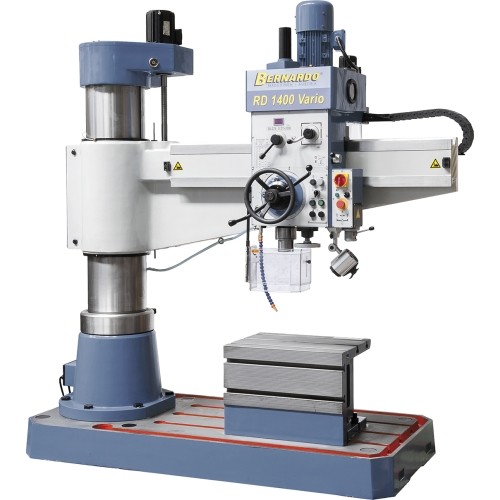

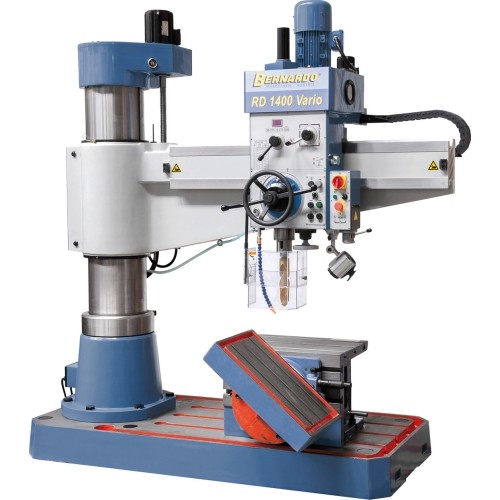

  • Box table
  • Drill chuck arbor MT 5 / B 16
  • Morse taper drill sleeve MT 5/4, MT 4/3, MT 3/2
  • LED machine light
  • Initial filling with Shell Tellus 46
  • Coolant device
  • Frequency inverter
  • Digital readout of speeds

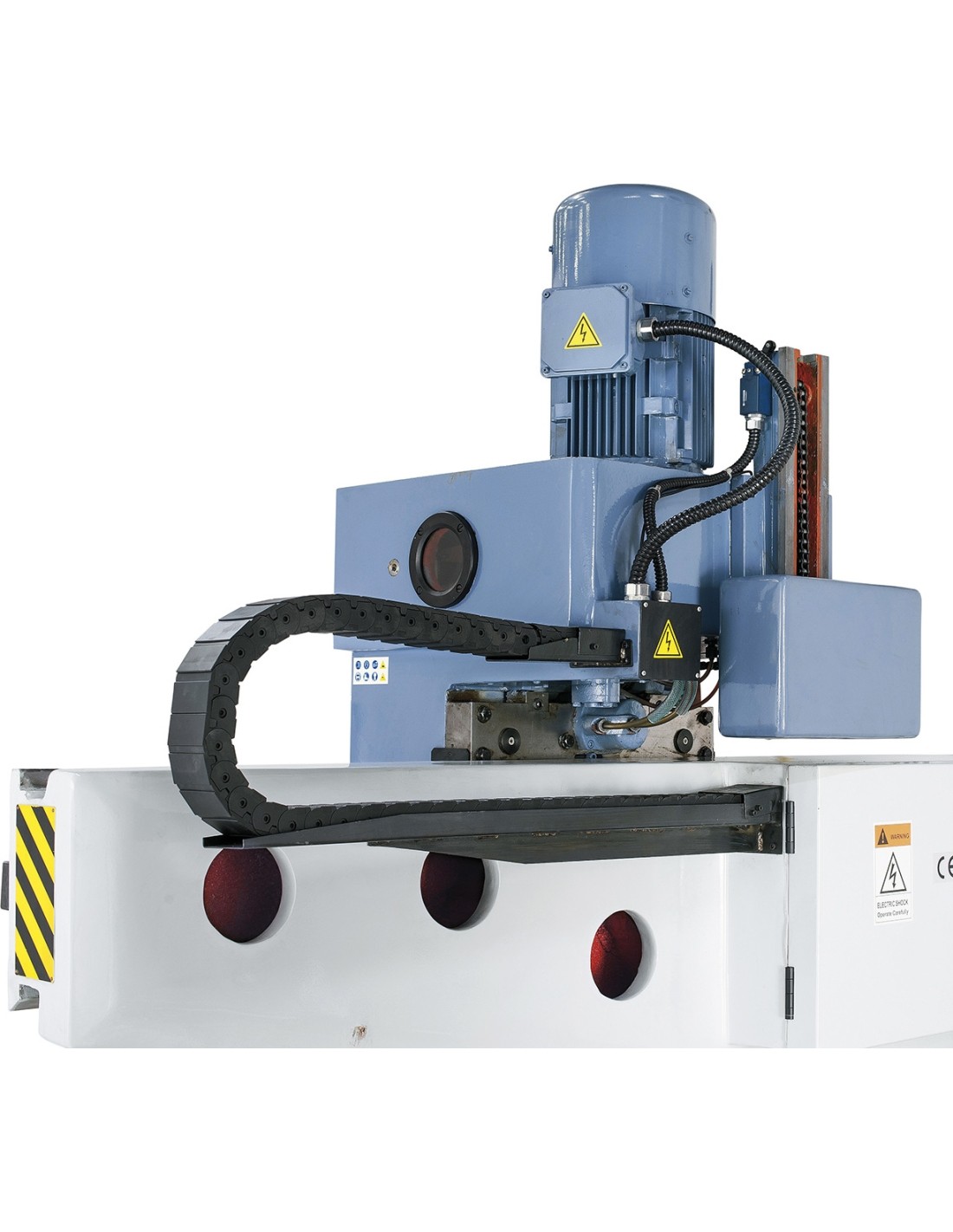

  • Lifting motor
  • Hydraulic motor
  • Height adjustable protective cover
  • Tools
