- Distance between centers
- 550 mm
- Taper of tailstock sleeve
- MT 2
- Travel of tailstock sleeve
- 70 mm
- Weight approx.
- 120 kg
- Center height
- 125 mm
- Swing over bed
- 250 mm
- Spindle bore
- 26 mm
- Speed Range
- (6) 125 - 2000 rpm
- Longitudinal feed
- (6) 0,06 - 0,32 mm/rev
- Cross feed
- (4) 0,03 - 0,075 mm/r
- Metric thread
- (18) 0,2 - 3,5 mm
- Inch thread
- (21) 8 - 56 threads/1"
- Motor power output S1 100%
- 0,75 kW / 230 V
- Motor power input S6 40%
- 1,0 kW / 230 V
- Taper at spindle bore
- MT 4
- Bed width
- 135 mm
- Machine dimensions (W x D x H)
- 1210 x 610 x 450 mm

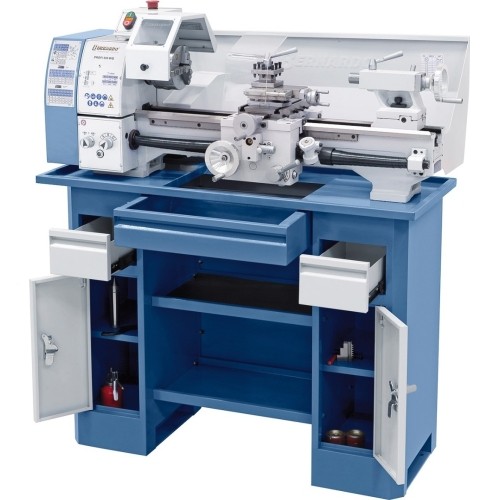

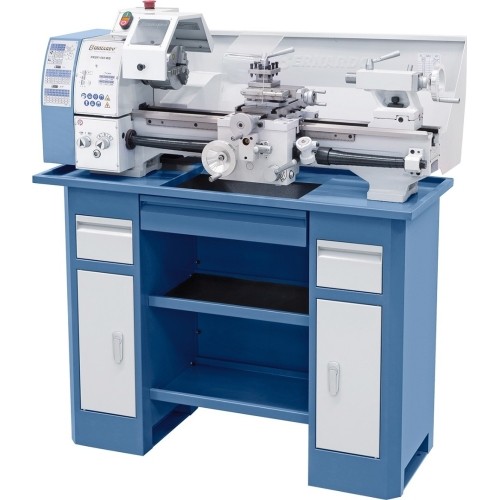

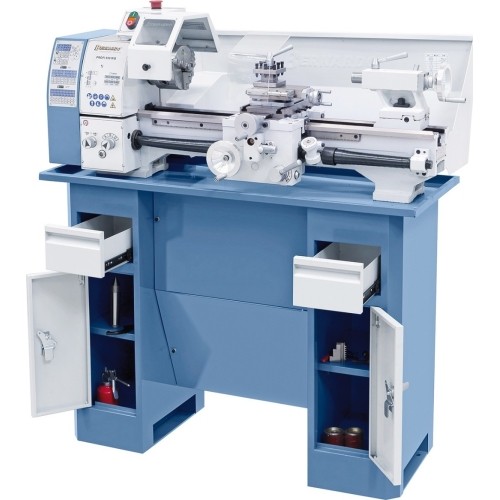

Tekinimo staklės Bernardo Profi 550 WQ - 230V
1052647
€2,571.00
Tax included
Monthly payment from 70.45€
Stock Quantity:
In S01 store
not available
In S02 store
not available
In Supplier store
(5+ pcs)
Delivery terms:
NEMOKAMAI atsiimkite monday, january 6 d., parduotuvėje, Raudondvario pl. 141, Kaunas
(€0.00) Weight: 120 kg.
Prekę pristatysime Jums per: 5-11 d.d. Venipak
(€40.99) Weight: 120 kg.
Description
Properties
- Comes complete with lead screw for thread cutting and automatic longitudinal feed
- Solid machine bed with inductively hardened and polished guides
- High-quality tapered rollerbearings ensure high concentricity of spindle nose (≤ 0,009 mm)
- Temperature monitoring incl. warning light protect motor against overload

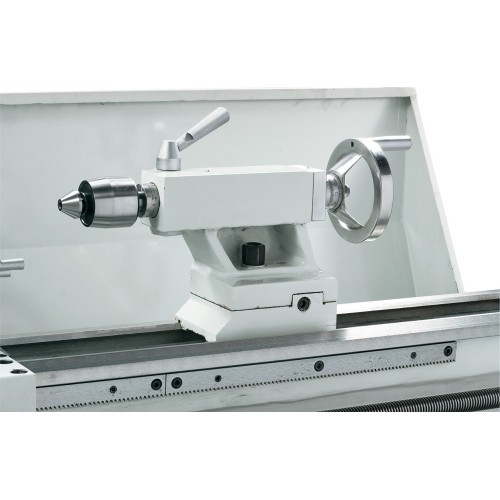

- Tailstock can be adjusted for taper turning

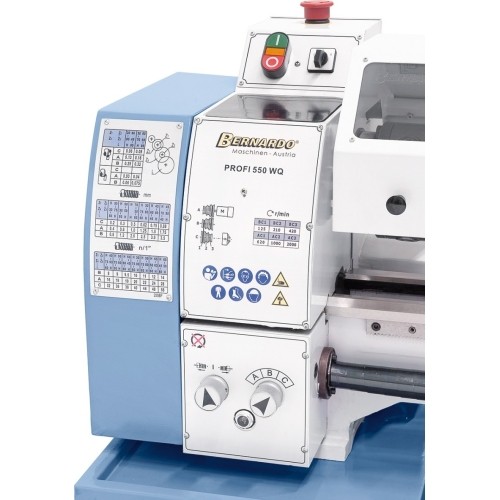

- User-friendly arrangement of control elements
- Guides adjustable via gibs
- Spindle features 2 adjustable tapered roller bearings (P5-quality)
- Longitudinal and cross feed come standard
- Protective switch with undervoltage release
Standard accessories
- 3-jaw chuck DK11-125 mm
- Flange 125 mm

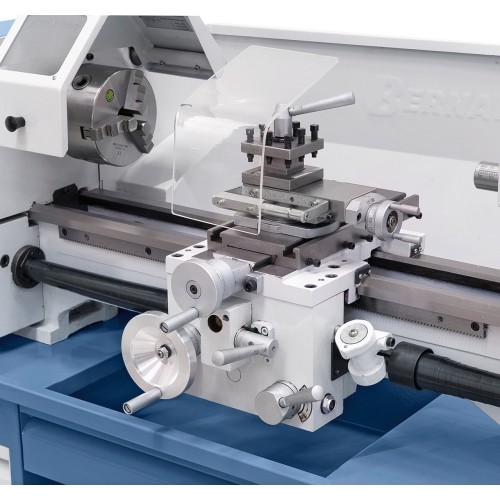

- Cross slide with top support
- Dead centers
- Thread dial

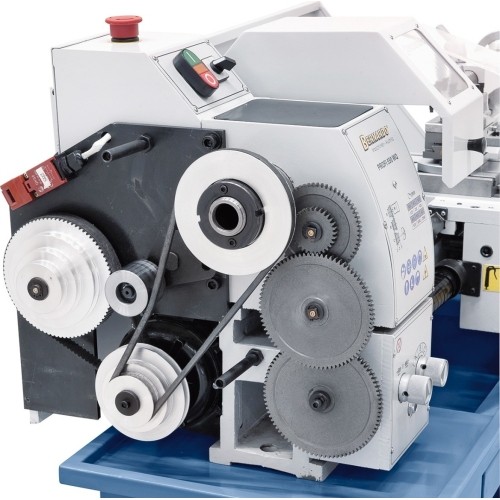

- Change gears
- 4-way tool post holder
- Chuck guard
- Chip guard
- Leadscrew cover
- Tools
