Precizinės tekinimo staklės Bernardo Profi 400 G
Precizinės tekinimo staklės Bernardo Profi 400 G
Precizinės tekinimo staklės Bernardo Profi 400 G
Precizinės tekinimo staklės Bernardo Profi 400 G
  • Online only
Precizinės tekinimo staklės Bernardo Profi 400 G
Precizinės tekinimo staklės Bernardo Profi 400 G
Precizinės tekinimo staklės Bernardo Profi 400 G
Precizinės tekinimo staklės Bernardo Profi 400 G

Distance between centers
400 mm
Taper of tailstock sleeve
MT 2
Travel of tailstock sleeve
55 mm
Weight approx.
60 kg
Center height
105 mm
Swing over bed
210 mm
Spindle bore
21 mm
Longitudinal feed
(3) 0,089 - 0,198 mm/rev.
Metric thread
(15) 0,3 - 3 mm
Inch thread
(12) 10 - 44 threads/1“
Machine dimension (W x D x H)
930 x 400 x 380 mm
Motor power output S1 100%
0,60 kW / 230 V
Motor power input S6 40%
0,80 kW / 230 V
Speed range, stepless
50 - 1250 / 100 - 2500 rpm
Taper of spindle bore
MT 3

Precizinės tekinimo staklės Bernardo Profi 400 G

1052562
Price €2,258.00 VAT incl.

Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Supplier store
(10 pcs)
Delivery terms:
FREE pick up wednesday, july 15 d., in the store, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 60 kg.
We will deliver the product to you via: 5-11 w.d. Venipak (€40.99)
Weight: 60 kg.

Description

Properties

  • Comes complete with 2 gear settings and electronic stepless speed adjustment
  • Strongly reinforced machine bed featuring induction-hardened, polished guide
  • Ideal for processing of steel, non-ferrous metals and plastics
  • Universal in use: longitudinal turning, facing, profiling, thread cutting etc.

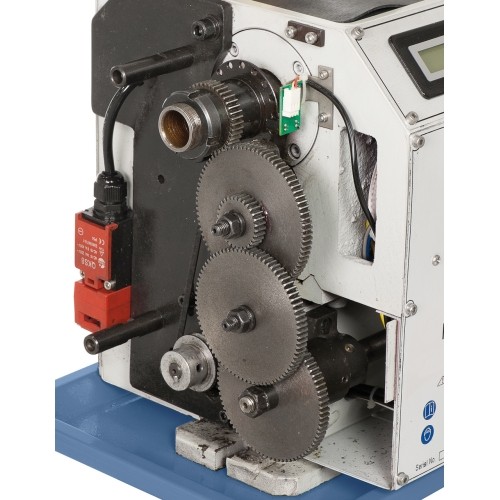

  • Change gears for cutting of metric threads are part of the standard accessories
  • Main spindle features adjustable tapered roller bearings in P5 quality

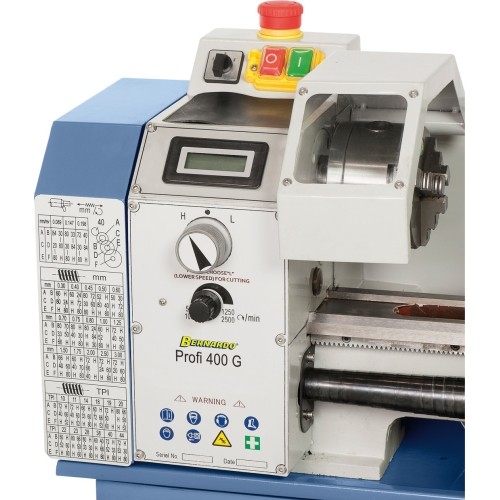

  • User-friendly arrangement of control elements on gear head

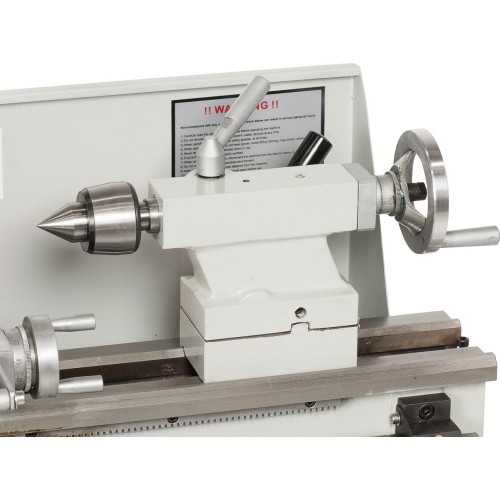

  • Tailstock features single-lever clamping, adjustable for taper turning
  • V-ledges allow for adjustment of bed way guides

Standard accessories

  • 3-jaw chuck DK 11-100 mm
  • 4-way tool post holder
  • Dead centers
  • Change gears
  • Chuck guard
  • Splash guard
  • Chip tray
  • Digital speed indication
  • Tools
